Fully Stainless Steel 3lb 4lb Automatic Lyophilization 10kg Food Freeze Dryer for Make Milk Powder
- Category: >>>
- Supplier: Henan IE Industry Co. Ltd.
Share on (1600624268801):
Product Overview
Description
Industrial Lyophilization Machine Vacuum Food Freeze Dryer Liofilizador Drying Price Equipment Machine
Product Description
Different Styles
Different sizes of drying areas have different styles for you to choose
Product Parameters
Model | IE-FDM-2.5 | IE-FDM-5 | IE-FDM-10 | IE-FDM-20 |
Control method | PLC | PLC | PLC | PLC |
Working principle | Quick Freeze Drying | Quick Freeze Drying | Quick Freeze Drying | Quick Freeze Drying |
Box material | SUS304 | SUS304 | SUS304 | SUS304 |
Freeze-dried area | 2.5㎡ | 5㎡ | 10㎡ | 20㎡ |
Loading weight | 25kg | 50kg | 100kg | 200kg |
Number of trays | 8trays | 14trays | 13trays | 11+11=22trays |
Tray type | Tray/Mesh tray | Tray/Mesh tray | Tray/Mesh tray | Tray/Mesh tray |
Number of separators | 5 | 8 | 14 | 12 |
Separator temperature | -55℃-120℃ | -55℃-120℃ | -55℃-120℃ | -55℃-120℃ |
Separator medium | Low temperature silicone oil | Low temperature silicone oil | Low temperature silicone oil | Low temperature silicone oil |
Separator material | 6063 Aluminum alloy | 6063 Aluminum alloy | 6063 Aluminum alloy | 6063 Aluminum alloy |
Water catch per 12 hours | 25kg | 50kg | 100kg | 200kg |
Working vacuum degree | ≤130pa | ≤130pa | ≤130pa | 20pa-133pa |
Ultimate vacuum degree | ≤10pa | ≤10pa | ≤10pa | ≤10pa |
Defrost method | hot water spray | hot water spray | hot water spray | hot water spray |
Voltage | 380V/50HZ Three phase | 380V/50HZ Three phase | 380V/50HZ Three phase | 380V/50HZ Three phase |
Power | 15KW | 13KW | 28KW | 40KW |
Equipment size | 2100*1650*2550mm | 3000*1800*2550mm | 4500*2000*1700mm | 5250*2050*2570mm |
Insulation material | Aluminum Silicate | Aluminum Silicate | Aluminum Silicate | Aluminum Silicate |
refrigerant | 507 | 507 | 507 | 507 |
Details & Advantages

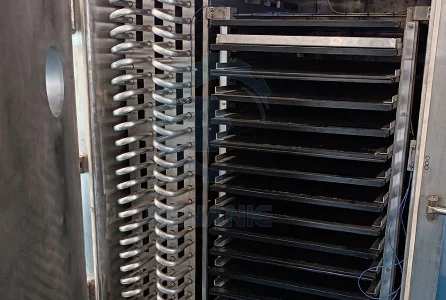

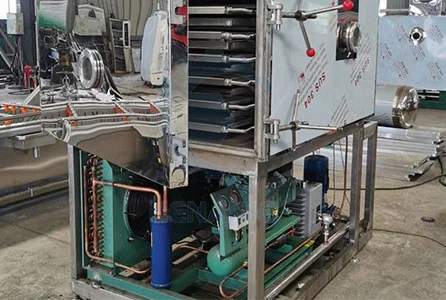

Drying bin
The silo body, layers, hoses, etc. are all inspected by multiple processes
Water catcher
Made of stainless steel, a variety of water catcher structures are available, and the layout is flexible.
Intelligent control box
Intelligent control, labor-free time-saving and labor-saving

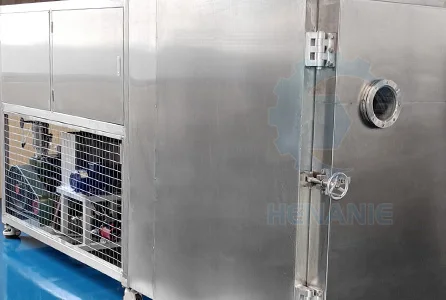

Stainless steel
Not easy to rust, durable and easy to clean.

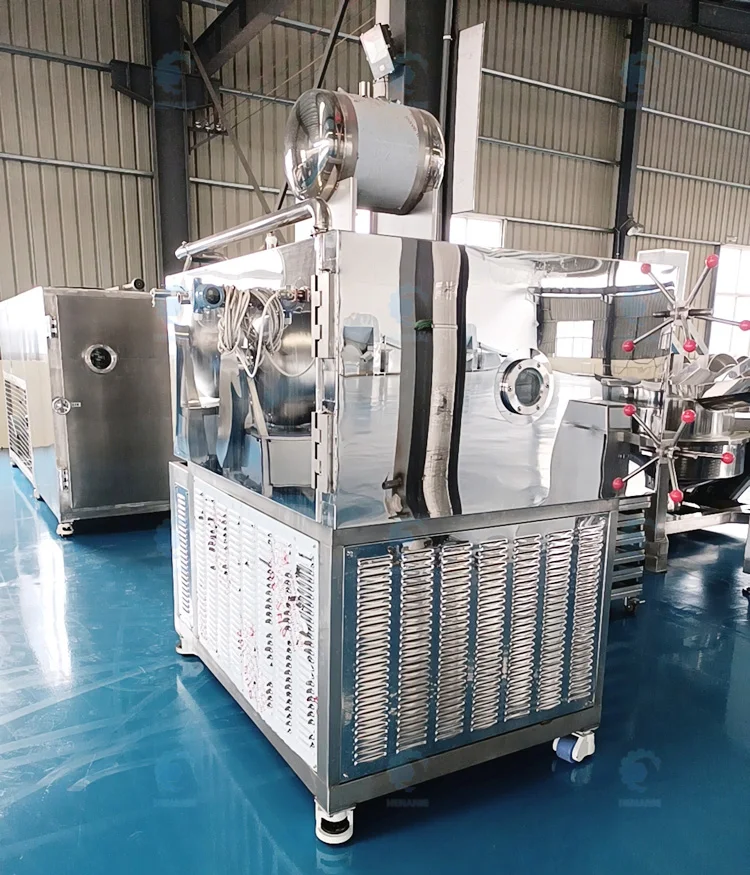

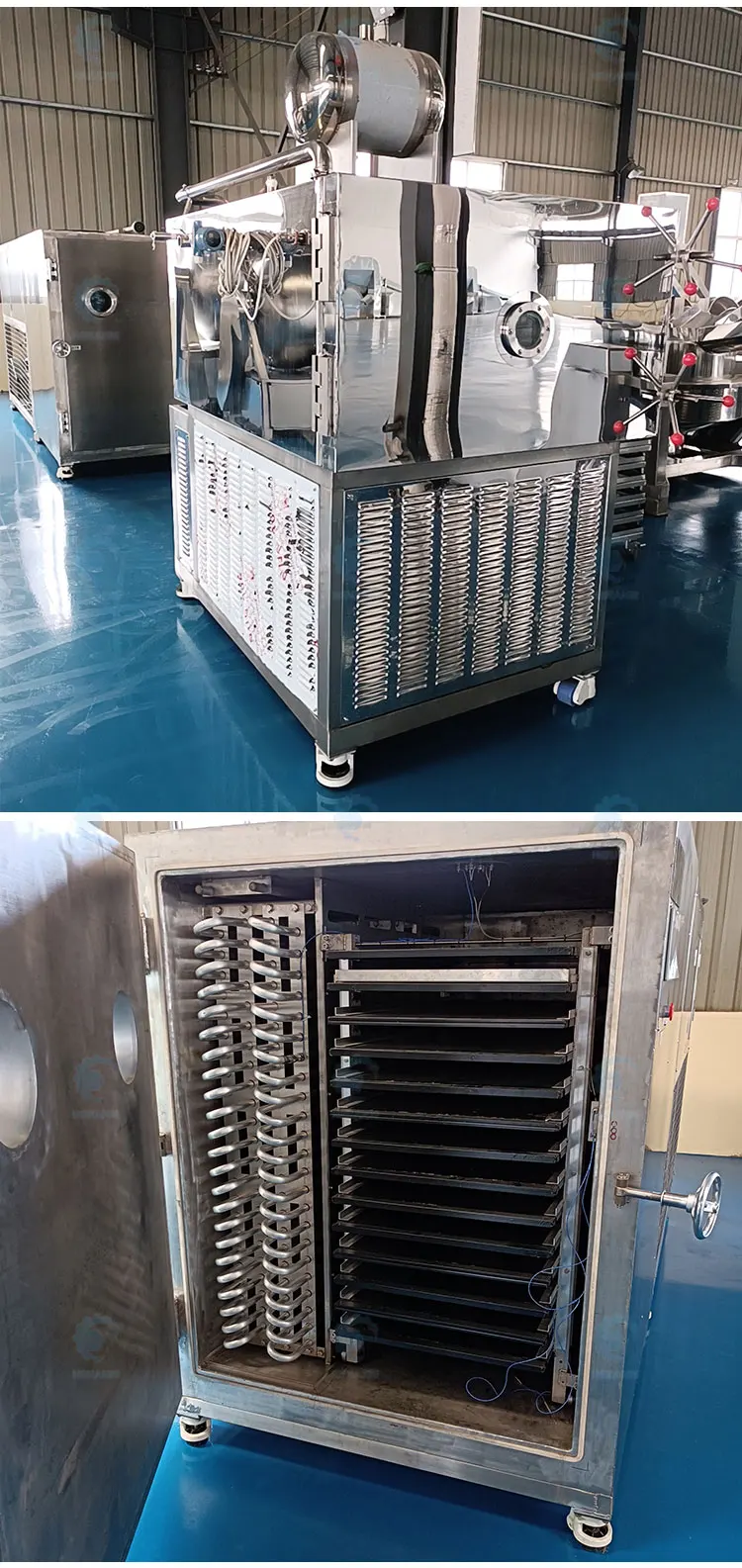

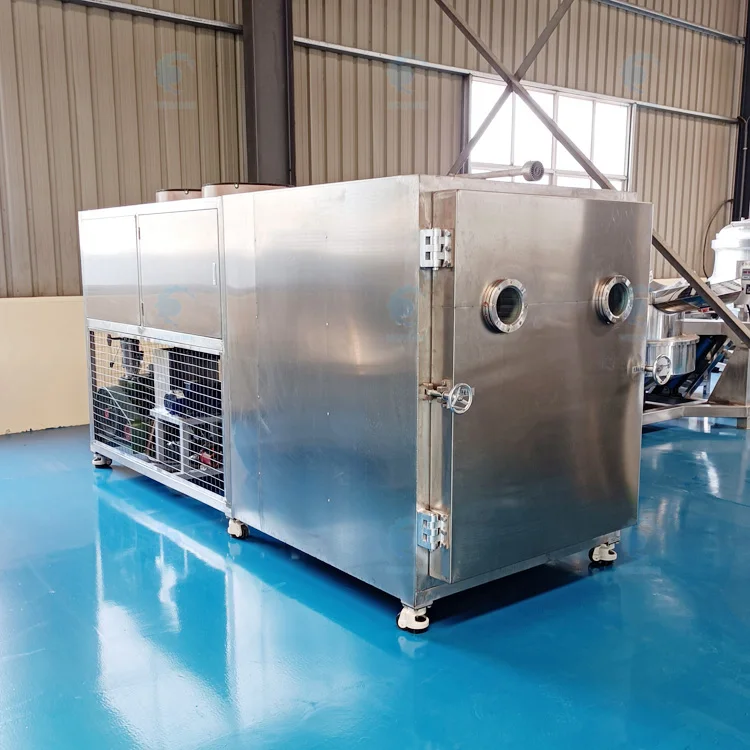

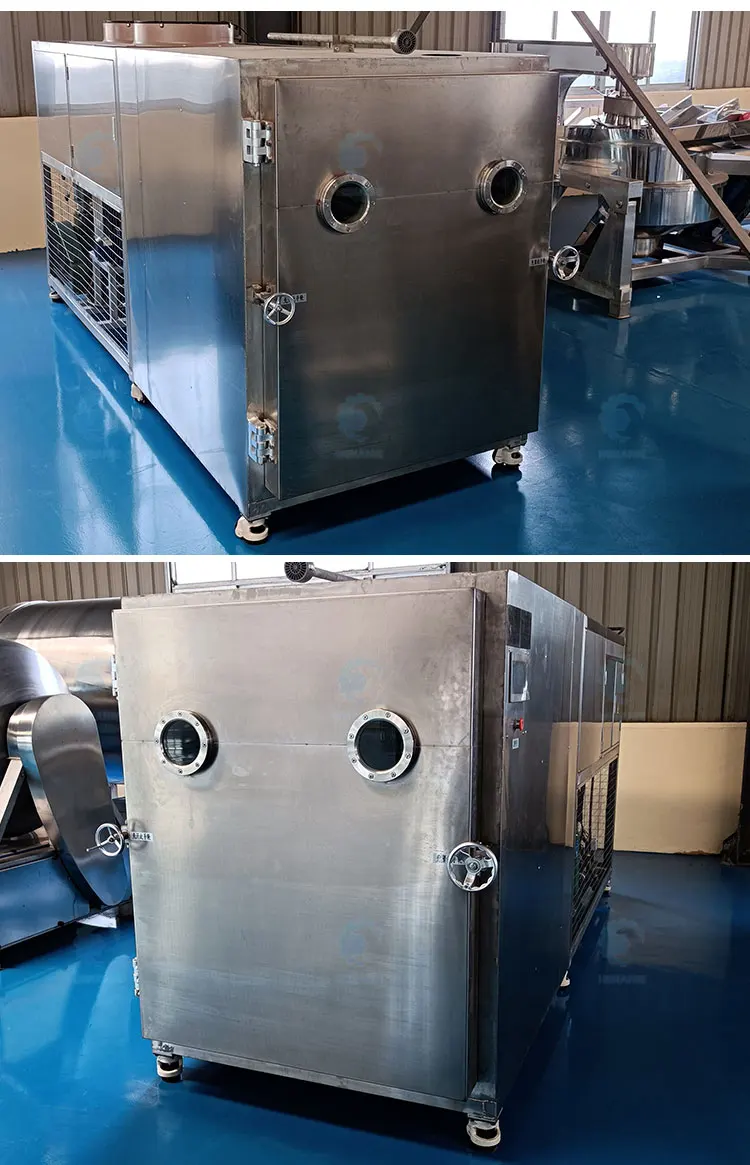

Product Display
◆ Company Profile
Henan IE Industry Co., Ltd. was established in 2015. It is a modern food machinery enterprise integrating the R & D, design, production and sales of all kinds of meat processing machinery,
vegetable processing equipment, snack processing equipment, vacuum frying equipment, baking processing equipment, cereal Products Manufacturing Machinery and packaging machinery and equipment.
The company has a group of excellent food machinery design talents，They are proficient in the advanced technology of the food industry in long-term practice and seek innovation in maturity. While strictly controlling the quality, the key parts of the products are selected from excellent enterprises at home and abroad. Our experience has proved that only by continuously improving product quality can we benefit our customers, and the success of customers is our success.
Your satisfaction is our commitment, perfect after-sales service is our eternal pursuit, cooperation with you is our greatest wish, Henan IE is your best choice.
◆ Business Office
◆ Exhibition Display
◆ Professional Service
1. 24-hour communication service
2. Fast logistics will provide you a smooth delivery service
3. One-year warranty and lifetime technical support
4. New design or product recommendation
5. Attend international Fair to negotiate with customer face to face
6. Offer official invitation if you come to China
7. Reception service,help you to book good hotel
◆ Payment Methods
◆ F A Q
Q1: What's your company after-sales service?
A1: Our machine will be checked three times before shipment to ensure that the machine itself has no problems. If the machine has some problems under incorrect operation: 1. improper operation problem, we will solve all the usage problems by video call. 2. machine parts problem, we will send you accessories to ensure the normal use of the machine. 3.In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company .Q2：Any warranty ？
A2：One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos, To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ？
A3：We have reliable forwarder agent which can ship items to you by sea/air/Express to your home. We will help you choose the most suitable shipping service.
Q4: Does your company provide training？
A4 : Yes, we provide a series of instructional videos and after-sales service videos, supporting Chinese, English, French, Spanish, and Arabic.
Q5: Differences from other brands in China ？
A5 : We are not only selling machines, we pay more attention to after-sales service. We have always believed that the customer's reputation is the best advertisement. We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.

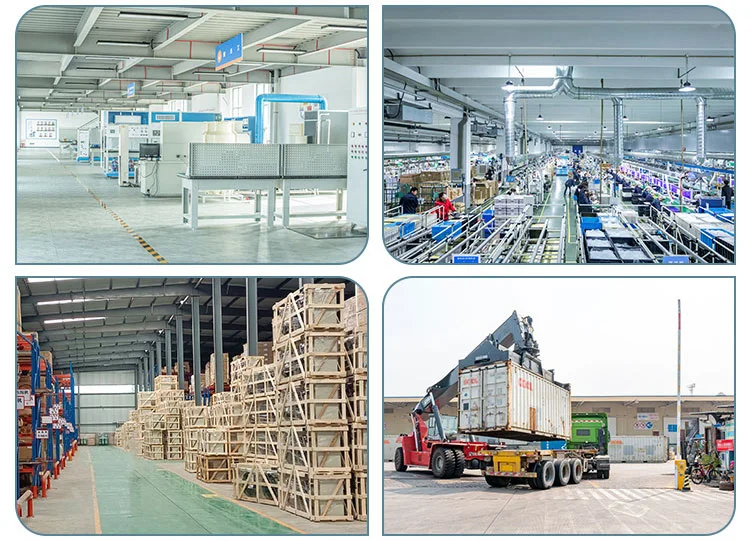

◆ Packing & Shipping
packaging and
shipping services
Delivery Time :
For stock type, we can send within 48hrs after confirming order.
For customized type , delivery date need to be negotiated before taking order.
