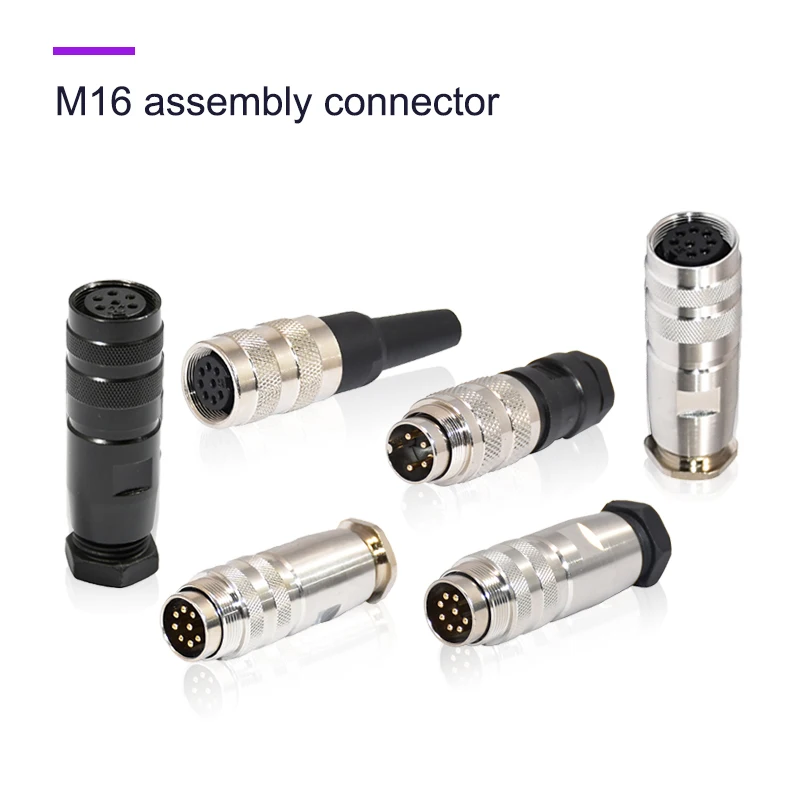

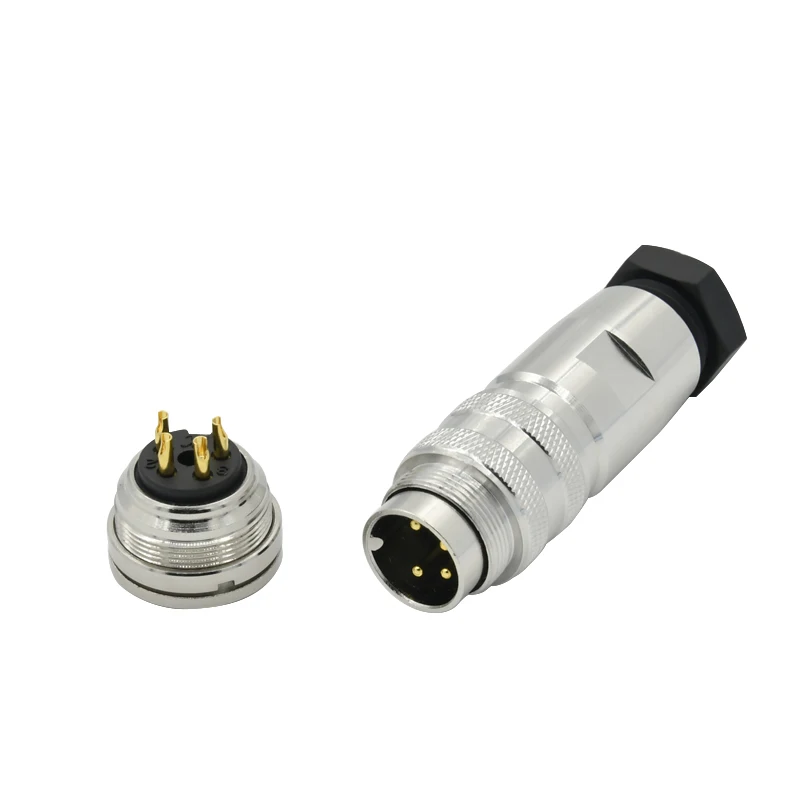

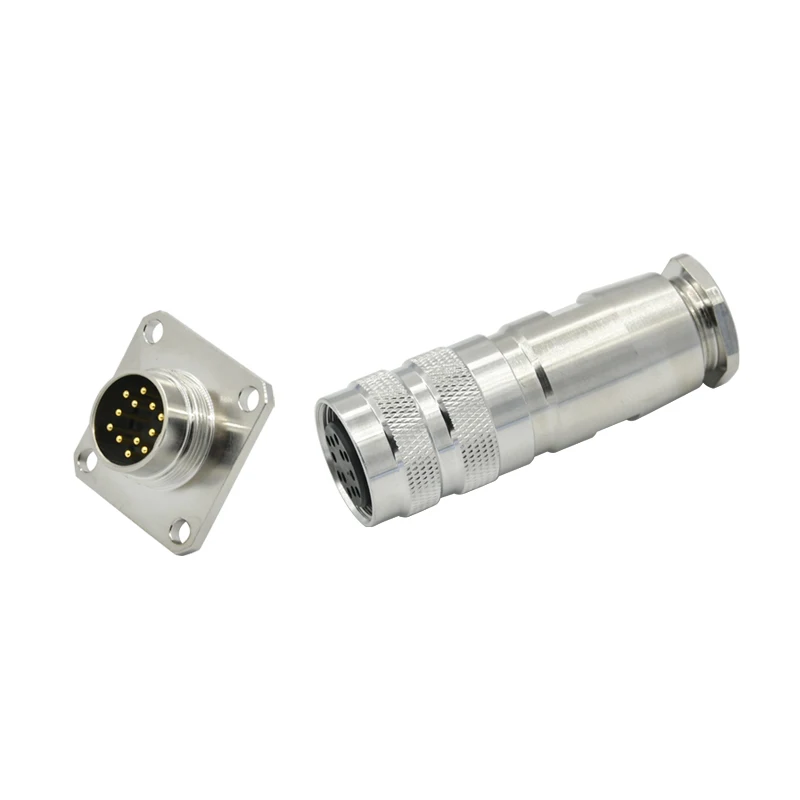

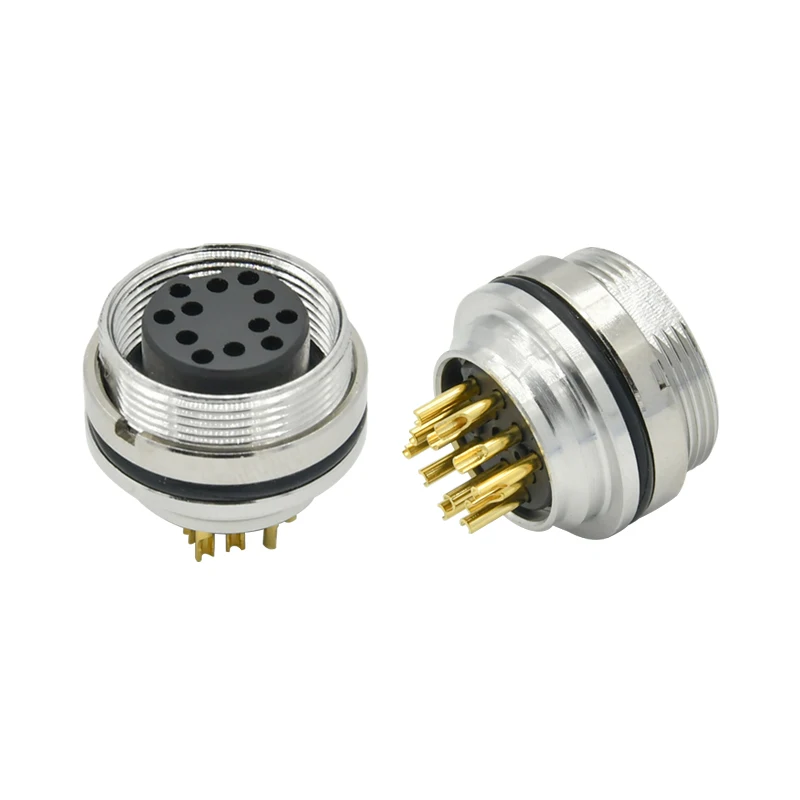

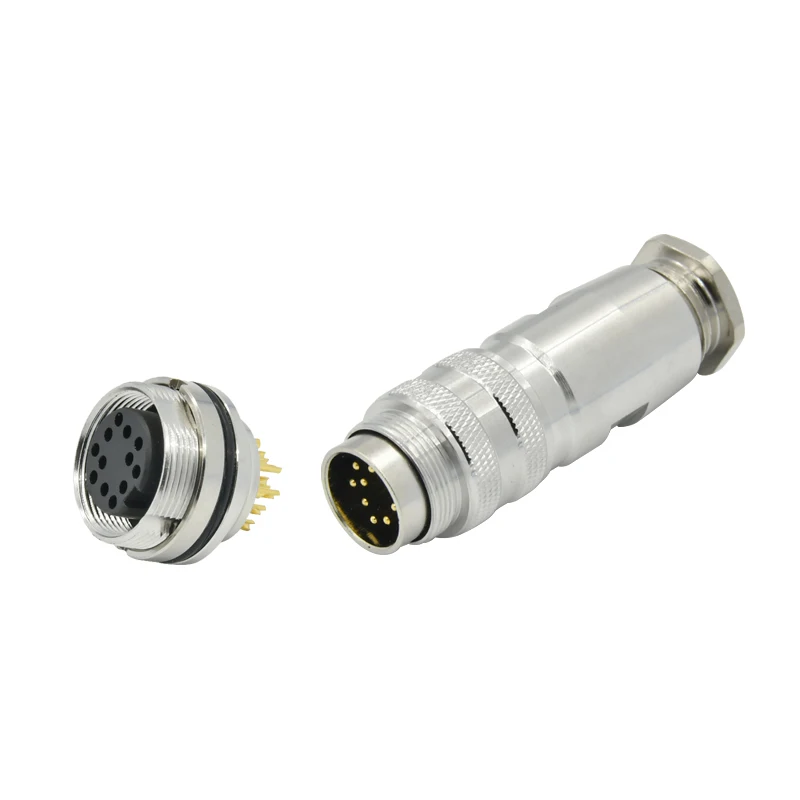

M16 Straight 2 3 4 5 6 7 8 12 14 19 24 Pin Male Female Soldering Metal Plug Automotive Field Assembly Connector
- Category: >>>
- Supplier: Shenzhen Rigoal Connector Co. Ltd.
Share on (1600624321196):
Product Overview
Description
Product Description
Product Features:
* Connector Series: M16* Standard: IEC 61076-2-101
* Coding: A
* Pins: 2 3 4 5 6 7 8 12 14 19 24 Pin
* Gender: Female and Male
* Connector Design: Plug and Panel mount
* Connector Locking System: Fix screw
* Waterproof Rating: IP67/IP68
* Ambient Temperature: -25°C~+85°C
* Contacts: Phosphorus copper with gold plated
* Screw/Nut: Brass with nickel plated
* Screw/Nut: Brass with nickel plated
General Information | ||||||
Model Number | M16-A-P(s) | Product name | M16 waterproof assembly connector | |||
Type | DIN | Code | A/B/D/X/T code | |||
Gender | Male and Female | Contact Resistance | ≤5mΩ | |||
Rated Current | 5A/6A/7A | Rated Voltage | 125/250V | |||
Contact material | Brass with gold plated | Coupling nut | Brass with nickel plated screw | |||
Termination Style | Screw-joint / Solder Type | Certificate | ISO9001/CE/ROHS | |||
Protection level | IP67/IP68 Waterproof | Temperature Range | -20℃~80 ℃ | |||

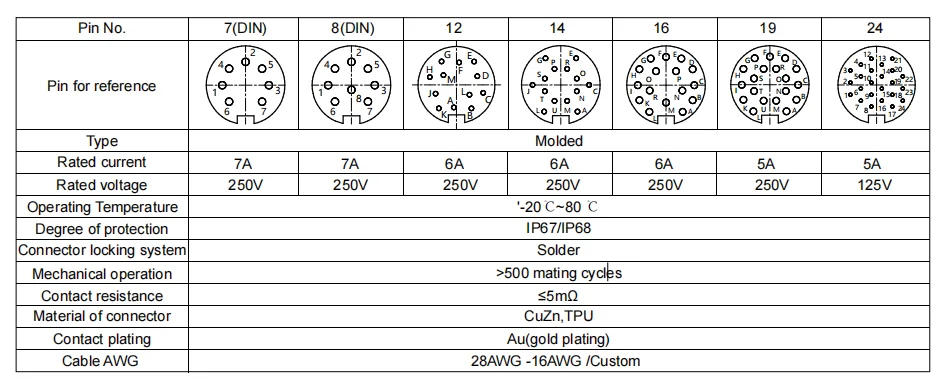

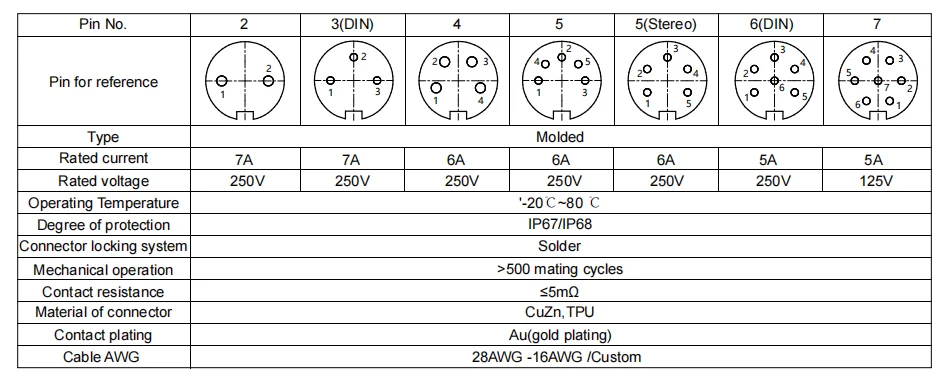

Technical Date
Packing & Delivery
Packaging:
1.Our standard packaging:
1.Our standard packaging:
* About 50pcs put in a plastic box
* Wrap the product with thin film along with the plastic box
* Put all boxes in a small carton,the size of carton is 46*30*30 cm
2.OEM/ODM package is available.
Shipping:
According to customer request, we can choose different convenient shipping way.
* Wrap the product with thin film along with the plastic box
* Put all boxes in a small carton,the size of carton is 46*30*30 cm
2.OEM/ODM package is available.
Shipping:
According to customer request, we can choose different convenient shipping way.
Certifications

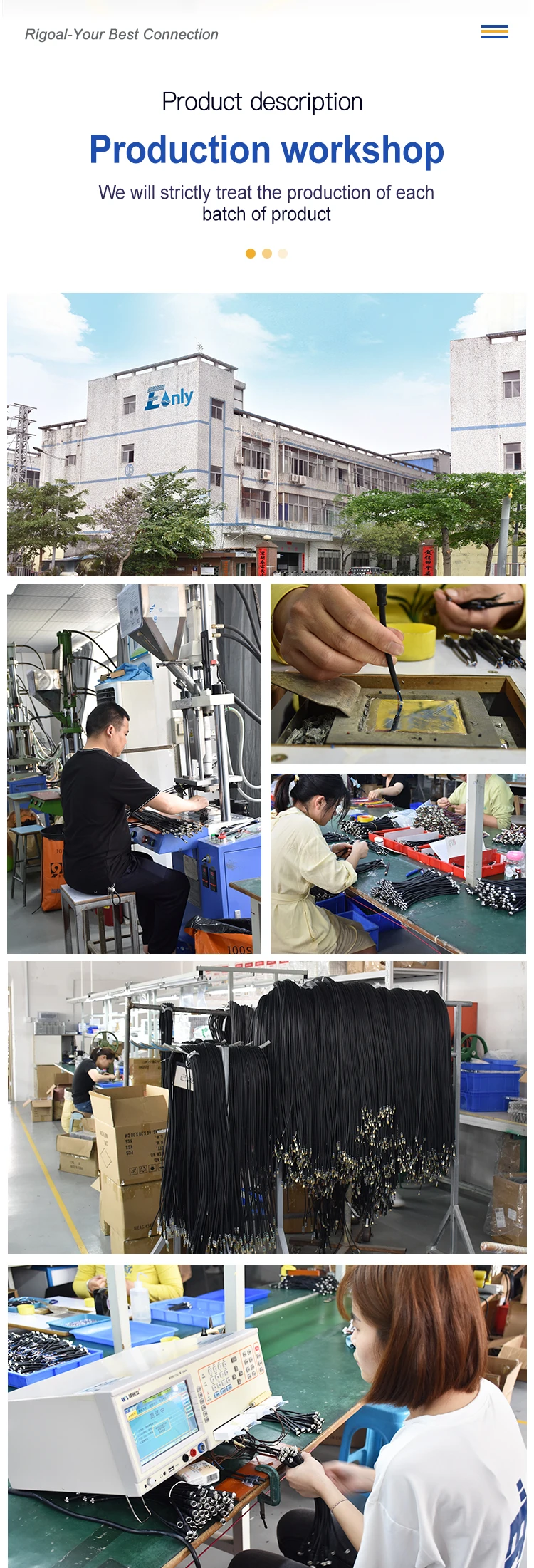

Company Profile
About US
Rigoal was founded in 2013, and devoted ourselves to be the high quality & efficient manufacturer. We specialized in producing waterproof cables & waterproof connectors such as M8, M12, M16, M23, D-SUB. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisements, communication devices,wind energy devices, vessel industrial and Surrounding the car electronics industry and so on , they are equivalent to some world-famous brands.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2014,sell to Western Europe(18.00%),North America(13.00%),Oceania(13.00%),South America(10.00%),Eastern Asia(10.00%),Northern Europe(10.00%),Southern Europe(10.00%),Central America(5.00%),Mid East(3.00%),South Asia(3.00%),Eastern Europe(2.00%),Africa(2.00%),Southeast Asia(00.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Waterproof Connector,Waterproof Connector Cable
4. why should you buy from us not from other suppliers?
Rigoal Connector is mainly design and manufacture M8, M12, M16, M23, D-SUB/USB ect waterproof connector and cable. Mainly applied in sensors, industrial equipment, transportation facilities, medical devices, LED displays, outdoor advertisement etc.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,FCA,CPT,DDP,DDU；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
