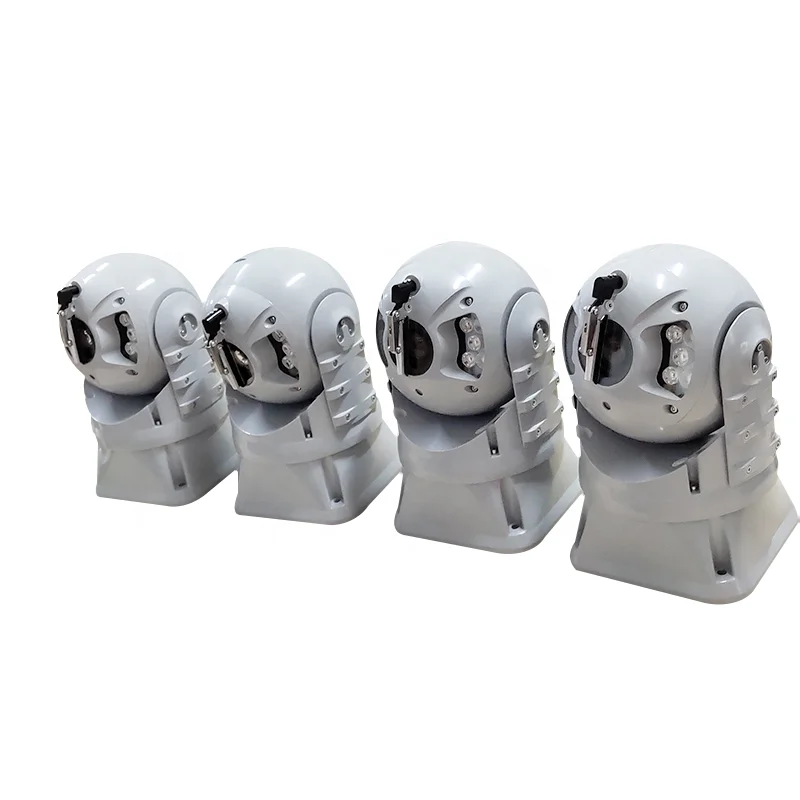

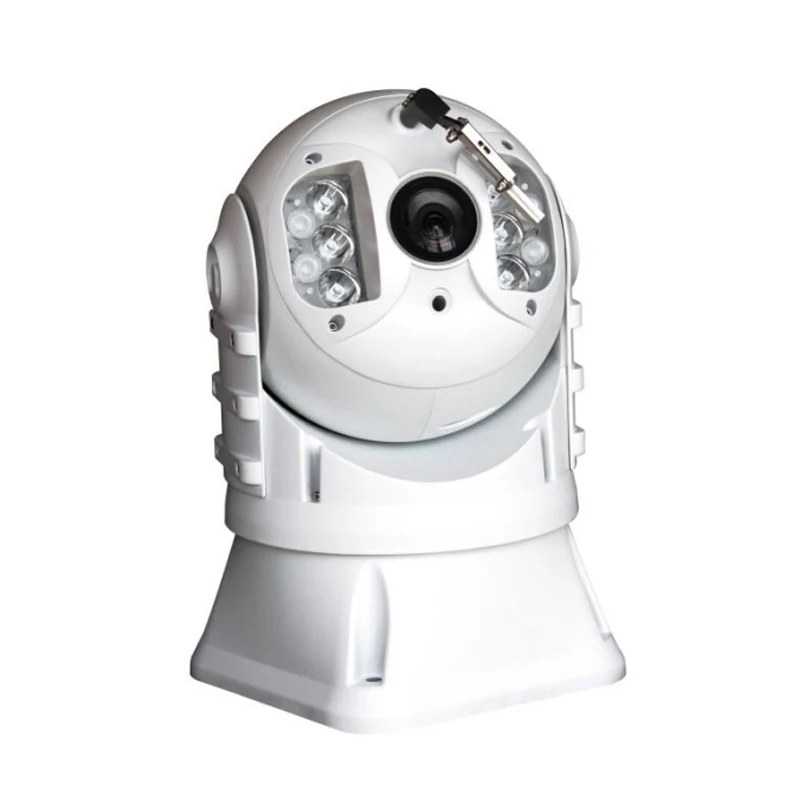

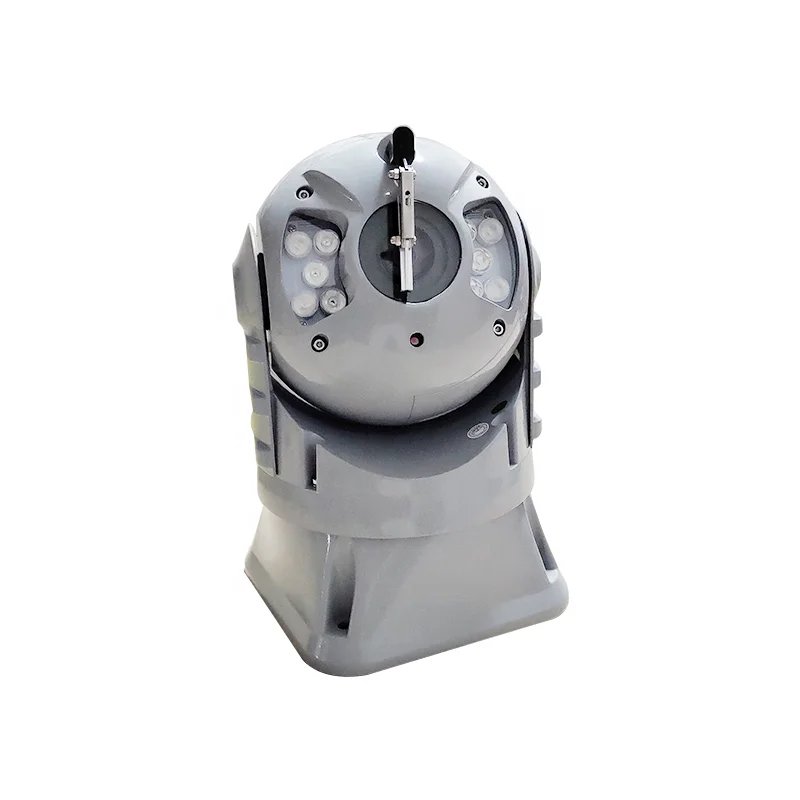

This Vandal-proof waterproof shakeproof Mobile Vehicle HD IP PTZ camera is designed for Rough Service and Mobile Applications, this tough, weatherproof camera is completely waterproof to IP67 standards and has an internal heater that will keep this PTZ camera operating at temperatures down to -40degree below Zero.
Compatible with IPC/ONVIF, Analog camera, AHD, HDSDI.

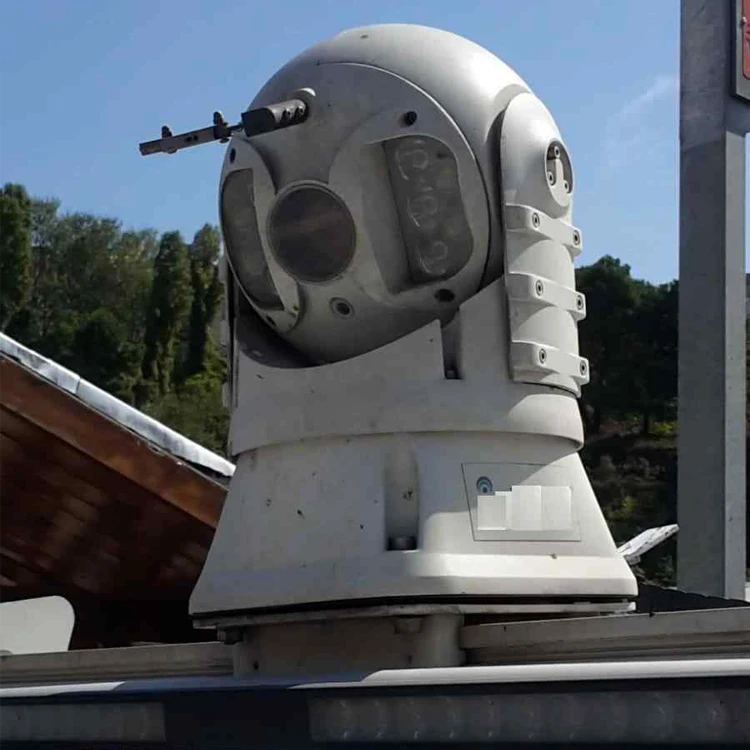

This Vandal-proof waterproof shakeproof Mobile Vehicle HD IP PTZ camera, rugged mobile PTZ camera has been designed to mount in any orientation on:
**Enforcement Vehicles
**Emergency vehicle, command centers
**Telescoping masts, CCTV trailer unit
**Patrol ships &boats
**Machinery
**Cranes, Construction Equipment
**Hydraulic Manipulators or Arms
**Special purpose Trucks&Machines





Specification
Camera | |
Image Sensor | 1/1.8” Progressive Scan CMOS |
Lens | 37 x zoom 6.5~240mm lens |
Focus mode | Auto |
Shutter | Auto/Manual; shutter time: 1/5 s ~ 1/5000 s |
Minimum Illumination | Color:0.0005 Lux @(F1.5,AGC ON); Black:0.0001Lux @(F1.5,AGC ON) |
Day/Night | IR-cut filter with auto switch (ICR) |
Video | |
Max. Resolution | 4MP 1600*2500 |
Video Compression | H.265 / H.264 / MJPEG |
Main stream | 50Hz: 25fps (2688*1520,1920 × 1080, 1280 × 960, 1280 × 720); 60Hz: 30fps (2688*1520,1920 × 1080, 1280 × 960, 1280 × 720) |
Network | |
Protocols | L2TP,IPv4,IGMP,ICMP,ARP,TCP,UDP,DHCP,PPPoE,RTP,RTSP,DNS,DDNS, NTP,FTP,UPnP,HTTP,SNMP,SI |
Compatible Integration | ONVIF2.4, GB/T28181 |
Pan&Tilt | |
Pan Range | 360°endless |
Pan Speed | 0.05°~80° |
Tilt Range | -30°~40° (-20°~90°) |
Tilt Speed | 0.5°~60° |
Number of Preset | 255 |
Patrol | 6 patrols, up to 18 presets per patrol |
Pattern | 4 , with the total recording time not less than 10 minutes |
Power loss recovery | Support |
Infrared (WHITE LIGHT OPTIONAL) | |
IR LEDS | 10PCS |
IR Distance | 150m |
IR Angle | Adjustable by zoom |
General | |
Power Supply | DC 12-24V |
Power consumption | 35 W(light on) |

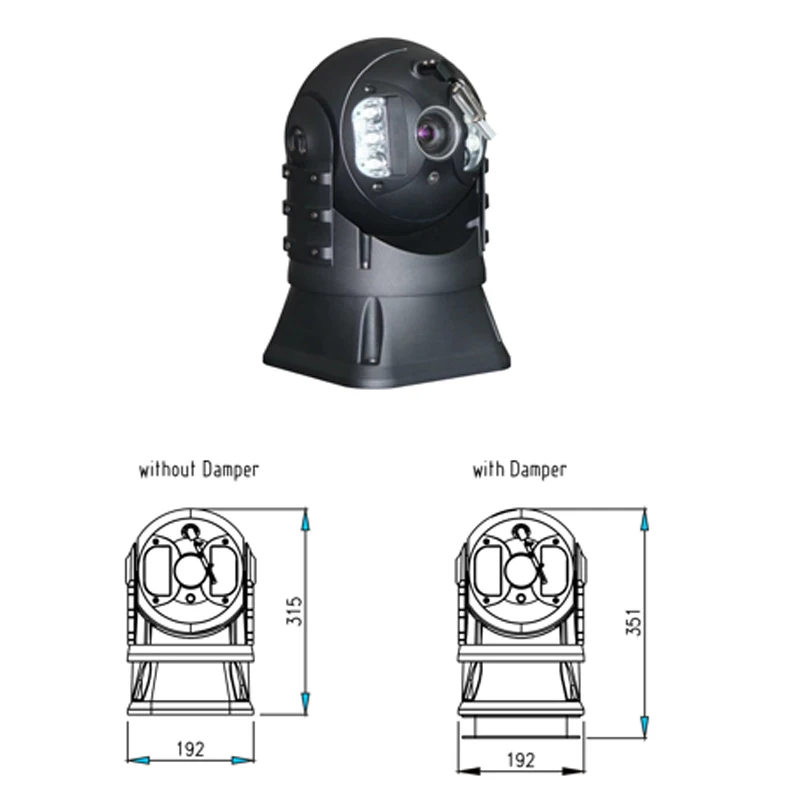

Dimension | Without damper:Φ192(mm)×315(mm);With dampe r:Φ192(mm)×351(mm) |
Working Environment | -40 °C~65° |
Ingress Protection | IP 67 |
Wiper | Optional |
LA8604R
ADVANTAGES:
*The industry first patent infrared light board movement multi-phase synchronously drive and change the infrared light illumination angle, with 8cs high-definition laser light, the longest distance can reach 300M
