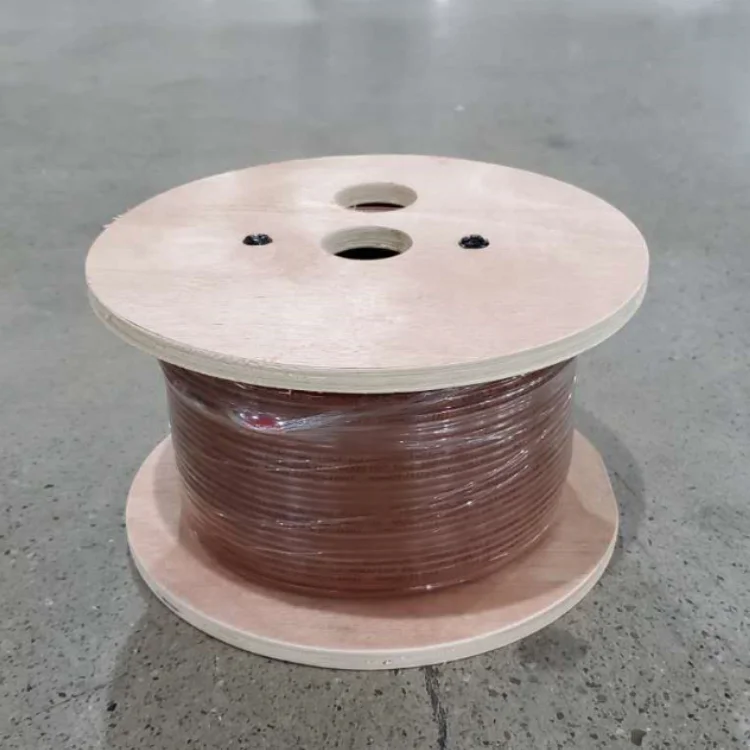

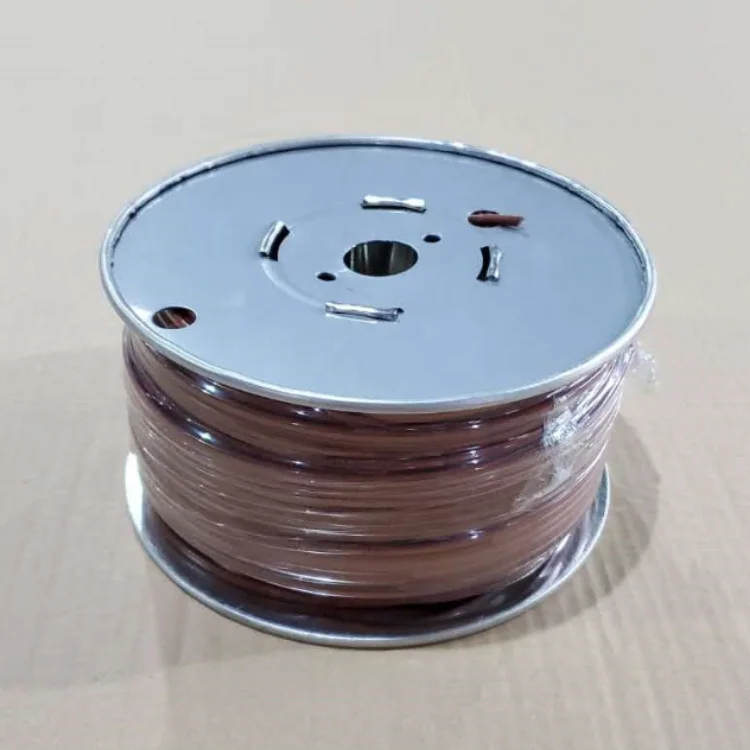

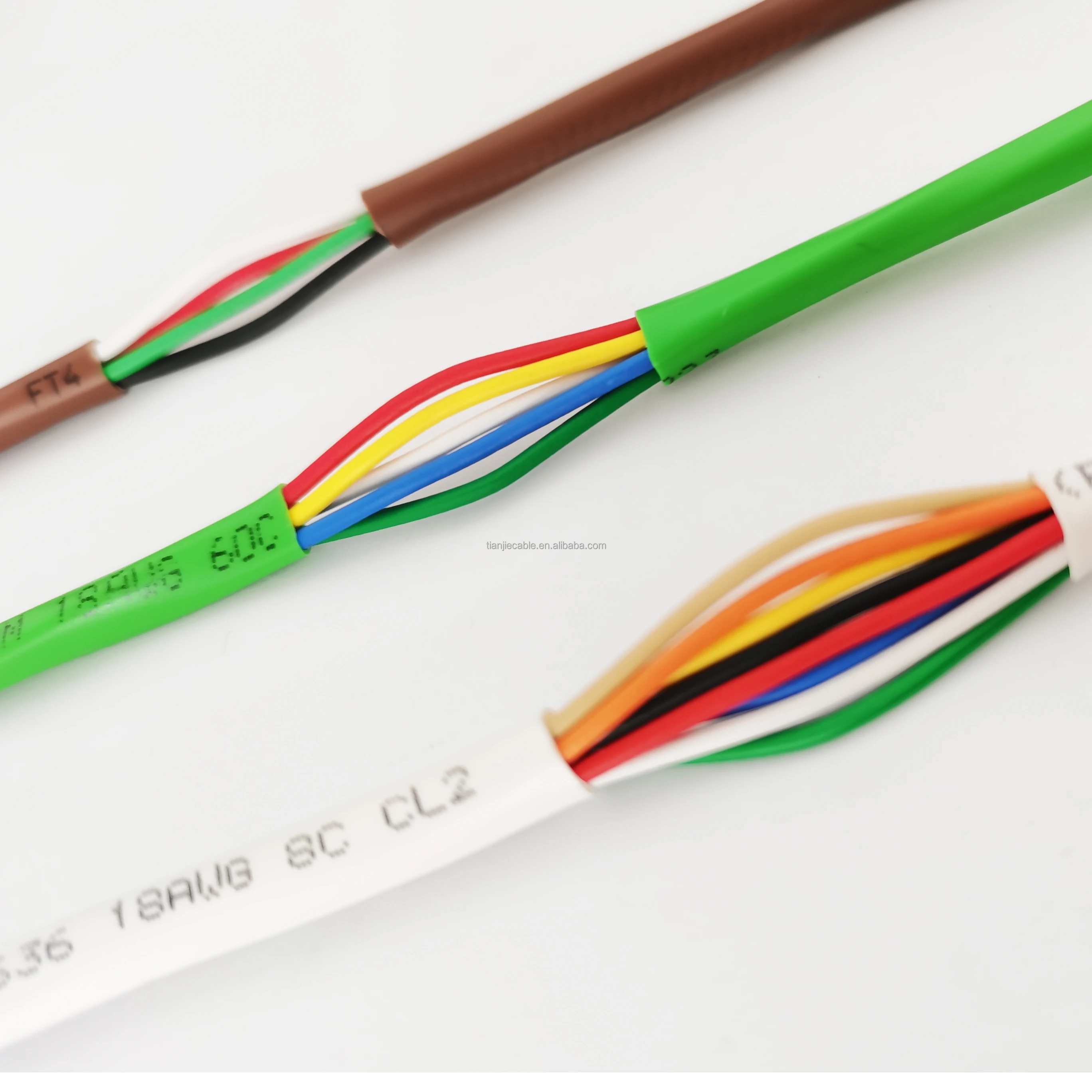

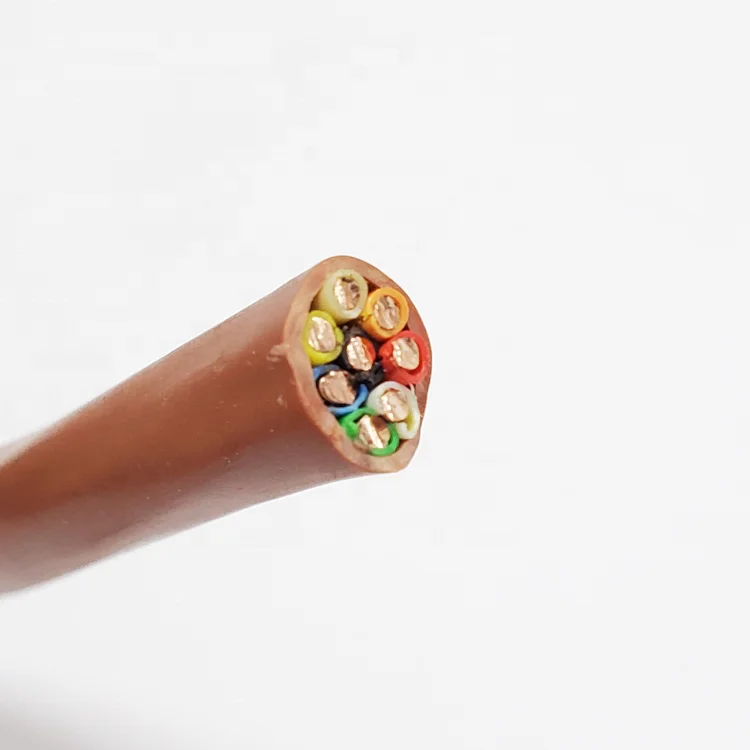

18AWG 8C Brown PVC jacket LVT Thermostat Wire Solid Copper 18 Gauge cable CL2 CMR Riser Rated (CL3) CSA type
- Category: >>>
- Supplier: Zhejiang Tianjie Industrial Corp.
Share on (1600624359459):
Product Overview
Description

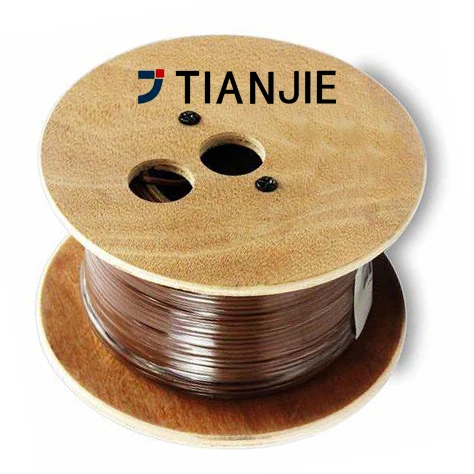

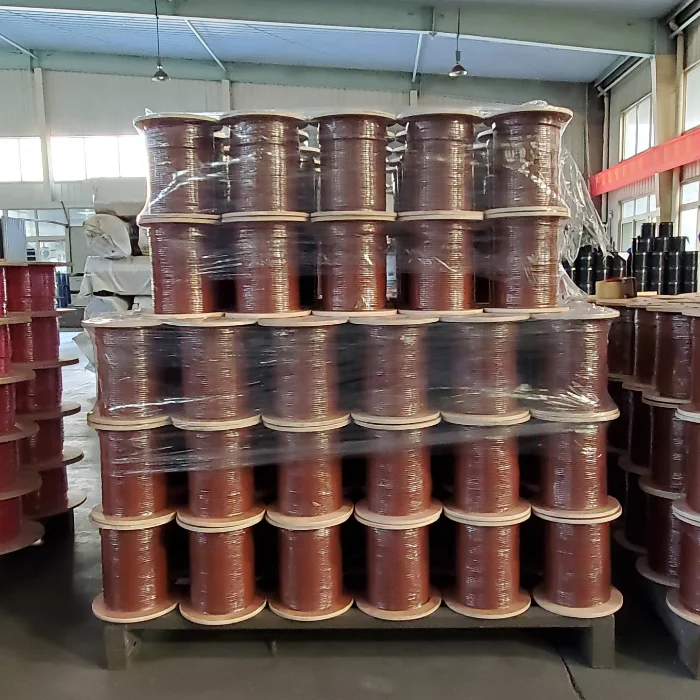

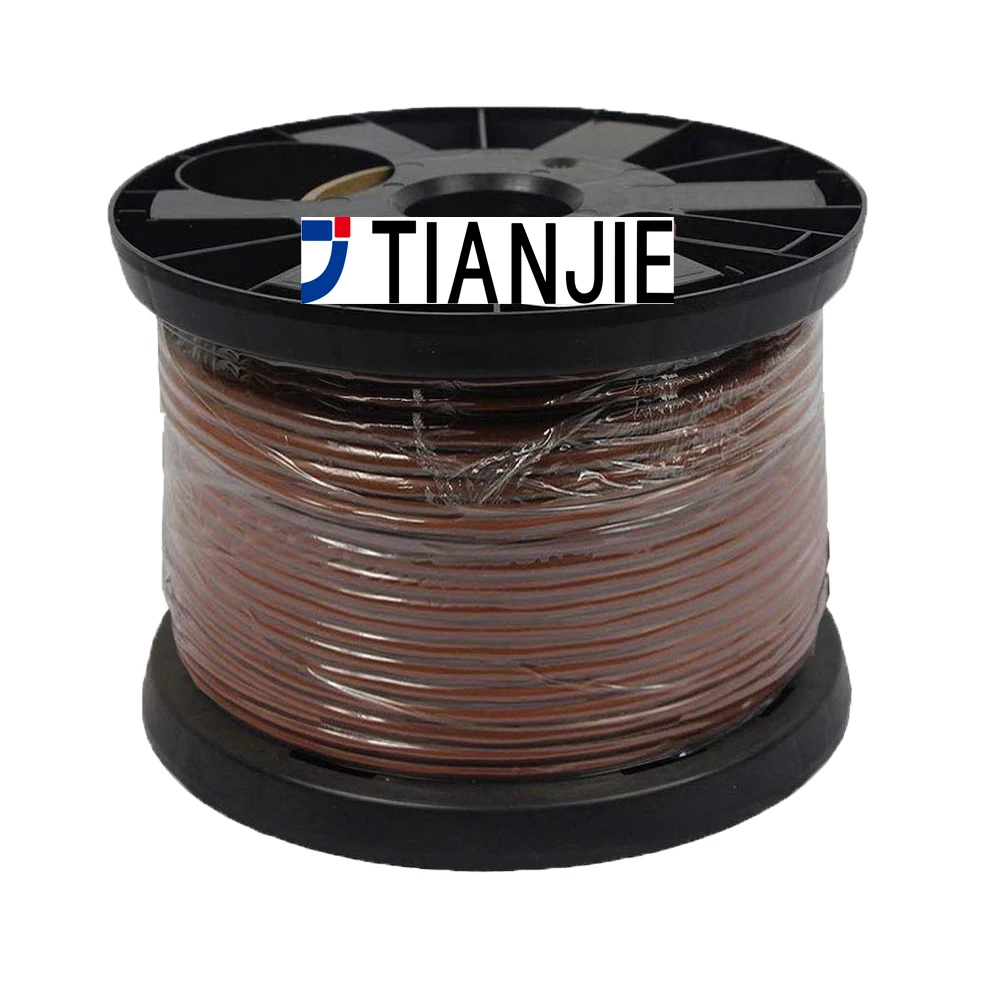

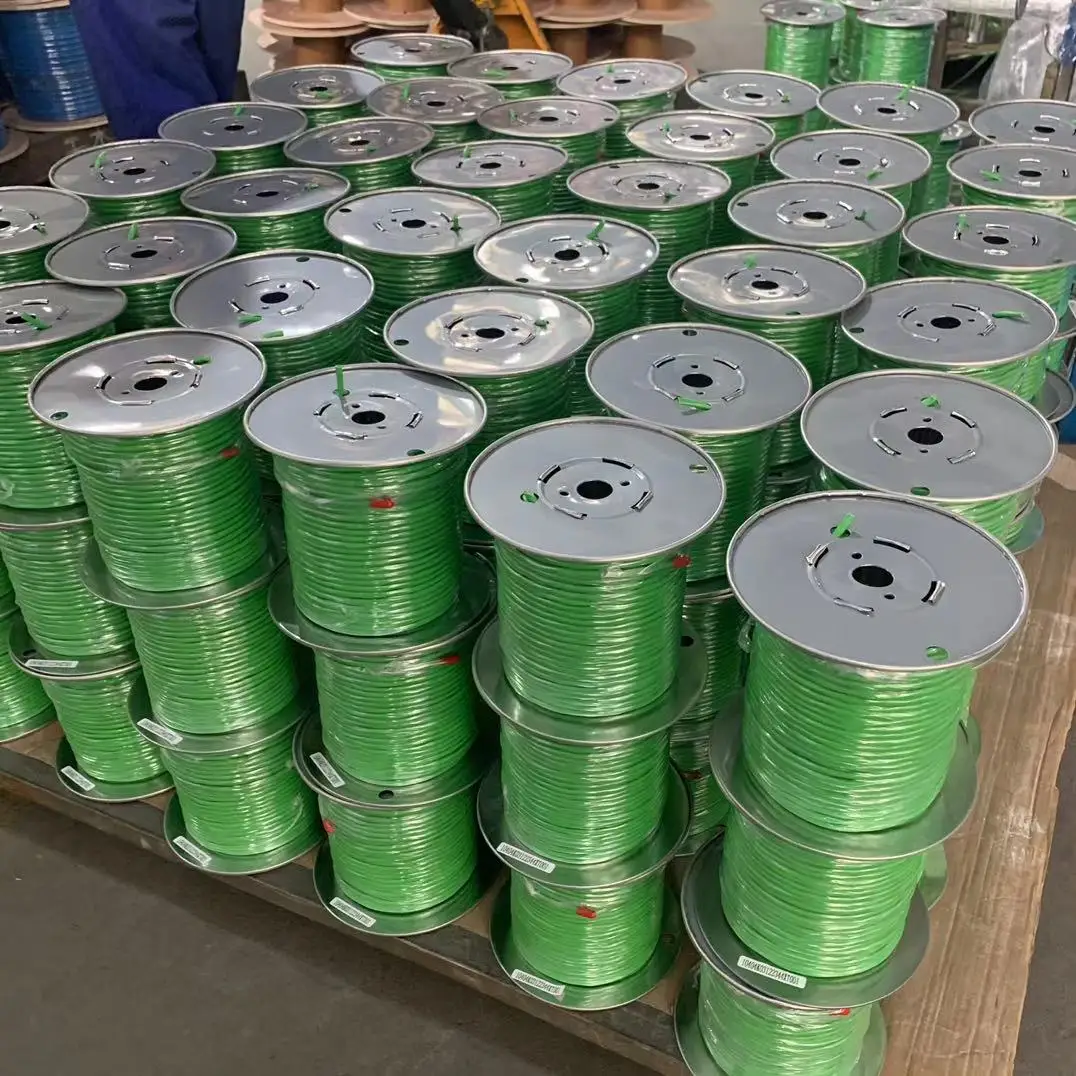

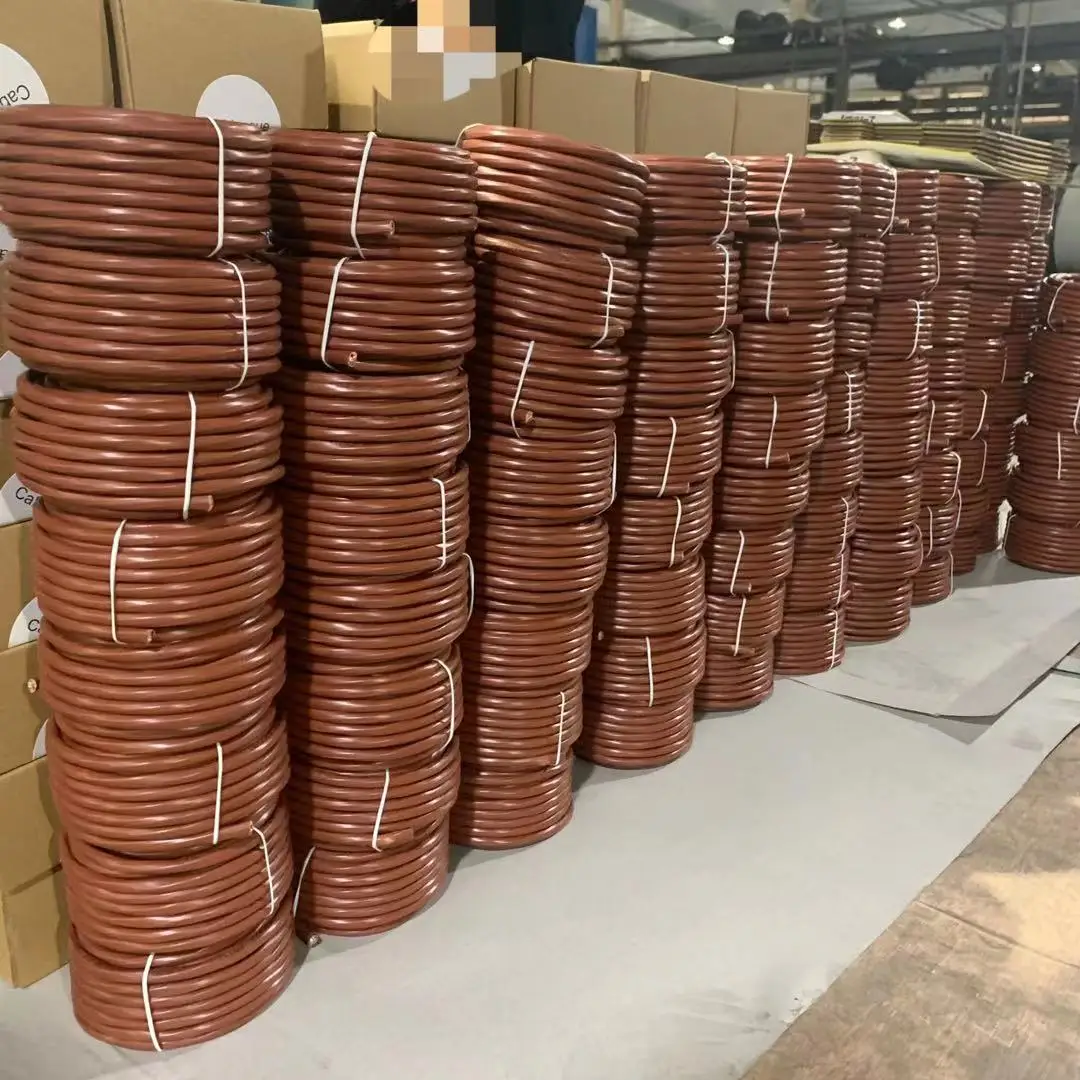

Product packaging
VR
Control Cables - Thermostat Control Cables

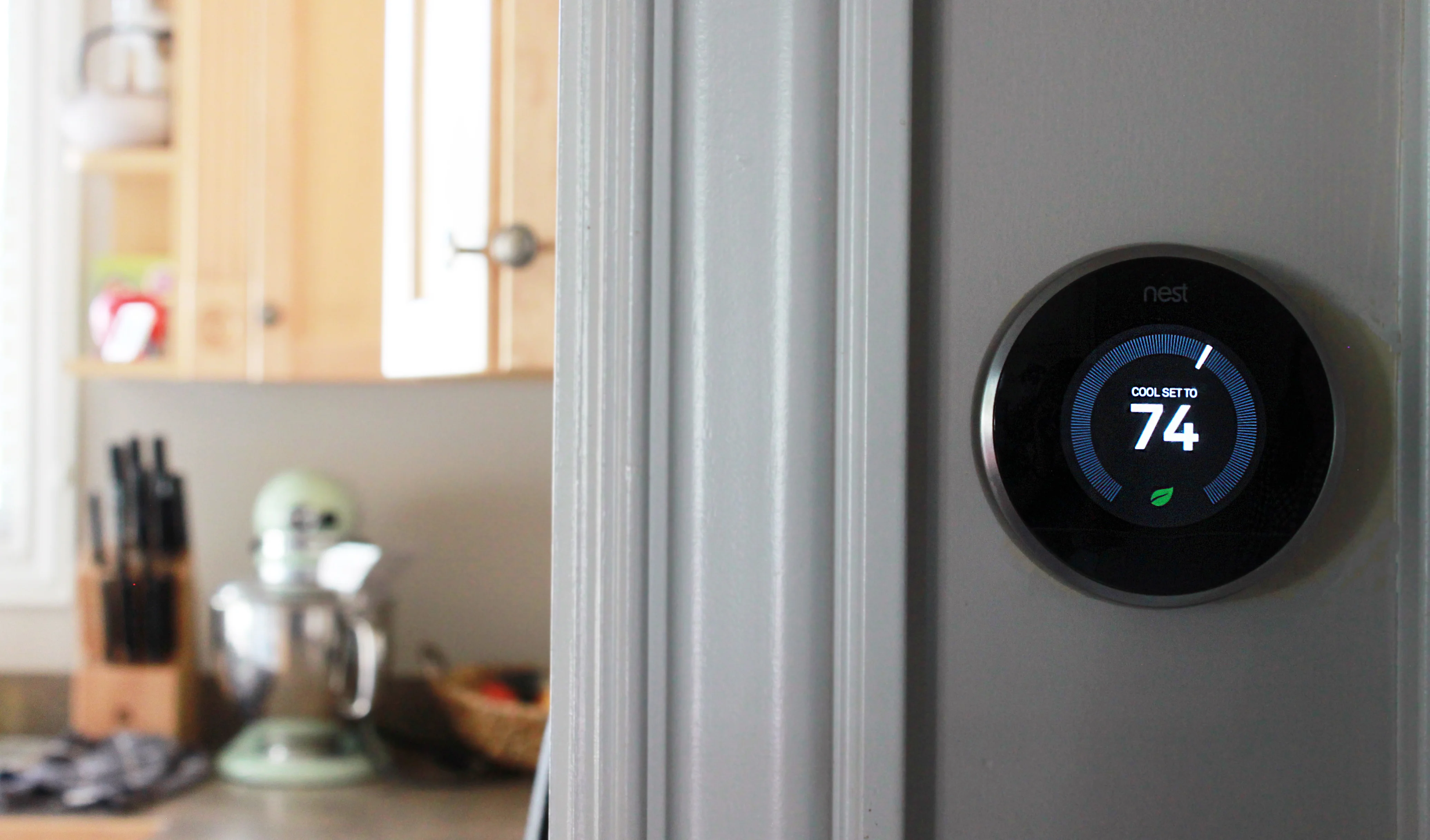

What’s the setback in your thermostat?
Ever wonder what happens when you turn your thermostat on or off? You hear clicking sounds, but you may not actually know what is happening. A simple answer would be that the thermostat switch sends a control signal to the system in charge of maintaining a desired room temperature. But how?
Within heating, ventilation and air conditioning (HVAC) systems are devices that regulate heating and cooling systems according to the thermostat’s input control signal. Electromechanical relays typically provide the control signal to the HVAC system following the input set by the user.
Within heating, ventilation and air conditioning (HVAC) systems are devices that regulate heating and cooling systems according to the thermostat’s input control signal. Electromechanical relays typically provide the control signal to the HVAC system following the input set by the user.

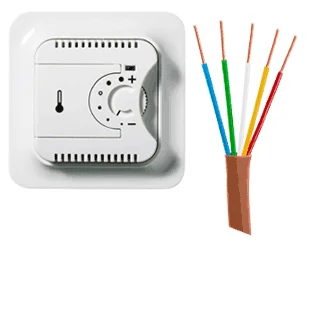

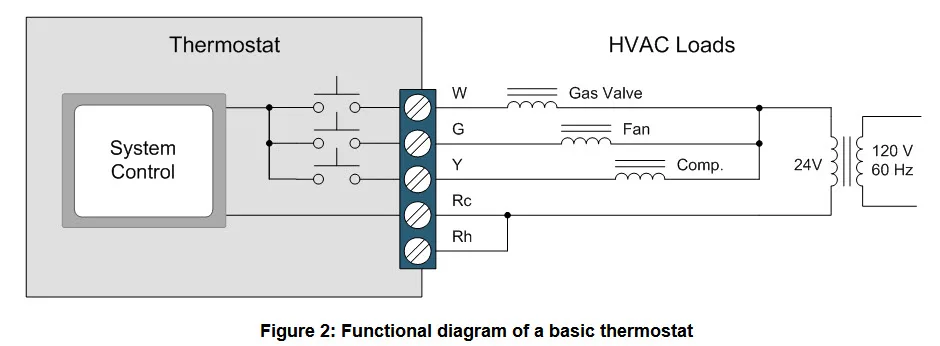

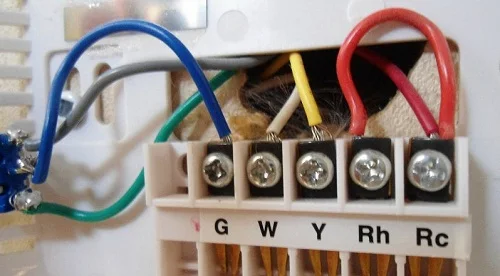

A basic thermostat for heating and cooling uses four or five wires to control the HVAC system.
The white (W), green (G) and yellow (Y) wires connect to the heating, air flow and cooling systems, respectively. The red cooling and heating (Rc and Rh) wires are connected to create a four-wire system when both cooling and heating systems are combined and connected to a single 24V alternating current (AC) transformer.
Products Description

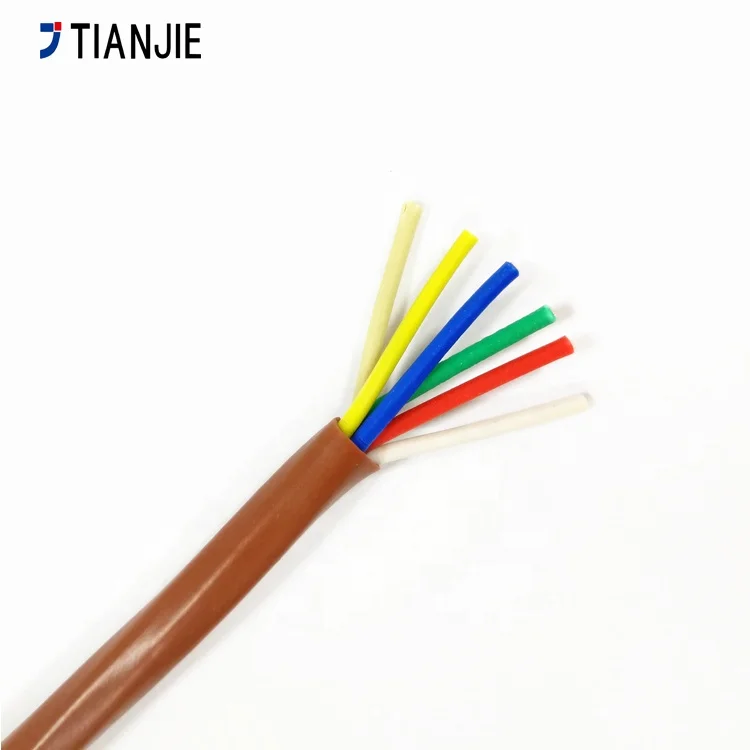

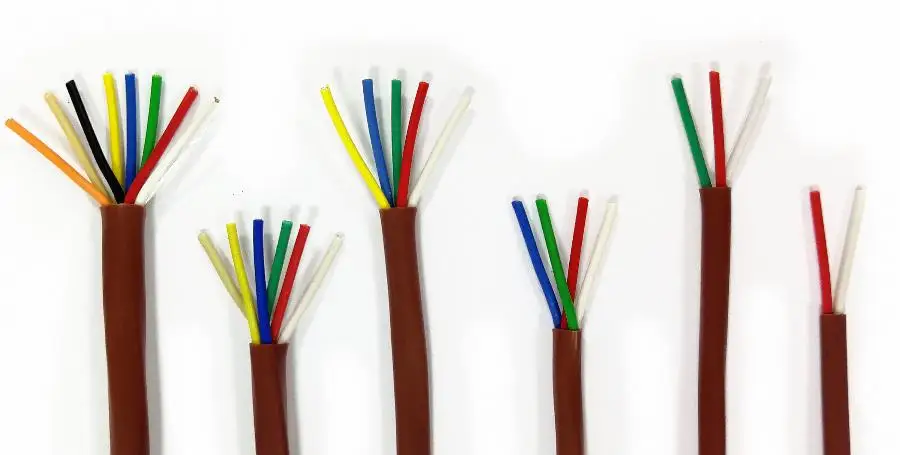

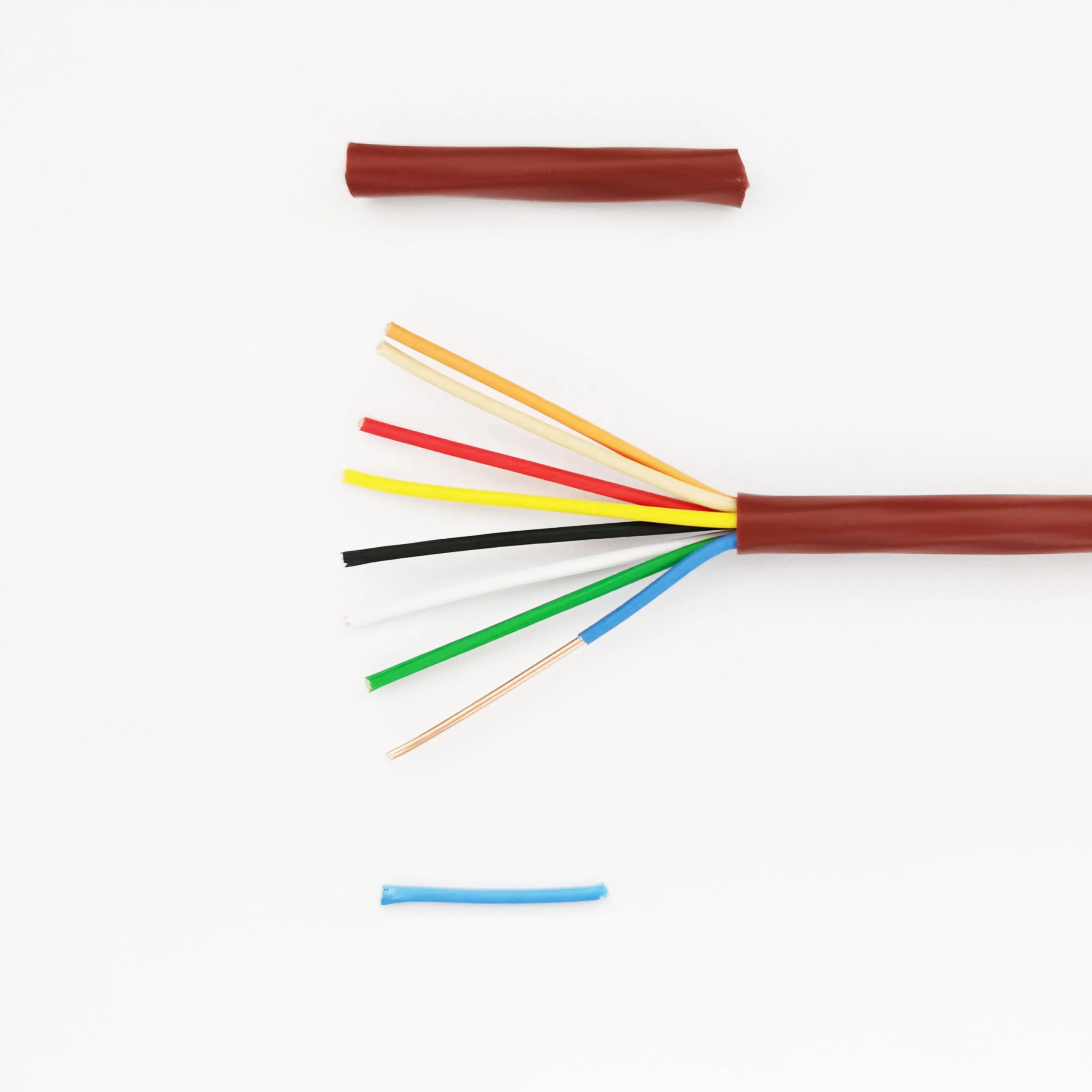

Color Code Chart for Thermostat Cable
1st White 2nd Red
3rd Green 4th Blue
5th Yellow 6th Brown
7th Orange 8th Black
9th Purple 10th Grey
Application:
Thermostat Wire is part of Portable Cord and Power Cable.
These cables are used in a wide variety of applications, including thermostat controls, heating and A/C installations, remote controls, signal systems, intercoms, and various other low-voltage uses.
* Thermostat Control
* Heating and A/C installations
* Touch-plate systems
* Burglar alarms
* Intercoms
* Door bells
* Annunciator systems
* Remote controls
* Signal systems
* Low-voltage installations
Ratings and Approvals:
* UL Listed Type CL2, Power Limited Article 725
Thermostat Wire is part of Portable Cord and Power Cable.
These cables are used in a wide variety of applications, including thermostat controls, heating and A/C installations, remote controls, signal systems, intercoms, and various other low-voltage uses.
* Thermostat Control
* Heating and A/C installations
* Touch-plate systems
* Burglar alarms
* Intercoms
* Door bells
* Annunciator systems
* Remote controls
* Signal systems
* Low-voltage installations
Ratings and Approvals:
* UL Listed Type CL2, Power Limited Article 725
* ETL comply
* Temperature Rating: 60°C
* Voltage Rating: 150 volts
Construction:

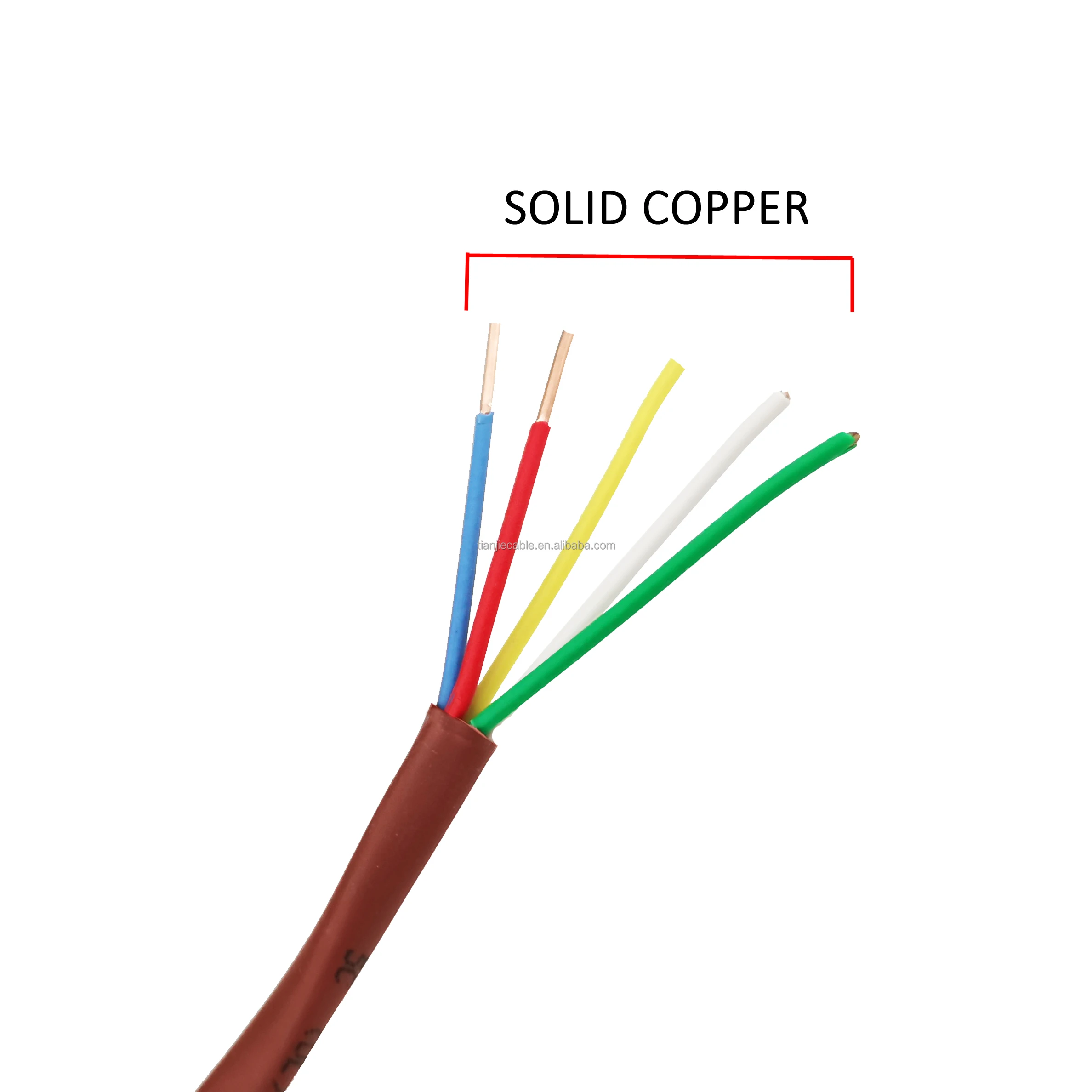

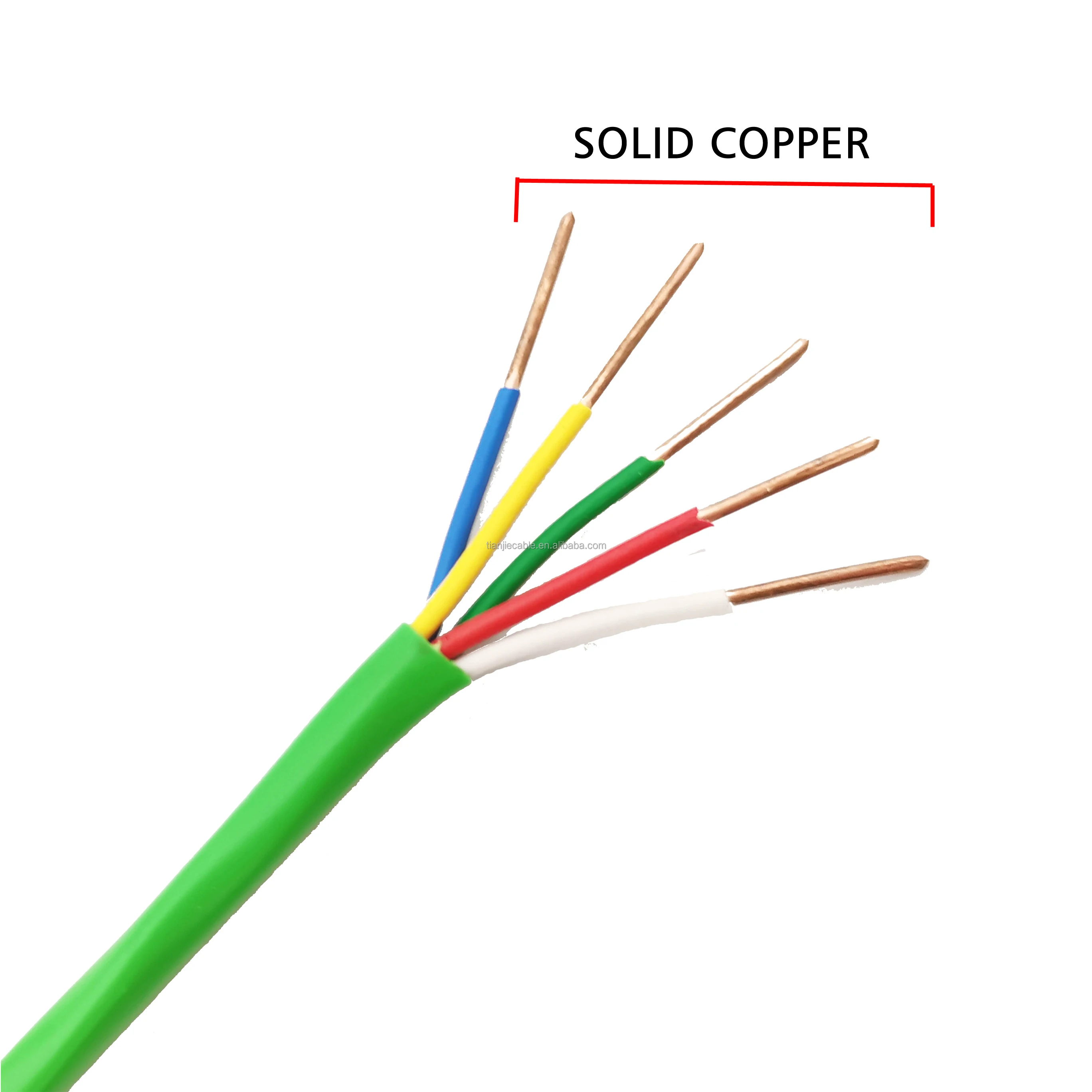

* Conductors: Solid Bare Copper, 18 AWG and 20 AWG
* Insulation: PVC or Polypropylene insulation
* Temperature Rating: 60°C
* Voltage Rating: 150 volts
Construction:
* Conductors: Solid Bare Copper, 18 AWG and 20 AWG
* Insulation: PVC or Polypropylene insulation

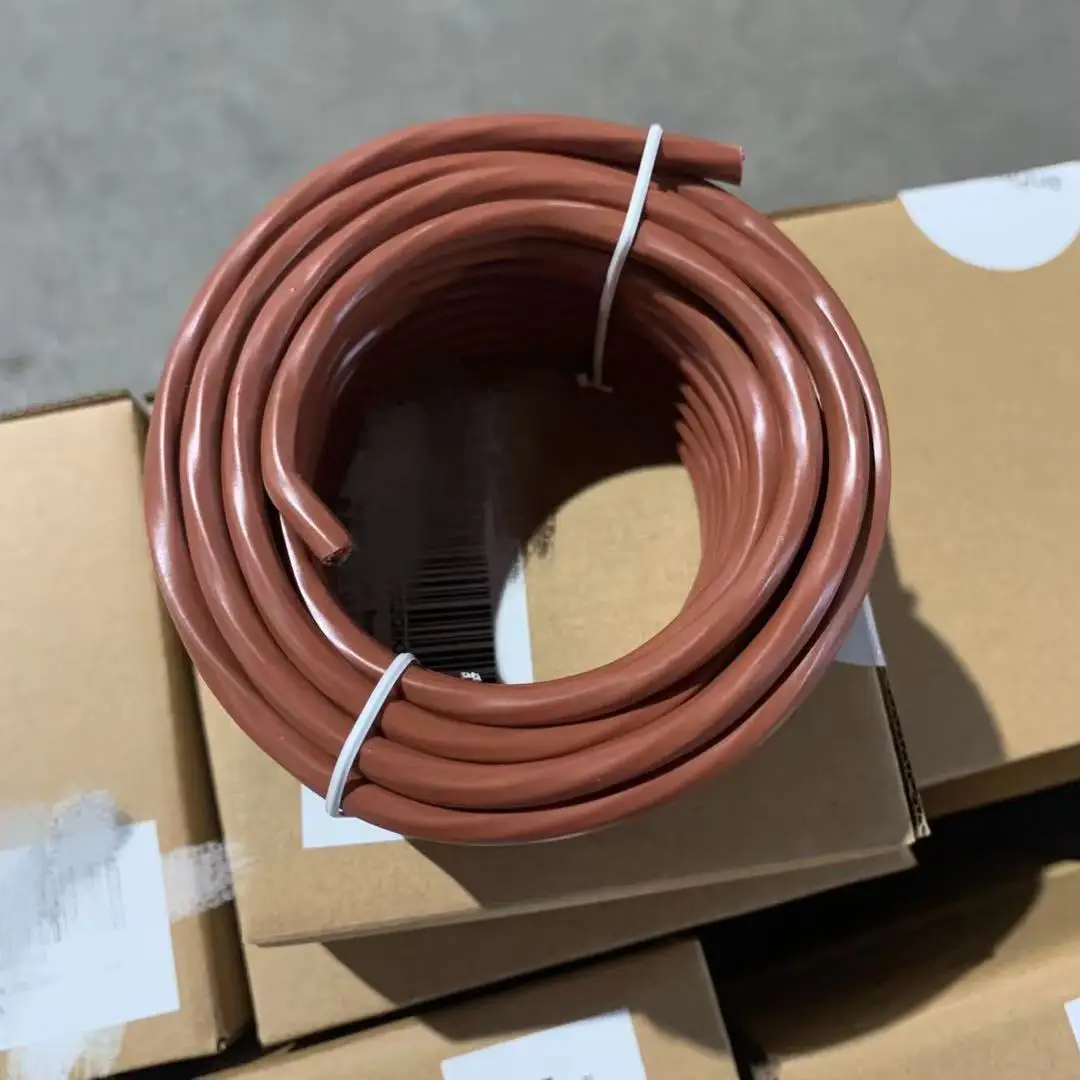

* Jacket: PVC Brown Color(Normally) / Customized Available Also

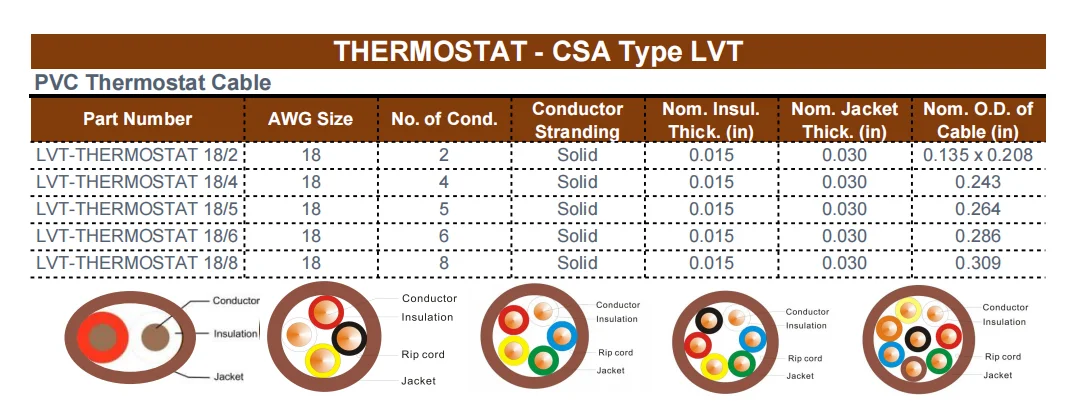

Product Paramenters
Cable construction | ||||
Recommended Products
No. Of Cores | Conductor Size (AWG) | Insulation Thickness | Insulation Thickness |
18 | 0.015” (0.38mm) | 0.030” (0.76mm) | |
18 | 0.015” (0.38mm) | 0.030” (0.76mm) | |
18 | 0.015” (0.38mm) | 0.030” (0.76mm) | |
18 | 0.015” (0.38mm) | 0.030” (0.76mm) | |
18 | 0.015” (0.38mm) | 0.030” (0.76mm) | |
18 | 0.015” (0.38mm) | 0.030” (0.76mm) | |
18 | 0.015” (0.38mm) | 0.030” (0.76mm) | |
18 | 0.015” (0.38mm) | 0.030” (0.76mm) |
Our Advantages
Company Profile
Founded in 1993, Zhejiang Tianjie Industrial Corp. locates in the Green Beryl of Yangtze River Delta-Lin’ an Hangzhou,with superior location connected by convenient transportation.
With more than 300 employees including a professional R&D team of technology, and a modern standardized workshop of 33,000m³ including international advanced equipments. We are a science and technology innovated enterprise , which is specialized in designing, manufacturing and selling coaxial cables, combined fiber electrical cables, alarm and security cables, smart control cables, signal cables and other electronic communication products.
Sampling Room
After more than 27 years of pioneering and innovation, the company has been well-known at home and abroad for its technological innovation, brand quality and first-class service.
With excellent product quality, customer-satisfactory service and fast response capabilities, Tianjie Cable is exported to more than 40 countries and regions on six continents including Europe, North America, South America, Asia, Africa and Oceania, and has won widespread praise and trust from customers.
Hornors Room
The company takes professional innovation as the concept, focuses on the world, and strives to innovate and develop in the fifield of coaxial cable development and manufacturing, and wholeheartedly provide fifirst-class products and services to international and domestic customers.
* Won the Zhejiang Famous Brand Product in 2007
* Won the national key support high-tech enterprise in 2007
* Won the AAA credit of Zhejiang industrial and commercial
enterprises in 2010
* Won the national key support high-tech enterprise in 2007
* Won the AAA credit of Zhejiang industrial and commercial
enterprises in 2010

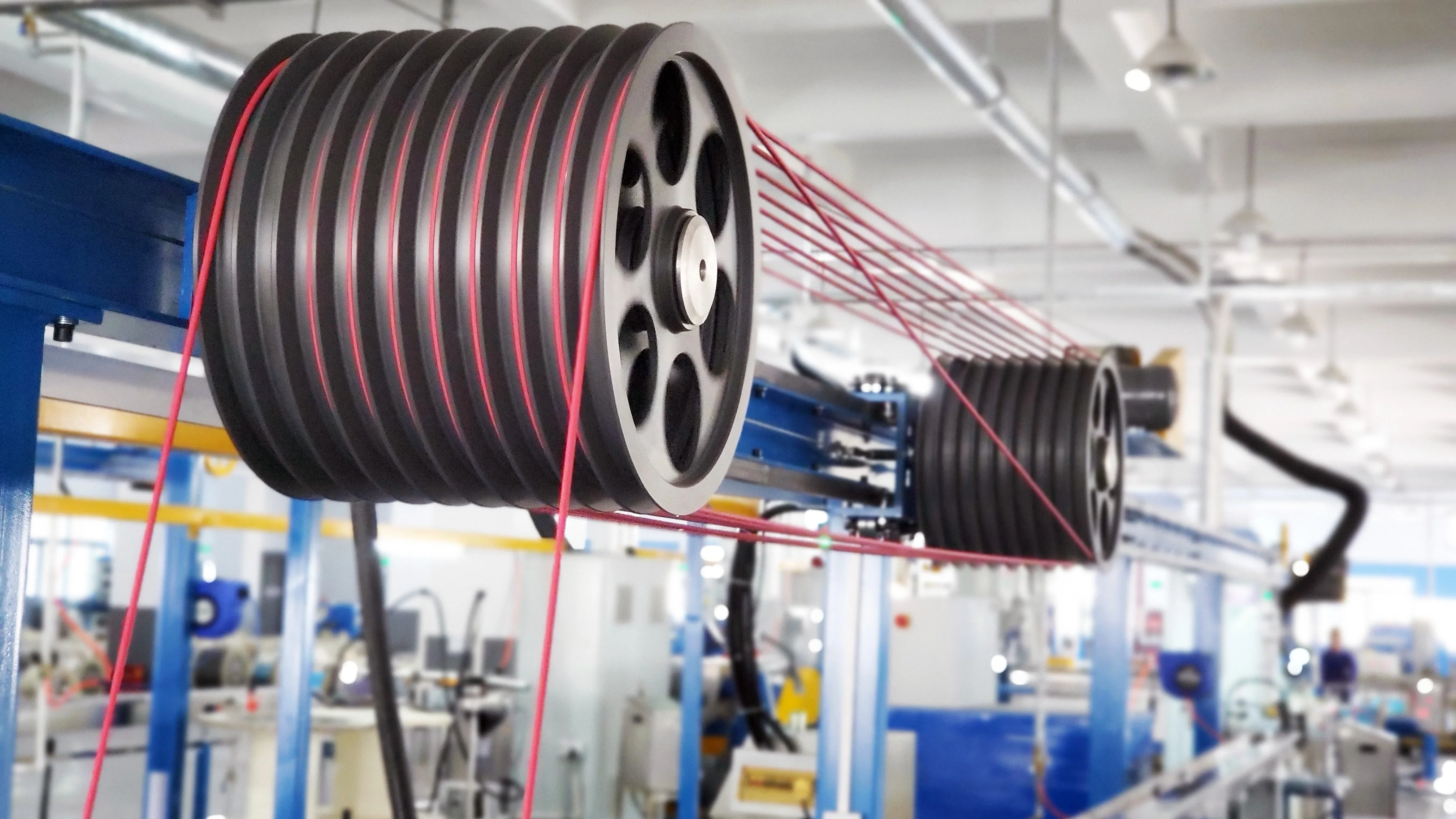

Smart Manufacturing
