Keyto Wholesale Custom Single Channel Syringe Module Usage For Medical And Laboratory Analyzer
- Category: >>>
- Supplier: Shenzhen Keyto Fluid Control Co. Ltd.
Share on (1600624368138):
Product Overview
Description
Product Paramenters
Specification | 7266 Series |
Travel Distance (mm ) | 60 |
Stroke (mm) | 6 |
Maximum dispencement(uL) | V(determined by syringe specifications) |
Life Cycle (cycles) | uLLevel: 300， mLI evel:200 |
Dispense Precision | 2% |
Repeatability(Cv) | 1.50% |
Operating Pressure(MPa) | 0.3 |
Motor Step Angle | 1 .8° |
Max Motor Speed (r/s ) | 12 |
Distance per stroke ( mm/step) | 0.03 |
Distance per stroke ( mm/step) | 0.0005*V |
Products Description

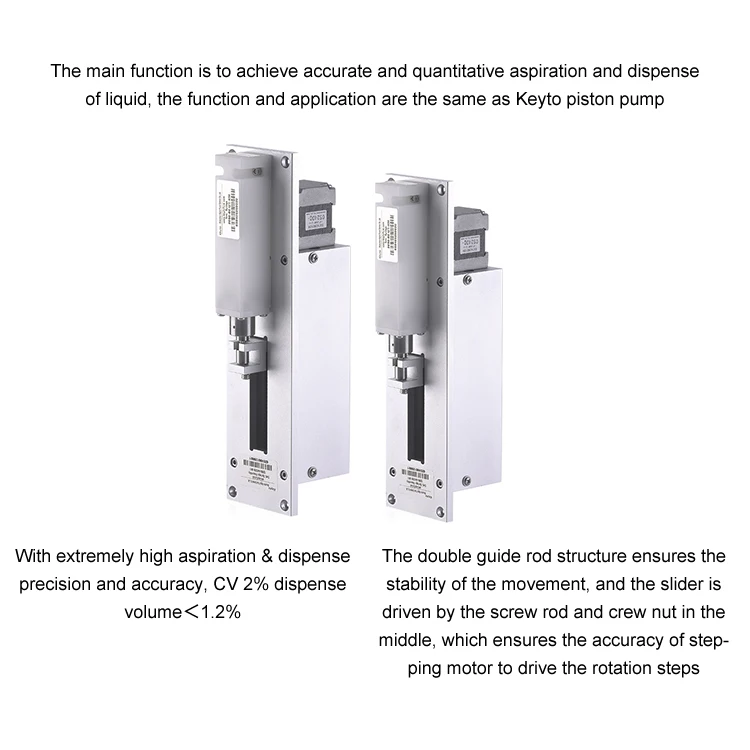

The main function is to achieve accurate and quantitative aspiration and dispense
of liquid, the function and application are the same as Keyto piston pump
With extremely high aspiration & dispense
precision and accuracy, CV 2% dispense
volume< 1.2%

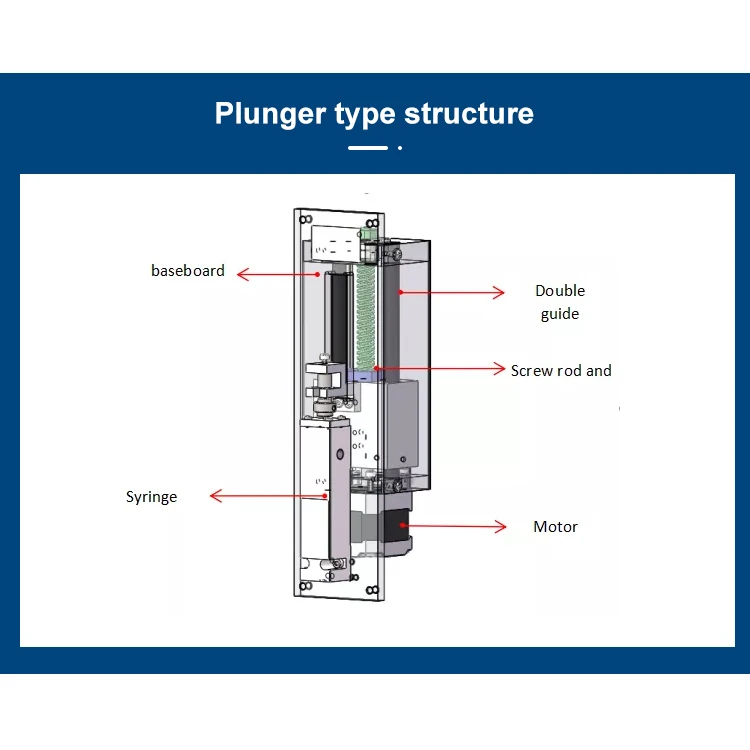

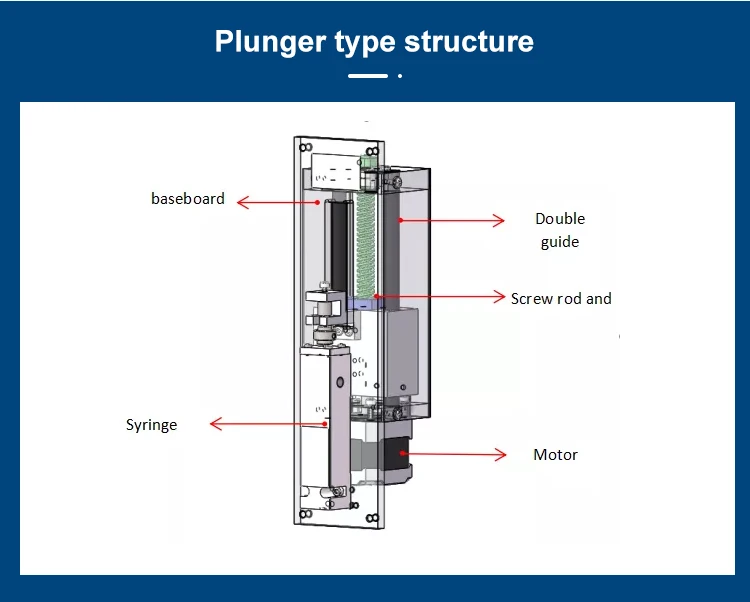

The double guide rod structure ensures the
stability of the movement, and the slider is
driven by the screw rod and crew nut in the
middle, which ensures the accuracy of step-
ping motor to drive the rotation steps
Intubation valve
Compact structure, small internal volume, small dead volume, high precision, long lifetime, without interaction of volume pump
3D drawing
Mediums including water, air, acid-base reagents and organic solvents
The structure, size and number of carrying
syringes can be customized
syringes can be customized
It can realize the function of automatic
pressing and taking connector. For specific
details, please contact our sales engineer
Main Products
Company Profile
Certification & Exhibition

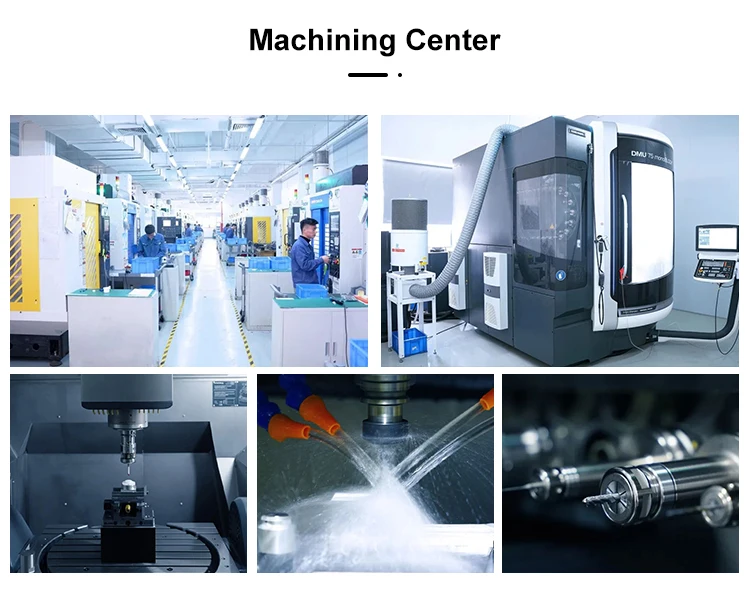

Production Process
