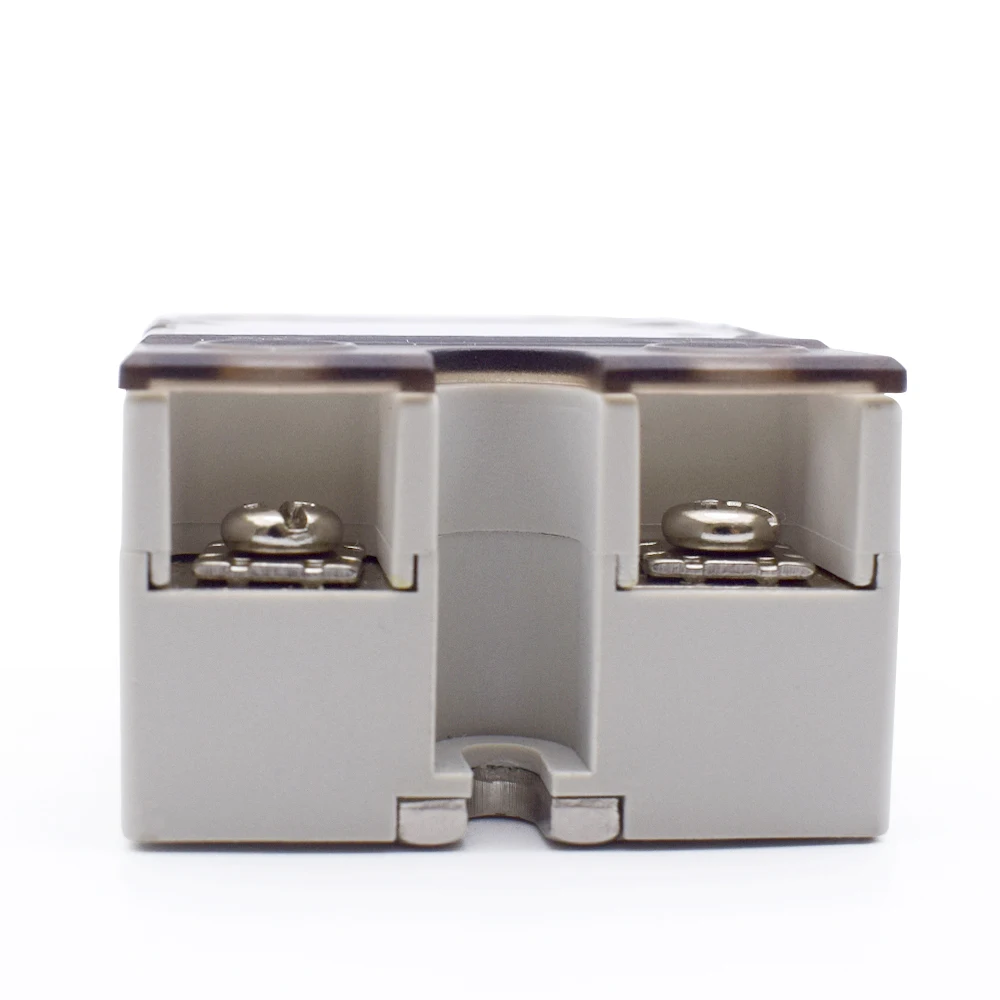

Твердотельное реле с сертификатом UL TUV, реле ssr 100a 220v SSRDA48100
Твердотельное реле с сертификатом UL TUV, реле ssr 100a 220v SSRDA48100
Твердотельное реле с сертификатом UL TUV, реле ssr 100a 220v SSRDA48100

Твердотельное реле с сертификатом UL TUV, реле ssr 100a 220v SSRDA48100

Share on (1600624375431):


Price:

Quantity:


Product Overview

Description


UL TUV approved SSRDA4850 DC to AC 480VAC Solid State Relay


1-DA25W12-DA25W13-DA25W14-DA25W15-DA25W16-DA25W1



















































































Product ModelXSSR-DA-W1XSSR-AA-W1
Control Voltage3-32VDC80-250VAC
Control Current6-25mA5-25mA
Reverse Voltage32VDC /
Guarantee close voltage1VDC30VAC
Guarantee open voltage
3VDC
80VAC
Load Voltage24-240VAC75-480VAC
Load Max Current5A-75A
Load Mini Current0.08A
Breakover Voltage≤1.6VAC
Output Leakage Current≤5mA
Medium withstand voltage≥2500VAC
Insulating resistance≥100MΩ
Switching time≤10mS
Frequency range50-60HZ
Operating temperature-20-70℃
Load current safety factorresistive load 50-60%
inductive load 30-40%

8-DA25W1



About Us


our-certificates-2_01















XURUI Electronics Co., Ltd was established in 2002, which is mainly engaged in the research, production and marketing of micro switch, limit switch,solid state relay , foot switch, toggle switch, proximity switch etc.


XURUI products have made their way to countries and regions such as the United States, Germany, South Korea, Japan, Turkey, Blegium and Egypt. The company also established sales agents as well as customer service centers in the United States, Italy, South Korea, and Egypt.


The company was approved by ISO9001, and a number of the products are also certified by other certification authorities such as CCC(China), CE(European Union), TUV(Germany),UL(US), KC(South Korea), and RoHS etc. Currently, the company boasts over fifty national patents, four patented products, and fifteen provincial-level new products etc.
