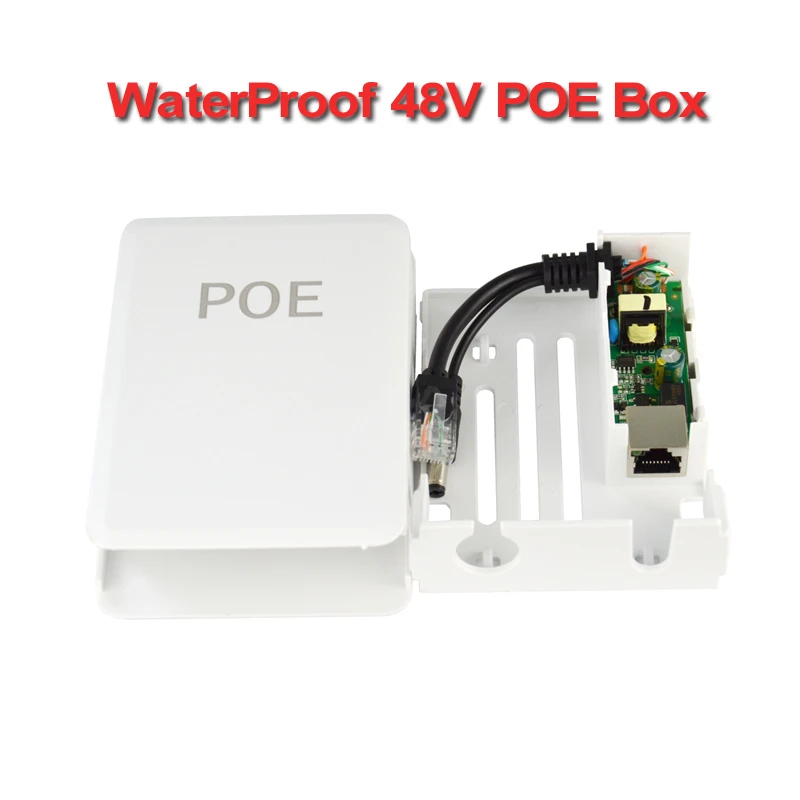

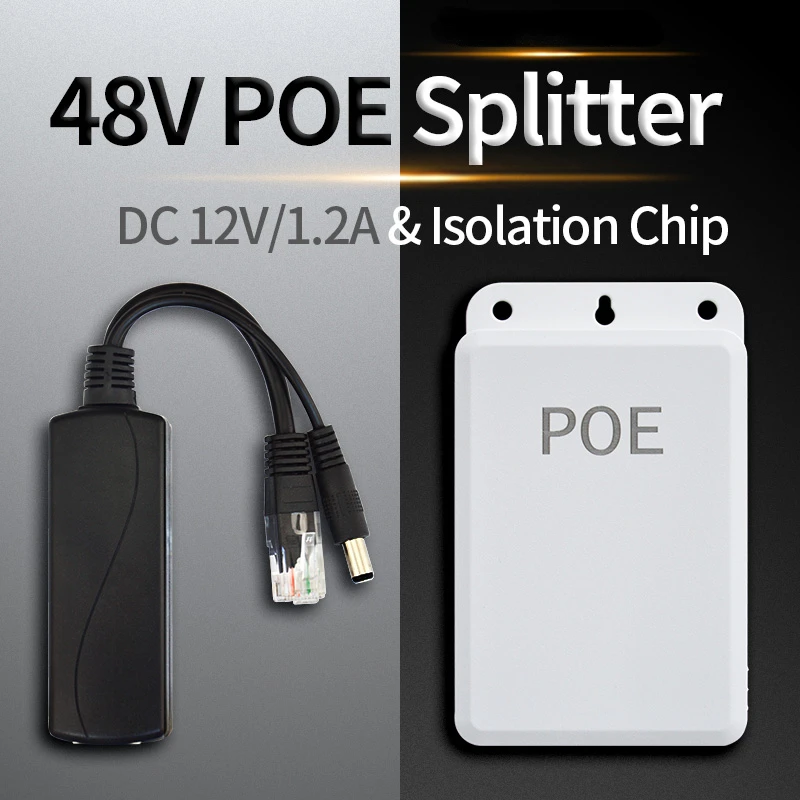

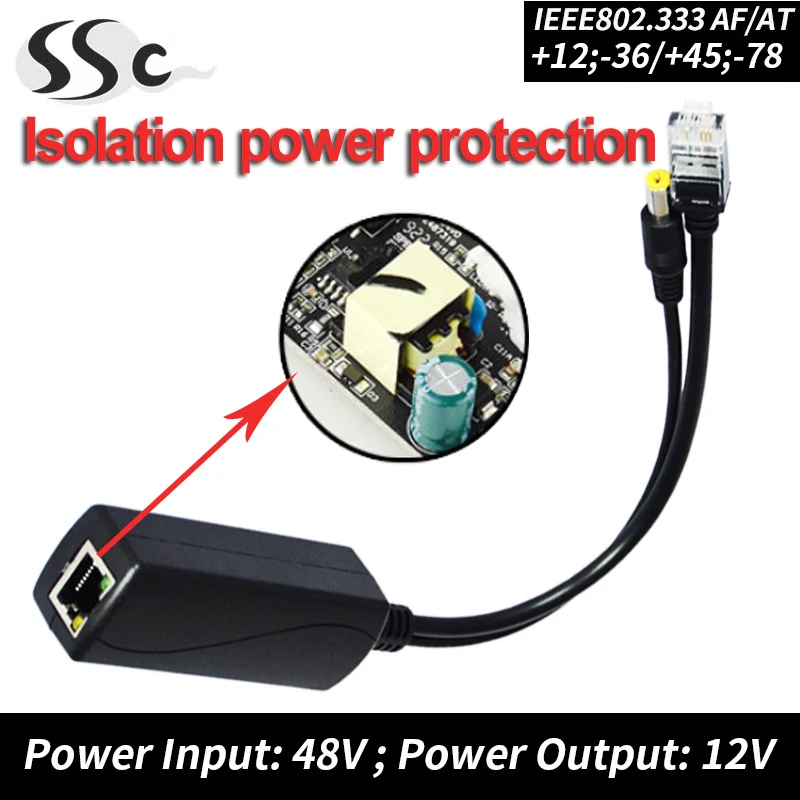

Active POE Splitter Waterproof 48V POE 10/100M Input To DC Output 12V For IP Camera/Wireless AP/CCTV

This is a 48V profeesional POE splitter and suitable for Non POE IP camera and wireless AP equipment Connection ,Twisted pair 12+ ,36- core transmission network signal, 45+,78-, core for the stable output of the camera DC12V power supply (input intelligent DC15-57V, Output 12V /1.2A), the maximum distance of 200 meters.

If your cameras or AP does not support 48V POE power supply(IEEE802.3af/at), but your switch is active POE, you can use this 48V POE splitter to connect your Non-POE camera or AP, it will work well .

Electronic parameter

·DC Input Voltage:DC 44~57V

·DC Output Voltage:DC 12V

·Max Output Current : 1.2A-2A Max.

·Work range:  200 meters.

·Power Pin:1/2(+),3/6(-) or 4/5(+),7/8(-)

General Sepcifications:

·  Operating Temperature -40°C ~ 60°C (-40°F ~ 140°F)

·  CASE OF MATERIAL PVC

·  Ethernet Date Rate 10/100Mbps

·  Ethernet Cable TIA/EIA 568 Cat.5

·  Humidity Up to 90%

·  Weight: 20g

·  mechanical size :22cmx3cmx2.5cm
