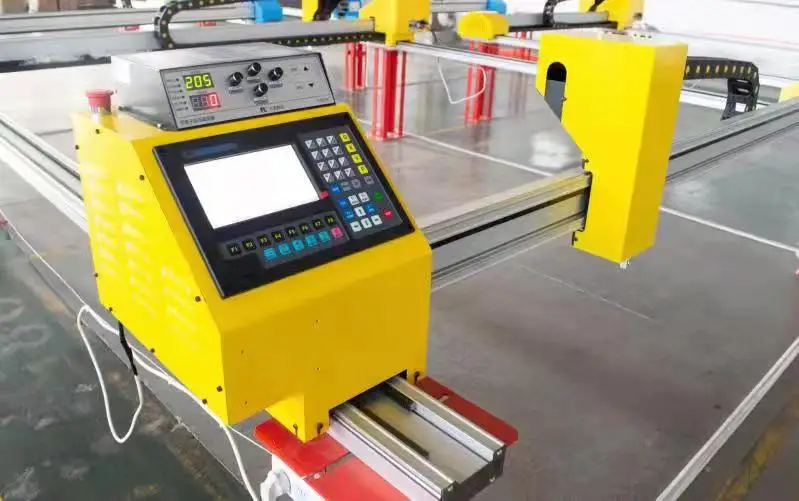

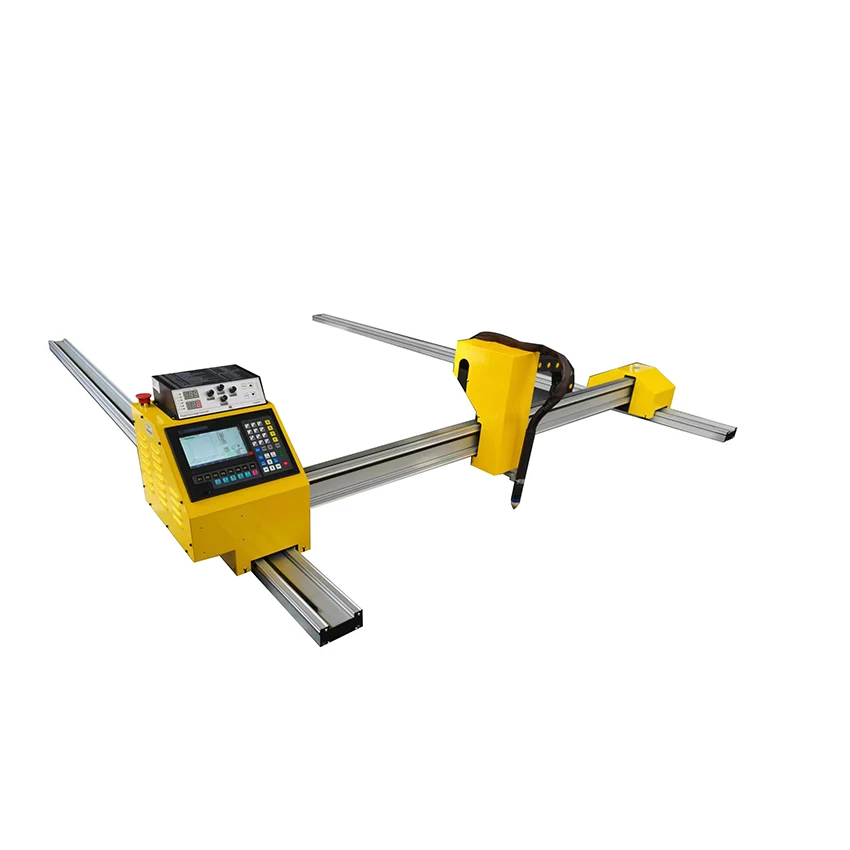

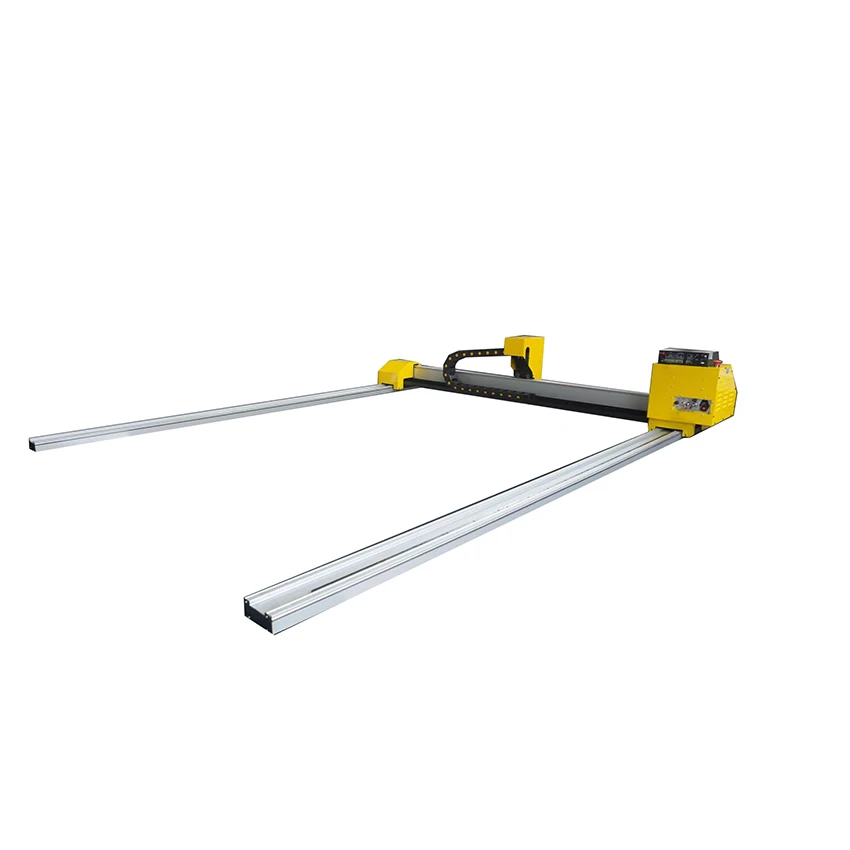

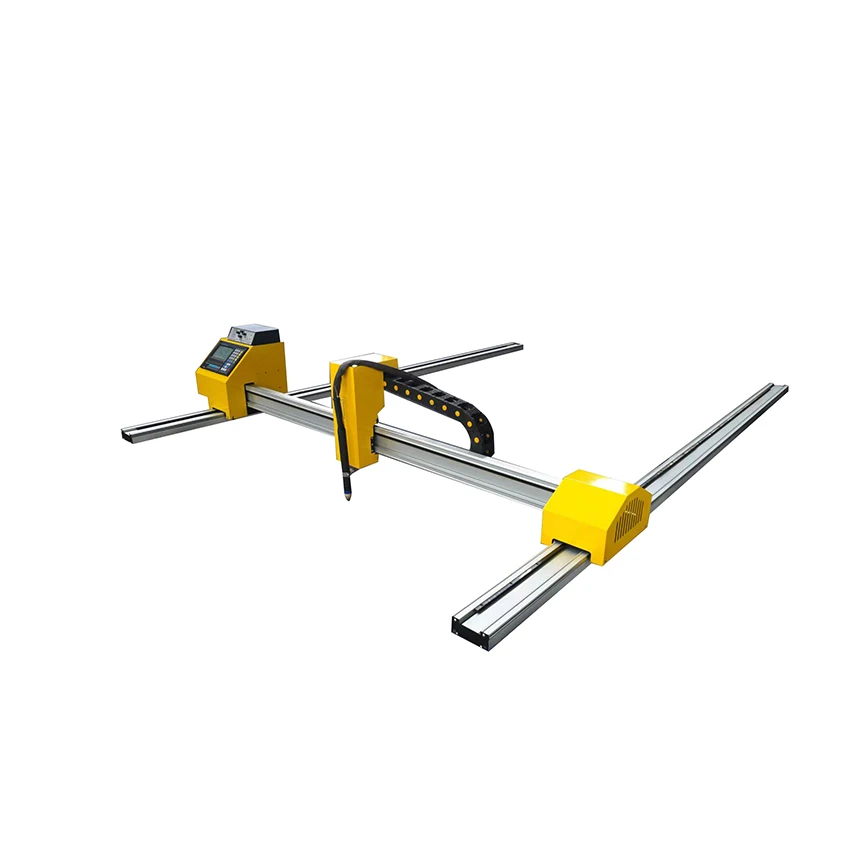

1530 portable gantry cnc plasma cutting machine for metal
- Category: >>>
- Supplier: Qingdao Headway Industry And Trade Co. Ltd.
Share on (1600624449043):
Product Overview
Description
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS

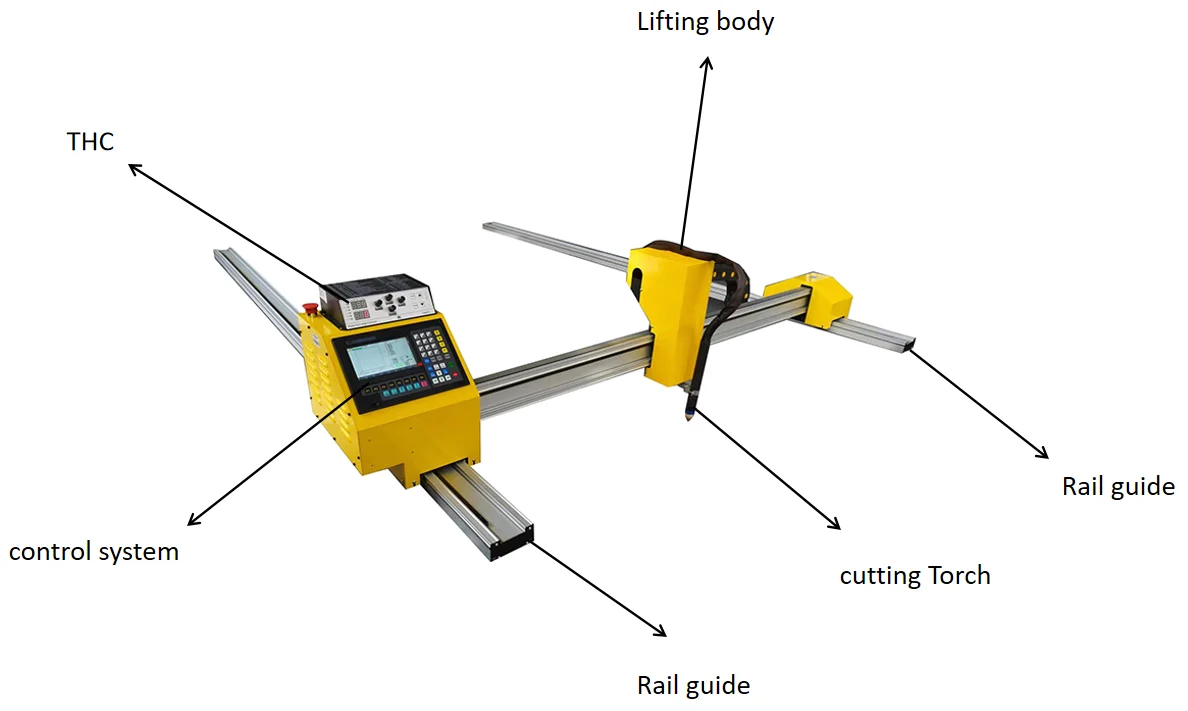

Machine details
Working size | 1500*3000mm | ||||||
Control system | F2100B control system | ||||||
Motor and driver | Stepper motor and drive | ||||||
Transmission | X, Y axis: High precision Rack Gears | ||||||
THC | High torch control （FL1621） | ||||||
Software | Fastcam software | ||||||
Plasma power | 130A LGK plasma power supply | ||||||
Cutting range | Plasma: 0~20mm Flame cutting: 5~150mm | ||||||
Additional features | Flame cutting（Oxygen cutting） | ||||||
Working Voltage | (220V)380v,3ph,50hz | ||||||
Cutting ability | 0~150mm Carbon steel | ||||||
Traveling speed | 0-4000rpm/min | ||||||
Straight line positioning precision | ±0.2/mm/10m | ||||||
Straight line repeat precision | ±0.3mm/10m | ||||||
Cutting speed | 0-3000mm/min | ||||||
Mix speed | 4000mm/min | ||||||
Cutting speed | 0-3000mm/min | ||||||

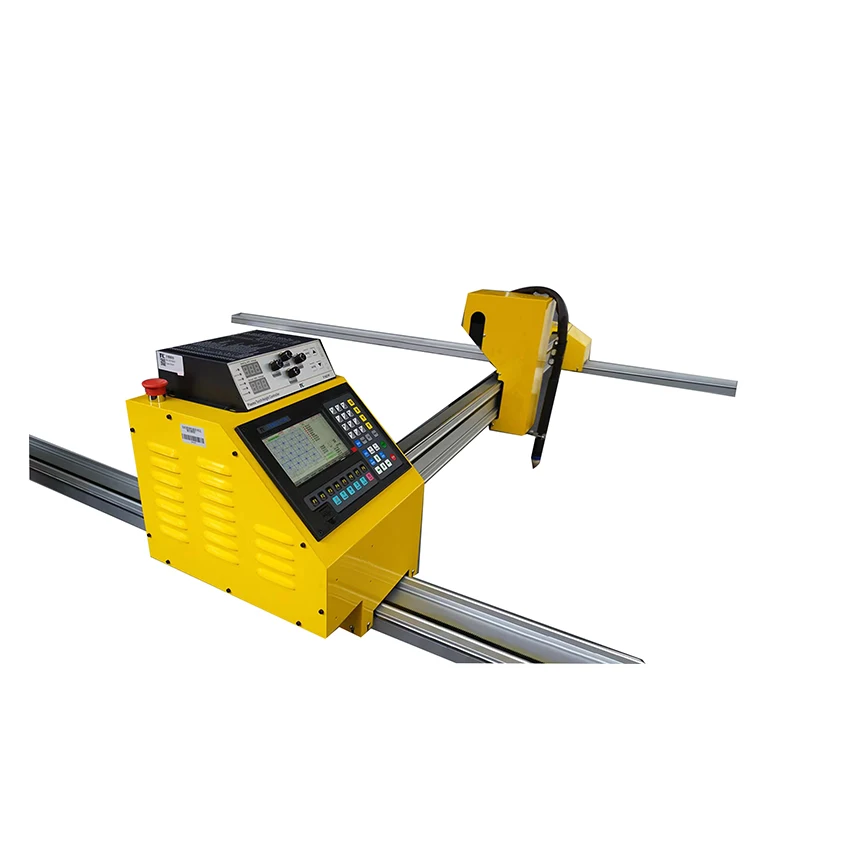

F2100B control system + High torch control
motors and drivers
X-axis guide
Y-axis guide
Fastcam software
130A LGK Power
Flame cutting gun（Oxygen cutting）
500*450*450mm（Control panel packaging）

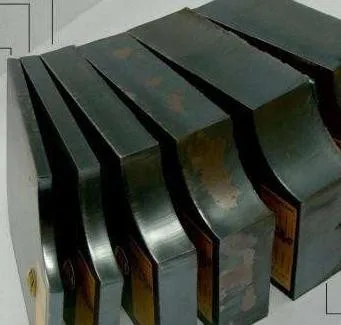

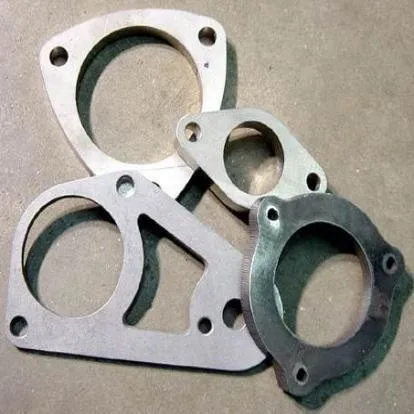

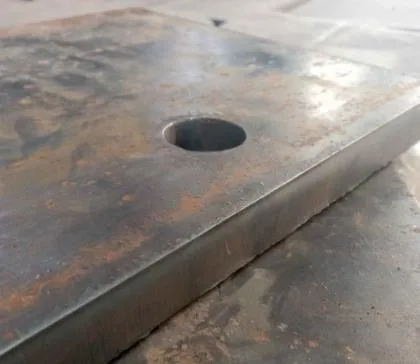

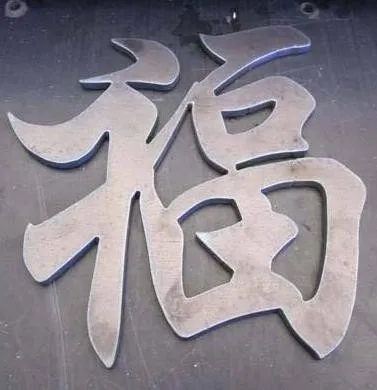

Samples

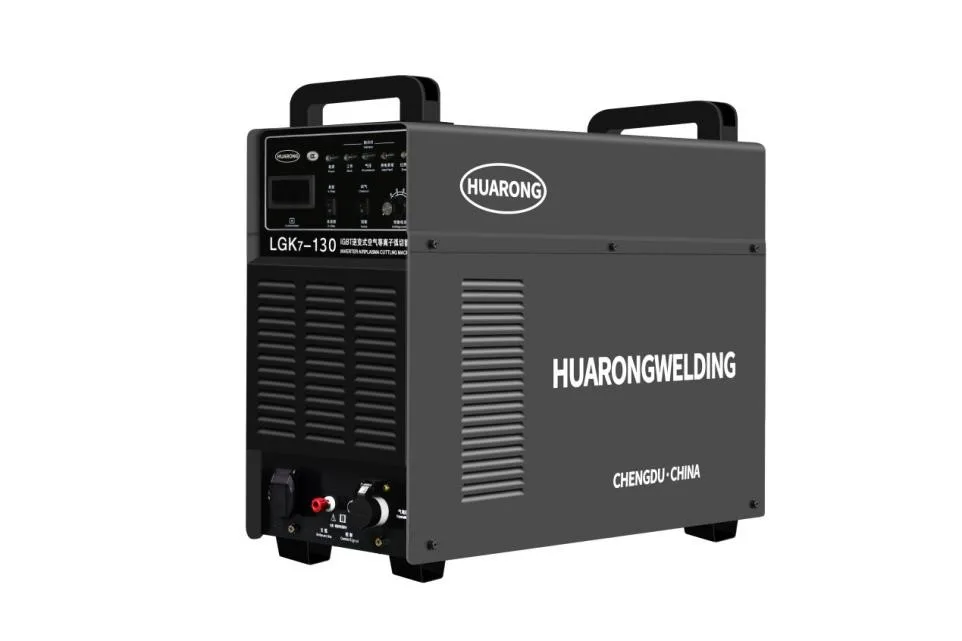

Plasma power supply
Function: Plasma cutting
* Cutting range: 0~20mm metal
* Scope of application: stainless steel, alloy steel, cast iron, carbon steel, copper, aluminum, manganese, titanium, composite
plate cutting
* Scope of application: stainless steel, alloy steel, cast iron, carbon steel, copper, aluminum, manganese, titanium, composite
plate cutting
Performance characteristics
* Simple operation
* Digital current display, accurate preset current function, current stepless adjustable.
* Visual and clear digital panel design is convenient to adjust cutting parameters.
* Excellent performance
* Adopt advanced soft switch high frequency inverter technology, high efficiency and light weight.
* High power IGBT module switch device design circuit, high reliability.
* Some products have all cutting parameters preset, storage, call function.
* Wide grid voltage adaptability.
* The function of slow rise of arc current can effectively prolong the service life of electrode and nozzle of cutting gun.
* The success rate is 100%, the arc is stable, the arc stiffness is good, and the process performance is excellent.
* The cutting speed is fast, the cut is narrow and smooth, the deformation is very small and the material is saved.
* Internal unique dustproof design, greatly improve the reliability of the whole machine.
* Perfect air pressure water pressure monitoring, overheating, overvoltage, undervoltage, lack of phase protection function.
* Use cheap compressed air for cutting, low cost.
* The product has all the signal output needed by NC control, which is suitable for NC automatic cutting.
High load duration, cut at maximum current, can work for a long time.
* Digital current display, accurate preset current function, current stepless adjustable.
* Visual and clear digital panel design is convenient to adjust cutting parameters.
* Excellent performance
* Adopt advanced soft switch high frequency inverter technology, high efficiency and light weight.
* High power IGBT module switch device design circuit, high reliability.
* Some products have all cutting parameters preset, storage, call function.
* Wide grid voltage adaptability.
* The function of slow rise of arc current can effectively prolong the service life of electrode and nozzle of cutting gun.
* The success rate is 100%, the arc is stable, the arc stiffness is good, and the process performance is excellent.
* The cutting speed is fast, the cut is narrow and smooth, the deformation is very small and the material is saved.
* Internal unique dustproof design, greatly improve the reliability of the whole machine.
* Perfect air pressure water pressure monitoring, overheating, overvoltage, undervoltage, lack of phase protection function.
* Use cheap compressed air for cutting, low cost.
* The product has all the signal output needed by NC control, which is suitable for NC automatic cutting.
High load duration, cut at maximum current, can work for a long time.
Nozzle electrode
Cutting torch + 8m torch line
Cutting torch head (without torch line)

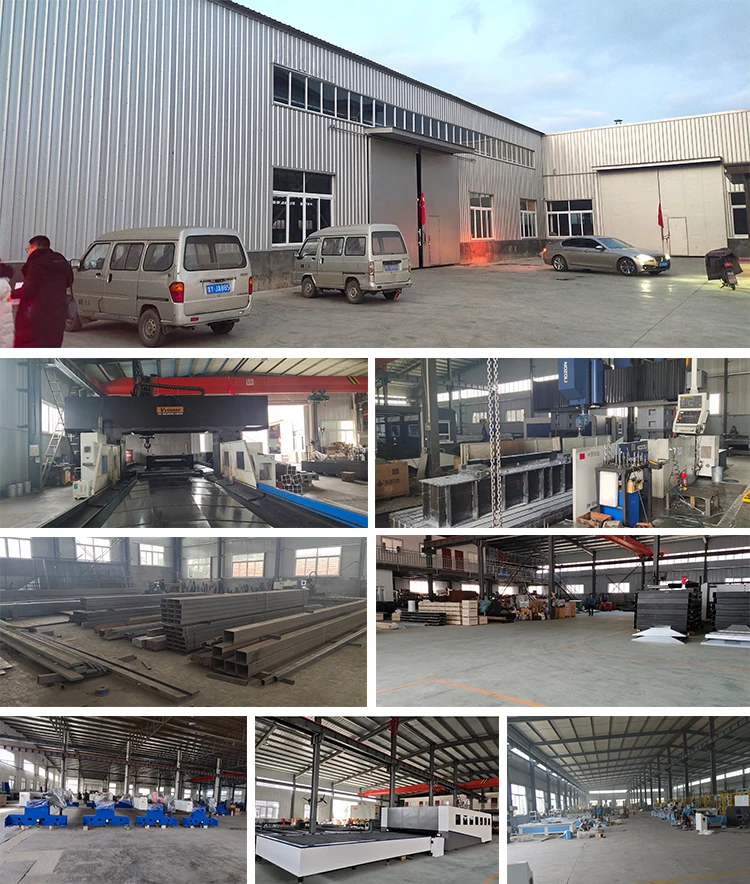

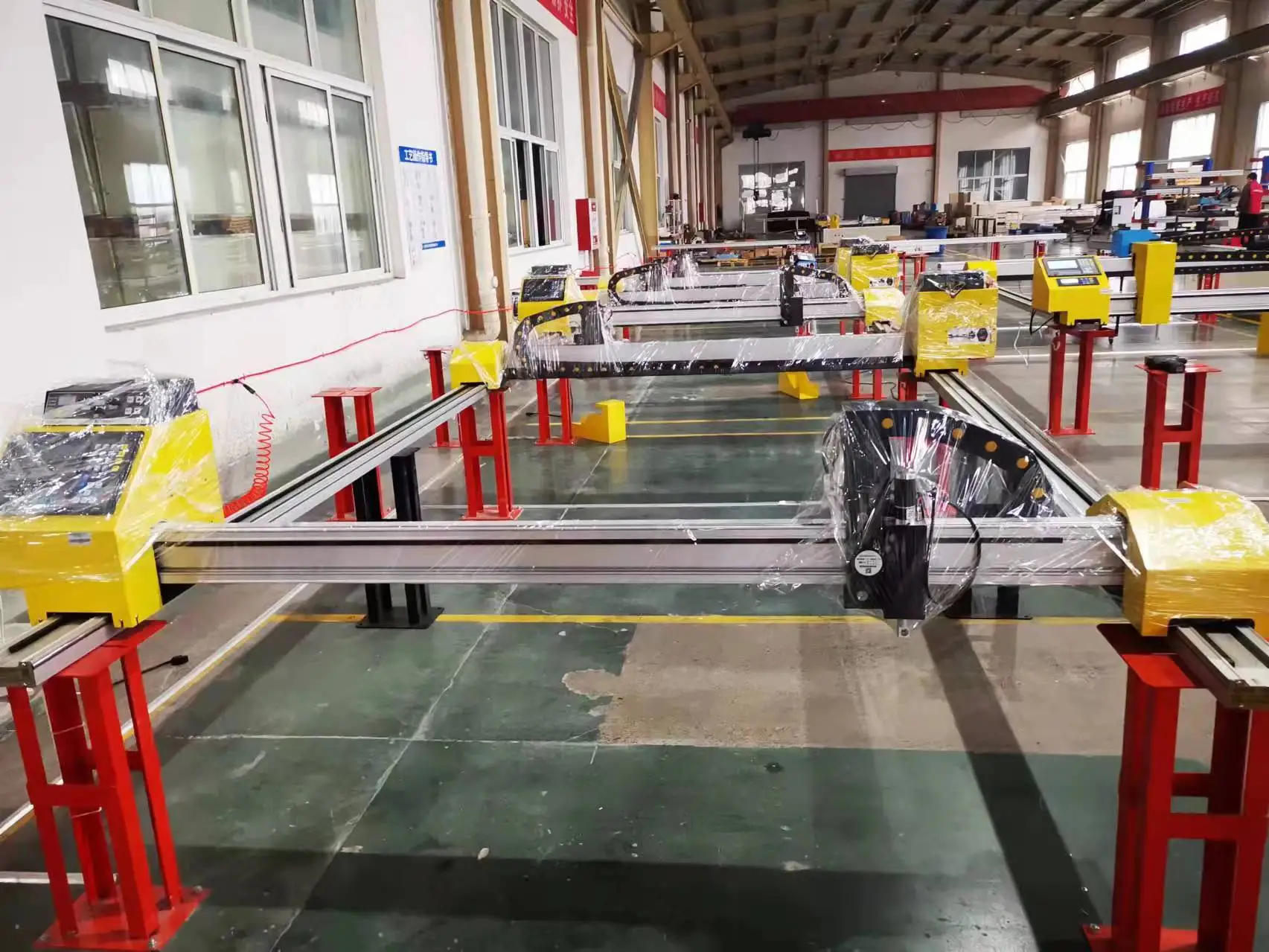

Our company
Our services
Shipping FROM: Qingdao port, China
Shipping date: Delivery at 3~5 working days after confirmation of T/T
Insurance: Covered by Importer
Payment: 30%T/T in advance, 70% before shipment.
Shipping date: Delivery at 3~5 working days after confirmation of T/T
Insurance: Covered by Importer
Payment: 30%T/T in advance, 70% before shipment.
(1) Warranty:
* 12 months for the whole
* Within 12 months under normal use and maintenance,
* if something is wrong with machine, you will get spare part for ;
* Out of 15 months, you will get spare part at cost Our Engineers still give you the best technical service within 24 hours.
* You will also get technical support and service all the lifetime.
* Within 12 months under normal use and maintenance,
* if something is wrong with machine, you will get spare part for ;
* Out of 15 months, you will get spare part at cost Our Engineers still give you the best technical service within 24 hours.
* You will also get technical support and service all the lifetime.
(2) Technical support:
* Technical support by phone, email or MSN/Skype around the clock
* Friendly English version manual and operation video CD disk
* Engineer available to service machinery overseas
* Friendly English version manual and operation video CD disk
* Engineer available to service machinery overseas
(3) After Sale Service:
* Online Training for operating the cnc machine for
* Normal machine is properly adjusted before
* You will be able to use the machines immediately when machine arrived to your
* You will be able to get free training advice towards our machine in our
* You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support.
* Normal machine is properly adjusted before
* You will be able to use the machines immediately when machine arrived to your
* You will be able to get free training advice towards our machine in our
* You will also get free suggestion and consulting, technical support and service by email/fax/tel and lifetime technical support.
FAQ
1. how i can choose a suitable machine?
Tell us the max working area,the material and its thickness you want to cut,we can help choose the best suitable machine
2.Are you the manufacture?
yes, we are manufacturer, so you can get the factory price directly.don't need pay some extra agent price for Steel Tube Cutter Table CNC Plasma Metal Cutting Machine.
3.Can we visit your factory?
yes, of course , welcome you visit our factory and check our machine quality on spot. after you confirm the coming time , tell me in advance , then we will go to air port or train station to pick you up on time.
And one professional engineer will together with you in the factory , any question will be solved on spot at first time.
And one professional engineer will together with you in the factory , any question will be solved on spot at first time.
4.Any benefits can we get if introduce new customer to you ?
Yes , of course , some gifts you will get , and the commission regarding the new customer amount.Steel Tube Cutter Table CNC 1530 Plasma Cutting Machine
5.Can we be your agent?
Welcome , we are looking for Global agent we will help agent improve the market ,and supply all the service like machine
technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.
technical problem or other after-sales problem, meanwhile ,you can get big discount and commission.
6.Payment terms?
T/T,L/C,Western Union,Paypal,Alibaba Secure Payment ect for metal plasma cutting table.
7. I want to buy this machine,what suggestion can you give?
Please tell me what material do you process? What's the size of your material?
8.which kind of materials can be processed on this machine ?
Carbon steel , SS , MS, aluminum,Galvanized sheet . etc 15
9.What's the delivery cost & time?
15 working days after receive the prepayment.Please tell me your sea port name,i check shipping cost. After production,we'll deliver ASAP.
1530 plasma cutting machine OEM Avilable
