Famous Baoomax electric mini skid steer small compact mini skid steer loader with attachments chinese mini skid steer loader
- Category: >>>
- Supplier: Weifang Baoomax Construction Machinery Co. Ltd.
Share on (1600624465886):
Product Overview
Description
Product Overview

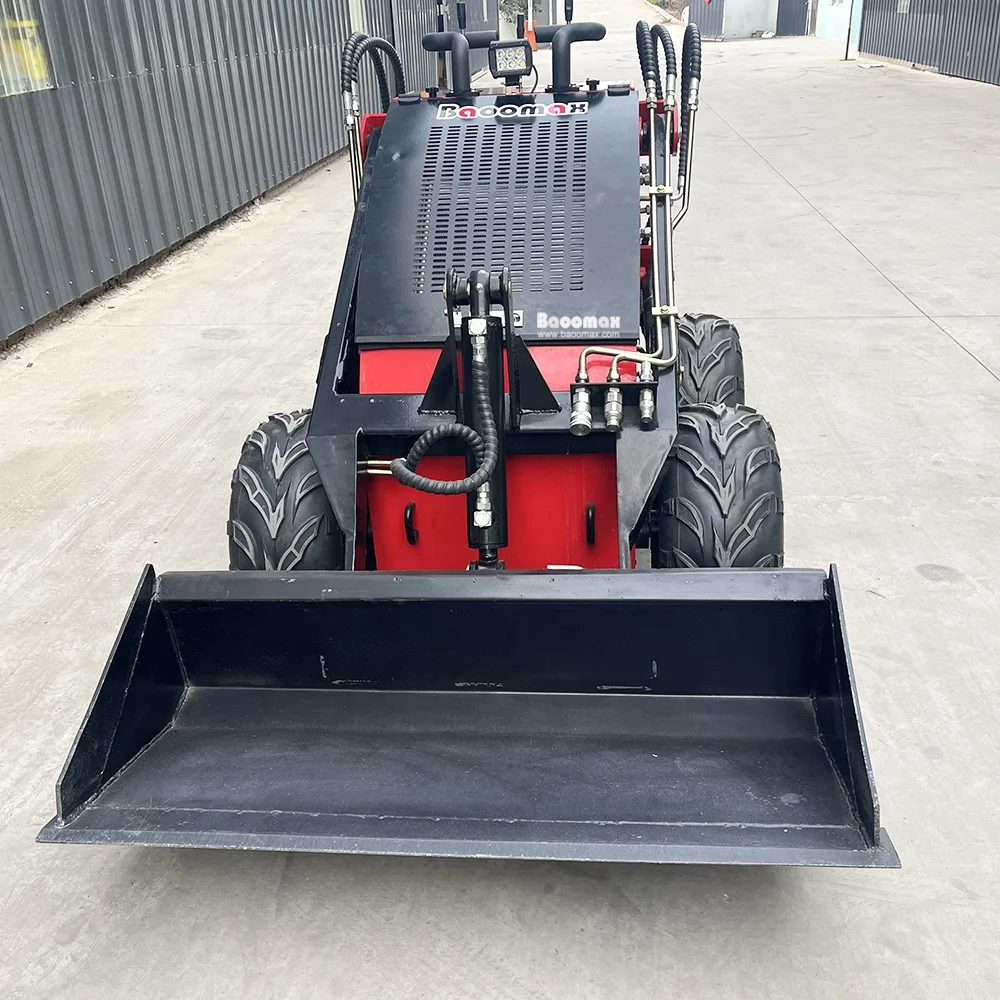

BA30 mini skid steer loader
Famous Baoomax electric mini skid steer small compact mini skid steer loader with attachments chinese mini skid steer loader
FEATURES AT A GLANCE
Compact Dimension
USA Briggs&Stratton engine 23HP
or Loncin engine or Kohler /Honda
Loading capactiy: 380KG
4 wheel motors drive
Simple control
Easy maintenance
Different attachments for optional:
like digger,auger , pallet fork , sweeper ect
PRODUCT SPECIFICATIONS
Max working height（A） | 2450 mm |
Max pin height （B） | 1900 mm |
Max dump height（C） | 1510 mm |
The highest point discharge distance（D） | 450 mm |
Bucket swing angle（β） | 55° |
Bucket unloading angle（γ） | 30° |
Opening-closing angle（θ） | 27° |
Angle of departure（α） | 26° |
Total height （H） | 1260mm |
The height from the ground（F） | 124mm |
Wheelbase （G） | 735 mm |
No bucket length（J） | 1680 mm |
Total width （W） | 1180 mm |
Bucket width （K） | 1240 mm |
Total length（L）（with bucket） | 2240 mm |
Turning radius (R) | 1307 mm |
Machine weight | 890kg |
Engine | USA Briggs&Stratton engine 23HP |
Engine speed | 3600rpm |
Bucket capacity | 0.15cbm |
Rated capacity | 380kG |
Speed | 0-6KM/h |
Fuel capacity | 5.5L |
Tyre | Wheel tires 20x10.0-10 |
