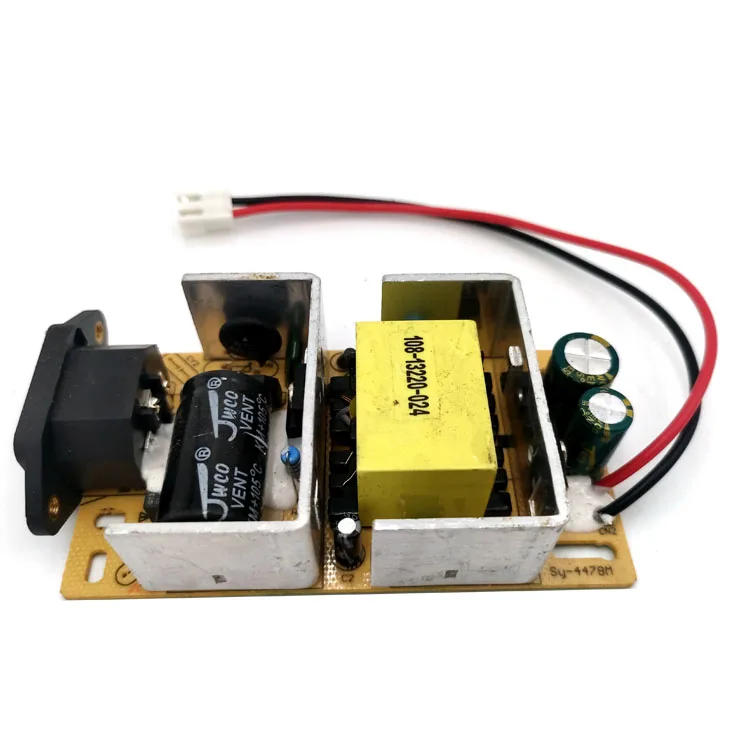

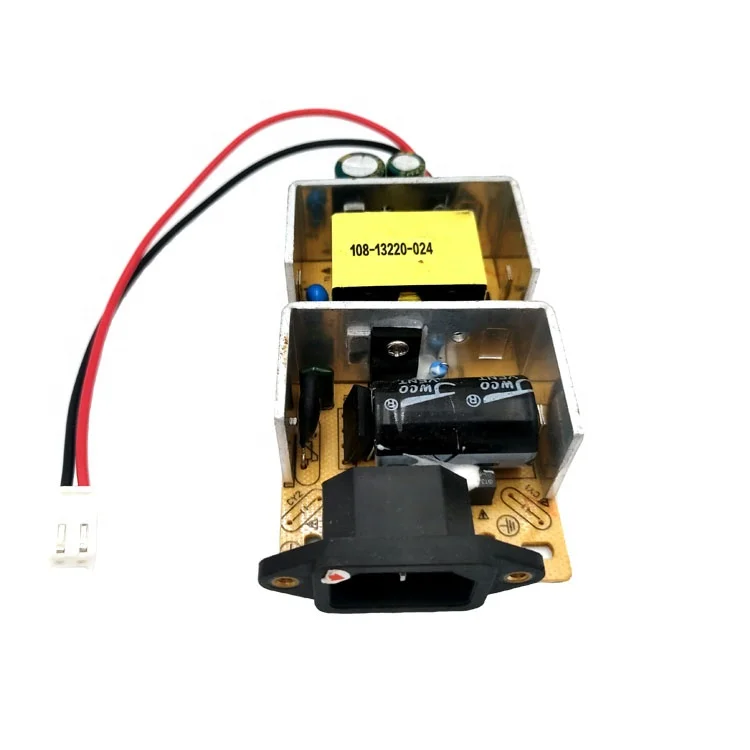

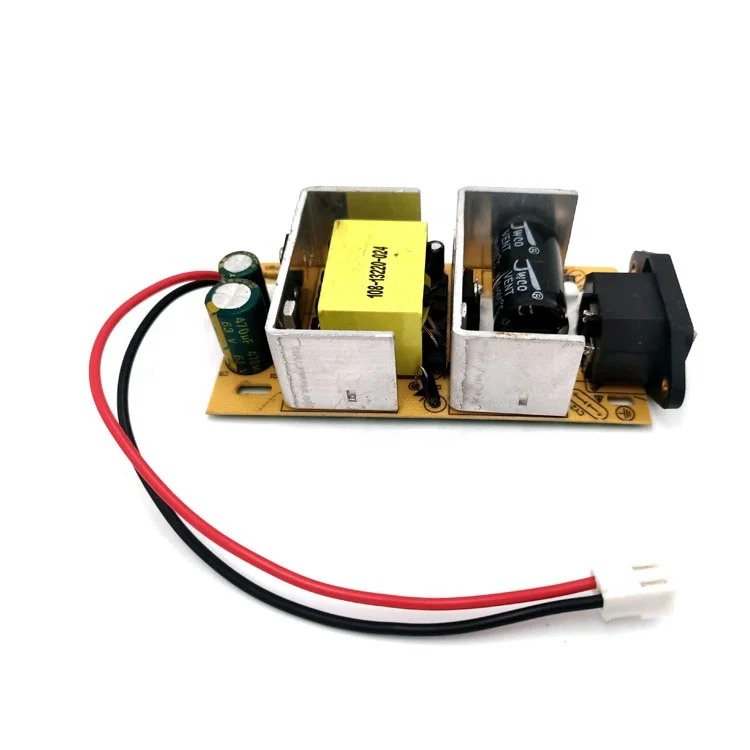

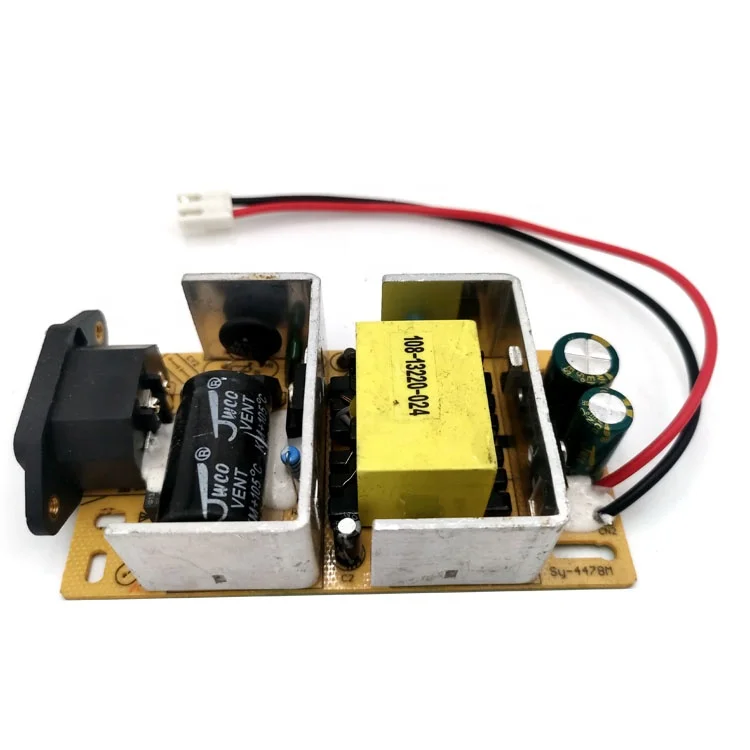

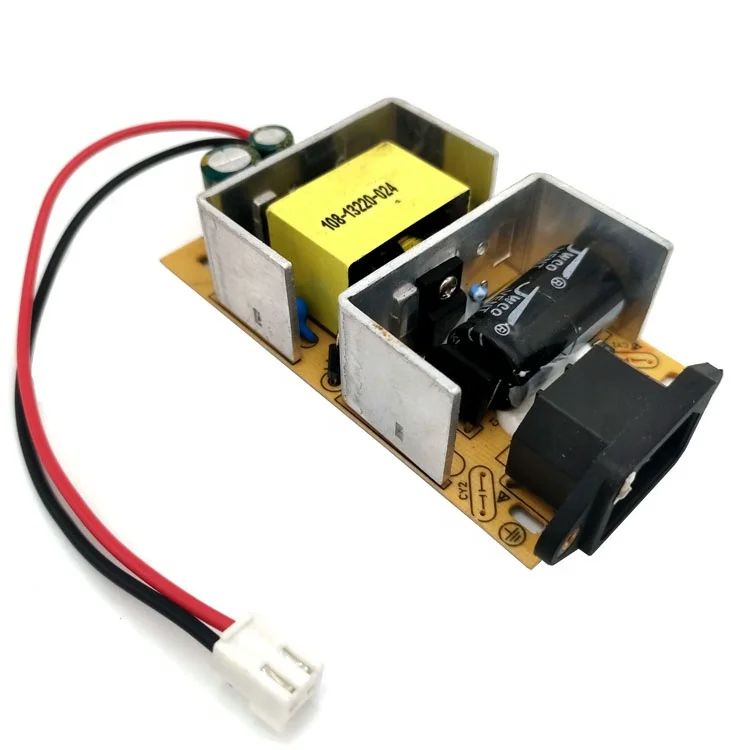

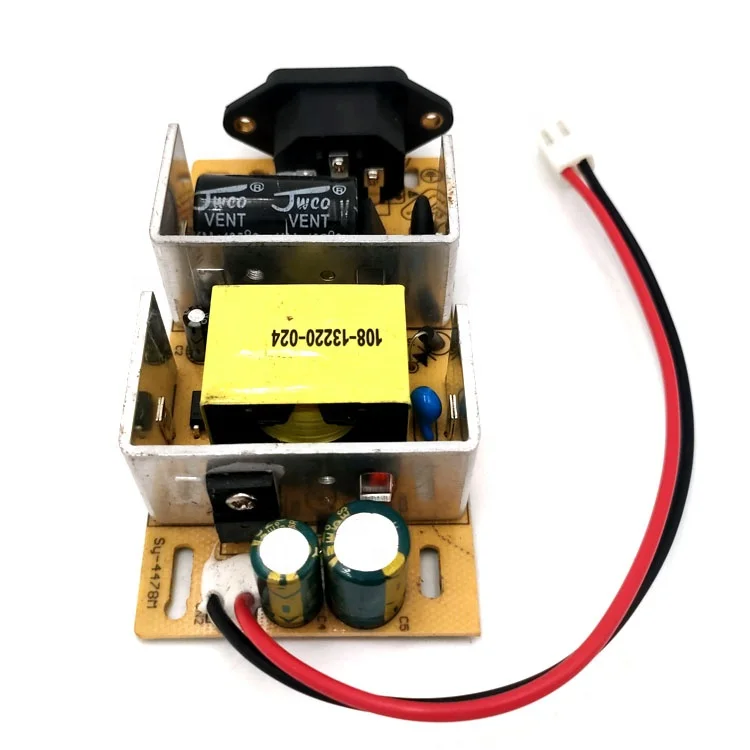

Single output 120W 52 volt 2.3 Amp ac dc Transformer Universal AC input 100 240v open frame high quality smps Power Supplies
- Category: >>>
- Supplier: Shenzhen Excellent Top Electronics Co. Ltd.
Share on (1600624516477):
Product Overview
Description
switching power supply 120W 52 volt 2.3 Amp ac dc Universal AC input open frame high quality Power Supplies smps pcb Transformer
Product Description
Our product series include
automationcontrol, railway, military industry,medical care and a good deal
of others.
Specification
MODEL | OUTPUT | RIPPLE & NOISE (max.) | Voltage accuracy | Linear adjustment rate | Load Regulation | EFFICIENC |
LPS-U065S52L-E | 52V/1.25A | 520mVp-p | ±5% | ±1% | ±3% | 85% |
LPS-U096S52L-E | 52V/1.85A | 520mVp-p | ±5% | ±1% | ±3% | 87% |
LPS-U121S52L-E | 52V/2.3A | 520mVp-p | ±5% | ±1% | ±3% | 88% |
Input Voltage & Frequency | 110-240VAC 47~63Hz |
Input Current | 2.5A/115VAC 1.5A/230VAC |
Start inrush current | 65A/230VAC |
LEAKAGE CURRENT(max.) | 0.75mA/240VAC |
SETUP, RISE TIME | 2000ms, 30ms/230VAC 3000ms, 30ms/115VAC at full load |
HOLD UP TIME (Typ.) | 50ms/230VAC 15ms/115VAC at full load |
WORKING TEMP., HUMIDITY | -10~+50°C(Refer to "Derating Curve") 20 ~ 90% RH non-condensing |
STORAGE TEMP., HUMIDITY | -25~+ 60°C , 10~95% RH |
TEMP. COEFFICIENT | ±3%/°C （0~50°C） |
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes |
WITHSTAND VOLTAGE | I/p-0/P: 1.8KVAC I/p-PG: 1.0KVA O/p-PG: 0.5KVAC |
MTBF | ≥ 500K hrs. MIL-HDBK-217F (25°C ) |
DIMENSION | 153*46*24mm (L*W*H) |
Certifications
Product Certificates
Almost all of our products get CE/CCC/ROHS/FCC etc certificates,and if you have Special requirements of certificates,we can help to apply it for you.And our company pass ISO9001and ISO14001.
Almost all of our products get CE/CCC/ROHS/FCC etc certificates,and if you have Special requirements of certificates,we can help to apply it for you.And our company pass ISO9001and ISO14001.
Packing & Delivery
Our Product Package
In order to protect products,the inner package is often use PP bags or Anti Static bags,and the use white box to pack each product,then put each one into the strong carton,at last finish packing.
Transportation ways of products
You can choose any way which you like to ship the goods,we will try our best tohelp you save shipping cost.
Transportation ways of products
You can choose any way which you like to ship the goods,we will try our best tohelp you save shipping cost.

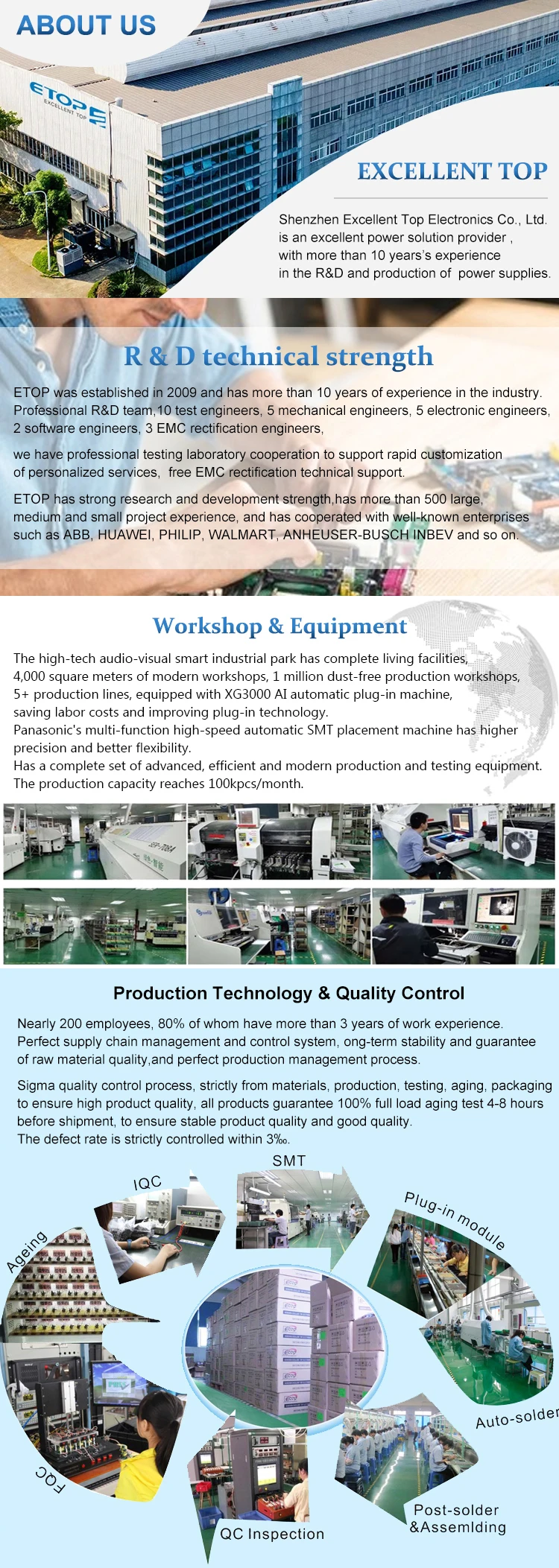

Company Profile
Our advantage
1.Good and High efficiency Team:
1.Good and High efficiency Team:
our company have sales team,R&D team,purchase team,PMT team,production team and quality team
etc.Our teams works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !
2.OEM&ODM Services:
Our company have professional engineers,so we cancustomize products ccording to your detailed
requirements,your samples or your ideas.
3.High efficiency automatic SMT machine and production process:
it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.
etc.Our teams works hard together with highefficiency,and our teams have the same target--Excellent quality,the highest service !
2.OEM&ODM Services:
Our company have professional engineers,so we cancustomize products ccording to your detailed
requirements,your samples or your ideas.
3.High efficiency automatic SMT machine and production process:
it is fast,high-efficient and standard.Professional surface-mounting and trough-hole soldering technology.-our production process must through below steps to guarantee good quality Inspecting Raw Materials-Auto machine to SMT--Plug-in module--Pass wave-soldering (Auto solder)--Angle cutter cutting angles--Post-solder &Assembling--QC Inspection--FQC Testing Products--Ageing --Quality department spot-check goods--Packing--Shipping out.
