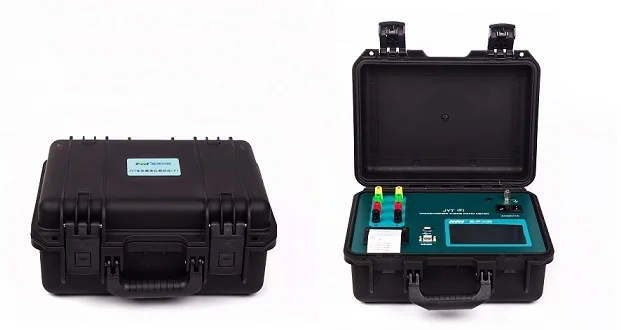

JYT A Transformer Turns Ratio Tester
- Category: >>>
- Supplier: Hangzhou Giantway Import & Export Co. Ltd.
Share on (1600624545321):
Product Overview
Description
Products Description
* Can test neutral point by 8 test poles
* Following IEC International Standard by 0.1% Acurracy
* 6kgs Only and Easy Carrying
* Minimum resolution:0.0001
* Product description: JYT A transformer turns ratio tester (TTR tester),8 test poles with fast testing speed, all three-phase
test finished in 10 seconds, test the ratio from distribution transformer to power transformers
* Following IEC International Standard by 0.1% Acurracy
* 6kgs Only and Easy Carrying
* Minimum resolution:0.0001
* Product description: JYT A transformer turns ratio tester (TTR tester),8 test poles with fast testing speed, all three-phase
test finished in 10 seconds, test the ratio from distribution transformer to power transformers
Function Introduction
JYT-A Tester can test the transformer with neutral point by 8 testing poles, it can test the turns ratio accurately (Non
conversion), it is very convenient for the manufacturer to find the fault.
* The interface adopts intelligent touch mode, which is simple and convenient to operate. The circuit adopts a new generation of
all digital scheme to ensure the long-term stability of the instrument.
* It has the function to measure the current.it is more sensitive to judge the inter-turns short circuit
* The testing speed is high, it can finish the three-phase testing within 1.5 seconds by one time of wiring connection.
* JYT-Atransformerturns ratio tester (TTR tester) is suitable to test the ratio from distribution transformer to power
transformers, CT, PT and transformers with Z connection.
* Without power clock and date display, the instrument can store 50 sets of data, and the data will not be lost if the power is
failure.
* With large color LCD screen, the data is clear and easy to read, thermal printer printing, RS485 communication interface and U
disk storage interface.
* The instrument has the protection function of misconnection of high voltage and low voltage, and has the function of
transformer short-circuit and inter-turns short circuit protection. It has the protection function of power supply
misconnection with AC380V.
conversion), it is very convenient for the manufacturer to find the fault.
* The interface adopts intelligent touch mode, which is simple and convenient to operate. The circuit adopts a new generation of
all digital scheme to ensure the long-term stability of the instrument.
* It has the function to measure the current.it is more sensitive to judge the inter-turns short circuit
* The testing speed is high, it can finish the three-phase testing within 1.5 seconds by one time of wiring connection.
* JYT-Atransformerturns ratio tester (TTR tester) is suitable to test the ratio from distribution transformer to power
transformers, CT, PT and transformers with Z connection.
* Without power clock and date display, the instrument can store 50 sets of data, and the data will not be lost if the power is
failure.
* With large color LCD screen, the data is clear and easy to read, thermal printer printing, RS485 communication interface and U
disk storage interface.
* The instrument has the protection function of misconnection of high voltage and low voltage, and has the function of
transformer short-circuit and inter-turns short circuit protection. It has the protection function of power supply
misconnection with AC380V.

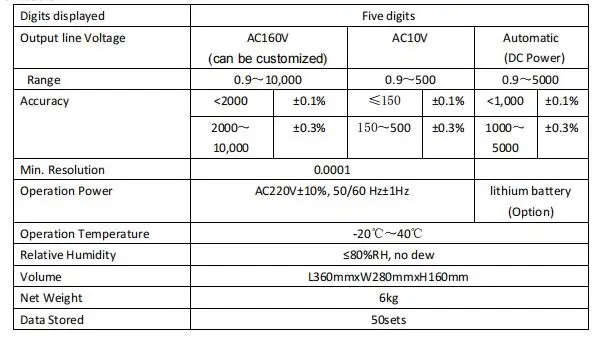

Technical Parameters
JYT-A turns ratio tester Function:
Advantage of JYT-A transformer turns ratio tester (TTR tester):
1. High performance of MPU (microprocessor) can provide high precise data and fast calculation.
2. LCD screen provide clear display for all tested value.
3. Thermosensitive printer provide fast and clear tested value printing.
4. JYT-A transformer turns ratio tester (TTR tester) supply RS485 and USB interface for data transmission.
1. High performance of MPU (microprocessor) can provide high precise data and fast calculation.
2. LCD screen provide clear display for all tested value.
3. Thermosensitive printer provide fast and clear tested value printing.
4. JYT-A transformer turns ratio tester (TTR tester) supply RS485 and USB interface for data transmission.

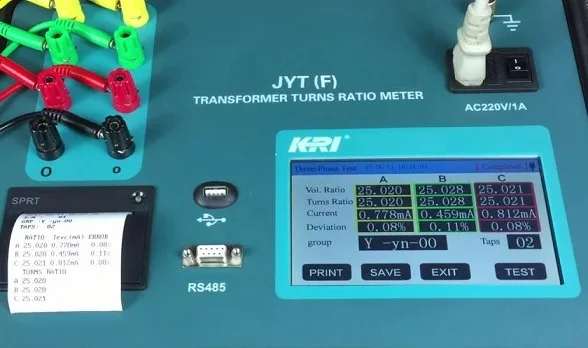

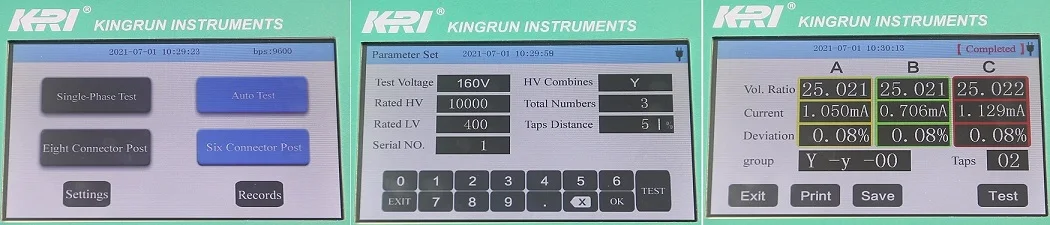

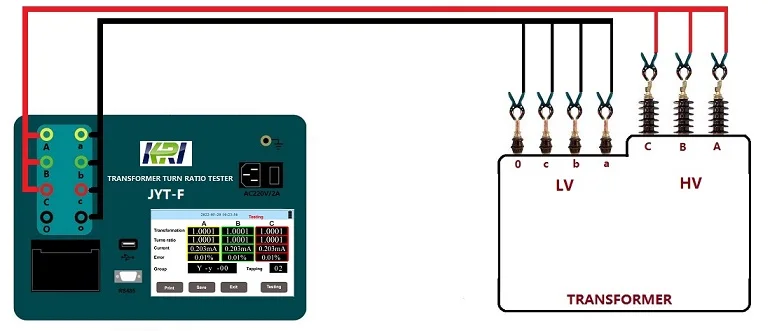

YT-A turn ratio tester interface and turns ratio testing result:
JYT-A Transformer turns ratio tester's testing clips are made from pure copper with punch forming , the surface is nickel plating,
the handle is insulating, the testing clip is safe, easy handling and well connection (13Meters).
the handle is insulating, the testing clip is safe, easy handling and well connection (13Meters).
