Price:$775.00 - $850.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

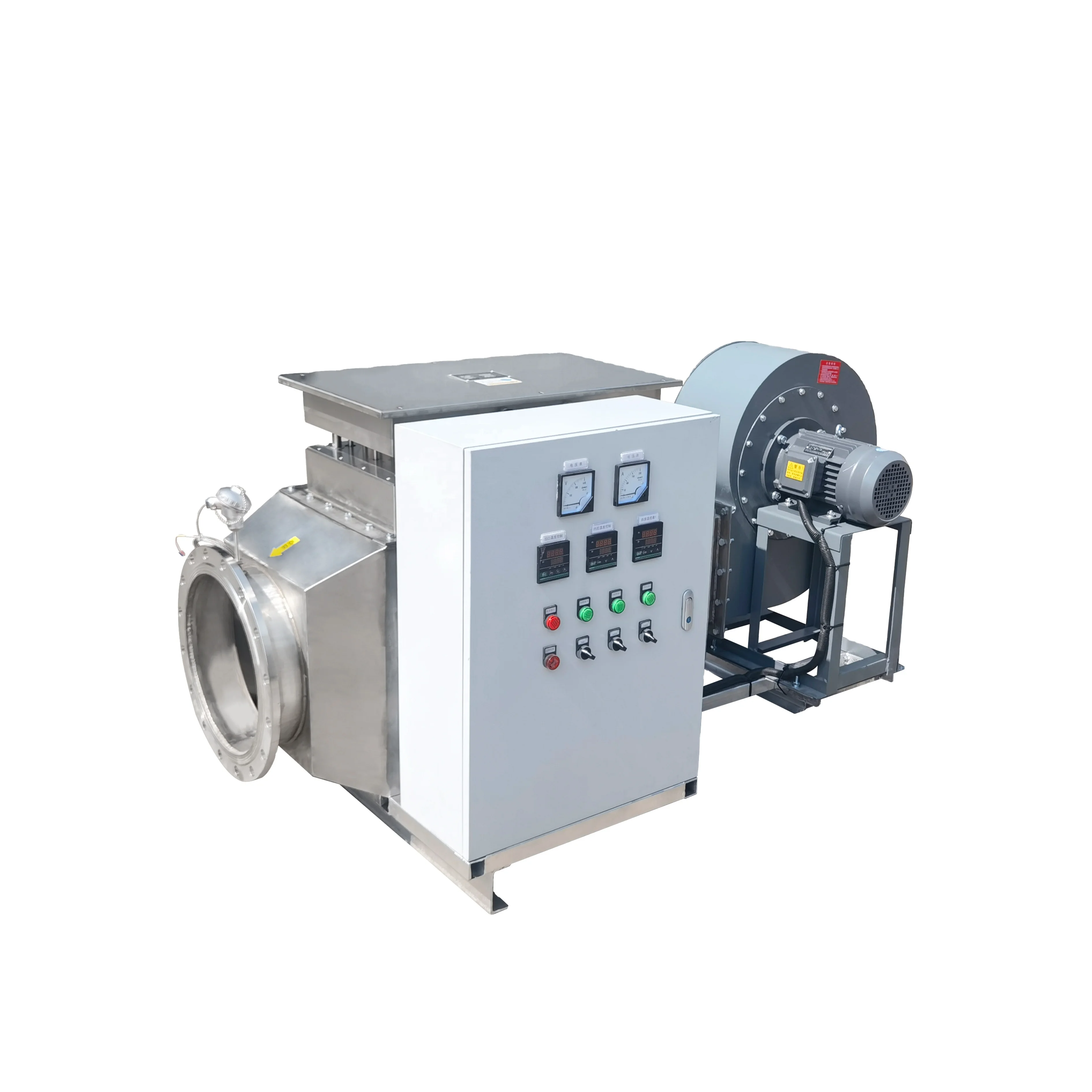

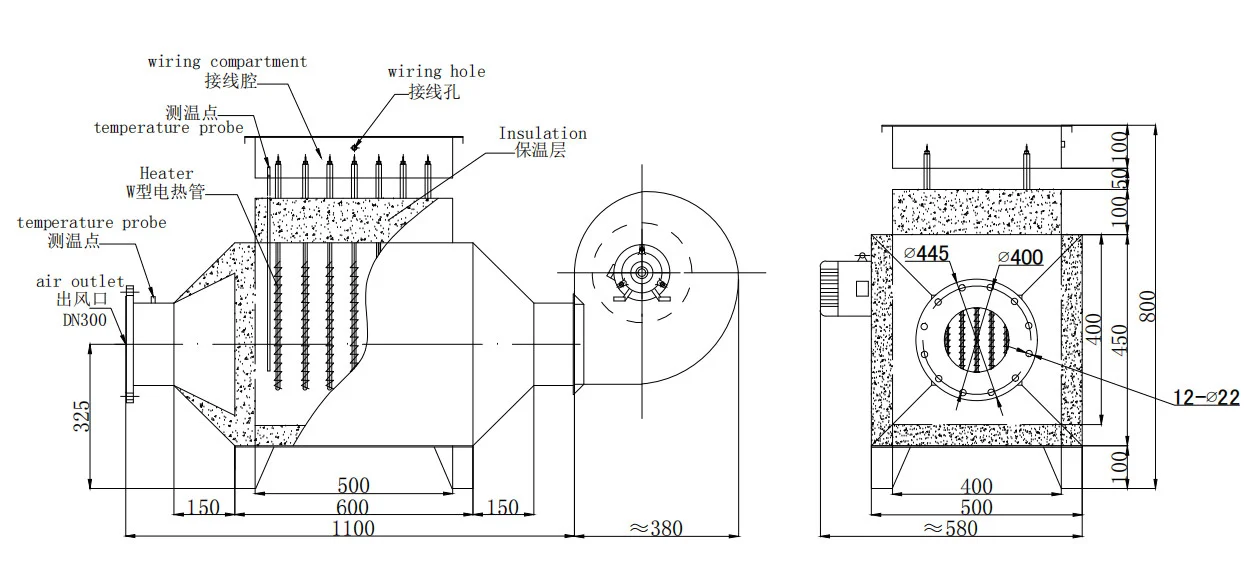

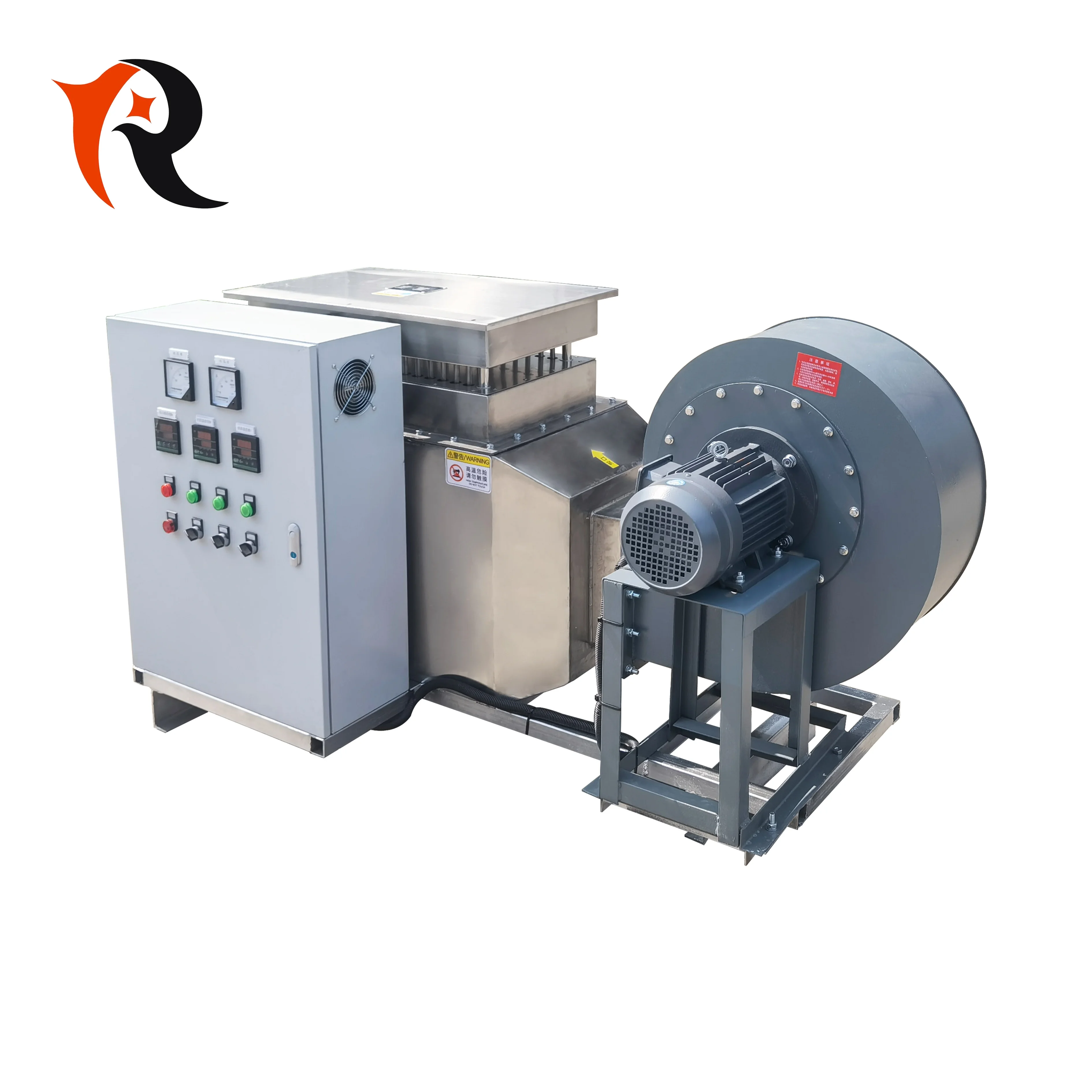

Air Duct Heater is mainly used for heating the air in the air duct. The common thing in the structure is that the steel plate is
used to support the electric heating tube to reduce the vibration of the electric heating tube, and it is installed in the junction box. There is an over-temperature control device. In addition to the over-temperature protection in terms of control, an intermodal device is also installed between the fan and the heater to ensure that the electric heater must be started after the fan is started, and a differential pressure device must be added before and after the heater to prevent the fan failure, the gas pressure heated by the channel heater should generally not exceed 0.3Kg/cm2. If you need to exceed the above pressure, please use a circulating electric heater.




The key questions before ordering a Air Duct Heater are:
1. What's your required material?
2. What's Voltage and power? Or, you can tell us your using environment.
3. What's the operation temperature requirement?
4. How many sets will you want?
5. Other design requirement, feel free to tell us.
Package: export wooden case packaging
Delivery: By sea or air


Specification


Technical Parameters
Model
XR-FD-20
Voltage
380V-660V 3Phase 50Hz/60Hz
Wattage
20KW
Size
1100*500*800mm
Material
Carbon Steel/Stainless Steel
Heat efficiency
≥95%




Technical specifications
Model
Power(KW)
Size of Heating Room
(L* W* H, mm)
Outlet Diameter
Power of Blower
XR-FD-10
10
300*300*300
DN100
0.37KW
XR-FD-20
20
500*300*400
DN200
XR-FD-30
30
400*400*400
DN300
0.75KW
XR-FD-40
40
500*400*400
DN300
XR-FD-50
50
600*400*400
DN350
1.1KW
XR-FD-60
60
700*400*400
DN350
1.5KW
XR-FD-80
80
700*500*500
DN350
2.2KW
XR-FD-100
100
900*400*500
DN350
3KW-2
XR-FD-120
120
1000*400*500
DN350
5.5KW-2
XR-FD-150
150
700*750*500
DN400
XR-FD-180
180
800*750*500
DN400
7.5KW-2
XR-FD-200
200
800*750*600
DN450
XR-FD-250
250
1000*750*600
DN500
15KW
XR-FD-300
300
1200*750*600
DN500
XR-FD-350
350
1000*800*900
DN500
15KW-2
XR-FD-420
420
1200*800*900
DN500
XR-FD-480
480
1400*800*900
DN500
XR-FD-600
600
1600*1000*1000
DN600
18.5KW-2
XR-FD-800
800
1800*1000*1000
DN600
XR-FD-1000
1000
2000*1000*1000
DN600
30KW-2


Advantage:
1.Large range of materials and options according to customer process and conditions of use
2.Benefit from 10 years of experience as designer and manufacturer!
3.Equipment available for use in hazardous areas or safe environment
4.The end-to-end control of the design and production chain allows us to deliver a product which suits your process perfectly
5.Available design enabling to remove and replace the heating element for lifetime & cost optimization


Application


Air duct heaters are widely used in drying rooms, spray booth, plant heating, cotton drying, air-conditioning auxiliary heating, environmentally friendly waste gas treatment, greenhouse vegetable growing and other fields.






Company Profile




Yancheng Xinrong Electronic Industries Co.,Ltd have been engaged in design and manufacturing of industrial heating system, Our company have advanced production lines and testing equipment, who supply clients high quality goods, as well as professional R&D department and service team, who provide customers best heating solutions. Our products have been exported to Europe, America, Asia, Mid East etc. more than 200 countries. We supply different heating element, heating equipment, and temperature measurer.
Adhering to "Quality Best, Customer First and Honesty" business philosophy, the company and domestic and foreign partner make progress together to create a better future.
