Vinylic Copolymer Epoxy Price Copolymers Unsaturated Polyester Liquid Vinyl Ester Resin
- Category: >>>
- Supplier: Zhongtritium (changzhou) Technology Co. Ltd.
Share on (1600624896259):
Product Overview
Description
Products Description
Product | Type | 25℃ pa.s Viscosity | Min Gel Time | Non -volatile | MPa Tensile Strength | Elongation | MPa Flexural Strength | HDT ℃ | ||||
SWANCOR 901 | General purpose | 0.35-0.55 | 15.0-25.0 | 54.0-56.0 | 90-95 | 5.5 | 130 | 101 | ||||
SWANCOR 907 | High performance phenolic epoxy Vinyl resin | 0.28-0.58 | 15-25 | 62±1% | 76-90 | 4 | 145 | 150 | ||||
SWANCOR 977-S | High temperature, solvent resistant type Vinyl resin | 0.6-0.9 | 25-35 | 73.5-69.5 | 62-80 | 2.5 | 125 | 210 | ||||
SWANCOR 907-S | High temperature resistant type Vinyl resin | 0.27-0.4 | 15-25 | 67±1% | 76-90 | 3.7 | 145 | 150 | ||||
SWANCOR 900 | High temperature, strong corrosion modified phenolic epoxy vinyl ester resin | 0.25-0.45 | 20.0-30.0 | 63.5-65.5 | 75-85 | 2.5 | 125 | 170 | ||||
SWANCOR 915 | Flame-resistant vinyl ester resin | 0.25-0.45 | 15±5min | 55±1% | 75-85 | 7 | 135 | 93 | ||||
SWANCOR 901-200 | Vacuum infusion process low viscosity vinyl ester resin | 0.15-0.25 | 10-125 | 55±1% | 76-90 | 5.5 | 135 | 102 | ||||
901-200P | 0.15-0.25 | 10-125 | 55±1% | 76-90 | 5.5 | 135 | 102 | |||||
901-200T | 0.25-0.45 | 10-125 | 55±1% | 76-90 | 5.5 | 135 | 102 | |||||
901-200PT | 0.25-0.45 | 10-125 | 55±1% | 76-90 | 5.5 | 135 | 102 | |||||
SWANCOR CP95 | Special primer resin for concrete lining projects | 0.10-0.30 | 5.0-15.0 | |||||||||
SWANCOR 901-PW | Vinyl ester resin primer paint | 0.5-0.7 | 10.0-20.0 | |||||||||
SWANCOR 983-M | Pre-accelerated iron base coated with vinyl ester resin | 20-30 | ||||||||||
SWANCOR 901-TPW-7X | Medium temperature pre-accelerated vinyl resin chrome green topcoat | 0.5-0.7 | 10-20 | |||||||||
SWANCOR 901-PW-6X | Medium temperature pre-accelerated Vinyl resin mouse gray finish | 0.5-0.7 | 10-20 | |||||||||
SWANCOR901-FLTP-7X | Trowel coated glass flake vinyl resin | 40-60 | ＞25 | ＞65 | 120 | |||||||
Products Details
SWANCOR 901
Bisphenol-A Epoxy Vinyl Ester Resin
Specification
Appearance | 1. Brown and clear liquid |
Density | 2. 1.04±0.01 |
Viscosity | 3. 450±100cps(LVT#3-60rpm/25℃) |
Solid content | 4. 55±1% kg/L |
Gel time | 5. 15-25 min 6. (55%MEKPO：1.2%，6% cobalt octoate ：0.4%，100%DMA： 0.05%，temperature：25℃ water bath) |
Storage period | 7. 9 month(below 25℃) |
Casting body property
Tensile strength | 8. 76-97 MPa | 9. (ASTM D 638) |
Tensile modulus | 10. 3.3-3.6 GPa | 11. (ASTM D 638) |
Elongation | 12. 5.0-6.0% | 13. (ASTM D 638) |
Bending strength | 14. 115-138 MPa | 15. (ASTM D 790) |
Bending modulus | 16. 3.1-3.4 GPa | 17. (ASTM D 790) |
Distortion temperature | 18. 100-102℃ | 19. (ASTM D 648) |
Hardness | 20. 30-38Barcol | 21. (ASTM D 2583) |
Package store and operation

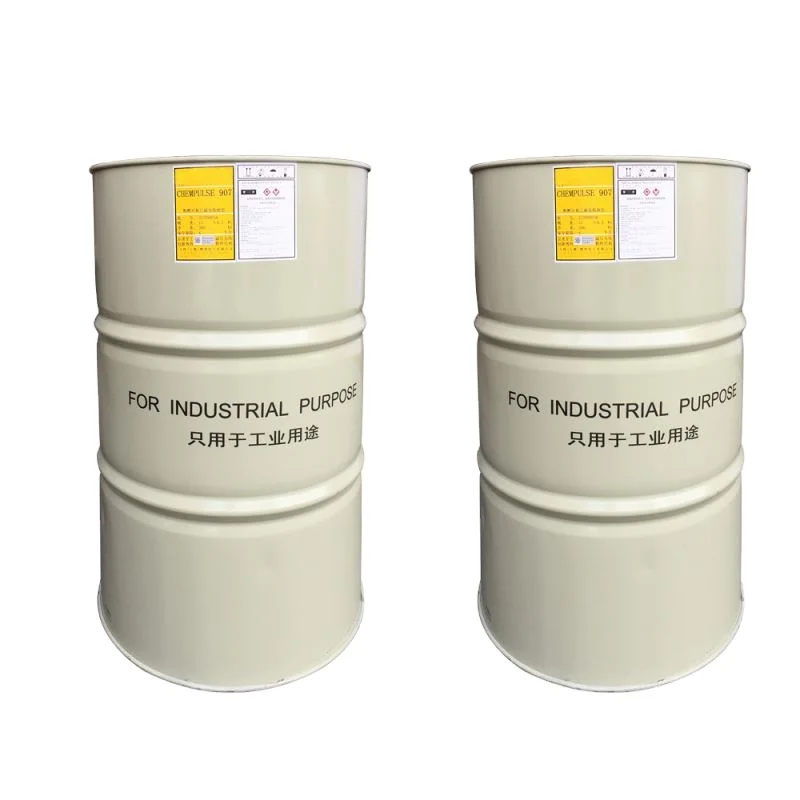

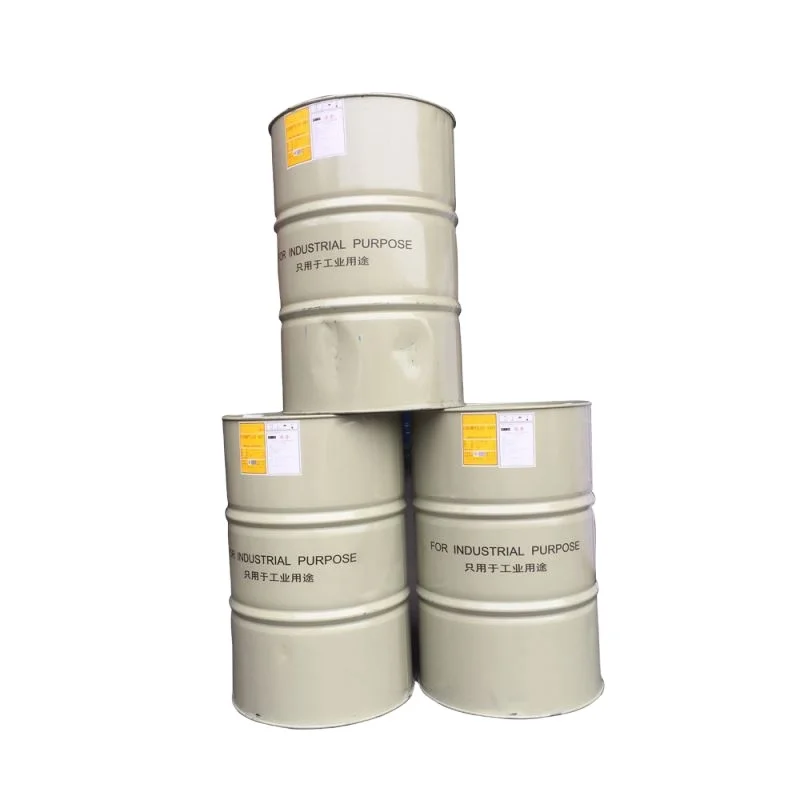

SWANCOR 901 is filled with 55 gallons metal barrel , 200kg/barrel.
Please stored under shelter,direct sunlight is prohibit.
Fire and flammable liquid is prohibit.
Please stored under shelter,direct sunlight is prohibit.
Fire and flammable liquid is prohibit.
Other notice:
1. This resin with above property is for hand lay up , filament winding, and pulltrusion process, others like vertical flow pattern SWANCOR 901-T or added accelerator type SWANCOR 901-P, all kinds property resin supplied according to customer requirement.
2. SWANCOR 901 reactive resin should be stored under shelter , shall open barrel cover and filled with air to prolong storage time if the resin has been stored for long time.
3. SWANCOR 901 gel property is affected by weather , temperature, hardener content,accelerator content and additive , please test gel time in small batch before change operation recipe for better operation.
2. SWANCOR 901 reactive resin should be stored under shelter , shall open barrel cover and filled with air to prolong storage time if the resin has been stored for long time.
3. SWANCOR 901 gel property is affected by weather , temperature, hardener content,accelerator content and additive , please test gel time in small batch before change operation recipe for better operation.
Typical gel time
SWANCOR 901 typical gel property
SWANCOR 901 typical gel property
Temperature | Curing system | 10~20 minutes | 20~40 minutes | 40~60 minutes |
5~10℃ | 55%MEKPO | 3.0% | 3.0% | 3.0% |
5~10℃ | 2% cobalt | 2.4% | 1.8% | 1.8% |
5~10℃ | 100%DMA | 0.15% | 0.1% | 0.06% |
10~20℃ | 55%MEKPO | 1.5% | 1.5% | 1.5% |
10~20℃ | 2% cobalt | 2.4% | 2.4% | 1.2% |
10~20℃ | 100%DMA | 0.08% | 0.05% | 0.05% |
20~28℃ | 55%MEKPO | 1.2% | 1.2% | 1.2% |
20~28℃ | 2% cobalt | 1.2% | 1.2% | 1.2% |
20~28℃ | 100%DMA | 0.07% | 0.05% | 0.01% |
28℃ above | 55%MEKPO | 1.2% | 1.2% | 1.2% |
28℃ above | 2% cobalt | 1.5% | 1.2% | 0.9% |
28℃ above | 100%DMA | 0.06% | 0.04% | 0 |
Application
Ship
Anticorrosion pipeline
Wind blade
Anticorrosive floor
Anticorrosive sewage tank
Tank
Company Profile
Our Company
Zhongtritium (Changzhou) Technology Co., LTD. It is a comprehensive enterprise engaged in the production,sales and technical support of raw and auxiliaries in new composite materials. Until now we have more than 500 kinds of products, and the number is still increasing. Our main products are: unsaturated polyester resin, vinyl ester resin, epoxy resin,gel coat, chopped strand mat , woven roving , direct roving, accelerator, catalyst , wax, color paste, diluent, styrene, etc.
In addition to market our own products, we are also sale some global brands like AKZONOBEL ASHLAND, SWANCOR, CHEMTREND, DSM, SYRGIS,FINISHKARE, XTEND, NOURYAN, JUSHI, EVONIK, MEIGUARS, BKY and LOCTITE .
Meet the needs of one-stop shopping, looking forward to working with you!
In addition to market our own products, we are also sale some global brands like AKZONOBEL ASHLAND, SWANCOR, CHEMTREND, DSM, SYRGIS,FINISHKARE, XTEND, NOURYAN, JUSHI, EVONIK, MEIGUARS, BKY and LOCTITE .
Meet the needs of one-stop shopping, looking forward to working with you!
Our Factory
Our Warehouse
Packing and Shipping
FAQ
Q: Can I get a sample?
A: Yes,we can provide 1KG for resin as free samples, but freight usually requires the buyer to bear.
Q:What is your company's transportation form?
A:Samples generally deliver by international express,a large number of goods can be transported by land or water.
Q: How long is the delivery time?
A: The products in our product list are basically in stock. If the customer needs to purchase the original specifications,it will be within 20 days
Q:What's the payment?
A: 50% payment by T/T in advance,50% payment by T/T before shipment.
Q:Can I get a low price if I order a large quantity ?
A: Sure,The price of the Alibaba is just a reference,because of the raw material price floating is bigger,before purchasing,you need contract with our sales,according to your purchase quantity and request,we will give you the lowest price.
