Good price Industrial Grade CSD-385A+ Automatic Wire Feeder Machine Tin BGA Soldering Station
Product Description

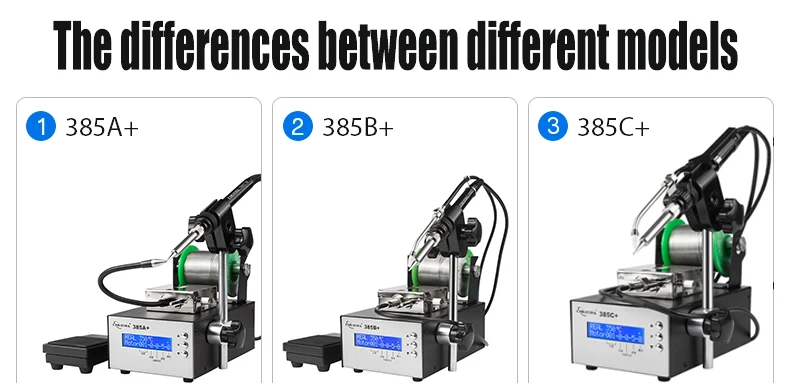

385 Series Automatic Feeding Tin Welding Station Feature:

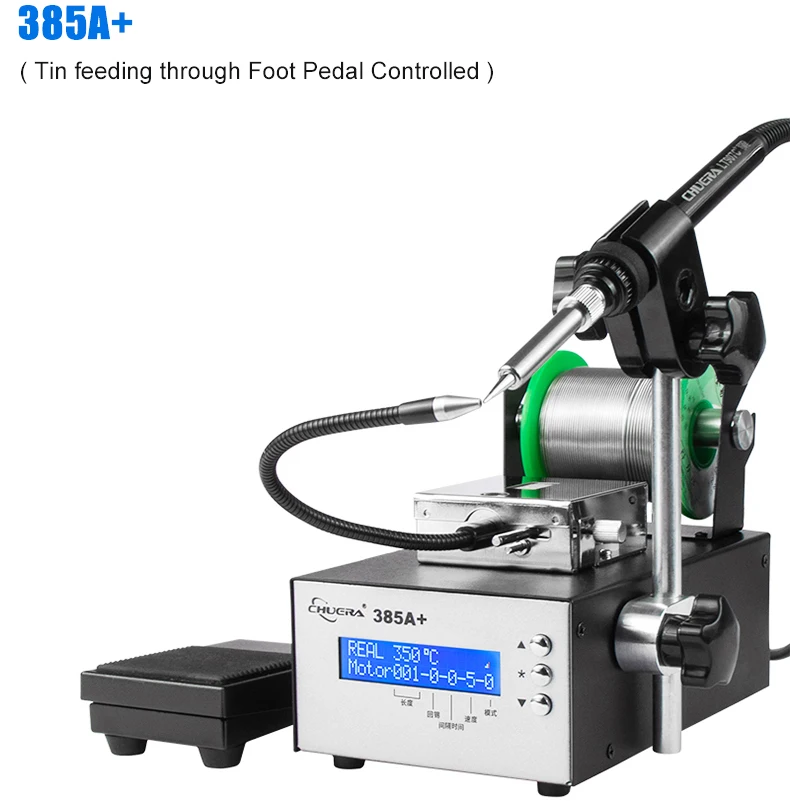

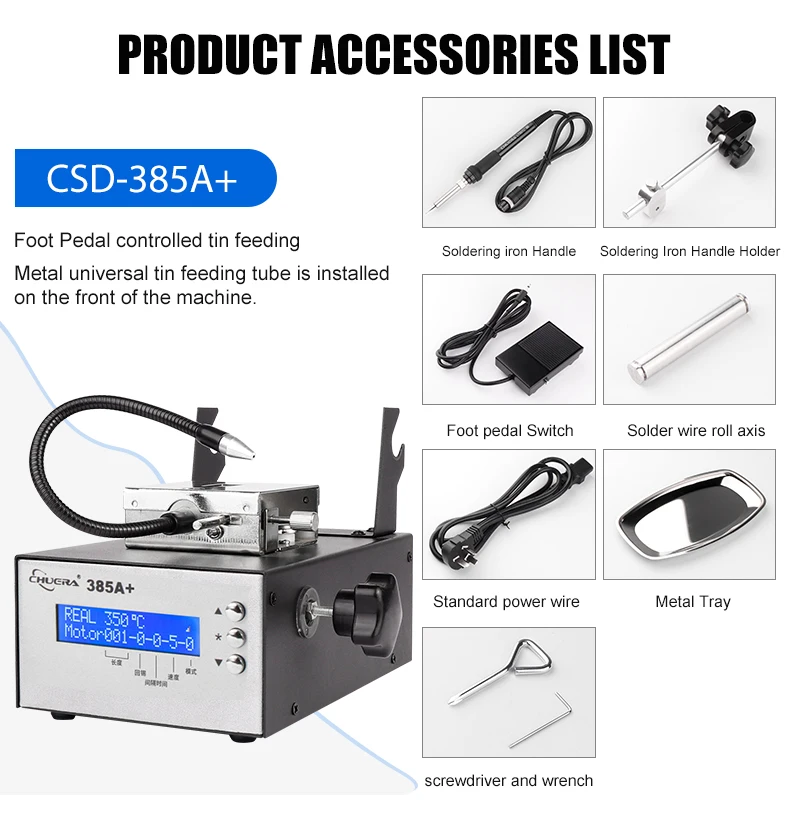

385A+: Movable universal tube, Foot pedal Type control feeding the solder wire.

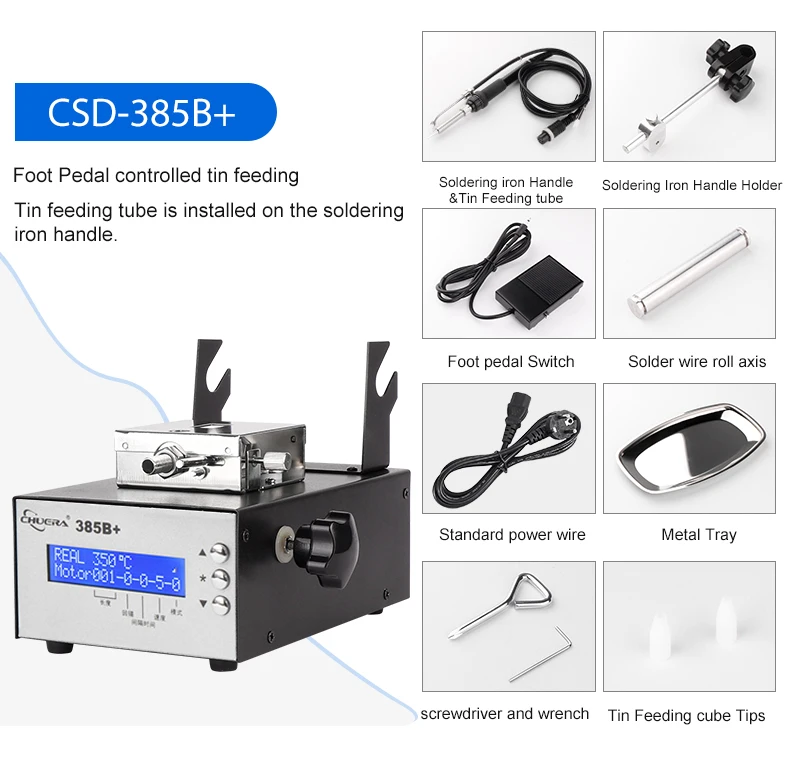

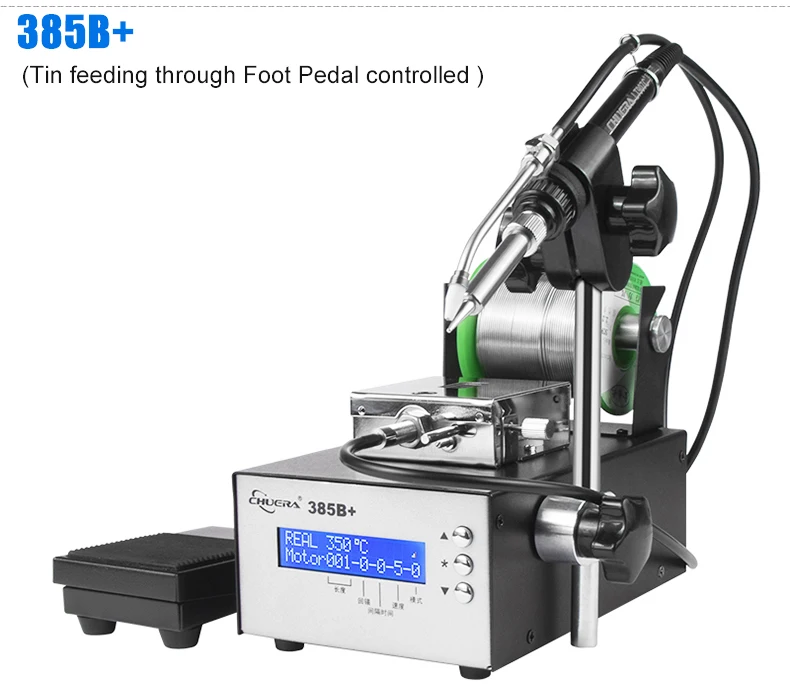

385B+: The soldering Iron handle can be moved, Foot pedal Type control Feeding the solder wire.

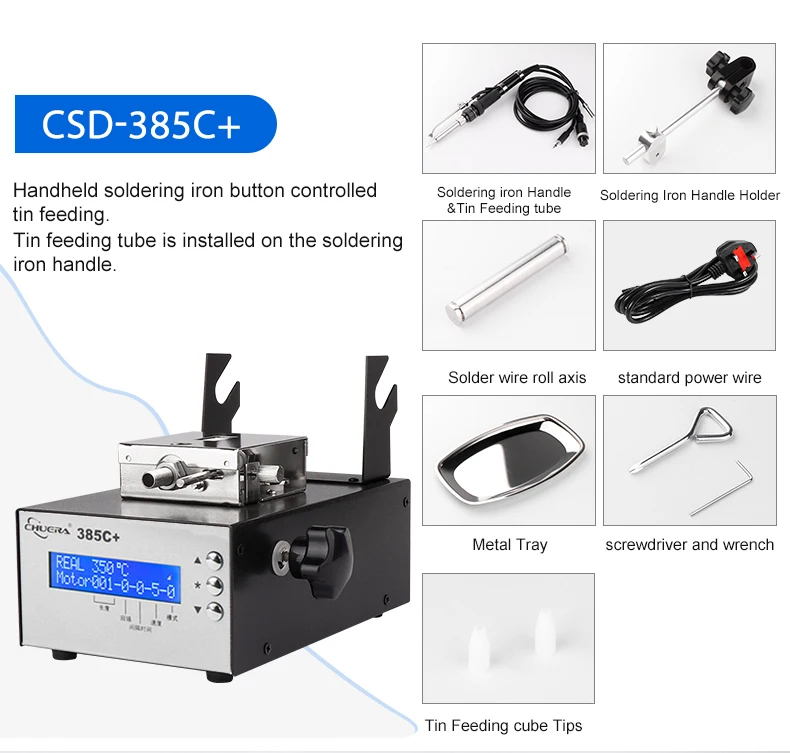

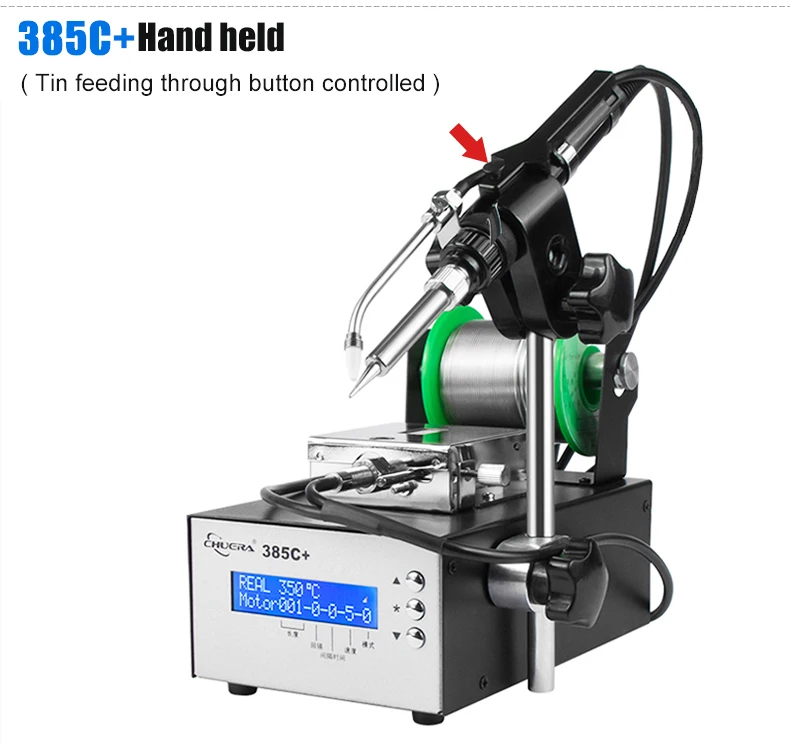

385C+:The soldering Iron handle can be moved, Hand-held Feeding Tin Type, the handle button can control the solder wire out

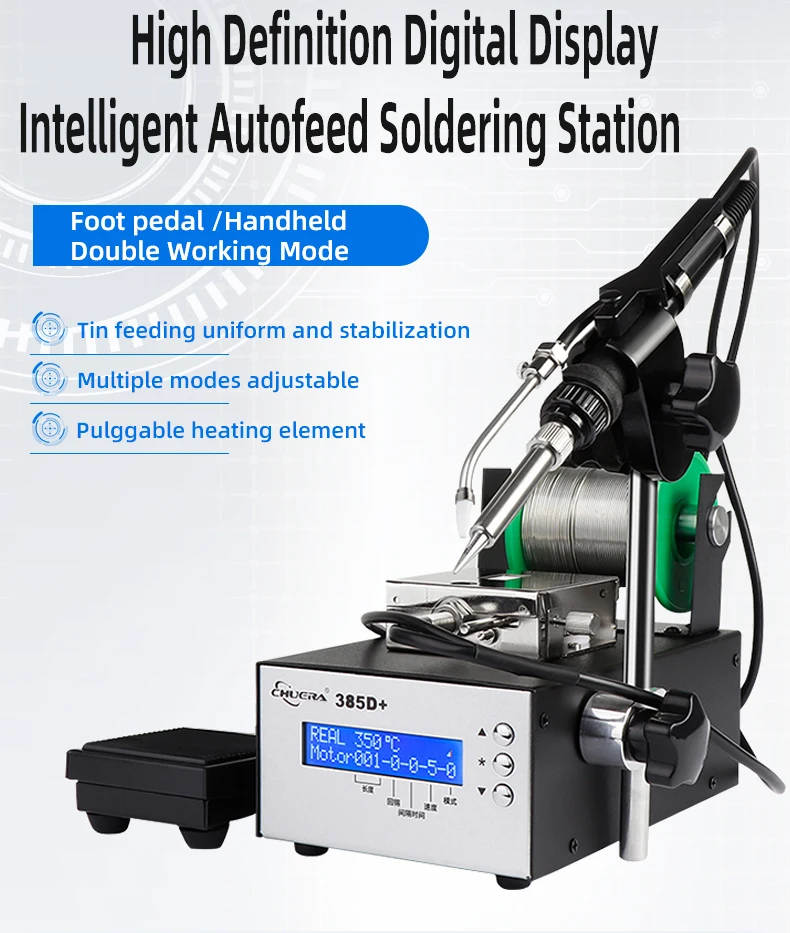

385D+:The soldering Iron handle can be moved, Hand-held or Foot Pedal Feeding Tin Type, you can choose Hand-held or Foot Pedal Feeding Tin Type control the solder wire out

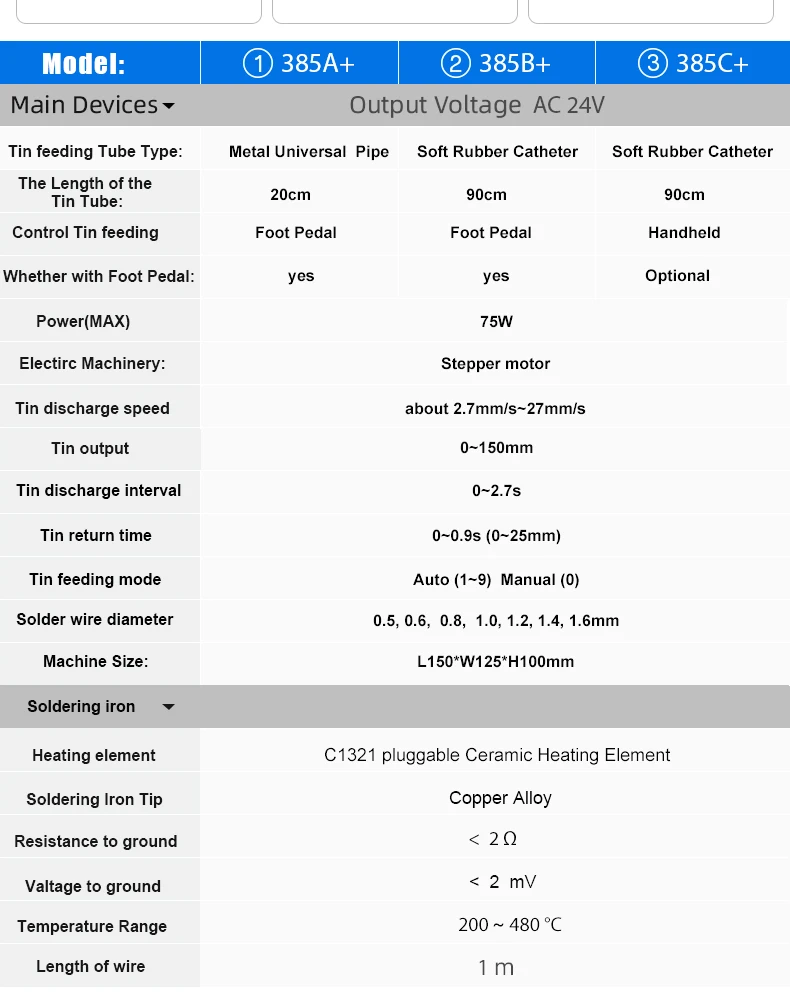

More Details:
| Maximum power: | 75W | Soldering iron tip leakage voltage: | <2mV |
| Input Voltage: | 110V60Hz~220V50Hz | Resistance to ground: | <2Ω |
| Stable temperature: | ±2℃ | Soldering iron temperature: | 200℃-480℃ |
| Working voltage: | 24V | Tin out speed: | about 2.7mm/s ~ 27mm/s |
Tin output | 0-150mm | Out of tin interval time | 0-2.7s |

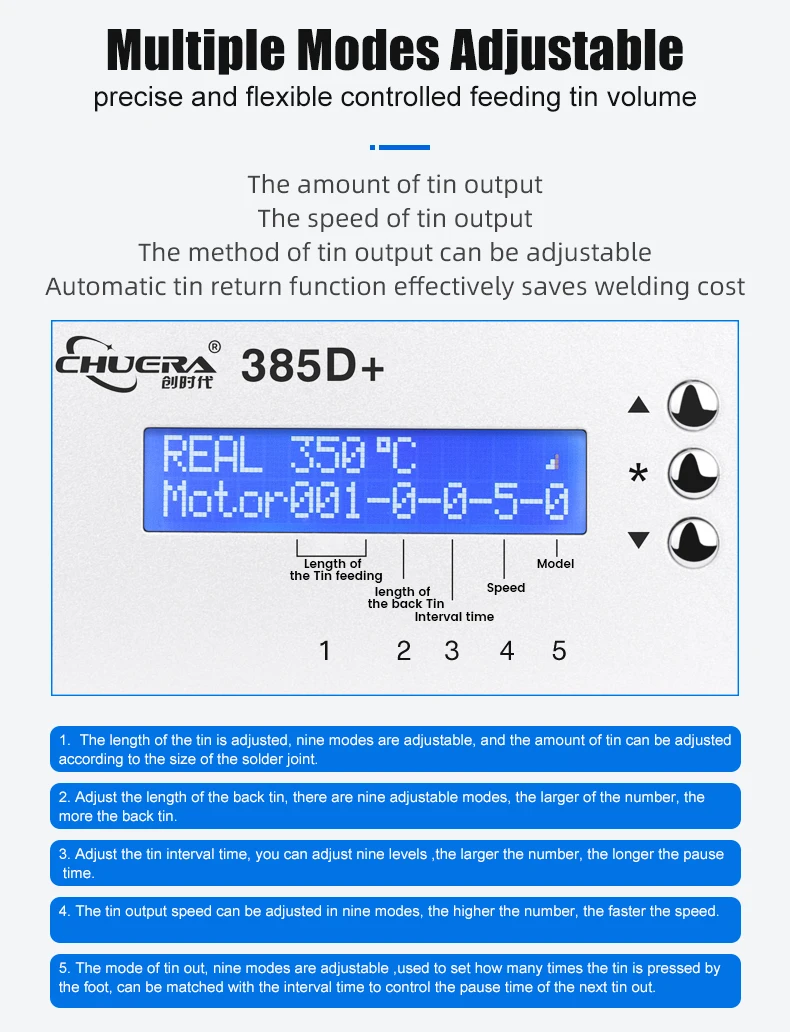

| Tin-out mode: | Automatic (1-9) Manual (0)Applicable | Solder wire diameter: | 0.5/0.6/0.8/1.0/1.2/1.4/1.6mm |
Special statement:
Each machine has been strictly tested 100%; Also before delivered, we will test the machine again to ensure that the machine has no quality problems, so the casing will turn yellow and the soldering iron tip will have traces of tin testing. This is a normal phenomenon left over from the testing process. If you mind, please consider it carefully.
