Hot Sale ZigBee Wireless Module E18 2G4Z27SI 2.4g 2.4GHz 27dBm 8051 MCU Core with IPEX Antenna
- Category: >>>
- Supplier: Shenzhen Manfri Electronic Technology Co. Ltd.
Share on (1600624912670):
Product Overview
Description

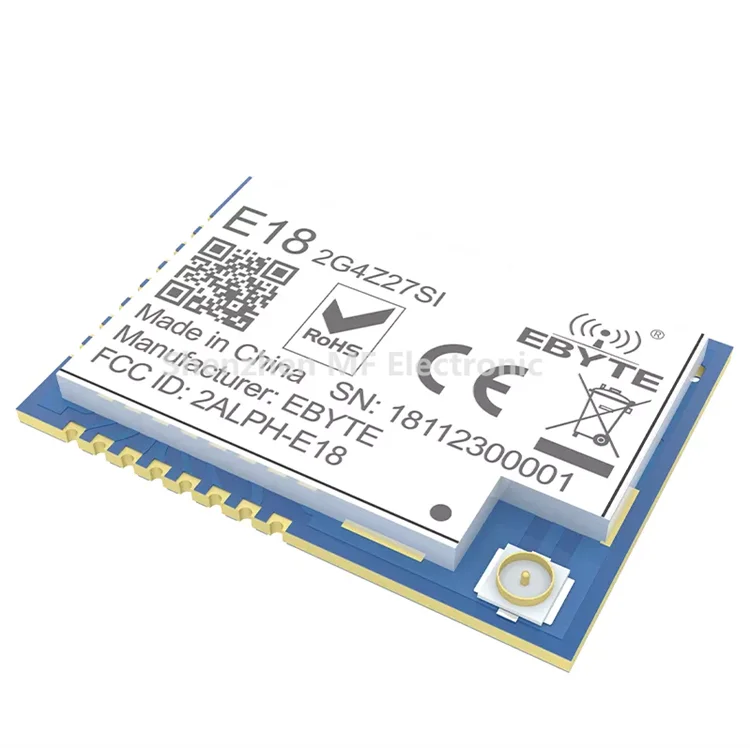

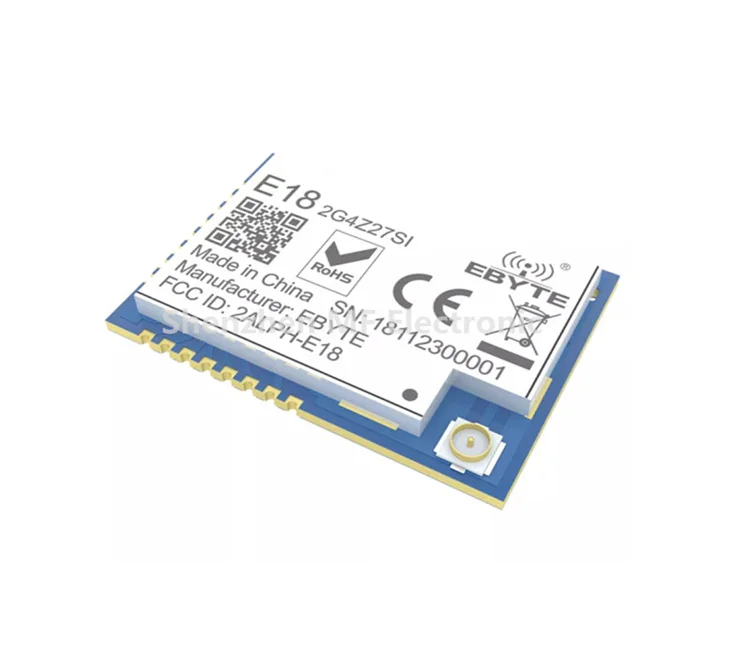

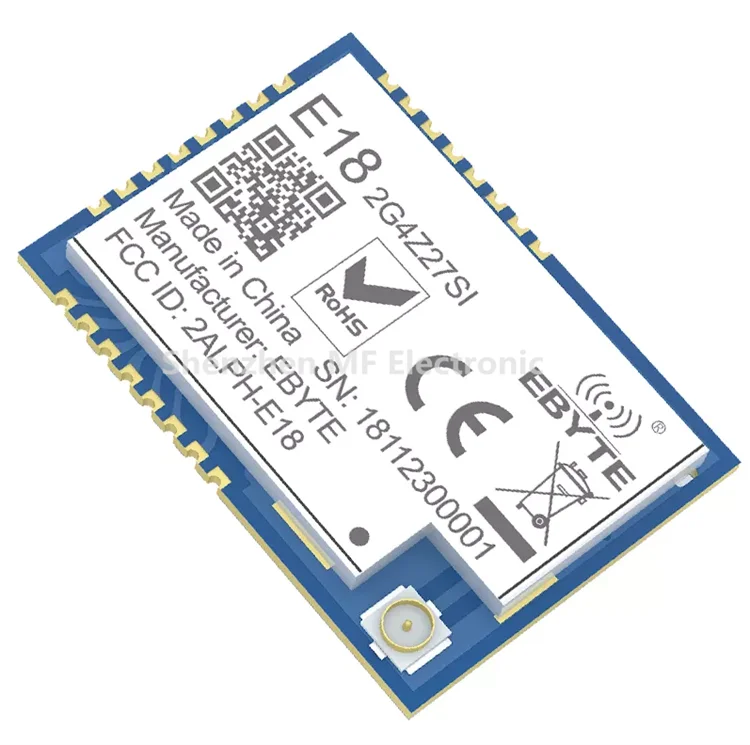

Hot Sale ZigBee Wireless Module E18-2G4Z27SI 2.4g 2.4GHz 27dBm 8051 MCU Core with IPEX Antenna
Product Description
E18-2G4Z27SI is a small-sized 2.4GHz SMD wireless modules, the space between each pin is 1.27mm. E18 series have been put into stable bulk production, they are applicable for various applications (especially smart home).
Technical Parameters
Model | E18-2G4Z27SI |
Chip | CC2530 |
Frequency | 2400~2480MHz |
Transmitting Power | 27dBm |
Receiving Sensitivity | -99dBm |
Communication Protocol | ZigBee |
Test Distance | 2500m |
Flash | 256 KB |
Ram | 8 KB |
Core | 8051 MCU |
Size | 16.0 * 22.5 mm |
Antenna Type | IPEX |
Communication Interface | I/O |
Package | SMD |
Power Supply | 2.5~3.6V |
Communication Level | 3.3V |
Transmitting Current | 500mA |
Receiving Current | 33mA |
Sleep Current | 2.4μA |
Operating Temperature | -40~+85℃ |
Operating Humidity | 10-90% |
Storage Temperature | -40~+125℃ |
Detailed Images
