Product Overview
Description

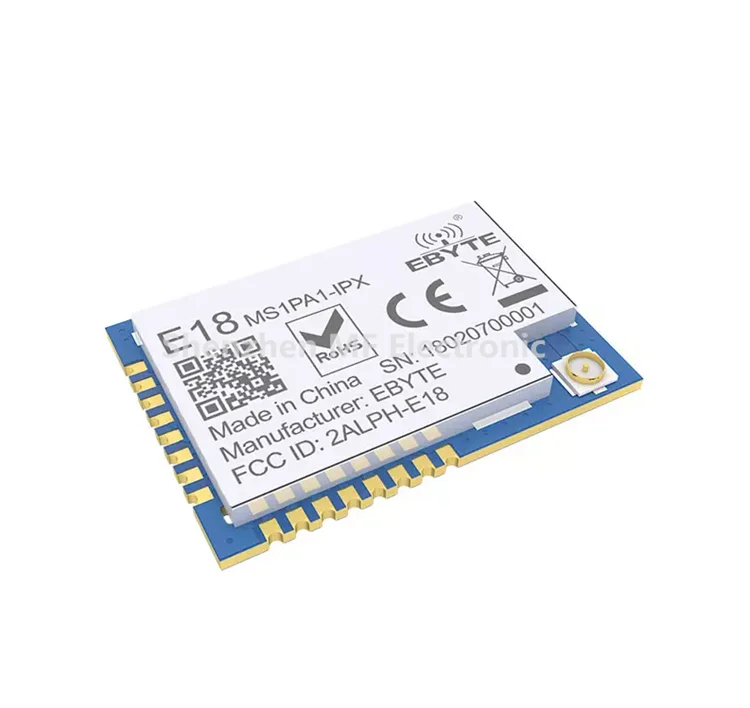

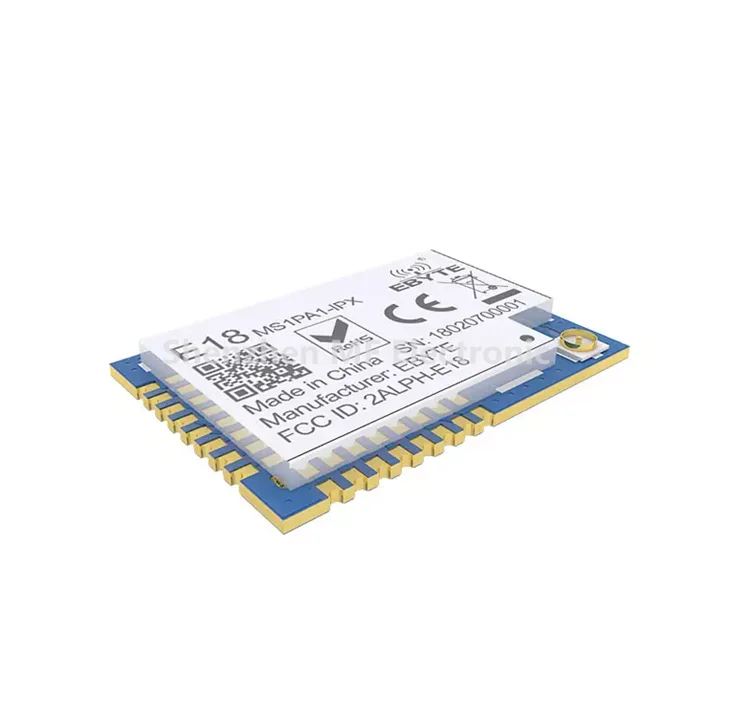

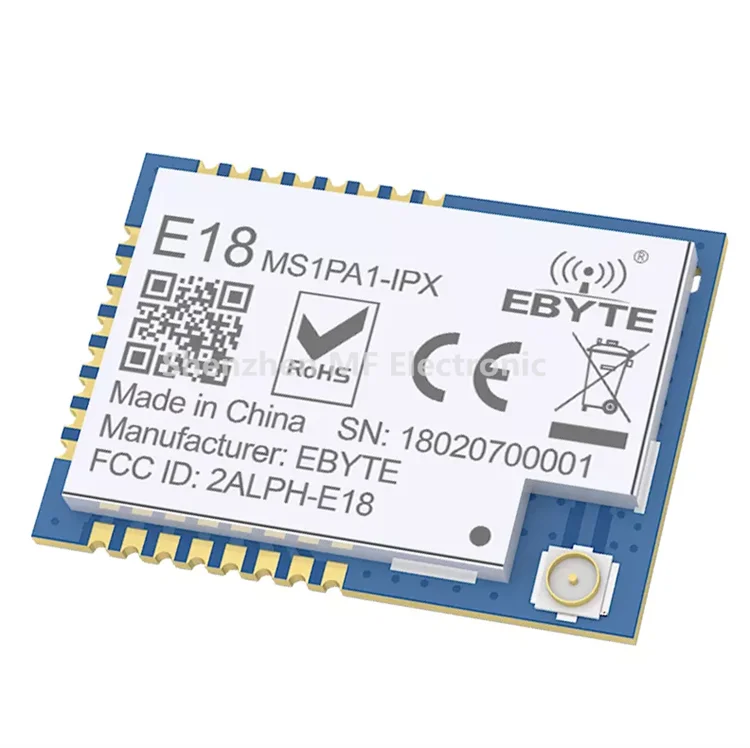

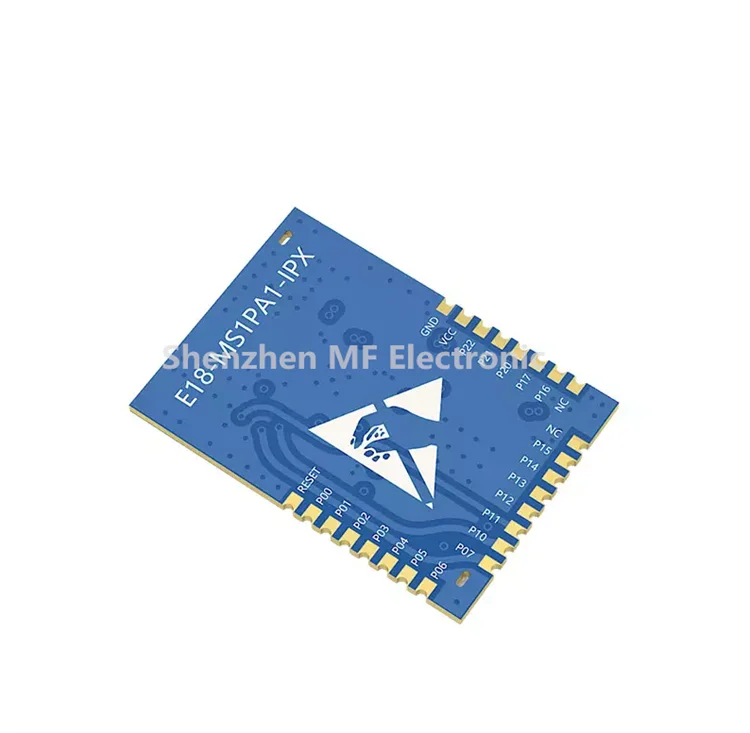

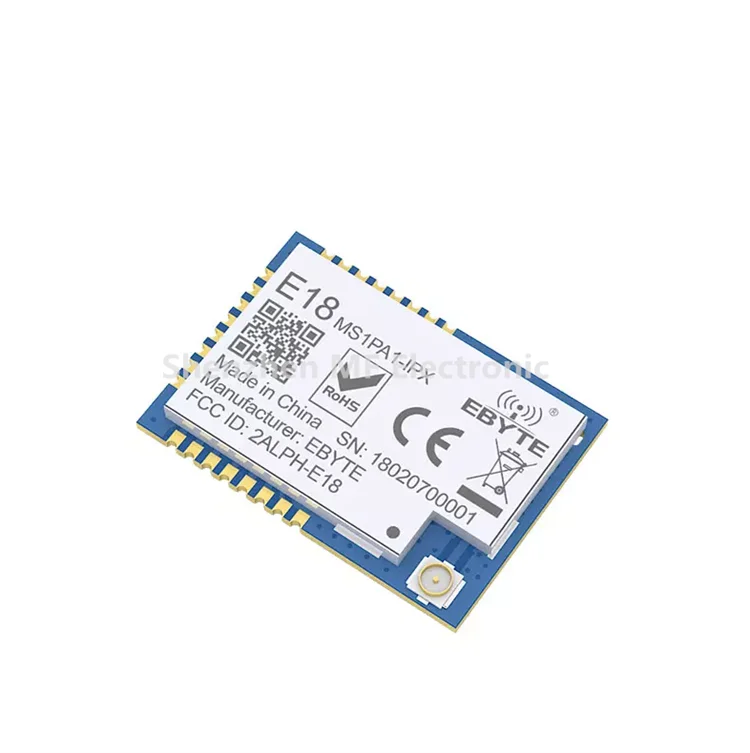

Small Zigbee RF Wireless Transmitter and Receiver Module Long Range 1km Module CC2530 E18-MS1PA1-IPX For IOT

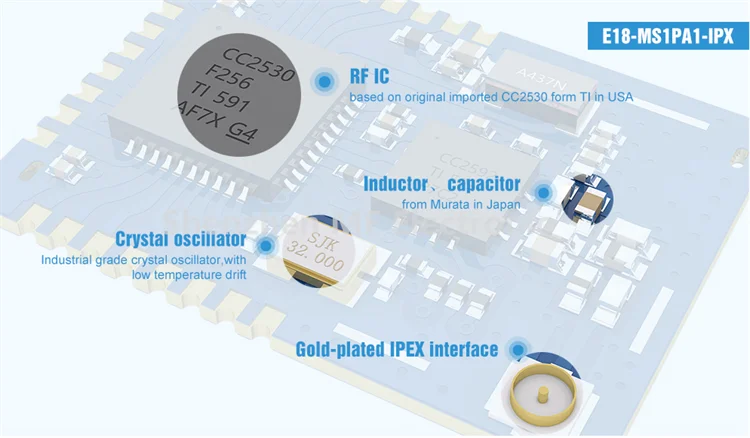

E18-MS1PA1-IPX is based on original imported RF chip CC2530 form TI in America. The IC chip is integrated with 8051 microcontroller and wireless transceiver, which is applicable to ZigBee design and 2.4GHz IEEE 802.15.4 protocol and equipped with power amplifier chip CC2592, the transmitting distance is much longer than before.
Model | E18-MS1PA1-IPX |
Chip | CC2530 |
Working Frequency | 2400~2480MHz |
Transmitting Power | 20dBm |
Receiving Sensitivity | -97.6dBm |
Communication Protocol | ZigBee |
Test Distance | 1000m |
Flash | 256 KB |
Ram | 8 KB |
Core | Industry-standard enhanced 8051 MCU |
Size | 16.0 * 22.5 mm |
Antenna Type | IPEX |
Communication Interface | SoC |
Package | SMD |
Power Supply | 2.0~3.6V |
Communication Level | 2.0~3.6V |
Transmitting Current | 128~154mA |
Receiving Current | 39~46mA |
Sleep Current | 0.6~1.8μA |
Operating Temperature | -40~+85℃ |
Operating Humidity | 10~90% |
Storage Temperature | -40~+125℃ |
