OEM ODM ZigBee RF IoT Module CC2530 E18 MS1 PCB with 2.4GHz 4dBm For Smart Home Smart Farm
- Category: >>>
- Supplier: Shenzhen Manfri Electronic Technology Co. Ltd.
Share on (1600624960502):
Product Overview
Description

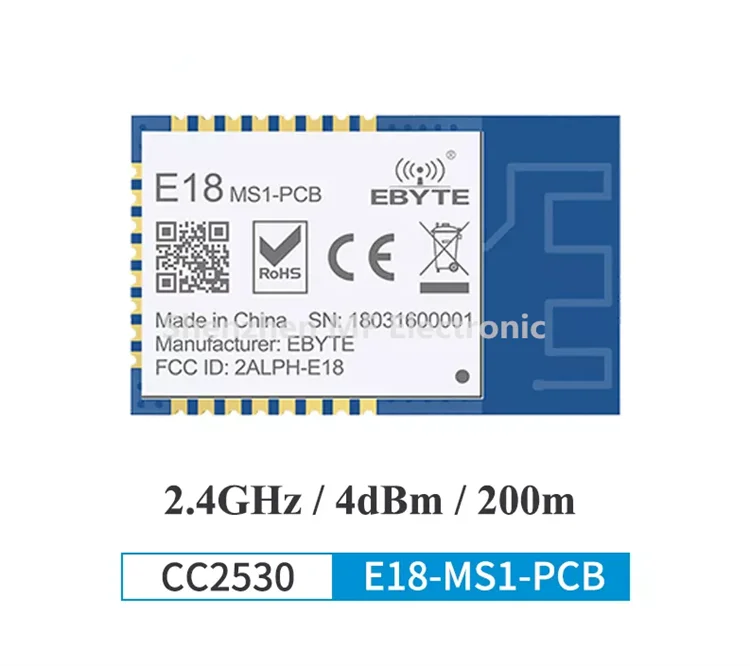

OEM ODM ZigBee RF IoT Module CC2530 E18-MS1-PCB with 2.4GHz 4dBm For Smart Home Smart Farm
Product Description

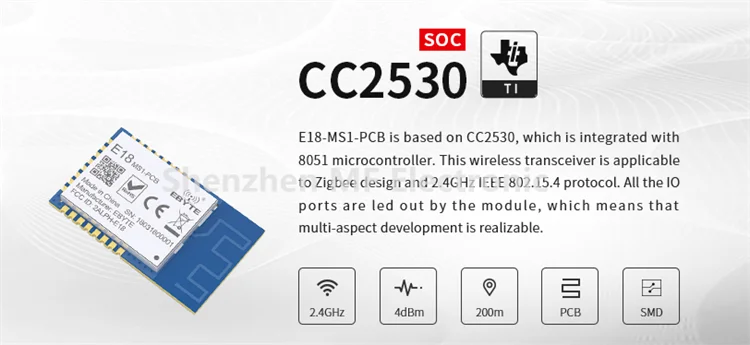

E18-MS1-PCB is based on original imported RF chip CC2530 form TI in American. The IC chip is integrated with 8051 microcontroller and wireless transceiver inside, which is applicable to Zigbee design and 2.4GHz IEEE 802.15.4 protocol. All the IO ports are led out by the module, which means that multi-aspect development is realizable.
Technical Parameters
Model | E18-MS1-PCB |
Chip | CC2530 |
Working Frequency | 2400~2480 MHz |
Transmitting Power | 4dBm |
Receiving Sensitivity | -96.4dBm |
Communication Protocol | ZigBee |
Test Distance | 200m |
Flash | 256 KB |
Ram | 8 KB |
Core | Industry-standard enhanced 8051 MCU |

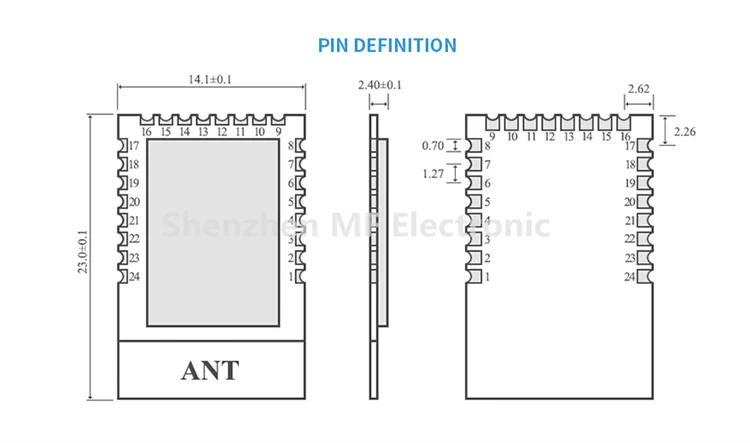

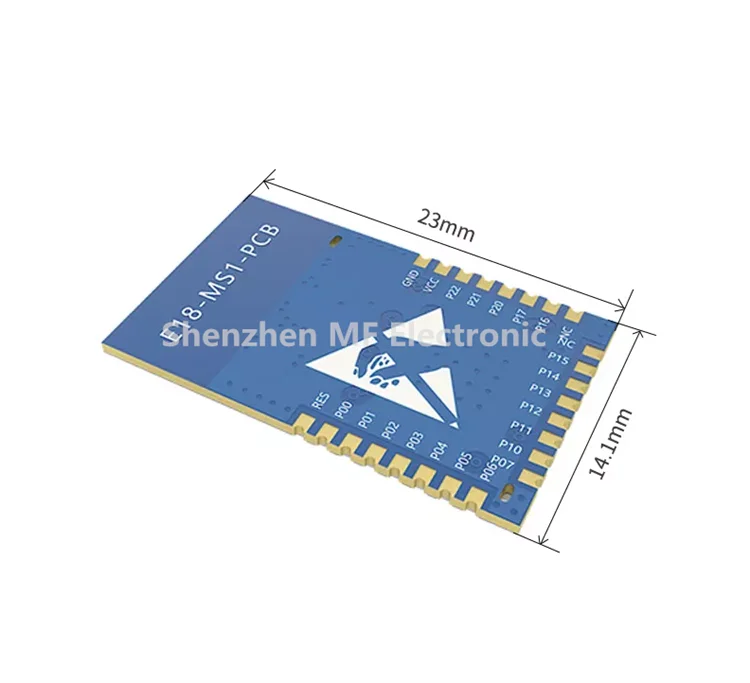

Size | 14.1 * 23.0 mm |
Antenna Type | PCB |
Communication Interface | SoC |
Package | SMD |
Power Supply | 2.0~3.6V |
Communication Level | 2.0~3.6V |
Transmitting Current | 26~31mA |
Receiving Current | 25~30mA |
Sleep Current | 0.6~1.8μA |
Operating Temperature | -40~+85℃ |
Operating Humidity | 10~90% |
Storage Temperature | -40~+125℃ |

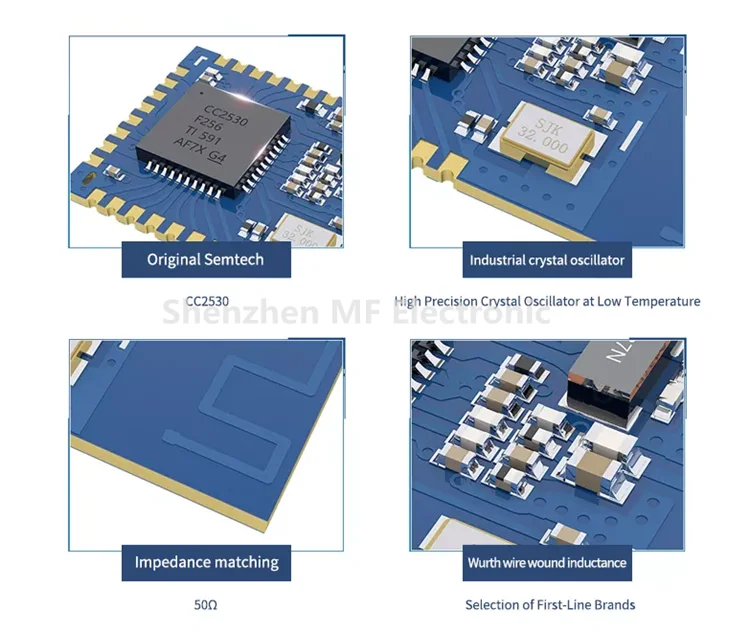

Detailed Images
