Product Overview
Description
Fast Speed Zigbee Wireless Module CC2530 E18-MS1PA2-PCB 800m 20dBm SMD PCB Antenna For Smart Farm
Product Description

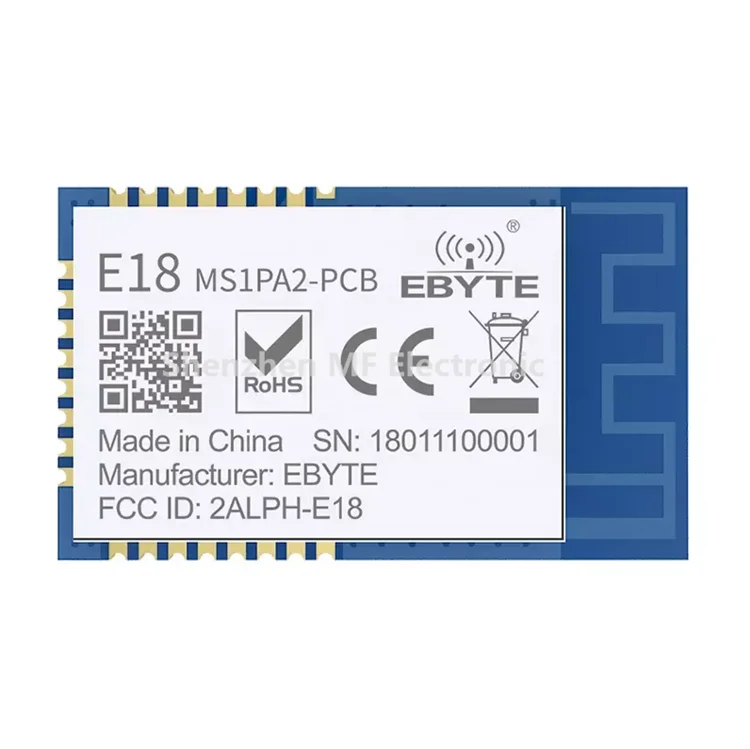

E18-MS1PA2-PCB is small-sized 2.4GHz ZigBee wireless module. SMD type with PCB antenna, with a transmission power of 100mW and the pin pitch is 1.27mm. It is applicable for various applications (especially smart home).
Technical Parameters
Model | E18-MS1PA2-PCB |

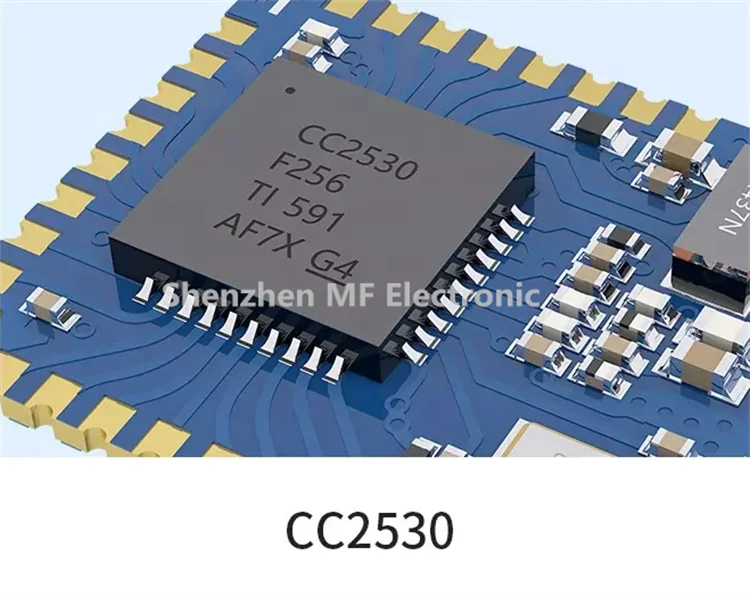

Chip | CC2530 |
Reference Distance | 800m |
Protocol | ZigBee |
Communication Interface | I/O |
Package | SMD |
Interface | 1.27mm |
Flash | 256KB |
Ram | 8KB |
Core | 8051 |

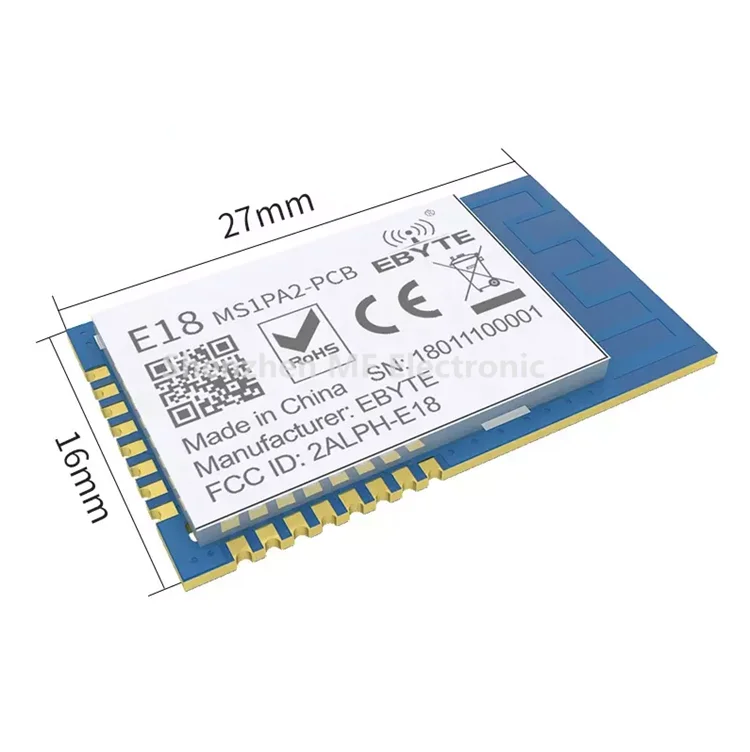

Size | 16*27mm |
Antenna | PCB |
Operating Voltage | 2.0~3.6V |
Communication Level | 3.3V |
Operating Temperature | -40~+85℃ |
Operating Frequency | 2400~2480MHz |
TX Current | 98mA |
RX Current | 36mA |
Sleep Current | 2μA |
Max TX Power | 19.6~20.5dBm |
Receiving Sensitivity | -99~-97dBm |
Weight | 1.8±0.1g |
Detailed Images
