Product Overview
Description
High Quality Zigbee RF Wireless Transceiver Module CC2530 E18-MS1PA1-IPX 20dbm 2.4g 20dBm With IPEX Antenna
Product Description

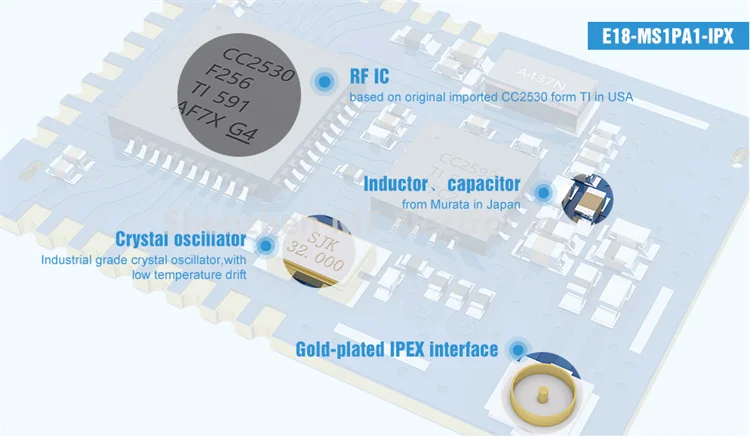

E18-MS1PA1-IPX is based on original imported RF chip CC2530 form TI in America. The IC chip is integrated with 8051 microcontroller and wireless transceiver, which is applicable to ZigBee design and 2.4GHz IEEE 802.15.4 protocol and equipped with power amplifier chip CC2592, the transmitting distance is much longer than before.
Technical Parameters
Model | E18-MS1PA1-IPX |
Chip | CC2530 |
Working Frequency | 2400~2480MHz |
Transmitting Power | 20dBm |
Receiving Sensitivity | -97.6dBm |
Communication Protocol | ZigBee |
Test Distance | 1000m |
Flash | 256 KB |
Ram | 8 KB |
Core | Industry-standard enhanced 8051 MCU |
Size | 16.0 * 22.5 mm |
Antenna Type | IPEX |
Communication Interface | SoC |
Package | SMD |
Power Supply | 2.0~3.6V |
Communication Level | 2.0~3.6V |
Transmitting Current | 128~154mA |
Receiving Current | 39~46mA |
Sleep Current | 0.6~1.8μA |
Operating Temperature | -40~+85℃ |
Operating Humidity | 10~90% |
Storage Temperature | -40~+125℃ |

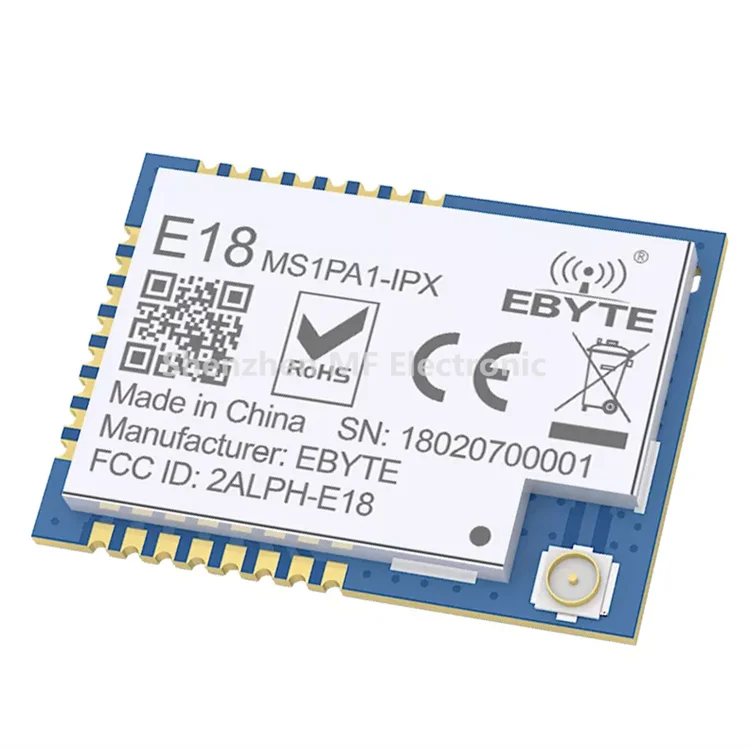

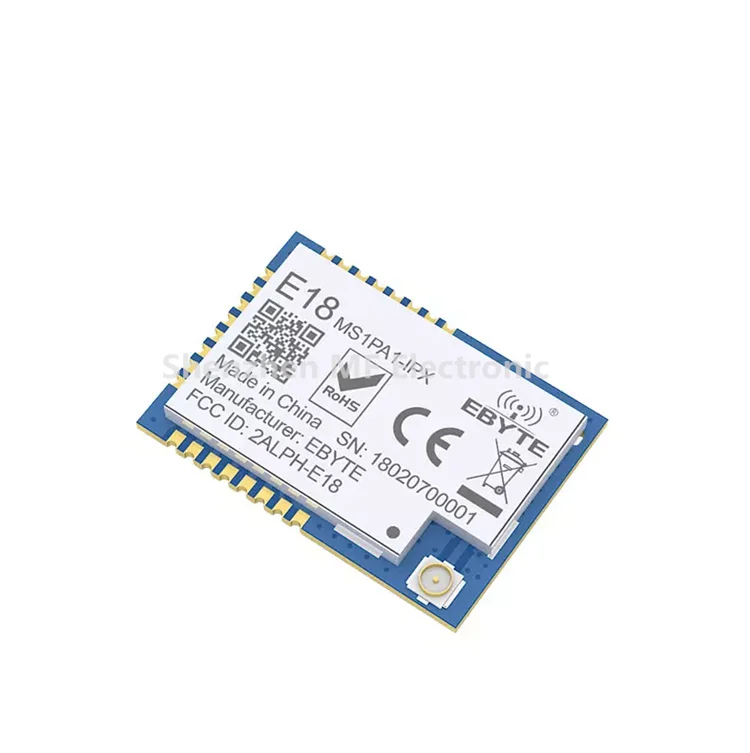

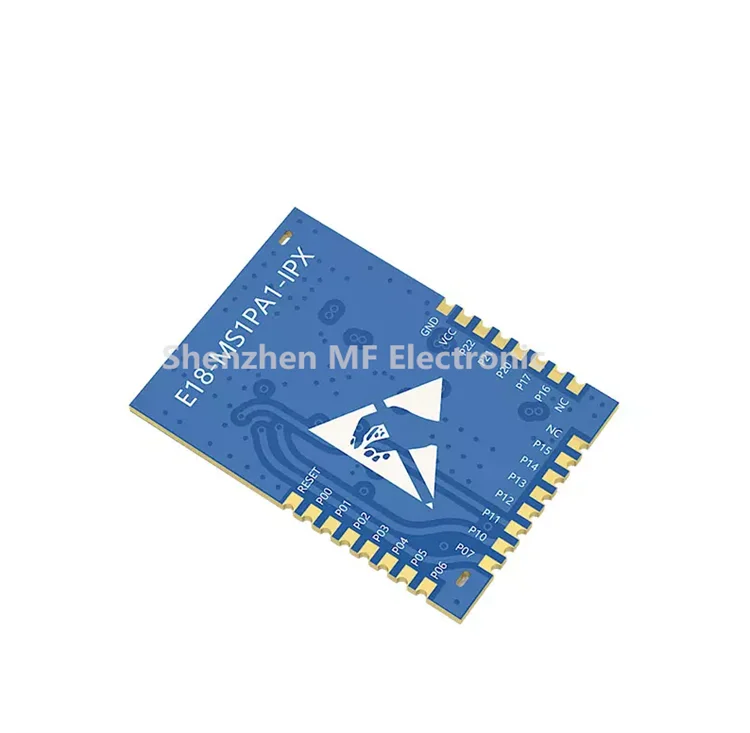

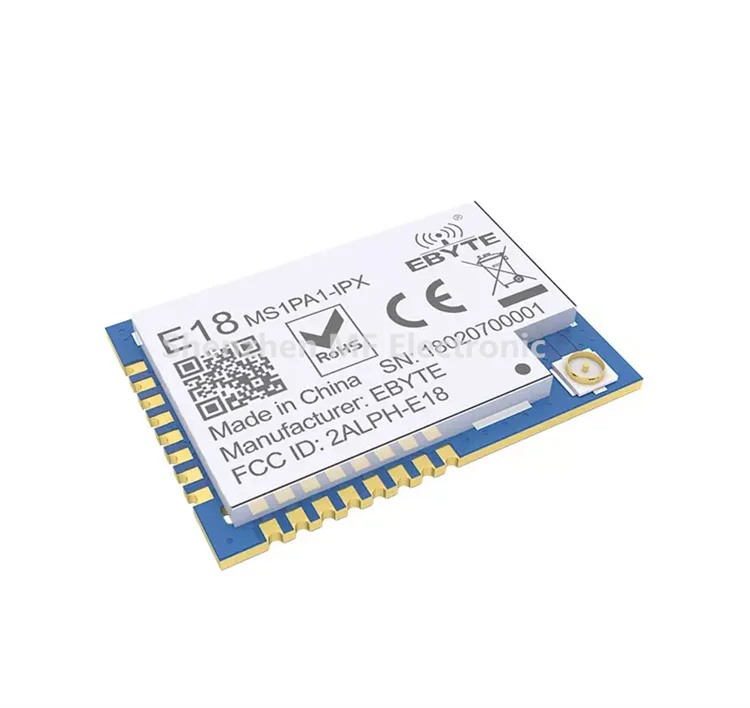

Detailed Images
