KTAC DC Mini Ups For Wifi Router Mini DC Ups Poe Mini Ups Output 5v 9v 12v 15v 24v
- Category: Uninterruptible Power Supplies (UPS) >>>
- Supplier: Foshan,Ktac,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

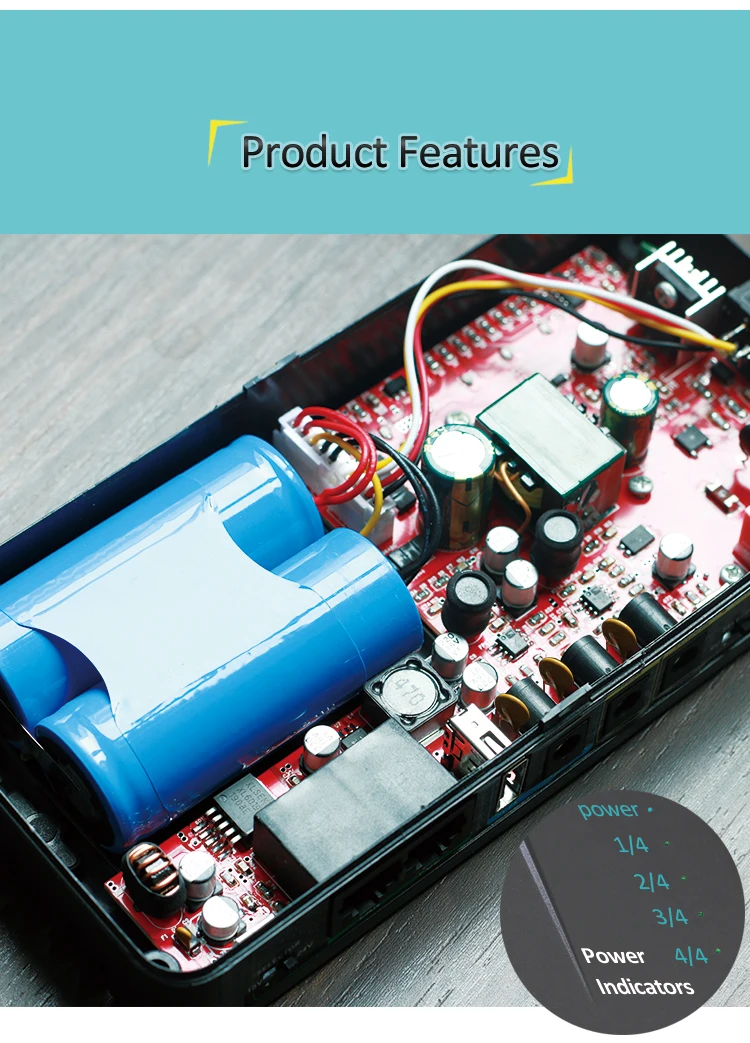

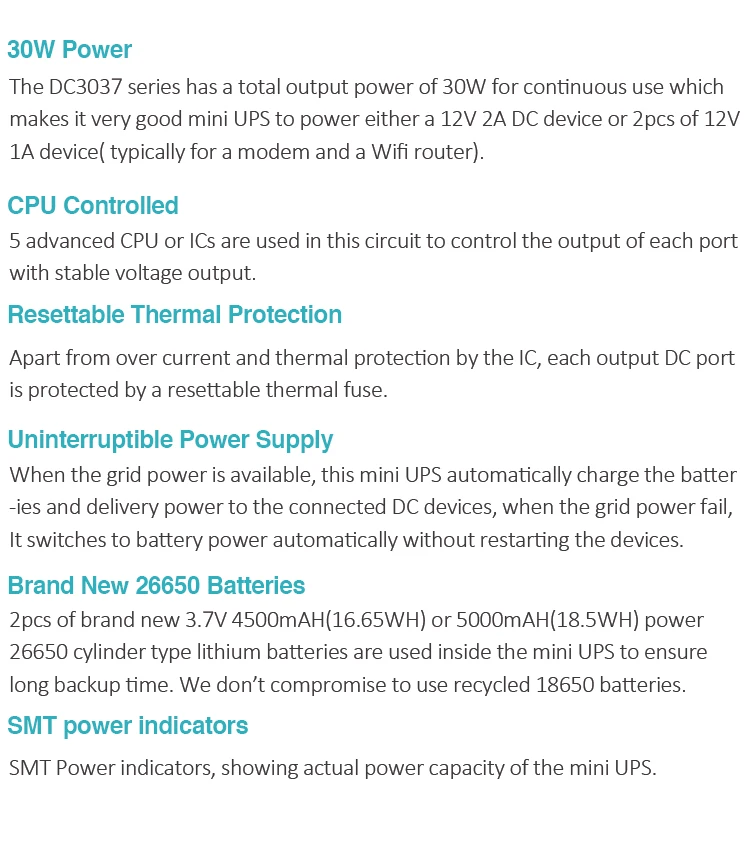

More and more electronics devices are powered by DC power source. when there is a power outage, POE Sensor, router, WIFI, LED,Monitor, time recorder, DC cameras stops work and may also lost their data. The 30 series mini UPS (DC UPS) are designed to power these critical DC appliances during unexpected power outage. This series DC UPS are featured with:

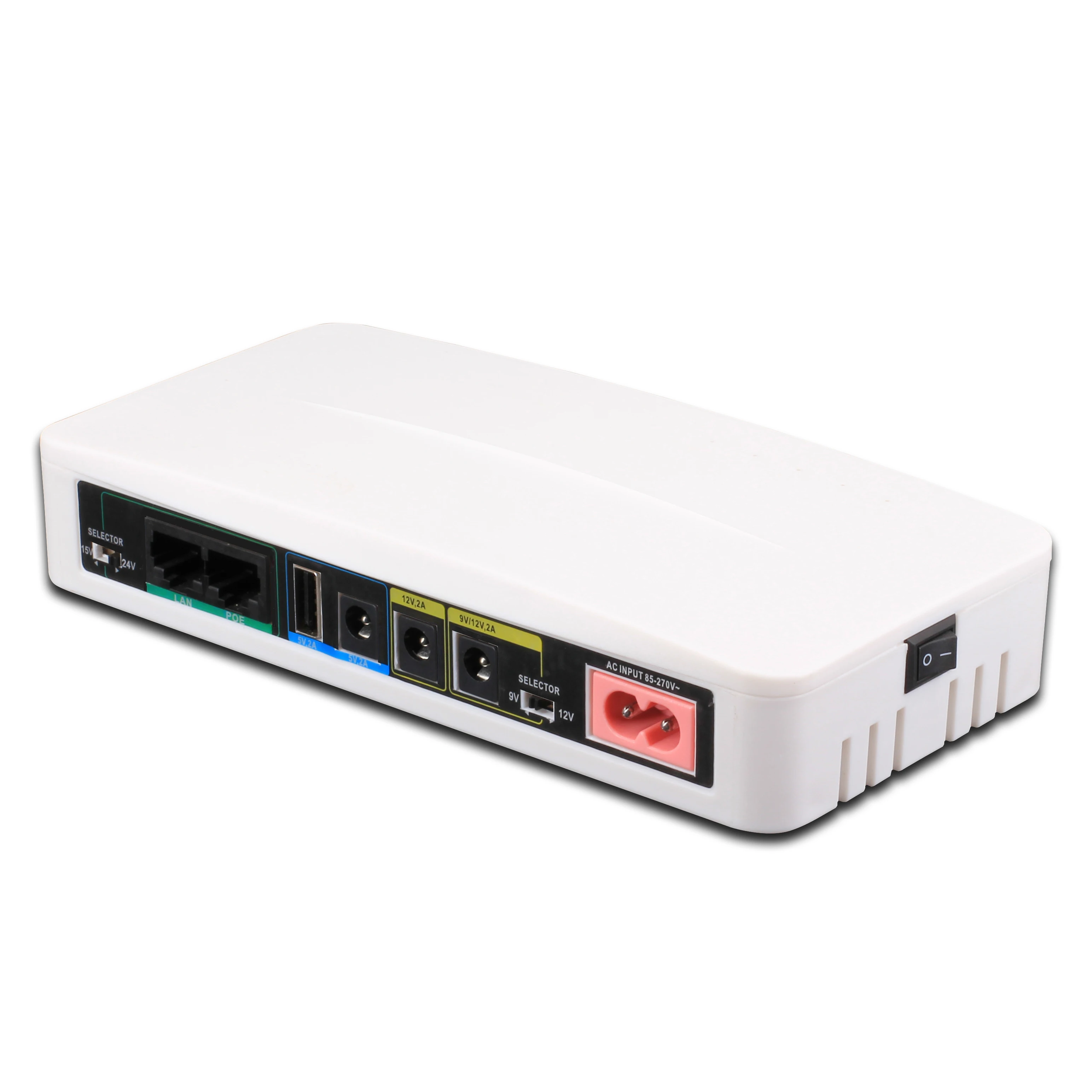

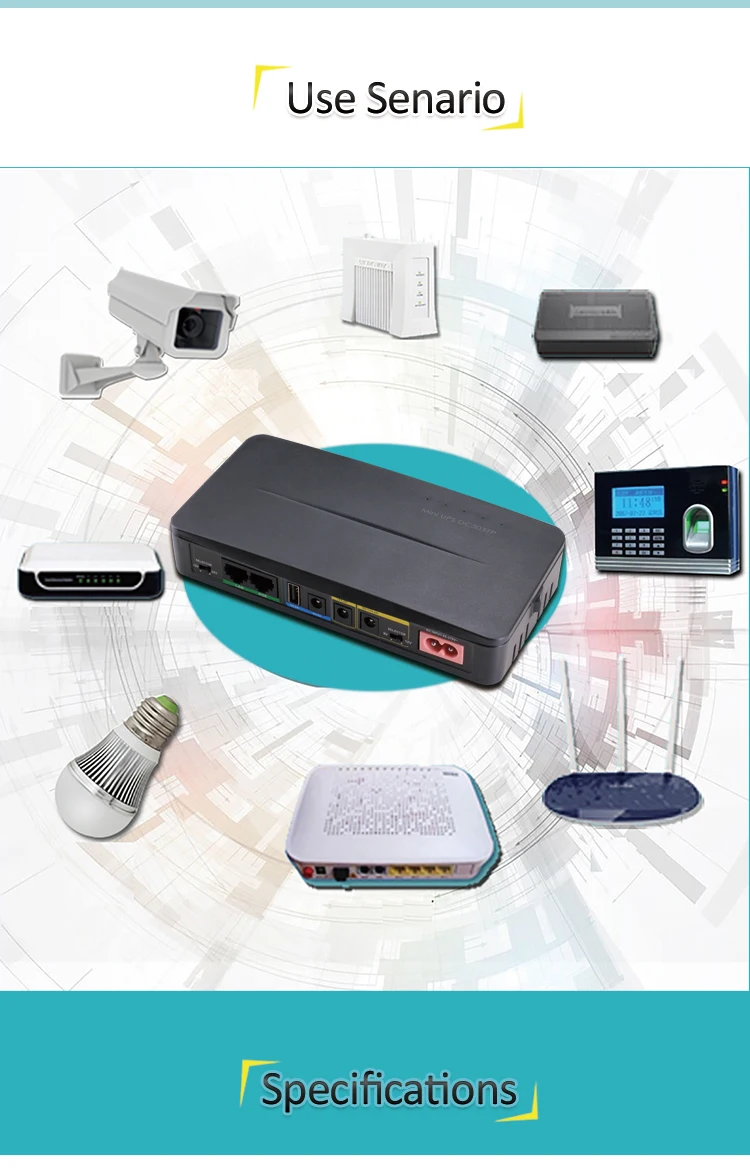

Suitable for the POE SENSOR,router,WIFI ,monitor, time recorder, cameras etc.
Built-in adapter allows wide AC voltage range 85Vac ~265Vac.

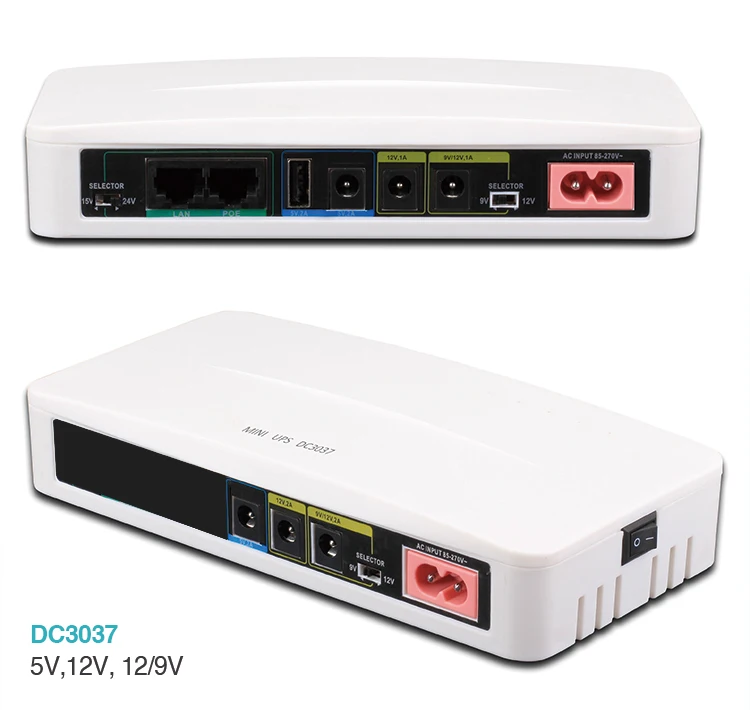

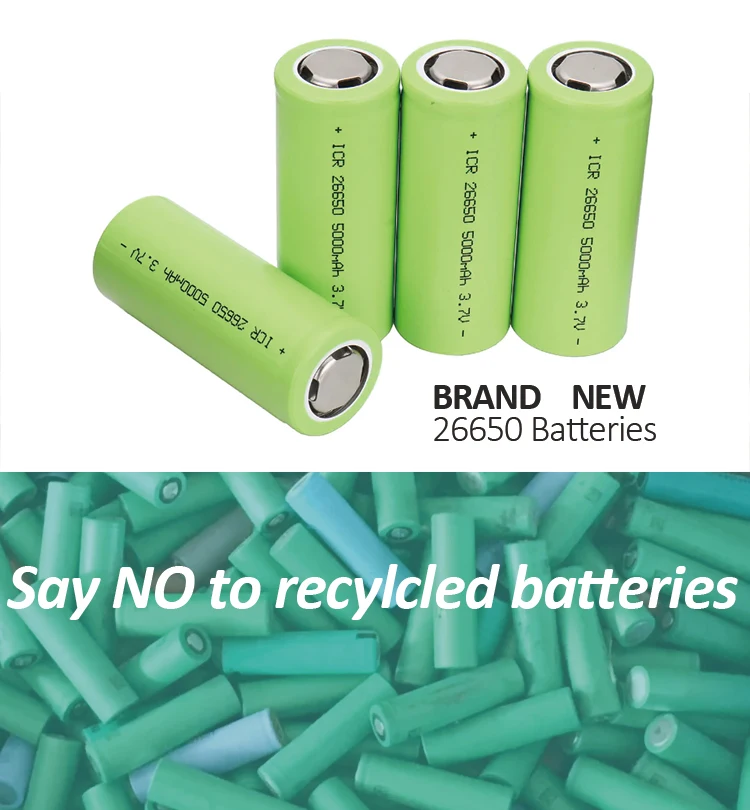

Built-in high capacity lithium batteries, provides long backup time to loads.
Power over Ethernet (POE) can transmit the data and power at the same time to
simplify wiring.
5V USB output, can provide charging for mobile phone, PSP, PDA, IPOD, MP4….etc.
Intelligent circuit design with over charging, over discharging and short circuit protections.
Suitable for the POE SENSOR,router,WIFI ,monitor, time recorder, cameras etc.
Built-in adapter allows wide AC voltage range 85Vac ~265Vac.
Built-in high capacity lithium batteries, provides long backup time to loads.
Power over Ethernet (POE) can transmit the data and power at the same time to
simplify wiring.
5V USB output, can provide charging for mobile phone, PSP, PDA, IPOD, MP4….etc.
Intelligent circuit design with over charging, over discharging and short circuit protections.

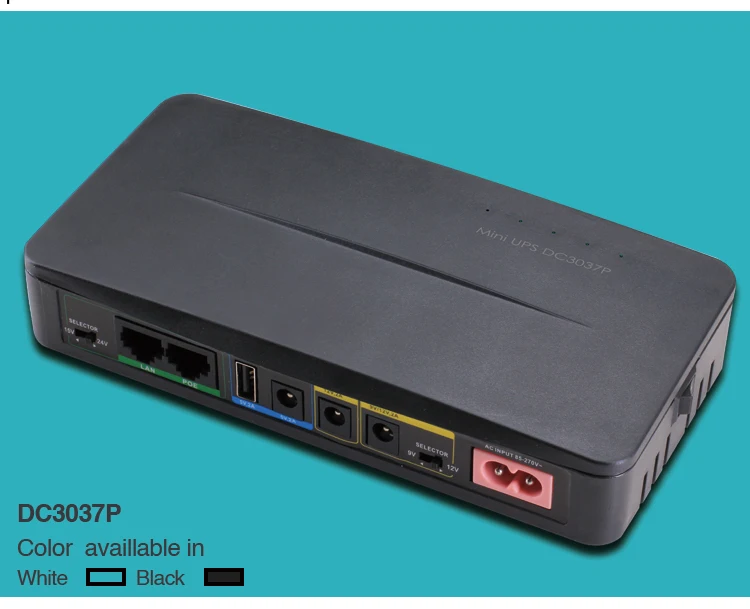

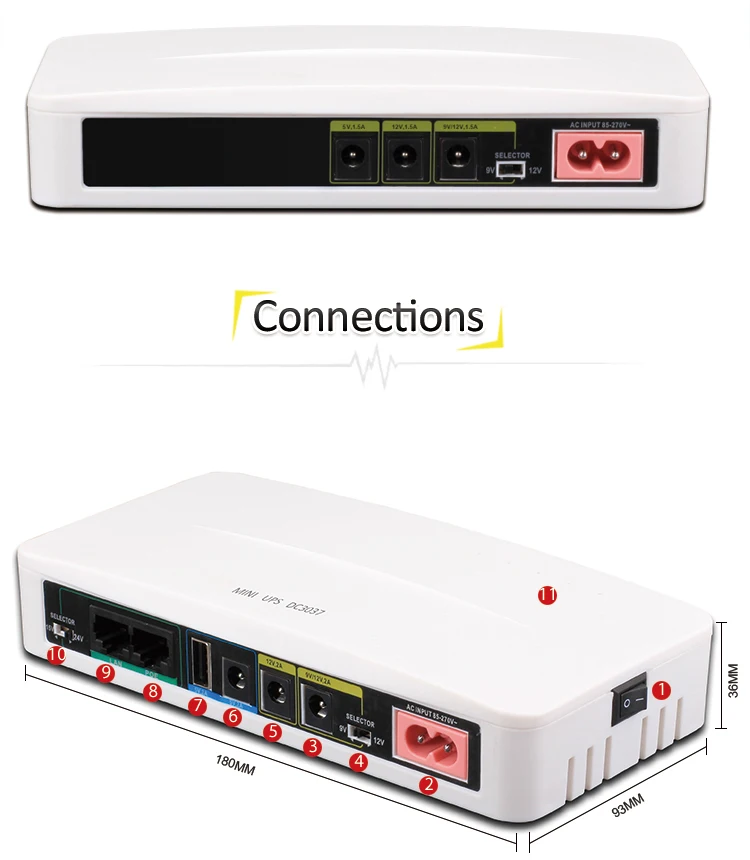

1. Power switch, switch it to the position of “I”, the DC UPS turn ON, switch it to the position of “O”, the DC UPS turn OFF. Turn OFF the DC UPS when it is not in use. when the DC UPS is turned ON, the power capacity indicators 11 lit ON.
2. AC power input, connect the end of the power plug to this connector, then connect the power plug to the AC powered
outlet(85V-270VAC).
3.9V or 12V DC output connector, connect it with a cable to the 9V or 12V DC device such as WIFI router. Do not load it more than 1.5A.
4.Voltage selector switch, switch it to the left side to have 9V output of DC output connector 3 . switch to the right side to
have 12V output.
5. 12V DC output connect, connect it with a cable to the 12V DC device such as WIFI router. Do not load it more than 1.5A.
6. 5V DC output connect, connect it with a cable to the 5V DC device such as modem. Do not load it more than 2A.
7. 5V USB-A DC output connect, connect it with a cable to the 5V DC device such as phone. Do not load it more than 2A.

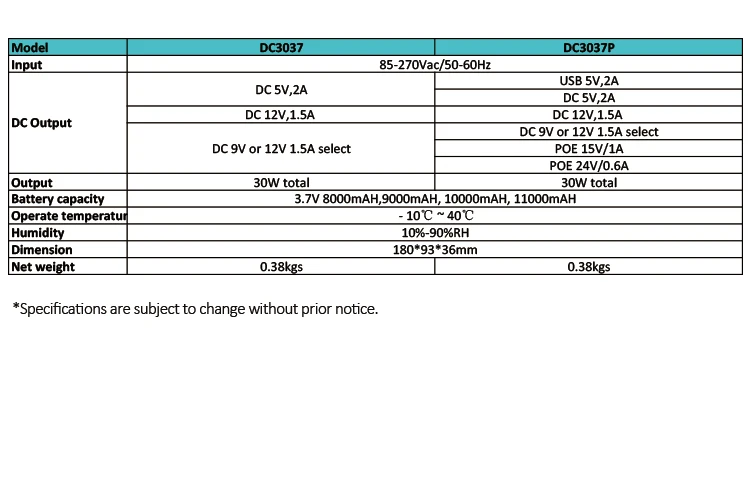

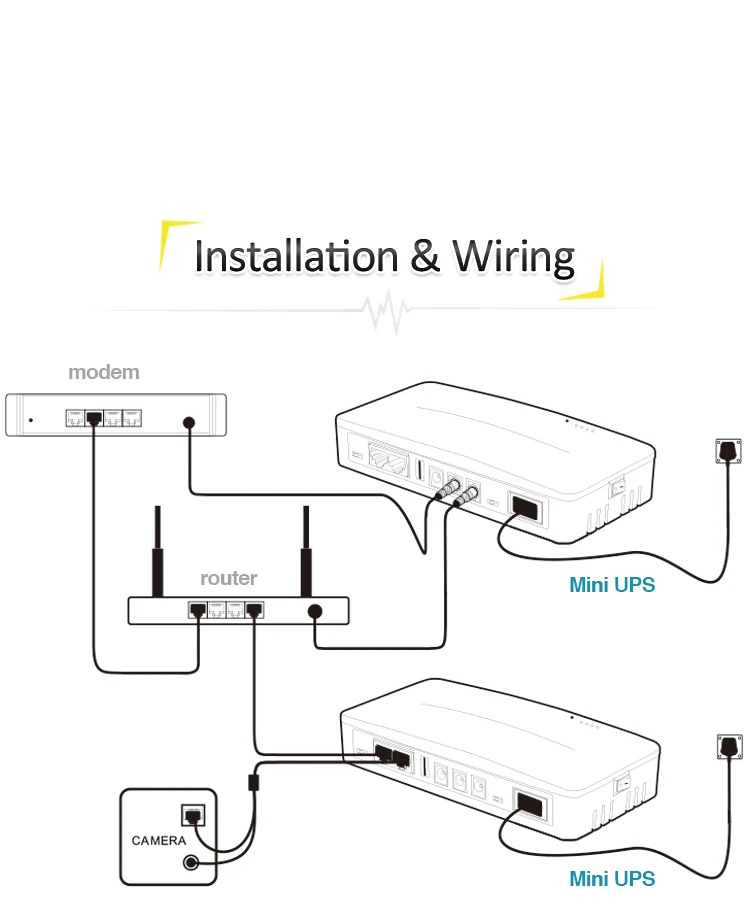

8. 15V or 24V POE output, connect it with a CAT6 network cable to the 15V/24V DC device such as a CCTV camera. Do not load it more than 1A.Following the wiring guide as per fig 02.
9. LAN input, connect it with a CAT6 network cable to the router or network switch. Following the wiring guide as per fig 02.
10. Voltage selector switch, switch it to the left side to have15V output of POE connector 8 . switch to the right side to have 24V output.
11. Power indicator, charge indicator, when the DC UPS is connected to the power power, this LED lit ON,It turns OFF when AC power goes OFF.
12.Battery capacity indicator, there are 4 LED indicators, from left to right, shows 25%,50%,75% and 100% remaining power capacity of the battery.
2. AC power input, connect the end of the power plug to this connector, then connect the power plug to the AC powered
outlet(85V-270VAC).
3.9V or 12V DC output connector, connect it with a cable to the 9V or 12V DC device such as WIFI router. Do not load it more than 1.5A.
4.Voltage selector switch, switch it to the left side to have 9V output of DC output connector 3 . switch to the right side to
have 12V output.
5. 12V DC output connect, connect it with a cable to the 12V DC device such as WIFI router. Do not load it more than 1.5A.
6. 5V DC output connect, connect it with a cable to the 5V DC device such as modem. Do not load it more than 2A.
7. 5V USB-A DC output connect, connect it with a cable to the 5V DC device such as phone. Do not load it more than 2A.
8. 15V or 24V POE output, connect it with a CAT6 network cable to the 15V/24V DC device such as a CCTV camera. Do not load it more than 1A.Following the wiring guide as per fig 02.
9. LAN input, connect it with a CAT6 network cable to the router or network switch. Following the wiring guide as per fig 02.
10. Voltage selector switch, switch it to the left side to have15V output of POE connector 8 . switch to the right side to have 24V output.
11. Power indicator, charge indicator, when the DC UPS is connected to the power power, this LED lit ON,It turns OFF when AC power goes OFF.
12.Battery capacity indicator, there are 4 LED indicators, from left to right, shows 25%,50%,75% and 100% remaining power capacity of the battery.
