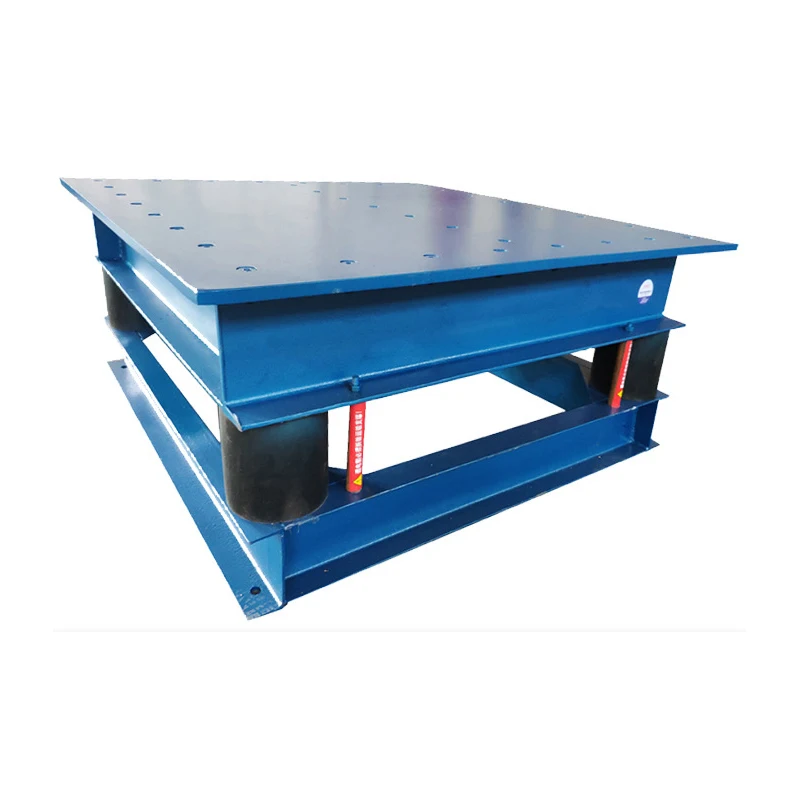

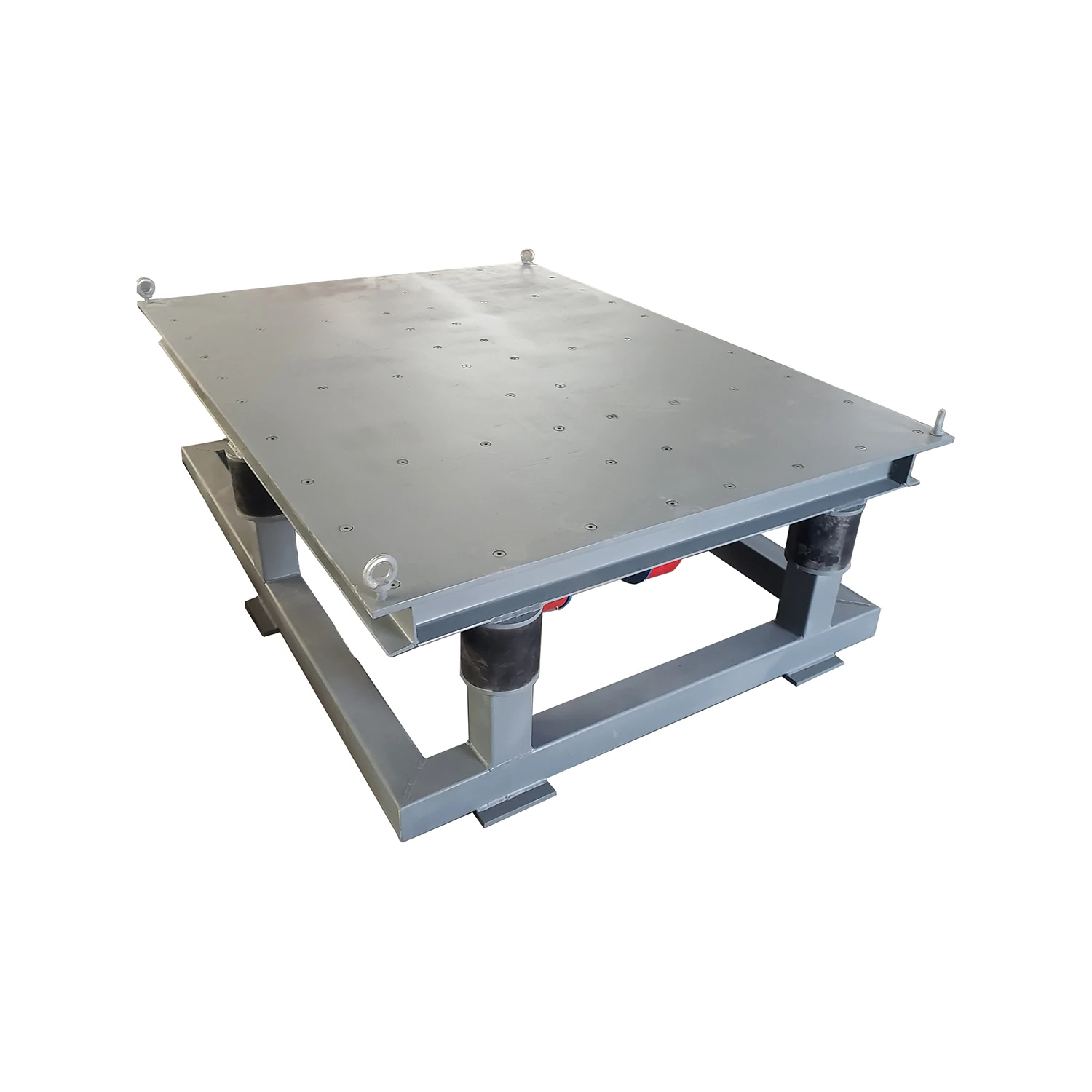

Concrete Vibrating Table Paver Vibrating Table Mould Vibrator Platform
Product Description
Concrete Vibrating Table Paver Vibrating Table Mould Vibrator Platform is mainly used for the compaction of material by vibration, which make the material on the platform realize ideal form through the adjustment of exciting force of the vibrating motor, reduce the air and gap between material and it is substitute for manual work.
Concrete vibrating table can also be used for the compaction of packing, defense construction equipment, casting mold and cement, concrete products.
Concrete vibrating table can also be used for the compaction of packing, defense construction equipment, casting mold and cement, concrete products.
Product Details
Specification

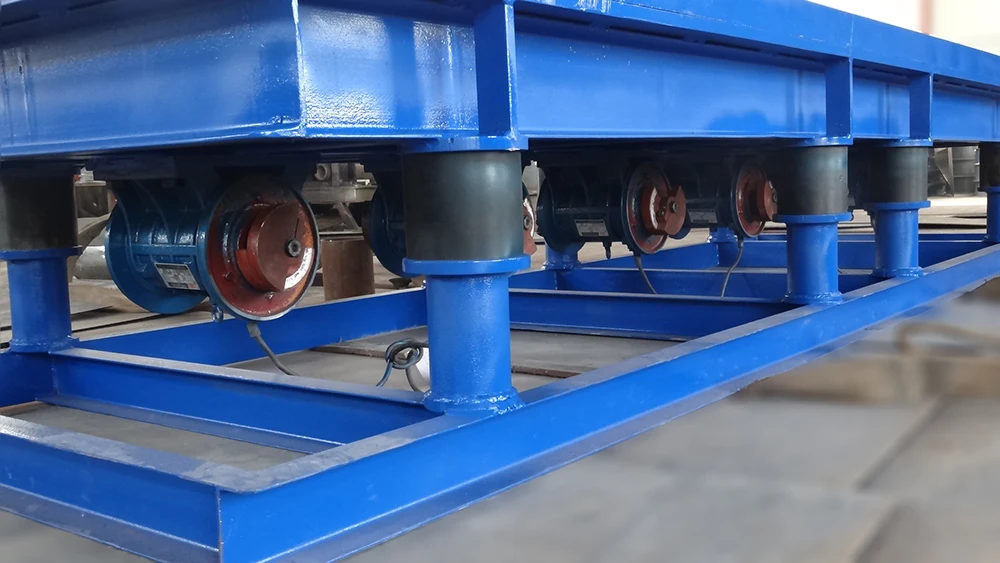

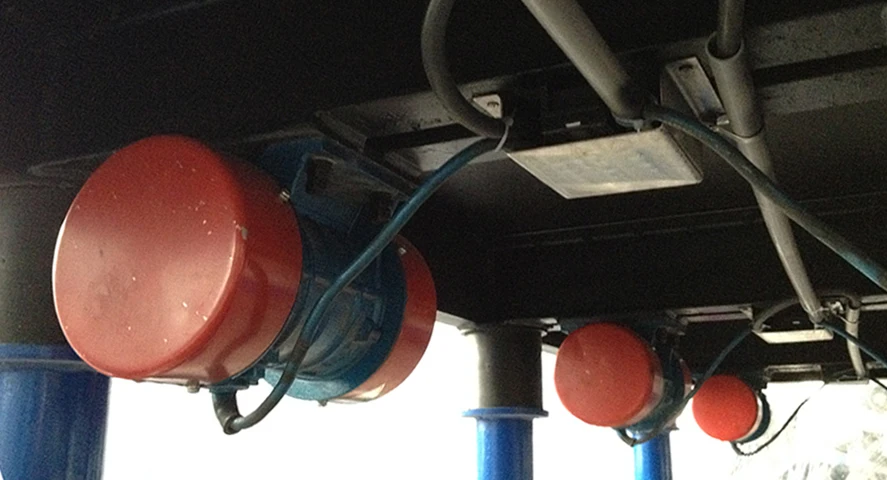

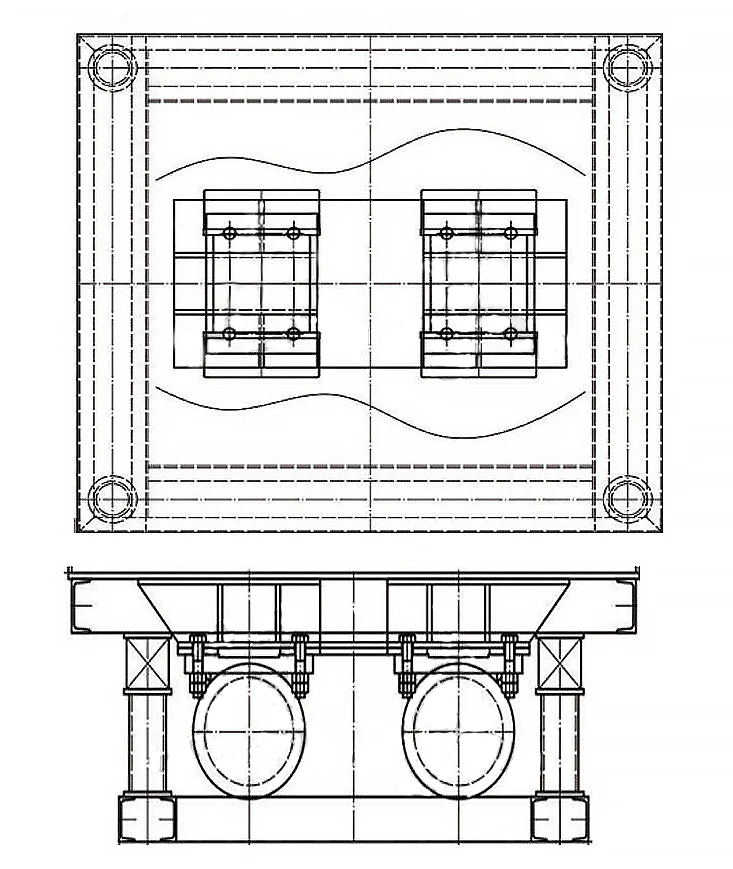

The main mechanism of concrete Vibrating Table Paver Vibrating Table Mould Vibrator Platform contains 2 vibration motors and multi-structure frame support.
Uniformity of vibration force is the key of vibrating table, this factor will affect output and even the entire production line, force amplitude and vibration time should be adjustable to fit the material. With reasonable design and strict component selection, Zhongnuo provides substantial, reliable and high-efficient product to our customer.
Uniformity of vibration force is the key of vibrating table, this factor will affect output and even the entire production line, force amplitude and vibration time should be adjustable to fit the material. With reasonable design and strict component selection, Zhongnuo provides substantial, reliable and high-efficient product to our customer.
Model | ZNYP-500 | ZNYP-1000 | ZNYP-1200 | ZNYP-1500 | ZNYP-3000 |
Table Size(㎡) | 0.25 | 1 | 1.44 | 2.25 | 9 |
Amplitude（mm） | 2-5 | 2-5 | 2-5 | 2-5 | 2-5 |
Power (kW) | 2×0.25 | 2×0.4 | 4×1.5 | 4×1.5 | 6×1.5 |
Weight | 180 | 430 | 1200 | 1800 | 3200 |
Feature
Low noise, uniform vibration force, less power consumption, easy maintenance
Simple structure, stable operation, light weight, small in size, easy installation
Vertical, spiral, 3-dimensional vibration type, fit complex requirements
Power and table-board customization is available, maximum load weight reaches 5 ton
Adjustable height, suit for different production lines
Simple structure, stable operation, light weight, small in size, easy installation
Vertical, spiral, 3-dimensional vibration type, fit complex requirements
Power and table-board customization is available, maximum load weight reaches 5 ton
Adjustable height, suit for different production lines
Details Images

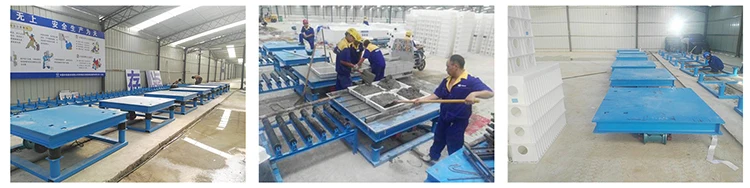

Application Industry
FAQ
Q:How to choose the suitable machine?
A:Please tell us the below information and we can choose the suitable model:
1. Name and feature of the raw material?
2. Production capacity: kg /h, L/h?
3. Purpose of using: screening, filtration, grading or get rid of impurity?
4. The raw material size: (mesh or mm)?
5. How many final materials you want, or how many layer you need?
6. Local power supply (voltage and frequency)
Note: You had better send us the relevant pictures about the details.
Q:Is it support the special requirement available?
A:Yes, the equipment could be designed according to customer's using aim or special requirements.
Q: How long will my order take?
A: Normal delivery is about 15 working days. Ending delivery schedule depends on the quantity and items you ordered.
Packing&Shipping

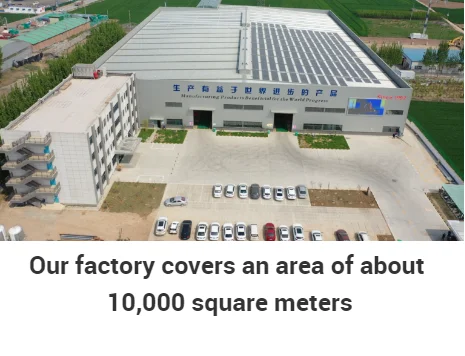

Company Profile
Xinxiang Zhongnuo Mechanical Equipment Company as a diversified high-tech enterprise we always focus on the research, design,manufacturing, marketing and technical services for feed machinery, pharmaceutical equipment, breeding equipment, vibrating sieve and conveying and mixing systems. Our products can be customized according to each customer's different production demand. The products are automated, highly efficient and high-quality as the benchmark, providing customers with comprehensive and reasonable feed processing and breeding solutions. For the vibrating sieve we can reach 95% separating efficiency and a bigger capacity.

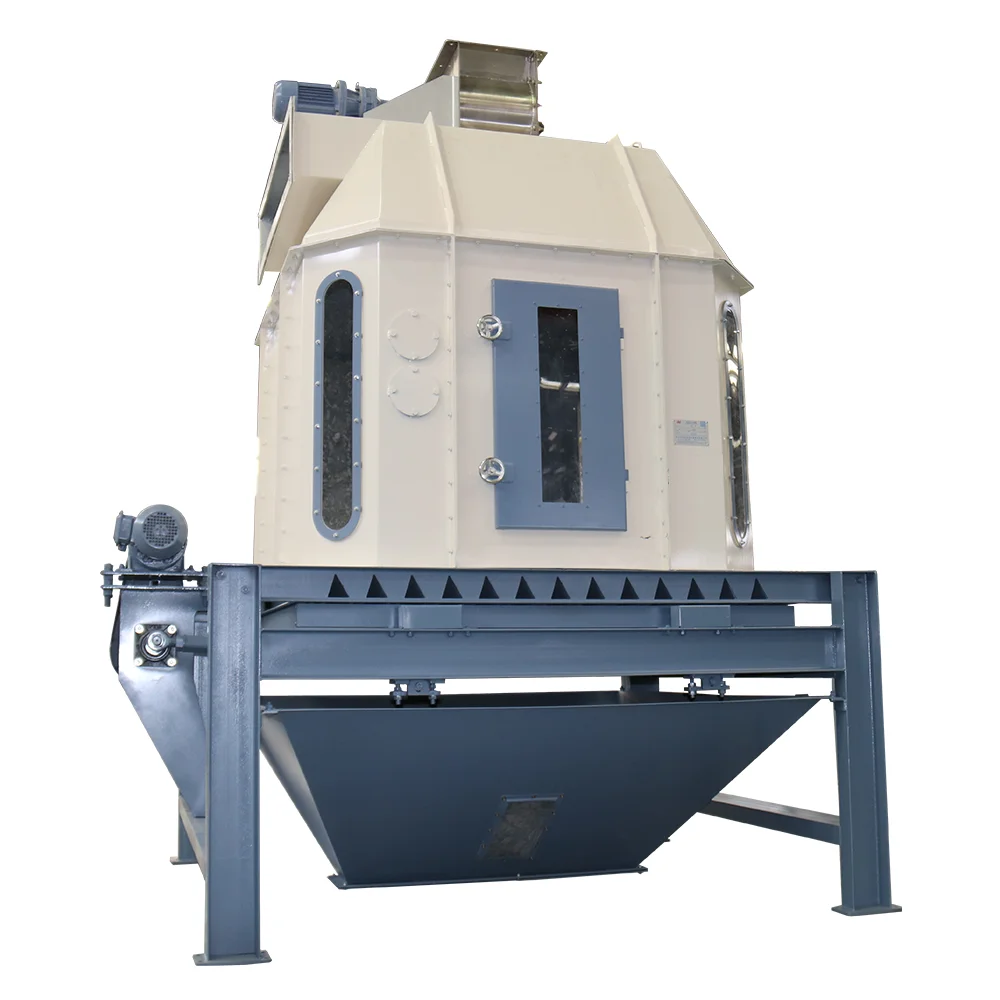

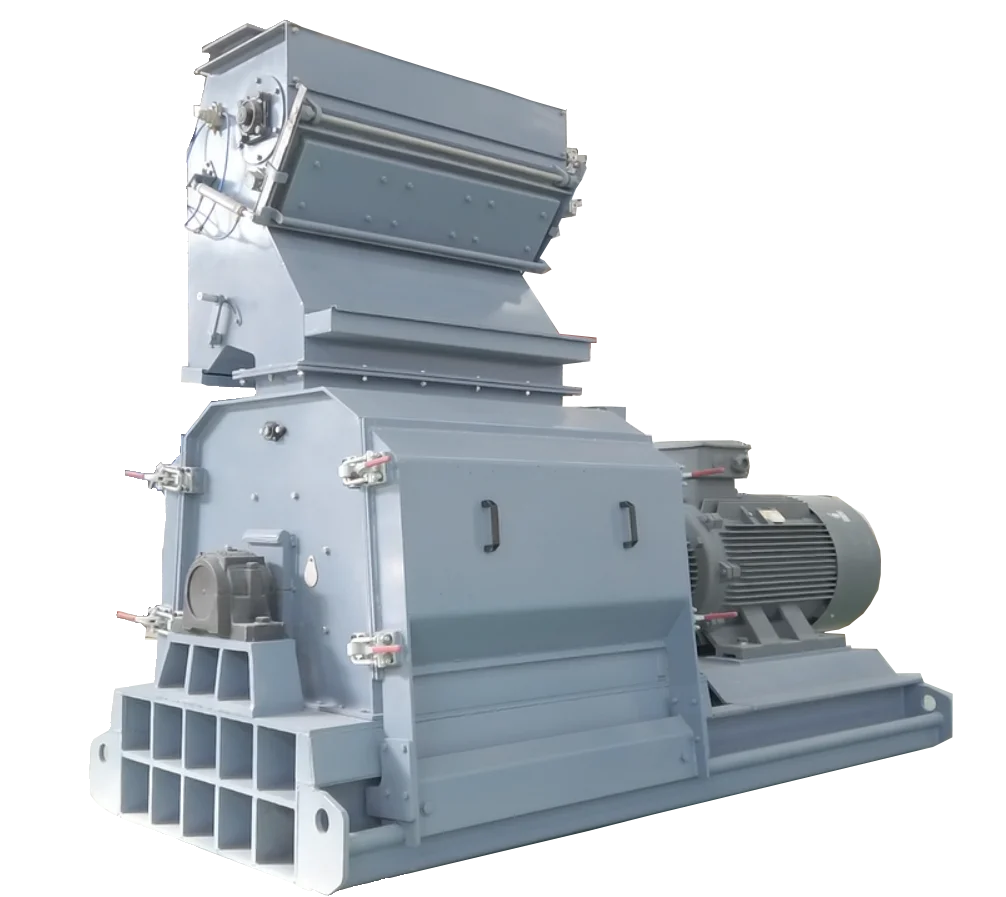

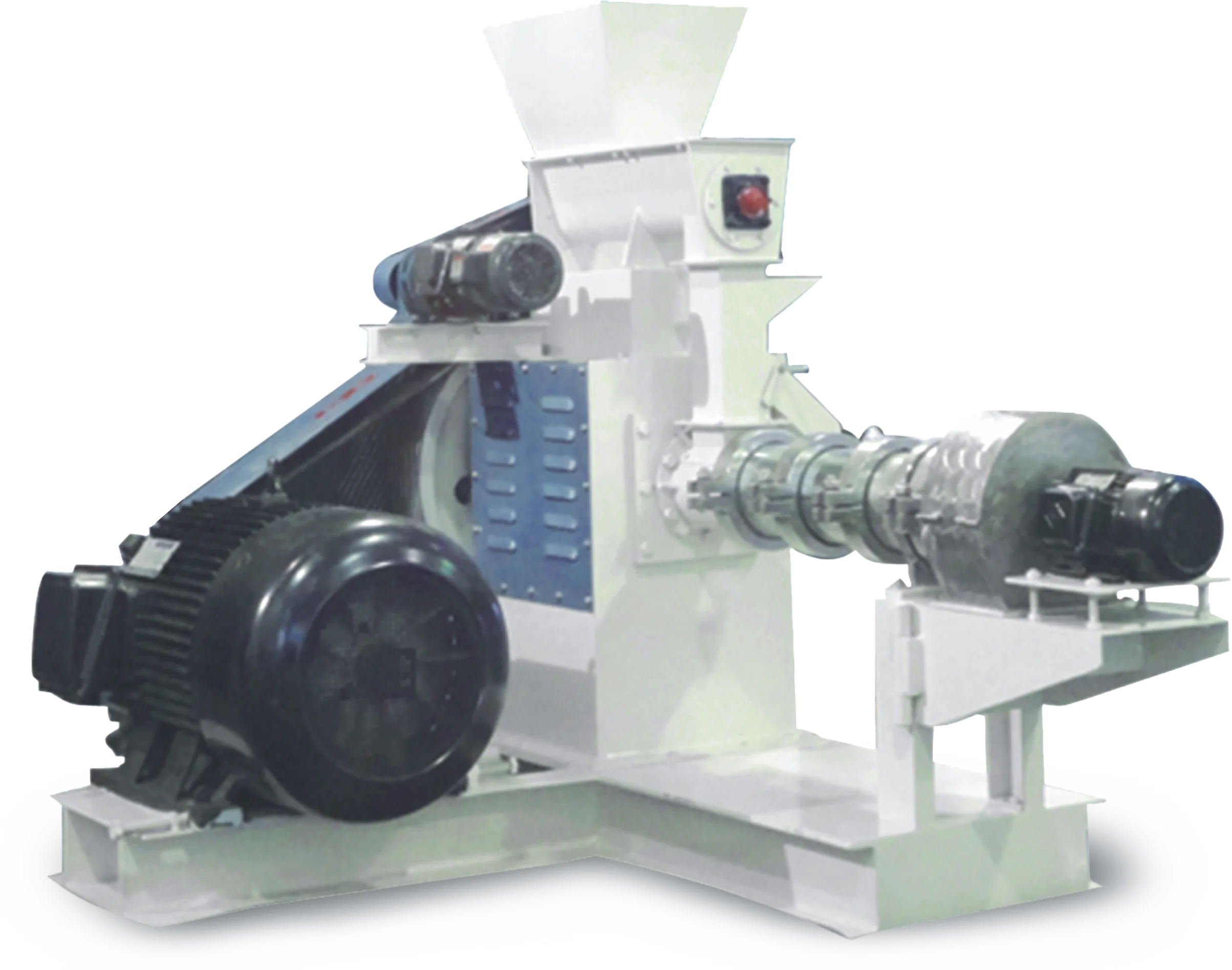

SFSP series crusher 9KLH series ring die pellet press SKLN series coolers aquatic extruder
