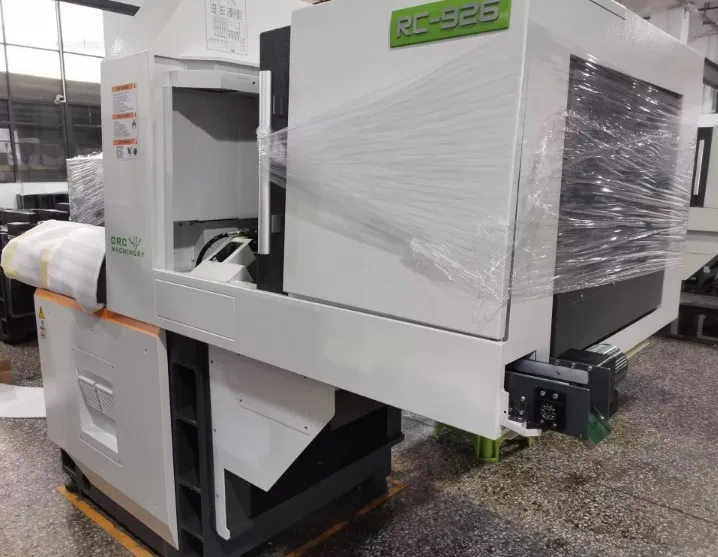

High Quality Dual Spindle Swiss Lathe Swiss Type 5 Axis Cnc Lathe
- Category: >>>
- Supplier: Dalian DRC Machinery Co. Ltd.
Share on (1600625811512):
Product Overview
Description
Swiss Type Cnc Automatic Lathe
The main structural features
1.10,000rm maximum spindle rotation speed: ultra-high spindle and back spindle rotation speed, which can provide the best processing conditions when slender materials and small diameter tools are used.
2.250mm single clamping processing length: super long single clamping processing length, the workpiece that needs to be changed to be processed before can be completed in one clamping, which shortens the processing time.
3.Ø26mm Optional maximum clamping device: the diameter of the spindle through hole is Ø26mm, and it can be equipped with a Ø26 clamping device for processing large materials.

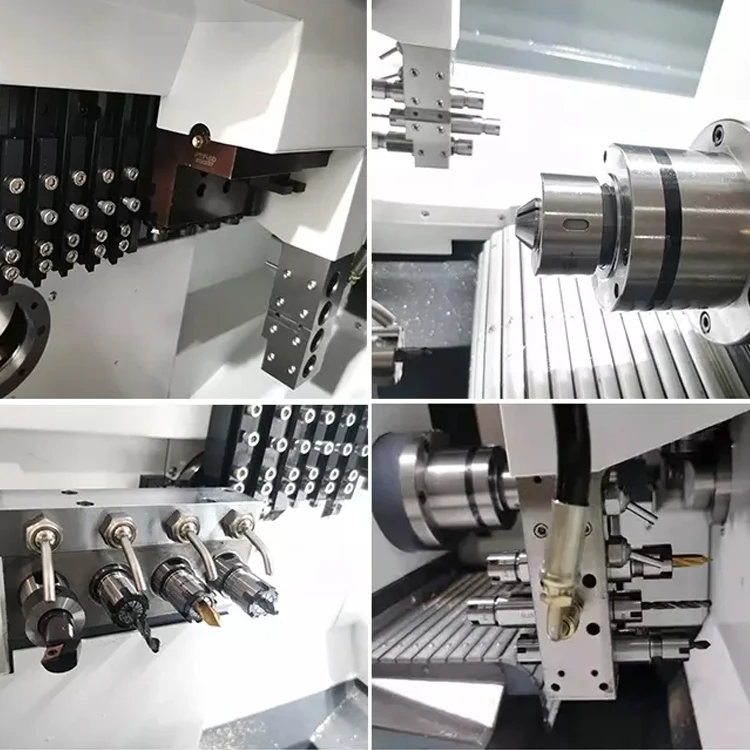

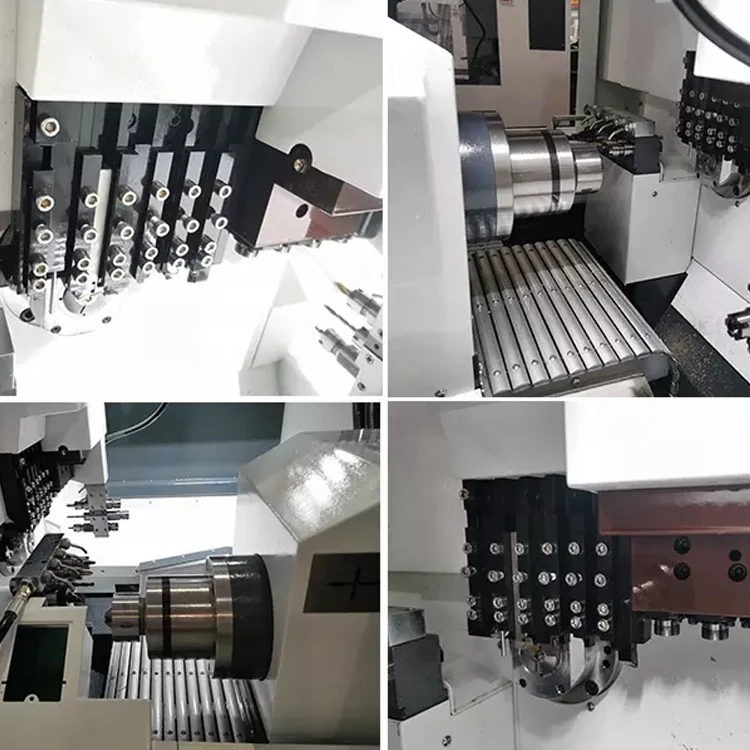

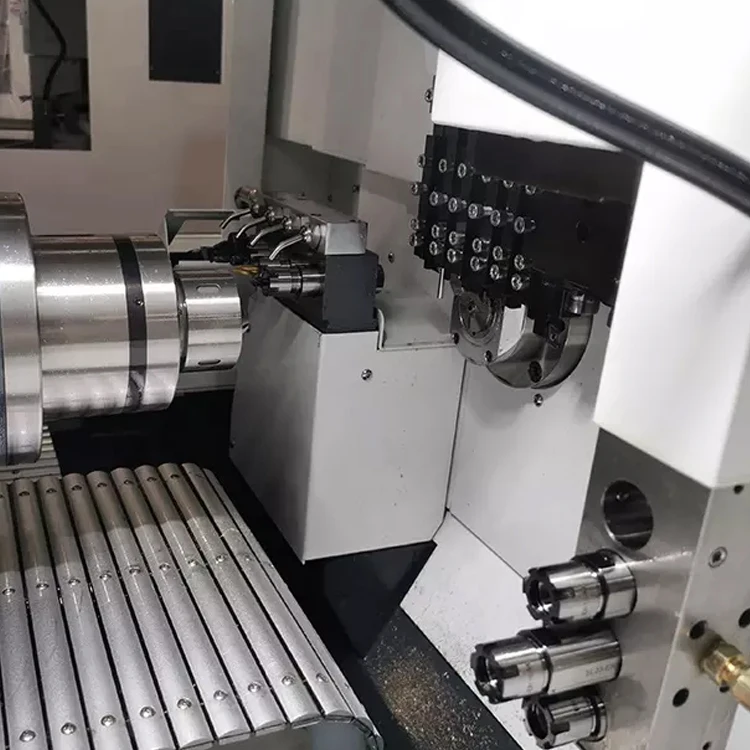

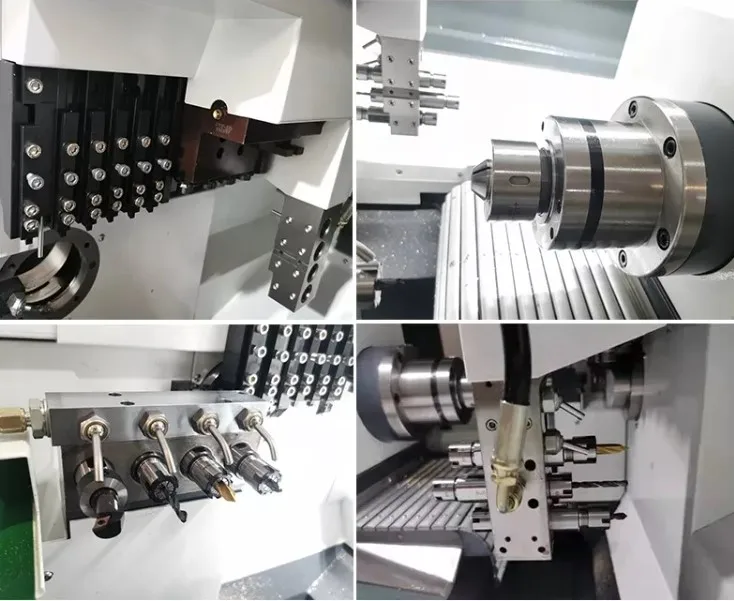

4.Both the spindle and the back spindle adopt high-precision built-in electric spindles.
5.The dual-channel design significantly improves production efficiency. Equipped with a special tool holder for the back, it can shorten the processing time through the independent processing of the front/back.
The main structural features
1.10,000rm maximum spindle rotation speed: ultra-high spindle and back spindle rotation speed, which can provide the best processing conditions when slender materials and small diameter tools are used.
2.250mm single clamping processing length: super long single clamping processing length, the workpiece that needs to be changed to be processed before can be completed in one clamping, which shortens the processing time.
3.Ø26mm Optional maximum clamping device: the diameter of the spindle through hole is Ø26mm, and it can be equipped with a Ø26 clamping device for processing large materials.
4.Both the spindle and the back spindle adopt high-precision built-in electric spindles.
5.The dual-channel design significantly improves production efficiency. Equipped with a special tool holder for the back, it can shorten the processing time through the independent processing of the front/back.

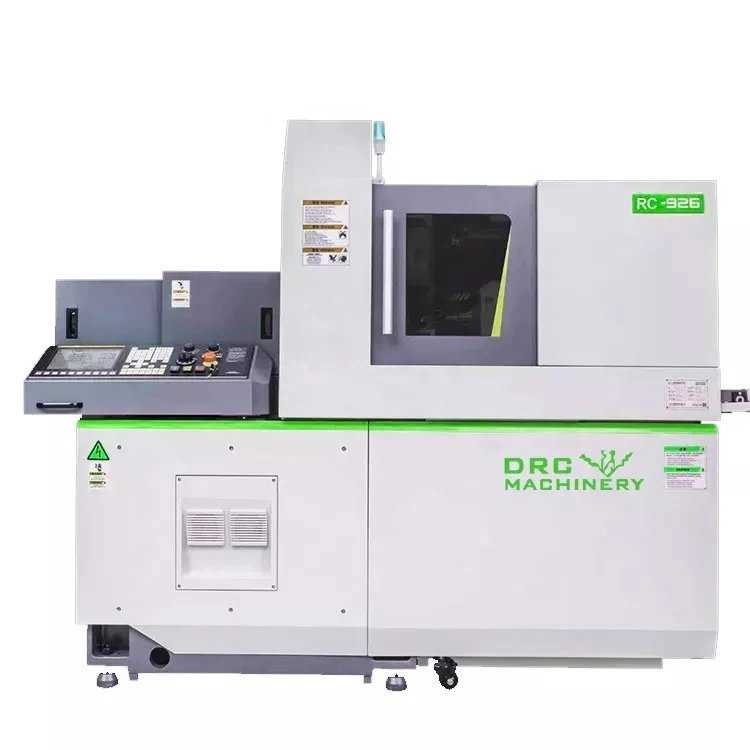

Project | Model | RC926 |
Processing parameters | Max processing diameter | Φ26mm |
Max processing length | 190mm | |
Max axial drilling diameter | Φ10mm | |
Max axial tapping size | M8 | |
Max spindle speed | 10000rpm | |
Max radial drilling diameter | Φ7mm | |
Max radial tapping size | M6 | |
Max speed of radial power head | ER11:10000/ER16:8000 | |
Rated speed of radial power head | ER11:8000/ER16:6000 | |
Max extraction length of workpiece | 100mm | |
Tool sizes | Number of tools installed | 6 |
Tool (turning tool) | 12X12 | |
Sleeve | Φ25.0 X 4T | |
Chuck guide bush | Spindle collet | TSUGAMI B0265CCR |
Power head chuck | ER11、ER16 | |
Bushing | TSUGAMI BS-20#-B | |
Feed speed | Z1/Z2/X2/Y axis feed rate | 30m/min |
X1 | 20m/min | |
Motor | Spindle drive power | 2.5/3.7KW |
Power head drive power | 1KW | |
For cutting oil | 0.4KW | |
For spindle cooling | 0.075KW | |
For lubricating oil | 0.01KW | |
Others | Spindle center height | 1060mm |
Air pressure flow | 0.7mpa 0.5m³/min | |
Main circuit breaker capacity | 40A | |
Input power | 9.3KW | |
Weight | 2600 | |
Dimensions | 2250X1200X1850mm |
