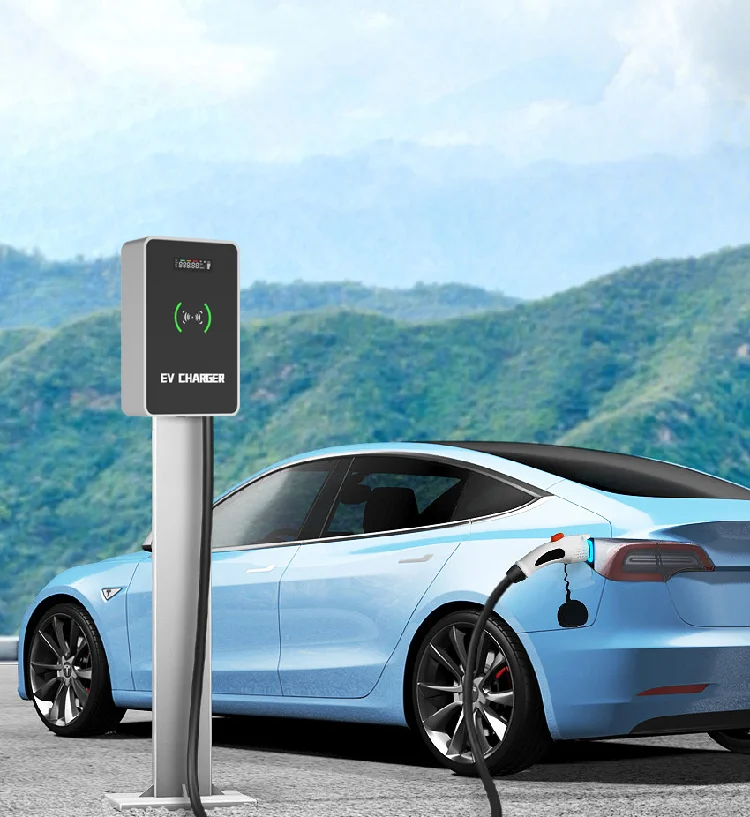

ev wall charger type 2 3 phase wallbox 22kw ev charger type2 coupler type 2 ev charger tester
- Category: Vehicle Parts & Accessories >>>
- Supplier: Xuchang Shuoniu New Energy Technology Co. Ltd.
Share on (1600626137658):
Product Overview
Description
Product Description

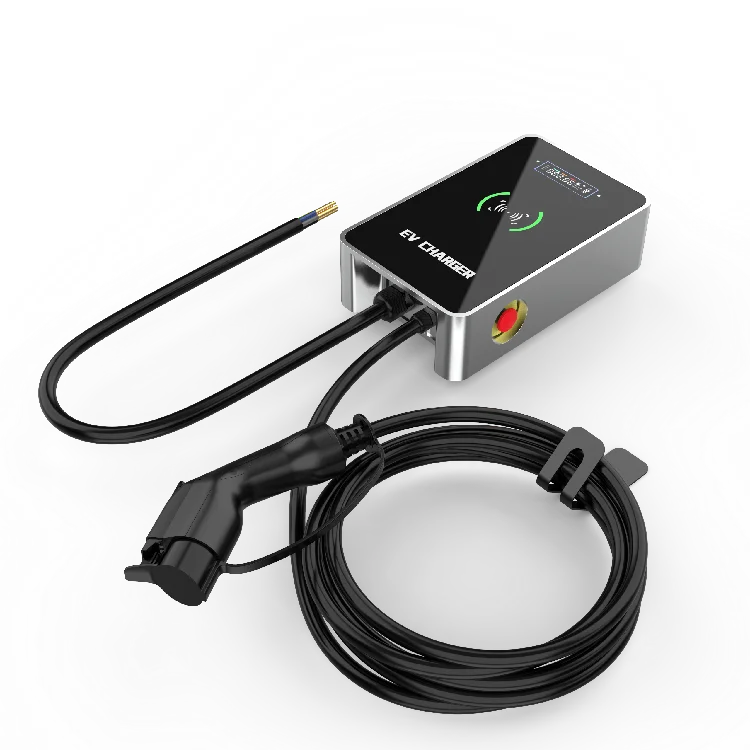

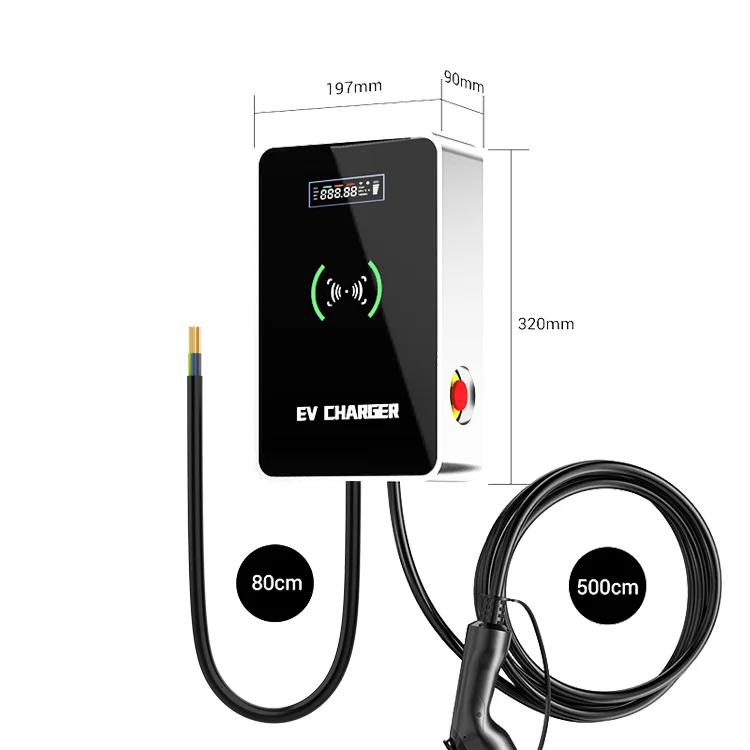

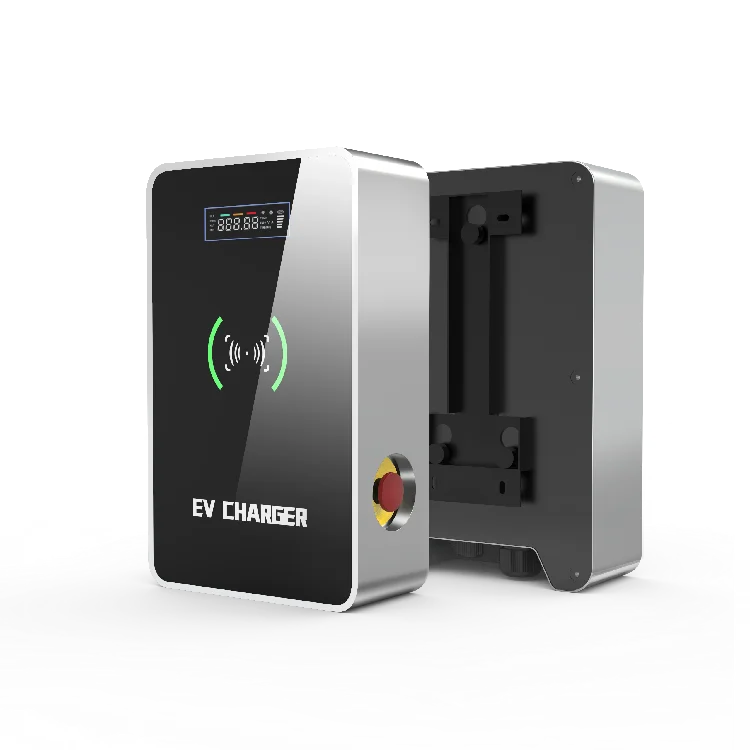

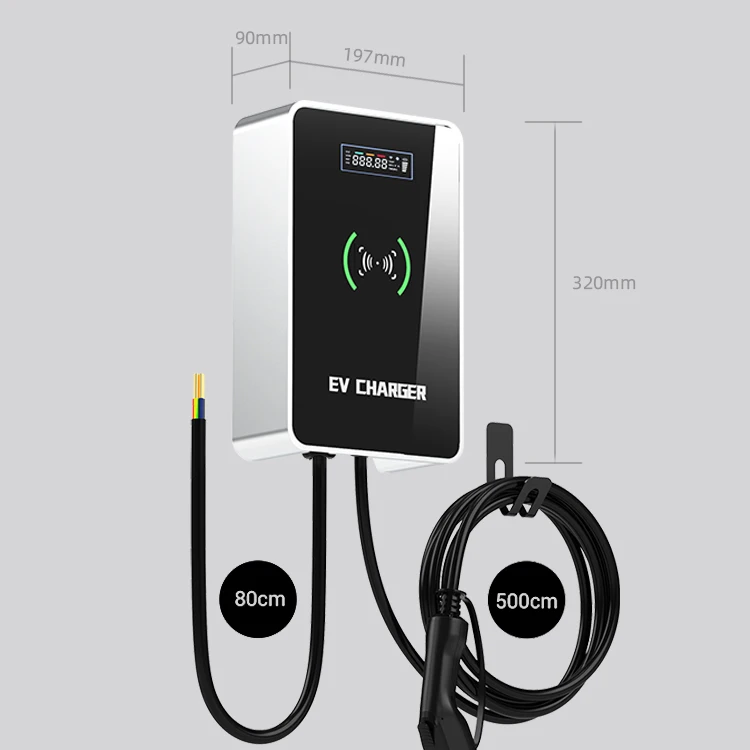

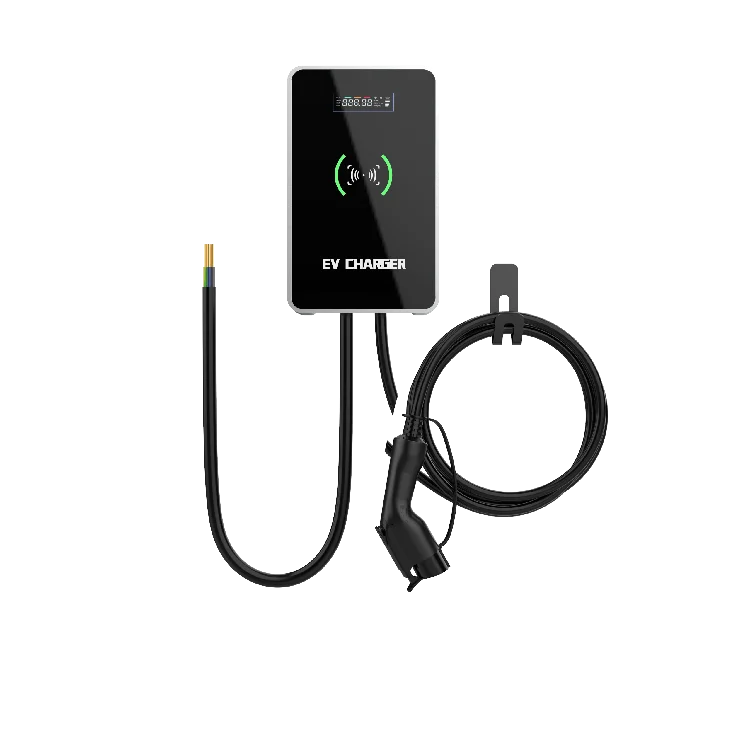

| Mode 3 AC Wallbox Intelligent EV Charger +Mounting Pole with plug | ||
| Power Specification | ||
| NO. | ACSNA-11 | ACSNA-22 |
| AC Power Input Rating | 3-phase | 3-phase |
| 380V±15% | 380V±15% | |
| AC Power Output Rating | 11KW / 16A | 22KW / 32A |
| Rated Frequency | 50/60Hz | 50/60Hz |
| Required Service Panel Breaker (Branch Breaker) | Delicated 3-Pole | Delicated 3-Pole |
| 20A(16A station) | 40A(32A station) | |
| Power Wiring | 5 Wire-L1,L2,L3,N,PE | 5 Wire-L1,L2,L3,N,PE |
| Connector Type | IEC 62196-2(Type 2) or GB/T | |
| Connector Mechanical Operating Life | ≥10000 times | |
| User Interface & Control | ||

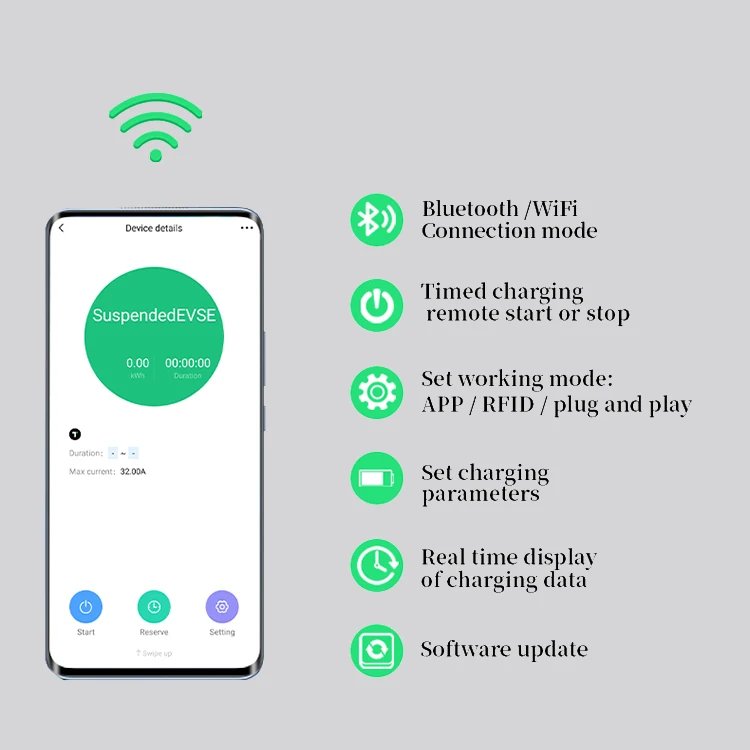

| Charging Control | Plug and Play, RFID Card, APP | |
| Indicators | 2 Led indicators | |
| External Cmmunication | Wi-Fi | |
| 4G(Optional) | ||

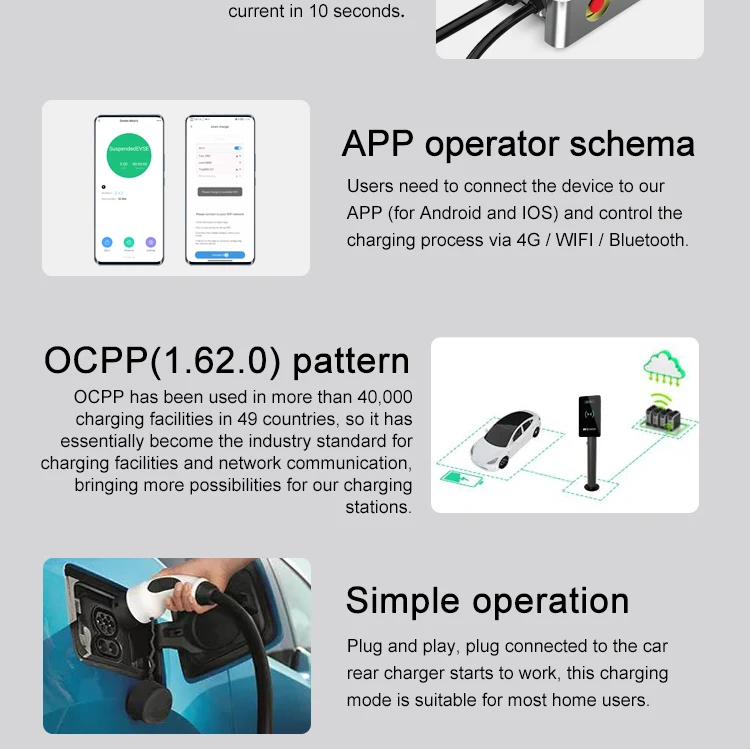

| OCPP Protocol(Optional) | COPP 1.6J | |
| Environmental | ||
| Storage Temperature | -40 to 75℃(-40 to 167℉)ambient | |
| Operating Temperature | -30 to 55℃(-22 to 131℉)ambient | |
| Operating Humidity | Up to 95% non-condensing | |
| Altitude | ≤2000m | |
| Cooling Method | Natural Cooling | |
| Wallbox Mechanical | ||
| Charging Cable Length | 5m or Customize Length | |
| Enclosure Material | Front panel:black, tempered glass; back cover:Silver,metal plate | |
| Mounting Pole Mechanical(Optional) | ||
| Dimension(H×W×D) | 1400*50*100 | |
| Weight | 5KG | |
| Enclosure Material | Metal | |

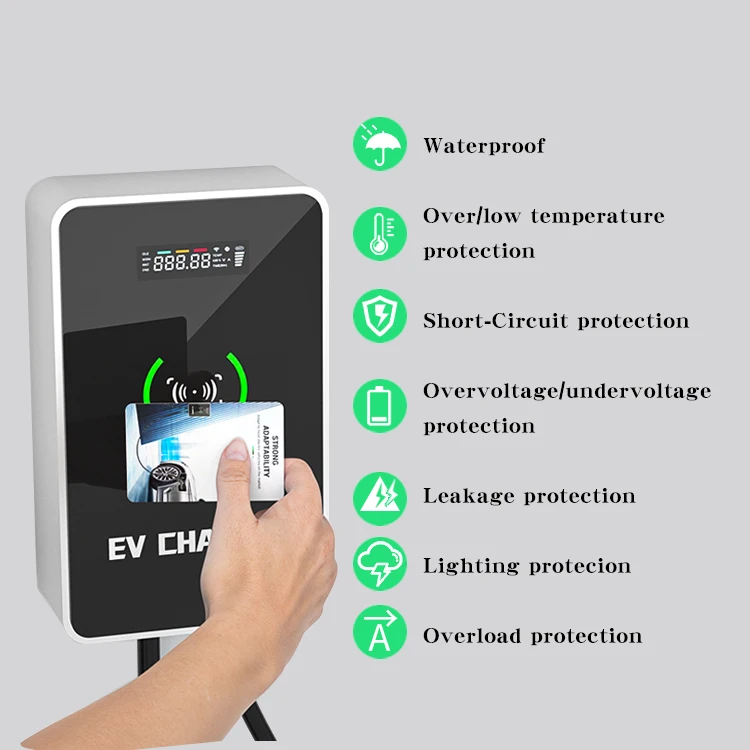

Functions
Trade Shows

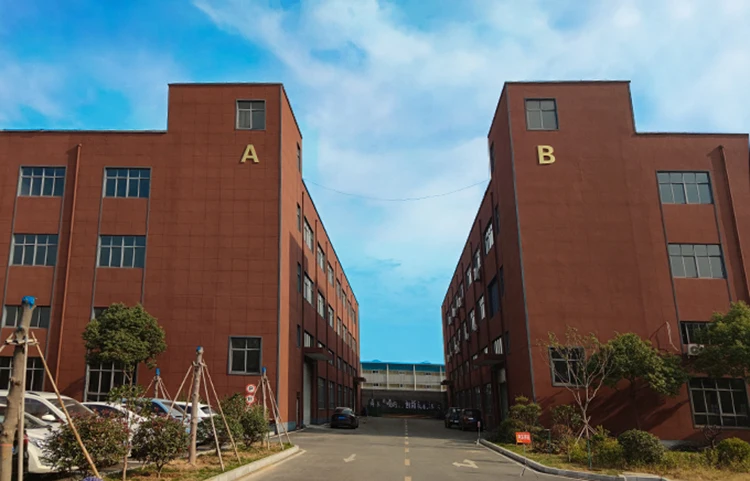

Shuoniu is a professional manufacturer of charging products for electric vehicles. In addition to the factory, the company also has design, research and development, customer service and other departments.Our main products include electric vehicle charging stations, electric vehicle cables and electric vehicle connectors. In order to better adapt to different market preferences and needs, We not only provide standard products, but also customize products according to customer requirements. We are committed to updating products, perfect project solutions and after-sales service to ensure that our customer satisfaction ranks among the bestin the market.
We are committed to becoming the most professional manufacturer of electric vehicle charging equipment in China, and we will make unremitting efforts for it.With the company's rich experience in the field of electric vehicle charging, our products have been successfully applied in most countries around the world. They spread from the cold Norway to the hot Saudi Arabia. Every customer can enjoy the most professional, high-quality products and best service. In order to provide safe, reliable and easy-to-use products, we have devoted our efforts to every process and every link.
Certifications
THE POWER OF THE BRAND
With the strong support of the R&D team, Shuoniu has a number of product technology and appearance patents, and a number of international certifications. We believe that good products make a successful company. Therefore, product quality and customer service are our top priorities, which makes SHUONIU maintain a high position in the market. In order to continueto provide customers with the best experience, we will invest more in technology research and development and pass the most stringent tests in the world.
FAQ
Common Problem Handling
1.Are you a manufacturer or trading company?
We are a union of industry and trade
2.Where is your factory located? Can I visit it?
Our factory is located in Xuchang, Henan Province, China.
We warmly welcome customers from home and abroad to visit our factory
3. What's the payment terms?
We accept T/T,UC,Western Union,MoneyGram and so on.
4. What's the transportation way?
By sea,by air or by express. According to clients requirements.
