Product Name: RS485 AC EV charger 3 phase energy meter smart kwh meter MID approved
Elecnova DTS1946-4M-01 3 phase energy meter is a core component to the electric vehicle charger power measuring and fiscal billing. It’s MID Class B certified available up to 63A current input direct connection.The DTS1946-4M-01 available for the extreme ambient temperature rang at -40℃~+70℃. The measuring data could be integrated with the management system of the EV charger by Modbus RTU communication protocol. It’s widely use for the AC wallbox and charging pipes.

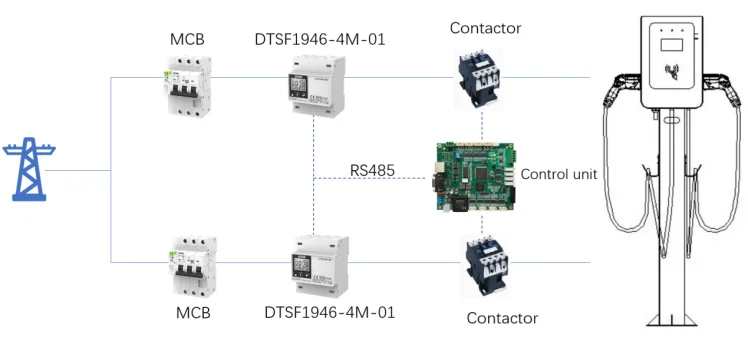

Application

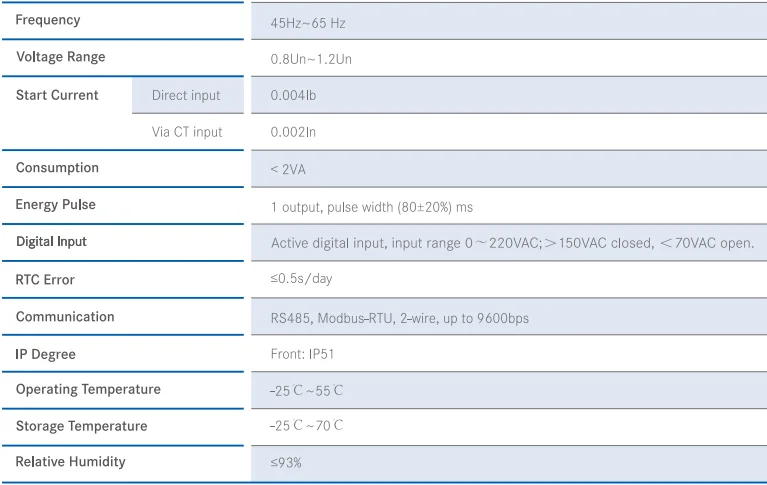

Technical parameters
Normal Voltage | 3×230/400V | 3*230/400V | |||||||||
Current | Direct input | 0.25A(min) | 5(100)A | 5(100)A | 5(100)A | 5(100)A | |||||
Direct input | 63A(max) | - | 1.5(6)A | 1.5(6)A | 1.5(6)A | ||||||
Accuracy | Class index B | ||||||||||
Frequency | 45Hz~65Hz | ||||||||||
Voltage Range | 0.8Un~1.2Un | ||||||||||
Start Current | Direct input | 0.004Ib | |||||||||
Via CT input | 0.002In | ||||||||||
Consumption | <2VA | ||||||||||
Energy Pulse | 1 output, pulse width (80±20%) ms | ||||||||||
RTC Error | ≤0.5s/day | ||||||||||
Communication | RS485, Modbus-RTU, 2-wire, up to 9600bps | ||||||||||
IP Degree | Front: IP51 | ||||||||||
Operating Temperature | -40℃ ~ 70℃ | ||||||||||
Storage Temperature | -40℃ ~ 80℃ | ||||||||||
Relative Humidity | ≤93% | ||||||||||

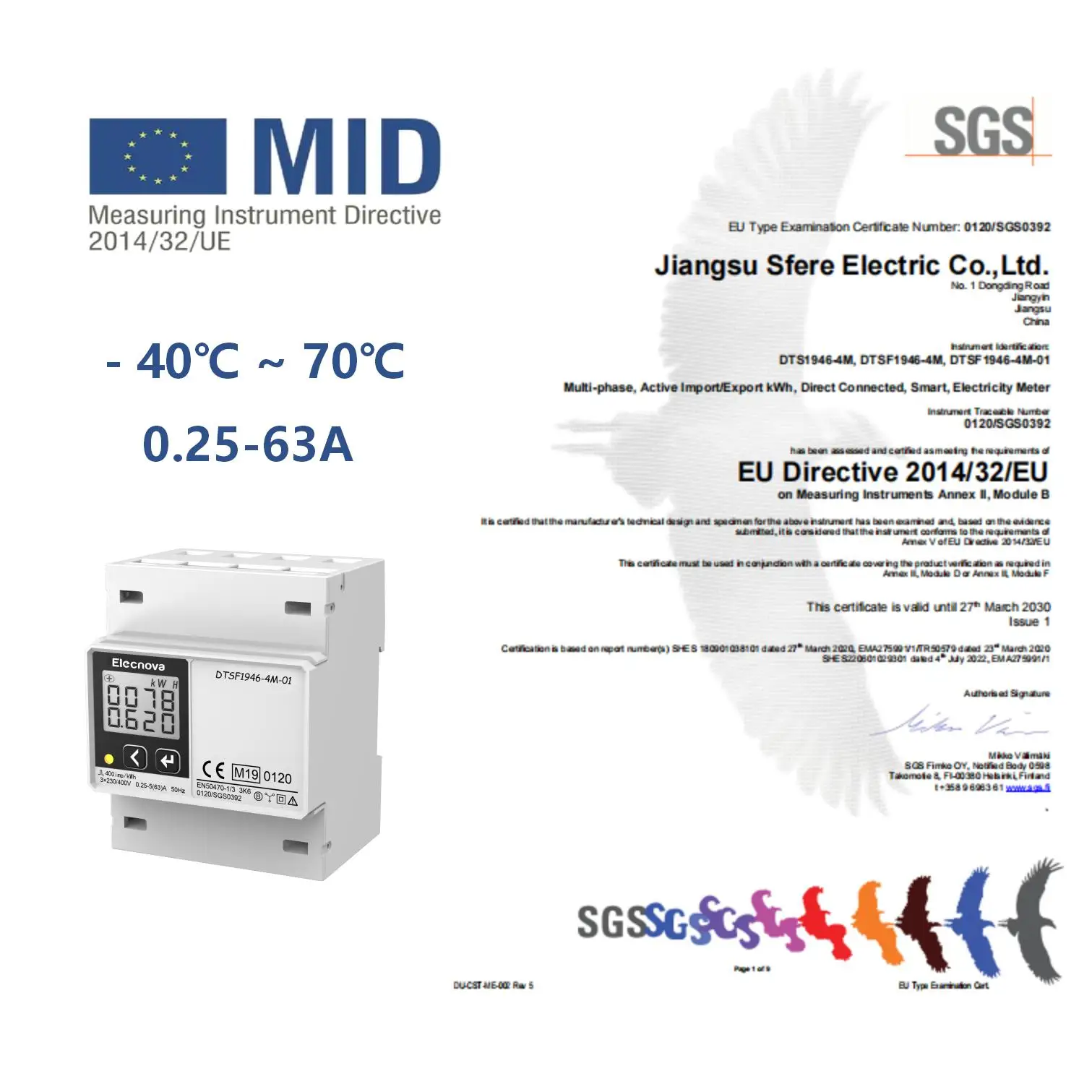

certificate | CE, CCC,MID | ||||||||||
Model Selection
PD195Z-CD31F
DC 0-1000V input
Measuring: U/I/P/E 1 circuit
Modbus-RTU, 9600bps
Using: Fast charger station
PD195Z-CD32F
DC 0-1000V input
Measuring: U/I/P/E 2 circuits
Modbus-RTU, 9600bps
Using: Fast charger station

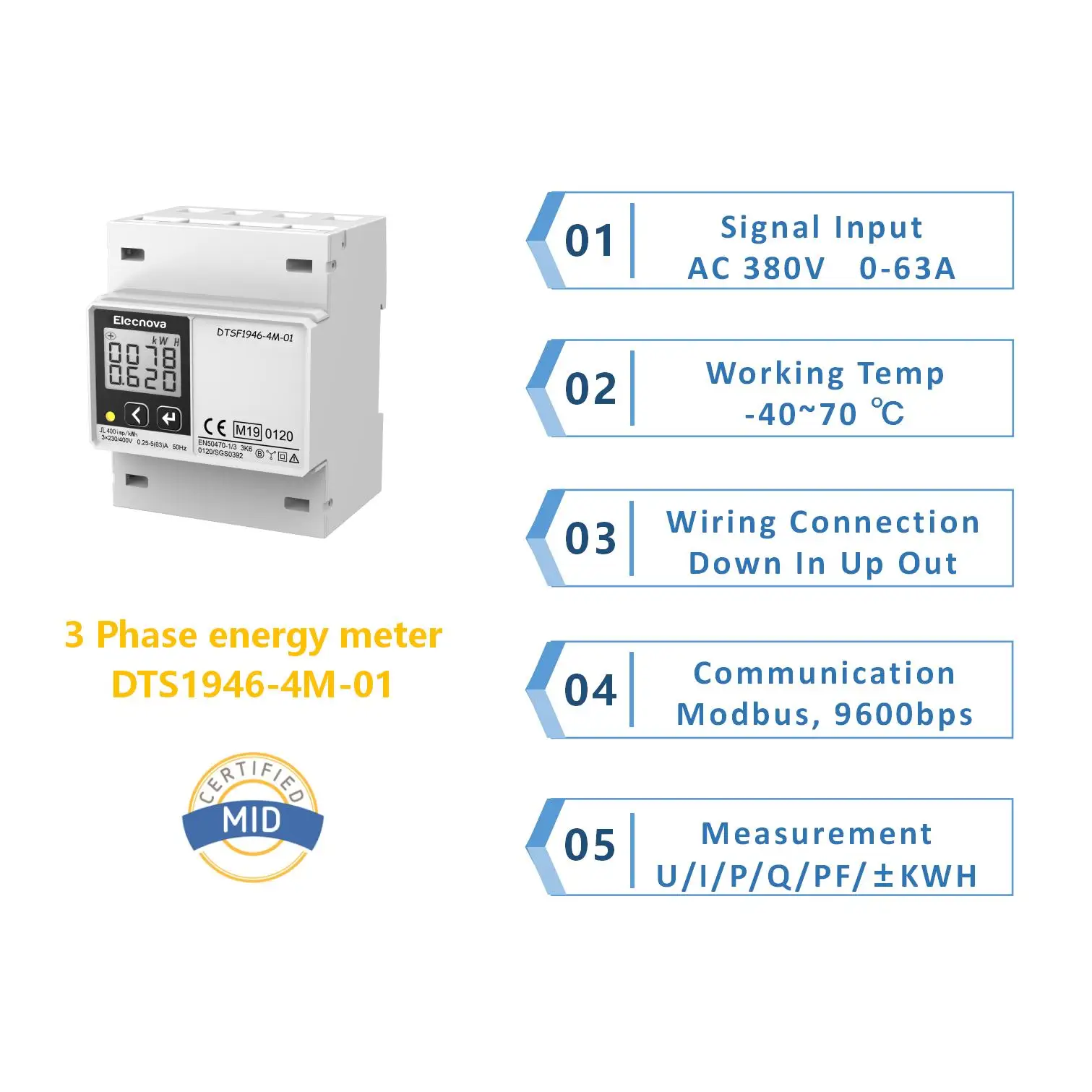

DTS1946-4M-01
AC 3*400V / 5-63A input
Wiring: down in up out
Modbus-RTU, 9600bps
Using: Home charger
