Automatic styrofoam cooler box packaging eps foam box molding machine
- Category: >>>
- Supplier: Hangzhou Fangyuan Plastics Machinery Co. Ltd.
Share on (1600626211722):
Product Overview
Description
Certifications
Certification of styrofoam cooler molding machine
SIMILAR PRODUCTS
Order Reviews from Customers
Product Overview
SPZ-T Series styrofoam cooler molding machine
The machine has many improvements compared to the basic type shape molding machine and the features are as follows:
1. Machine structure:
All frame are welded onto 16/20mm steel plate with high machine legs. This greatly improves machine strength.
High machine legs are made by strong ''H'' type profile. It is easy for the client to install the machine (only prepare floor
foundation).
2. Filling system:
Adopts normal pressure, vacuum for high pressurized filling. Material filling is controlled by level sensor with double rotation chamber discharge and has 44 filling outlets.
3. Steam system:
Adopts balanced PID control valve with German gauge. This greatly improves steam accuracy and reduces consumption by around 20% compared with A/B type.
4. Cooling system:
Big vacuum pump with vertical tank, equipped with vertical vacuum cooling water spray on the top. The vacuum pump outlet has air & water separator. All these keep very high efficiency, so that vacuum cooling will be used as main cooling instead of water cooling(normally water cooling will be set up only 8-12S), which will keep the water content of product less than 10%.
5. Drainage system:
Increased large for inlet and outlet of mould, adopts 8-1'' inlet foe steam, ensuring fast cycle time, 6/8-2'' outlet for drainage system, 6'' big drainage pipe is controlled by butterfly valve, Together they greatly increase heating and drainage speed.
6. Control system:
Adopts PLC(Mitsubishi) and touch screen (Schneider) making operation easy.
All electronic components are from famous brands, which greatly improve the machines stability.
The air cooling, steam, de-mould, pressure of filling are controlled by long-distance balance valve.
Technical of styrofoam cooler molding machine
Item | Unit | SPZ100T | SPZ120T | SPZ140T | SPZ160T | SPZ175T | SPZ180T | SPZ200T |
Mould Dimension | mm | 1000×800 | 1200×1000 | 1400×1200 | 1600×1350 | 1750×1500 | 1800×1600 | 2040×1800 |
Max Product Dimension | mm | 800×700×350 | 1000×900×350 | 1200×1000×350 | 1400×1100×350 | 1550×1300×350 | 1610×1400×350 | 1850×1600×350 |
Connected Load | kW | 11.0 | 11.0 | 15.2 | 17.2 | 17.2 | 20.7 | 20.7 |
Outside Dimensions | mm | 4760×1900×4700 | 4760×2100×4900 | 4920×2250×4660 | 5220×2530×4690 | 5220×2680×4790 | 5220×2760×5120 | 5220×2960×5270 |
Weight | t | 4.50 | 5.20 | 5.70 | 7.00 | 7.50 | 8.00 | 10.00 |

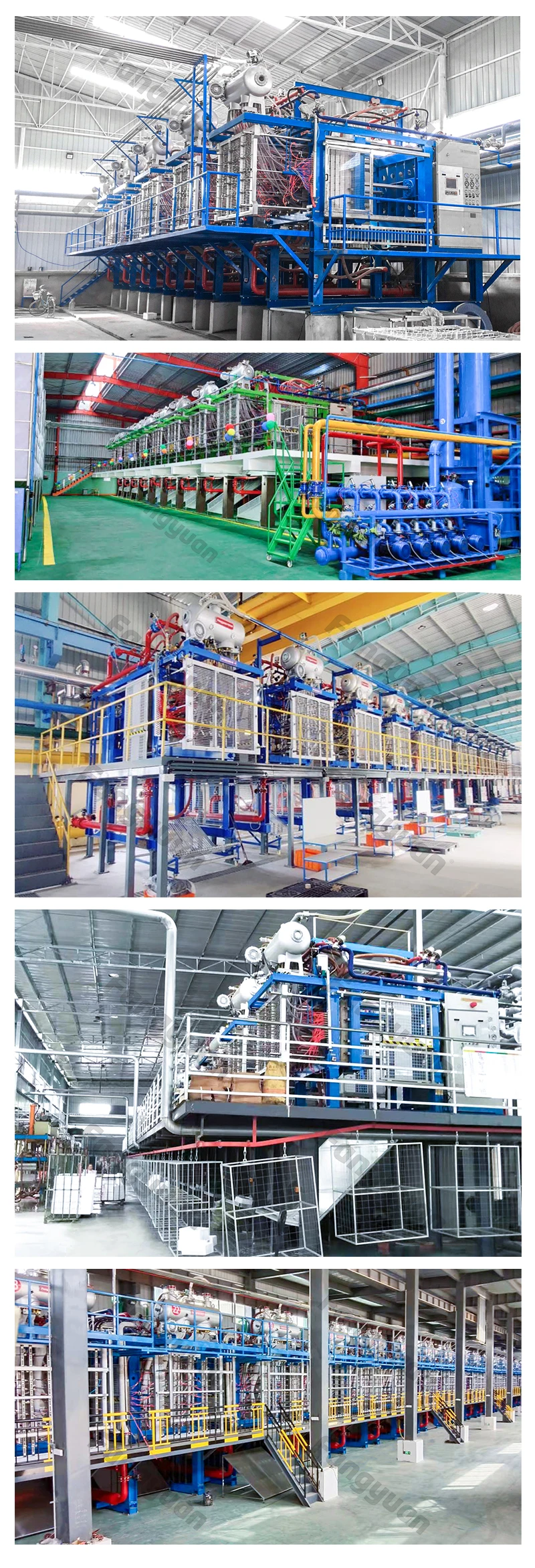

Successful Project
Successful Projects of styrofoam cooler molding machine

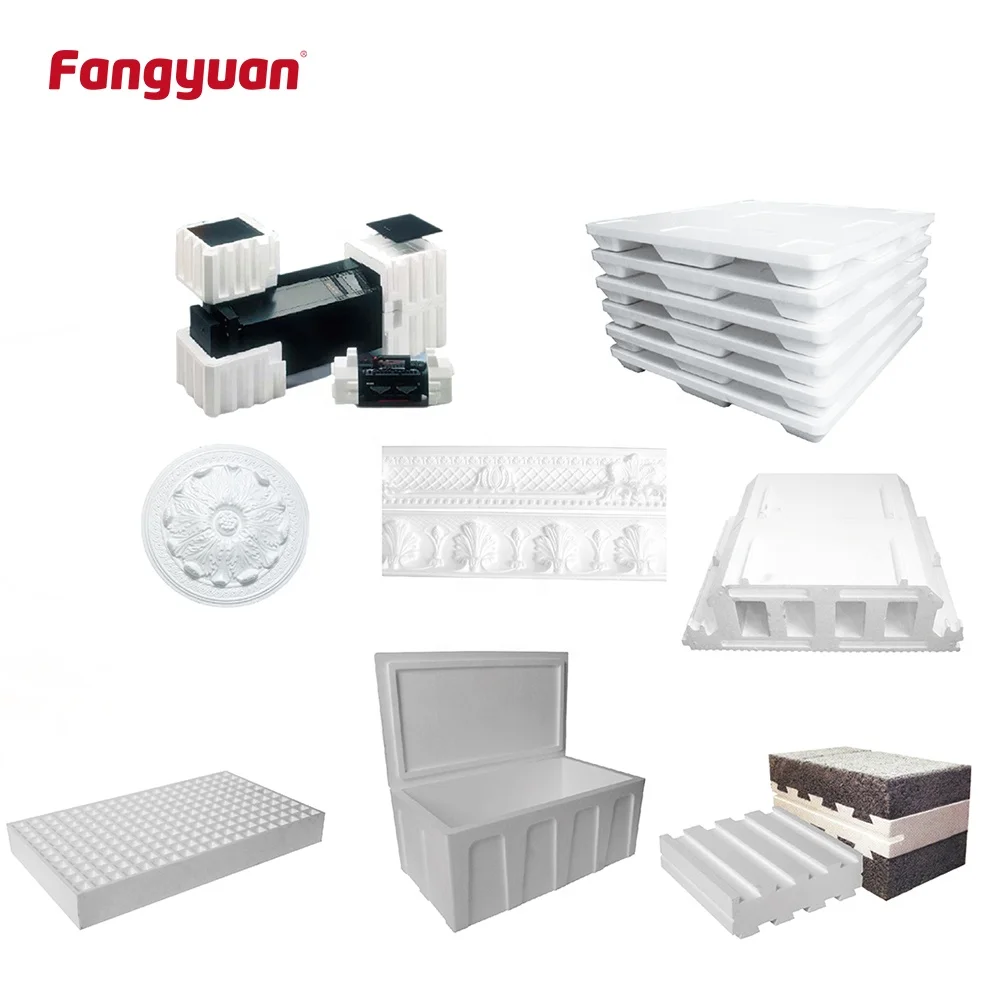

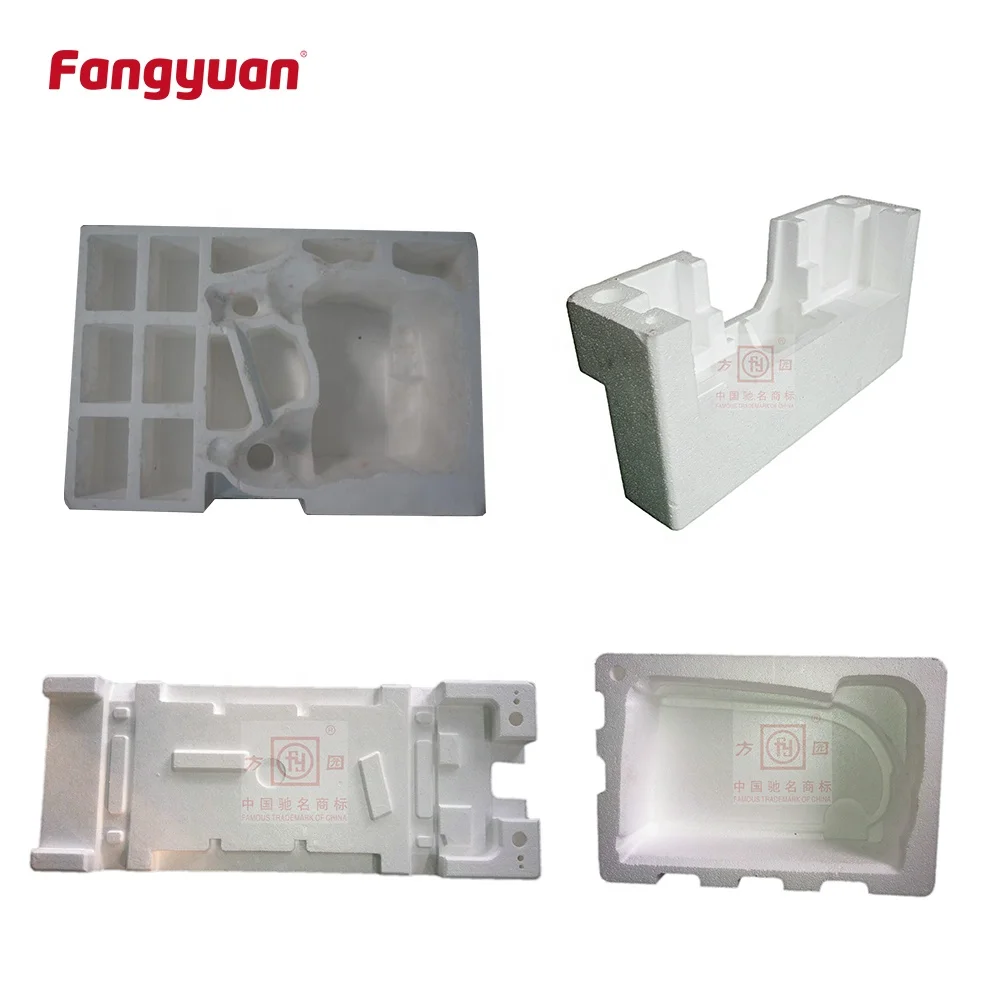

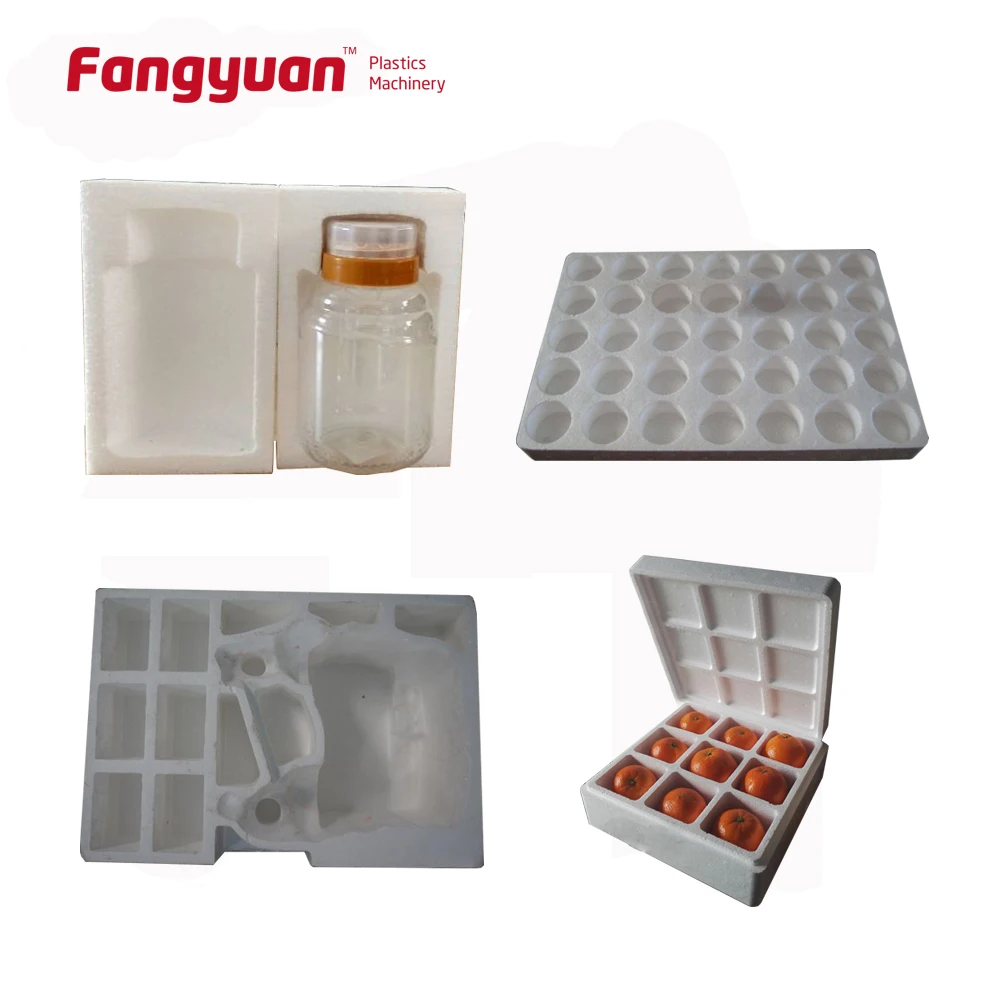

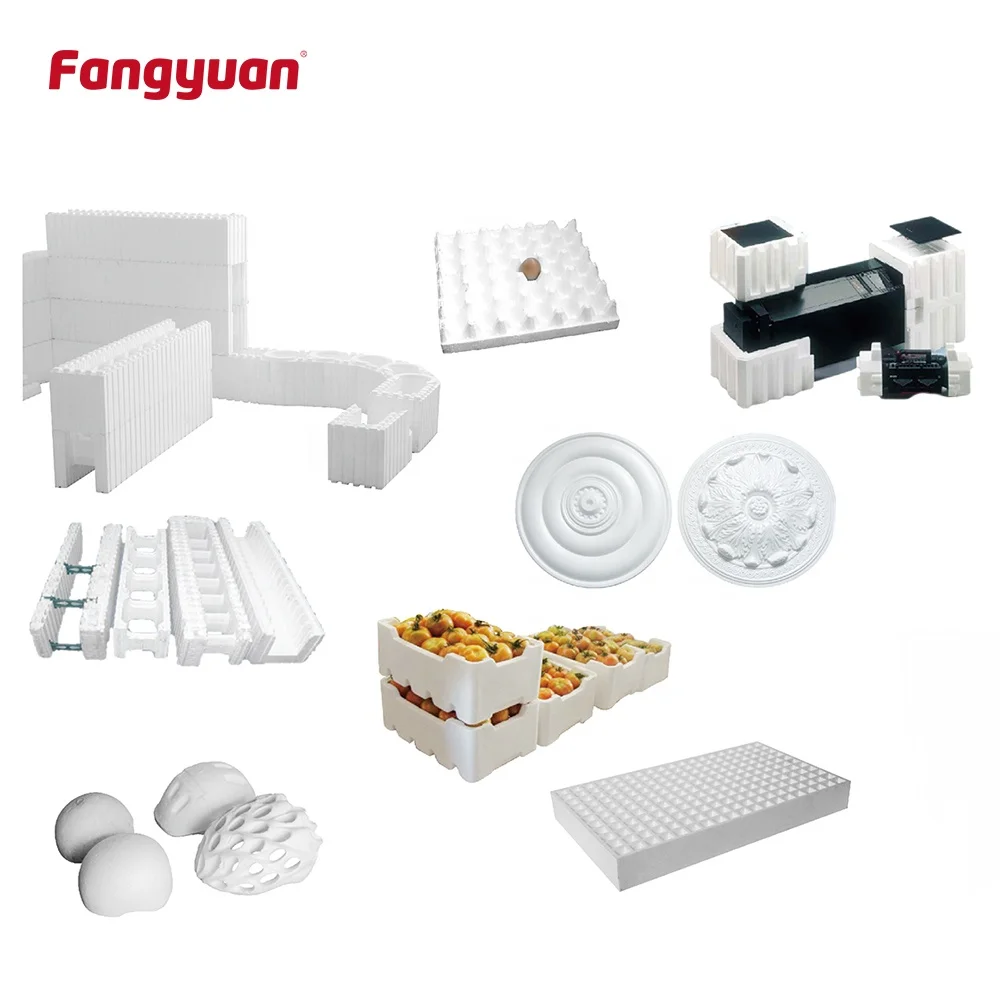

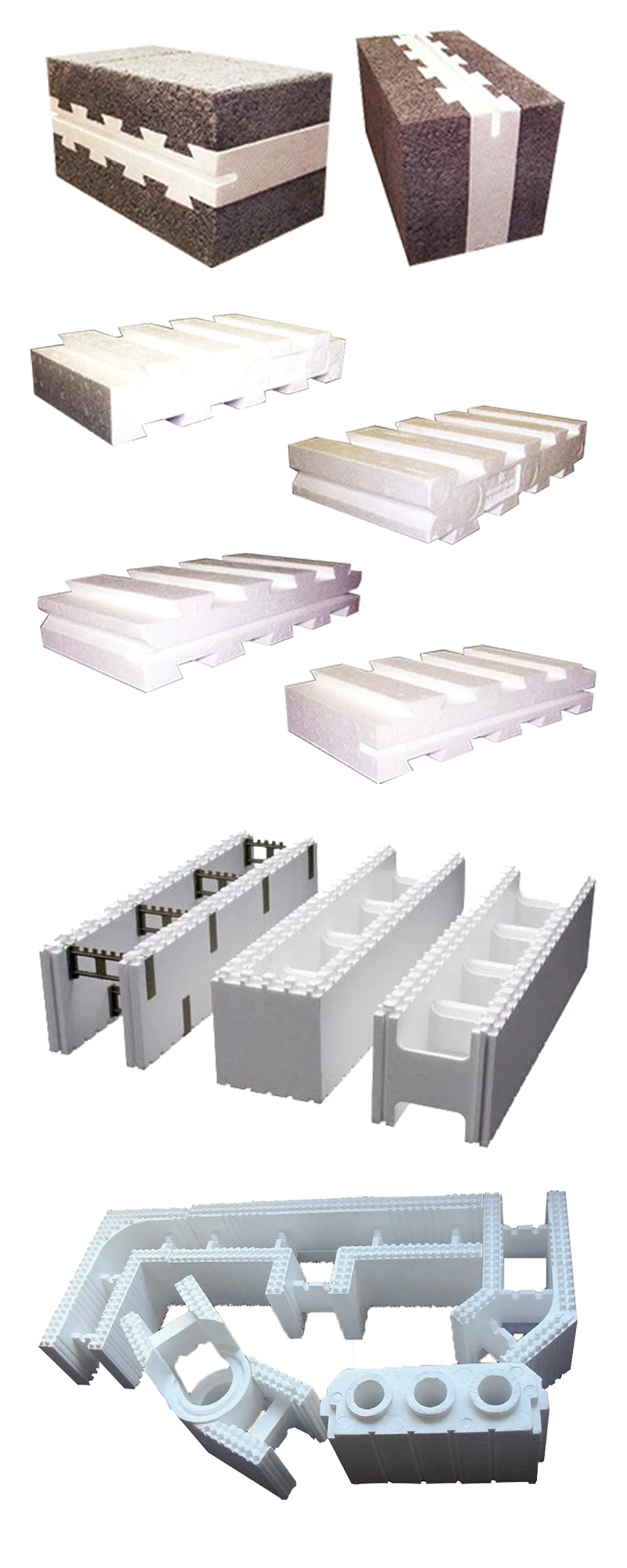

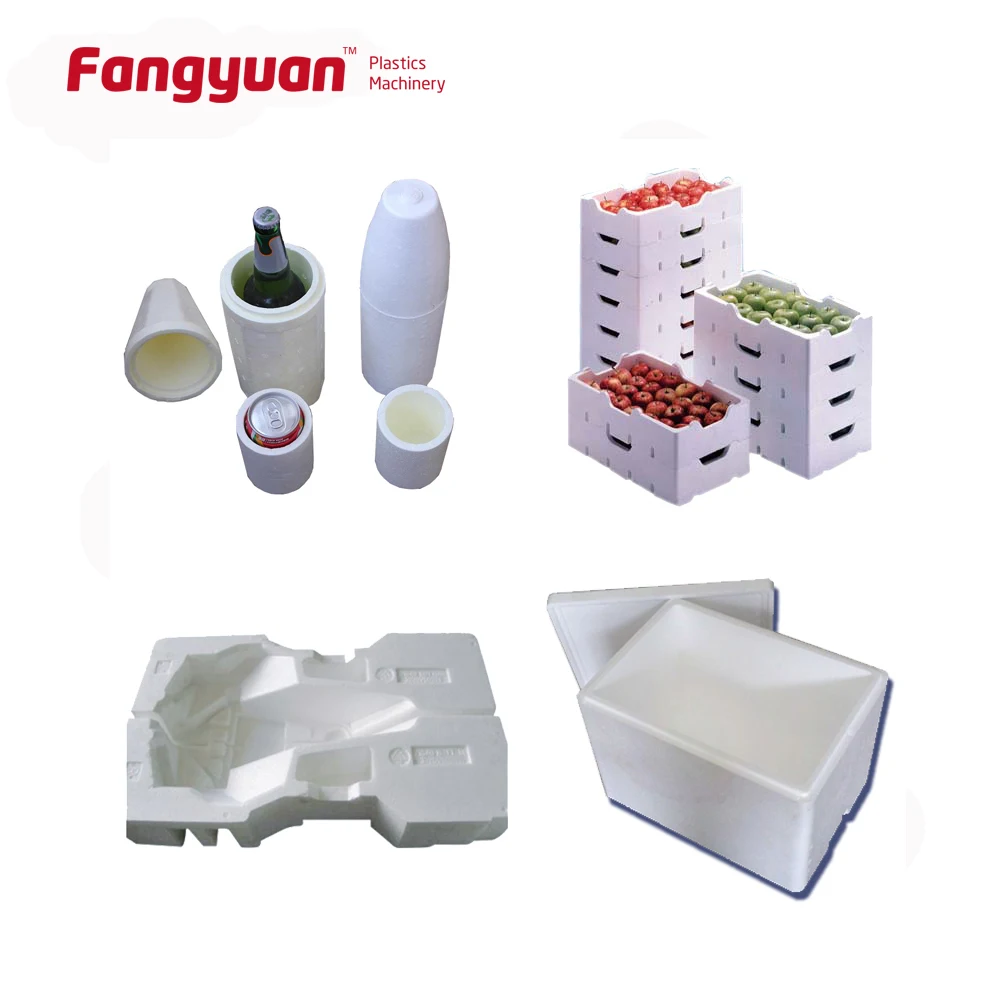

Products
Products of styrofoam cooler molding machine
Company Profile
Packing & Delivery
FAQ
Q: Are you a factory or trading company?
A: We are a factory with more than 30 years' experience.
Q: what is your payment term?
A: 30% down payment against order confirmation, 70% balance payment prior shipment.
Q:what is your delivery time?
A: usually in 30-60days, depends on your projects.
Q: Can you send engineer to our local place to instruct installation?
A:Yes,if you need,we will arrange engineer for you,and we can provide turn-key job.
Q: Warranty?
A: One year warranty after installation is completed.During warranty period, for broken parts not by man-made and wear parts, factory seller will replace free of charge. the shipping cost will be borne by buyer, seller will equip standard spare wear parts to buyer.
A: We are a factory with more than 30 years' experience.
Q: what is your payment term?
A: 30% down payment against order confirmation, 70% balance payment prior shipment.
Q:what is your delivery time?
A: usually in 30-60days, depends on your projects.
Q: Can you send engineer to our local place to instruct installation?
A:Yes,if you need,we will arrange engineer for you,and we can provide turn-key job.
Q: Warranty?
A: One year warranty after installation is completed.During warranty period, for broken parts not by man-made and wear parts, factory seller will replace free of charge. the shipping cost will be borne by buyer, seller will equip standard spare wear parts to buyer.
