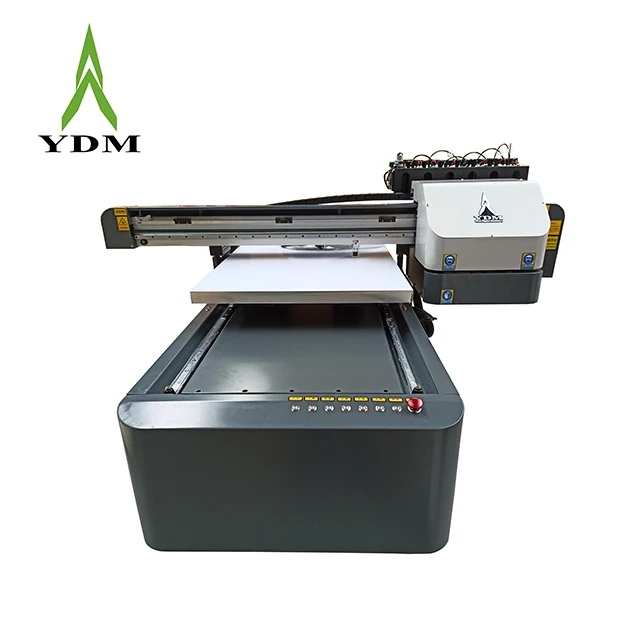

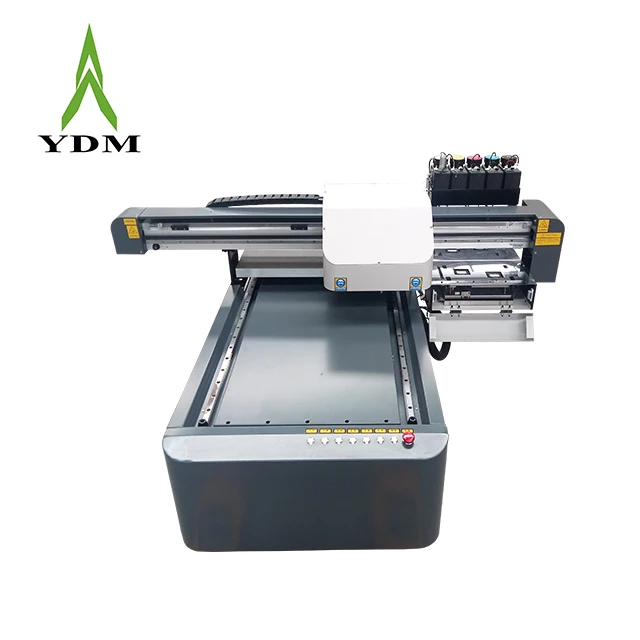

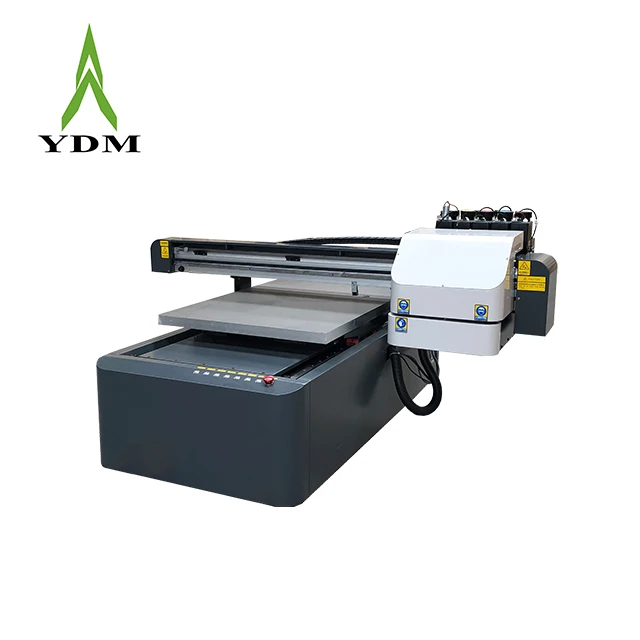

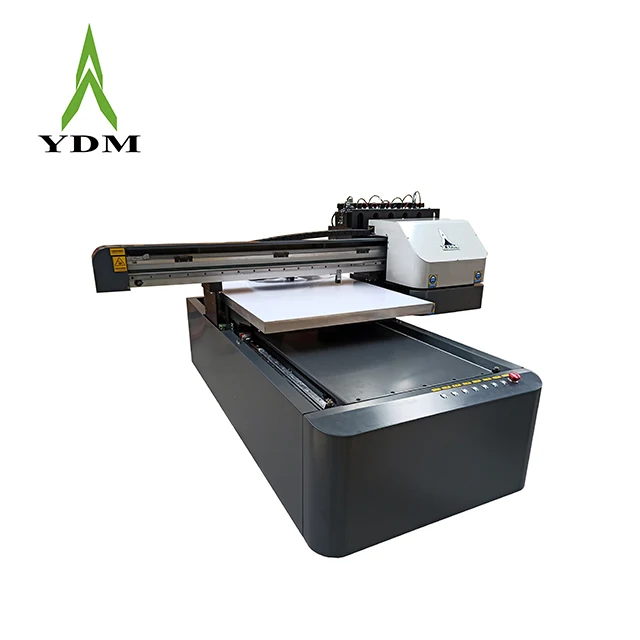

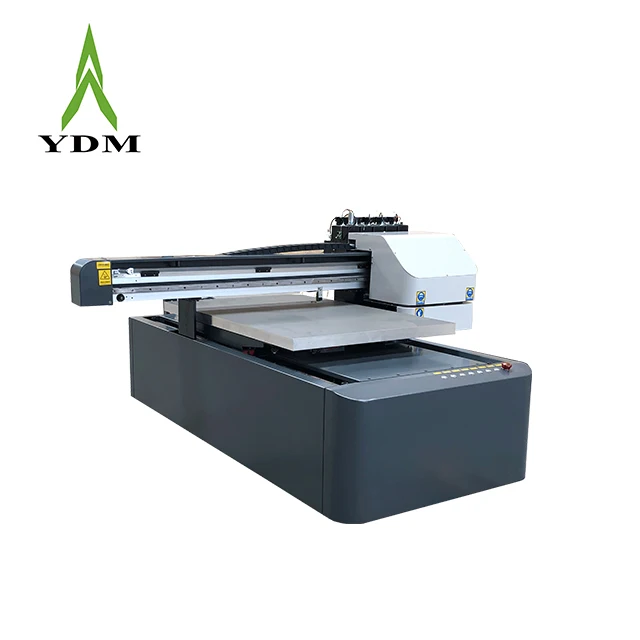

YDM A1 UV DTF 6090 flatbed printer glass bottles gift box printing machine with varnish
- Category: >>>
- Supplier: Linyi Wanna Deyin Digital Products Co. Ltd.
Share on (1600626211751):
Product Overview
Description
YDM A1 UV DTF 6090 flatbed printer glass bottles gift box printing machine
YDM A1 UV DTF 6090 flatbed printer glass bottles gift box printing machine install 3PCS xp600 print heads, Max 20 cm media thickness , it can print on the surface of various flatbed and cylinder materials, it has stable high-quality printing effects and high-quality picture reproduction effects, so it has mutli application and can meet personalized print.
Product Description
Printer parameters
Technical Data | UV6090 series | |
Print Technology | ||
Print Format | 60 x 90 cm / 2 x 3 ft / A1 | |
Print Height | 20 cm / 8 in ( Max. 30 cm / 12 in ) | |
Head Model | 3 pcs XP600 | |
Color Set | CMYKLCLMWV | |
Control System | HOSON | |
RIP Software | RIPrint | |
Print Direction | Uni/ Bi-directional, Front/ Rear Alternative | |
Resolution | 8 PASS : 720 x 1080 dpi 12 PASS : 720 x 1440 dpi | |
6 Print Speed | 8 pass 3 sq.m/ h | |
Machine Highlight | ||
Heavy Duty Frame | Strengthened Aluminum beam | |
Driving Mode | HIWIN linear rail + Servo motor + Lead screw + Import Drag chain | |
Work Table | Anodized aluminum Table + 6 pcs Vacuum Fan | |
Ink System | Continuous Ink supply + White Ink stirring and circulation + Ink-lack Warning | |
Curing System | Imported LED lamp, 30000 hours lifespan, Water cooling Chiller | |
Head Cleaning | Automatic by Program | |
Height Detection | Semi-Automatic sensor | |
Others | ||
Print Media | Glass, Ceramic, Acrylic, Metal, Leather, Plastic, Wood, PVC .. etc | |
PC Configuration | Win7/ Win10, 64 bit, CPU≥ i5, RAM ≥8GB, Space for Disk C≥100G | |
Signal Transmission | Optical Fiber + USB 3.0 | |
Color Control | Comply with ICC standards, with curve and density adjustment function | |
File Format | TIFF/ JPEG/ POSTSCRIPT3/ PDF | |
Power Supply | AC220V,50/ 60HZ | |
Working Power | 1 KW | |
Noise | Standby < 32 dB ; Working < 65 dB | |
Machine Size | 1.72 m x 1.75 m x 0.85 m | |
Net Weight | 280 KG | |
Details Images

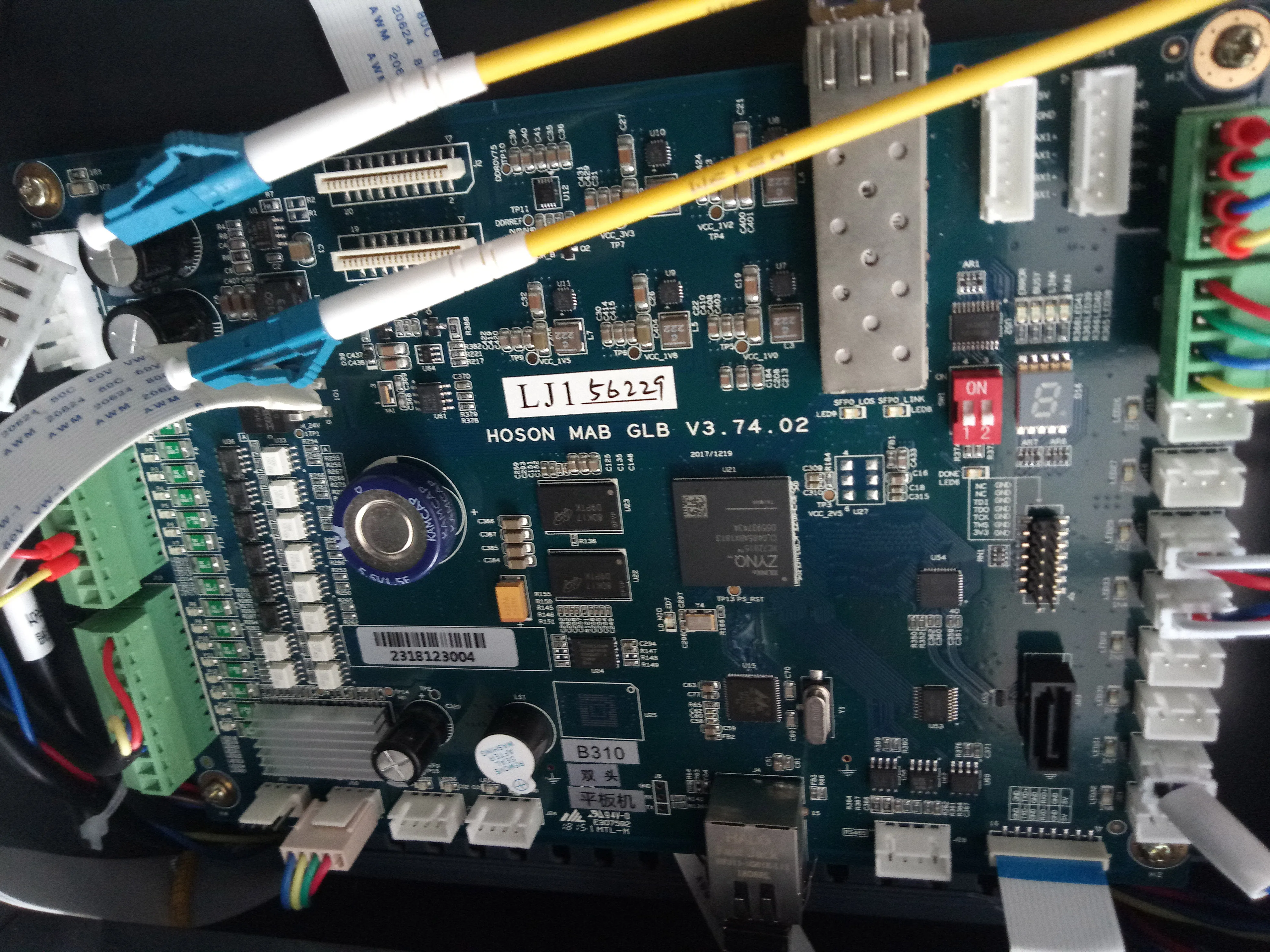

In strategic cooperation with Hoson soft company, we customized the control and head board for the printer, and designed the control software according to the performance of the printer ,ensure the performance stability of the printer
The latest lightweight carriage design ensures printing accuracy and reduces energy consumption
1000 ml ink cartridge make the printer more sample and beautiful
HIWIN linear guide rail and import belt ensures printing smooth and high quality.
Aluminum vacuum worktable has more wear and corrosion resistance
Hommization printer button design can make operation easier and safer
Application

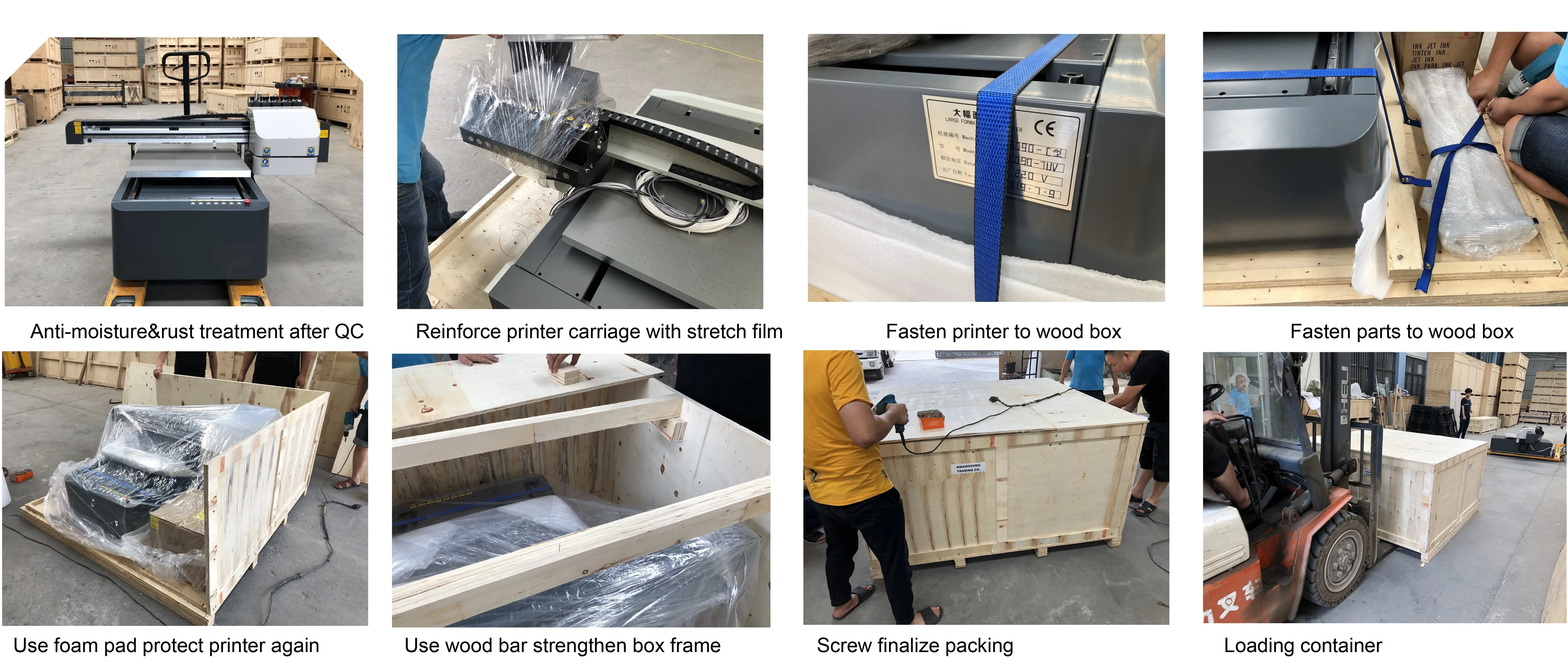

UV 6090 Printer Packing
Company Profile
YDM is a subsidiary brand of Linyi Wanna Deyin Digital Products Co., Ltd. , it is a perfessional manufacturer of digital printing machinery in China, officially verified by CE/SGS/BV/TUV.
YDM has been exported to USA, INDIA, RUSSIA ,TURKEY, MALAYSIA etc more than 50 countries, and help more than 1000 customers engaged in high-end digital printing industry.
YDM has been exported to USA, INDIA, RUSSIA ,TURKEY, MALAYSIA etc more than 50 countries, and help more than 1000 customers engaged in high-end digital printing industry.
"Precision, Eeeiciency, Stability"is the best praise from customer .
Factory &Warehouse
Production Process
Strategic Partner

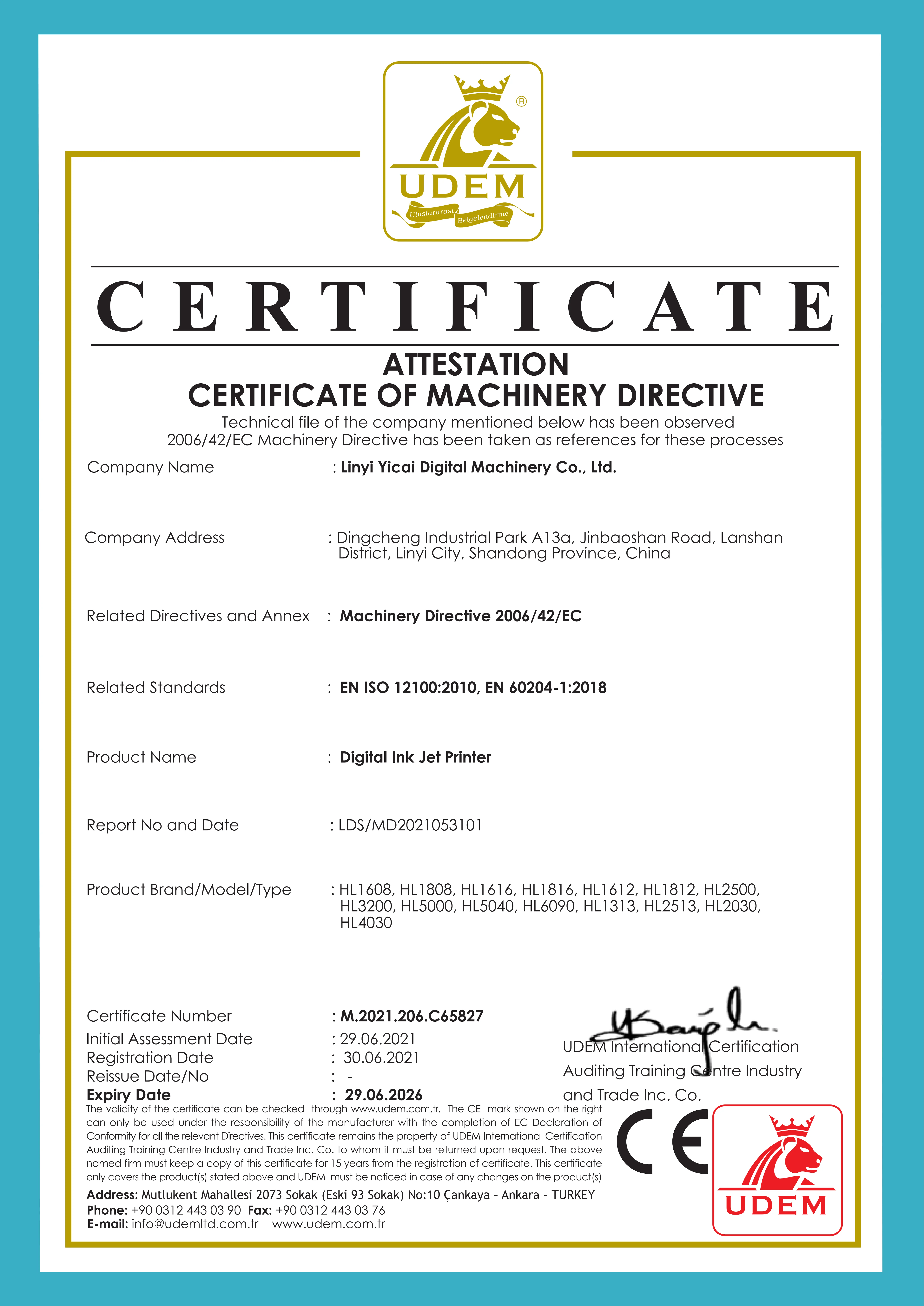

Certifications
Exhibitions
Why choose US?
Recommend Products
FAQ
1.Do I Need White and Varnish Ink?
The limits to what you can print on are seemingly non-existent if you go with a printer that has white ink capabilities.
2.Do I Need a rotary model ?
Flatbed printers are ideal for a wide range of applications but there are still some jobs that are better suited for a roll-to-roll printer,like print on bottle/mugs etc.
3.What’s RIP installation interface supported language?
Korean, German, French, Finnish, Dutch, Portuguese, Japanese, Spanish, Italian, English, Chinese (Simplified), Chinese (traditional).
4.what about maintenance of the printer?
We suggest to power on the printer once a day. If you don’t use the printer more than 3 days, please clean the print head with cleaning liquid and put in the protective cartridges on the printer (protective cartridges are specially used for protect print head) .
5.How to buy ?
Please contact me, I will give you the best solution !
