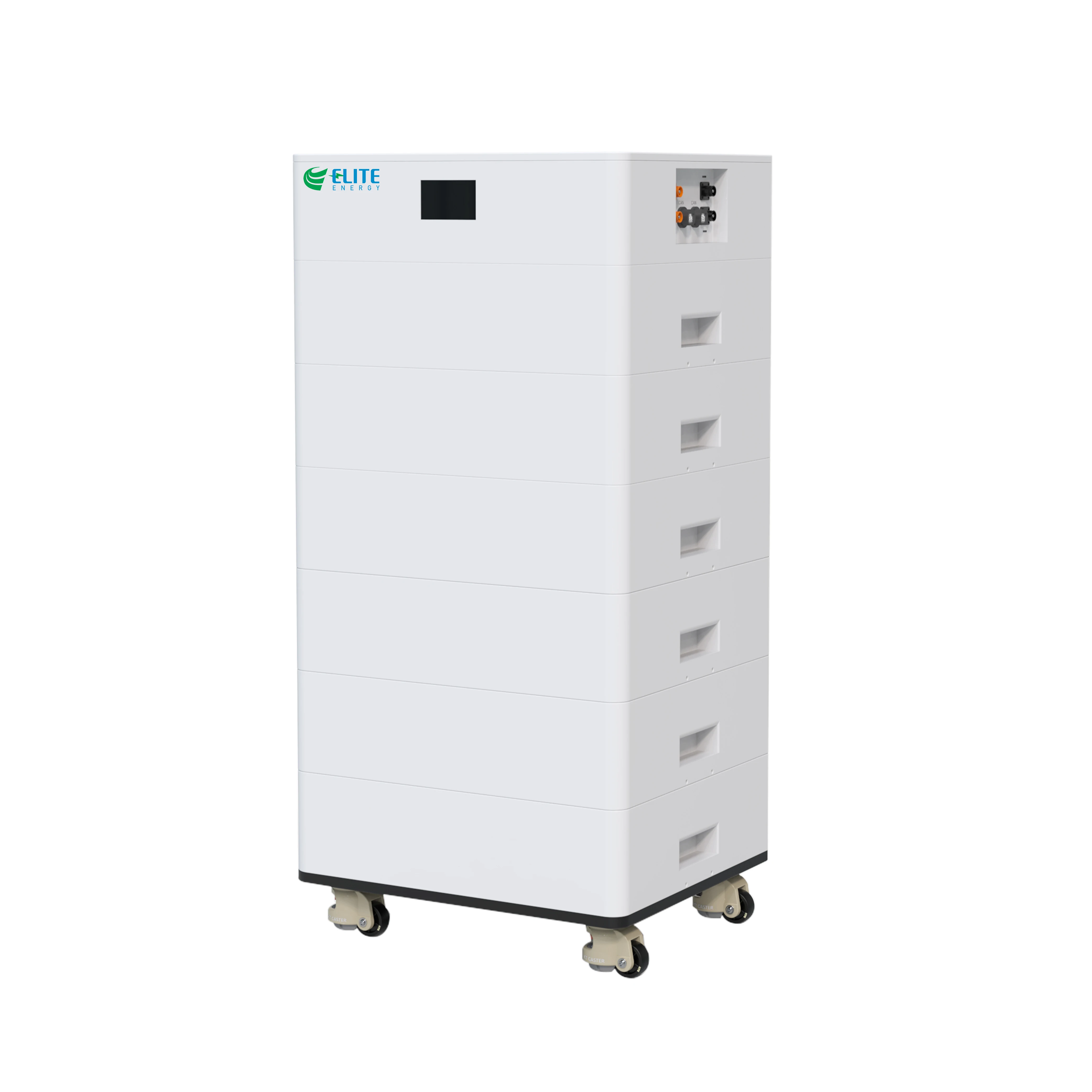

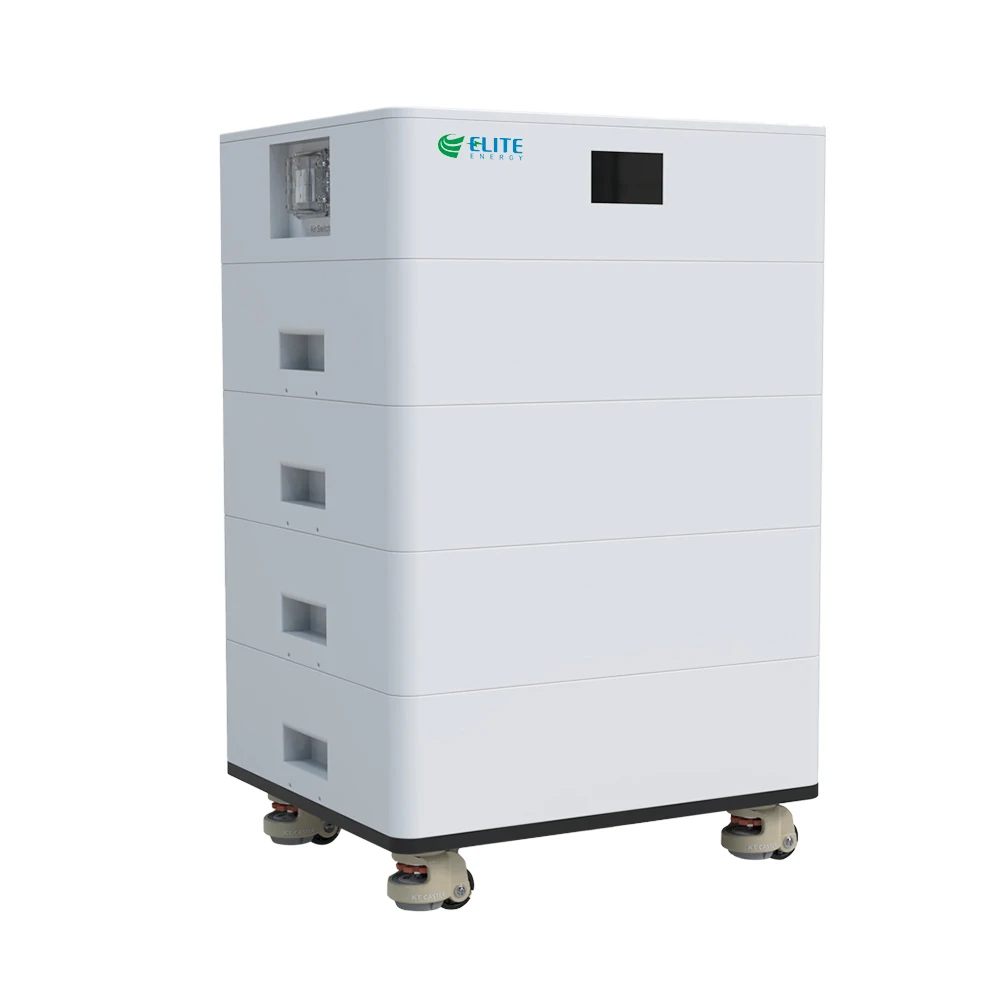

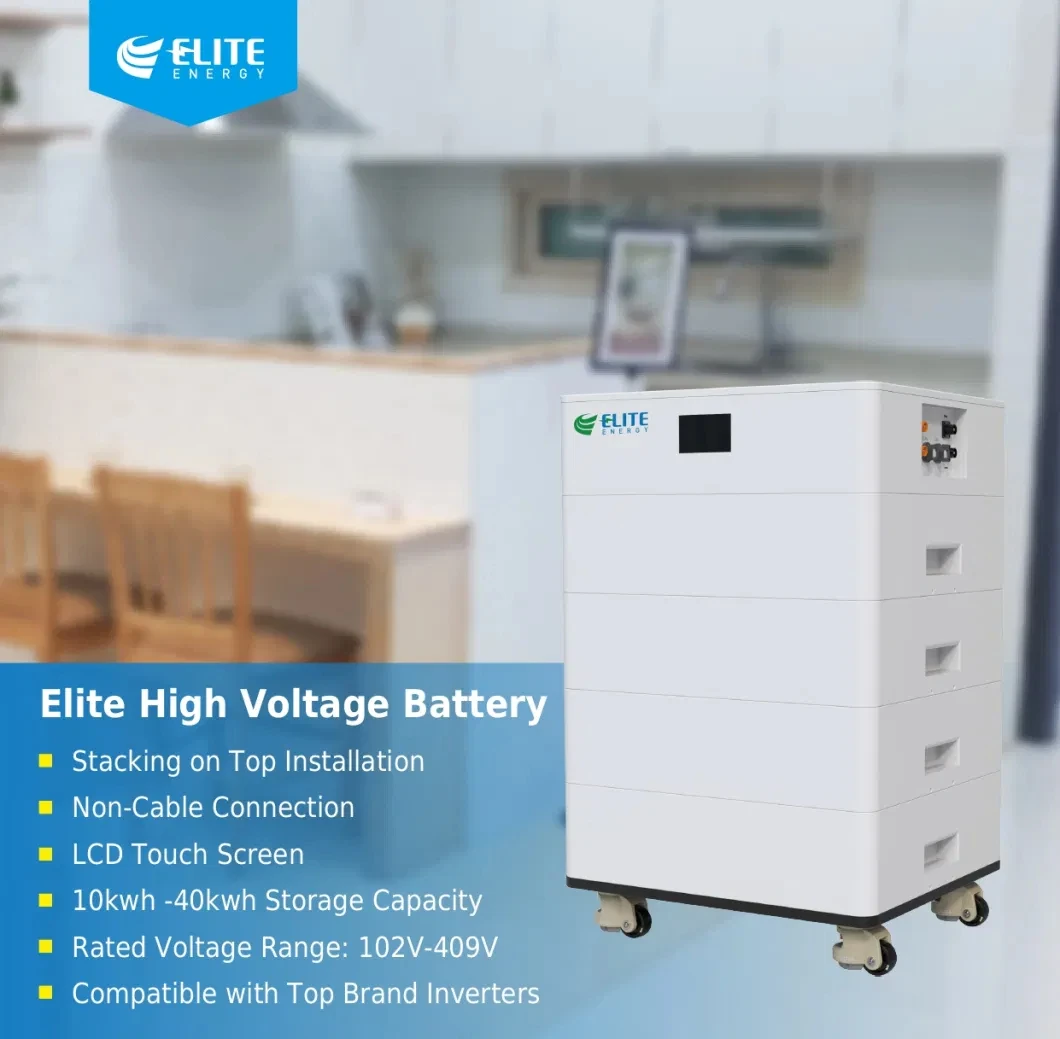

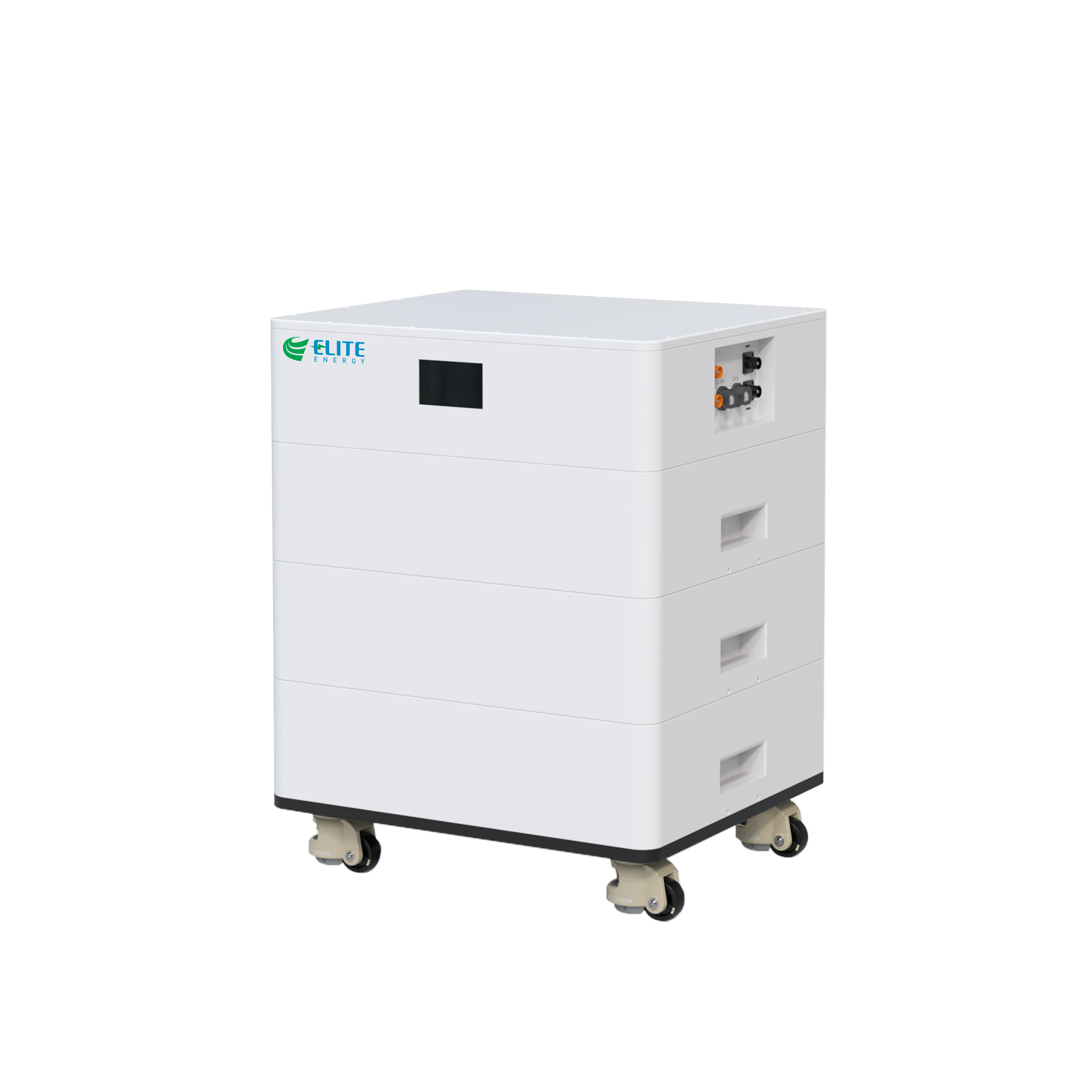

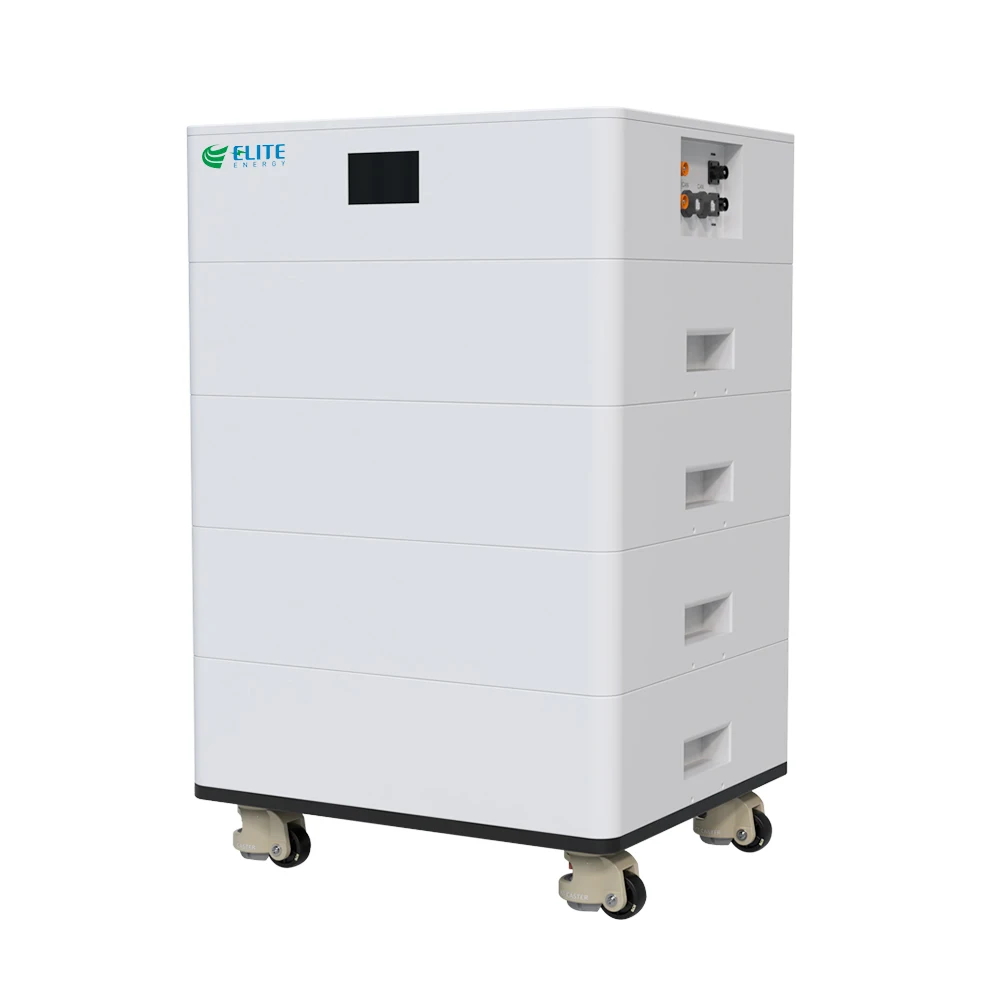

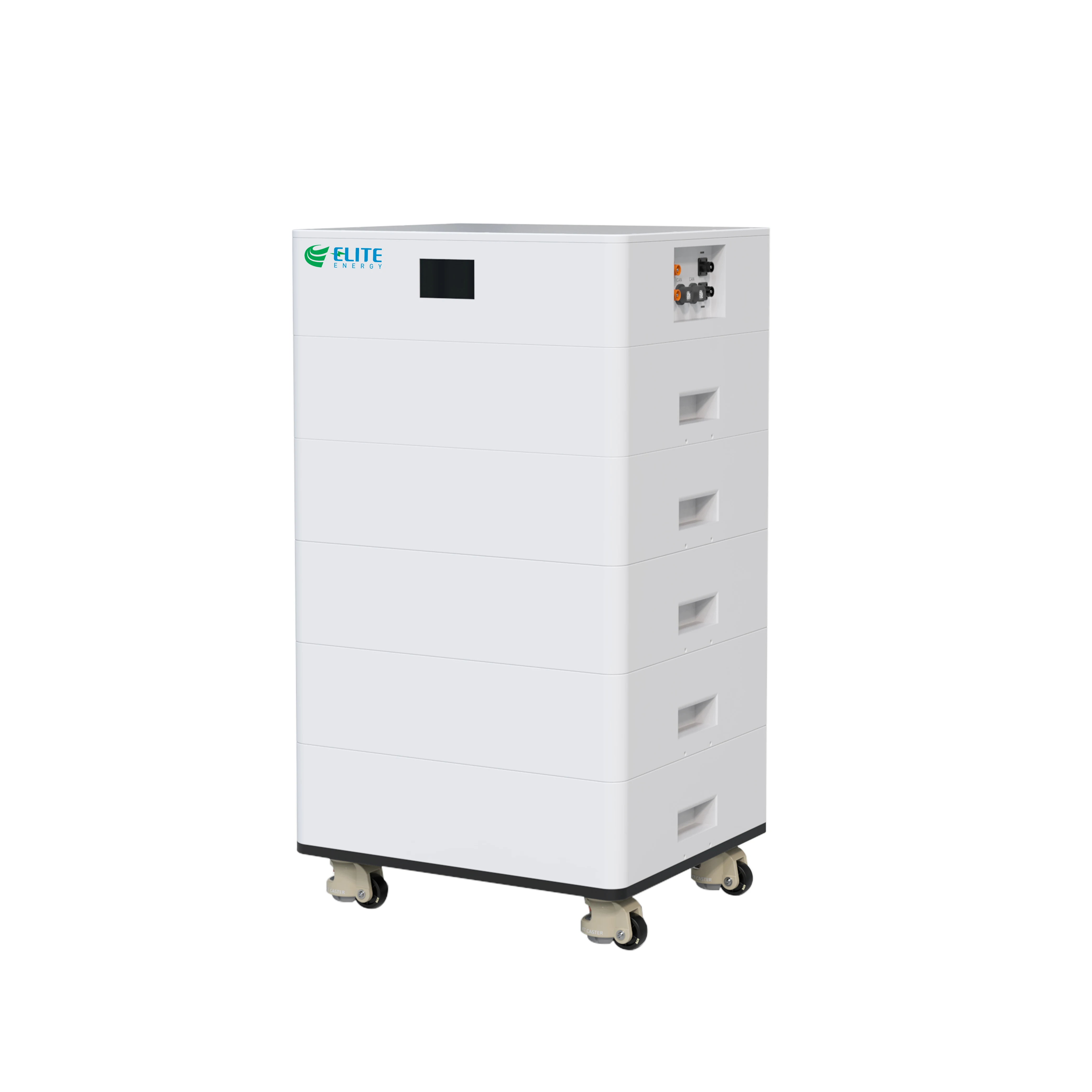

High Voltage Stackable Lithium Battery 10kwh 20kwh 30kwh 40kwh 48V 200V 300V 400V 100Ah LiFePO4 Home Solar Battery Module Pack
- Category: >>>
- Supplier: Dongguan Elite New Energy Co. Ltd.
Share on (1600626296396):
Product Overview
Description
Elite New Energy Co., Ltd. is an Original Lithium Ion LiFePO4 Battery Pack Manufacturer with 15+ years Experience in Energy Storage System(ESS) and Motivation Power System Industry. Including High Voltage, 48V 100Ah Stackable Low Voltage Battery Packs,PowerWall Li ion Battery Pack,All in One Home Storage Solar System Battery,Lithium Power Battery for Solar and Golf Cart Diy Modify Coversion Kit.Our factory is Located in Dongguan, China, we also own two subsidiaries in United States of America, Czech Republic, Covering an Area of 10,000 Square meters, with annual production capability of 1GWH. Equipped with state-of-art facilities and equipment, certified with ISO9001, ISO14001 and ISO45001, complied with up-to-date certifications: CE RoHS, BIS, MSDS, UN38.3, Elite's products perfectly meet international standards with most excellent performance and safety compliance, and fully qualified for high and OEM/ODM markets.
High Voltage Stackable Lithium Battery 10kwh 20kwh 30kwh 40kwh 48V 200V 300V 400V 100Ah LiFePO4 Home Solar Battery Module Pack
Product Features
1. Adopts green, safe and reliable LiFePO4 battery cells.
2. Flexible Investment, meet different energy requirements.
3. Highest energy efficiency.
4. Wide compatible with market main inverter brands.
5. Five years warranty
2. Flexible Investment, meet different energy requirements.
3. Highest energy efficiency.
4. Wide compatible with market main inverter brands.
5. Five years warranty
Product Paramenters
Typical Model | ELT15K100H | ELT20K100H | ELT25K100H | ELT30K100H | ELT40K100H | |||||
Number of battery Modules | 3 | 4 | 5 | 6 | 8 | |||||
System Parameters | ||||||||||
Battery Type | LiFePO4 | |||||||||

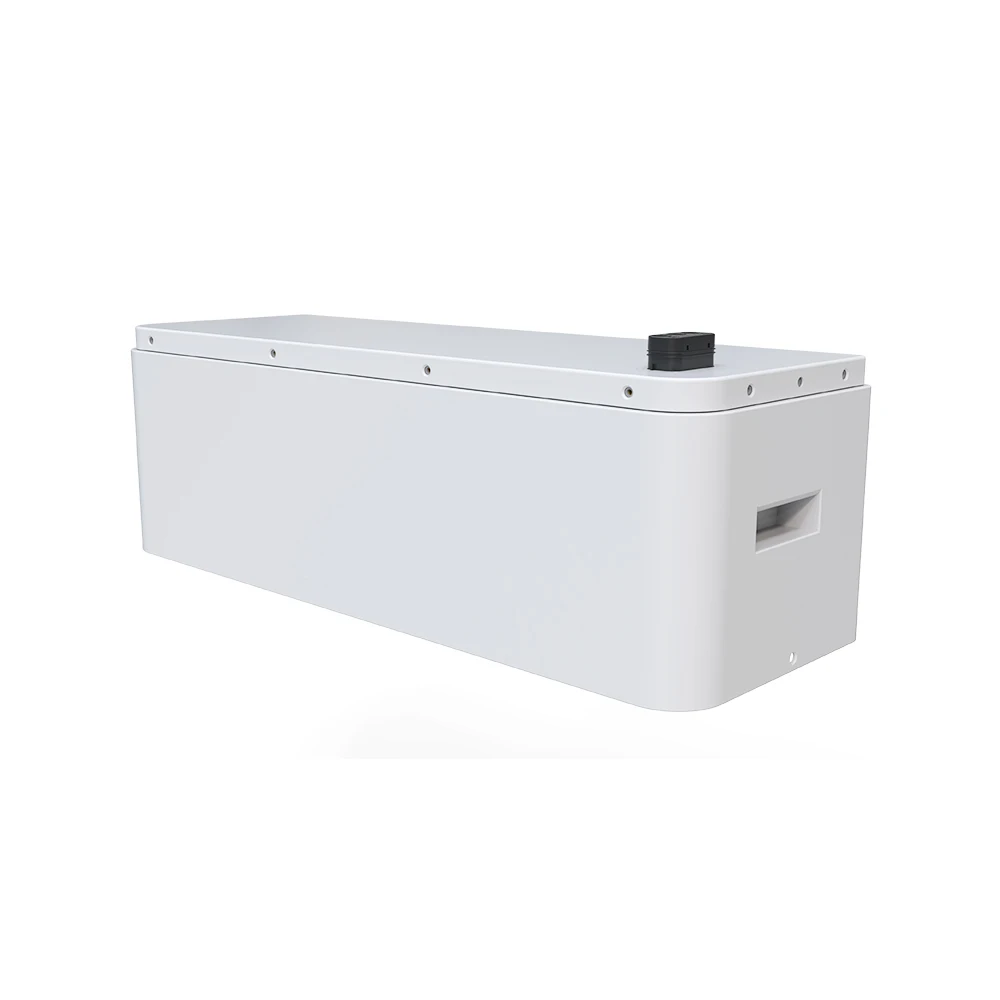

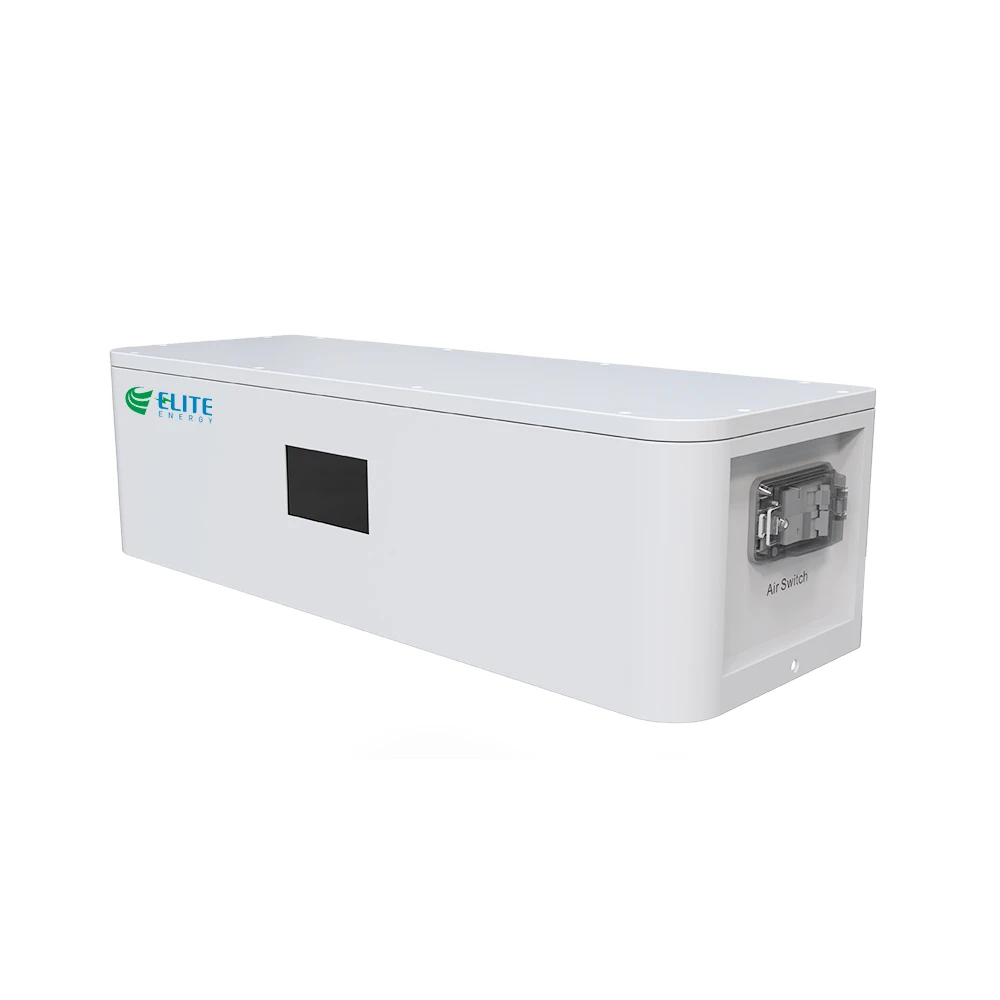

Battery Module | 5120Wh, 51.2V 100Ah | |||||||||
Nominal Energy | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh | 40.96kWh | |||||
Nominal Voltage | 153.6V | 204.8V | 256V | 307.2V | 409.6V | |||||
Operating Voltage | 120-175.2V | 160-233.6V | 200-292V | 240-350.4V | 320-467.2V | |||||
Rated DC Power | 15.36kWh | 20.48kWh | 25.6kWh | 30.72kWh | 40.96kWh | |||||
Max. Continuous Charging/Discharging Current | 100A | |||||||||
Max. Peak Charging/Discharging Current | 150A (10s) | |||||||||
Depth of Discharge | 100% | |||||||||
Communication Interface | CAN/RS485 | |||||||||
Protection Function | ||||||||||
Over / Under Voltage Protection | Yes | |||||||||
Over Current Protection | Yes | |||||||||
Over / Under Temperature Protection | Yes | |||||||||
DC Breaker | Yes | |||||||||
General Parameters | ||||||||||
Dimensions (W*H*D) (mm) | 550*470*712 | 550*470*885 | 550*470*1058 | 550*470*×1231 | 550*470*×1577 | |||||
Weight (kg) | 177 | 227 | 277 | 327 | 427 | |||||
Installation Location | Indoor | |||||||||
Mounting Method | Floor stand | |||||||||
Operating Ambient Temperature Range | Charge:0~55ºC / Discharge:-20~65ºC | |||||||||
IP Standard | IP65 | |||||||||
Allowable Relative Humidity Range | 0% to 95% (non-condensing) | |||||||||
Cooling Method | Natural convection | |||||||||
Warranty | 5 years | |||||||||

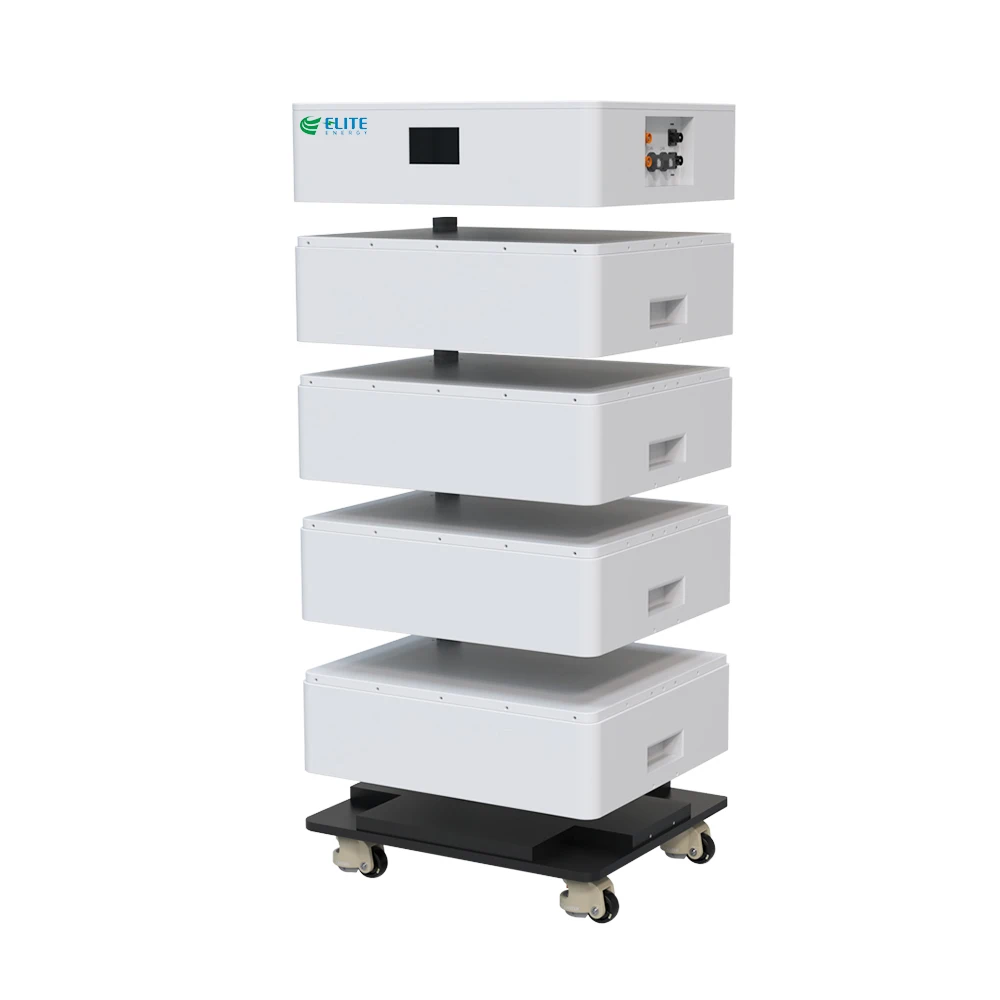

Product Details

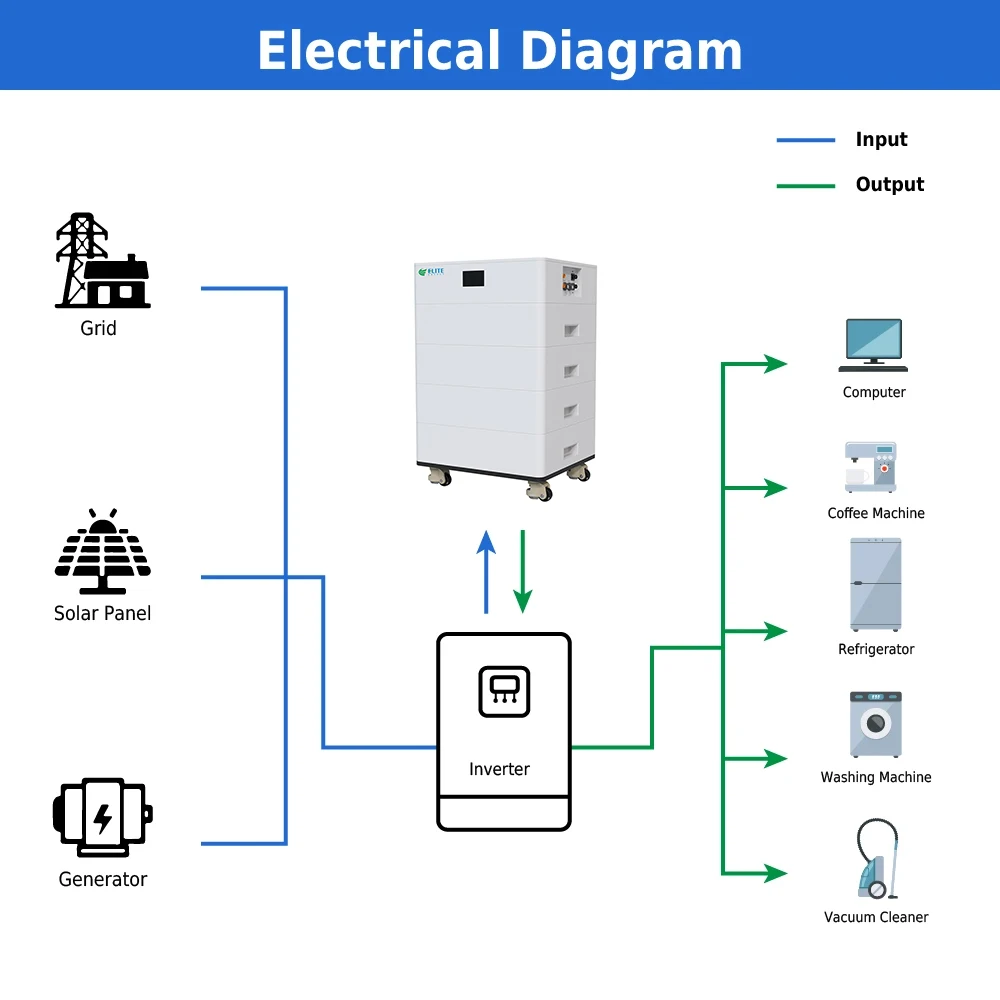

Applications
Certifications
Products with CE, UKCA, MSDS, UN38.3, BIS, etc. approved;
Factory with ISO9001, ISO14001 and ISO45001 certificated.
Recommend Products
Company Profile
Founded in 2017, Elite New Energy Co., Ltd. is a high-tech enterprise specializing in the R&D and production of LiFePO4 battery systems for EV, ESS, lead acid battery replacement and many other different applications.
Equipped with state-of-art facilities and equipment, certified with Quality System ISO9001, Environmental Management System ISO14001, and Occupation Health and Management System ISO45001, complied with up- to-date certifications: CE, BIS, MSDS, UN38.3, Elite New Energy’s products perfectly meet international standards with most excellent performance and safety Compliance, and fully qualified for high end OEM/ODM markets.
Elite New Energy now have strong R&D centers for developing leading technologies and applying them to the product design, so as to providing high quality and excellent performance LiFePO4 battery solution.
FAQ
Q1. Do you have MOQ (Minimum Order Quantity) limit?
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
A: No, Elite do not have MOQ limit, sample order or small volume is available.
Q2. What about the lead time?
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.
Q3. How do you ship the goods? How about the shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.
Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly. Secondly, confirming the order and do the deposit for it, then we will arrange the production.
Q5. Is it available to print my logo on the product?
A: Yes. Just send us you logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
Q6.Which Certificates do you have?
A: Factory with ISO9001, ISO14001 and ISO45001 approved;
Products with CE/UKCA/UN38.3/MSDS/etc..
Q7.How about the product warranty?
A: 3 years warranty + product lifetime technical support.
Q8: How can I pay for the order?
A: T/T, Paypal, L/C, etc..
Other payment options please contact us before order confirmation.
