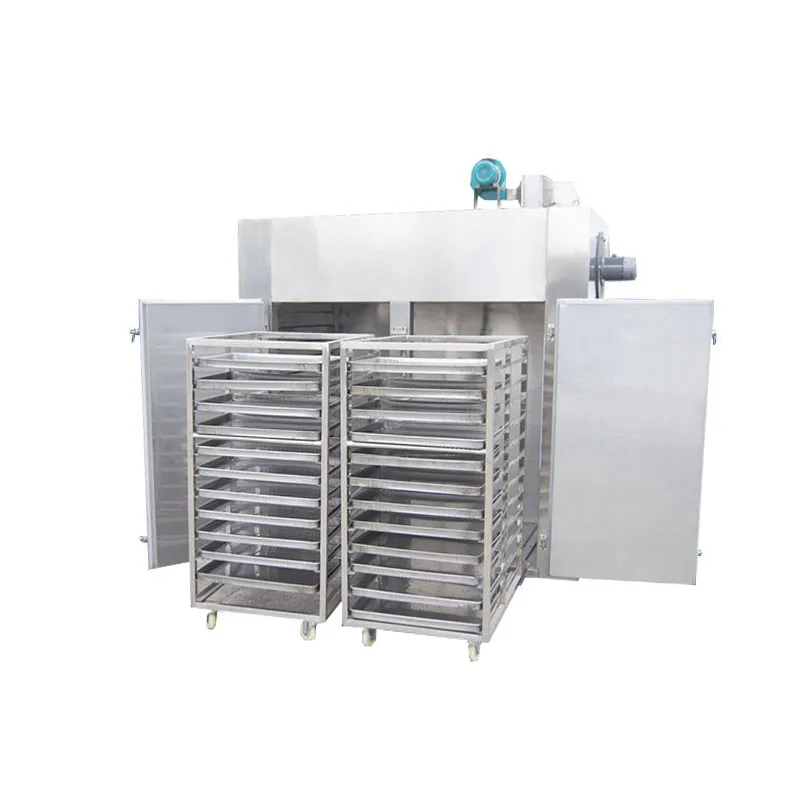

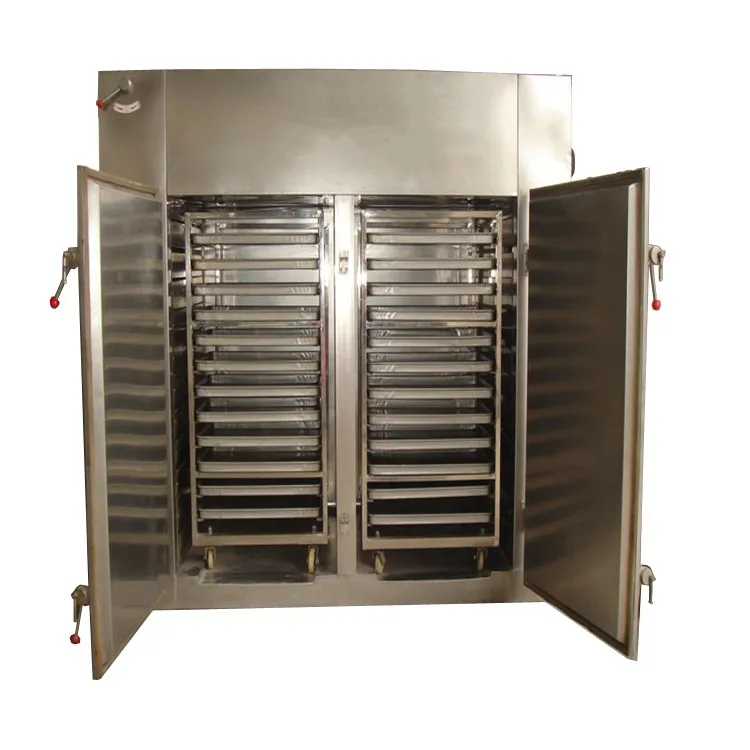

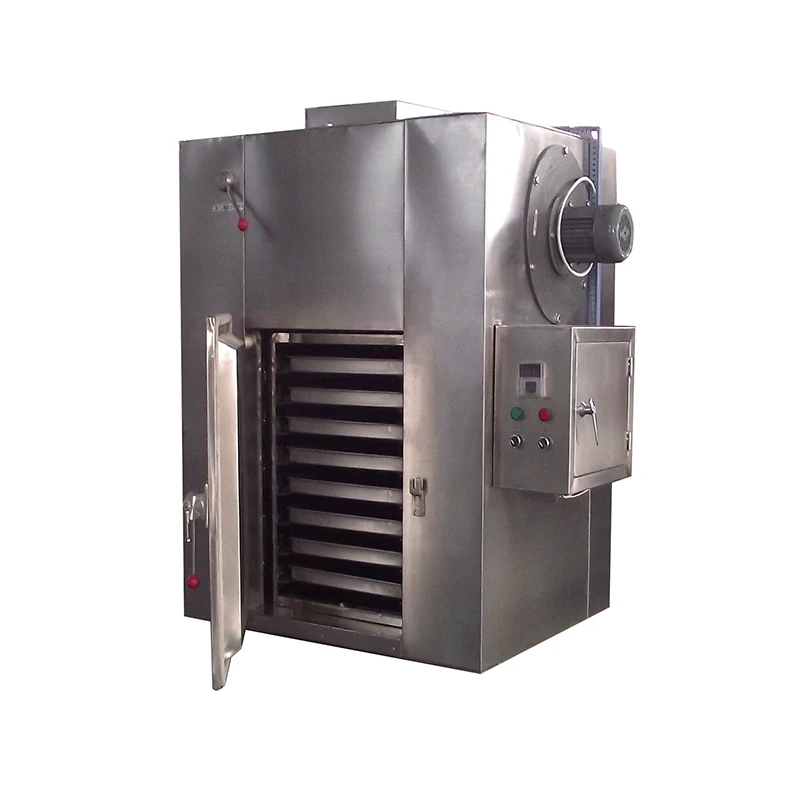

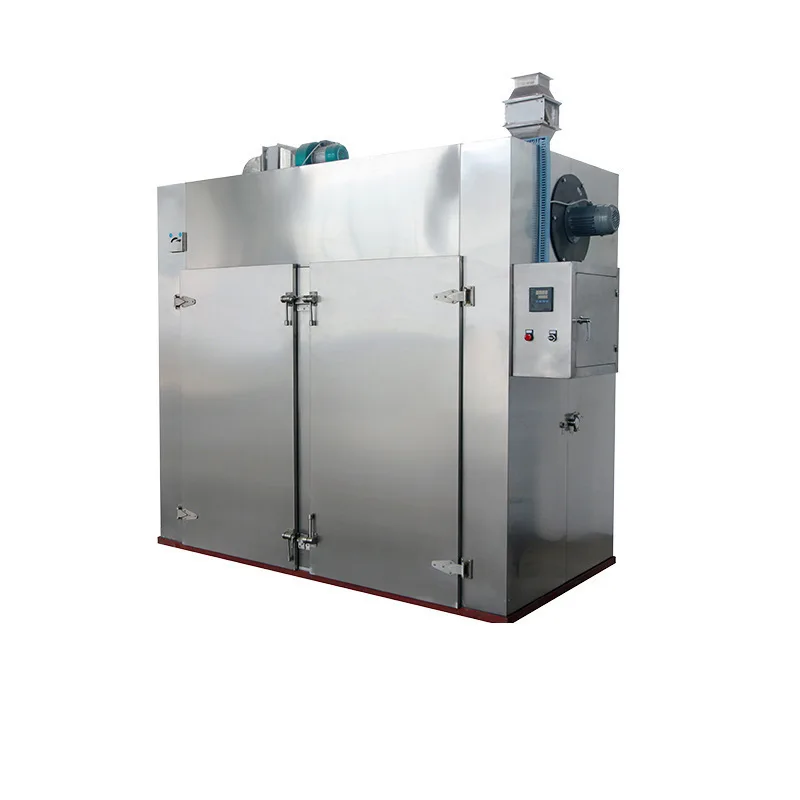

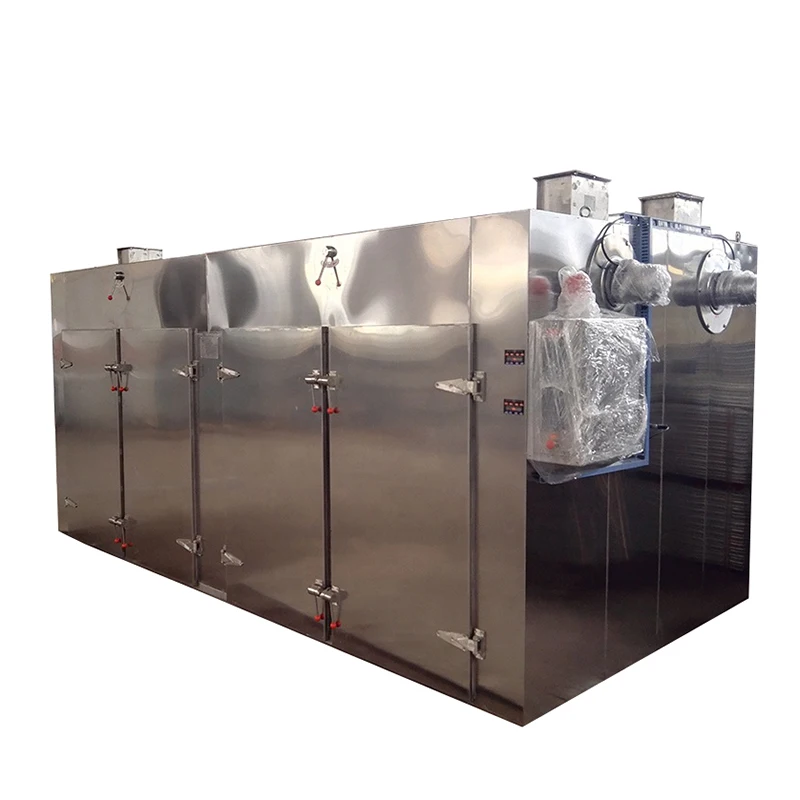

All Size Customize Hot Air Circulating Drying Cabinet For Dewaxing
- Category: >>>
- Supplier: Liaoyang Xianglong Pharmaceutical Machinery Co. Ltd.
Share on (1600626310922):
Product Overview
Description
Product Description
Hot Air Circulating Dryer Oven
The air circulation system adopts the fan circulation air supply mode, the air circulation is uniform and efficient. The air source is driven by the circulation air supply motor (using a non-contact switch) through the heater, and the hot air is sent out, and then through the air duct to the oven chamber, and then the air after use is inhaled into the air duct to become the air source to circulate again, heating and using. Ensure indoor temperature uniformity.

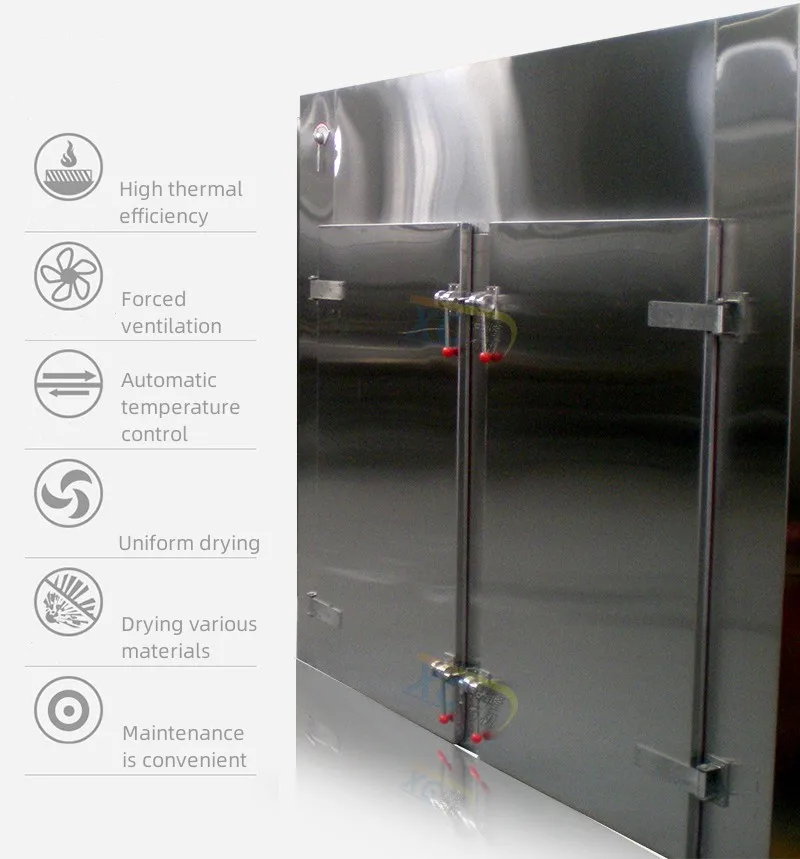

Product advantages:
Its characteristic is that most of the hot air circulates in the box, which enhances the conduction and transfer of heat and improves the utilization rate of energy. The oven is controlled by a touch-type integrated controller, PID adjustment, and has a high temperature control accuracy. There is an adjustable air distribution plate in the box, and the temperature in the box is uniform. The low-noise and energy-saving fan is used to balance the operation and greatly reduce the noise of the equipment. The air inlet is equipped with a medium (high) efficiency air filter. The air outlet is equipped with a low (medium) efficiency air filter. The inner wall of the box is fully welded, arc transition, no dead angle, easy to clean.

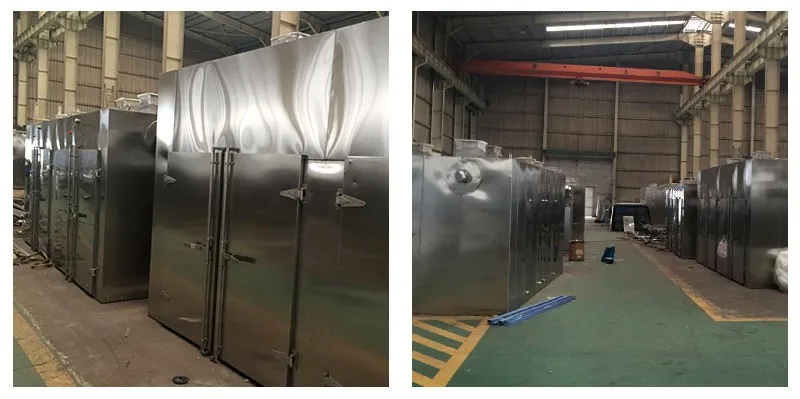

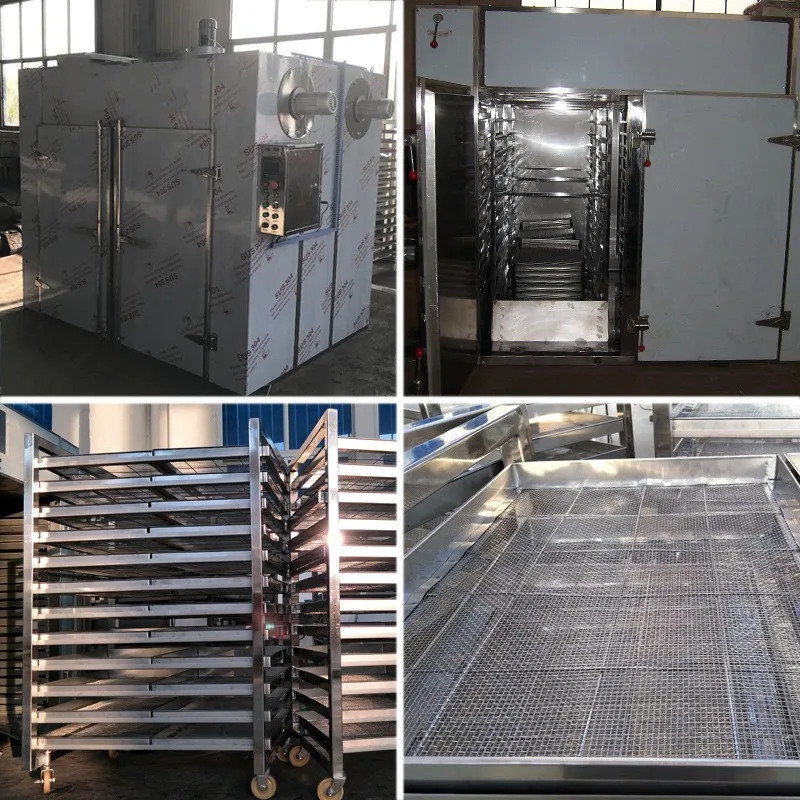

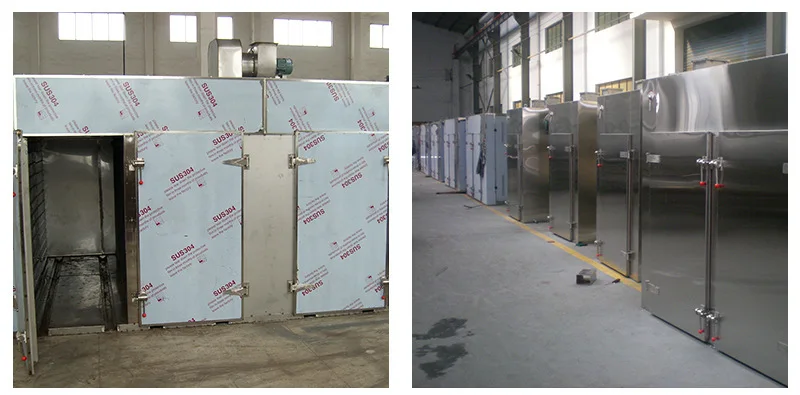

Machine pictures
Technical parameters
Model | CT-C-O | CT-C-I | CT-C-II | CT-C-III | CT-C-IV |
Evaporation area（㎡） | 7.1 | 14.1 | 28.3 | 42.4 | 56.5 |
Effective volume（㎡） | 1.3 | 2.6 | 4.9 | 7.4 | 10.3 |
Dry quantity（kg/batch） | 60 | 120 | 240 | 360 | 480 |
Heat radiating area(㎡) | 15 | 23 | 48 | 72 | 96 |
consumption of steam(kg/h) | 15 | 20 | 40 | 60 | 80 |
Electric heating power | 6-9 | 15 | 30 | 45 | 60 |
Fan air volume(㎡/h) | 4510 | 4510 | 9020 | 13530 | 18040 |
Fan power(kw) | 0.45 | 0.45 | 0.45*2 | 0.45*3 | 0.45*4 |
Overall dimensions(W*D*H) | 1380*1200*2000 | 2260*1200*2000 | 2260*2200*2000 | 2260*3200*2000 | 4280*2200*2270 |
Drying trolly | 1 | 2 | 4 | 6 | 8 |
Drying tray | 24 | 48 | 96 | 144 | 192 |
Weight(kg) | 820 | 1580 | 1800 | 2100 | 2800 |
Related products
Our Company
Our company is professional in the manufacturing & trading of variable kinds of devices, including separating machines, drying machines, liquid /powder / filling machine, cartonning machines, membrane packing machines and glass-lined tanks, etc. With professional technicians and strict quality control system, our machines are widely applied in industries of chemical, food and environment protecting, etc., and besides our regular customers in China, our machines have been exported to many countries & regions in Europe, America, Southeast Asia, Africa, South America and the Middle East, etc., and good reputation is gained.
FAQ
Q1: Are you a manufacturer or a trader?
A: As a professional manufacturer, we have our own factory, and if a customer has reasonable demand, out machine can be customized.
Q2: How do you ensure the machine quality?
A: As a professional manufacturer of devices for more than 15years, with strict management, advanced
processing technologies and professional workers, we are confident for our machines quality. And before any
machine is delivered, will be carefully tested.
Q3: How can I trust you for the first cooperation?
A: Since our company was founded, we have registered in China Industry and Commerce Bureau. We passed the SGS &
ISO certification, and we are a senior member in Alibaba international platform (more than 12years). For the first deal between us, the Alibaba's Trade Assurance service can be used, which will fairly protect your rights and money throughout the transaction process.
Q4: How do I place an order, and how is it completed?
A: Under the condition that the buyer is satisfied with the quotation and pre-sales service:
1. Both of parties sign on a contract, and then the seller prepare the PI.
2. The buyer arranges the down payment.
3. The seller prepares the machines.
4. After the machine is completed, have the test & trial run.
5. Before the delivery, if the buyer requires, have the necessary inspecting.
6. As per the contract/ PI amount, the buyer balances the payment.
7. The machine is going to be shipped.
8. After the machine is received, the seller provide the buyer guidance for the installation and the debugging.
