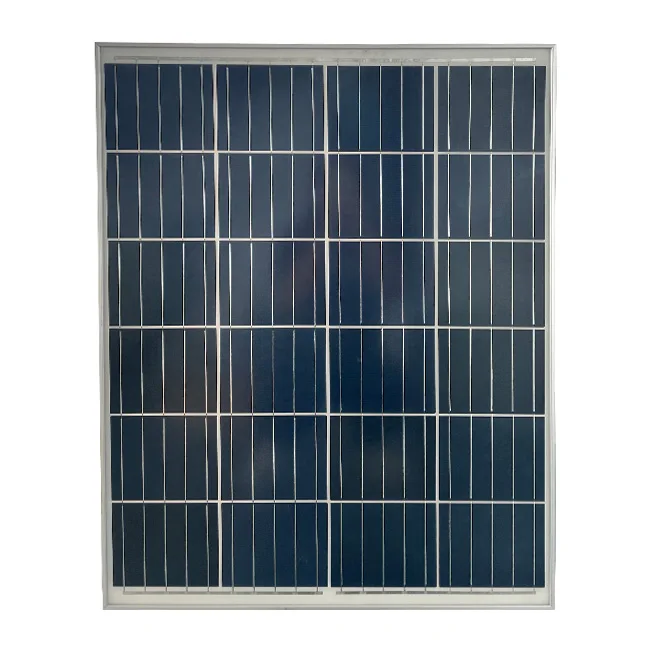

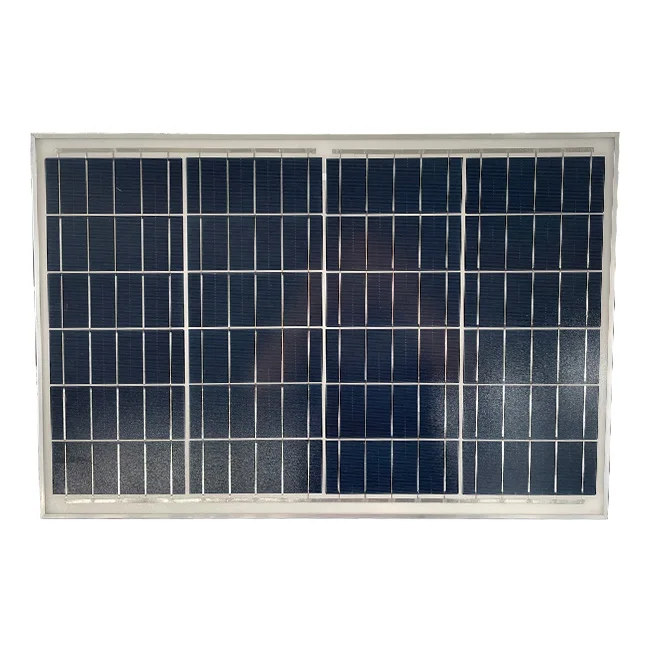

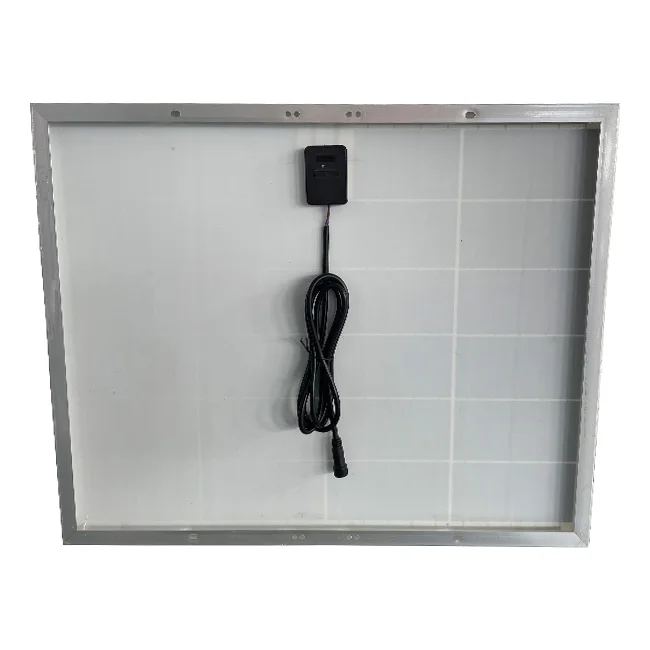

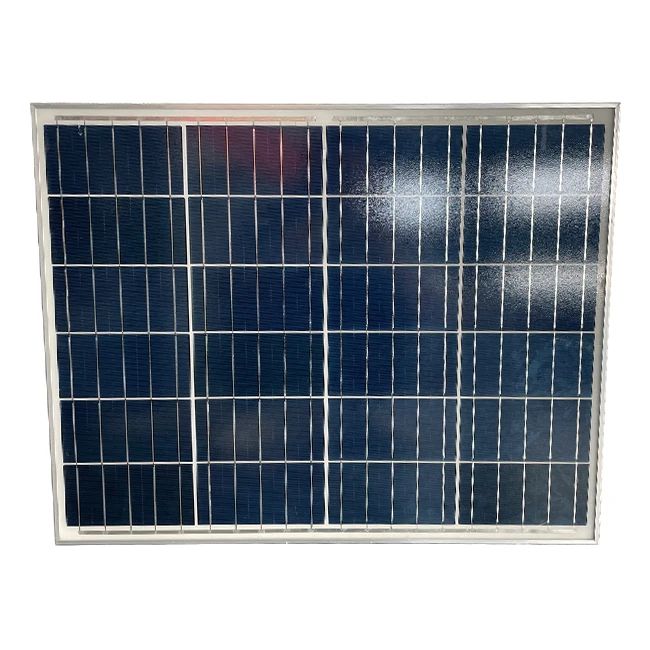

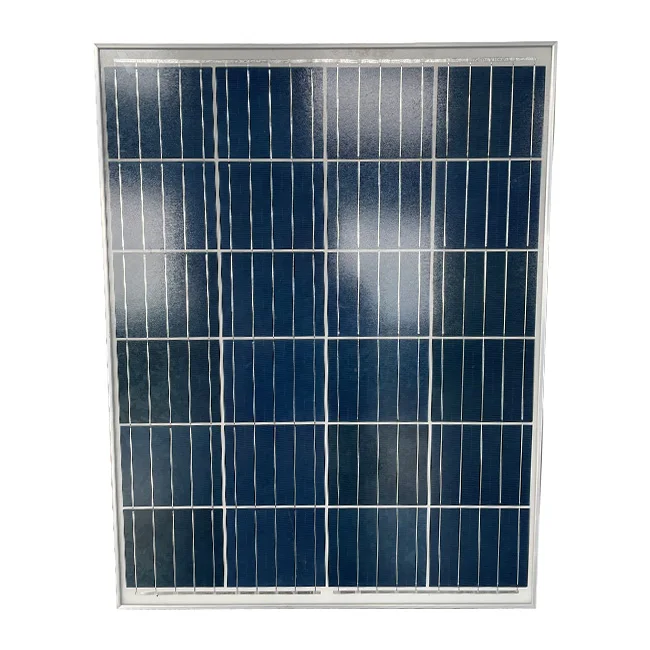

Item | Small Solar Panels | ||||||||
Max Power (Pmax) | 40W | 50W | 60W | 70W | 80W | ||||
Open Circuit Voltage (Voc) | 10.5V | 10.44V | 10.34V | 10.48V | 10.45V | ||||
Short Circuit Current (Isc) | 4.99A | 6.26A | 8.24A | 9.23A | 11.42A | ||||
Max Power Voltage (Vmp) | 6V | 6V | 6V | 6V | 6V | ||||
AMax Power Current(Imp) | 4.36A | 6.06A | 7.92A | 8.86A | 11.04A | ||||
Panel Efficiency | 17.01% | 17.01% | 17.01% | 17.01% | 17.01% | ||||
Size(mm) | 670*640*35 | 670*640*35 | 670*640*35 | 670*740*35 | 670*830*35 | ||||
Power Tolerance | ±3% | ||||||||
Max System Voltage | DC 1000V | ||||||||
Test Condition | AM=1.5 E=1000W/sq.m.;TC=25℃ | ||||||||
Place of Origin | Jingzhou China | ||||||||
