Industrial Horizontal Carbon Stainless Steel Plastic PVC Animal Feed Ribbon Paddle Mixer Powder Granule Mixer
- Category: >>>
- Supplier: Shanghai Shengli Machinery Manufacture Co. Ltd.
Share on (1600626366990):
Product Overview
Description
Products Description
General Introduction:
LHY horizontal ribbon mixer is widely used in chemical, pharmaceuticals, food, and construction line.It can be used to mix powder with powder, powder with liquid, and powder with granule.Under the driven of motor, the double ribbon agitator mix the material quickly.
LHY horizontal ribbon mixer is widely used in chemical, pharmaceuticals, food, and construction line.It can be used to mix powder with powder, powder with liquid, and powder with granule.Under the driven of motor, the double ribbon agitator mix the material quickly.
Working principle:
The outer ribbon push the material from the two ends to the centre, inner ribbon push the material from center to the two ends.Thus to achieve material convention.The discharging port is set in the bottom centre, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.
The outer ribbon push the material from the two ends to the centre, inner ribbon push the material from center to the two ends.Thus to achieve material convention.The discharging port is set in the bottom centre, with the help of the outer ribbon,the material can be discharged completely, and no dead zone.

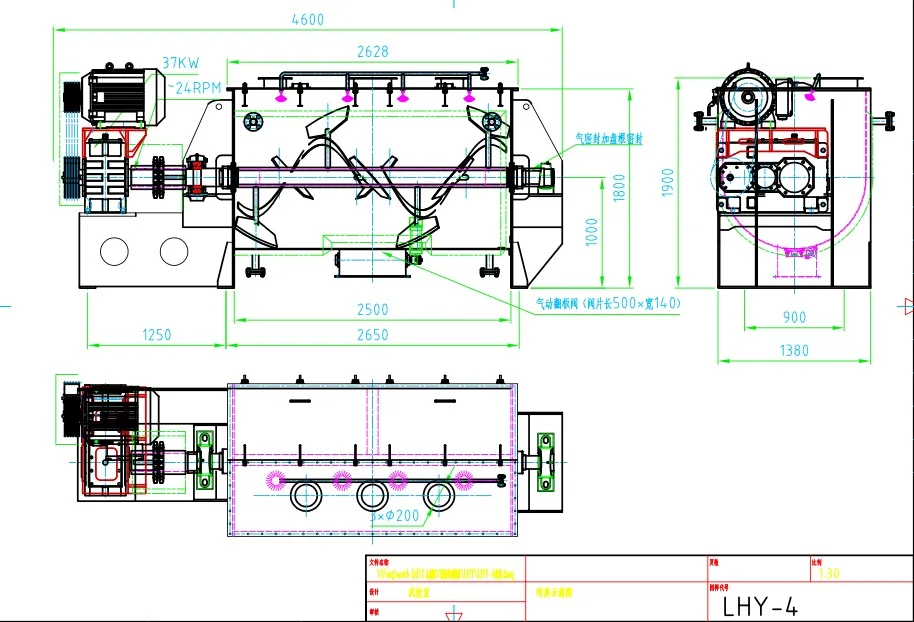

Item | Specification |
1) Name | 4000L Horizontal Ribbon Paddle Mixer |
2) Model | LHY-4 |
3) Total volume | 4000L |
4) Filling level | 40%-60% |
5) Working capacity | 1600-2400kg |
6) Construction material | Contact part stainless steel, non-contact part carbon steel |
7) Thickness | Mixer barrel: 6mm End plate: 14mm Ribbon: 14mm Lid: 6mm |
8) Driven unit | 22kw |
9) Main shaft speed | 27rpm |
10) Sealing | Stuffing sealing+air-purged sealing |
11) Valve | Pneumatic flap valve |
12) Lid | 1 vent, 1 manhole, 1spare, safety grid, customized |
13) Distance from the floor to the valve | ~20cm (mixer should be put on platform) |
14) Air pressure | 0.1 Mpa for shaft sealing, 0.4-0.6 Mpa for valve |
15) Air consumption | ~3m3/H |
16) Dimension | 3900mm*1300mm*1700mm |
17) Control box | Mixer on and off， Valve open and close， Emergency stop， Ammeter *1，Voltmeter *1 |
Specifications
Configurations
1.Flexible material selection
Material can be carbon steel, manganese steel, ss304, 316L and 321; besides, differentmaterial can also be used in combination. Surface treatment for stainless steel include sandblasting, wiredrawing, polishing, mirror polishing, all can be used in different parts of a mixer.
2.The driven unit
Options for motor: general motors, explosion-proof motors, variable frequency motor, high efficiency and energy saving motor. Commonly used reducers: R-series, K-series, and F-series gear box; cycloidal reducer, universal gear reducer, planetary gear reducer.Commonly motor-gearbox connection: direct connection, pulley connection, hydraulic coupler connection.
3.High efficiency mixing unit

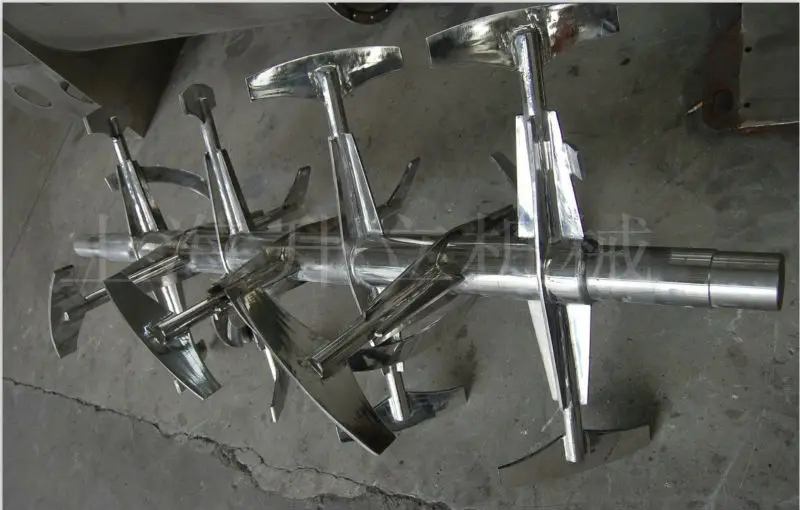

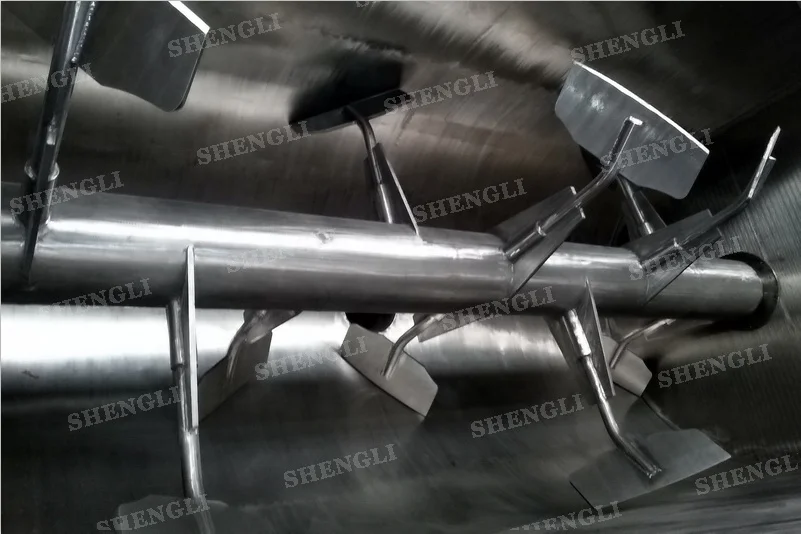

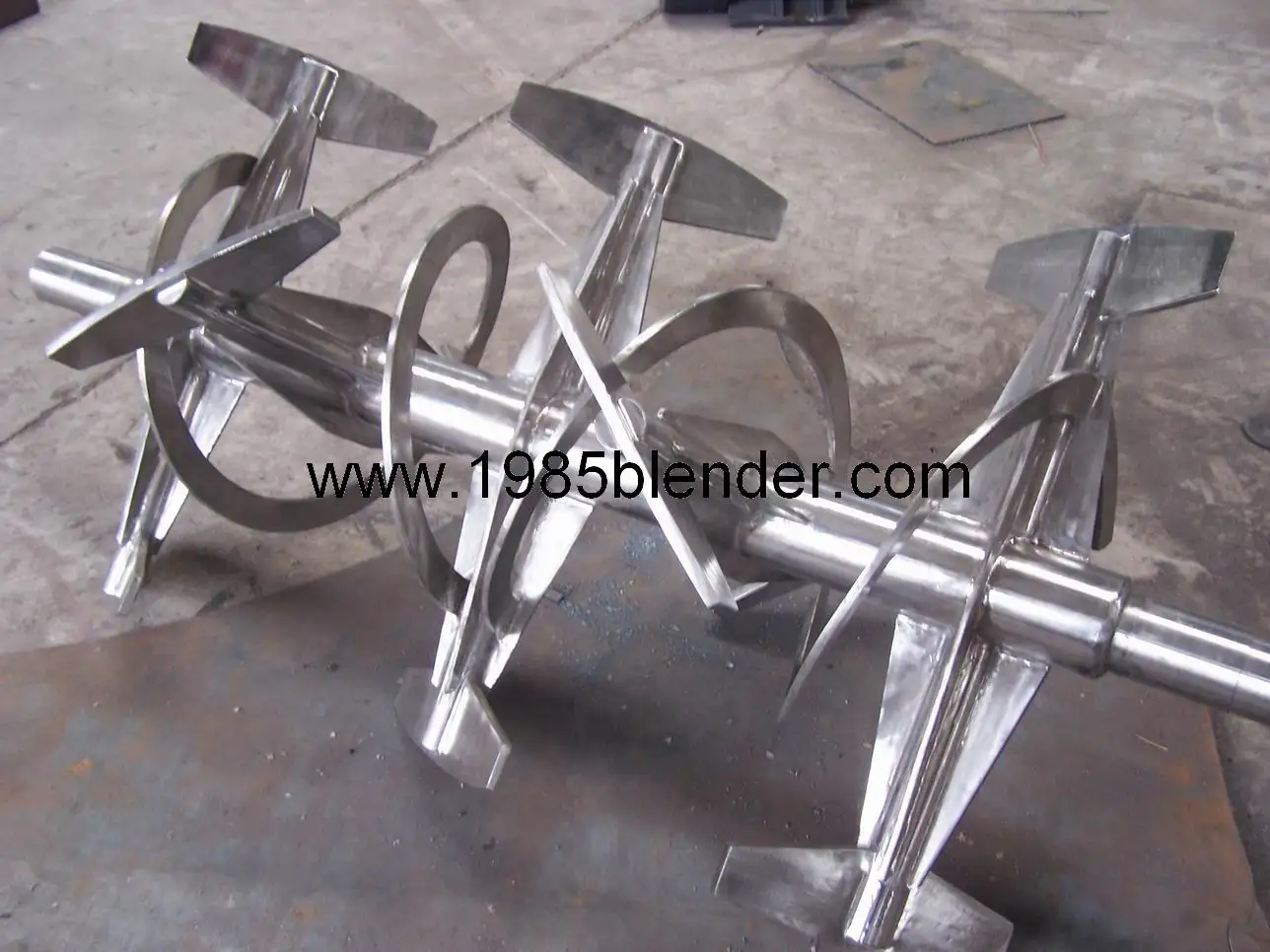

Different main shaft agitators can be equipped according to the properties of raw materials.The main shaft agitator could be: inner and outer ribbon, paddle and ribbon, disconnected ribbon, and shaver-shaped agitator.
4.Excellent discharging unit
The drive types of valve are Manual, pneumatic, and electric.Valves for consideration: powder spherical valve, cylinder valve, plum-blossom dislocation valve, butterfly valve, rotary valve etc.
5.Various inlets
Various inlets on the top cover of the barrel can be designed according to different situations.They can be used as man hole, cleaning door, feeding hole, vent, and dust colleting hole.The top cover can be designed as fully-opened lid for easy cleaning.
6.Powerful auxiliary components
Mixer is frequently equipped with many auxiliary components, like steam coil jacket, honeycomb pressure jacket, medium circulation jacketsampling valve, high speed chopper, temperature sensor, weighing system, dust removal system and so on.Different heat medium requires different jacket, it can be used for heating and cooling, while, the temperature should be within 250 Celsius degree.

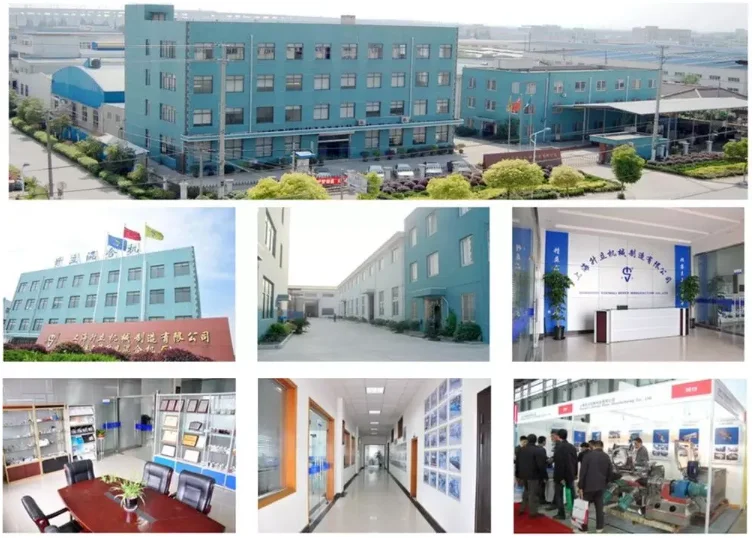

Company Profile
Shanghai Shengli specializes in mixing equipment research, design, manufacture, sales and service. In past 30 years,we go deeply mixing processing filed and related technology, devote to research different kinds of mixer,modify and perfect existing mixing system, and develop new-type mixer equipment.
With much working experience, we developed mixer processing machinery independently. With modern processing method, strict product management, high quality ,and professional service team.
Shengli is becoming the preferred brand. We will keep researching new technology, solving mixing problems,providing more suitable mixer, promoting upgrades, and creating maximum value for customers.
With much working experience, we developed mixer processing machinery independently. With modern processing method, strict product management, high quality ,and professional service team.
Shengli is becoming the preferred brand. We will keep researching new technology, solving mixing problems,providing more suitable mixer, promoting upgrades, and creating maximum value for customers.
