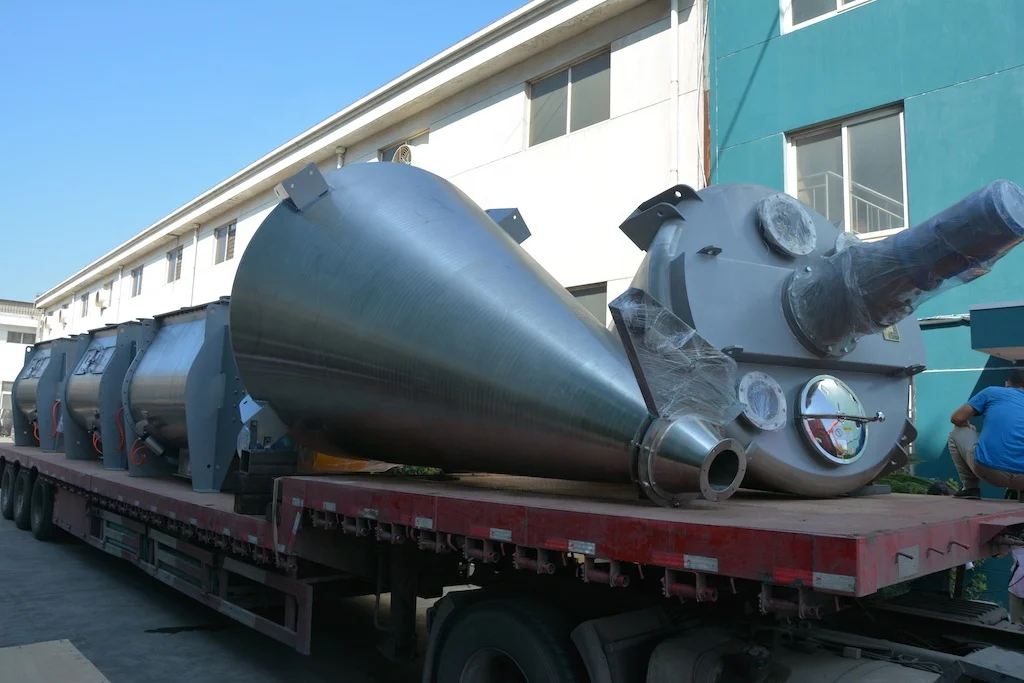

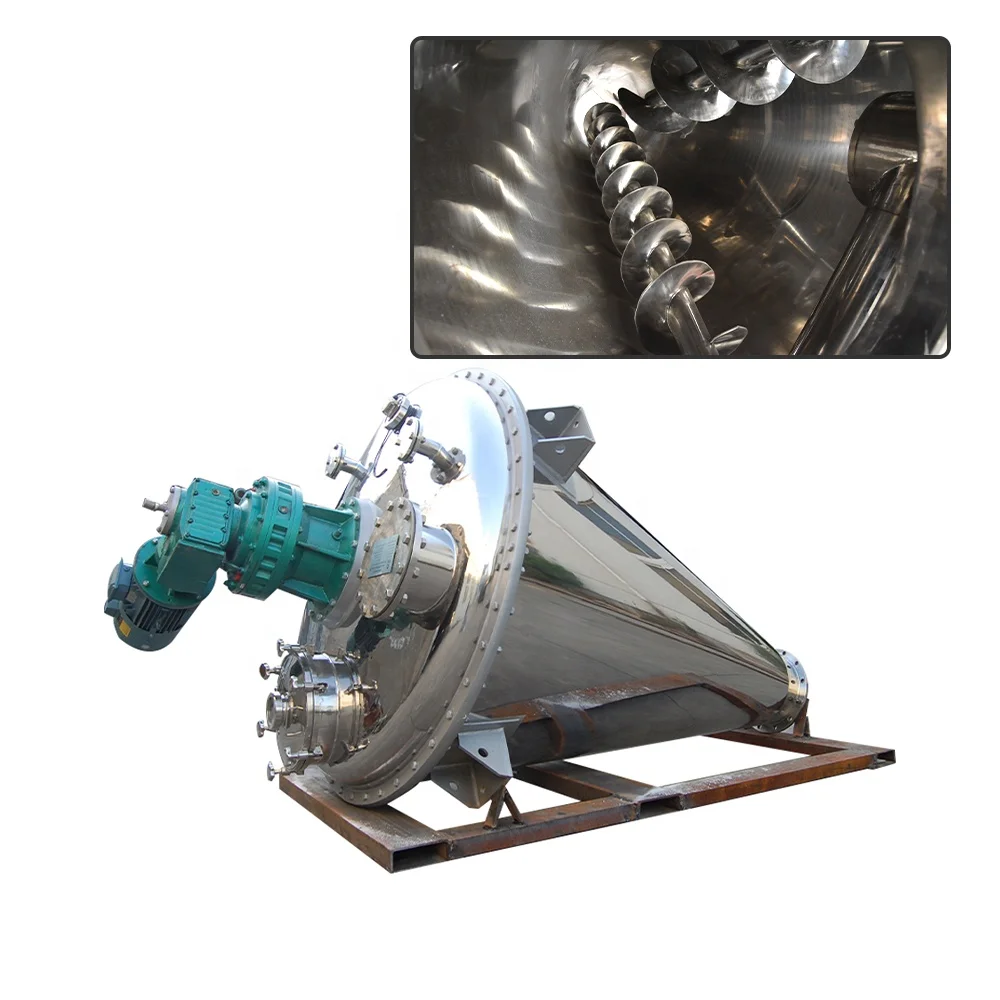

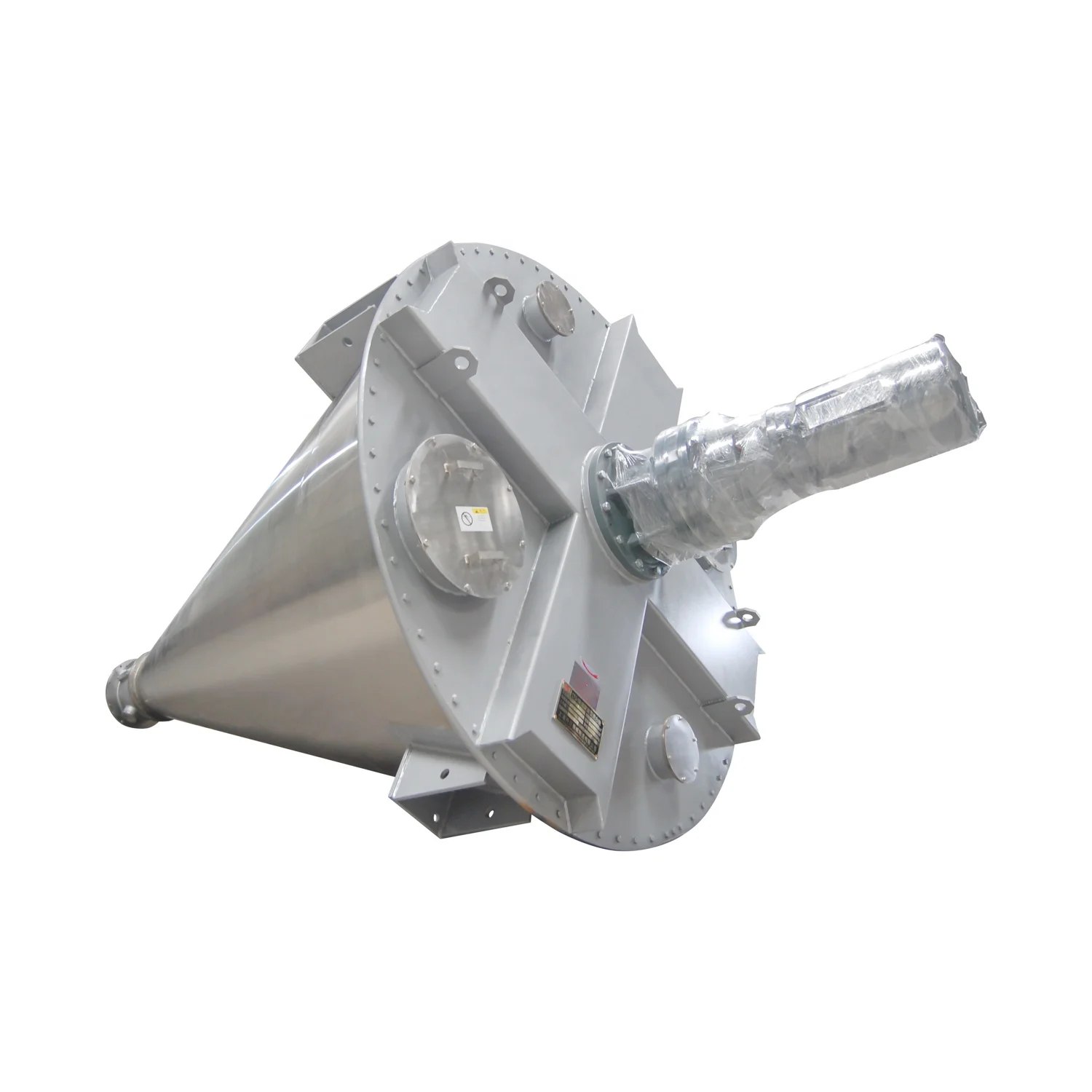

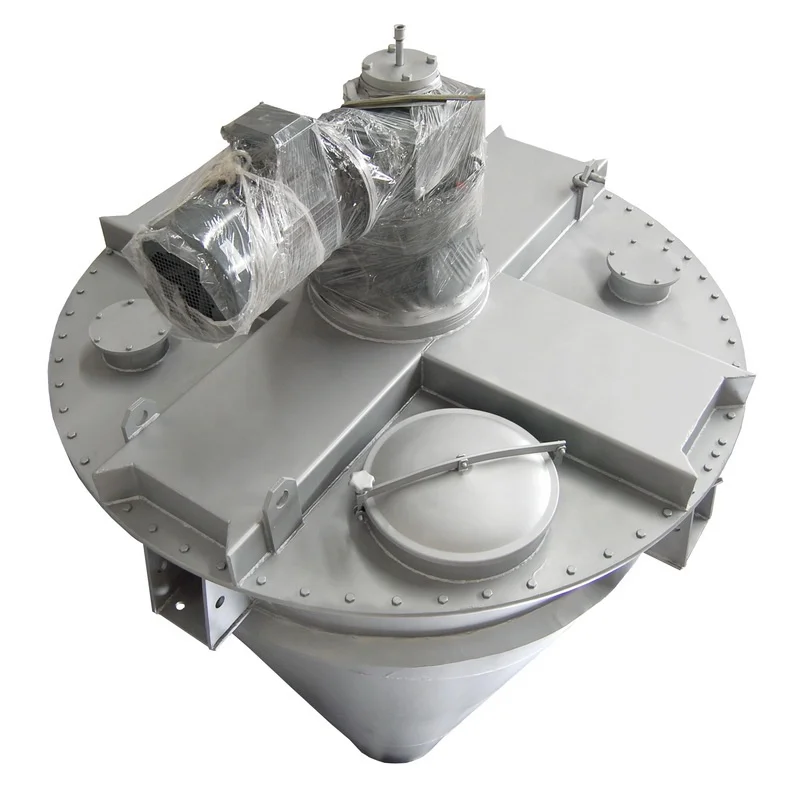

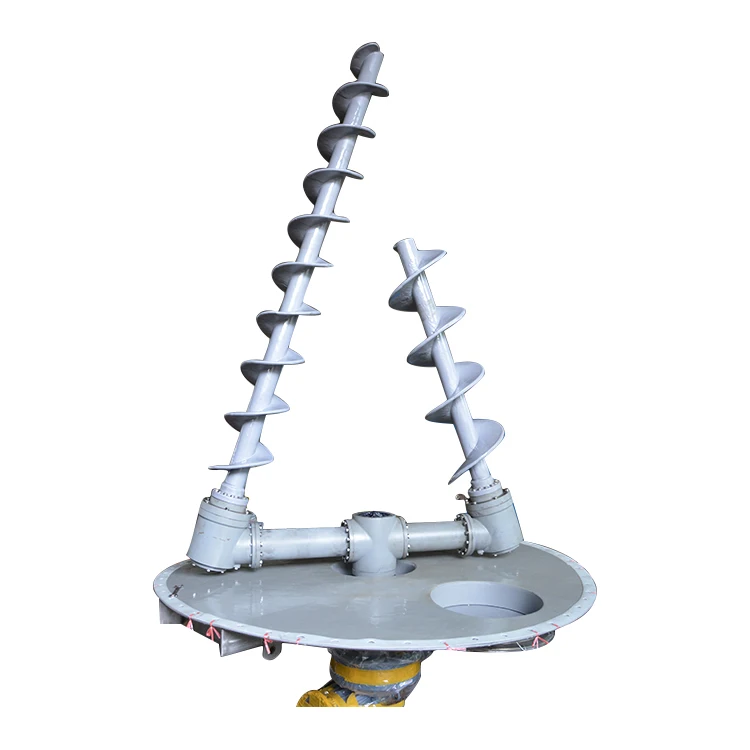

Vertical Conical Screw Mixing Machine Nauta Mixing Machine for powder granules and liquid
- Category: >>>
- Supplier: Shanghai Shengli Machinery Manufacture Co. Ltd.
Share on (1600626390328):
Product Overview
Description
Vertical Conical Screw Mixer Nauta Mixer

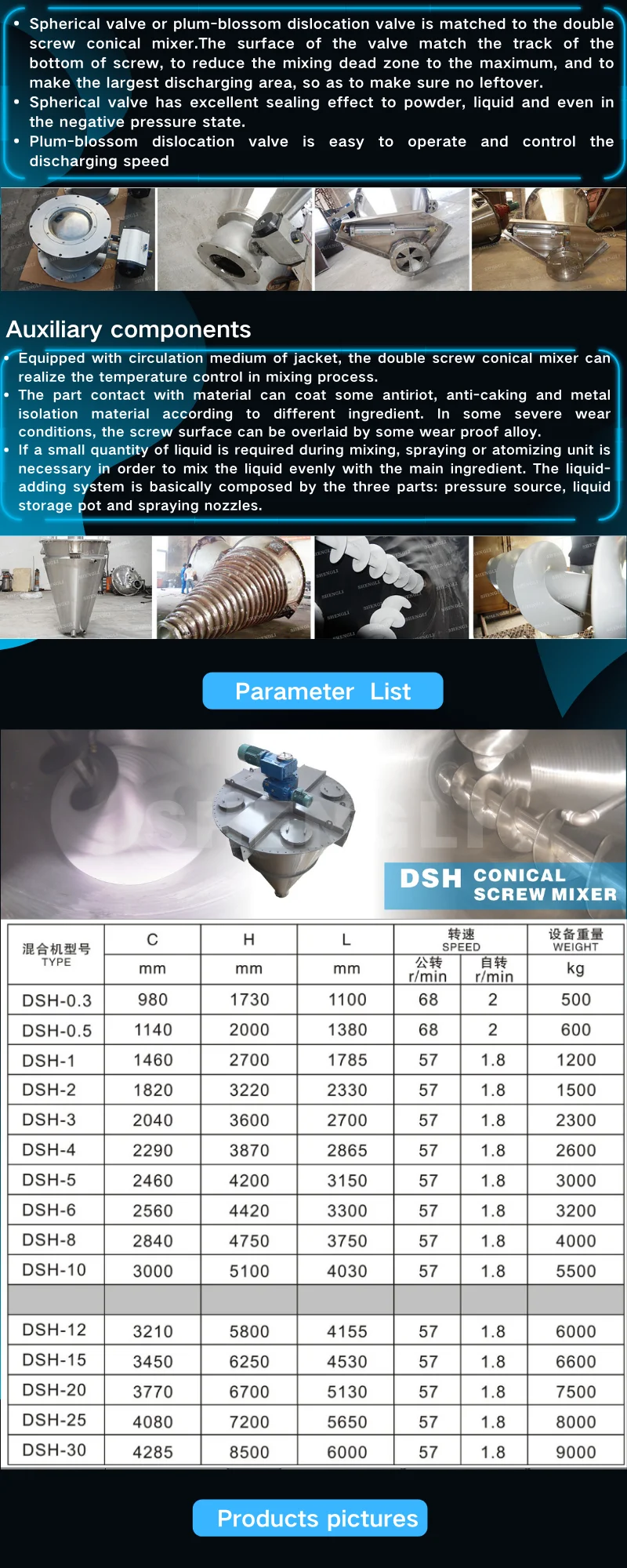

Model Table
Model | DSH-0.3 | DSH-0.5 | DSH-1 | DSH-2 | DSH-3 | DSH-4 | DSH-5 | DSH-6 | DSH-10 |
woking volume (L) | 180L | 300L | 600L | 1200L | 1800L | 2400L | 3000L | 3600L | 6000L |
Power (kw) | 3 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 15 | 18.5 |
Roration (rpm) | 3.5/120 | 3.5/120 | 3/78 | 3/78 | 3/78 | 1.8/65 | 1.6/65 | 1.6/65 | 1/65 |
Weight (KG） | 500 | 600 | 1200 | 1500 | 2300 | 2500 | 3200 | 3700 | 4000 |
Diameter (m) | 0.95 | 1.15 | 1.58 | 1.95 | 2.17 | 2.28 | 2.5 | 2.6 | 3 |
Height (m) | 2.06 | 2.35 | 2.84 | 3.5 | 3.76 | 4.36 | 4.8 | 4.8 | 5.9 |
