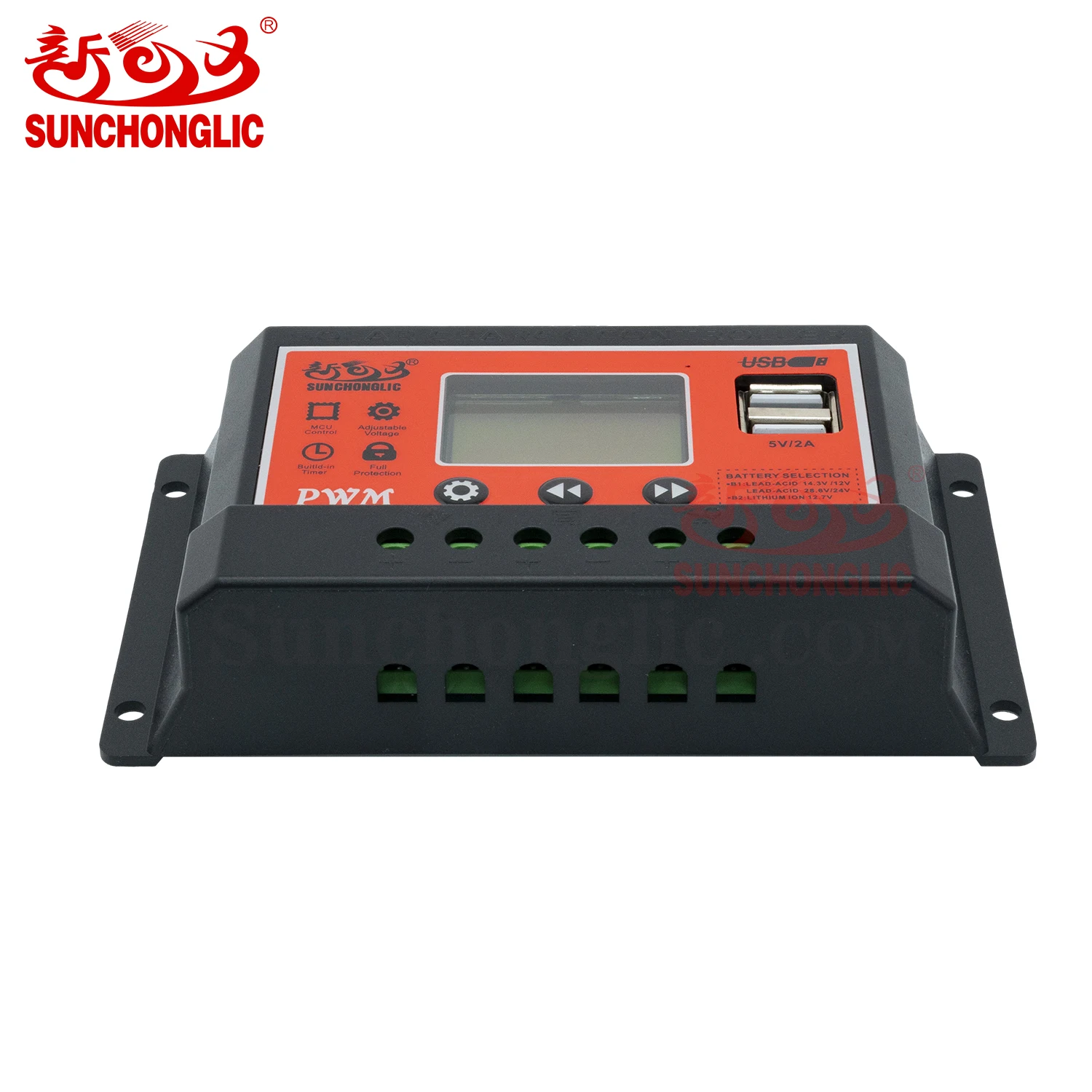

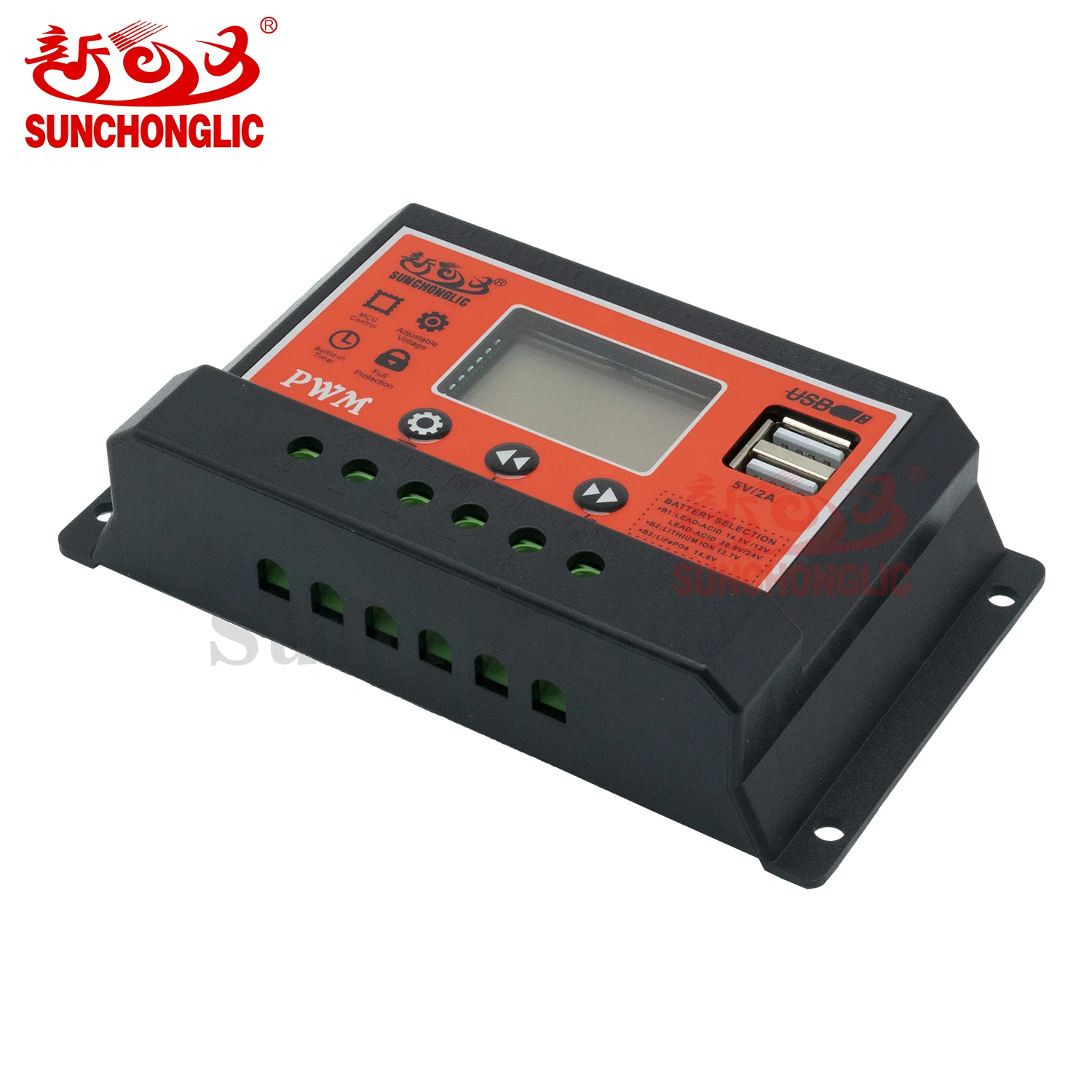

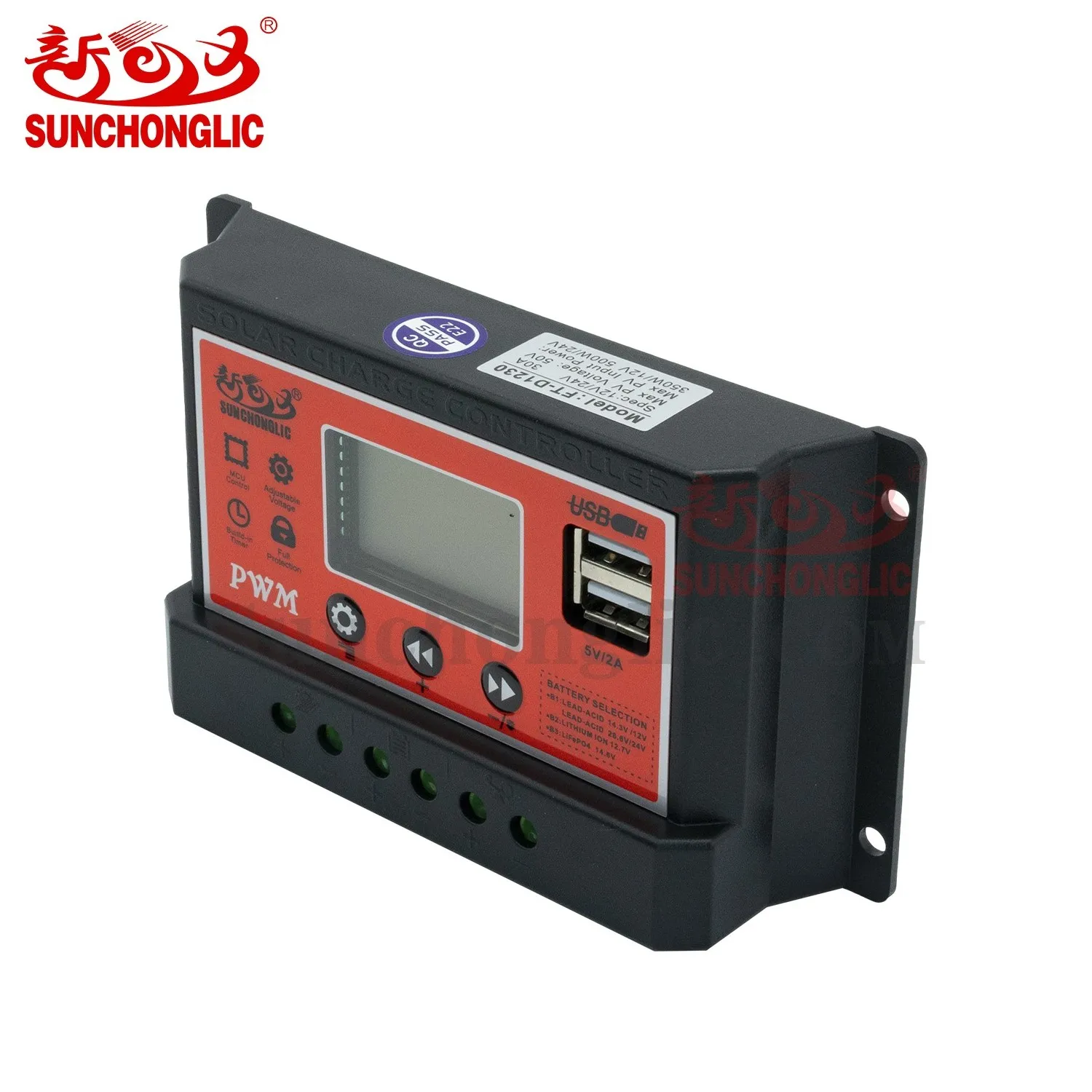

Sunchonglic 12V 24V 30A dual 5V USB mini pwm manual solar charge controller
- Category: >>>
- Supplier: Foshan Sunchonglic Electric Appliance Co. Ltd.
Share on (1600626410217):
Product Overview
Description

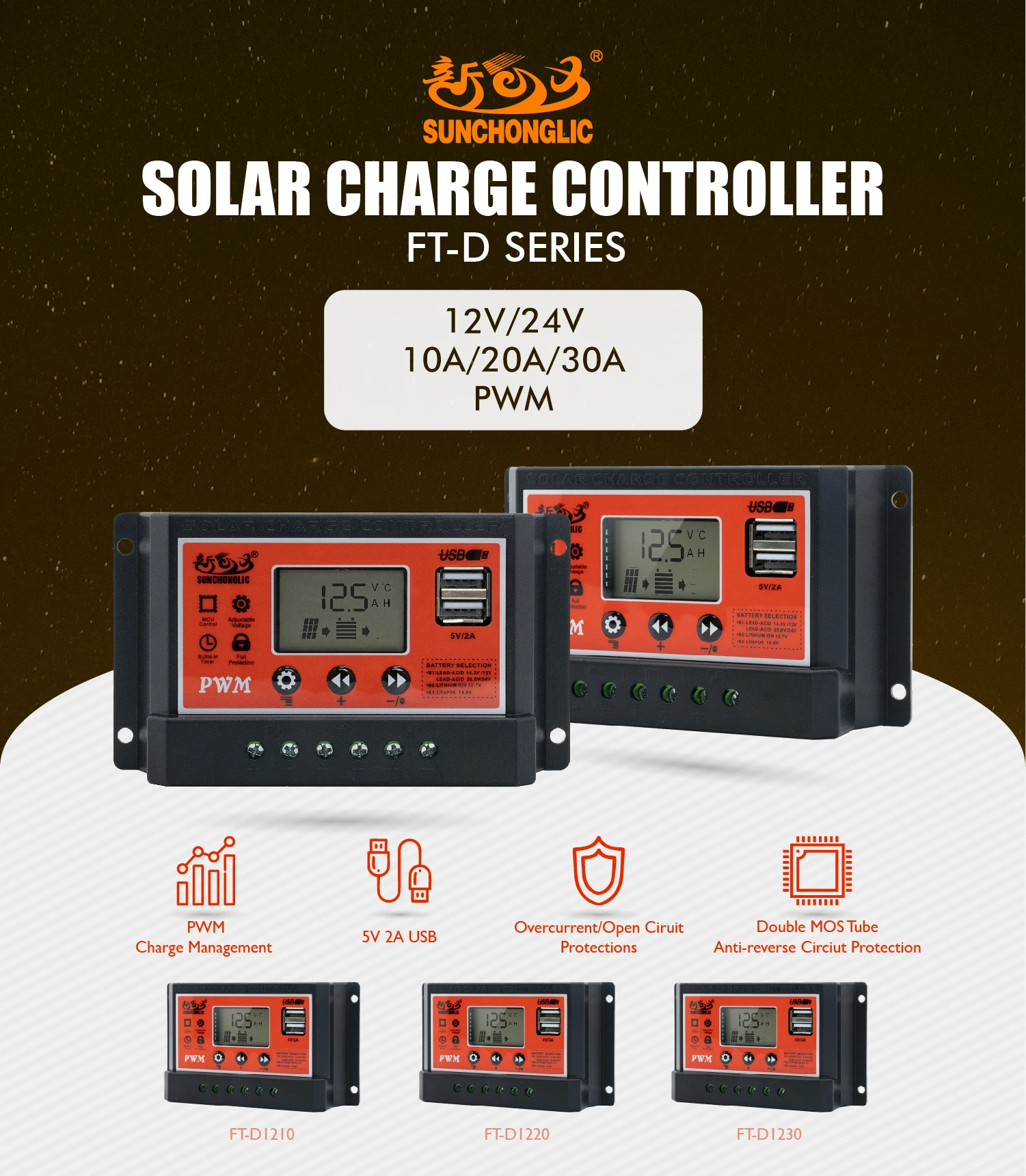

Sunchonglic 12V 24V 30A dual 5V USB mini pwm manual solar charge controller

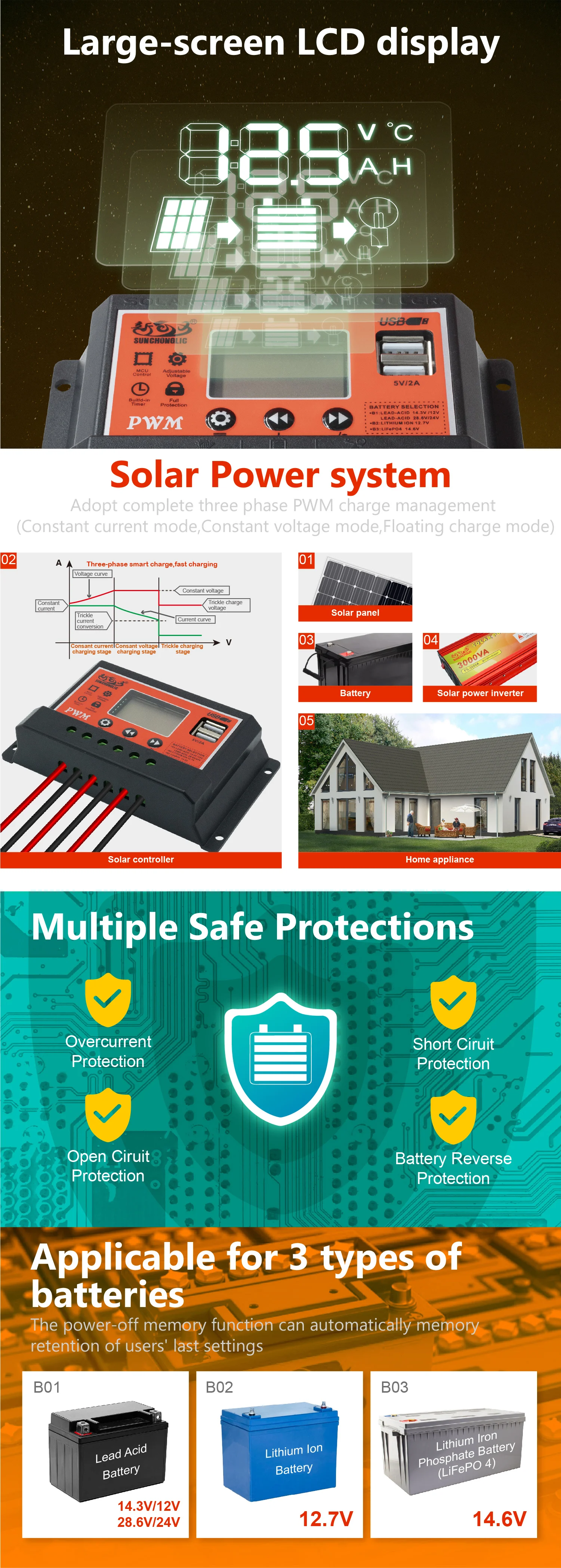

Features
♣ Features of 12V/24V 30A PWM Solar Charge Controller
1. Applicable for 3 types of batteries:
B01 Lead acid batttery
B02 Lithium ion battery
B03 Lithium iron phosphate battery
2. Power-cut memory function.The power-cut memory function can automatically memory retention of users' last settings.
3. Large-screen LCD display.
4. Adopt complete three phase PWM charge management (Constant current mode,Constant voltage mode,Floating charge mode)
5. Multiple protections.Overcurrent protection, Short circuit protection, Open ciruit protection and Battery reverse protection.
| Product Specification | |||
| Model | FT-D1210 | FT-D1220 | FT-D1230 |
| Rated current | 10A | 20A | 30A |
| System Voltage | 12V/24V system is only designed for lead-acid batteries with auto sense function | ||
| Solar PV input maximum voltage | 12V system<25V; 24V system<50V | ||
| Battery Type | B01=Lead Acid Battery 12V/24V auto sense | ||
| B02=Lithium-ion battery 3 series 3.7V=11.1V | |||
| B03=Lithium-ion phosphate battery 4 series 3.2V=12.8V | |||
| Charging voltage | Default*14.3V(B1) adjustable range 13.7-14.6V | Default12.6V(B2) adjustable range 11.5-12.6V | Default14.6V(B3) adjustable range 13.7-14.6V |
| Low-voltage cut off voltage | Default*10.7V(B1) adjustable range 8-11.5V | Default9V(B2) adjustable range 8-11.5V | Default10V(B3) adjustable range 8-11.5V |
| Low power recovery voltage | Default*12.6V(B1) adjustable range 11.5-12.6V | Default10.5V(B2) adjustable range 10-12V | Default12V(B3) adjustable range 11-13V |
| External 12V battery recommended solar panel specifications | 100-150W/18V | 150-250W/18V | 200-350W/18V |
| External 24V battery recommended solar panel specifications | 150-200W/36V | 300-400W/36V | 400-500W/36V |
| Battery capacity recommended | 12V/24-80Ah | 12V/60-150Ah | 12V/100-200Ah |
| 24V/24-80Ah | 24V/60-150Ah | 24V/100-200Ah | |
| Rated current of DC load output | 12A | ||
| USB Output | 5V/2A | ||
| Standby current | <10mA | ||
| Working temperatue | -35℃~+60℃ | ||
| Size / Weight | 133x75x33mm/152g | ||
| Mark:* tagged voltage only corresponds to 12V solar system,if user use 24V system,please multiply by 2 | |||
More Hot Sale Items
We are factory manufacturer of High/Low hybrid solar inverter, Power inverter, AGM/GEL Battery Charger and Solar Charge Controller.
Click the picture into our home page to view more our hot sale items!
(If you have any questions,please feel free to inquiry us! We are service at any time!)

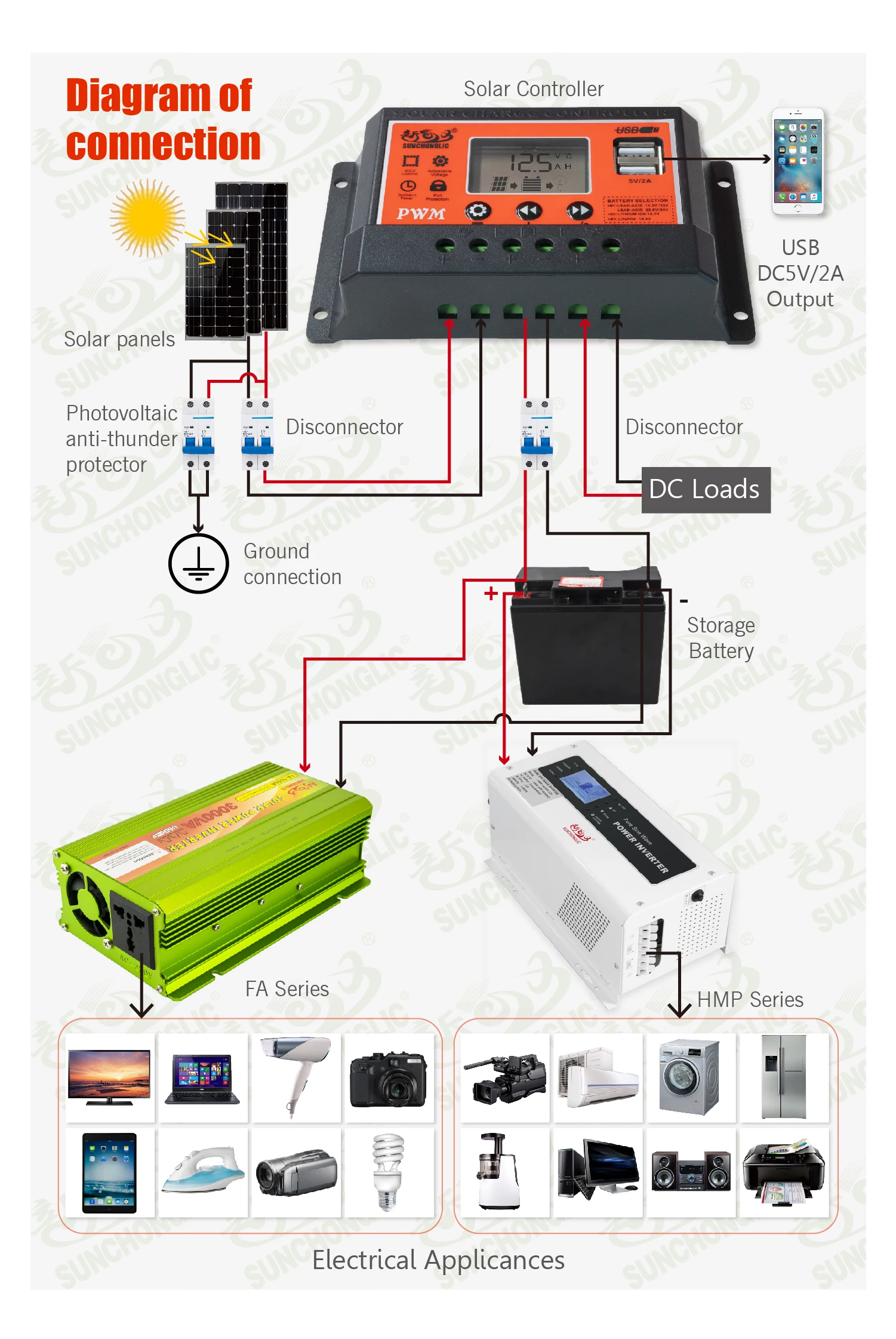

Application

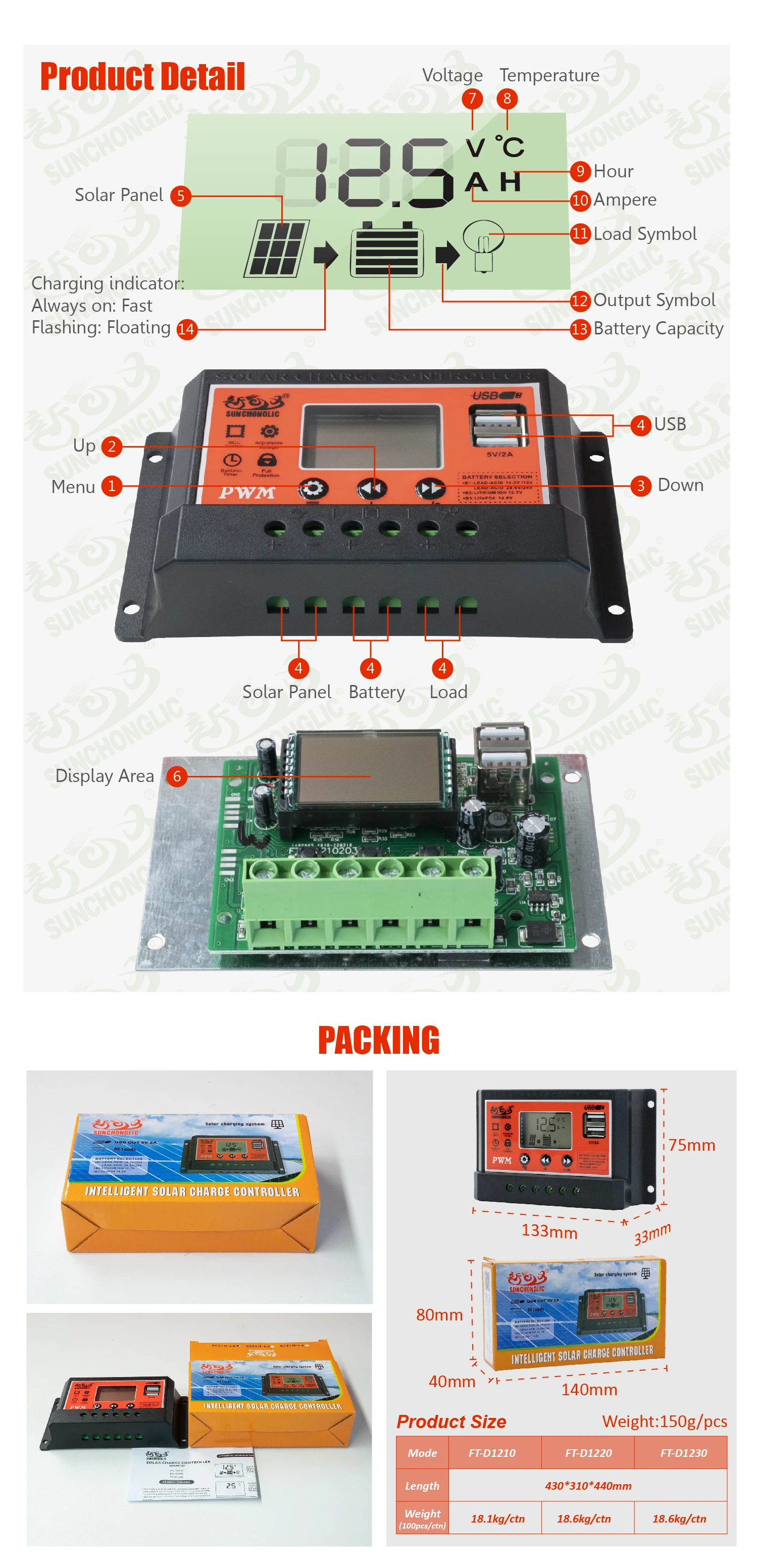

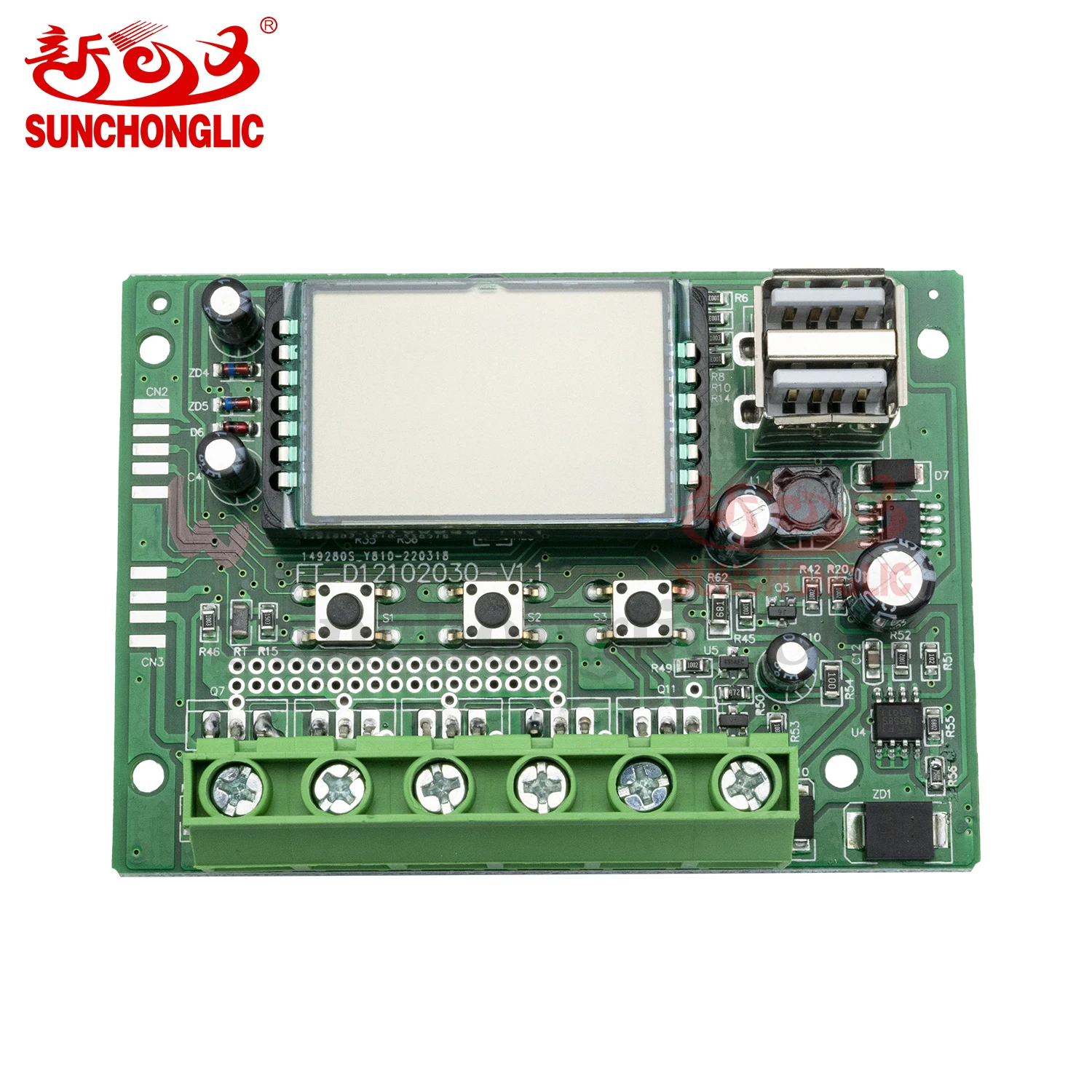

Product Details

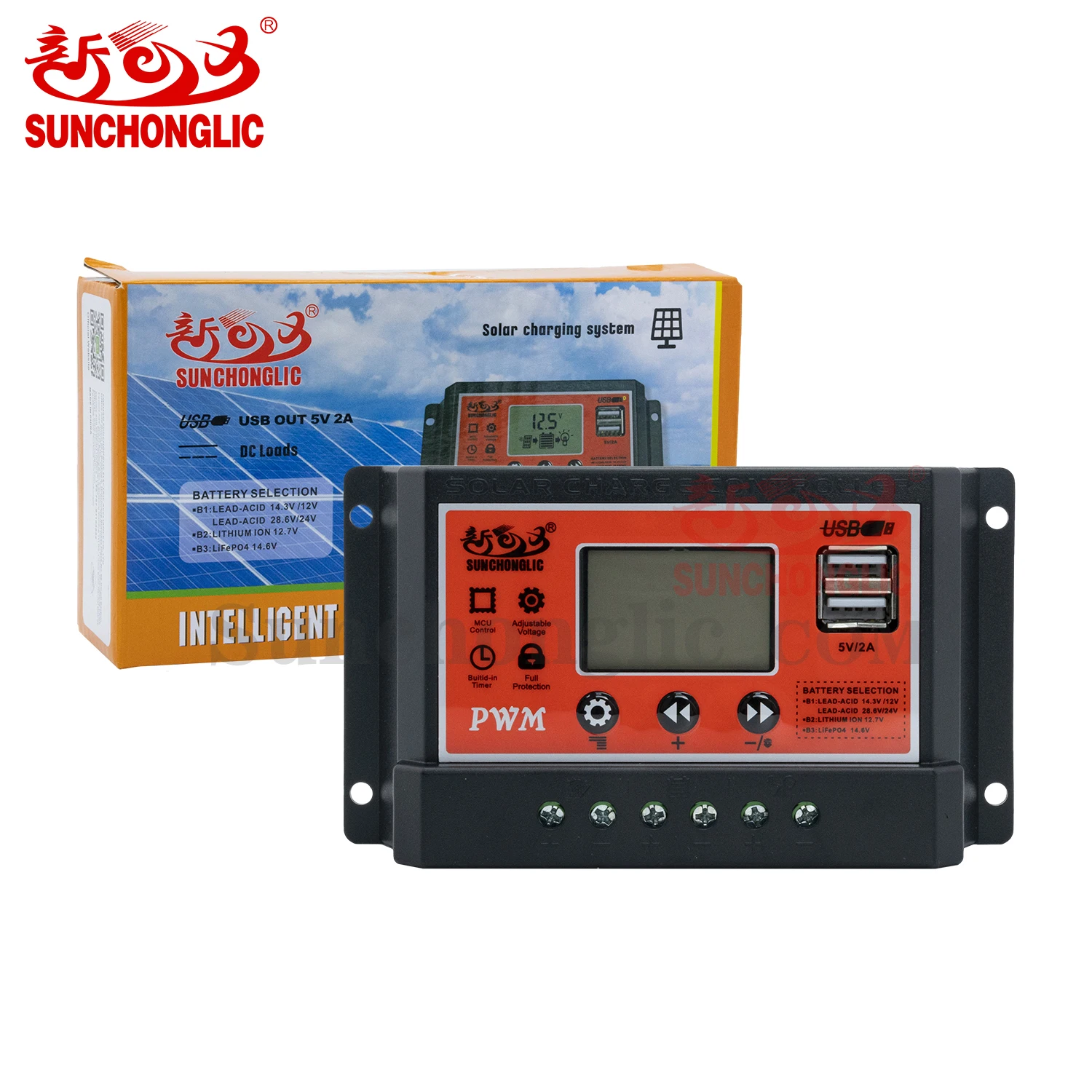

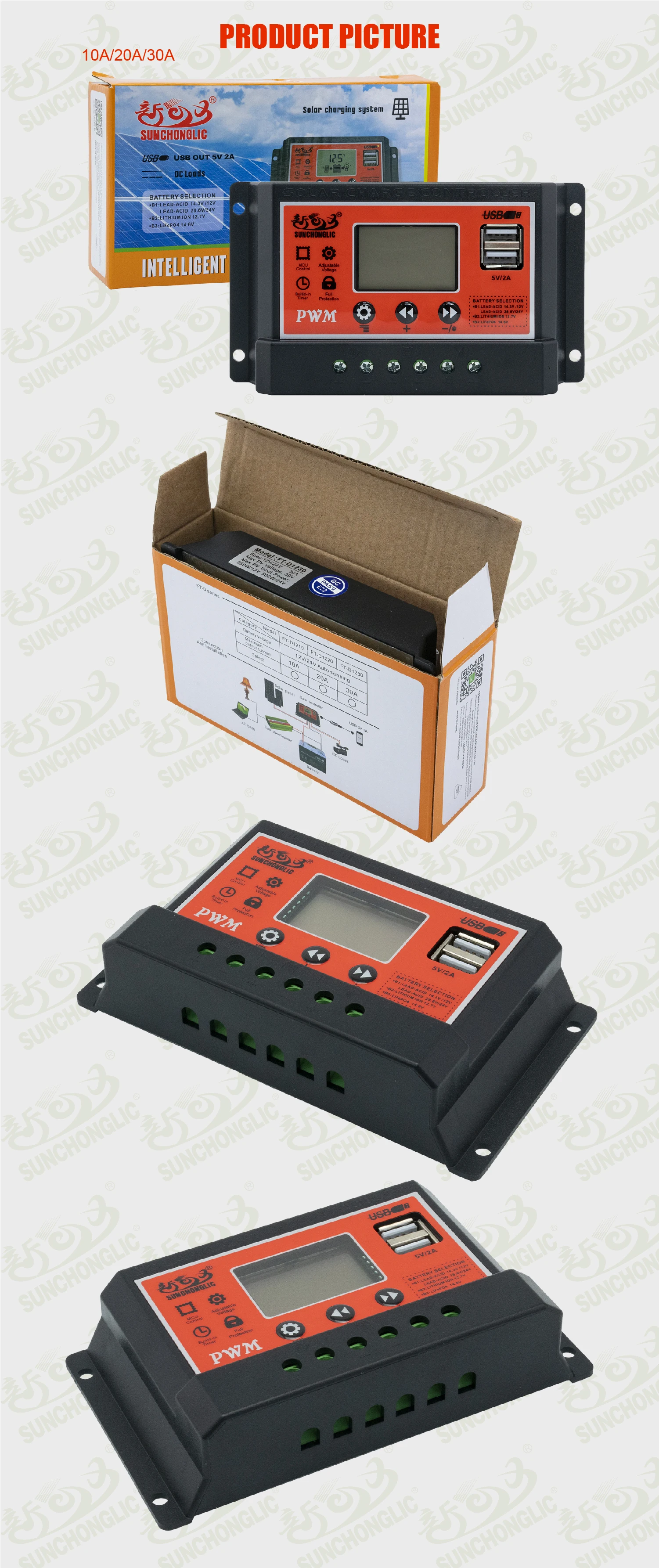

Product Show
