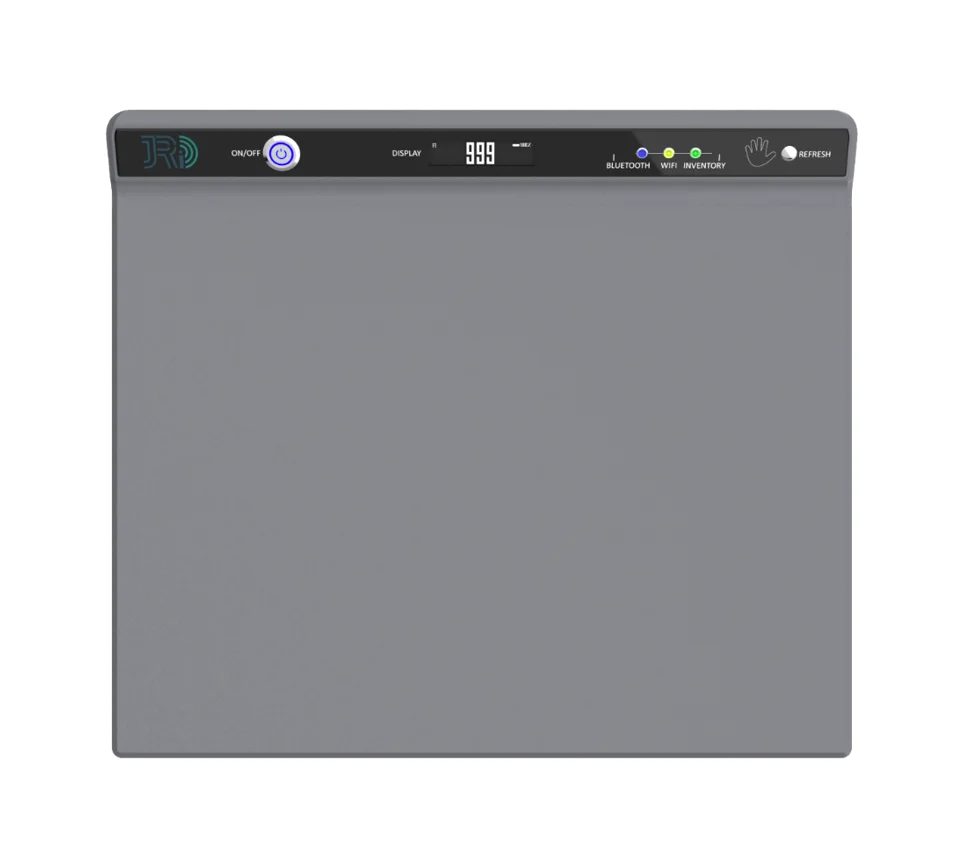

2022 New Arrival upgrade RFID reader

Product Overview

Description

RFID solution for tracking single instrument from Japan

RFID Institute



The world's leading new generation of rfid technology.

the industry's most smooth mgnetci field distrubution;

the industry's most standard distribution range

the industry's most uniform magnetic fiels distribution.



Background

The problem that puzzles the wide application of UHF RFID technology is that in order to read all the tags that should be read, the system always misreads some tags that are not in range and not supposed to be identified. The BoundTable solves this problem perfectly. When used with UHF RFID near-field tags, the control accuracy of the reading range reaches 5mm, and the magnetic field distribution is extremely uniform, so that multi- reading is fast and accurate, without misreading issues. If it is used with UHF far-field tags, its reading range will be significantly increased, and there is still a clear boundary. Compared with UHF far-field antenna and UHF near-field antenna reading RFID far-field tags, it can be found that only BoundTable has no blind area and no strong area outside the read range.



Advantages

1.The flattest magnetic field distribution in the industry.The maximum identification distance of RFID near-field tags at all locations on the BoundTable ( 540×430 mm) ranges from 40 mm to 45 mm, with an upper and lower offset of less than 5 mm.

2.The most uniform magnetic field distribution in the industry. No blind area in the identification area on the BoundTable, and after reading for a period of time, it can be found that the RFID near-field tags in all identification areas are read almost the same number of times.

3.The industry’s most accurate distribution range completely eliminates the reading of RFID near-field tags outside the BoundTable.

4.Zero backscattering. The tag will not be read even if it is attached to the back of the BoundTable.

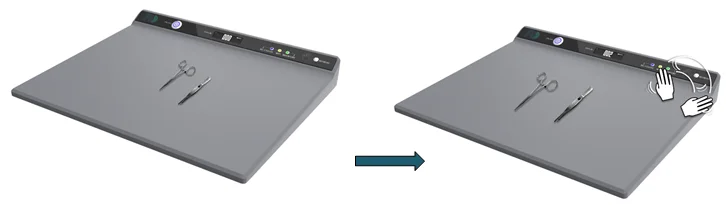

5.Gesture refresh function. To refresh the total number of tags read on the BoundTable simply by waving your hand.

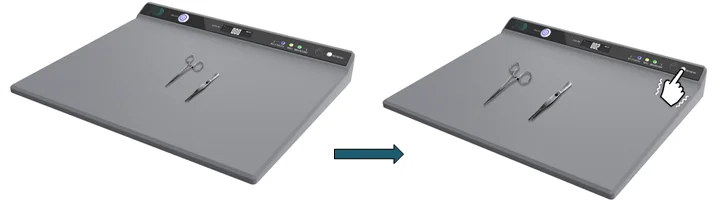

6.Counting display function.The total number of tags read is intuitive, no need to connect to the computer

7.With rechargeable 18650 batteries, accessible and affordable, it can work continuously for a week after full charge



Parameters

Items	BoundTable

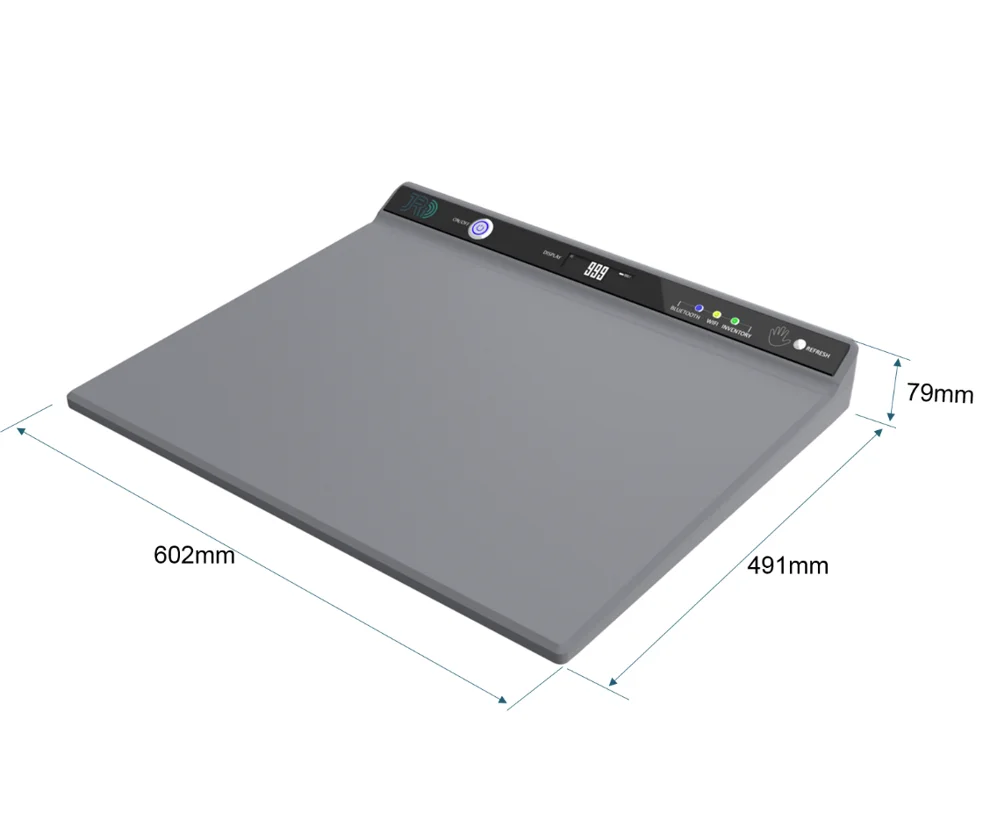

Size(mm)	602×491×79
Application Area(mm)	540x430x50(±5)
Communication Interface	bluetooth, WIFI, USB,LAN
Working temperature	5℃~40℃
Data Format	ISO 18000-6C protocol
Memory	Can store and query 2 million data records



Highlights

Items	Highlights
Blind spots	Completely eliminated
Missing reading (reading less)	Completely eliminated
To read a nearby tag outside the reading range	Completely eliminated
A strong area outside the read range or not	NO
Accuracy	99.98%
