Horizontal vertical super dividing head CS 8/F3 8

Product Overview

Description

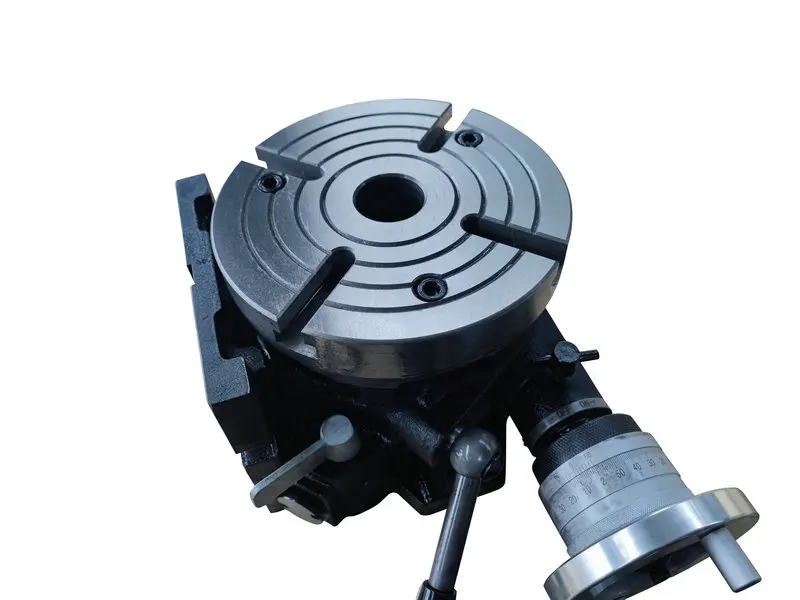

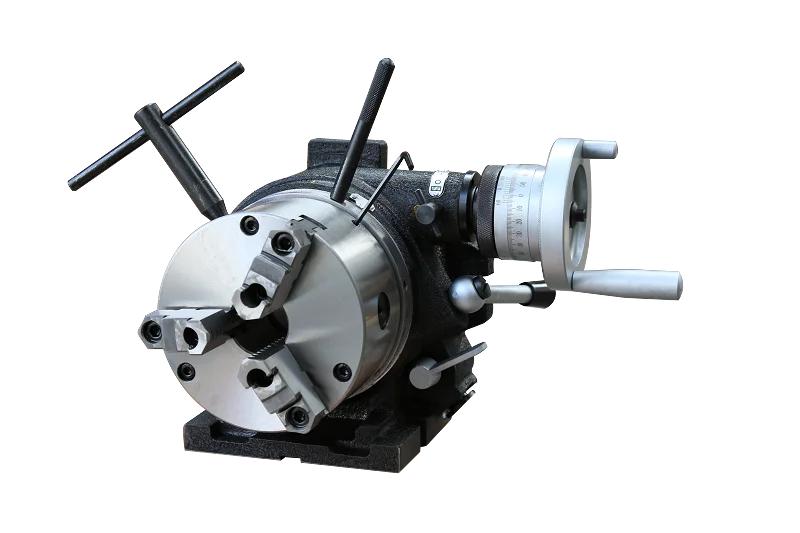

Horizontal vertical super dividing head CS-8/F3-8

Main features:

1. Solid Meehanite casting, specially designed for milling,drilling and boring.

2. Hardered and ground 24 position dividing plate

3. Hardened and ground worm gear

4. Precision ground steel spindle

5. Heavy duty type spindle brake

6. Horizontal and vertical mounting positions

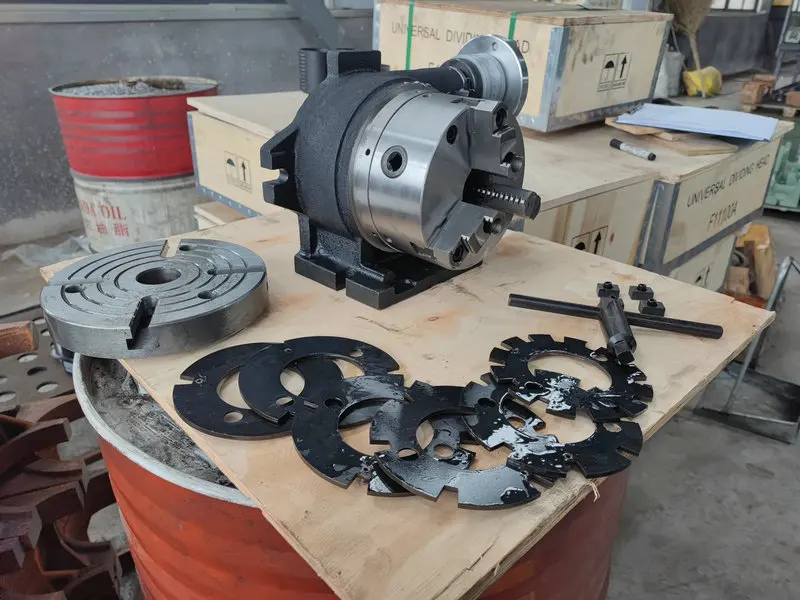

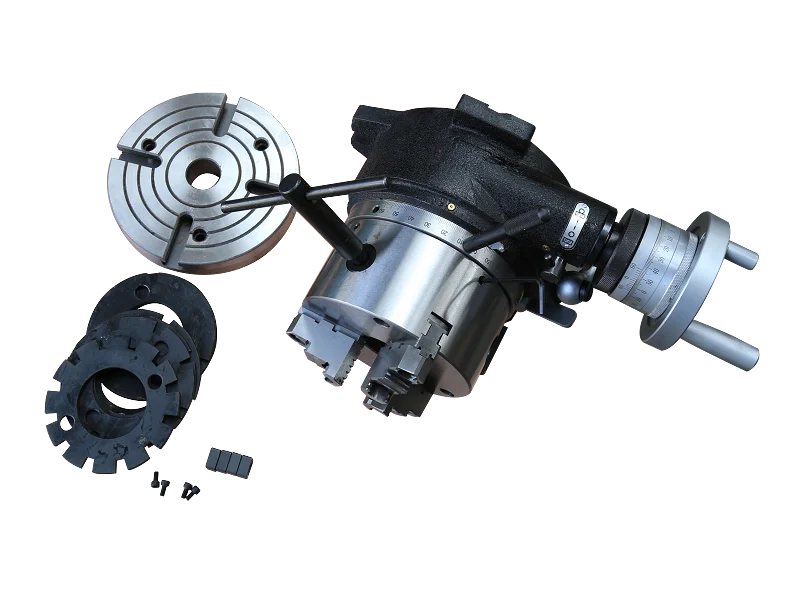

Standard accessories:

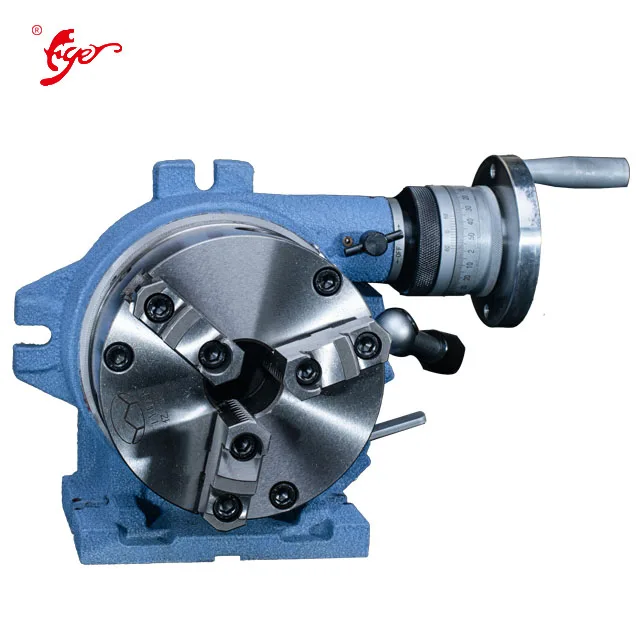

3-jaw chuck

4-Six mesking plages(2,3,4,6,8&12 position)

T-slotted face plate



Optional accessories:

Dividing plate DP-2

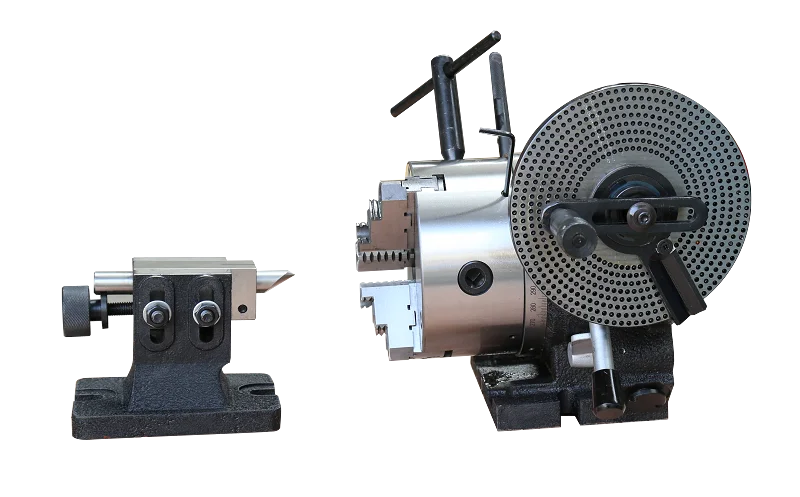

Tail stock TS-2

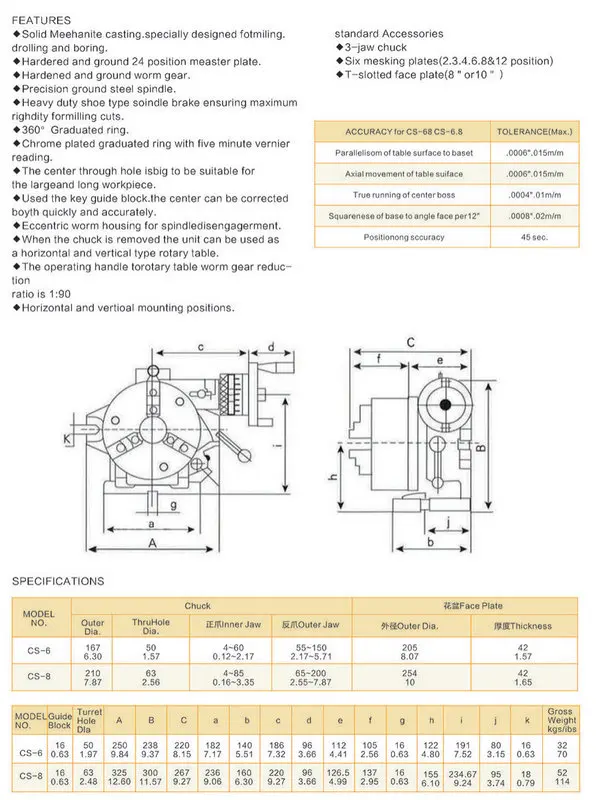

Specification:
