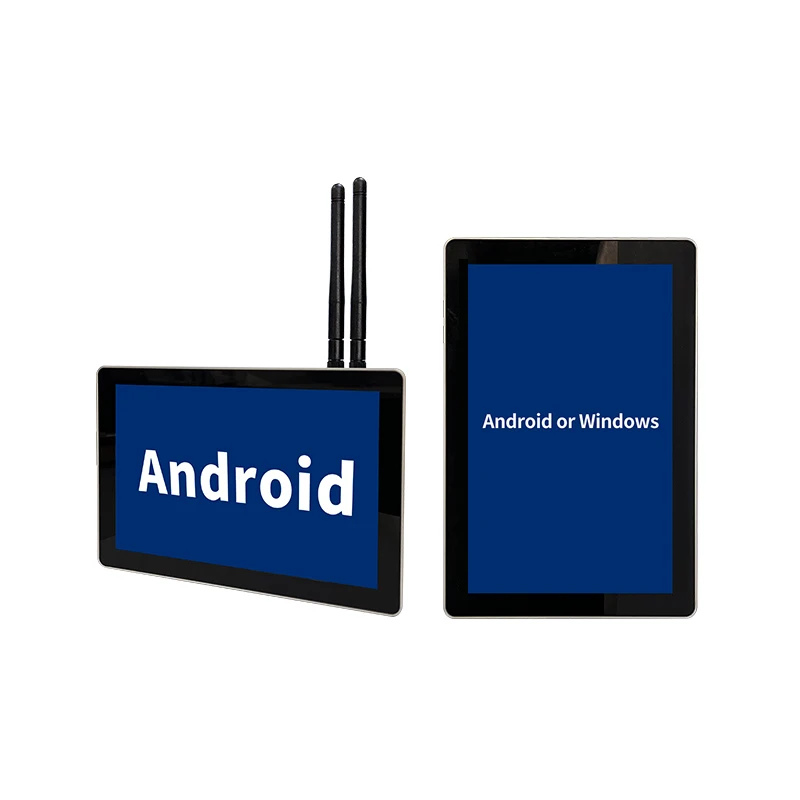

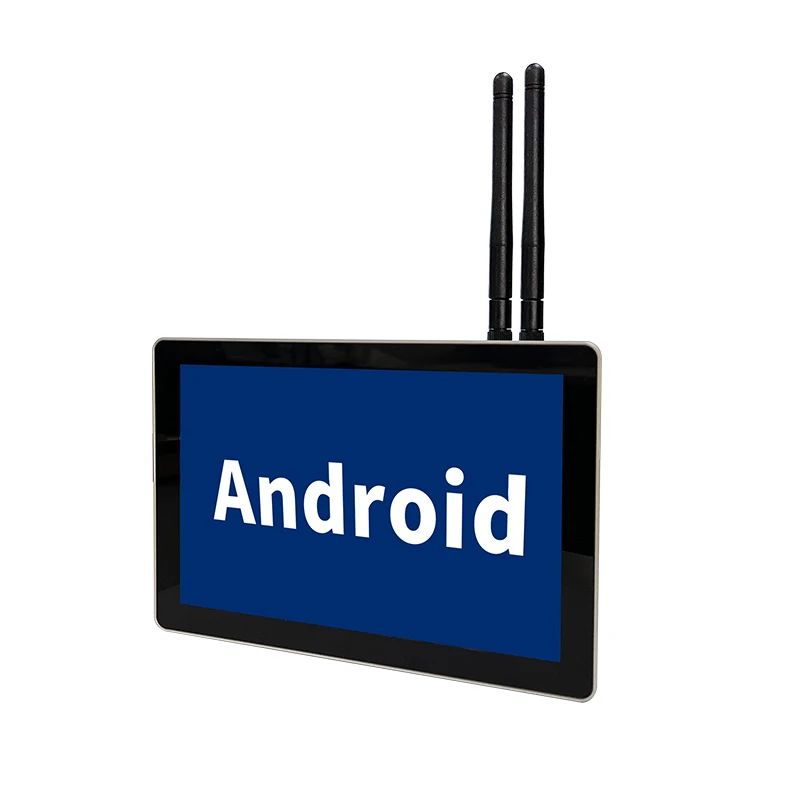

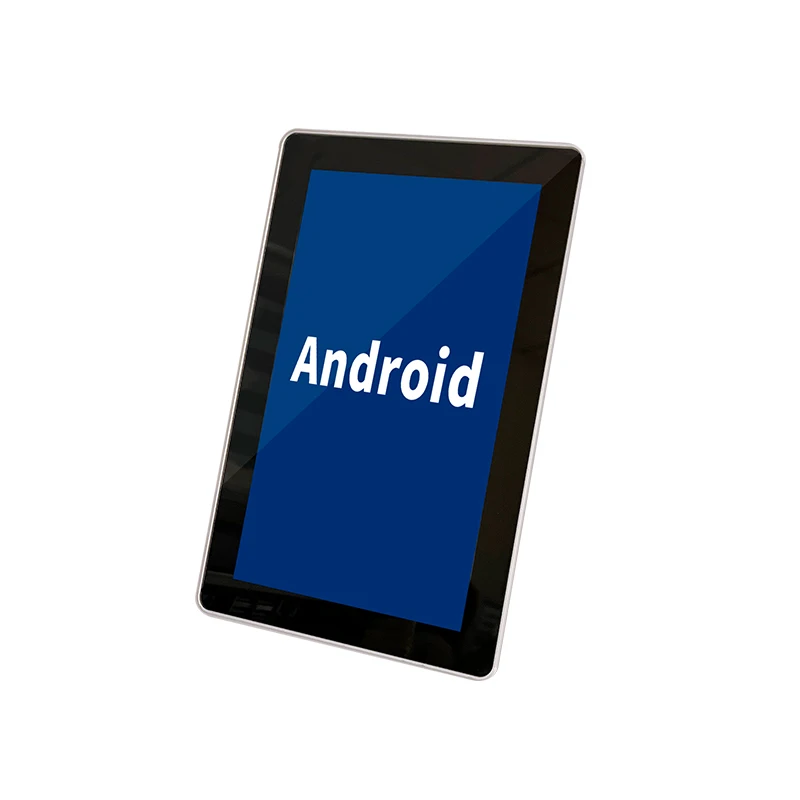

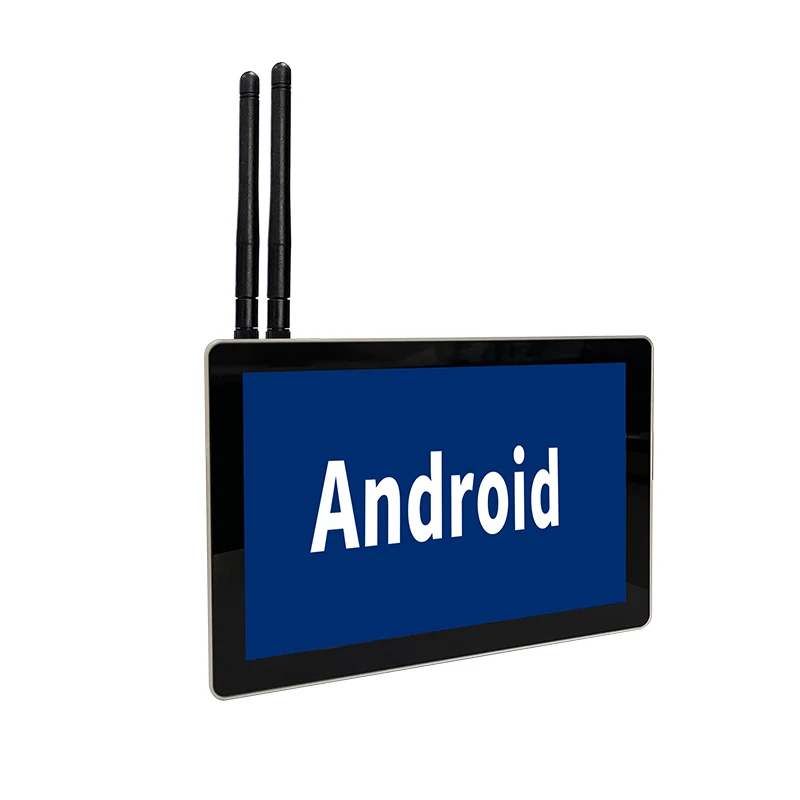

7 inch All in One Touch Screen Panel PC Industrial Touch Capacitive Touch Monitor For Kiosk Locker
- Category: >>>
- Supplier: Suzhou Dewo Smart System Co. Ltd.
Share on (1600626524159):
Product Overview
Description
Product Description
Suport 10.1, 21.5inch etc touch screen. Support RK3288, RK3399, RK3368. Support OEM/ODM.
Support RK3288 or RK3399
RK3399: USB2.0*6; USB3.0*2; RS232*4; RS485*2; TTL*1; Gigabit Ethernet*5; LVDS*2; EDP*1; HDMI*1
RK3288: USB2.0*8; RS232*2; RS485*1; 100M Ethernet*5; LVDS*2; EDP*1; HDMI*1
Support RK3288 or RK3399
RK3399: USB2.0*6; USB3.0*2; RS232*4; RS485*2; TTL*1; Gigabit Ethernet*5; LVDS*2; EDP*1; HDMI*1RK3288: USB2.0*8; RS232*2; RS485*1; 100M Ethernet*5; LVDS*2; EDP*1; HDMI*1

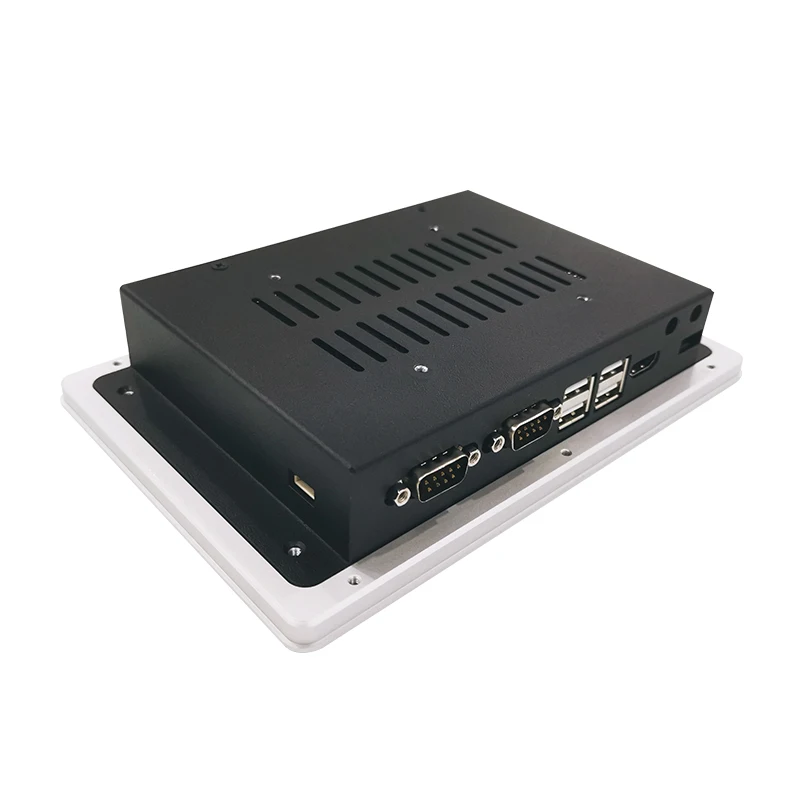

7/8 inch Embedded touch panel
7/8 inch Embedded touch panel
Specification
Item | E801D08 |
CUP | Rk3288/Rk3399(Android) |
Mermory | 2G + 16G |
Screen size | 8 inch |
LCD | Capacitive touch |
Contrast | 800:1 (Typ.) (transmission) |
Resolution | 1920(RGB)*1080 |
Screen Ratio | 16:10 |
Display color | 16.7M |
Display brightness | 500 cd/m² |
Operating humidity | 0℃ ~ 50℃, ≤80% RH |
Operating temperature | 0℃ ~ 50℃, ≤80% RH |
Storage humidity | -20℃ ~ 60℃, ≤80% RH |
Storage temperature | -20℃ ~ 60℃, ≤80% RH |
Normal power | ≤30W |
Response time | ≤16ms |
Screen dot pitch | 0.13455×0.13455 mm (H×V) |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
▲More than 7,000 square meters of factory area, strong production capacity to ensure the quality and timeliness of each order;
▲Passed ISO9001,CCC,CQC etc;
▲Support OEM/ODM manufacturing;
▲20 to 100 stocks per product;
▲47 engineers, giving strong technical support and after-sales service ;
▲Our products like barcode scanners, face recognition access control device, electromagnetic lock& control board, Android touch all-in-one and POS system have been exported to many regions, such as South America, North America, Europe, Africa, Southeast Asia, etc;
▲Half hour’s drive to Shanghai airport;
▲Passed ISO9001,CCC,CQC etc;
▲Support OEM/ODM manufacturing;
▲20 to 100 stocks per product;
▲47 engineers, giving strong technical support and after-sales service ;
▲Our products like barcode scanners, face recognition access control device, electromagnetic lock& control board, Android touch all-in-one and POS system have been exported to many regions, such as South America, North America, Europe, Africa, Southeast Asia, etc;
▲Half hour’s drive to Shanghai airport;
