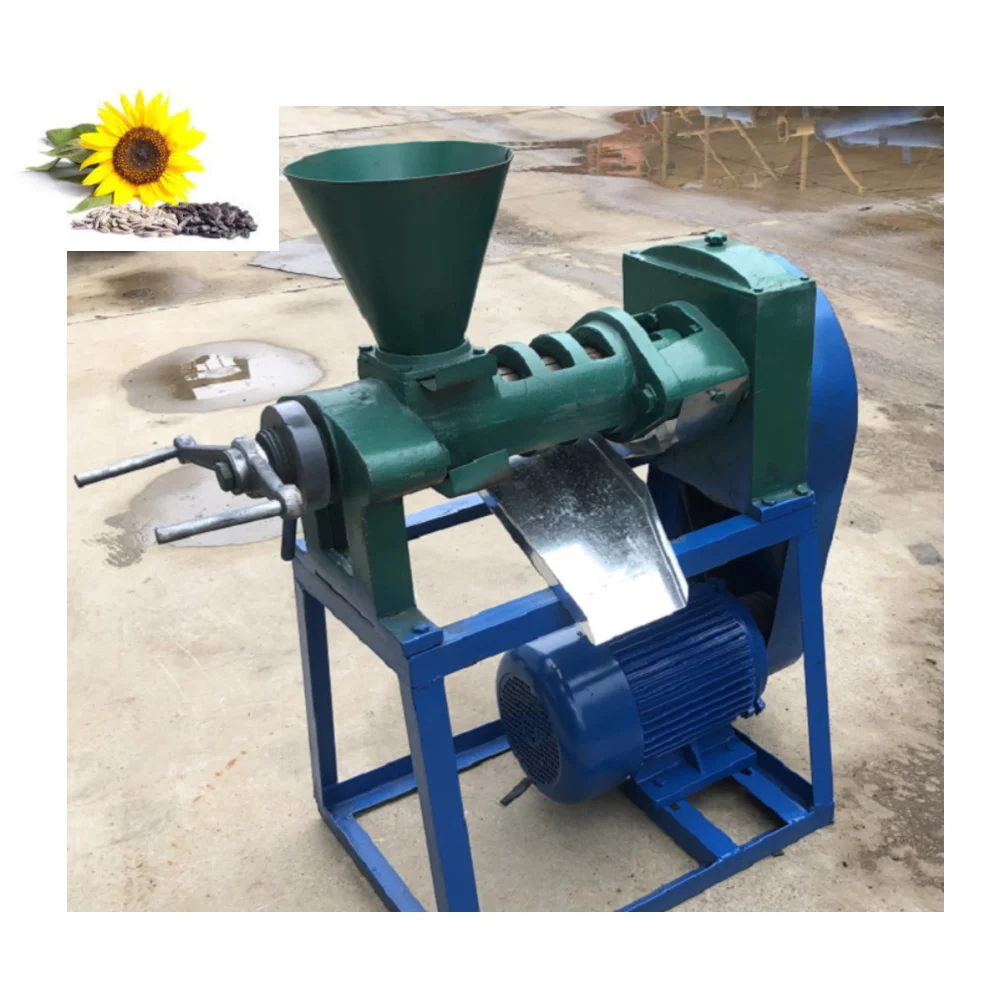

6YL 68 Small screw oil press machine oil seeds presser screw oil press
- Category: >>>
- Supplier: Tacheng City Xinchen Trading Co. Ltd.
Share on (1600626536921):
Product Overview
Description
Product description
Model No. | Small 68 Oil Pressing Machine | ||||||
Daily Output | 40kg per hour | ||||||
Power | 5.5kw, 3 phase motor/ single phase motor/ diesel | ||||||
Advantage | Easy to operate, easy to repair, the consumables have long lifetime, high oil yield, the shield is environmentally friendly plastic powder spraying processed | ||||||
Application | Agriculture, small and medium-sized grease factories, Supermarket | ||||||

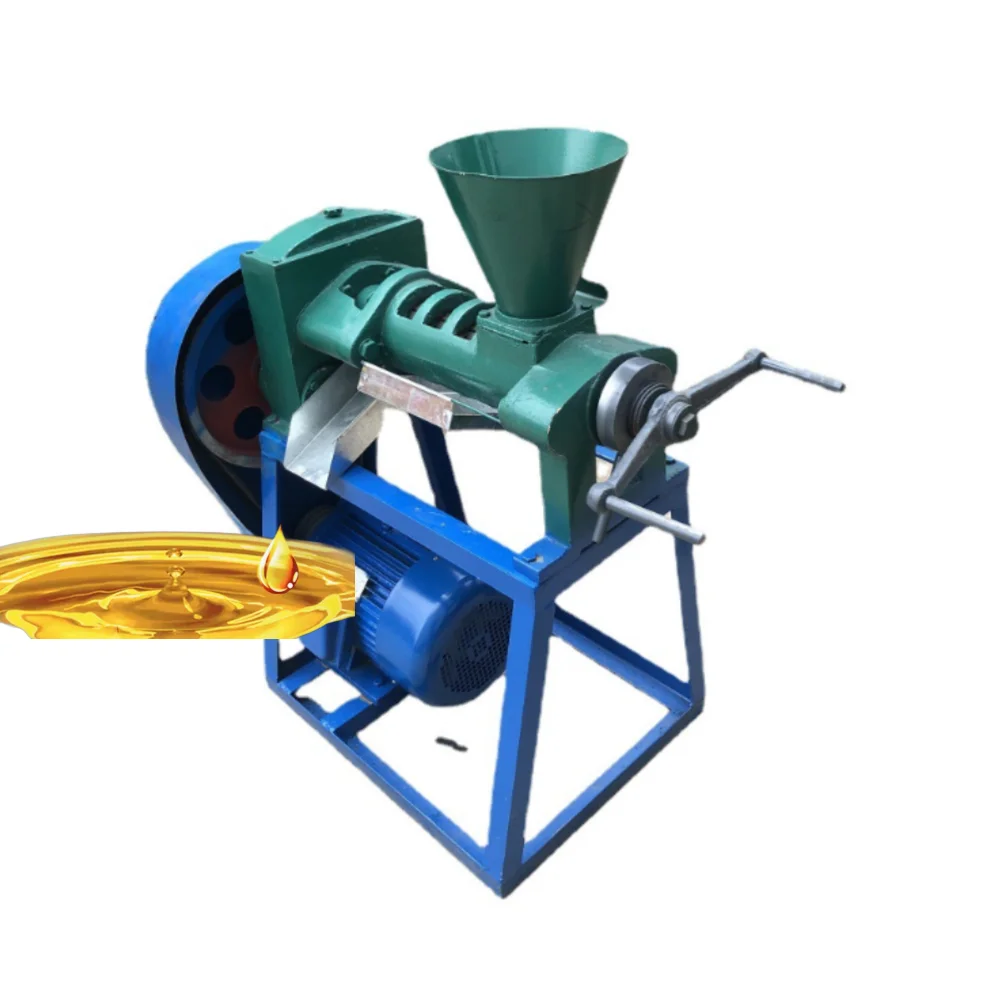

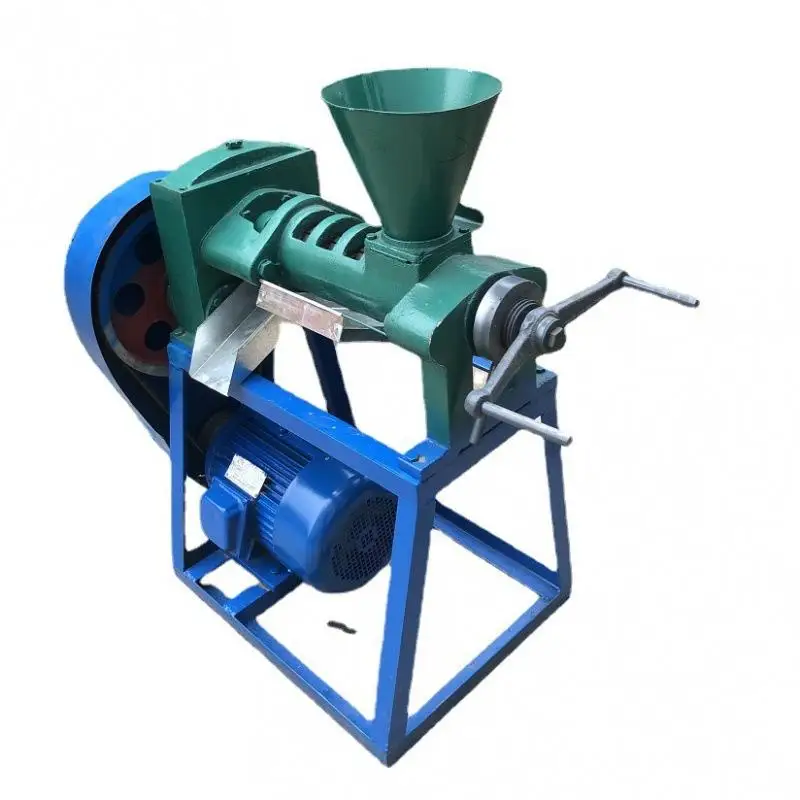

68 model Screw Oil Presser
Working principle:
Under the combined effects of several forces, such as the pressure generated as the space in the squeeze chest becoming smaller,
the propulsion of the revolving spiral axes, the resistance of the multilateral arc curves on the squeeze loops, the extrusion &
friction between the oil plants, oil squeezed from the oil plants comes out from the squeeze bars and the grooves of the squeeze
loops. The residue is conveyed to the end of the press chest and discharges in thin strips of oil cake from the space between the
cake adjuster and the loop for cake out. Then the whole separation process of oil from oil plants is completed.
Under the combined effects of several forces, such as the pressure generated as the space in the squeeze chest becoming smaller,
the propulsion of the revolving spiral axes, the resistance of the multilateral arc curves on the squeeze loops, the extrusion &
friction between the oil plants, oil squeezed from the oil plants comes out from the squeeze bars and the grooves of the squeeze
loops. The residue is conveyed to the end of the press chest and discharges in thin strips of oil cake from the space between the
cake adjuster and the loop for cake out. Then the whole separation process of oil from oil plants is completed.

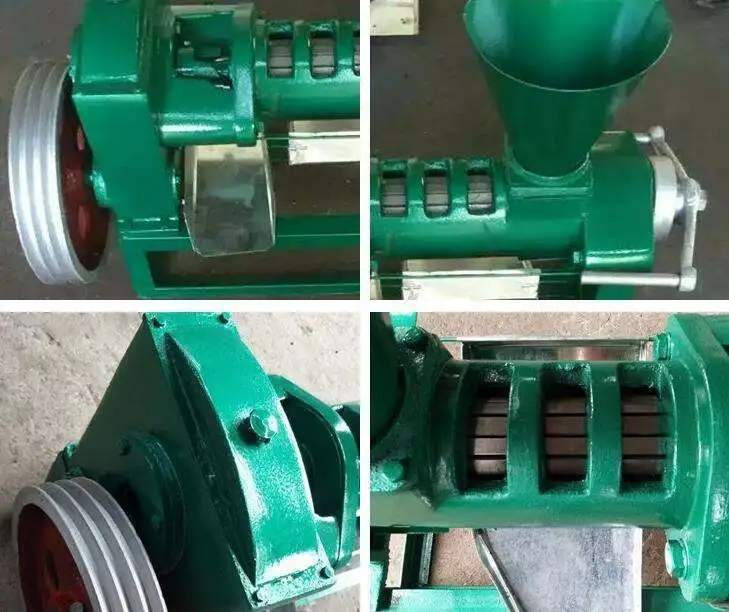

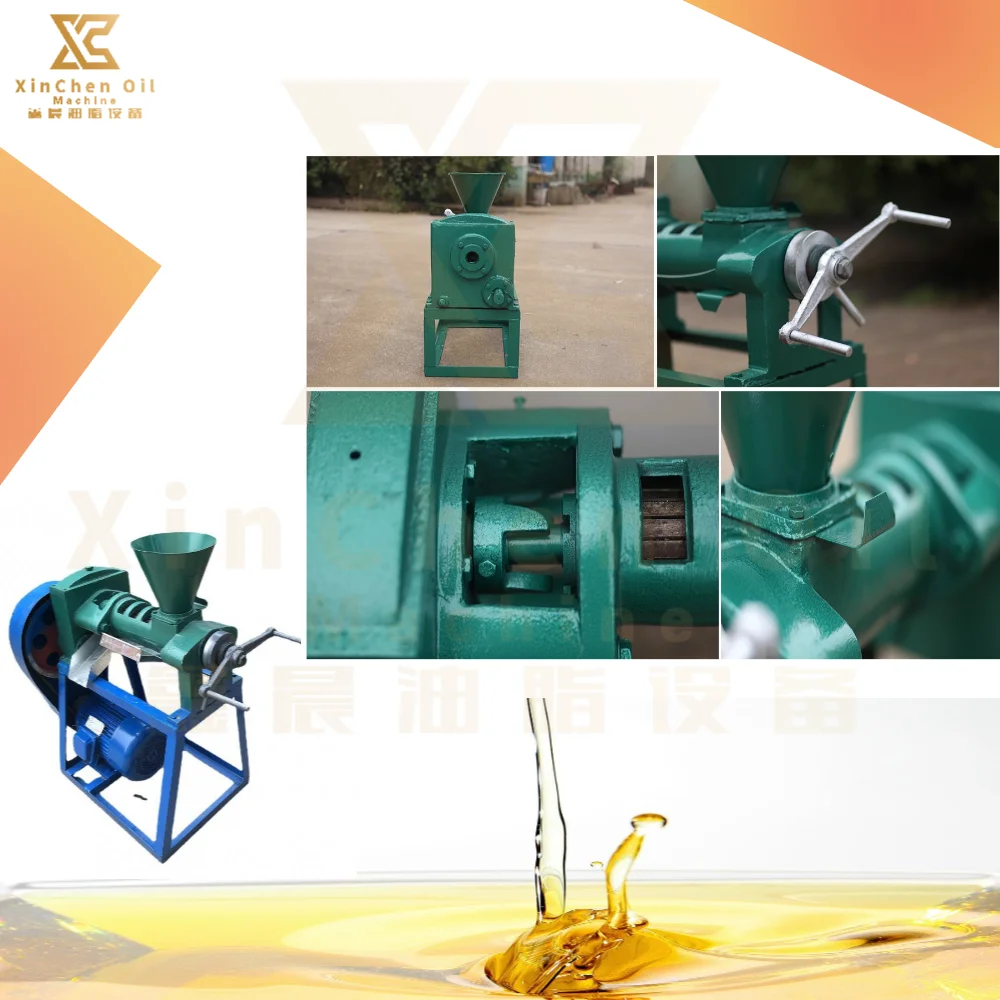

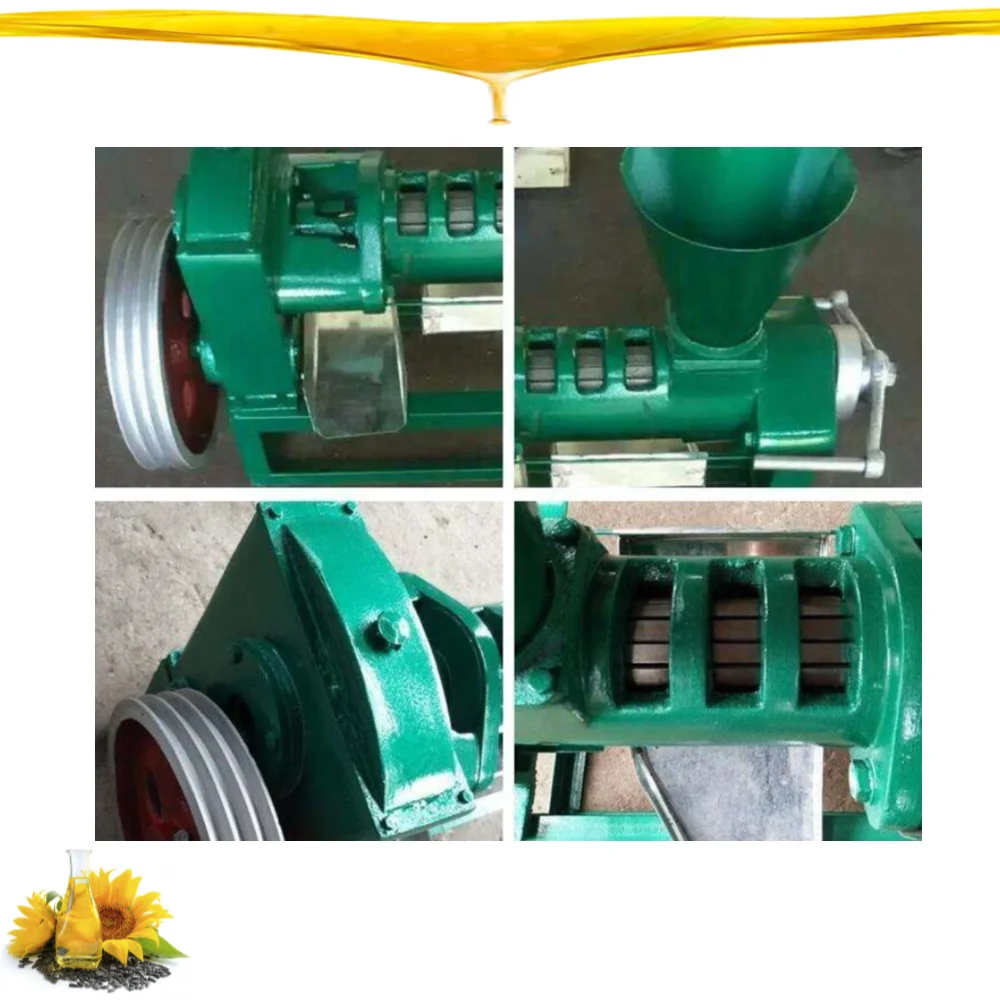

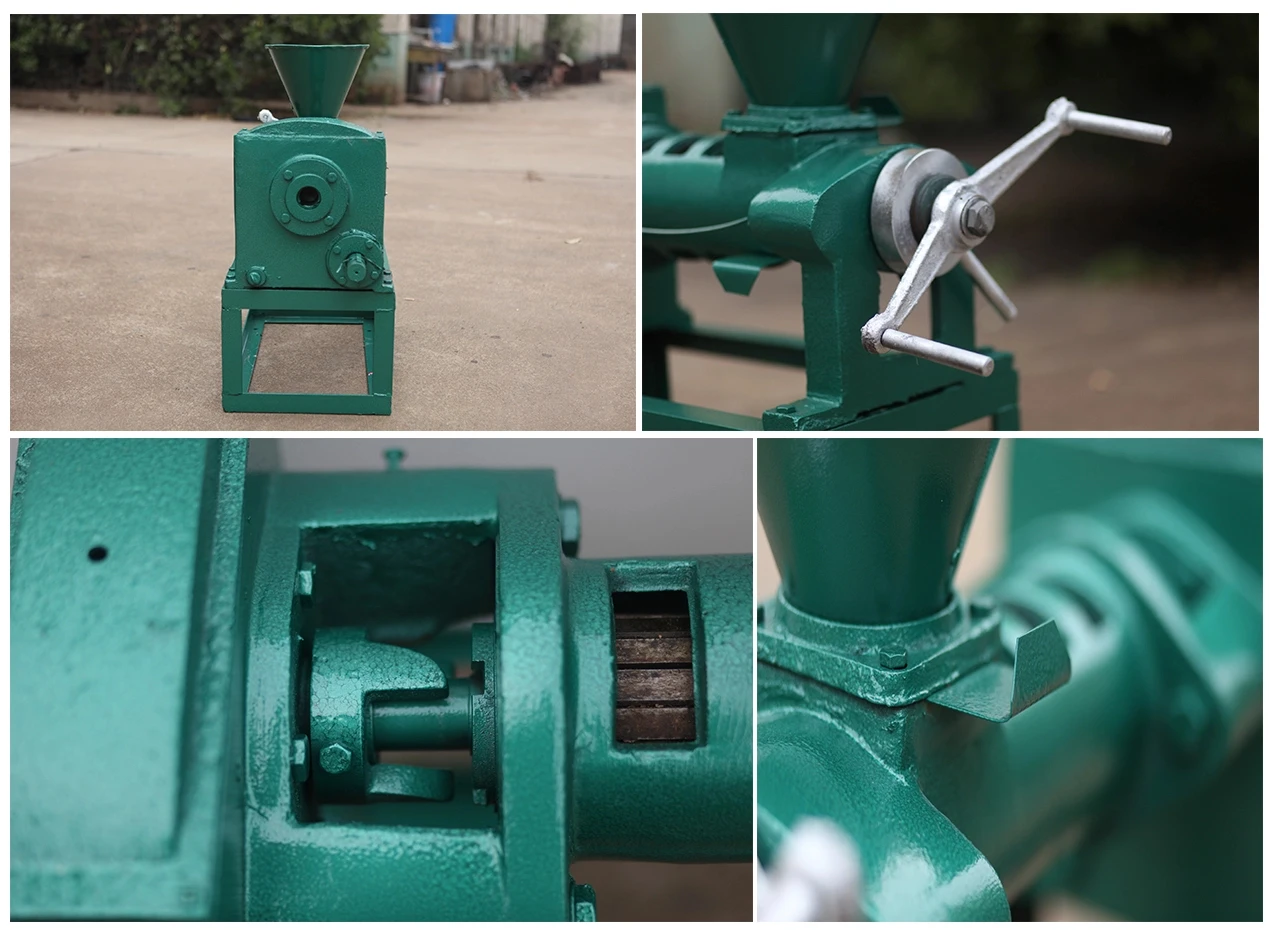

Details Images

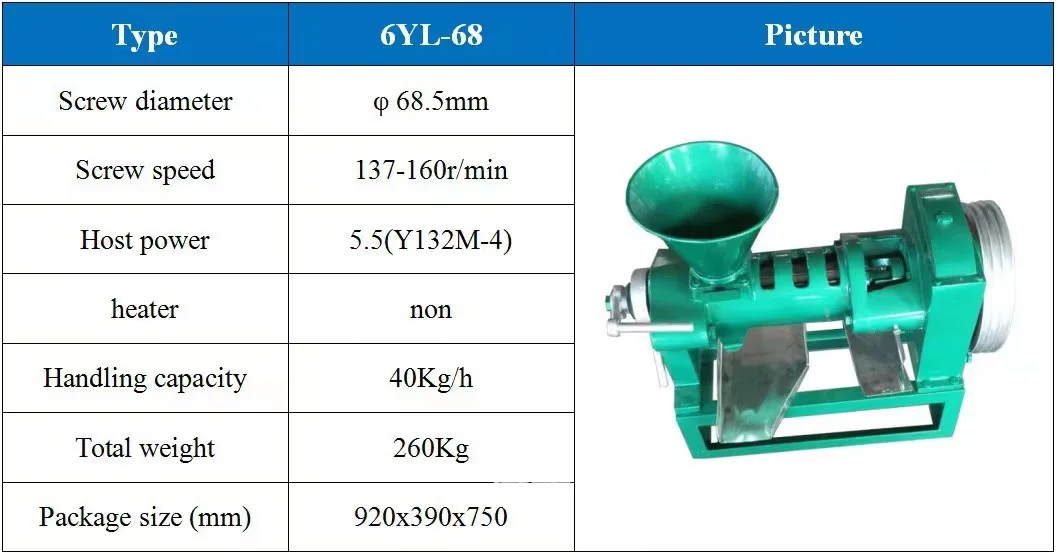

Specifications of Xinchen Small Screw Oil Press Machine | ||||||||
MOdel | Processing capacity （t/d） | Main motor power (kw) | Screw shaft speed (R / min) | Residual oil content of oil cake (%) | ||||
6YL-68 | 40kg/hour | 5.5 | 137-160 | ≤7-8 | ||||
6YL-95Y | 3.5-5 | 11 | 26-24 | ≤7-8 | ||||
6YL-110C | 4-5 | 11 | 38 | ≤7-9 | ||||
6YL-110LY | 6-7 | 11 | 30-35 | ≤7-8 | ||||
6YL-120C | 6-8 | 15 | 37 | ≤7-9 | ||||
6YL-130C | 7-9 | 15 | 37 | ≤7-9 | ||||
6YL-130LY | 8-10 | 18.5 | 26-34 | ≤7-8 | ||||
6YL-140C | 9-11 | 18.5 | 37 | ≤7-9 | ||||
6YL-160C | 11-15 | 30 | 35 | ≤7-8 | ||||
6YL-160LY | 17-20 | 34 | 30-40 | ≤7-8 | ||||
6YL-160LHY | 45 | |||||||
Company profile
Customer
FAQ
Q: Why work with your company ?
A: We have 14 years experience in oil press machine industry, and we can help you find a great solution that can save your cost and reach your production targets. Our main products including :screw oil press, oil filter, oil refinery machine and spare parts etc.
Q: How can I judge your machine quality ?
A: Actually we already got good reputations in Russia and The Five Countries in Central Asia because of our service and stable quality. All of our machines can provide 1 year warranty and lifetime maintenance, for core parts are 6 months warranty.
Q: If i don't know how to operate this machine ? How can i do ?
A: Our engineer will help you from the starts, and machine has been tested and fully assembled before shipping, you just needs to make 2-4 hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1 KG sand + 1 KG water, mix them, put in oil press, wear in 3~4 hours.
1. 1st hour, adjust oil cake thickness as 3 mm.
2. 2nd hour, adjust oil cake thickness as 2.5 mm.
3. 3rd hour, adjust oil cake thickness as 2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 times to get maximum oil.
Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture.
Q:What service do you provide?
A: (1) 1 year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can I get a quotation?
A: Contact us immediately for further details by sending us an inquiry.
A: We have 14 years experience in oil press machine industry, and we can help you find a great solution that can save your cost and reach your production targets. Our main products including :screw oil press, oil filter, oil refinery machine and spare parts etc.
Q: How can I judge your machine quality ?
A: Actually we already got good reputations in Russia and The Five Countries in Central Asia because of our service and stable quality. All of our machines can provide 1 year warranty and lifetime maintenance, for core parts are 6 months warranty.
Q: If i don't know how to operate this machine ? How can i do ?
A: Our engineer will help you from the starts, and machine has been tested and fully assembled before shipping, you just needs to make 2-4 hours wear-in and then can work.
Q: What's wear-in for new machine?
A: Using 10 KG oil cake + 1 KG sand + 1 KG water, mix them, put in oil press, wear in 3~4 hours.
1. 1st hour, adjust oil cake thickness as 3 mm.
2. 2nd hour, adjust oil cake thickness as 2.5 mm.
3. 3rd hour, adjust oil cake thickness as 2 mm.
Q:What are cold press and hot press?
A: Cold press is pressing dry and raw seeds. usually need to press 2 times to get maximum oil.
Hot press is pressing roasted seeds. usually only 1 time to get maximum oil. peanuts roast to 125~130 degree with 1~2% moisture.
Q:What service do you provide?
A: (1) 1 year free warranty, whole lifetime maintenance.
(2) Supplying wearing parts all year around.
(3) Supplying technical solutions at any time.
(4) Helping design and plan the oil plants construction.
(5) Providing installation video.
(6) Developing agents with good policies around world.
Q: How can I get a quotation?
A: Contact us immediately for further details by sending us an inquiry.

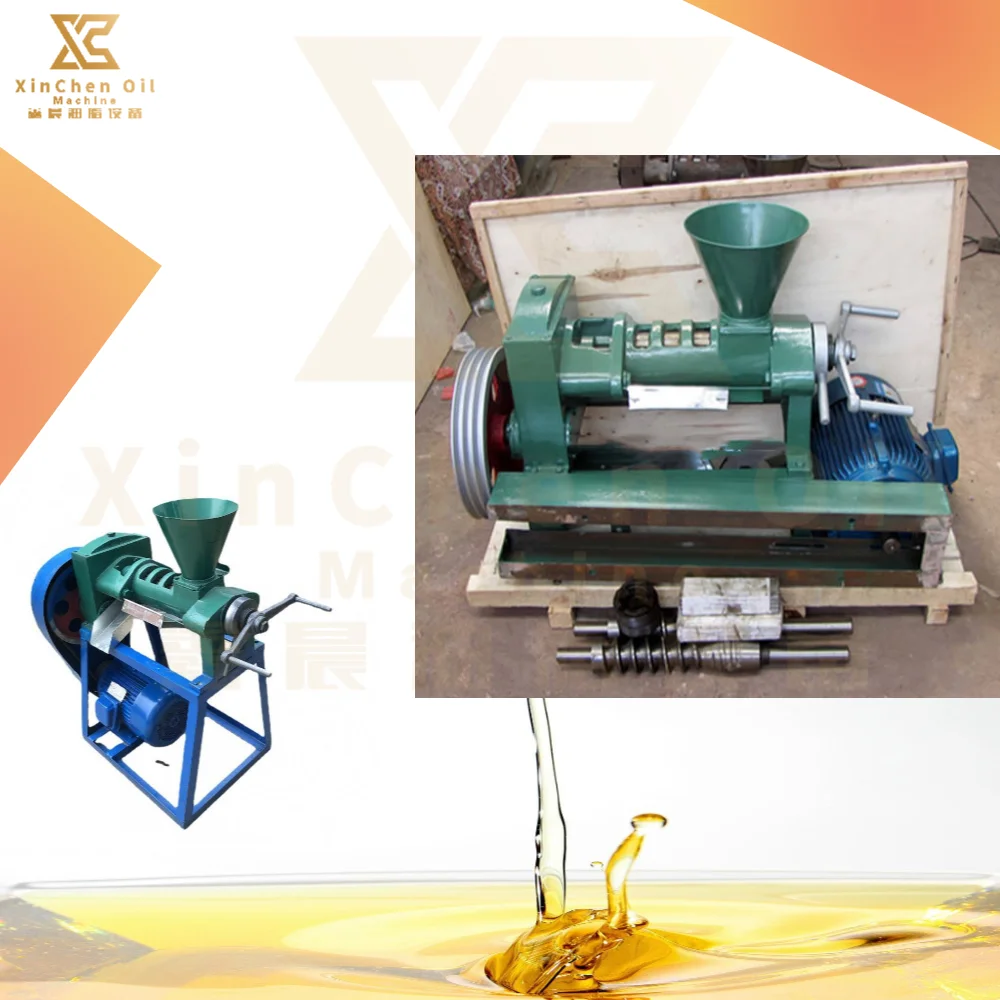

Packing & Shipping
