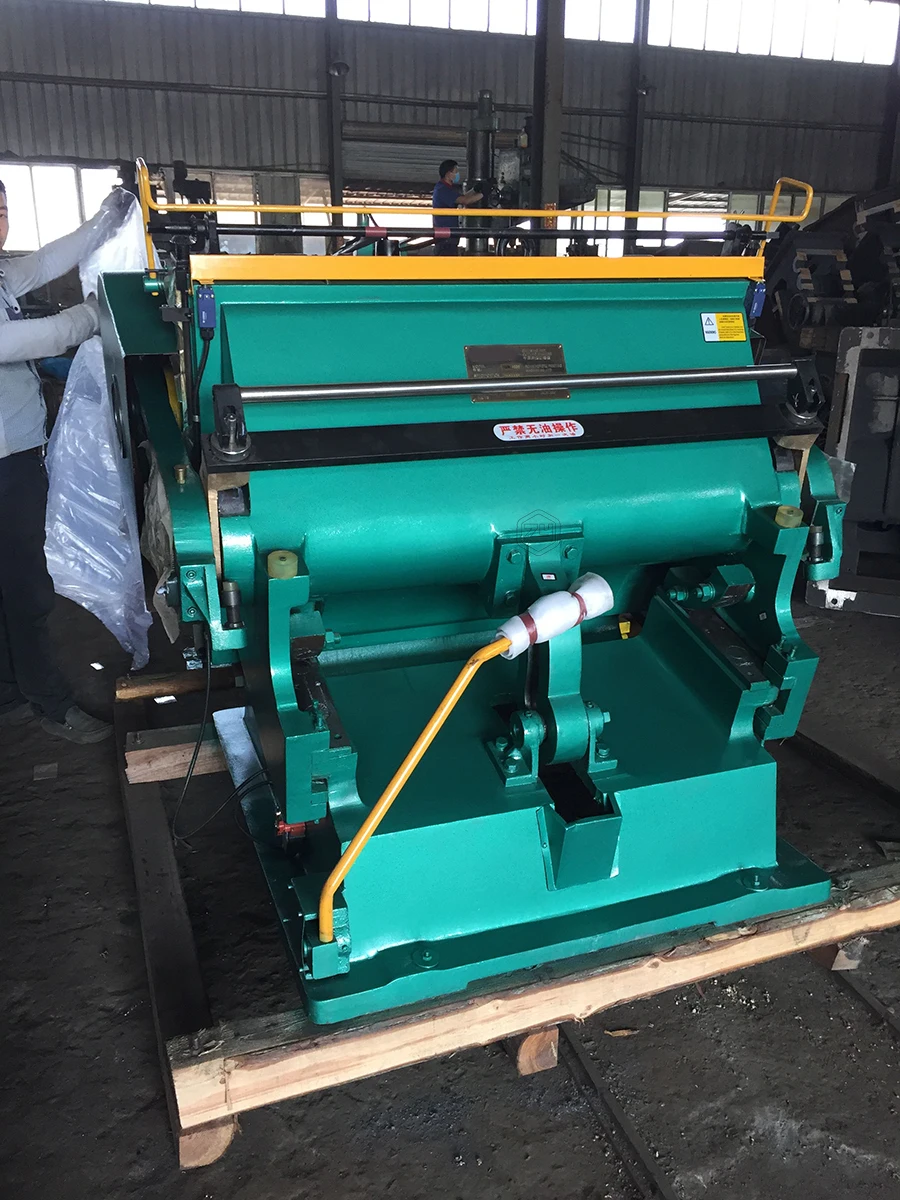

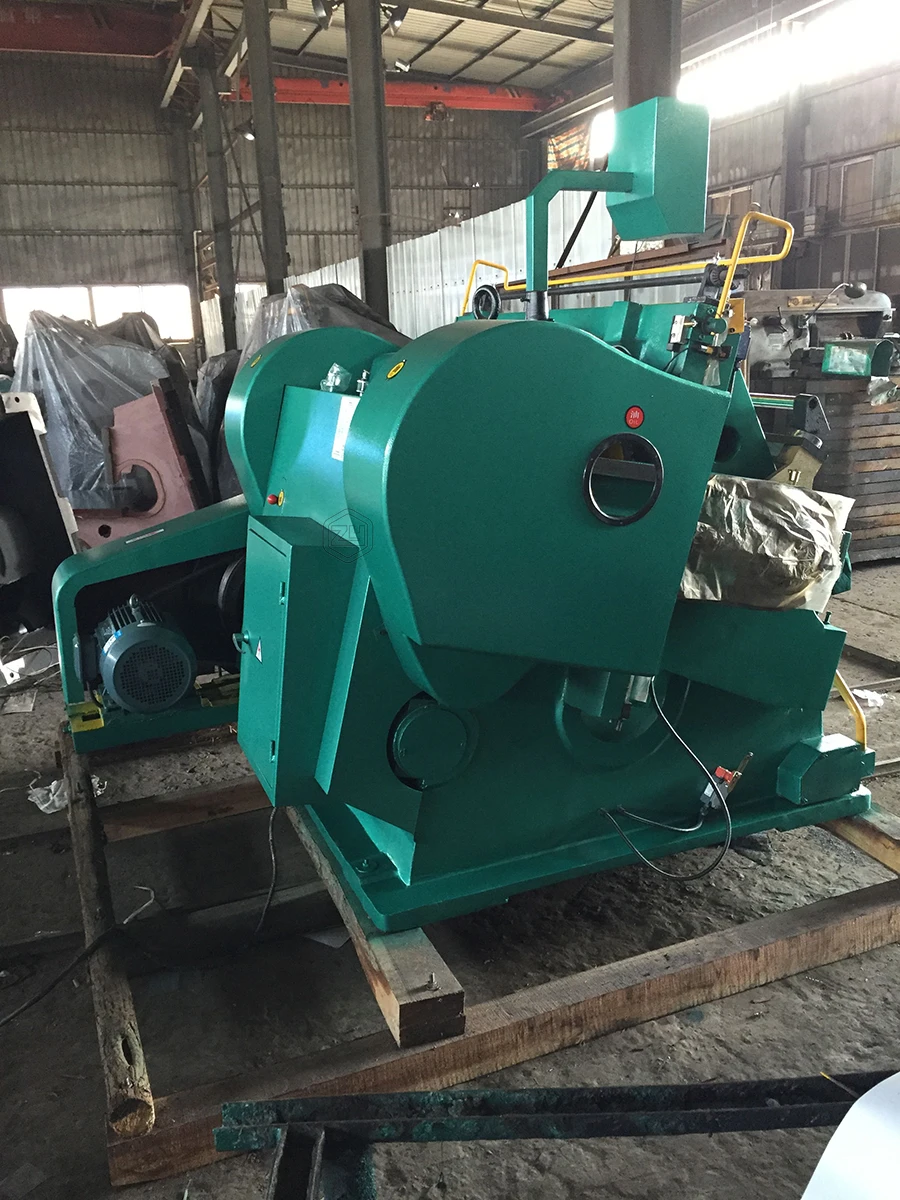

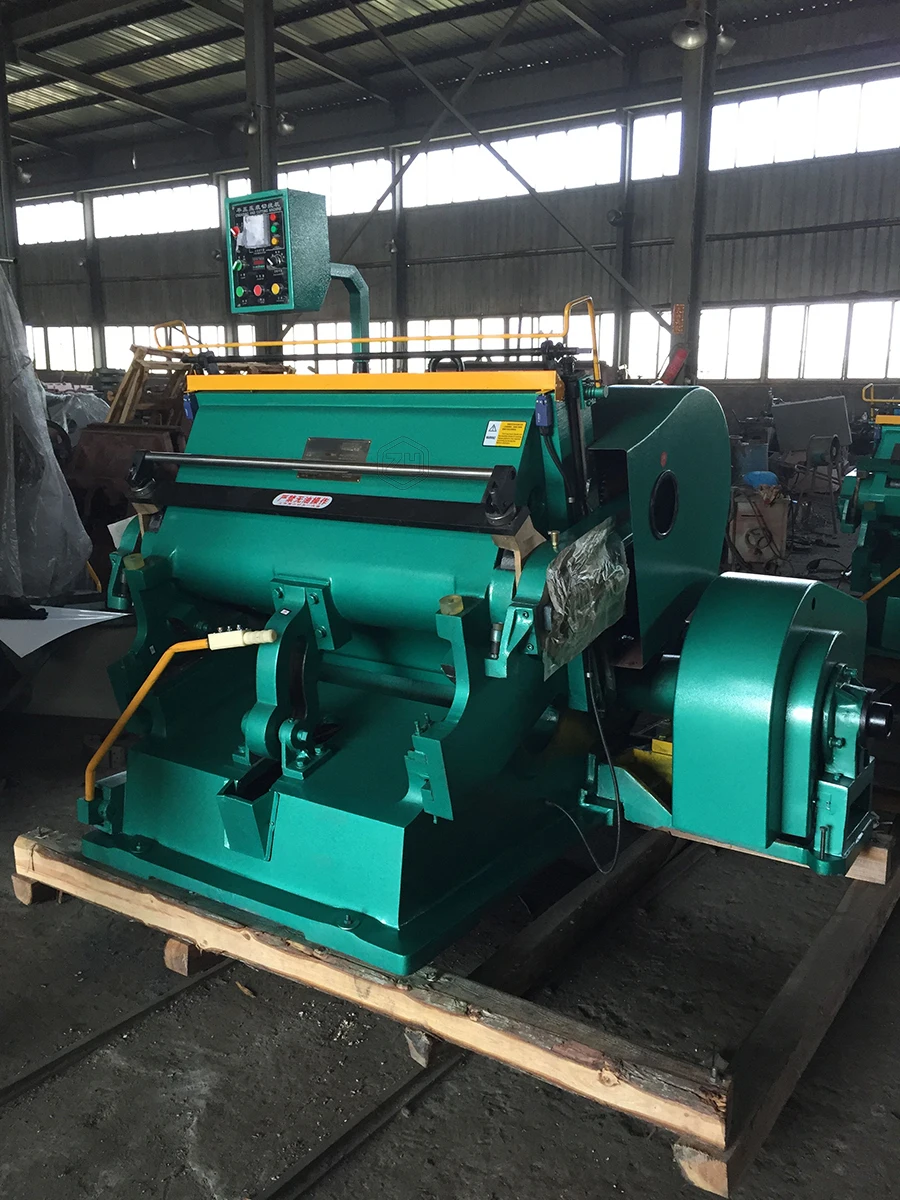

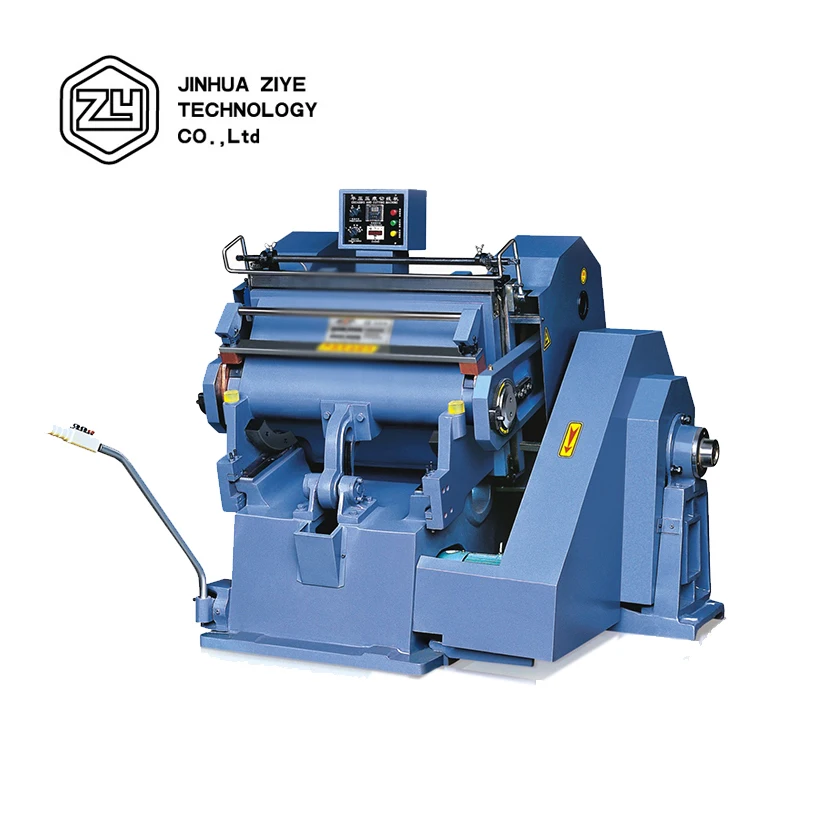

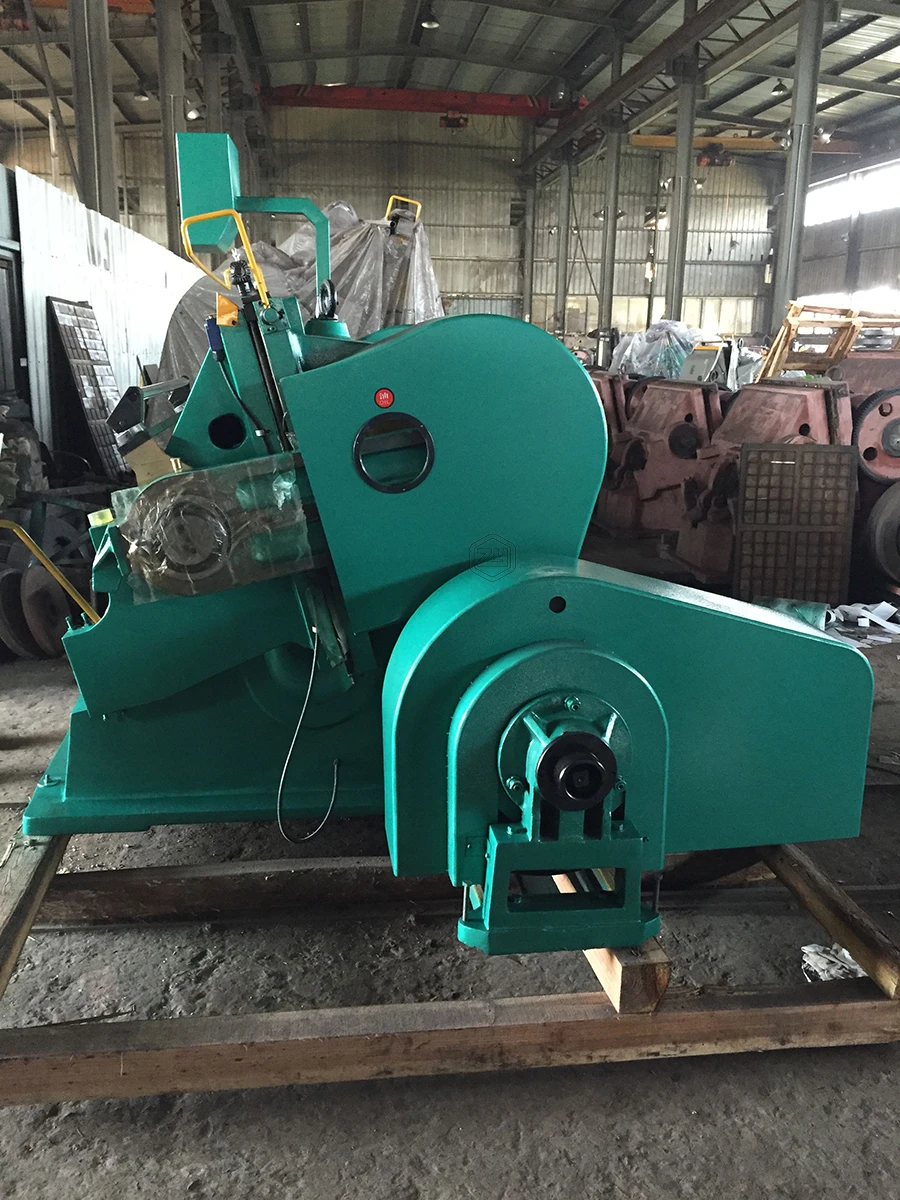

ML1100 Automatic Creasing Die Cutting Machine Jigsaw Puzzle Flat Press Die Cutting Machine Box Die-cutter Machinery

Creasing and Cutting Machine is a special equipment for creasing and cutting ordinary cardboard corru-gated board plastic and leather ingeneral, applicable to printing packaging decoration and plastic industries. Machine is characterized by compact strrctute, fine workmanship,big pressure,high precision and easy and reliable operation, etc.

Feature:

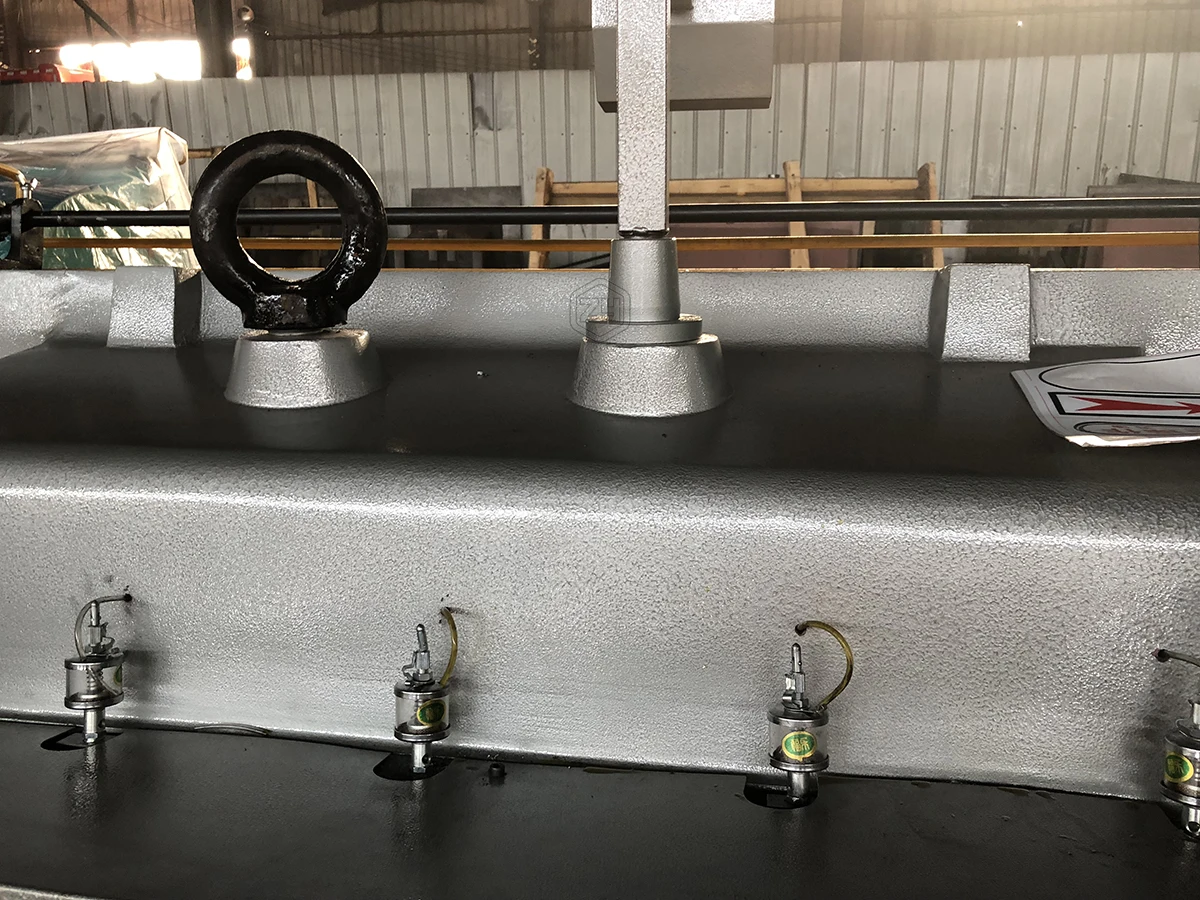

1.Sliding bearings are made of high quality alloy cooper,thus to get effect of anti-frietion and shake reducing.
2.Flywheel is with big moment of force and large pressure.
3.High strength due to one piece casting by using top-ranking material for machine body.
4.Single plate electromagnetic clutch is sensitive and reliable.
5.With functions of single, continuous and opening dwell operation, dwell range is adjustable.
6.Operating position is reasonably arranged,moving-bed can be opened to its optimum.

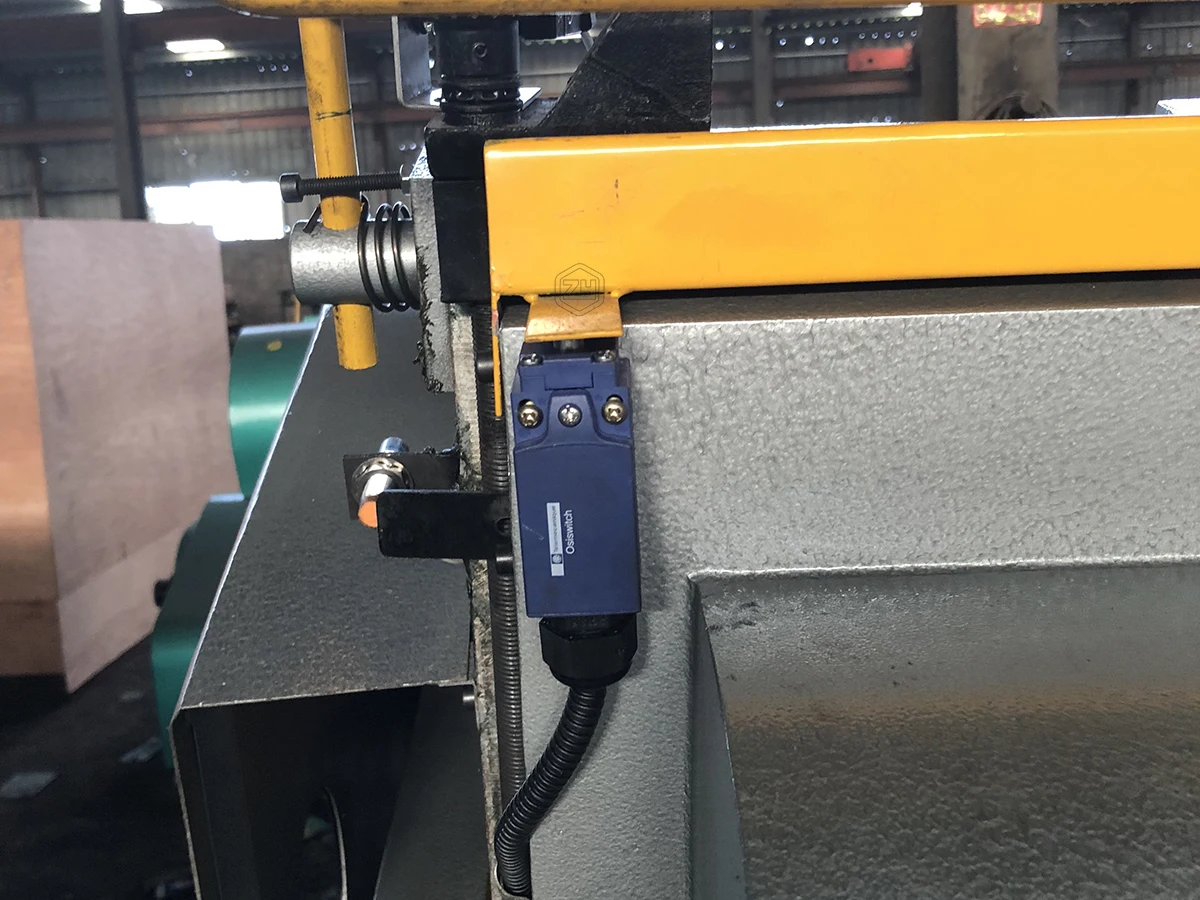

7.Safety system is reliable.

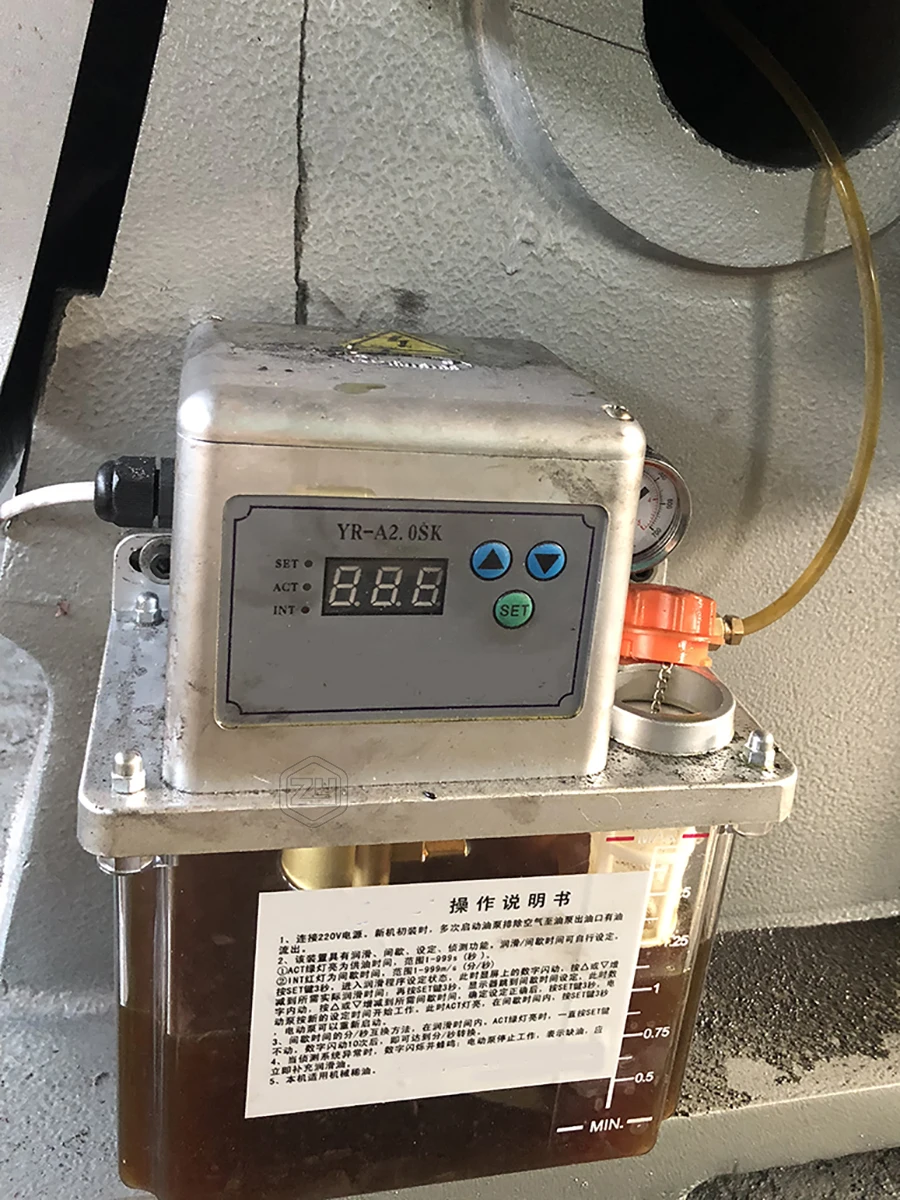

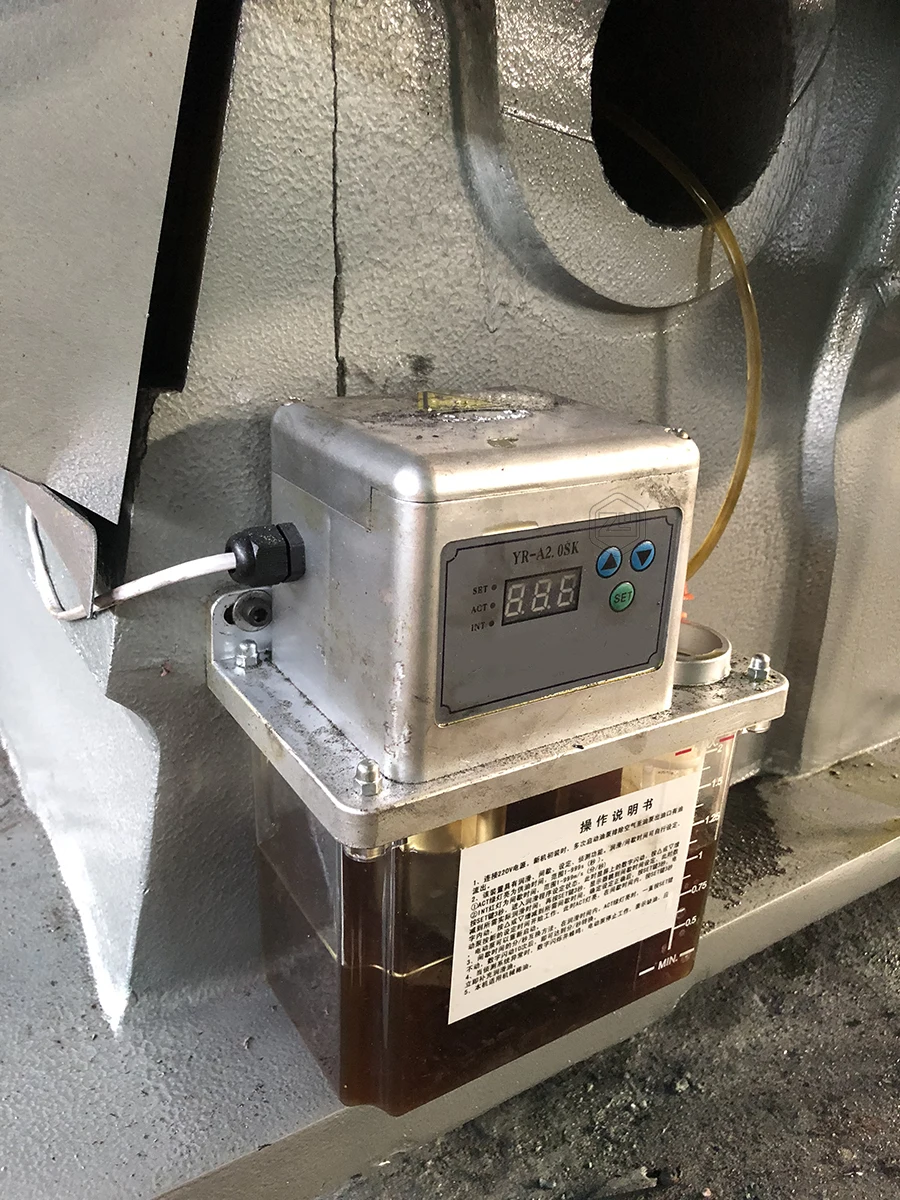

8.Can equip inner and outer movable frame and centrailzed lubrication device.




Color Choice:

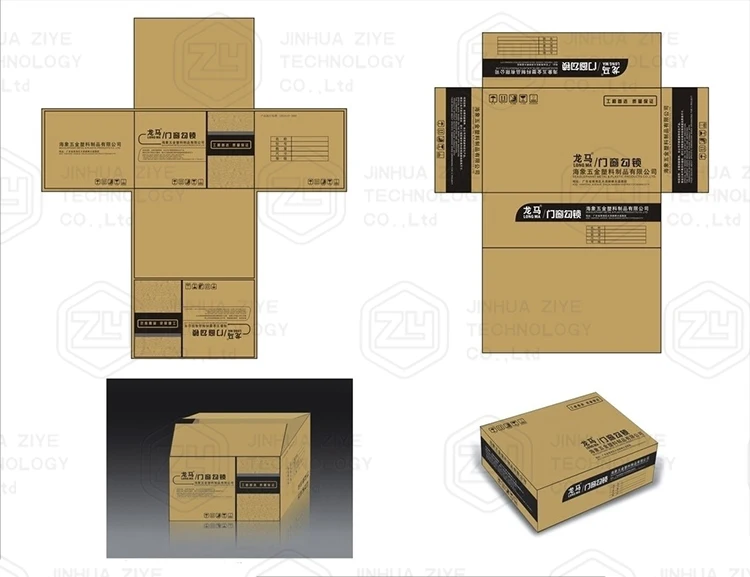

Samples






Product Paramenters


Model
Inner chase size
Speed
Max. rule length
Motor power
Dimensions
Weight
ML750
750*520mm
25±3 strokes/min
＜15m
2.2KW
1450*1600*1450mm
2000 kgs
ML930
930*670mm
23±3 strokes/min
＜25m
4KW
1650*1880*1700mm
3000 kgs
ML1100JL
1100*800mm
20±2 strokes/min
＜32m
4KW
1950*2150*1850mm
4500 kgs
PYQ230CE
930*670mm
23±3 strokes/min
＜30m
4KW
1750*1980*1700mm
3500 kgs
PYQ-203W
930*670mm
23±3 strokes/min
＜35m
5.5KW
2000*1950*1700mm
4000 kgs
PYQ-203C
930*670mm
23±3 strokes/min
＜25m
4KW
1650*1880*1700mm
3000 kgs
PYQ203A
930*670mm
23±3 strokes/min
＜30m
4KW
1750*1980*1700mm
3500 kgs
ML1040
1040*720mm
20±3 strokes/min
＜30m
4KW
1760*2000*1750mm
3500 kgs
ML1100
1100*800mm
20±2 strokes/min
＜32m
4KW
1950*2150*1850mm
4500 kgs
ML1100A
1100*800mm
20±2 strokes/min
＜37m
4KW
1950*2150*1850mm
4600 kgs
ML1200
1200*820mm
20±2 strokes/min
＜35m
4KW
2050*2150*1900mm
5000 kgs
ML1300
1300*920mm
16±2 strokes/min
＜40m
5.5KW
2350*2100*1950mm
6200 kgs
ML1400
1400*1000mm
15±2 strokes/min
＜45m
5.5KW
2450*2100*2000mm
6800 kgs
ML1500
1500*1040mm
14±2 strokes/min
＜48m
5.5KW
2550*2100*2100mm
7500 kgs
ML1600
1600*1250mm
13±2 strokes/min
＜50m
11KW
2780*2300*2400mm
12000 kgs
ML1800
1800*1300mm
13±2 strokes/min
＜60m


11KW

2980*2300*2500mm
14000 kgs
ML2000
2000*1400mm
13±2 strokes/min
＜65m
15KW
3180*2400*2580mm
16000 kgs
ML2200
2200*1400mm
13±2 strokes/min
＜70m
15KW
3380*2400*2580mm
18000 kgs
ML2500
2500*1500mm
11±2 strokes/min
＜80m
22KW
3680*2500*2580mm
20000 kgs

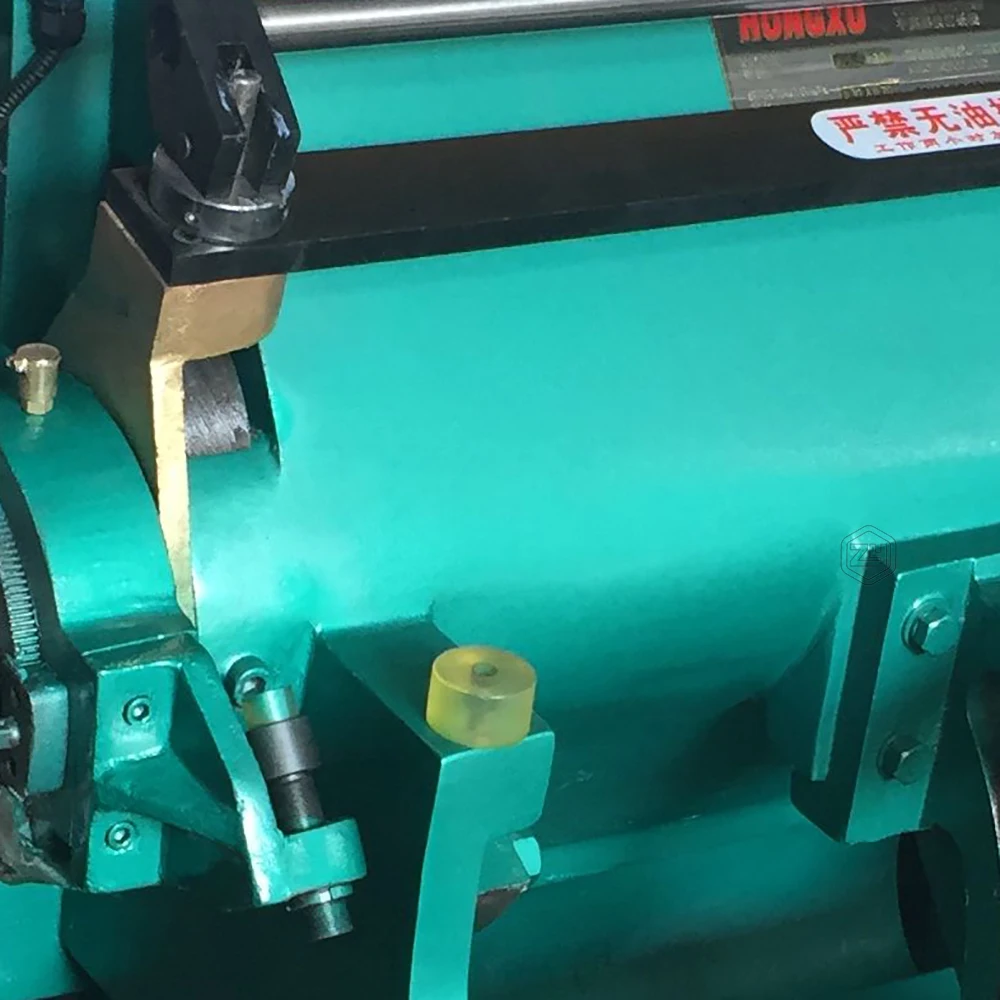

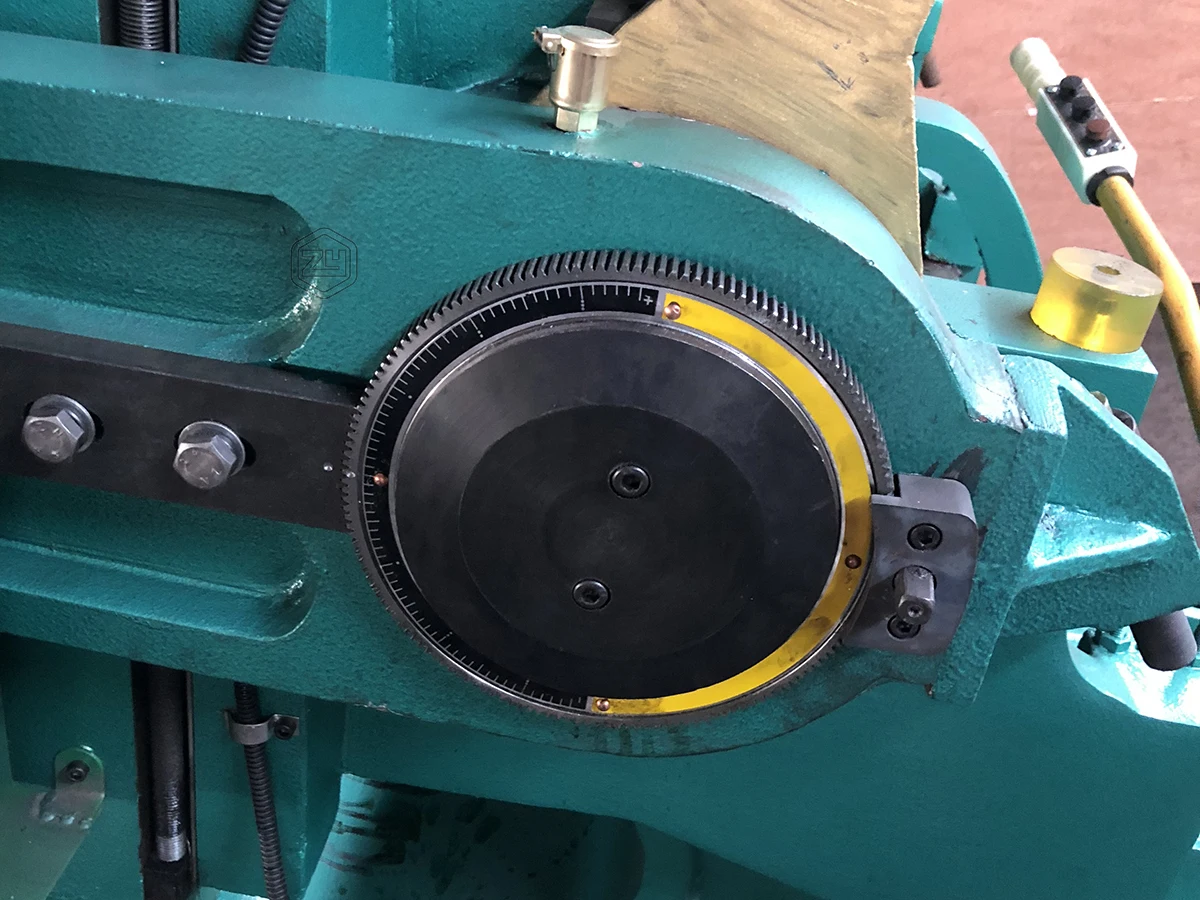

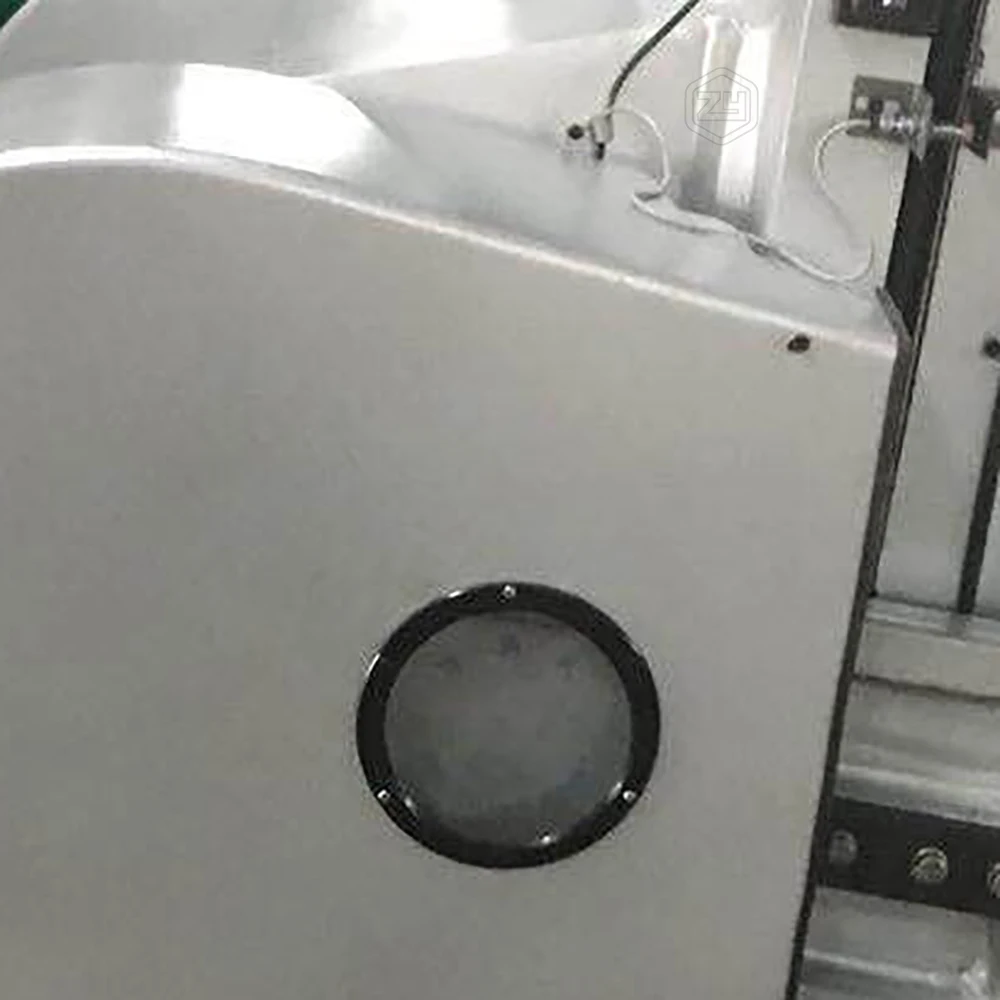

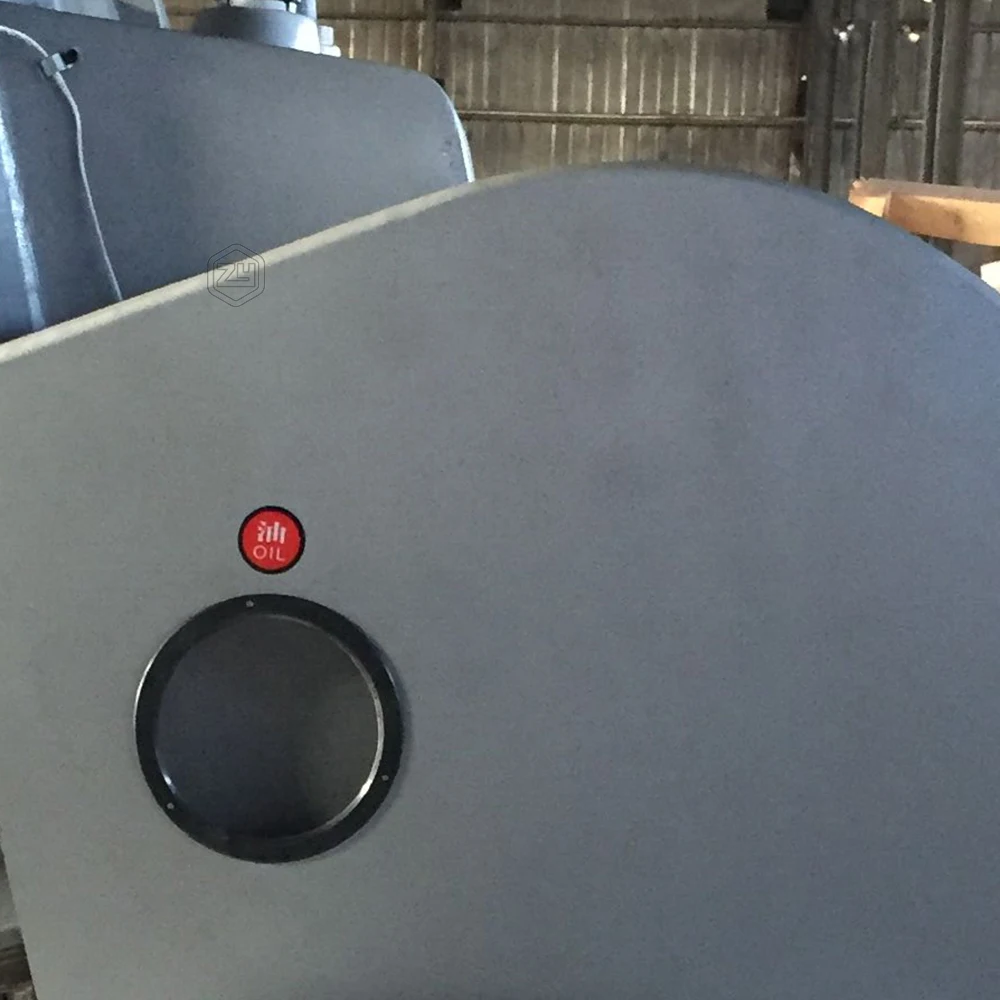

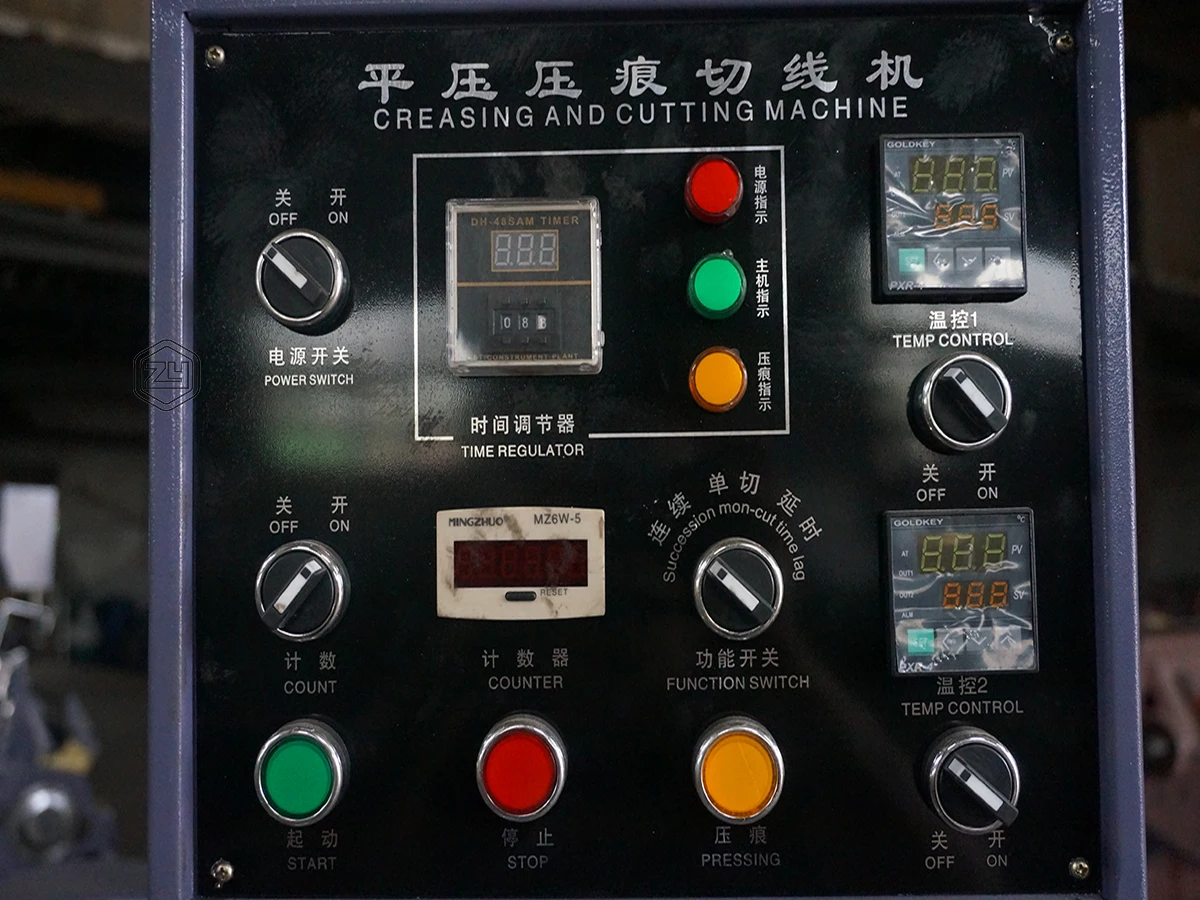

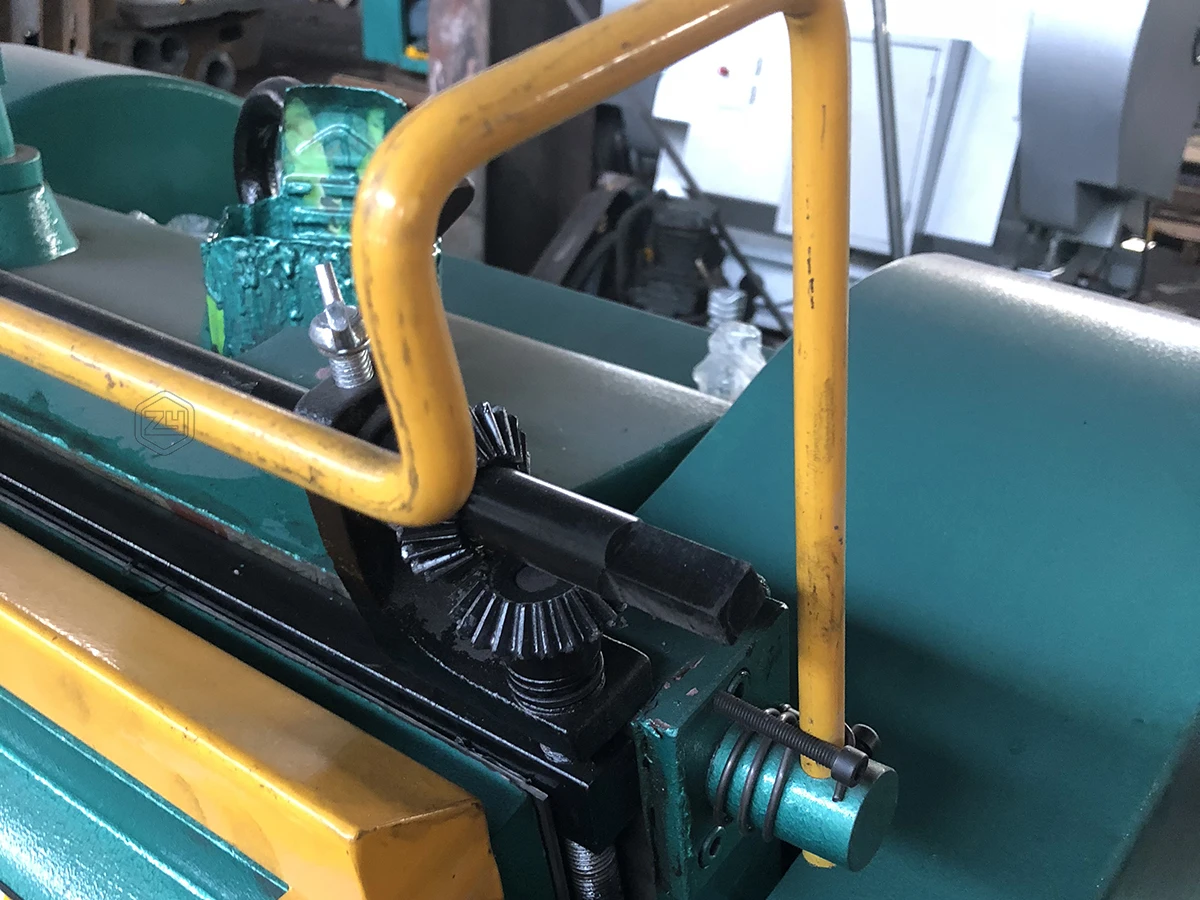

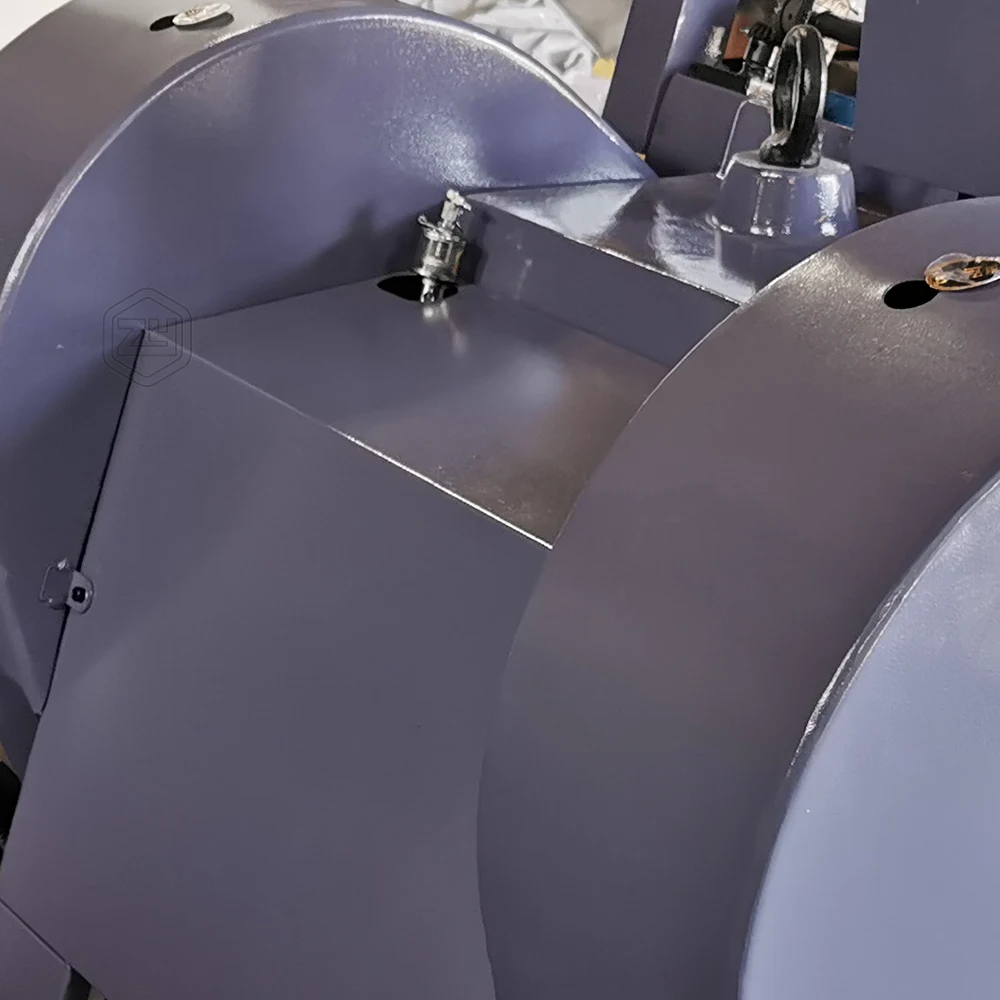

Details Images

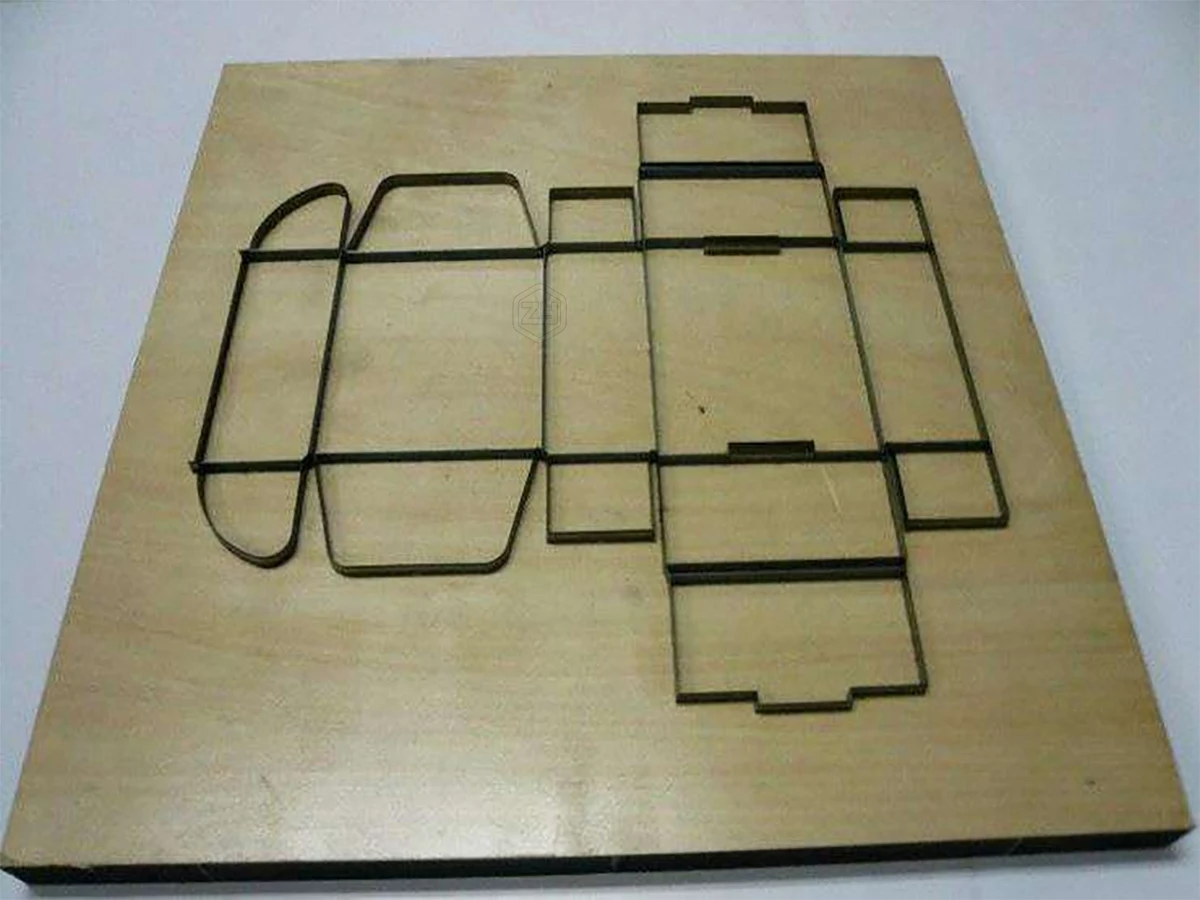

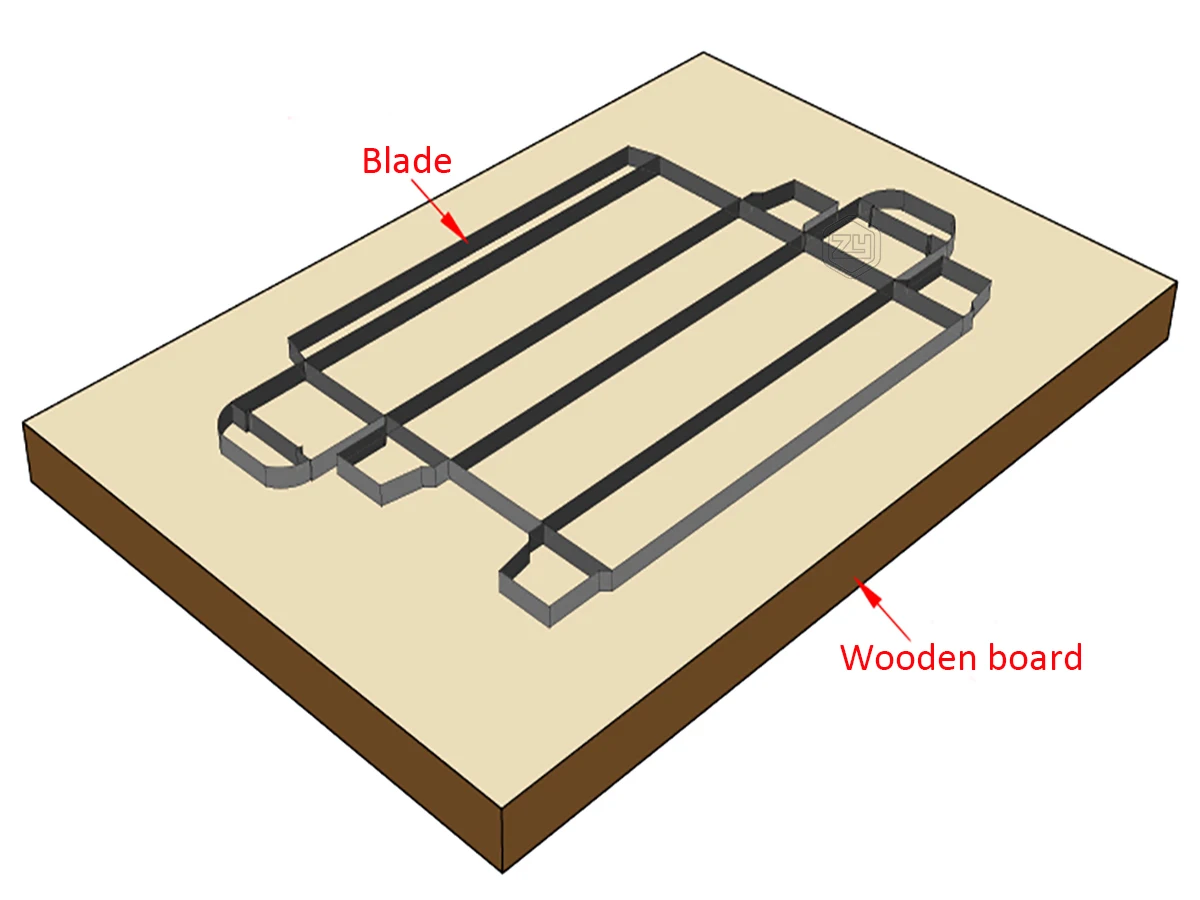

Plank knife:




Company Profile


Jinhua Ziye
professionally research and manufacture flexo printing machine, label die cutting machine, label slitting machine and
some related series products, we pay attention to talents and the technical innovation, insist on “technical innovation, national
brand” as development strategy, to make company as the leader in after printing machinery line.

Sincerity, quality,service is our operation principle, to be brave, aggressive, pragmatic, efficient is our company spirit. We
research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

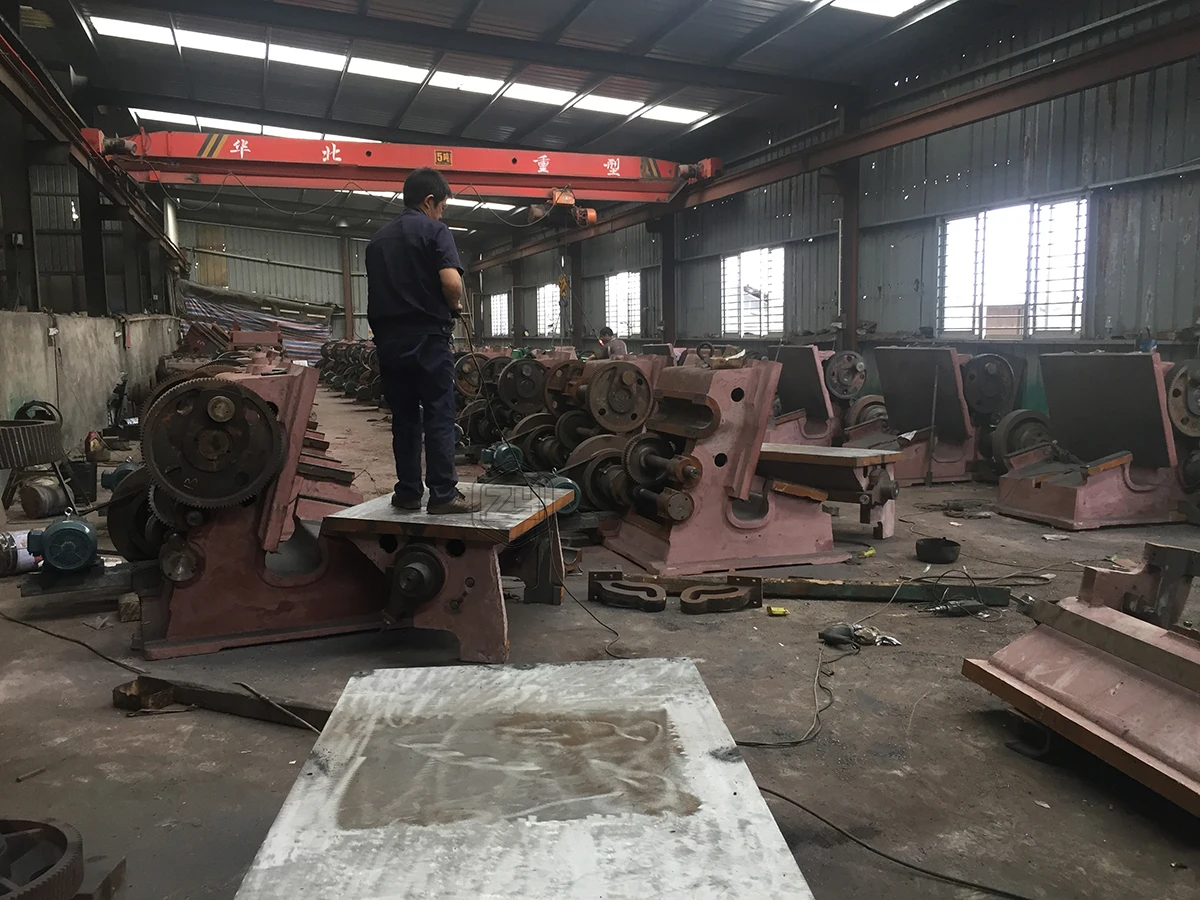

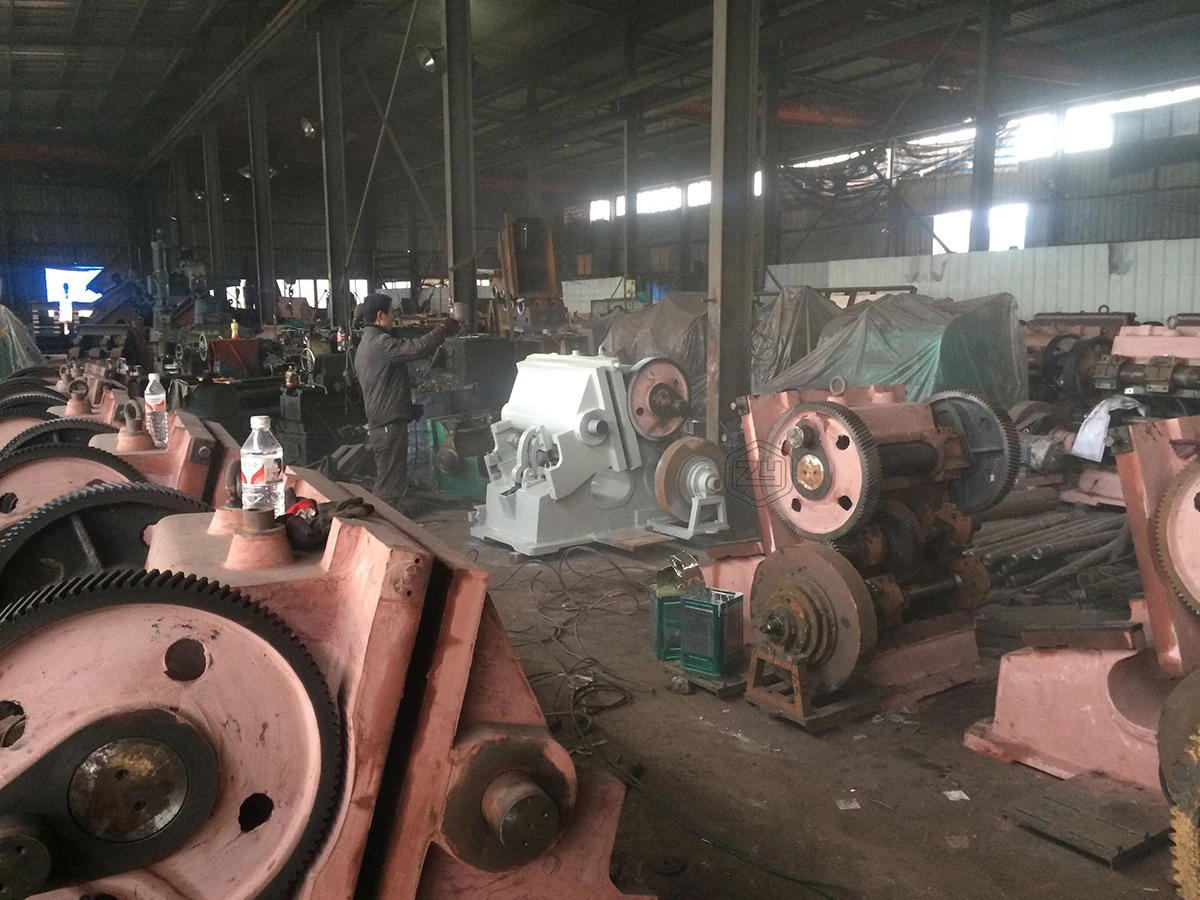

Why Choose Us

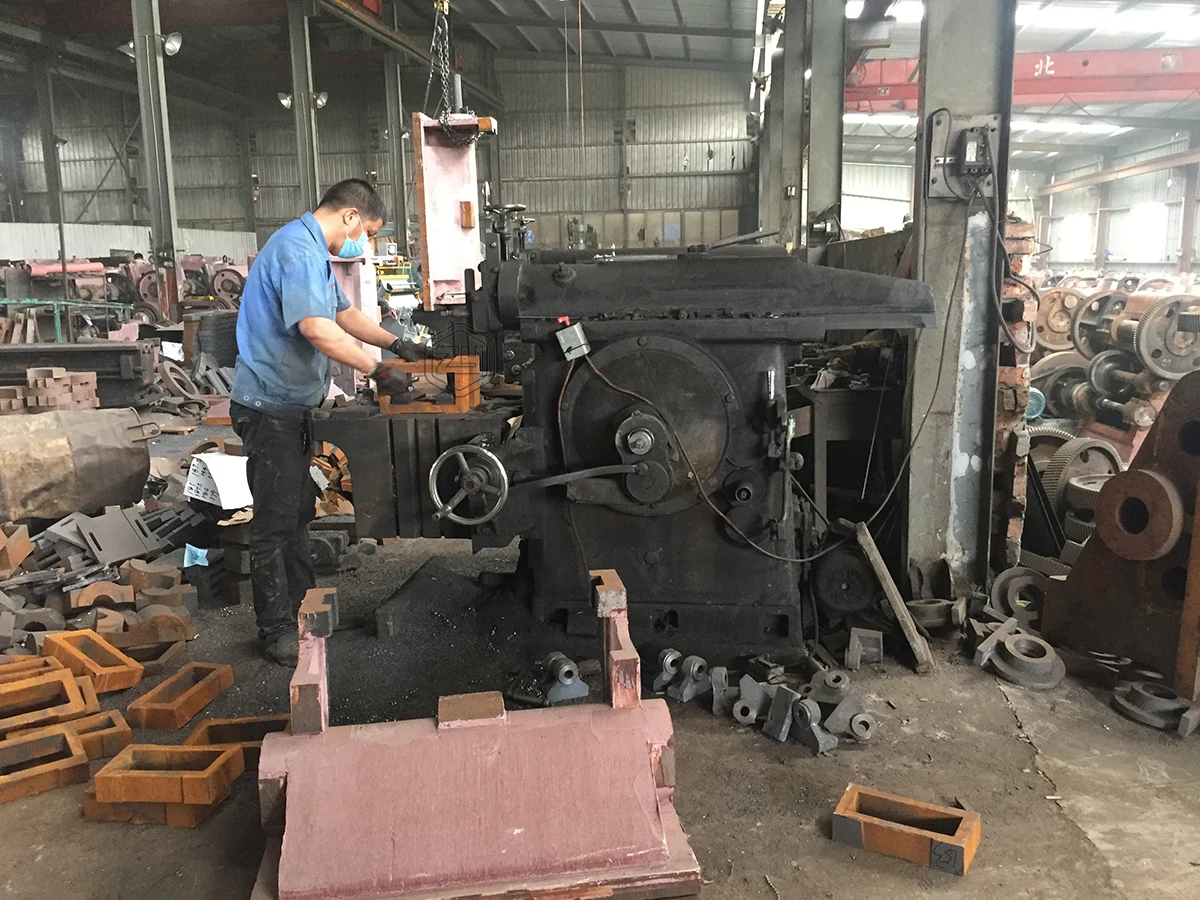

Professional Team

For die cutting machine, we can provide you in 5-20days.

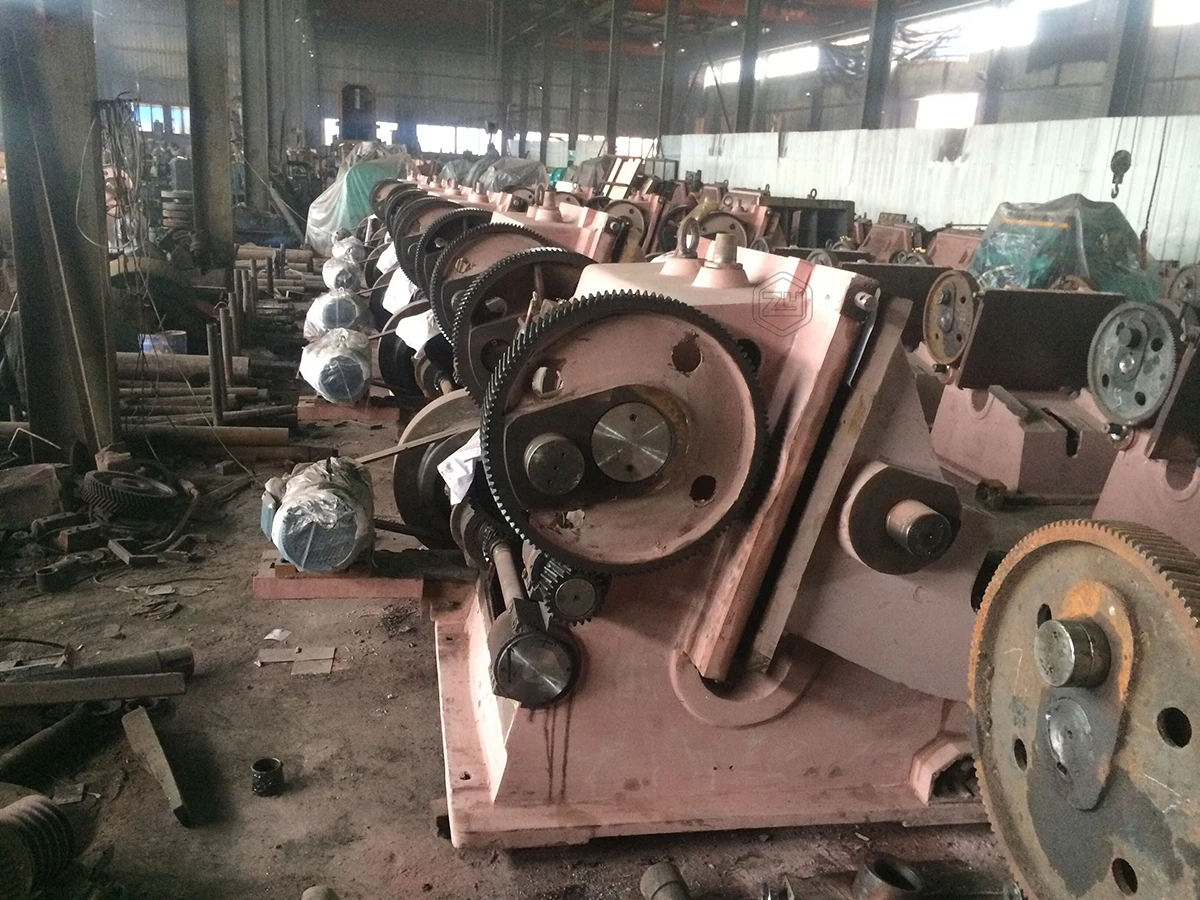

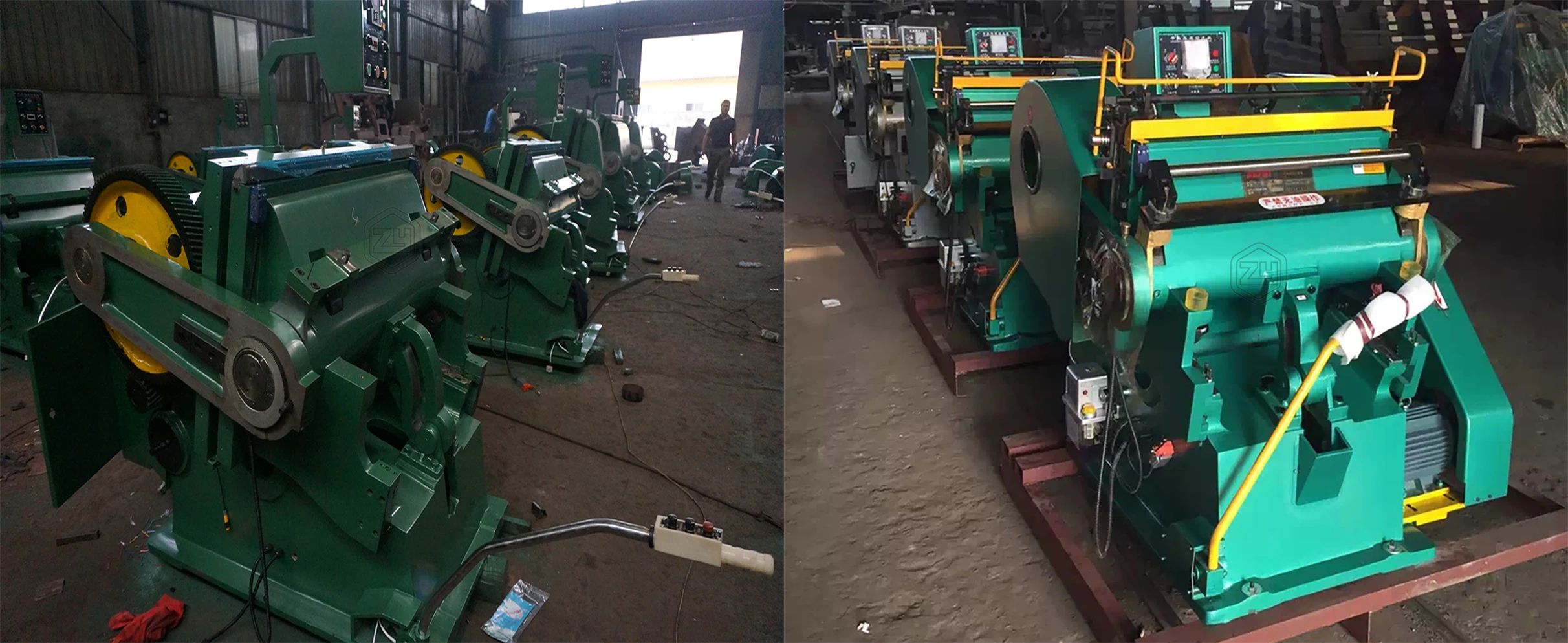

Factory Monthly Output is 50 sets.
Because we have professional production team over 50 persons. Now let me introduce our Professional Team to you.


Package:




We Promise Machine Will be Packed:

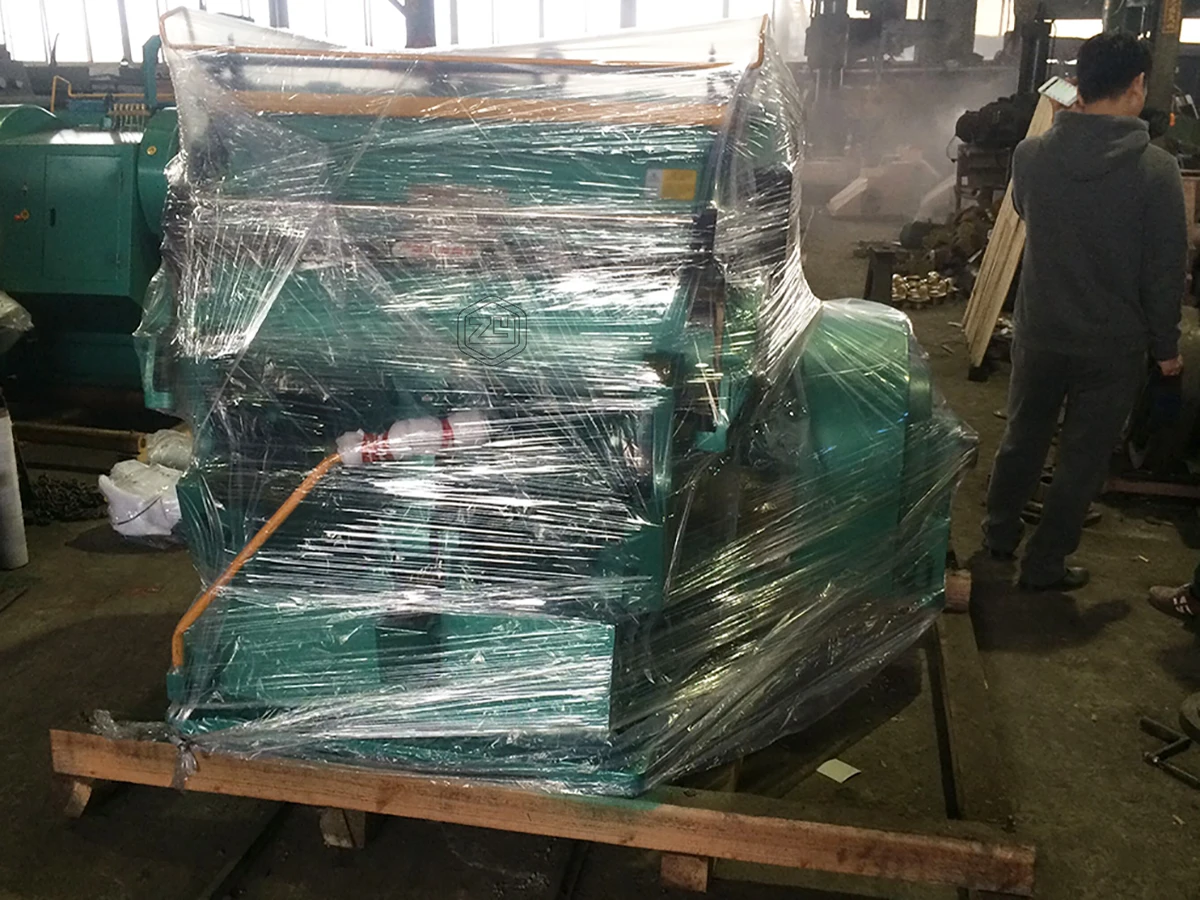

Interior: Wraping Film to keep dry and prevent from rusty

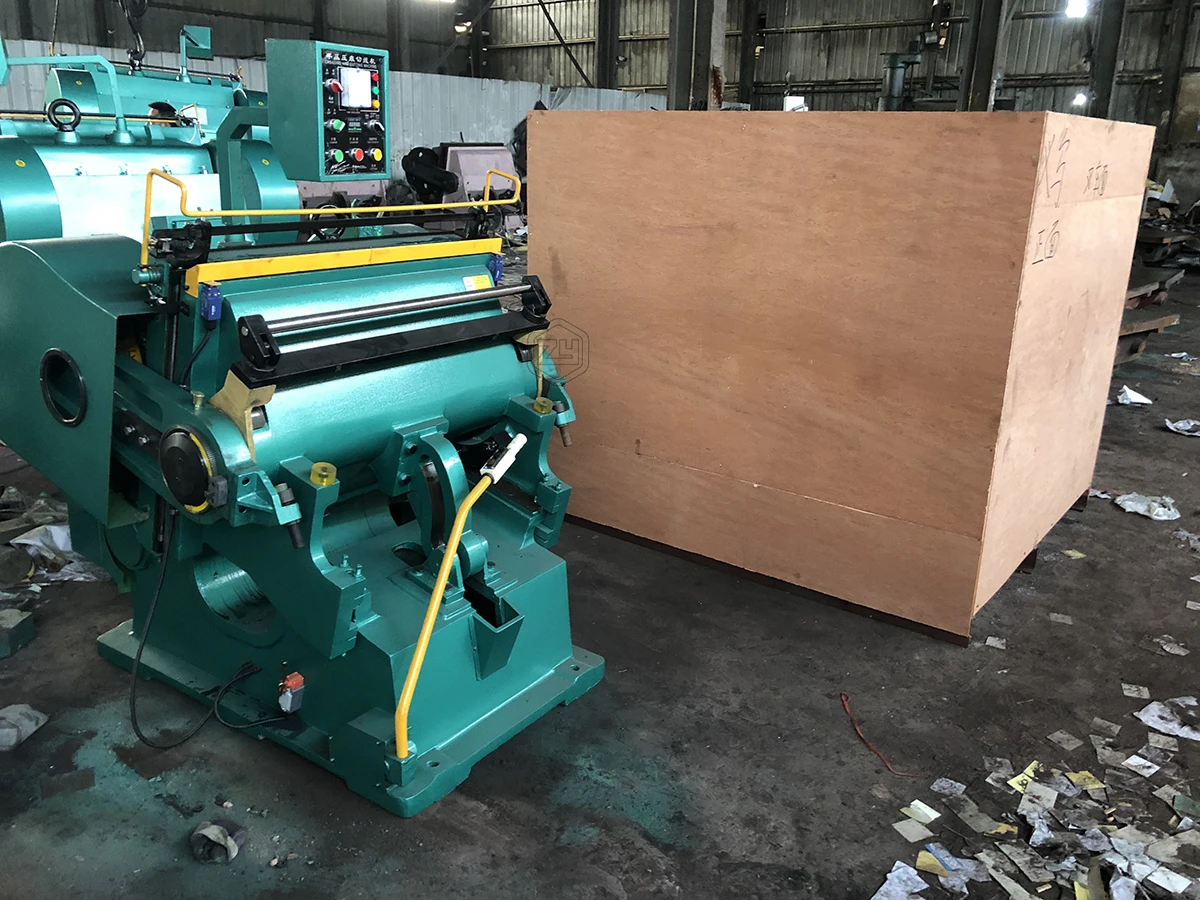

Outer: Sea-Worthy Wooden Case to keep machine safe in delivery.
Machine will be covered by Oil to prevent Rusty in delivery
