Filling Machine For Perfume Glass Bottles Perfume making machine for Perfume Bottle
- Category: >>>
- Supplier: Shenzhen Yason General Machinery Co. Ltd.
Share on (1600626558533):
Product Overview
Description
Product Description

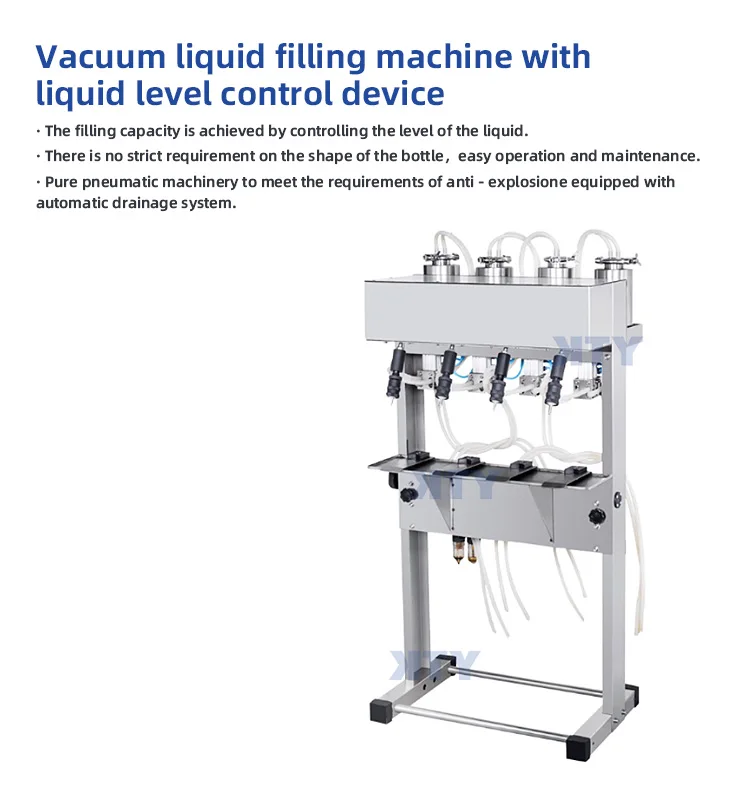

1. The level control liquid filling machine is negative pressure type semi-automatic filling machine, mainly used in cologne, perfume, lubricating oil, detergent, such as liquid filling material.
2. There are two kinds of models, double head and four heads type.
3. It has a definite way of liquid level measurement performance, liquid level height can be adjusted.
4. The machine structure is compact and reasonable, simple operation, easy maintenance, and material contact parts made of 304 stainless steel.
5. It is suitable for filling glass bottles and plastic bottles which are not easy to deform after vacuum.
3. It has a definite way of liquid level measurement performance, liquid level height can be adjusted.
4. The machine structure is compact and reasonable, simple operation, easy maintenance, and material contact parts made of 304 stainless steel.
5. It is suitable for filling glass bottles and plastic bottles which are not easy to deform after vacuum.
Product Paramenters
Model | YTK-4HPF |
The height of bottle | ≤250mm |
Max diameter of the bottle | ≤Φ35mm |
Min diameter of the bottle | ≤Φ4.5mm |
Adjustable liquid level height(from the bottle) | 15-50mm |
Liquid level accuracy | ±1mm |
Capacity | 40 pcs/min |
Dimension(not including the liquid storage pot)(L*W*H) | 660*470*1330mm |
Working temperature | 0-30℃ |
Power | 0.75kw |
Air pressure | 0.5-0.8MPa |
Pumping speed | 5.5L/S |

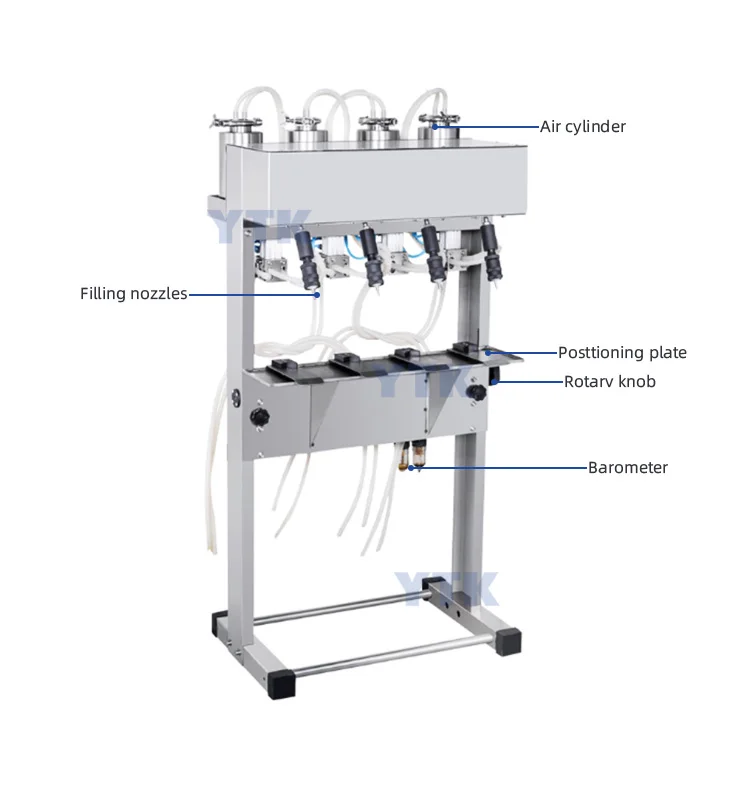

Detailed Images

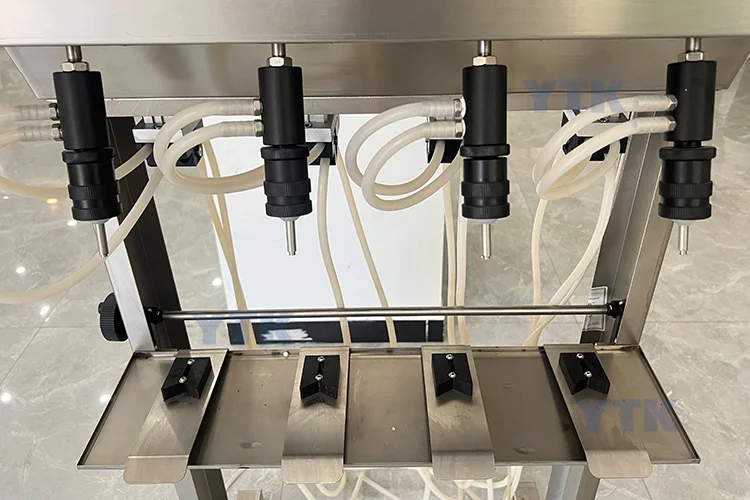

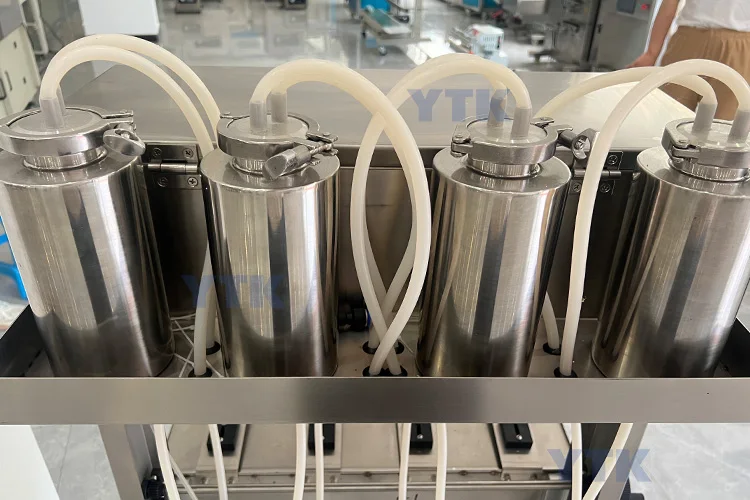

Use the vacuum constant liquid-level working principle,fill liquid accurately.If the liquid level is over the position that marked by red line,the machine will suck the extra liquid and make it back flow to the material container.The filling nozzle can be controlled separately and the adjustable liquid-level is about 15-30mm (from the bottle opening).
Larger air cylinder ensure the power for filling liquid,help to improve filling speed,can fill 20-60 bottles/min.

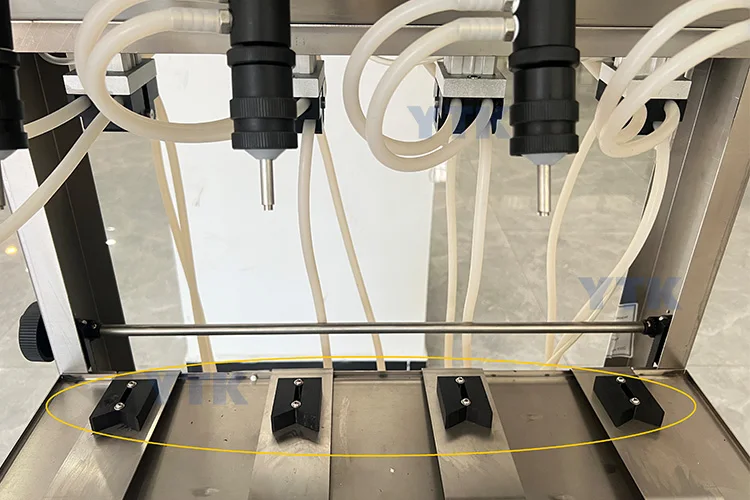

Positioning plate is designed to position the container,ensure it is vacuum when you filling liquid.Help to improve filling accuracy.

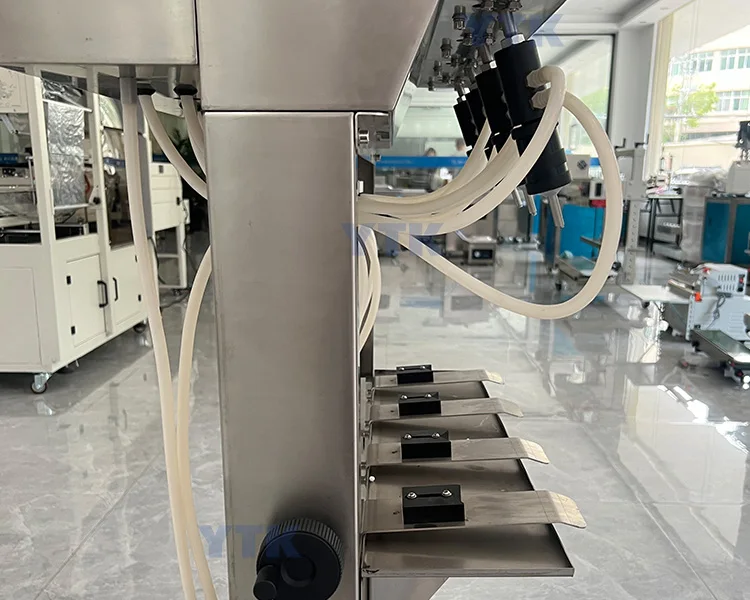

The right side rotary knob can be used to adjust the height of bottle holder,it is easy to operate.
Company Profile
Product packaging
Recommend Products
Fully automatic label machine for automatic label machine price for round bottles Wine Juice Bottle Desktop Labeling Machine
Glass Bottle Beer Single Head Plastic Cover Table Electric Capping Machine
2 Nozzles Carbonated Beverage Liquid And Capping Automatic Bottle Filling Machine
FAQ
Q1: Are you factory or trading company?
A: We are factory or manufacturer.
Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.
Q6.What's the payment terms and trade terms for new customers?
A: Payment terms:30% T/T DEPOSIT PAYMENT IN ADVANCE,BALANCE 70% AGAINST COPY OF B/L.WESTERN UNION,LC ARE ACCEPTABLE.
Q7:What's the Minimum Order Quantity and warranty?
A:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
A: We are factory or manufacturer.
Q2: Can you guarantee your quality?
A: Of course. We are the manufacture factory. More importantly, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.
Q3: What should I do if we are not able to operate the machine when we receive it?
A: Operation manual and video demonstration sent along with the machine to give instructions. Besides, we have professional after-sale group to customer 's site to solve any problems.
Q4: How could I get the spares on machines?
A:We will send extra sets of easy broken spares and accessories like O ring etc. Non-artificial damaged spares will be sent freely and shipping free during 1 year's warranty.
Q5: Is there any insurance which I pay for to guarantee I will get the right machine?
A: We are an onsite check supplier from Alibaba. Trade Assurance provides quality protection, ontime shipment protection and 100% safe payment protection. Our factory already highest stars of the grade.
Q6.What's the payment terms and trade terms for new customers?
A: Payment terms:30% T/T DEPOSIT PAYMENT IN ADVANCE,BALANCE 70% AGAINST COPY OF B/L.WESTERN UNION,LC ARE ACCEPTABLE.
Q7:What's the Minimum Order Quantity and warranty?
A:MOQ:1 set
Warranty:12 months,some customized products will be 24 months.
