LHS5 Rod End Joint Bearings LHS 5 Threas M5x0.8 Zinc Cast Alloy Spherical Plain Bearings LHS 5 L
LHS5 Rod End Joint Bearings LHS 5 Threas M5x0.8 Zinc Cast Alloy Spherical Plain Bearings LHS 5 L introduction :
Rod end ball joint types bearing, also known as a heim joint (N. America) or rose joint (U.K. and elsewhere), is a mechanical articulating joint. Such joints are used on the ends of control rods, steering links, tie rods, or anywhere a precision articulating joint is required. A ball swivel with an opening through which a bolt or other attaching hardware may pass is pressed into a circular casing with a threaded shaft attached. The threaded portion may be either male or female.

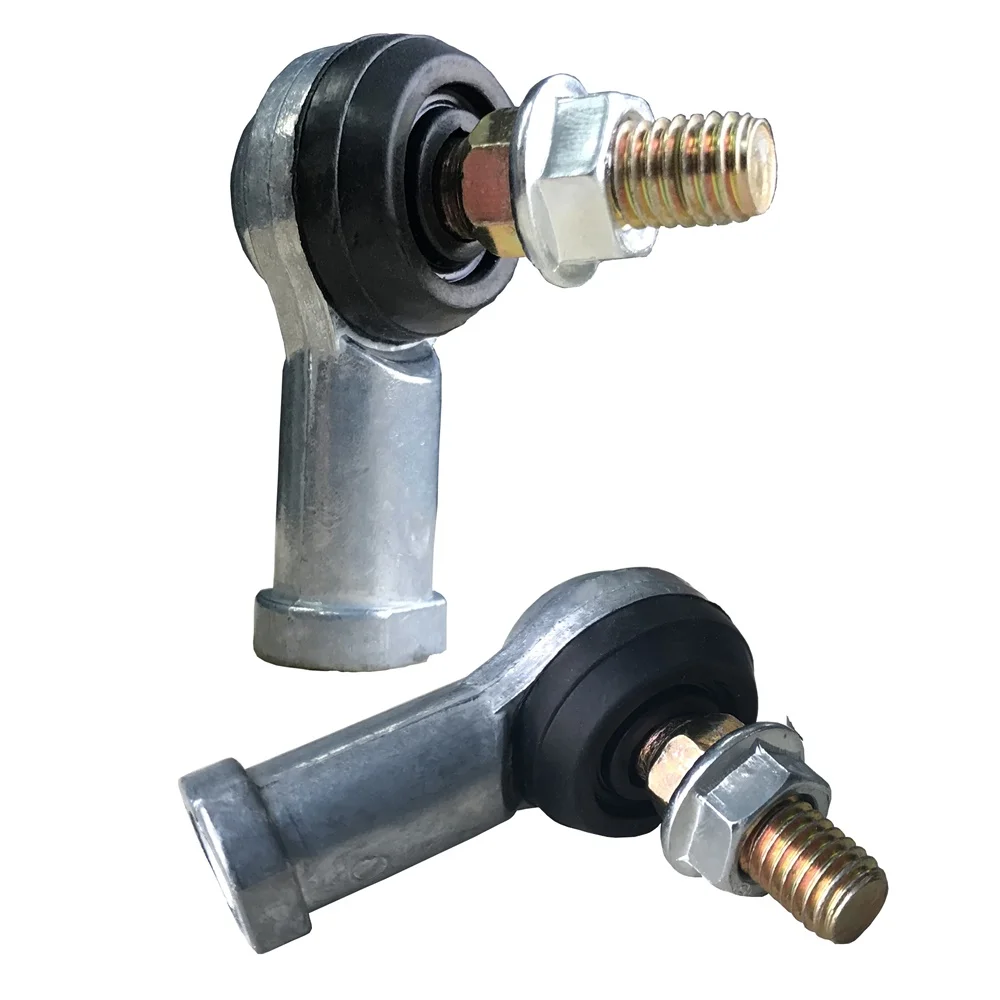

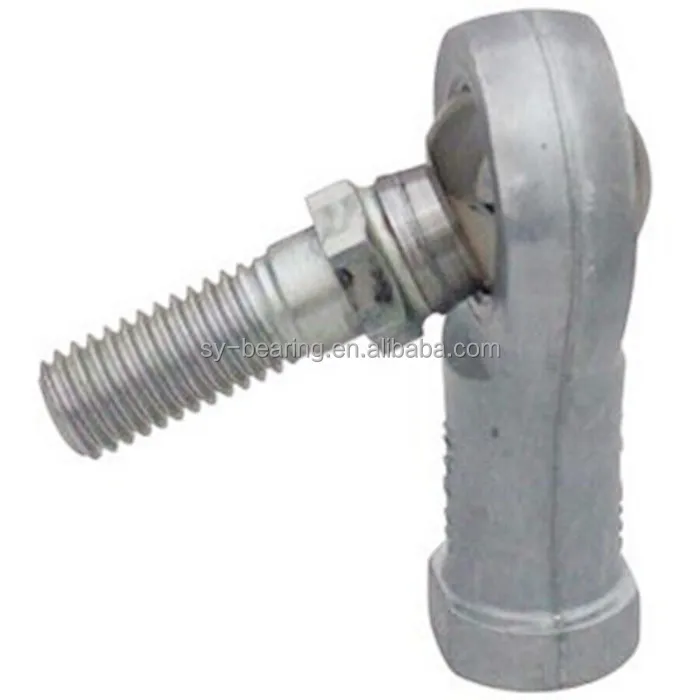

Radial spherical plain bearings LHS 5
Bearing number : LHS 5

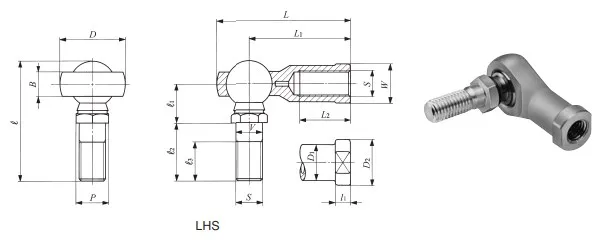

Bearing dimensions and specification in catalogue:
P - 8 mm
V - 5 mm
?1 - 10 mm
?2 - 15 mm
?3 - 11 mm
L2 - 16 mm
d3 - 11,112 mm
l1 min. - 4 mm
B - 6 mm
D - 17 mm
D1 - 9 mm
D2 - 11 mm
L - 35,5 mm
L1 - 27 mm
W - 9 mm
? - 30,5 Tolerance h14
Thread (G) - M5×0,8
Weight - 0,022 Kg

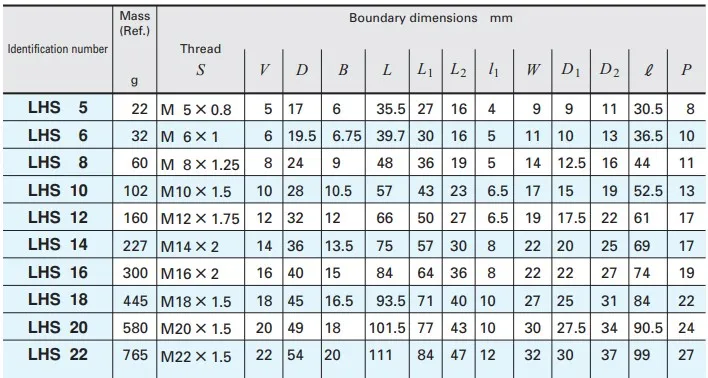

Rod end ball joint types bearings models series :
| Bearing No. | d | d3 | B | C1 | L |
| PHS4 | 4 | M4x0.7 | 7 | 5.25 | 8 |
| PHS5 | 5 | M5x0.8 | 8 | 6 | 10 |
| PHS6 | 6 | M6x1.0 | 9 | 6.75 | 12 |
| PHS8 | 8 | M8x1.25 | 12 | 9 | 16 |
| PHS10 | 10 | M10x1.5 | 14 | 10.5 | 20 |
| PHS10-1 | 10 | M10x1.25 | 14 | 10.5 | 20 |
| PHS12 | 12 | M12x1.75 | 16 | 12 | 22 |
| PHS12-1 | 12 | M12x1.25 | 16 | 12 | 22 |
| PHS14 | 14 | M14x2.0 | 19 | 13.5 | 25 |
| PHS14-1 | 14 | M14x1.5 | 19 | 13.5 | 25 |
| PHS16 | 16 | M16x2.0 | 21 | 15 | 28 |
| PHS16-1 | 16 | M16x1.5 | 21 | 15 | 28 |
| PHS18 | 18 | M18x1.5 | 23 | 16.5 | 32 |
| PHS20 | 20 | M20x1.5 | 25 | 18 | 33 |
| PHS22 | 22 | M22x1.5 | 28 | 20 | 37 |
| PHS25 | 25 | M24x2.0 | 31 | 22 | 42 |
| PHS28 | 28 | M27x2.0 | 35 | 24 | 48 |
| PHS30 | 30 | M30x2.0 | 37 | 25 | 51 |
| PHS30-1 | 30 | M27x2.0 | 37 | 25 | 51 |
| POS5 | 5 | M5x0.8 | 8 | 6 | 20 |
| POS6 | 6 | M6x1.0 | 9 | 6.75 | 22 |
| POS8 | 8 | M8x1.25 | 12 | 9 | 25 |
| POS10 | 10 | M10x1.5 | 14 | 10.5 | 29 |
| POS12 | 12 | M12x1.75 | 16 | 12 | 33 |
| POS12-1 | 12 | M12x1.25 | 16 | 12 | 33 |
| POS14 | 14 | M14x2.0 | 19 | 13.5 | 36 |
| POS16 | 16 | M16x2.0 | 21 | 15 | 40 |
| POS16-1 | 16 | M16x1.5 | 21 | 15 | 40 |
| POS18 | 18 | M18x1.5 | 23 | 16.5 | 44 |
| POS20 | 20 | M20x1.5 | 25 | 18 | 47 |
| POS22 | 22 | M22x1.5 | 28 | 20 | 51 |
| POS25 | 25 | M24x2.0 | 31 | 22 | 57 |
| POS28 | 28 | M27x2.0 | 35 | 24 | 62 |
| POS30 | 30 | M30x2.0 | 37 | 25 | 66 |
Product Description
Packaging & Shipping
Bearing packages :
1) Inner Plastic Bag+ Paper Box + Carton(+Pallet);
2) Small sizes:Plastic Tube + Carton
3) Big sizes:Wooden Case
Application Industry
Widely used in metallurgy ,mining ,petroleum,chemical,coal,cement ,paper,windpower,heavy machinery ,enginnering machinery,port machinery and other industries.
