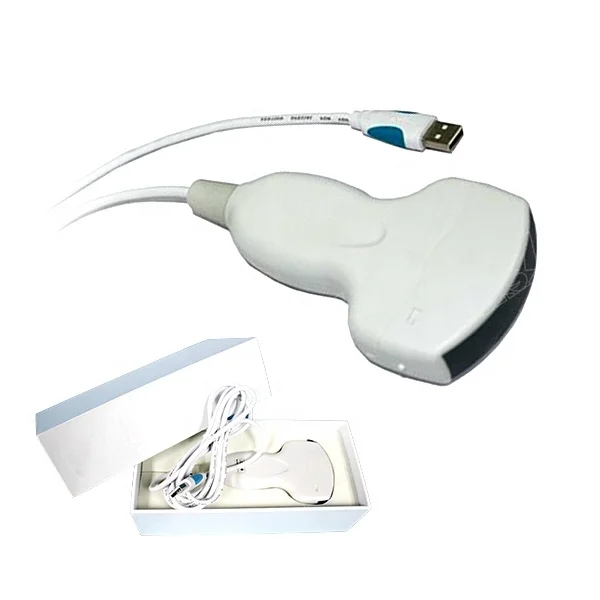

USB Linear Ultrasound scanner Mini USB convex probe /portable Ultrasound scanner for Ultrasound
- Category: >>>
- Supplier: Medsinglong Co. Ltd.
Share on (1600626620587):
Product Overview
Description
Product Description
2018 USB Linear Ultrasound scanner Mini USB convex probe /portable Ultrasound scanner for Ultrasound
It is so small and smart, convenient for carry and operation.
The brief introdction:
UProbe-20 Probe Type Ultrasound Scanner is work with computer(windows) or tablet/phone(Androi), connect by USB Cable.
It with very clear image.
Application Range:
In emergency clinical, hospital ward inspection, community clinical and outdoor inspect, an easy carried & operated
compact ultrasound such as ATNL-2L wireless probe is desired.
In addition, the wireless probe can be conveniently used in surgery without fixing of cables. And by using the
disposable protecting cover, it can easily solve the sterilization issue of the probe.
Also for powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine
Technical Parameter

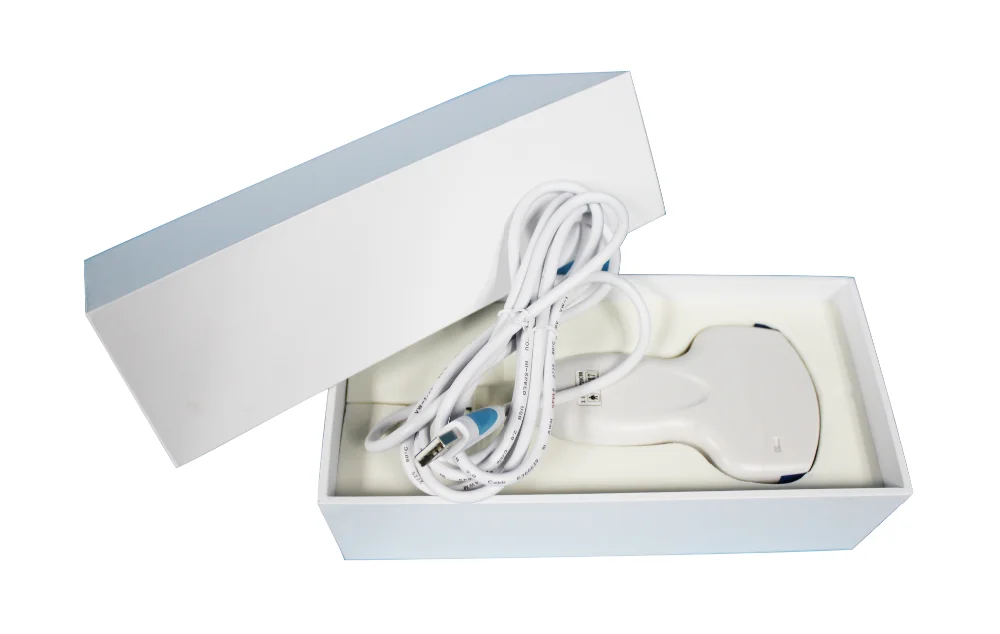

Standard Configuration:
-Main Host(probe) 1 Unit (Linear probe)
-Internal Battery and charge cable 1 Set
-Software Application
Feature:

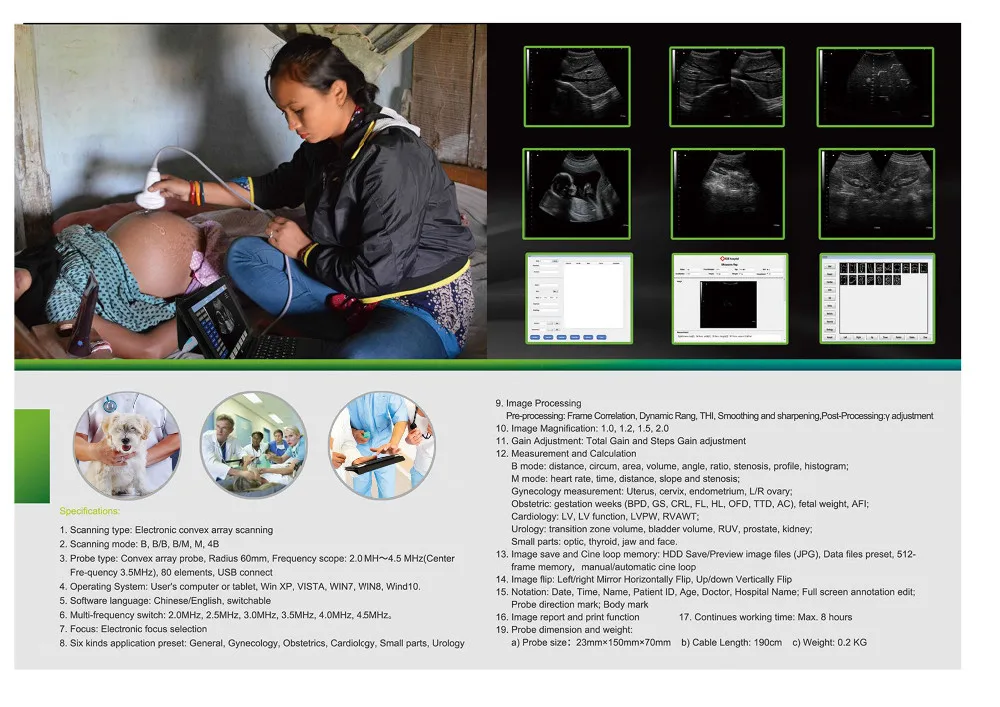

Specification:
Scanning type: | Electronic convex array scanning |
Scanning mode: | Scanning mode: B, B/B, B/M, M, 4B |
Probe type: | Convex array probe, Radius 60mm |
Frequency scope: | 2.0 MH~4.5 MHz(Center Frequency 3.5MHz, 80 elements, USB connect |
Operating System: | User's computer or tablet, Win XP, VISTA, WIN7, WIN8, Wind10. |
Software language: | Chinese/English, switchable |
Multi-frequency switch: | 2.0MHz, 2.5MHz, 3.0MHz, 3.5MHz, 4.0MHz, 4.5MHz |
Focus: | Electronic focus selection |
Six kinds application preset: | General, Gynecology, Obstetrics, Cardiology, Small parts, Urology |
Pre-processing: | Frame Correlation, Dynamic Rang, THI, Smoothing and sharpening |
Post-Processing: | γ adjustment |
Image Magnification: | 1.0, 1.2, 1.5, 2.0 |
Gain Adjustment: | Total Gain and Steps Gain adjustment |
B mode: | distance, circum, area, volume, angle, ratio, stenosis, profile, histogram; |
M mode: | heart rate, time, distance, slope and stenosis; |
Gynecology measurement: | Uterus, cervix, endometrium, L/R ovary; |
Obstetric: | gestation weeks (BPD, GS, CRL, FL, HL, OFD, TTD, AC), fetal weight, AFI; |
Cardiology: | LV, LV function, LVPW, RVAWT;LV, LV function, LVPW, RVAWT; |
Urology: | transition zone volume, bladder volume, RUV, prostate, kidney; |
Small parts: | optic, thyroid, jaw and face. |
Image save and Cine loop memory: | HDD Save/Preview image files (JPG), Data files preset, 512-frame memory,manual/automatic cine loop |
Image flip: | Left/right Mirror Horizontally Flip, Up/down Vertically Flip |
Notation: | Date, Time, Name, Patient ID, Age, Doctor, Hospital Name; Full screen annotation edit; Probe direction mark; Body mark |
Continues working time: | Max. 8 hours |
Probe size: | 23mm×150mm×70mm |
Cable Length: | 190cm |
Weight: | 0.2 KG |
Standard Configuration: | -Convex probe(R60, 3.5MHz) 1pcs -Software disk 1pcs |
Optional: | -Computer, tablet -Ultrasound keyboard |

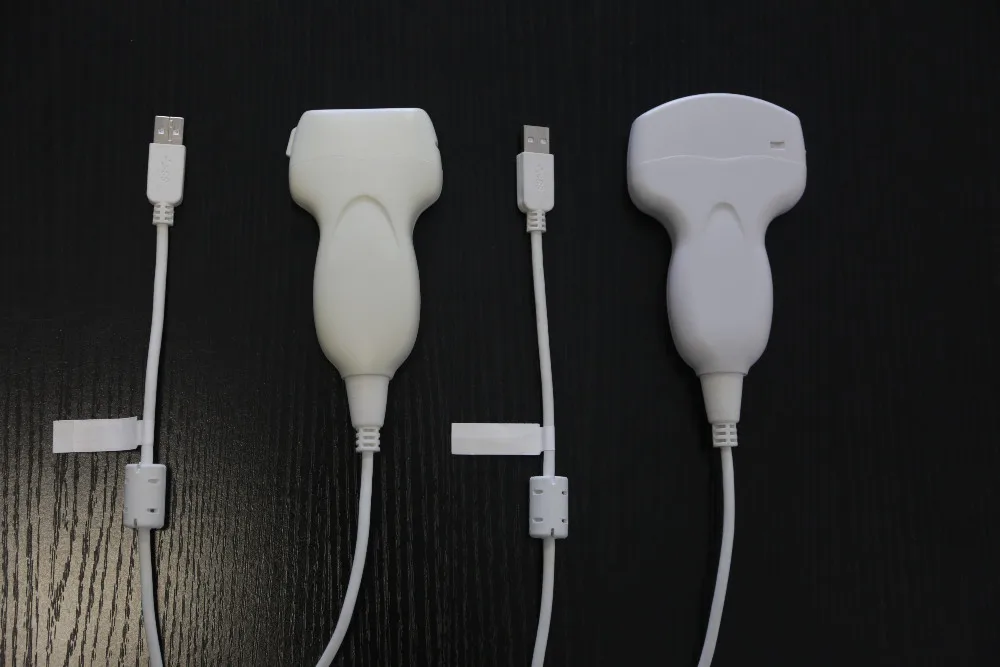

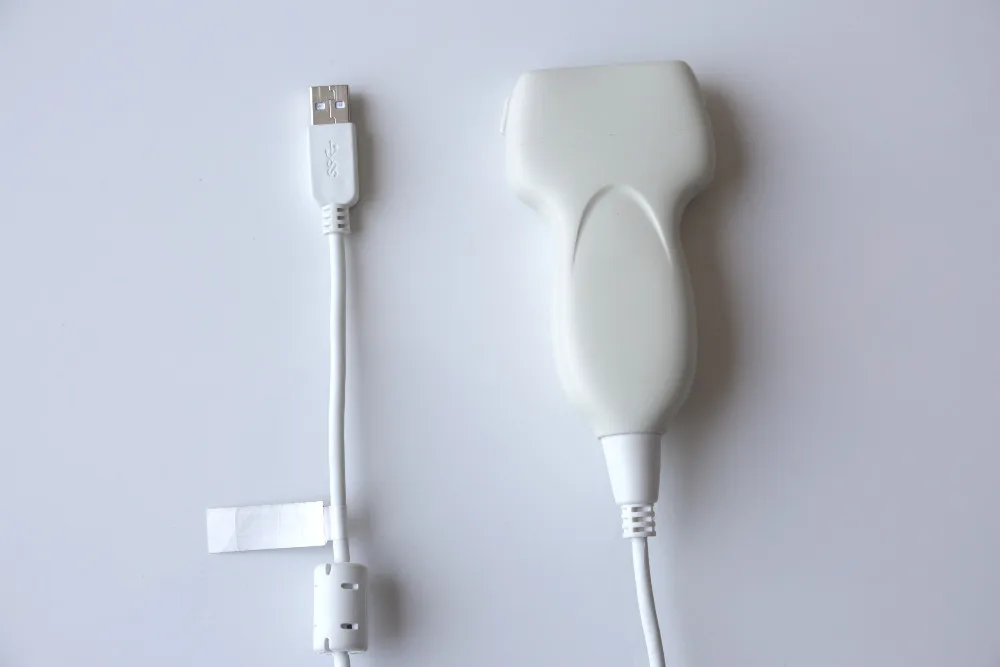

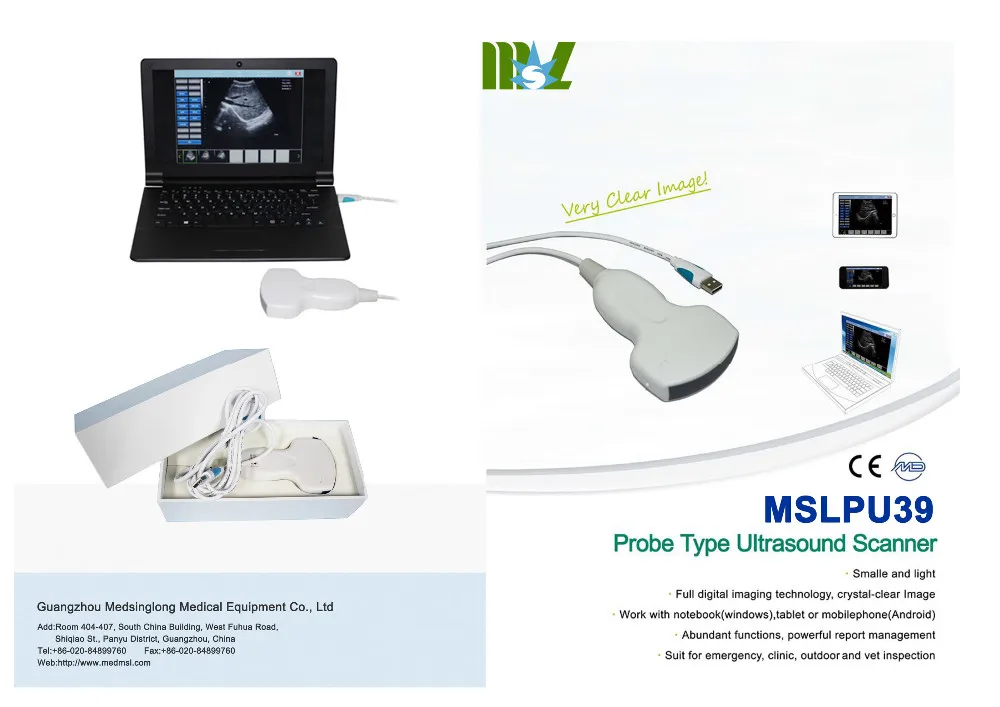

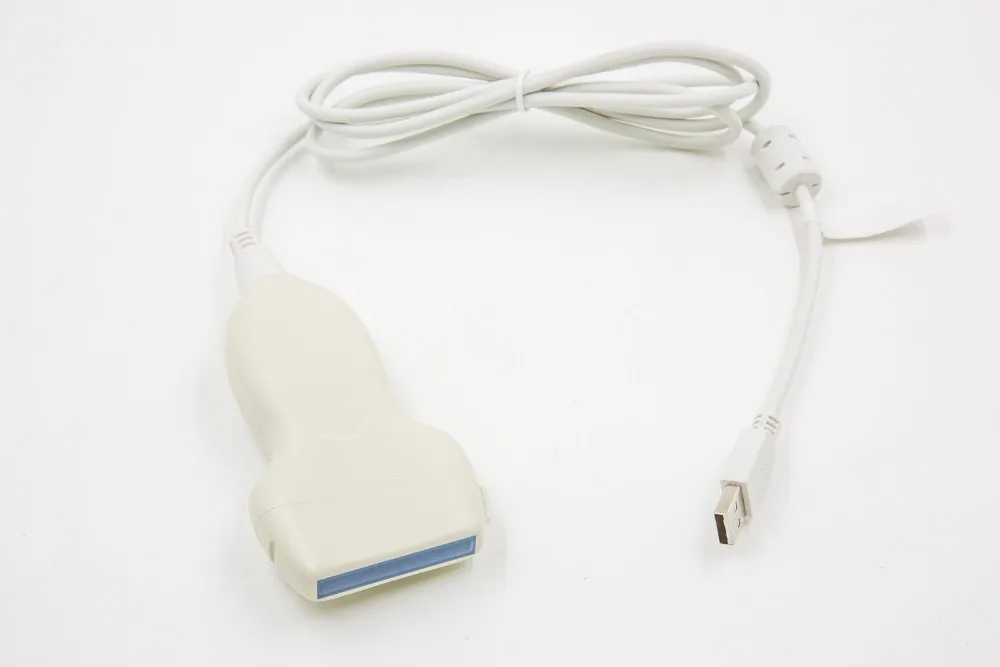

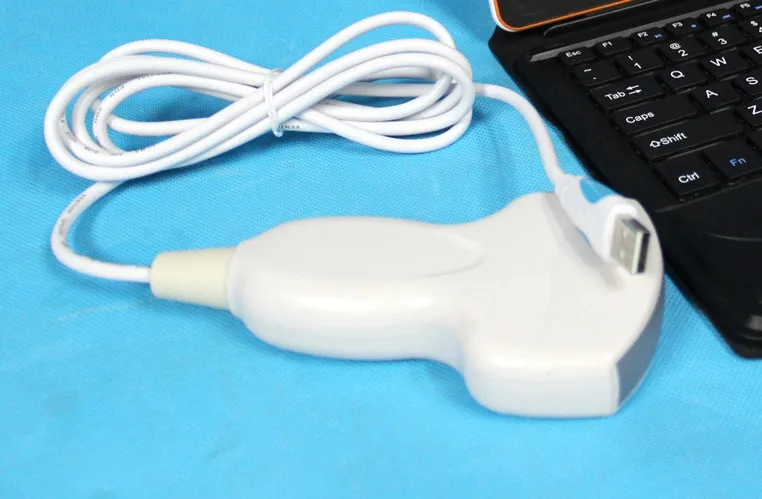

Detail Image
Ralated products
MSLCU88
MSLPU42
MSLPU41
Mini ultrasound machine for the mobile era
.Cross-platform and multi-terminal display with Will connection
.Irresistible trend of the mobile medical data era
.Real-time color Doppler ultrasound with distinct image
.Built-in lithium battery
.Run on multiple platforms including Windows. Android. IOS and UNIX

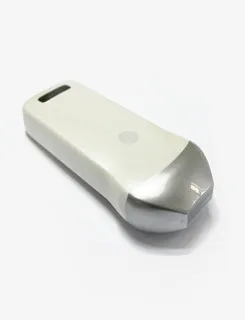

Super quick and easy Color Doppler ultrasound scan
.Innovative wireless hand-held color Doppler ultrasound for diagnosis
.Instant use
.User-defined Wifi connection
.Real-time wireless image transmission across the ward
.Multiple display terminals for your choice
Features

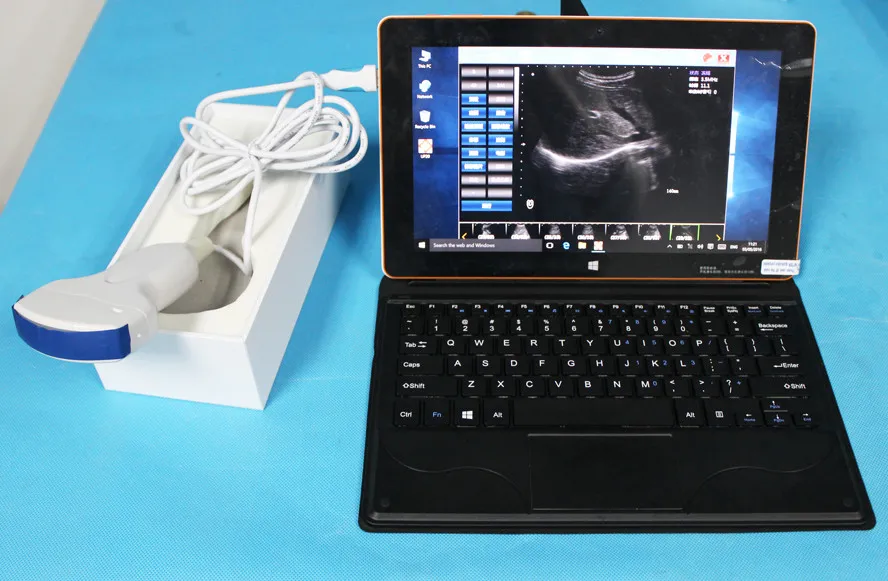

Workable with Tablet or Smart Phone
Built-in and replaceable battery
Advanced digital imaging technology, clear image
High cost-effective
Wireless connectivity, easy to operate
Small and light , easy to carry
Applicable in emergency, clinic, outdoor and vet inspection
