MSLPU81 Color doppler Cardiac ultrasound scanner Wifi/USB Cardiac Phased Array Probe
- Category: >>>
- Supplier: Medsinglong Co. Ltd.
Share on (1600626622601):
Product Overview
Description

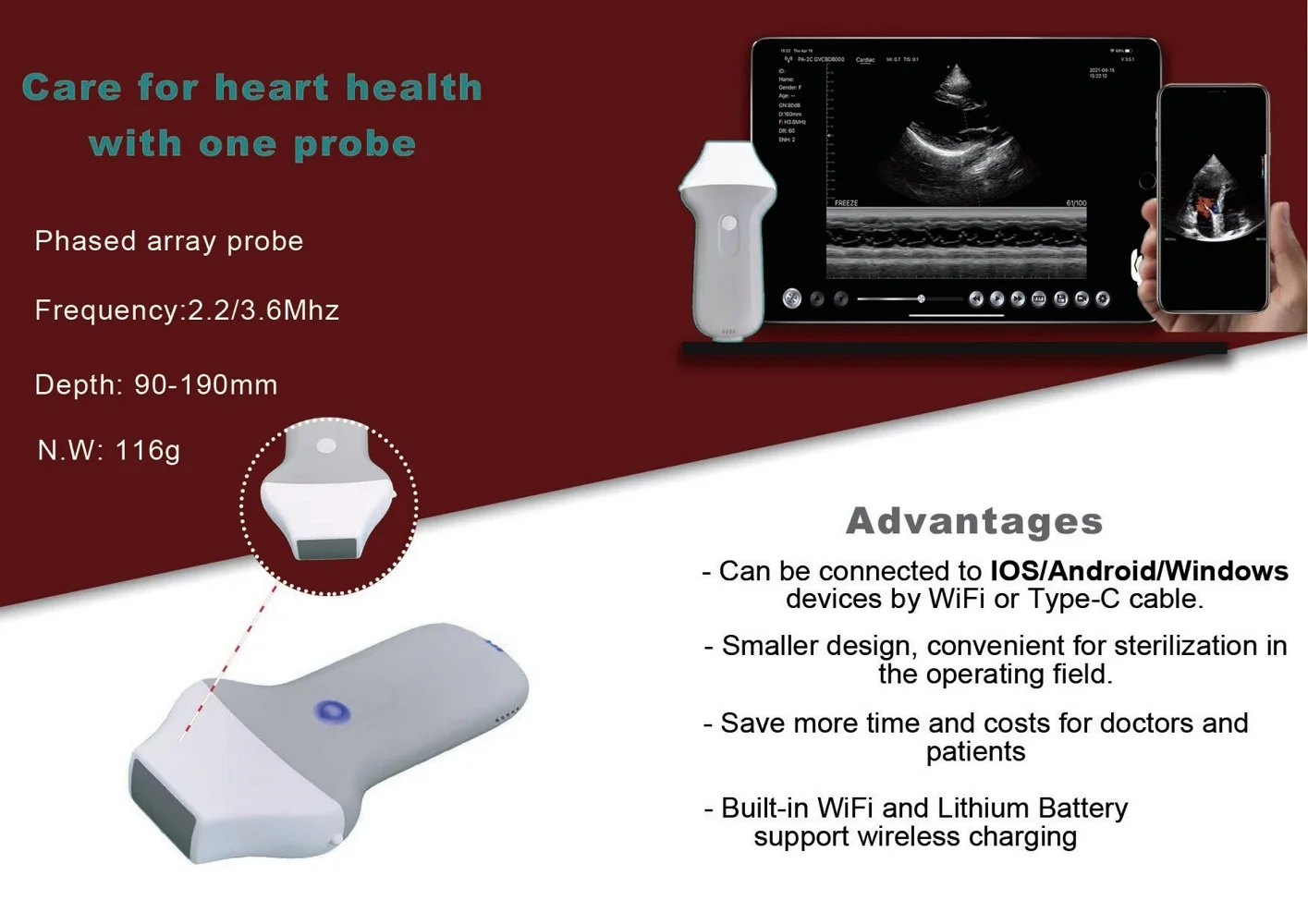

MSLPU81 Color doppler Cardiac ultrasound scanner Wifi/USB Phased Array Probe
Product Description
Probe Type | Phased array |
Scan angle | 80 |
Frequency | 2.2MHz/H3.6MHz |
Scan mode | B, B/M, Color, PW |
Display Depth | 90~190mm |
Image Adjust | Gain,Depth,DR,Focus,SRI,Harmonic,Denoise |
Measure | Length,Area,Velocity,HR,S/D,LVIDd,LVIDs,SV,EF |
Puncture assist function | in-plane puncture guide line,out-of-plane puncture guide line, Needle Enhance |
Image frame rate | 20 frames/second |
Cinplay | 50s |

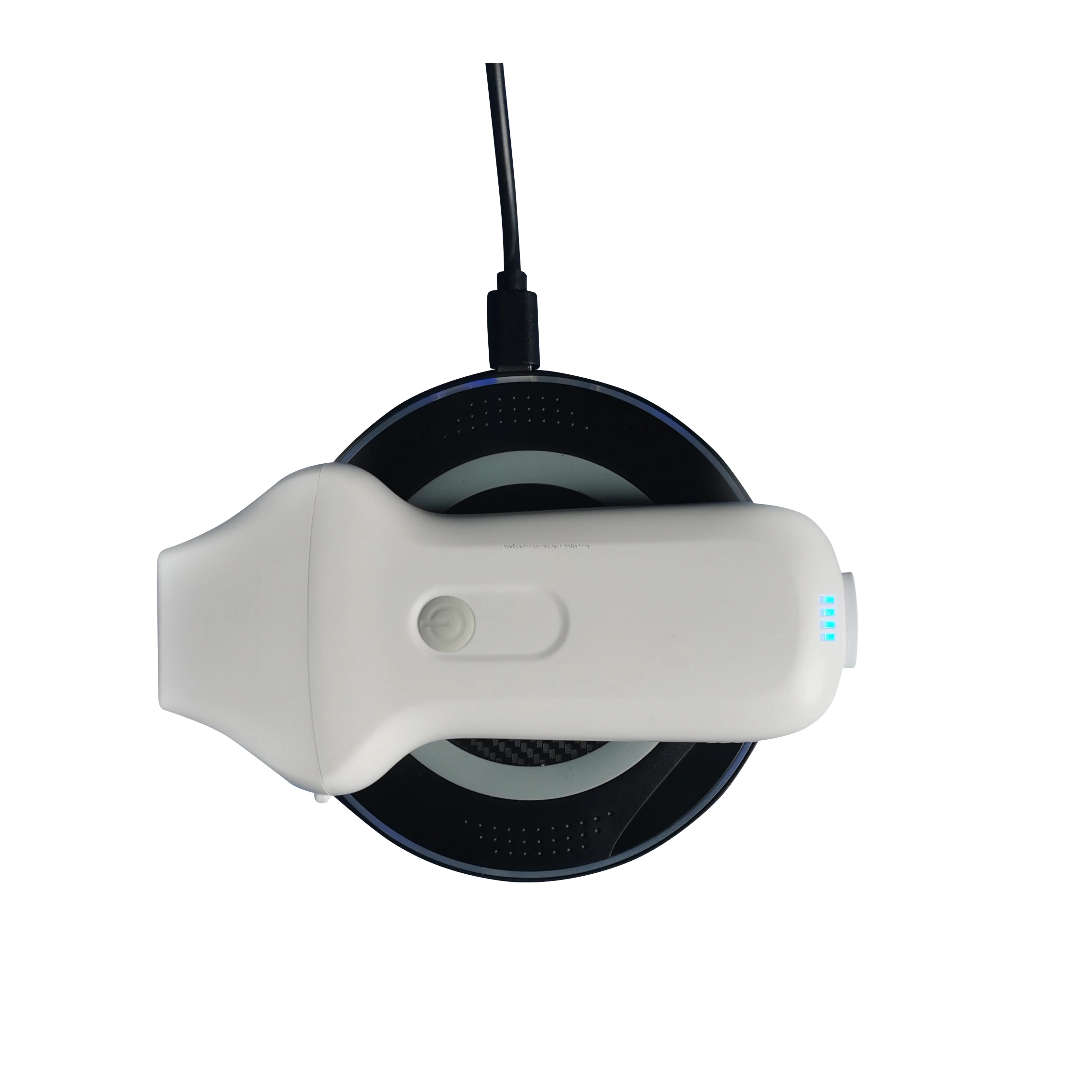

Power | Built-in lithium battery, wireless or usb charge 2h, work 2h |
Working system | iOS,Android,Windows |
Wifi type | 802.11n/2.4G/5G |
Dimension | 125x60x20mm |
Weight | 120g |
Introduction
Both USB and WIFI connected to mobile phones,tablets.
Innovative design in :Phased Array.
Smart Wireless Color Ultrasound Probe, Most Suitable for POCT;As a visualization tool for clinicians,makes the clinical procedures more Confident,more Easy, more Efficient, more Precise,more Safe,more Standardized and lower Cost, lower Anxiety,less Pain.
* Make ultrasound easier and more efficient to use.
* Provide visual images during any clinical
Innovative design in :Phased Array.
Smart Wireless Color Ultrasound Probe, Most Suitable for POCT;As a visualization tool for clinicians,makes the clinical procedures more Confident,more Easy, more Efficient, more Precise,more Safe,more Standardized and lower Cost, lower Anxiety,less Pain.
* Make ultrasound easier and more efficient to use.
* Provide visual images during any clinical
How it works?
-"Wireless ultrasound probe" is a mini ultrasound scanner that without screen. We made the main unit condensed into a small
circuit board builded-in the probe, and showing image in smart phone/tablet through Wifi transferring.
-Image transferring through internal wifi from probe, no need external Wifi signal.
circuit board builded-in the probe, and showing image in smart phone/tablet through Wifi transferring.
-Image transferring through internal wifi from probe, no need external Wifi signal.
Feature:
* Suitable for cardiac, head and abdomen scanner.
* Highest cost-effective：Students can afford it, just like buying a cell phone.
* Smalland light, easy to carry and operate, very suitable for emergency clinical, hospital ward inspection, community clinical and outdoor inspect.
* Wireless connected to Tablet or Smart Phone, can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.
* For powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine.
* Software is free for life.
* Highest cost-effective：Students can afford it, just like buying a cell phone.
* Smalland light, easy to carry and operate, very suitable for emergency clinical, hospital ward inspection, community clinical and outdoor inspect.
* Wireless connected to Tablet or Smart Phone, can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.
* For powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine.
* Software is free for life.
Detailed Images

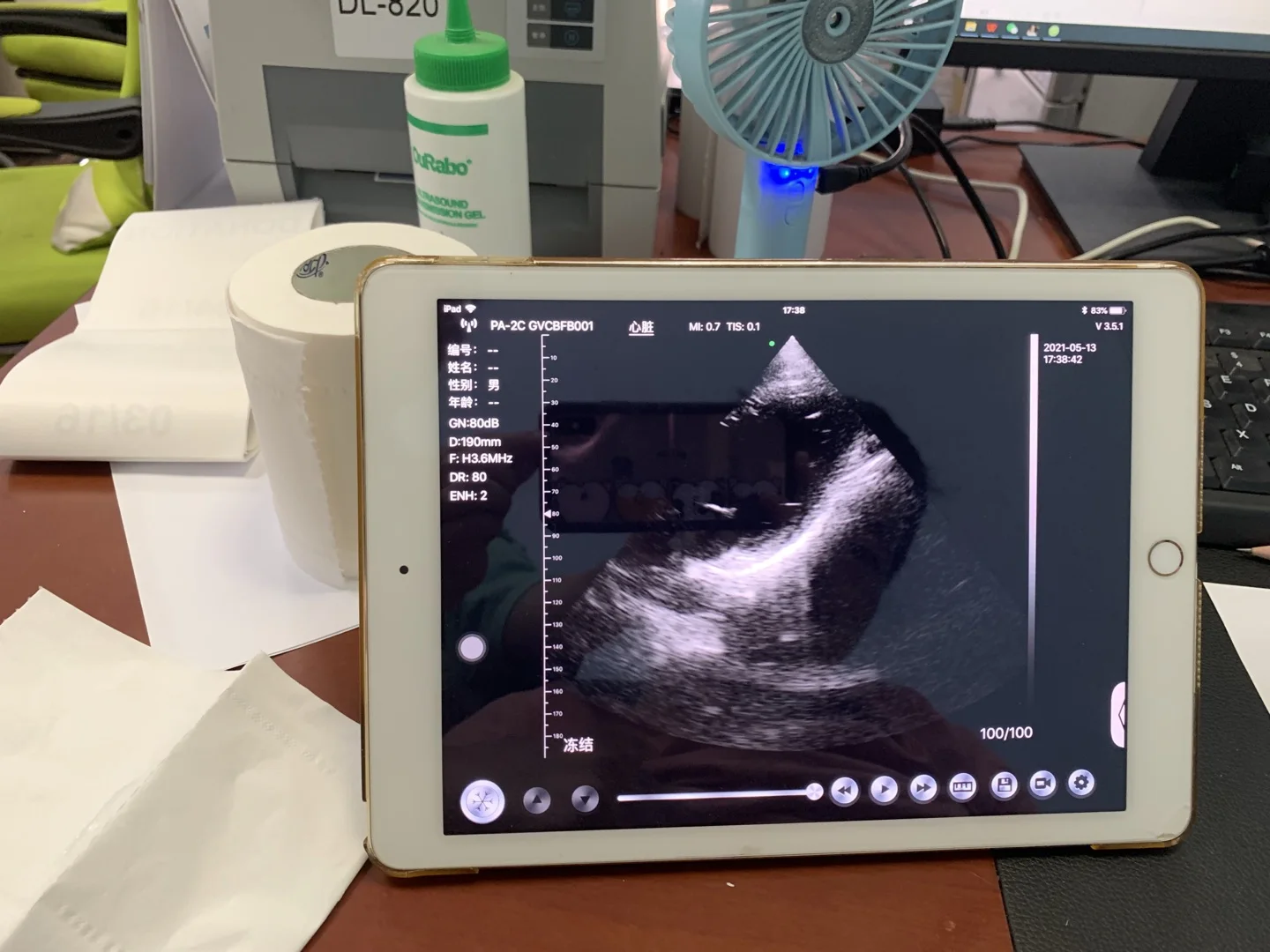

B mode

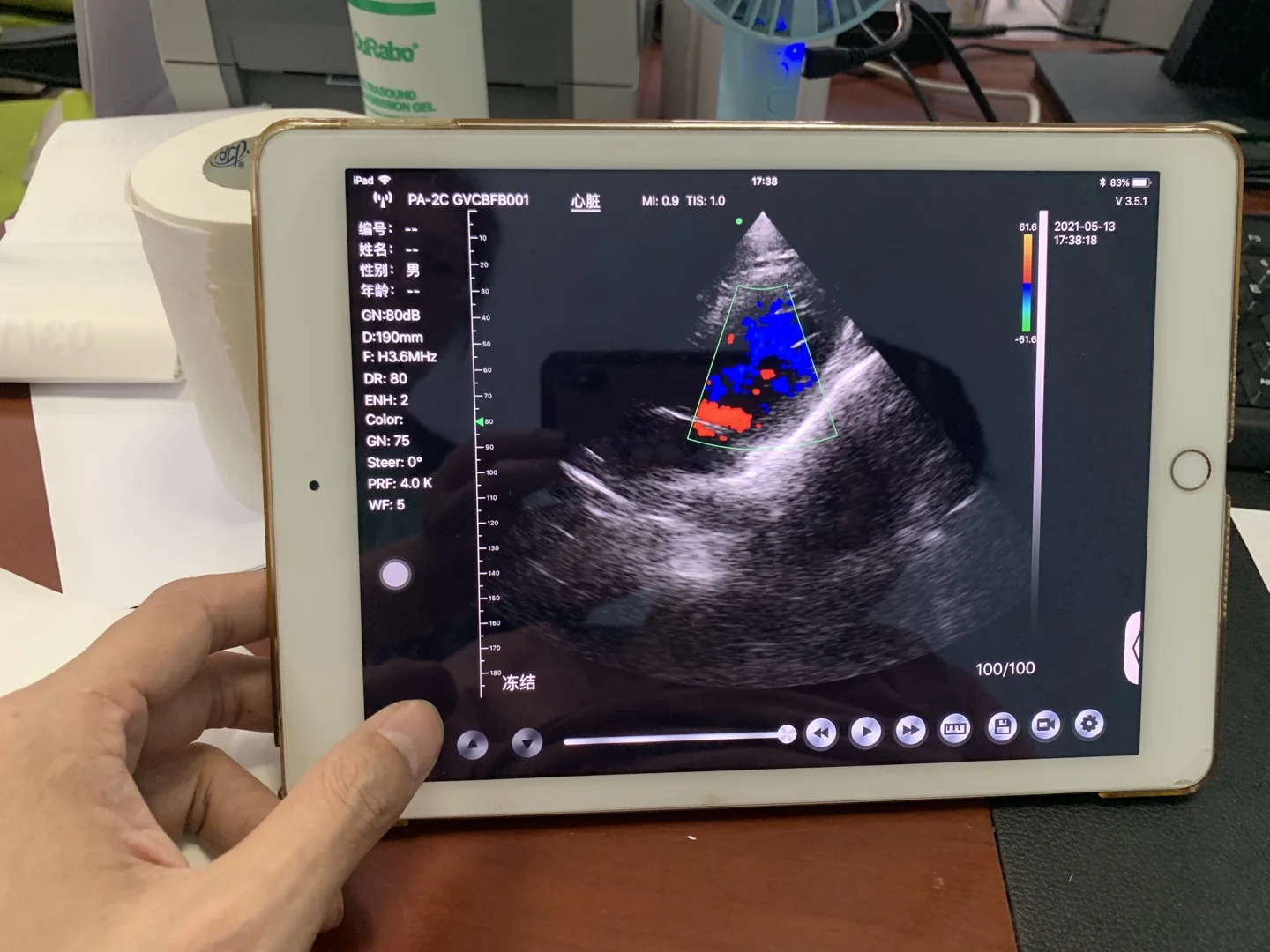

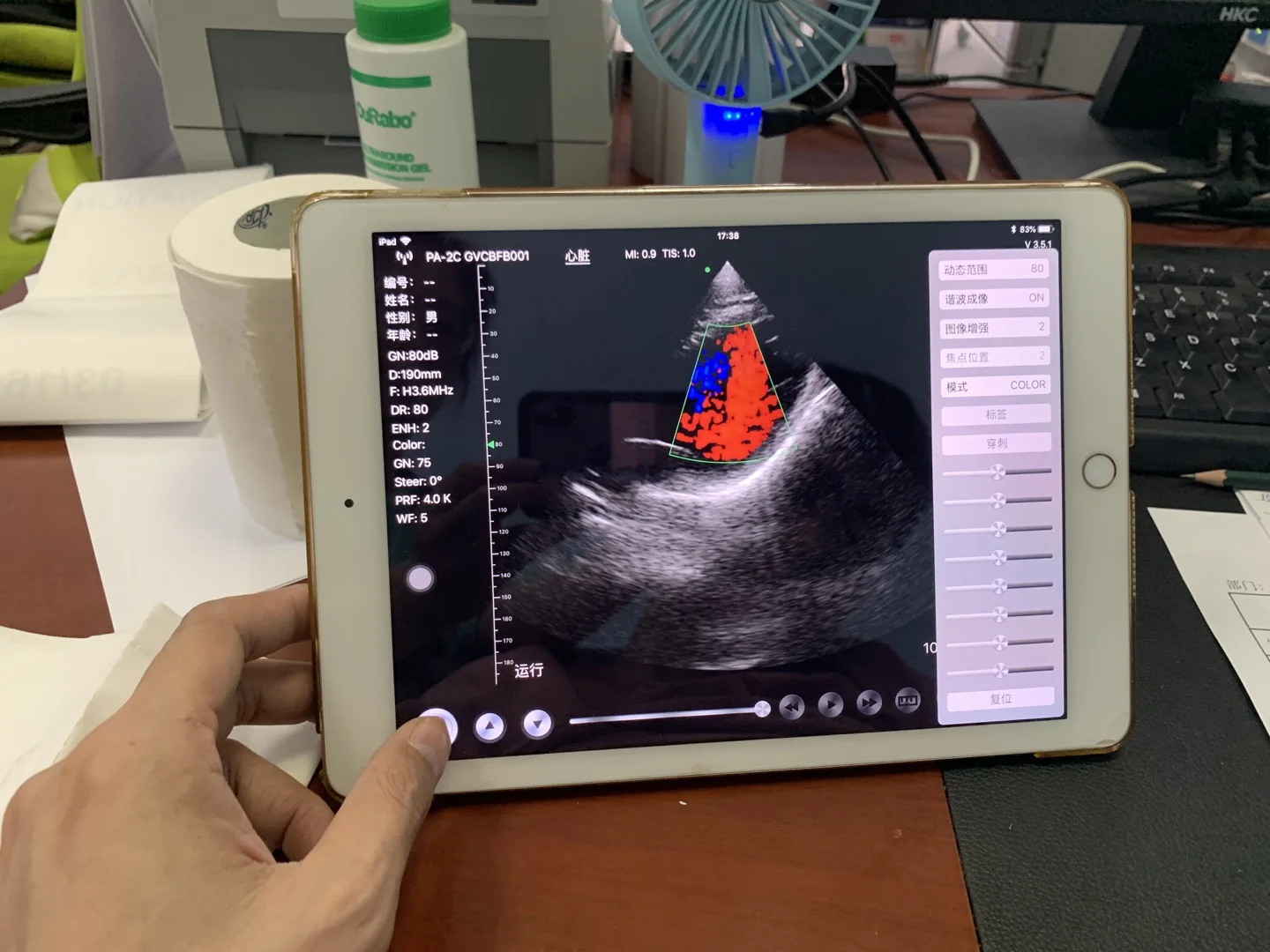

C mode
Related Products
Mindray DC-40 Color doppler
Mindray M7 Portable Color Doppler
Mindray M5 Portable Color Doppler
Sonoscape S8 portable Color Doppler
Sonoscape S11 Trolley color doppler
Sonoscape S30 Trolley color doppler

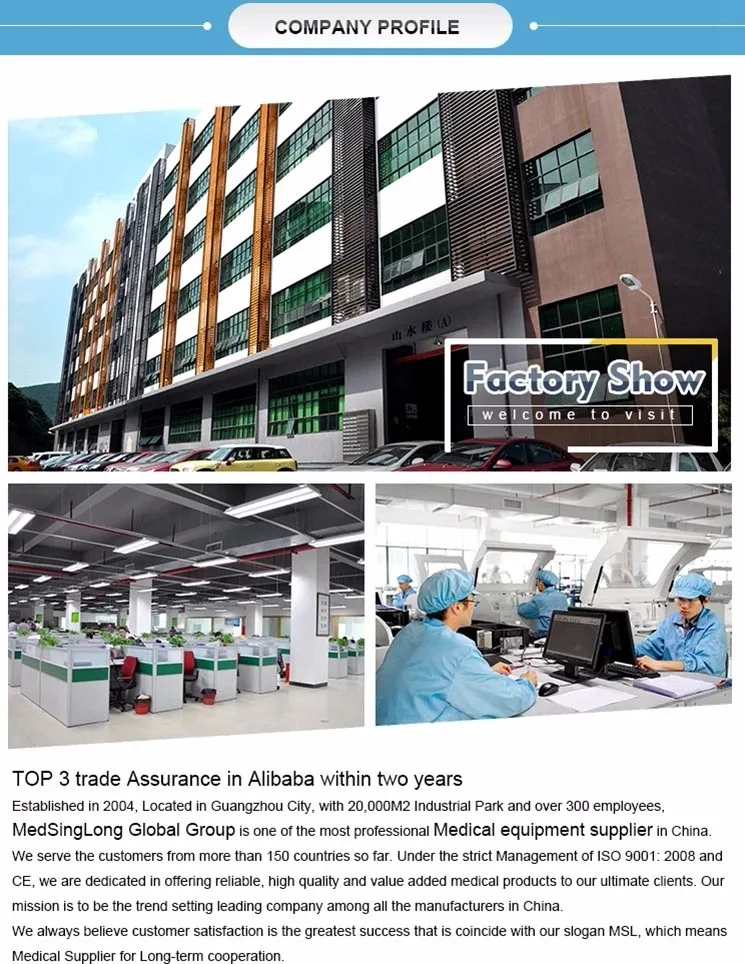

Our Company
