Pallet Threading Machine Good Price Mobile PP PET Strap Belt Bundling Strapping Tools
- Category: >>>
- Supplier: Shanghai Taole Machine Co. Ltd.
Share on (1600626630004):
Product Overview
Description
Product Overview

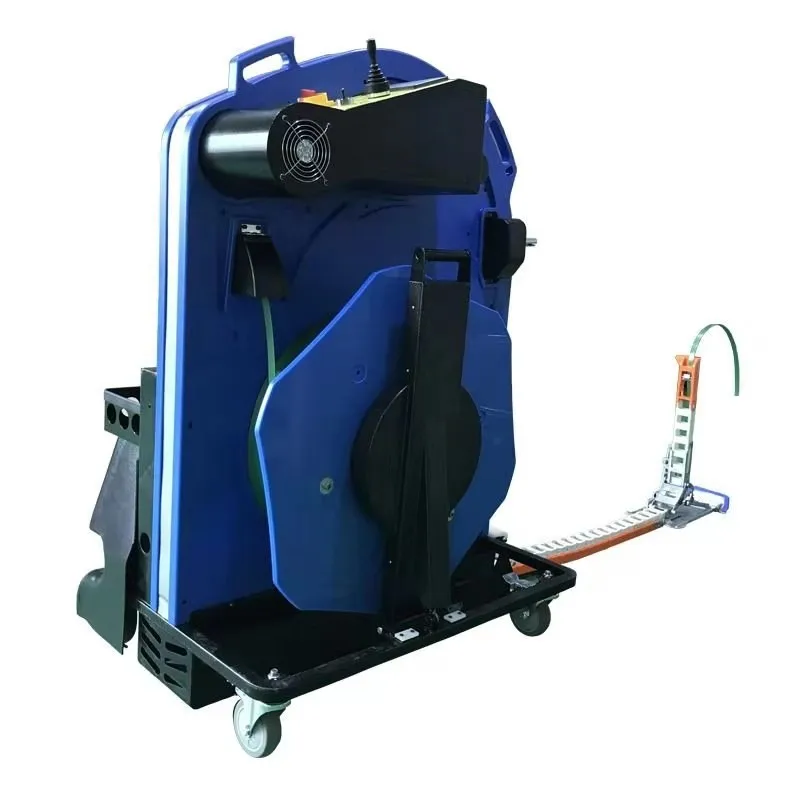

TP-800 semi-auto strapping machine

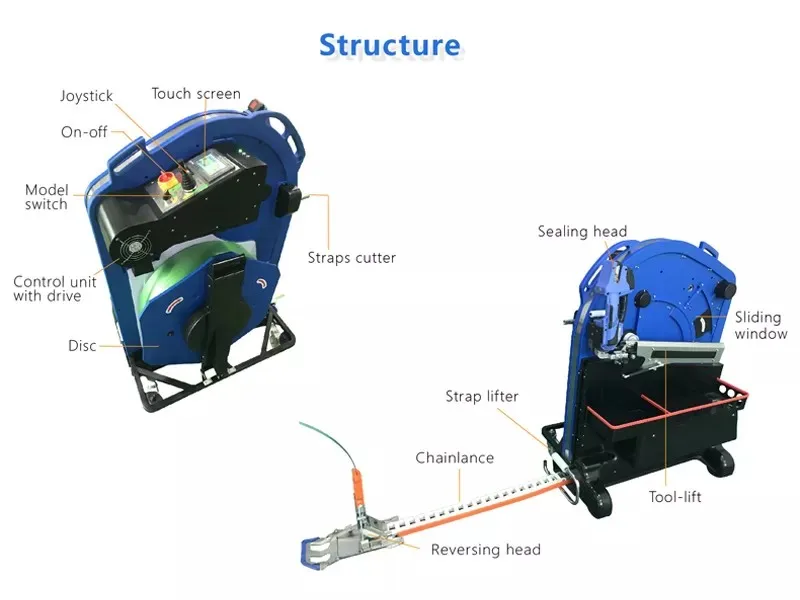

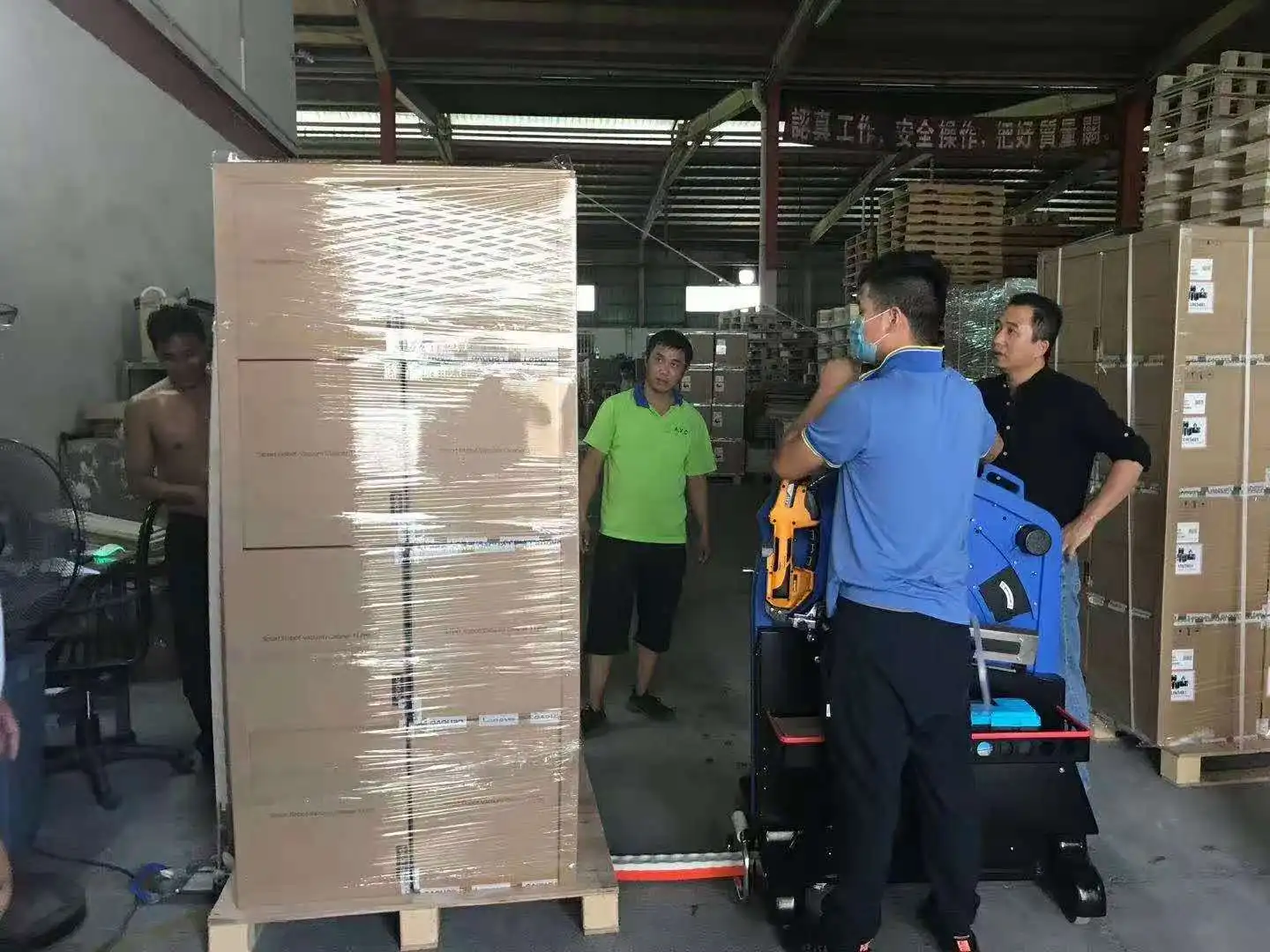

Ergonomic pallet strapping machine with electrically driven chain lance via motor is a hot product in packing industry. It can make you have an elegant way of strapping without bending down ,which is a comfortable way by one person from one side only. Just roll the strapping machine in front of the pallet. Then the Chainlance pulls the strap through under the pallet and up again on the rear side and over the pallet. The strap is tensioned and welded securely by the sealing head. Mobile pallet strapping system is widely used for heavy duty products & pallets or high pallets which is reducing labor force.
FEATURES AT A GLANCE

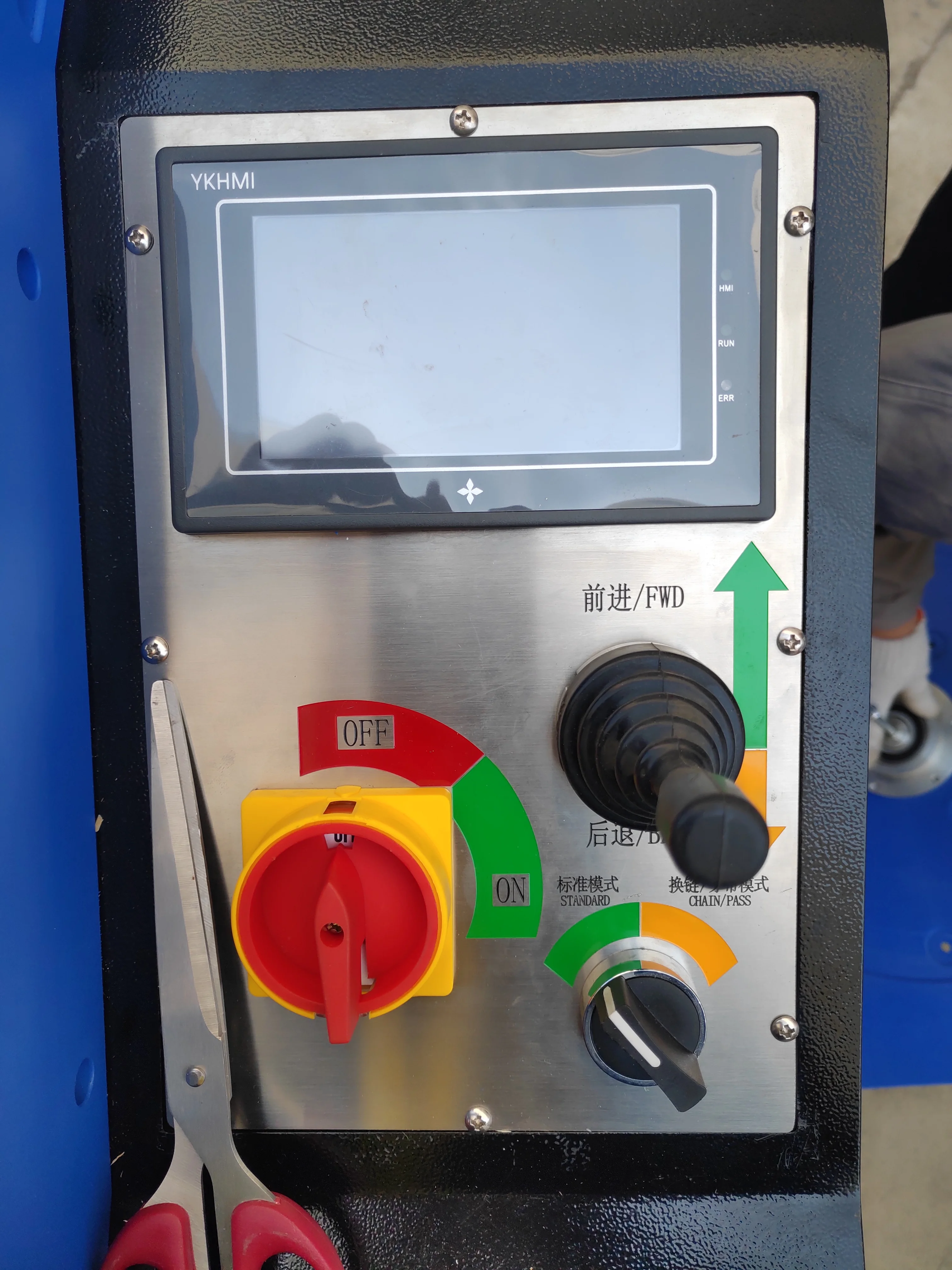

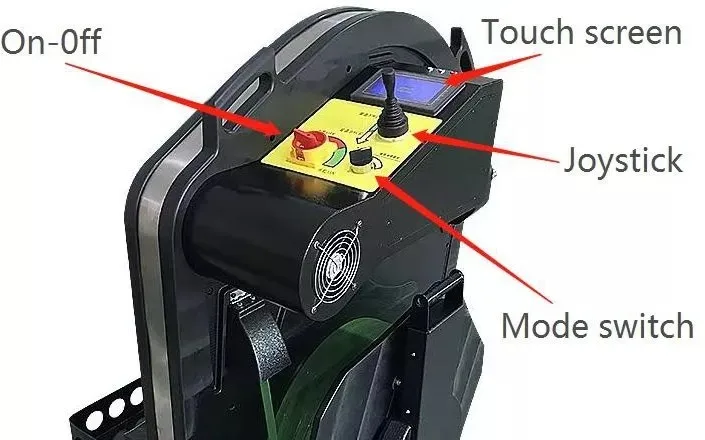

1. Elegant operation via touchscreen and joystick with intuitive user guidance
2.Mobile type for easy moving and heavy duty pallets.
3.Easy going and comfortable handling with ergonomically shaped handles
4. Fully covered for increased working safety in classy design
5.Auto strapping, feeding and sealing
6.3 times higher efficiency
7.The pallet width is adjusted not mechanically by touch screen
8.Applicable for object : Width below 2000mm,height below 3000mm
9.Number of strapping: 400 to 600 per charge
2.Mobile type for easy moving and heavy duty pallets.
3.Easy going and comfortable handling with ergonomically shaped handles
4. Fully covered for increased working safety in classy design
5.Auto strapping, feeding and sealing
6.3 times higher efficiency
7.The pallet width is adjusted not mechanically by touch screen
8.Applicable for object : Width below 2000mm,height below 3000mm
9.Number of strapping: 400 to 600 per charge

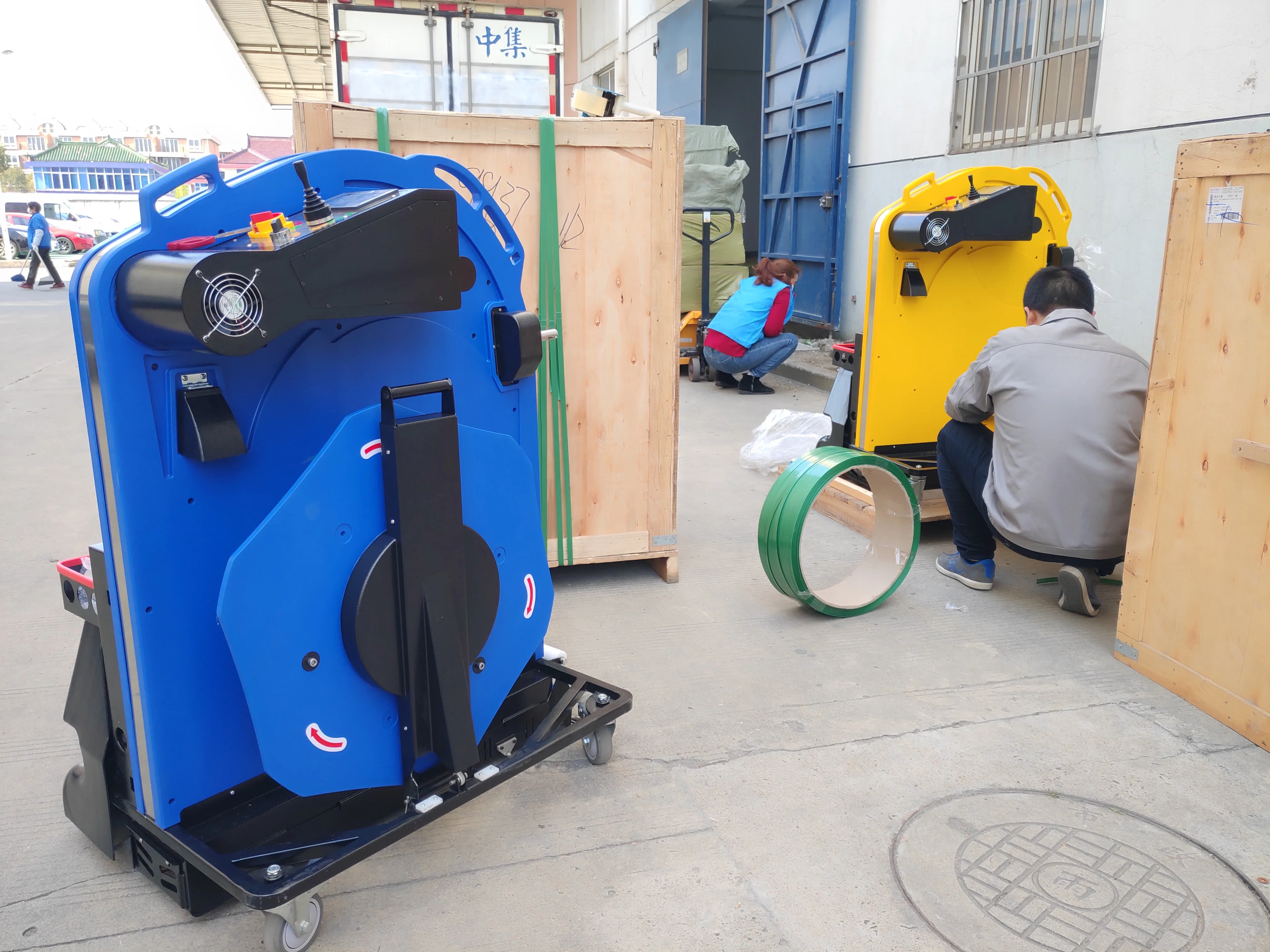

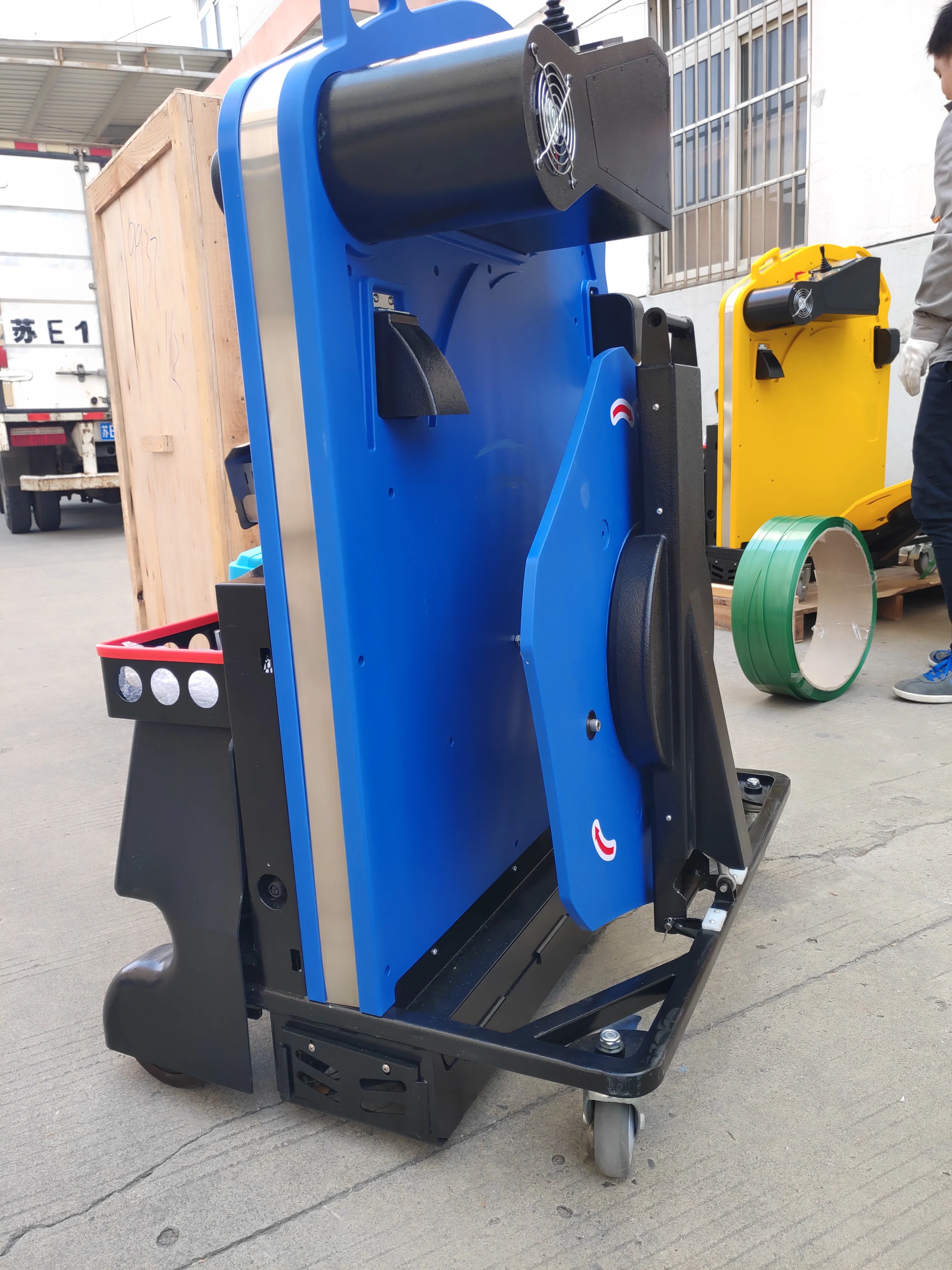

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model No. | TP-800 Pallet Strapper |
Chain Length | 9.3 meters |
Packing Size | 200mm≤Width≤2 meters 75mm≤Height ≤2.6 meters Customized for 3 meters height |
Applicated Material type | PP Strap / PET Strap |
Applicated Strap Width | 12-19mm |
Applicated Strap Thickness | 0.6-1.3mm |
PP/PET Loading Sizes | PP CORE DIA 200mm, Height 180mm PET CORE DIA 406mm, Height 150mm |
Chain Speeds Horizontally | Moving Out 40m/min Moving In 54m/min |
Chain Speeds Vertically | Moving Out 60m/min Moving In 44m/min |
Setting Up Mode Strap Speed | Moving Out 20m/min Moving In 16m/min |
Max China Thrust | 320 N |
Noise Level | 79 dB(A) |
Machine Weight | N.W 100 KGS G.W 120KGS |
Machine Size | L950 * W 750 * H 1250mm |
33V Lithium Battery | Weight 10 KGS, Capacity： 33.3V/ 32Ah Voltage 33.6V， Current 10-45A Approx 150-400 Strap per charge Charging Time: Approx 3.5 hours Life Time: Upto 2000 Charges |
PRODUCT CONFIGURATION

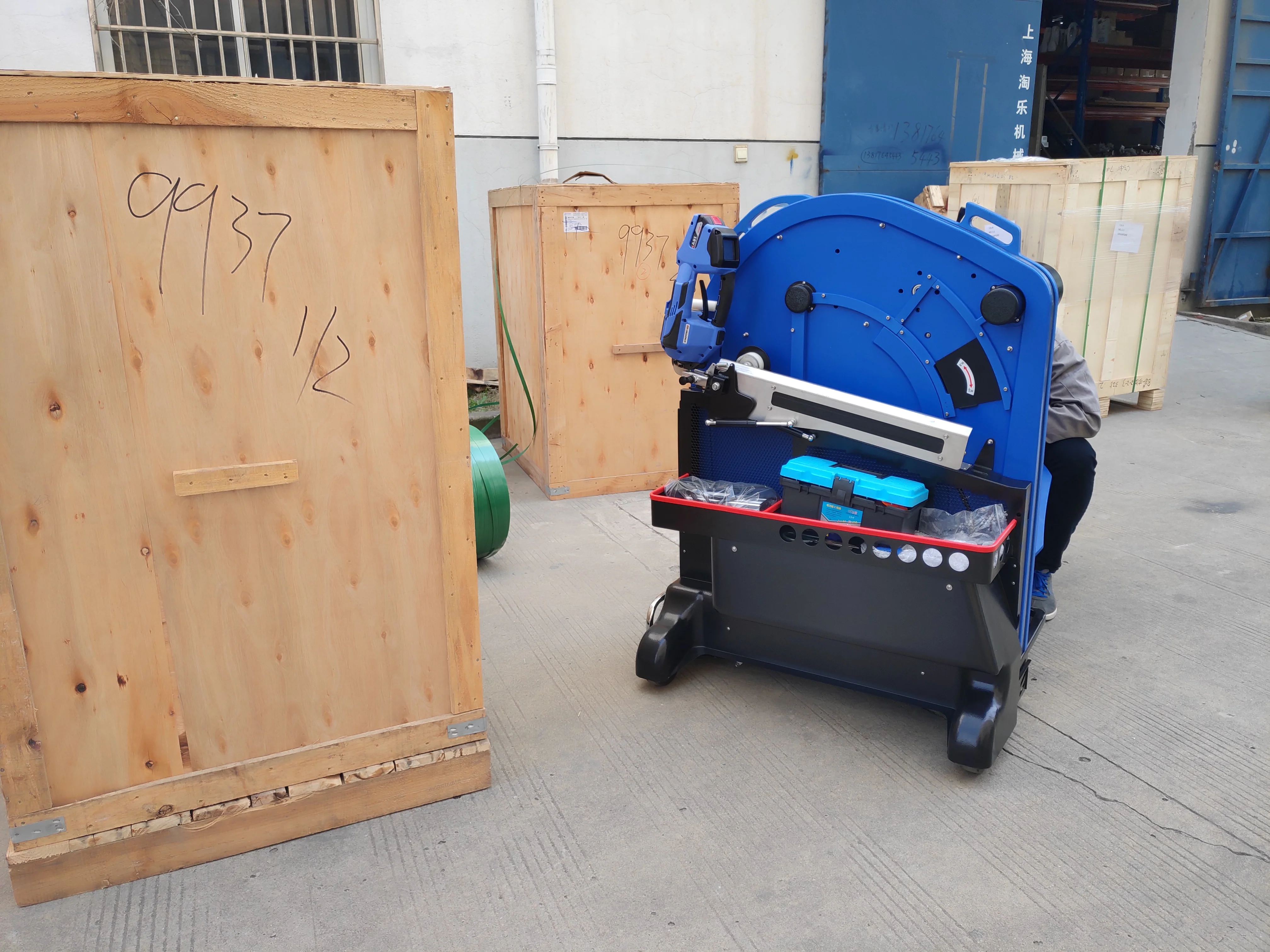

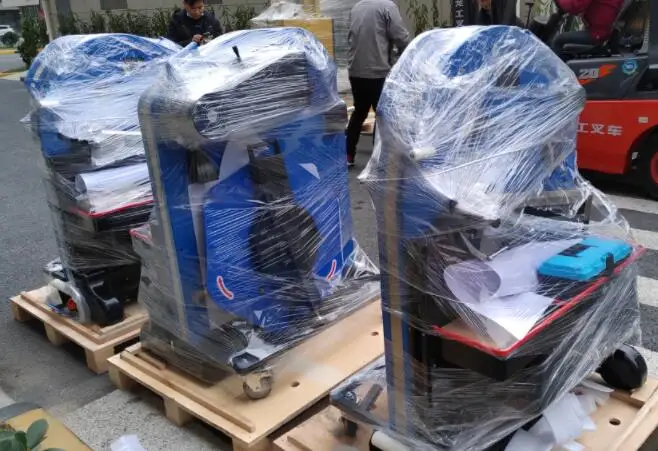

Product packaging
Certifications&Exhibition
SALES AND SERVICE NETWORK
FAQ
1,The payment
We will suggest 100%by T/T while amount less than USD 10000.We will suggest 50% deposit ,50% balance for bigger amount or customized projects.
2,The delivery time
Generally it is 5-7 days if the Products are in stock. Or it is 7-15 days if the products are not in stock, it is according to
quantity
3,About quality
Welcome to our factory and check the quality of products. Besides, we will send you the video and pictures before shipment after your order.
4,Equipment warranty
Equipment with 12 months warranty, which can be extended to 15-18 months as request.
5, How to install and run the machine?
Our technicians have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. It's very easy to install them.
6, Don't know which type you need?
Please send us your requirement or contact us directly! We will choose the right model for you.
We will suggest 100%by T/T while amount less than USD 10000.We will suggest 50% deposit ,50% balance for bigger amount or customized projects.
2,The delivery time
Generally it is 5-7 days if the Products are in stock. Or it is 7-15 days if the products are not in stock, it is according to
quantity
3,About quality
Welcome to our factory and check the quality of products. Besides, we will send you the video and pictures before shipment after your order.
4,Equipment warranty
Equipment with 12 months warranty, which can be extended to 15-18 months as request.
5, How to install and run the machine?
Our technicians have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. It's very easy to install them.
6, Don't know which type you need?
Please send us your requirement or contact us directly! We will choose the right model for you.
