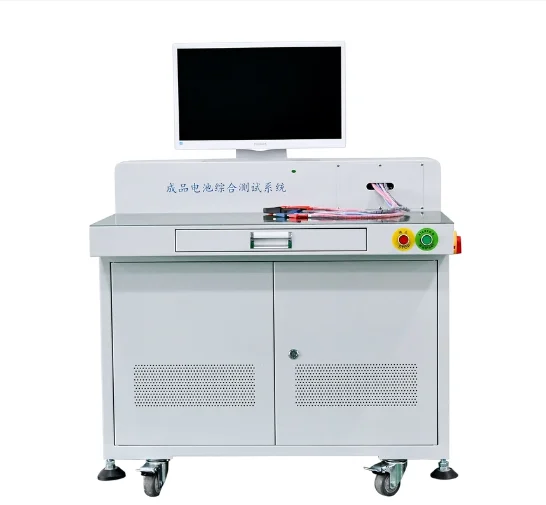

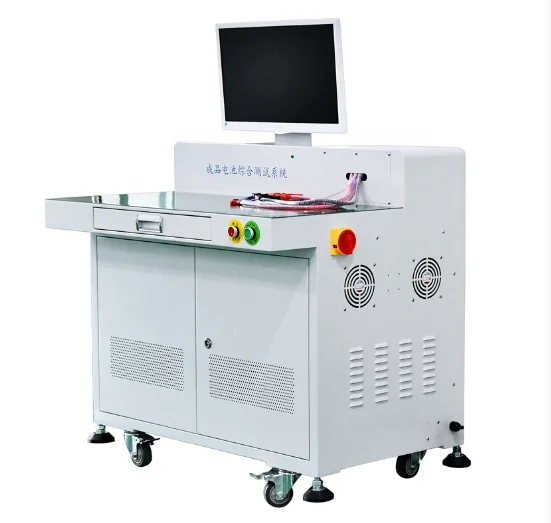

Ev Battery Pack Comprehensive Tester,Battery Pack Integrated Tester,Battery Pack Mass production testing machine
- Category: >>>
- Supplier: Shenzhen Aitop Intelligent Equipment Co. Ltd.
Share on (1600626719562):
Product Overview
Description
18650 26650 32650 Battery pack Test tester System For Electric Car Battery Pack multifunction Testing 110V 300A
Function Features
Battery Comprehensive testing machine is a device for quickly and accurately testing the performance of finished batteries. The
main test items are: no-load voltage, AC internal resistance, AC internal resistance, charging current, charging voltage,
discharging current, load voltage, overcurrent protection current, overcurrent recovery Testing of voltage and short circuit
protection time. The system uses a 32-bit ARM processor, and a 16-bit AD converter for voltage and current. Compared with similar
equipment, the test speed is faster, the test accuracy is high, and multiple devices are supported simultaneously.
Battery Comprehensive testing machine is a device for quickly and accurately testing the performance of finished batteries. The
main test items are: no-load voltage, AC internal resistance, AC internal resistance, charging current, charging voltage,
discharging current, load voltage, overcurrent protection current, overcurrent recovery Testing of voltage and short circuit
protection time. The system uses a 32-bit ARM processor, and a 16-bit AD converter for voltage and current. Compared with similar
equipment, the test speed is faster, the test accuracy is high, and multiple devices are supported simultaneously.
Test items
1. No-load voltage: test the voltage at both ends of the open circuit of the battery.
2. AC internal resistance: test the resistance of the open circuit positive and negative ends of the battery.
3. DC internal resistance: test the resistance at both ends of the battery discharge circuit
4. Discharge test: test the continuous load capacity of the battery, let the battery continue to discharge for a certain period of
time to check the voltage drop.
5. Discharge overcurrent test: test the battery high current discharge protection function, the battery high current discharge
triggers the discharge overcurrent protection function of the battery protection board.
6. Short circuit protection: test the battery cut-off protection time (microsecond level) when the positive and negative
electrodes of the battery are short-circuited.
7. Charging test: test the continuous charging function of the battery, and test whether the battery charging function is good.
8. Charging overcurrent test: test the battery high current charging protection function, the battery high current charging
triggers the battery protection board charging current protection function
1. No-load voltage: test the voltage at both ends of the open circuit of the battery.
2. AC internal resistance: test the resistance of the open circuit positive and negative ends of the battery.
3. DC internal resistance: test the resistance at both ends of the battery discharge circuit
4. Discharge test: test the continuous load capacity of the battery, let the battery continue to discharge for a certain period of
time to check the voltage drop.
5. Discharge overcurrent test: test the battery high current discharge protection function, the battery high current discharge
triggers the discharge overcurrent protection function of the battery protection board.
6. Short circuit protection: test the battery cut-off protection time (microsecond level) when the positive and negative
electrodes of the battery are short-circuited.
7. Charging test: test the continuous charging function of the battery, and test whether the battery charging function is good.
8. Charging overcurrent test: test the battery high current charging protection function, the battery high current charging
triggers the battery protection board charging current protection function
Specification
Maximum voltage range | 110V |
Voltage measurement accuracy | ±0.01V |
Maximum discharge current | 300A |
Discharge current measurement accuracy | ±0.01A |
Maximum charging current | 15A |
Charging current measurement accuracy | ±0.01A |
Maximum range of AC internal resistance | 2000Ω |
AC internal resistance measurement accuracy | 0.1mΩ |
Maximum range of DC internal resistance | 5000mΩ |
DC internal resistance measurement accuracy | ±0.05mΩ |
Overcurrent protection current | 10~300A |
Short circuit resistance | 60~80mΩ |
Barcode function | 3~30Bit |
input power | 1800W |
Maximum load power | 33KW |
