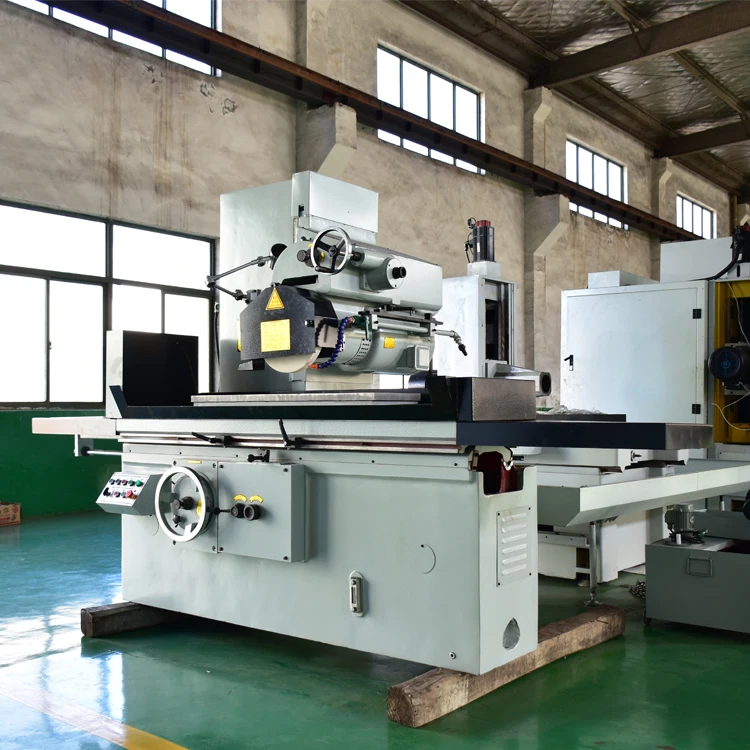

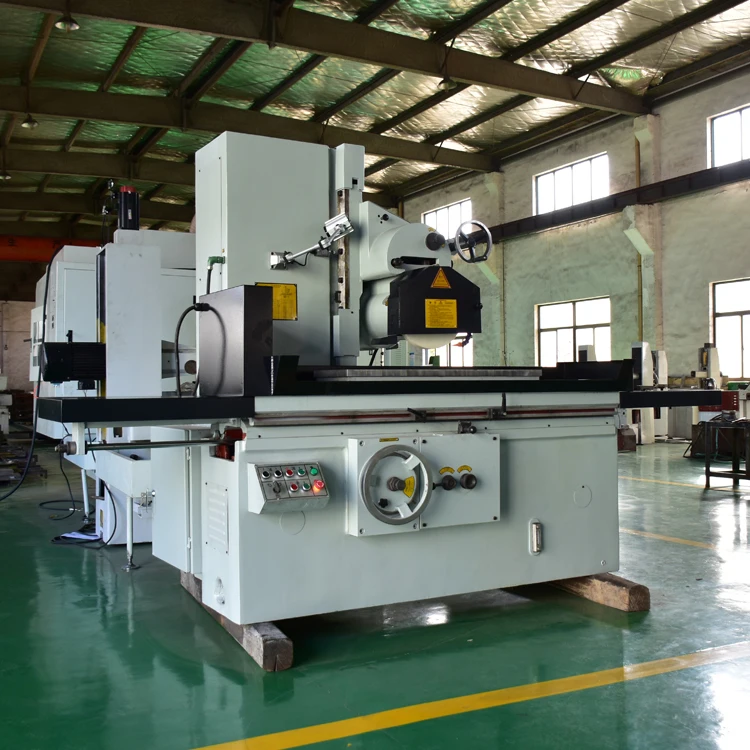

Surface Grinder Grinding Machine Knife Grinding Machines M7132 Surface Grinder Price
- Category: >>>
- Supplier: Zaozhuang Wojie CNC Machinery Co. Ltd.
Share on (1600626882575):
Product Overview
Description
Detailed Images
The main performance characteristics:

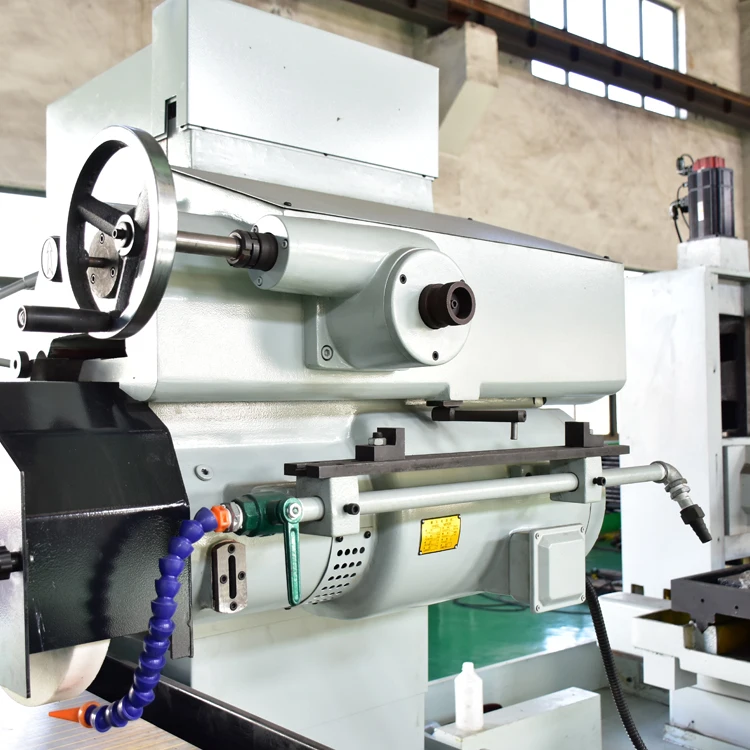

The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology. Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Product main technical specifications:
The screw rod of the machine tool is made of special alloy steel through strict processing and heat treatment technology. Grinding head vertical rapid lifting, improve production efficiency.
The grinding head lateral movement driven by hydraulic motor, which can also be manually.
The lifting mechanism and the triangle bracket adopt eccentric design, which is easy to adjust, and greatly prolong the service life of the machine tool.
Product main technical specifications:
Description | Units | M7132x1000 | M7132x1600 | M7132x2000 | ||||

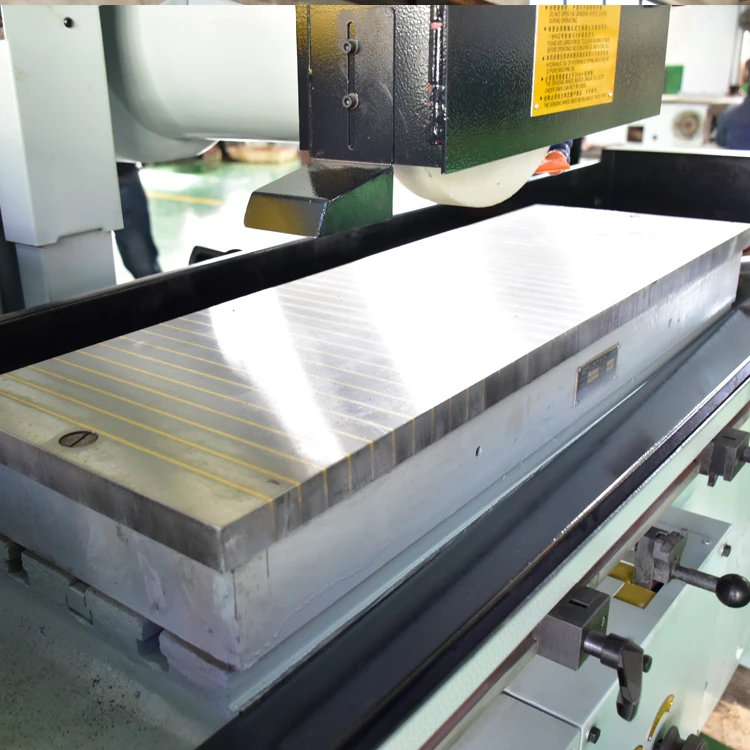

Size of work table(L x W x H) | mm | 1000x320 | 1600x320 | 2000x320 | ||||
Max. Longitudinal movement of worktable | mm | 1100 | 1700 | 2100 | ||||
Max. Distance from the spindle centerline to the worktable surface | mm | 570 | 570 | 570 | ||||
Max. Cross movement of grinding herd | mm | 350 | 350 | 350 | ||||
Max. Vertical movement of grinding head | mm | 400 | 400 | 400 | ||||

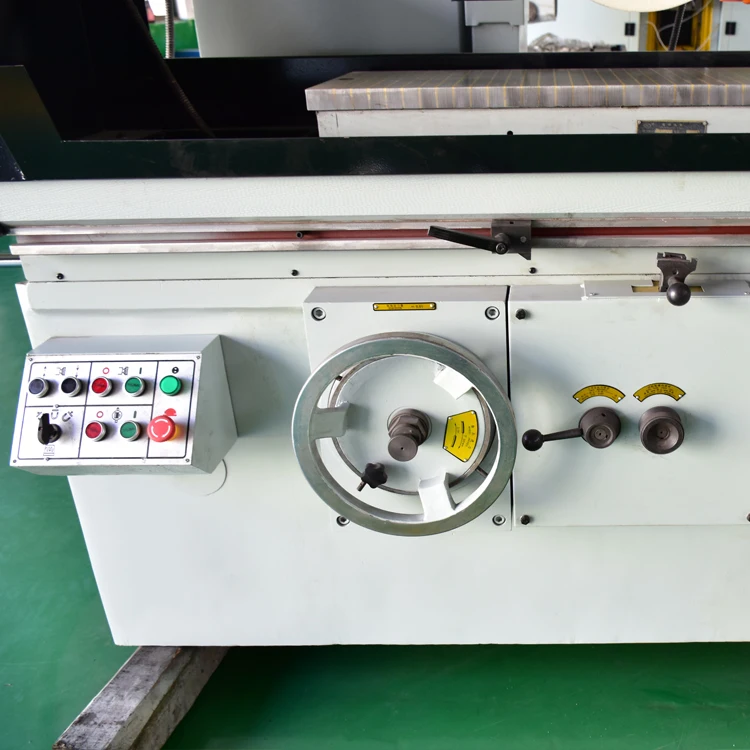

Vertical movement of the grinding head by hand wheel | Every lattice | mm | 0.01 | 0.01 | 0.01 | |||
Each turn | mm | 1.00 | 1.00 | 1.00 | ||||
Rapid lifting motor | Power | KW | 0.37 | 0.37 | 0.37 | |||
Speed | R/min | 1440 | 1440 | 1440 | ||||
Abrasive wheel dim (L x D x W) | mm | 350x127x40 | 350x127x40 | 350x127x40 | ||||
Speed of grinding wheel | r/min | 1440 | 1440 | 1440 | ||||
Total power of motor | KW | 9 | 10 | 12 | ||||
Power of spindle motor | KW | 5.5 | 5.5 | 5.5 | ||||
Power of oil pump motor | KW | 3 | 4 | 5.5 | ||||
Processing accuracy | mm | 0.015/1000 | 0.015/1000 | 0.015/1000 | ||||
Surface roughness | um | Ra:0.63 | Ra:0.63 | Ra:0.63 | ||||
Package(L x W x H) | mm | 2800x1750x2350 | 4500x2000x2350 | 5500x2000x2350 | ||||
Net weight | Kg | 3500 | 3550 | 3600 | ||||
Working precision | The parallelism of working surface to base level | mm | 300:0.005 | |||||
Surface roughness | μm | Ra0.32 | ||||||
Weight | Net | kg | 850 | |||||
Gross | kg | 950 | ||||||
Overall dimension (L*W*H) | mm | 1680*1140*1760 | ||||||
Package dimension(L*W*H) | mm | 1630*1170*1940 | ||||||
Product Description
Related Products
Company Information
Packaging & Shipping
FAQ
1. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. How can I choose the most suitable machines?
Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the
best model for you.
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
5. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
6. What is the package of the machines?
A: The machines standard will be packed in plywood case.
