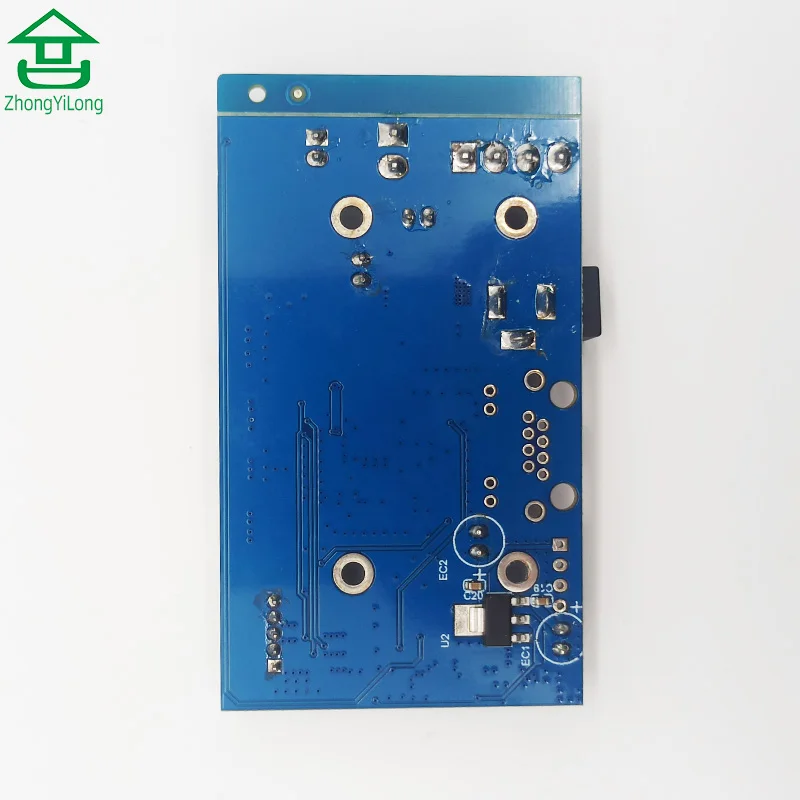

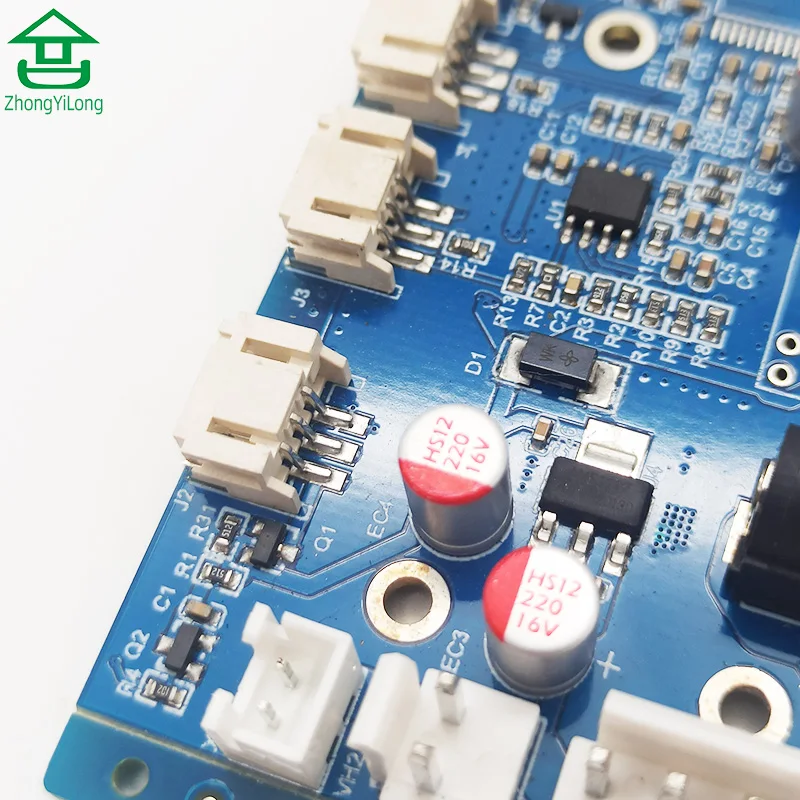

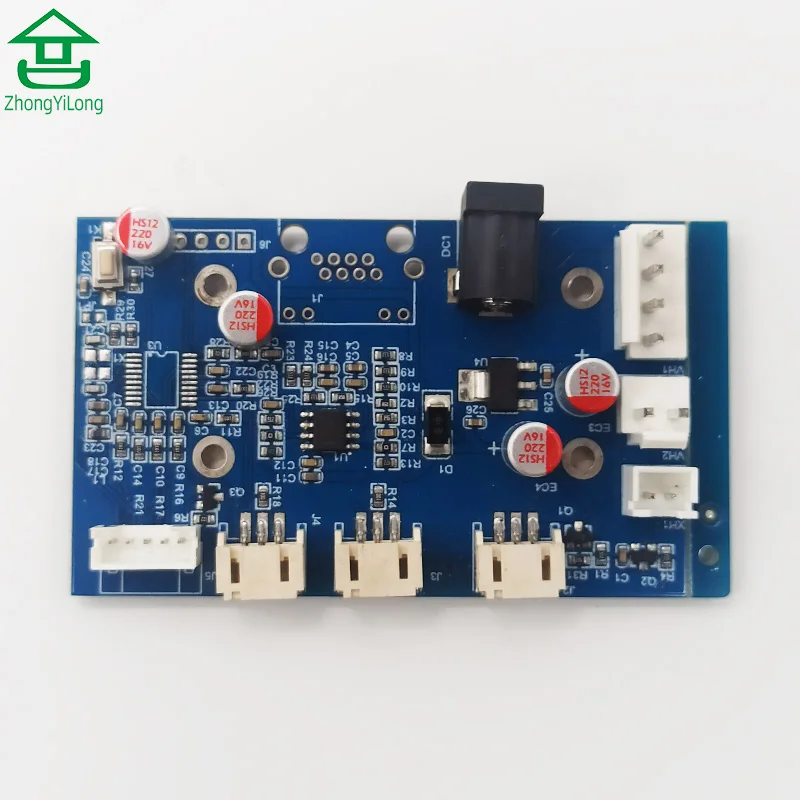

High Quality PCB Professional Custom Manufacturer ISO RoHS FR4 94V0 Printed Circuit Board OEM Assembly Design one stop service

Industrial Control PCBA Customize Multilayer Printed Circuit Board Multilayer PCB

PCB Assembly Capability

LEAD TIME FOR PRODUCTION ORDERS:

OEM/ODM/EMS Services for PCBA:

·        PCBA, PCB Board assembly: SMT & PTH & BGA

·        PCBA and enclosure design

·        Components sourcing and purchasing

·        Quick prototyping

·        Plastic injection molding

·        Metal sheet stamping

·        Final assembly

·        Test: AOI, In-Circuit Test (ICT), Functional Test (FCT)

·        Custom clearance for material importing and product exporting

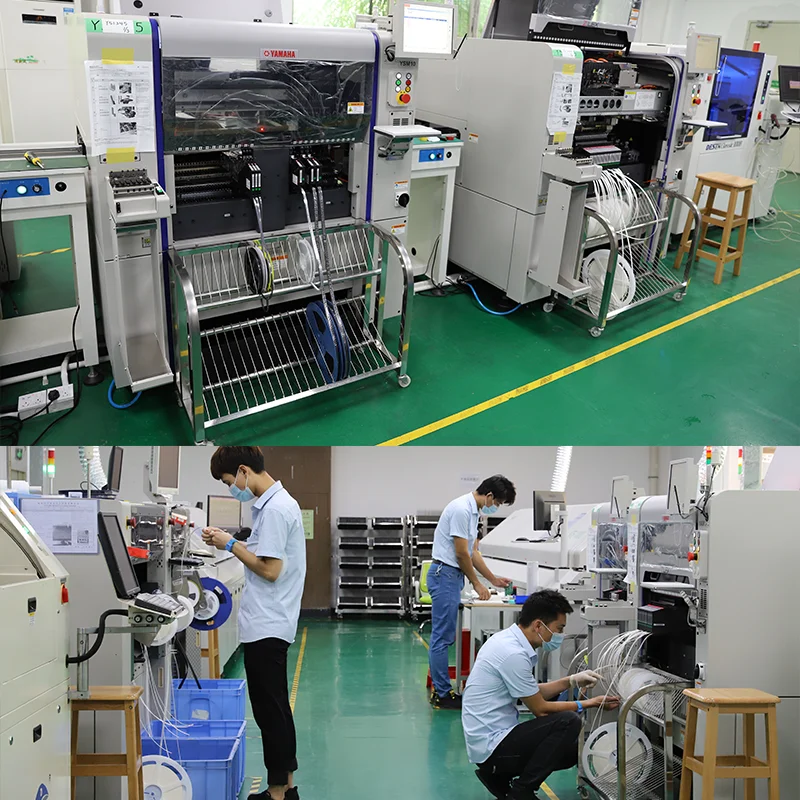

Capability - SMT

·        Lines                   9(5 Yamaha,4KME)

·        Capacity                 52 million placements per month

·        Max Board Size           457*356mm.(18”X14”)

·        Min Component size       0201-54 sq.mm.(0.084 sq.inch),long connector,CSP,BGA,QFP

·        Speed                   0.15 sec/chip,0.7 sec/QFP

Capability - PTH

·        Lines                   2

·        Max board width         400 mm

·        Type                   Dual wave

·        Pbs status               Lead-free line support

·        Max temp               399 degree C

·        Spray flux               add-on

·        Pre-heat                 3

Quotation information shall be provided

1. BOM list


2. Gerber file


3. Coordinate file


4. PCB file


5. You may choose to provide the sample when you have the conditions

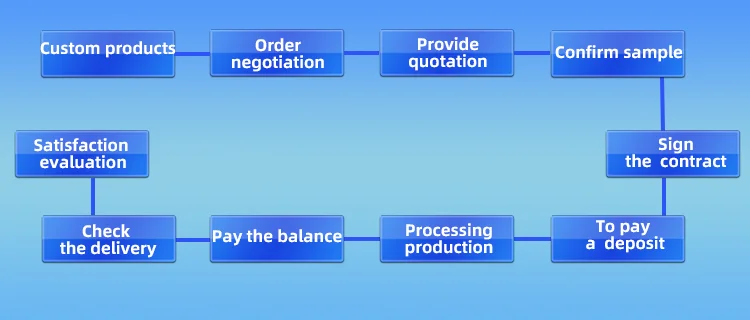

Customer transaction process

1. What professional service we offer ?
PCBA One-stop OEM service from PCB manufacture , Components sourcing , and then Assembly in house .

2. High quality control ability.
We provide 100% ICT Testing & 100% Function Testing for High quality control

3. MOQ.
No MOQ , and we provide samples testing before Mass production

4. Fast Delivery time.
PCB Samples or medium orders , 5-7 days, Mass production 2 weeks
PCBA samples or medium orders , 10-15days , Mass production 3 weeks.
