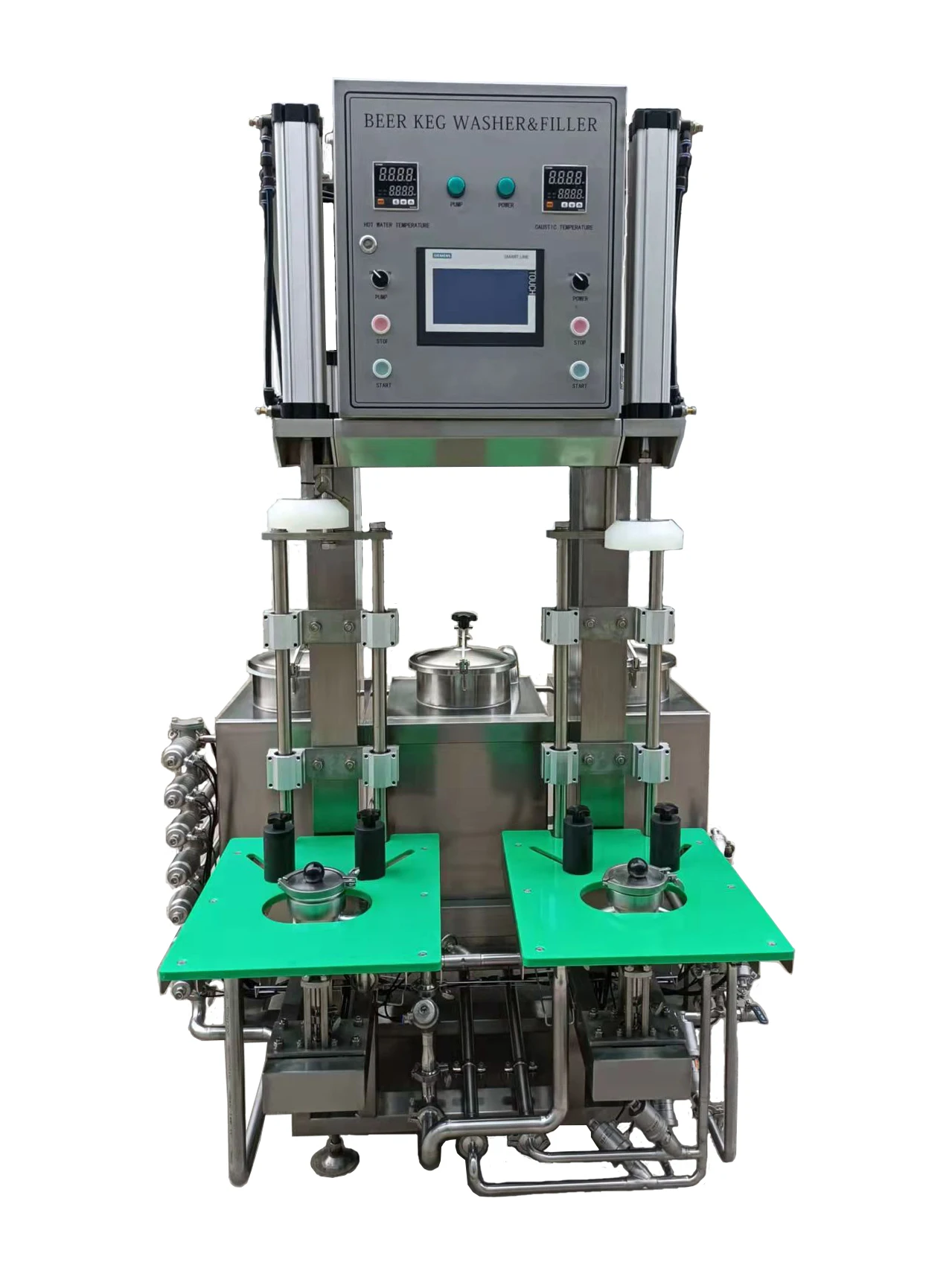

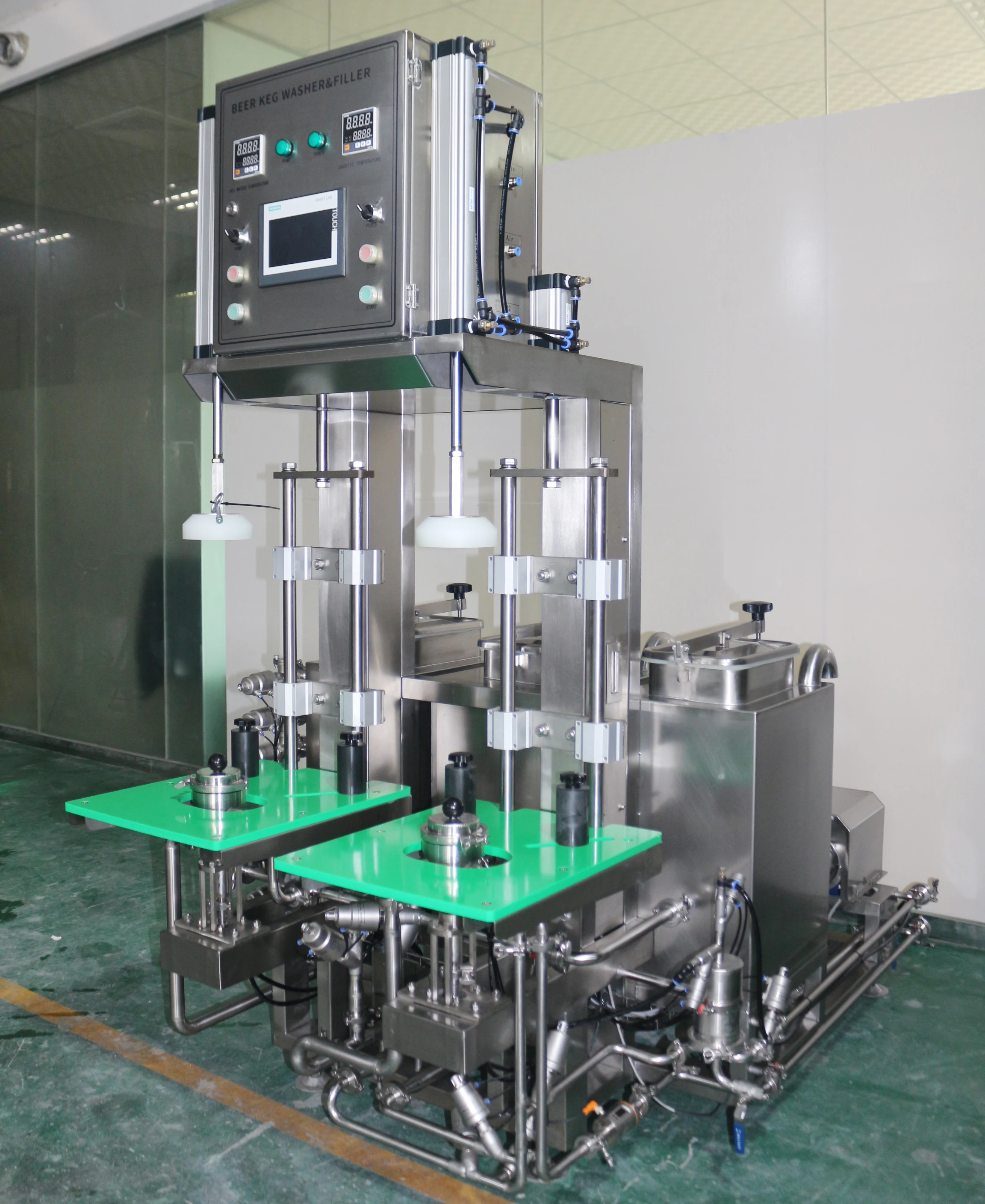

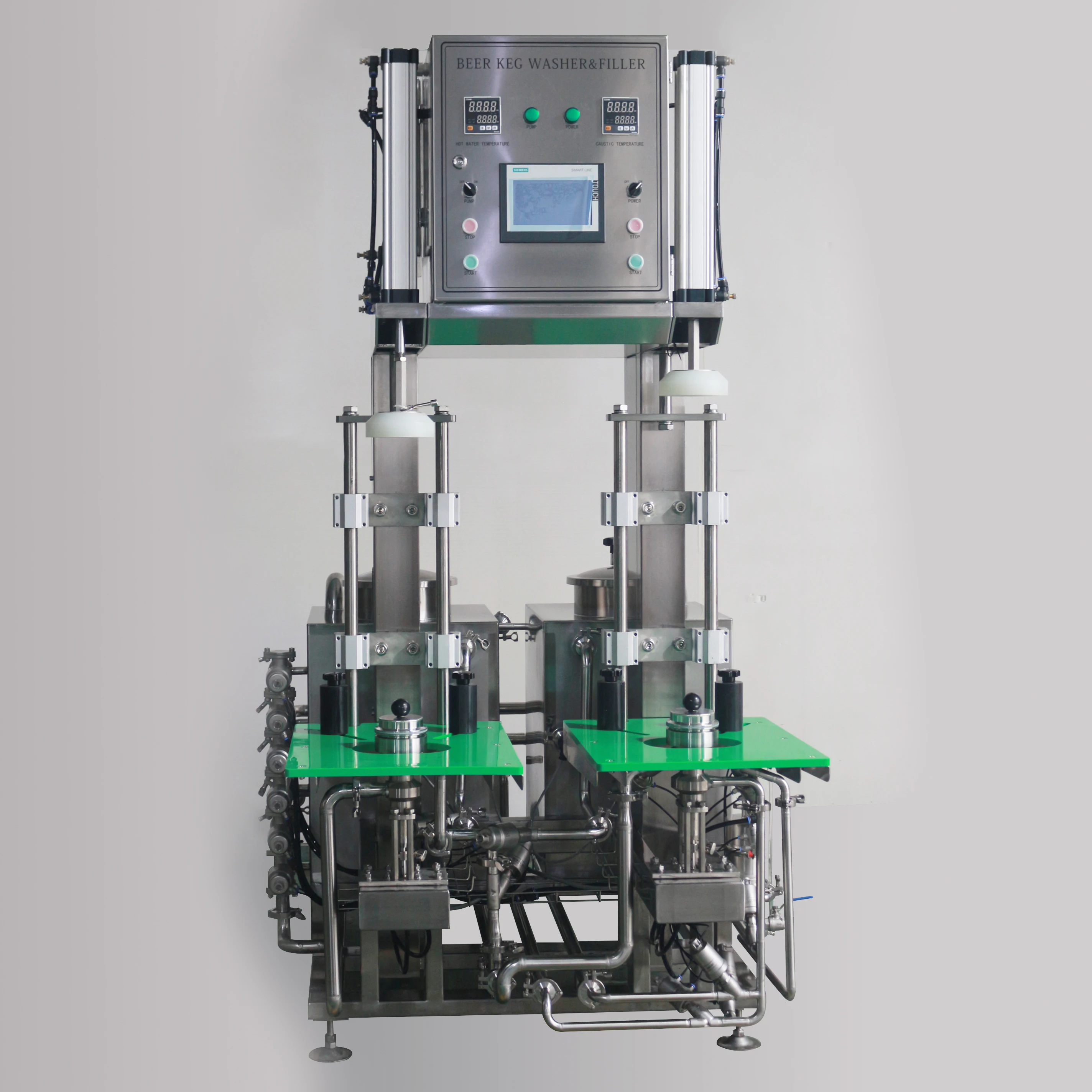

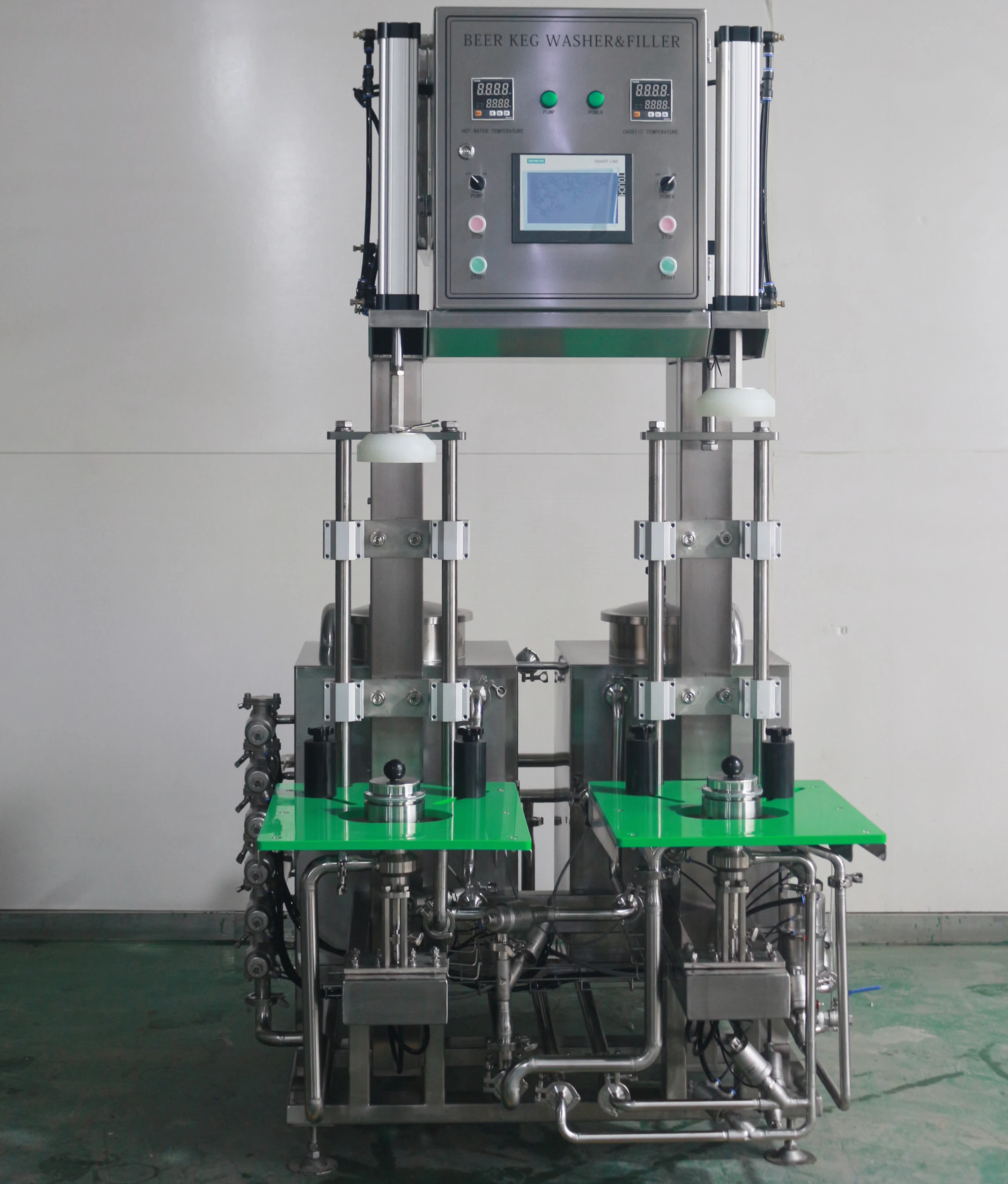

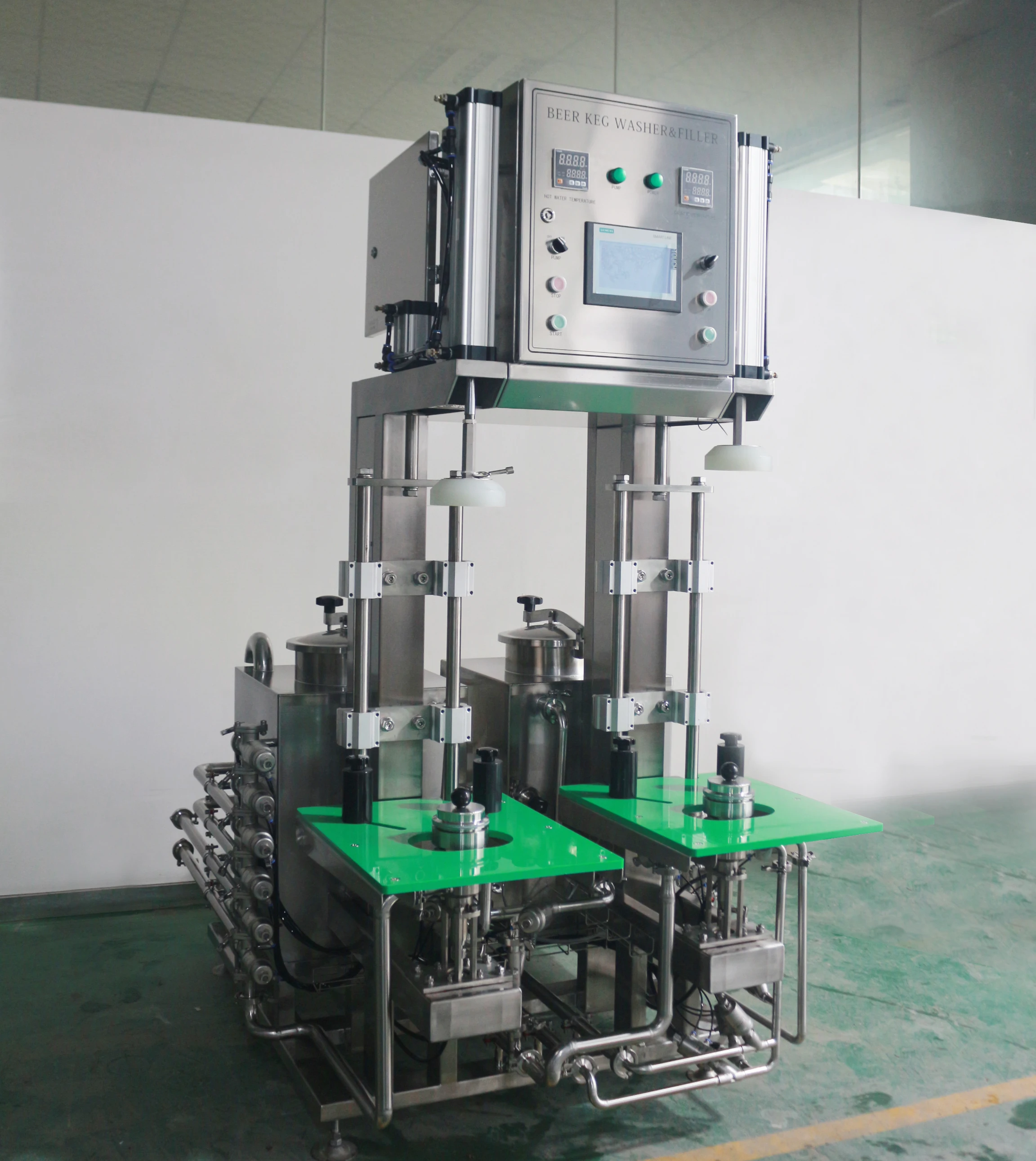

semi automatic beer keg washing and filling combine machine 2 heads

Product Overview

Description

Main Technical Parameters

Equipment Outer Dimensions	1200*1600*2000mm
Net Weight	380KG
Power	Steam Heating: 3KW  Electric Heating: 18KW
Production Capacity	30-40 kegs/H
Applicable Kegs	Keg with Diameter 250-500mm,  Height 360-600mm
Tank Heating Way	Steam Heating or electric heating
Table Board	lifting
Power Supply Voltage	AC 380V  50HZ (customized)



Main function and feature

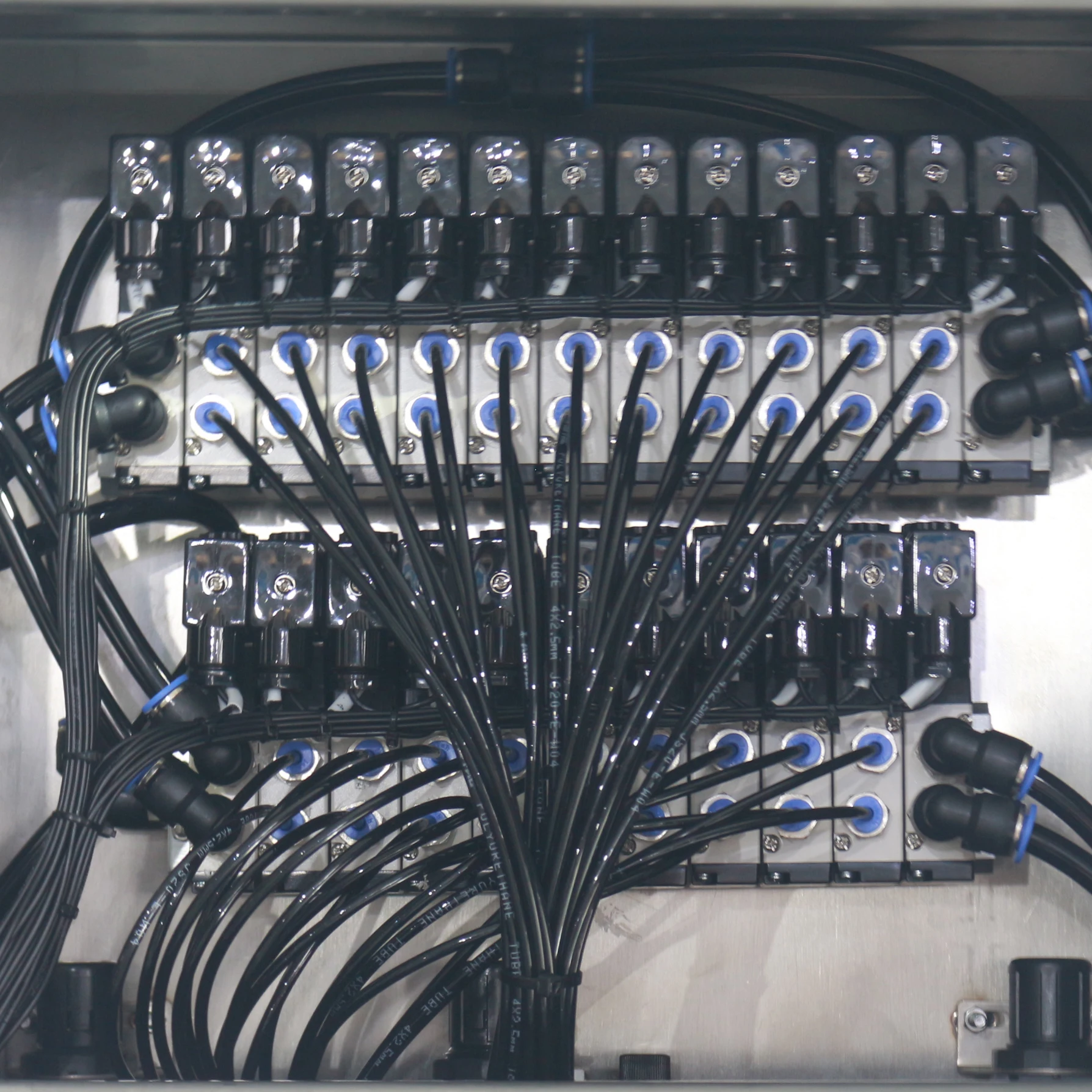

1,Automatic control by PLC, all parameters can be adjusted through touch screen.

2,Cleaning and filling process can be finished in this machine at one time.

3,With unique pressure maintaining system,performance stable and reliable, beer loss minimum.

4,With CIP automatic cleaning system

5.Table board is lifting, and convenient to take kegs, labor-saving and time-saving.



Working process

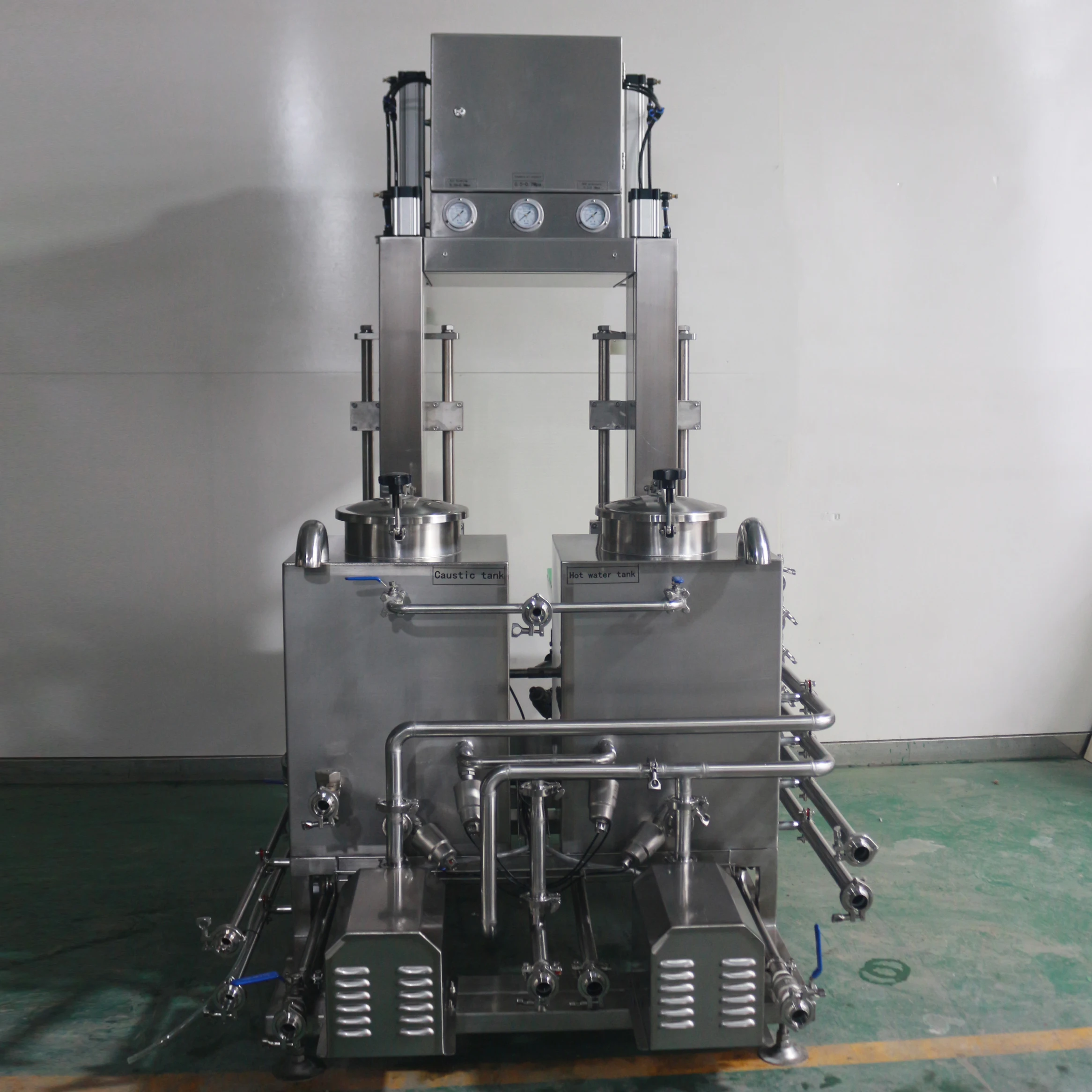

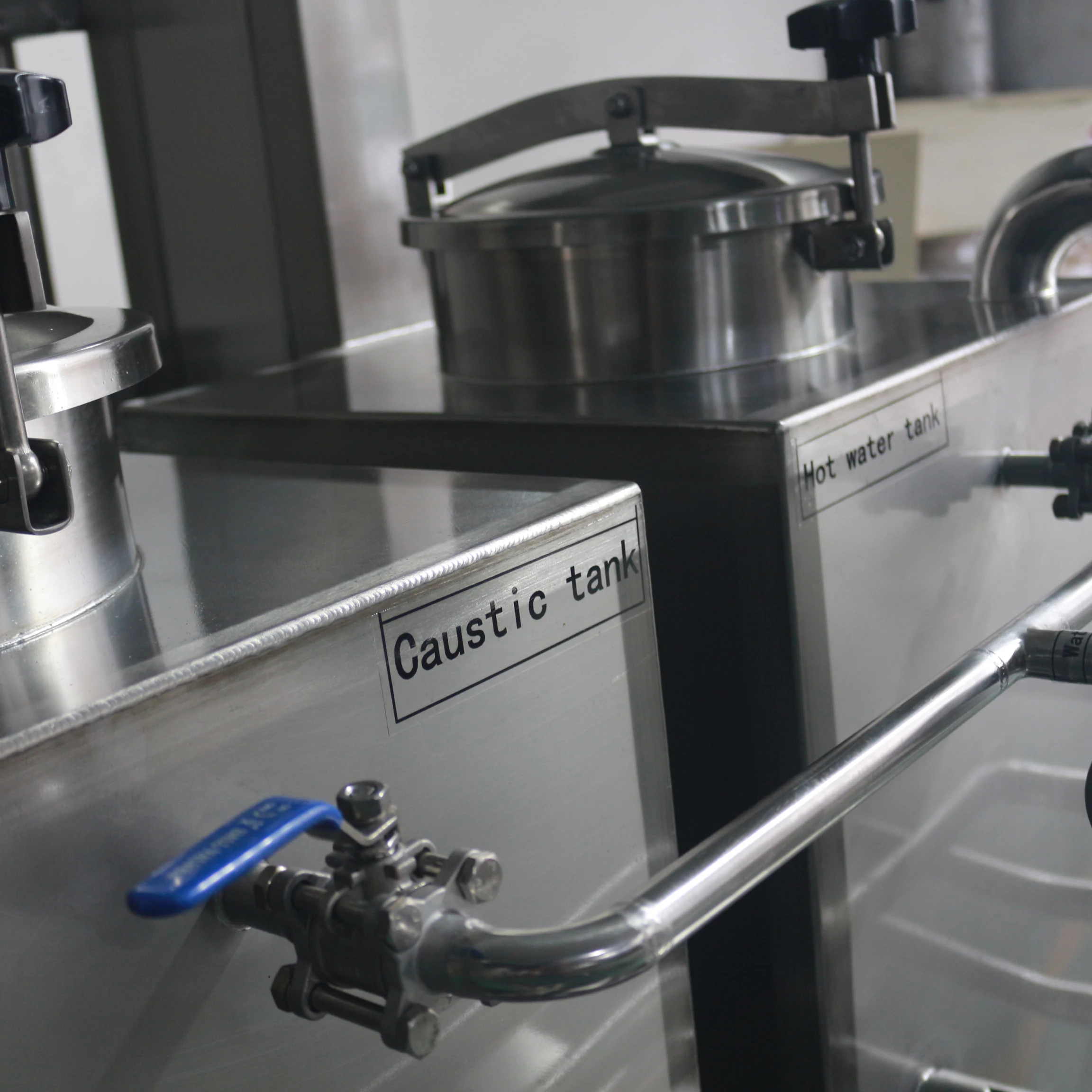

Washing process (with 2 tanks ,steam heating)

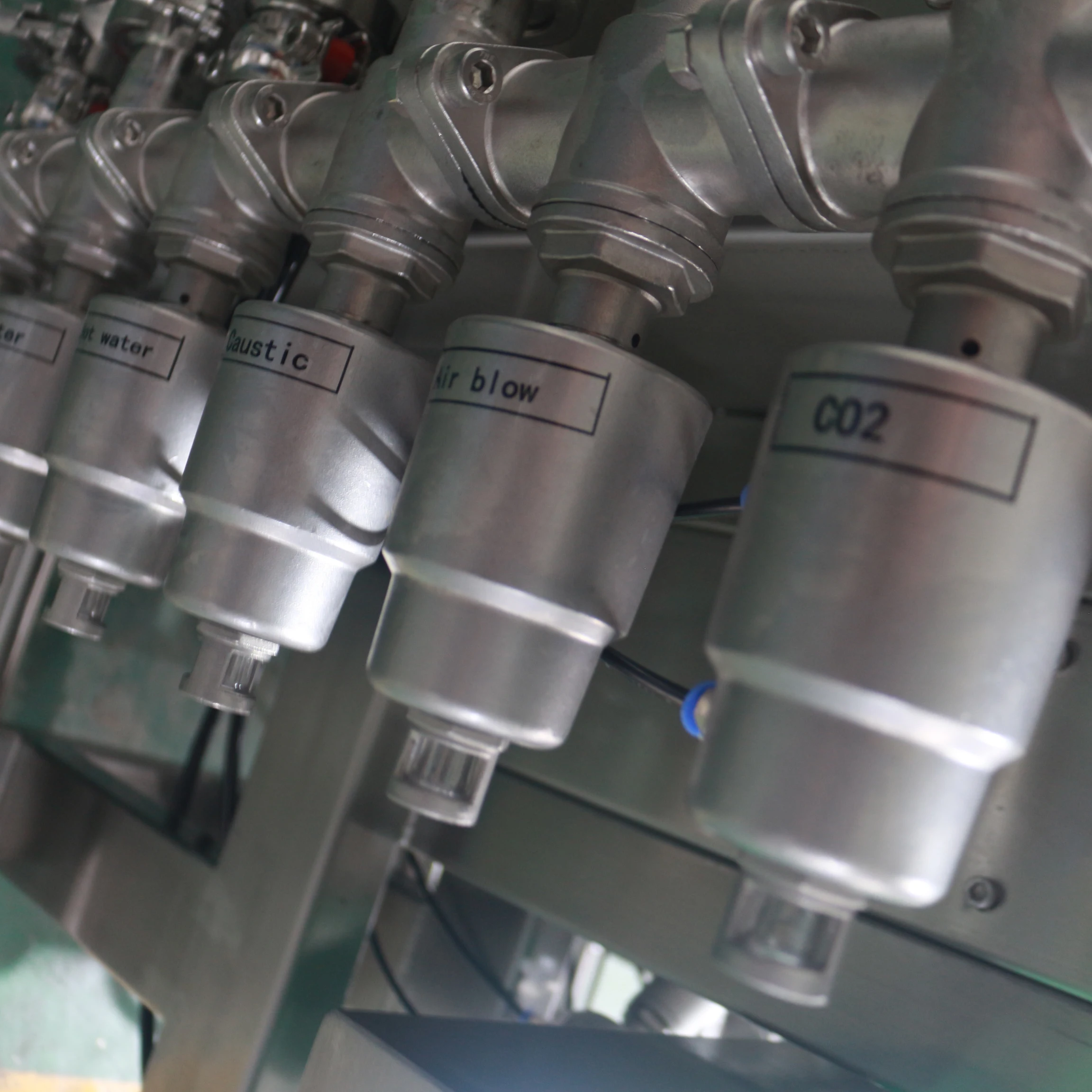

cylinder pressing→ air blowing (draining residue) → water wash (drain)→ air blowing (drain) → caustic wash → air blowing (caustic recycle) → hot water wash→ air blowing (drain) →hot water wash (drain)→ air blowing (drain) →steam sterilization (drain)→CO₂  replace steam (drain)→ water wash ( hot water recycle)→ Co2 blowing (hot water recycle)→CO₂pressurize



Filling process

Cylinder pressing →steam blow keg spear (drain)→drain→Co2 pressurize (evacuate)→fill (evacuate)→ hot water wash keg spear (drain) →Co2 blow (drain) →drain



Process of CIP

Connect the CIP liquid to the beer inlet→ connect the CIP outlet to the drainage or CIP recycling pipe→ install the blind flange to the filling station→ click "CIP" on touch screen →press "start" on the filling station →press "stop" when finish the CIP.

Note: After CIP process, please connect co2 to the beer inlet to blow out some residual CIP liquid inside of the beer pipe.
