Sanitary Stainless Steel Food Grade Tri Lobe Filling Machine Shampoo Chocolate High Viscosity Honey Rotary Lobe Pump
- Category: >>>
- Supplier: Wenzhou,Ace,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Sanitary Stainless Steel Food Grade Tri-Lobe Filling Machine Shampoo Chocolate High Viscosity Honey Rotary Lobe Pump
20 Years Of Experience. Reasonable Price And Best Service, CE Certificated Products.15-30 day fast delivery.Please Contact us for the offer.
Video
Products Description

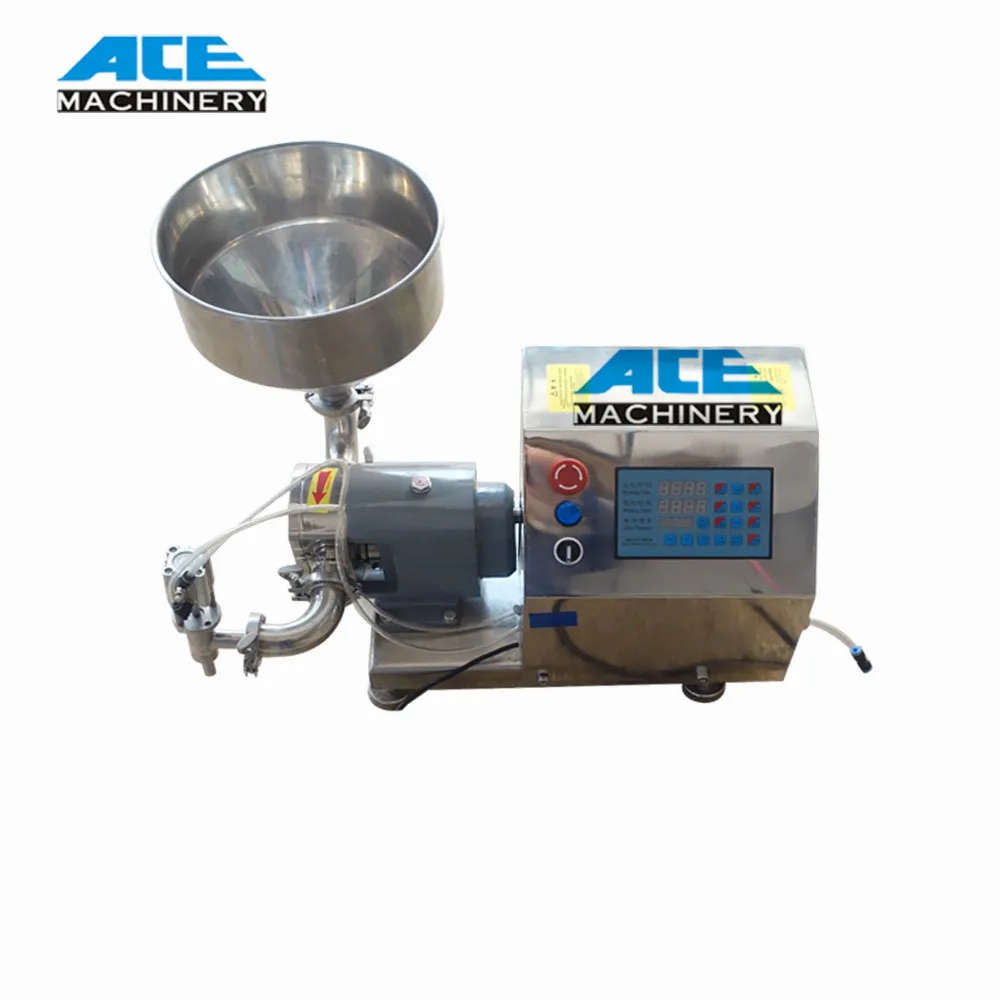

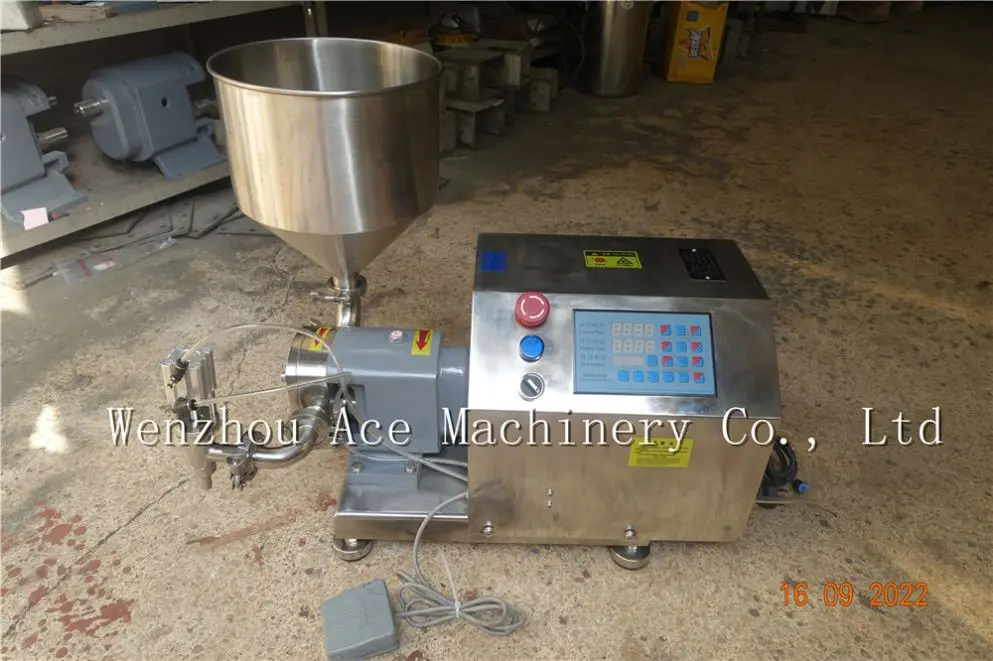

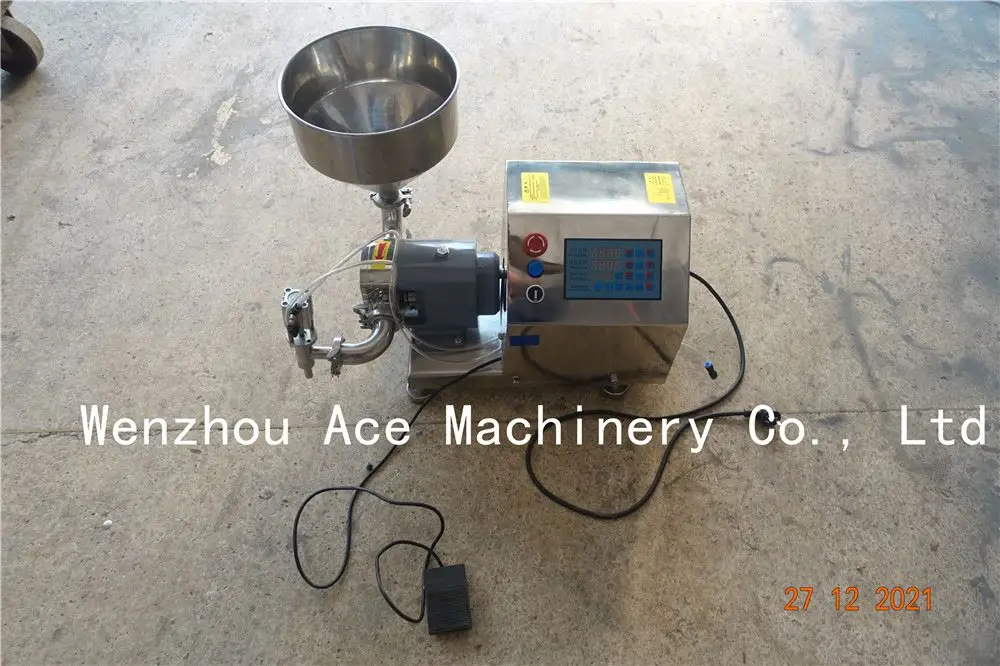

Equipment Description
The rotor pump filling machine has advantage of high accuracy when filling thick liquid or paste like jam,noodle pulp,meat
stuffing,tomato paste etc.It is widely used in food,cosmetics,daily chemical industries.
stuffing,tomato paste etc.It is widely used in food,cosmetics,daily chemical industries.
Features:
1. Equipped with rotor pump, the machine is small in size and powerful in function.
2. Large filling range, filling range from 5ml to 30L.
3. The machine is made of 304 stainless steel, witch is food greade.
4. Servo motor drives rotor pump, high filling accuracy.
5. PLC and touch screen control panel, easily adjust various filling parameters.
2. Large filling range, filling range from 5ml to 30L.
3. The machine is made of 304 stainless steel, witch is food greade.
4. Servo motor drives rotor pump, high filling accuracy.
5. PLC and touch screen control panel, easily adjust various filling parameters.
Model | ACE-GZJ-A1 |
Filling range | 100ml-10L |
Rate of flow | 250ml/s |
Filling Accuracy | ±0.5% |
Air Pressure | 0.4-0.6MPa |
Required Air Compressor | ≥1.5KW 65L |
Reference Rotating Speed
Material | Rotating Speed | Material | Rotating Speed | Material | Rotating Speed |
Noodle pulp | 4-6 | Peanut butter | 2-8 | Bean Paste | 5-10 |
Industrial butter | 3-4 | Chili sauce | 5-10 | Jam | 10-15 |
Juice | 10-20 | Chocolate | 10-15 | laundry detergent | 10-20 |
Cooking oil | 10-20 | Milk | 10-20 | Toothpaste | 10-15 |
Cream | 10-18 | Salad dressing | 5-10 | Hand Cream | 10-20 |
Cheese | 5-10 | Honey | 5-10 | Resin | 2-6 |
Tomato Paste | 10-20 | hotpot condiment | 5-10 | white emulsion | 2-6 |
Application:
Servo filling machine is used for shampoo, detergent, toothpaste, glycerin, pigments, additives, adhesives, chemical
fibers:polyester fiber, man-made fiber, polypropylene fiber.
Coating: paint, ink, resin, chocolate, syrup, cream, mayonnaise, jam
Cosmetics: creams and lotions, hair sprays, essential oils.
fibers:polyester fiber, man-made fiber, polypropylene fiber.
Coating: paint, ink, resin, chocolate, syrup, cream, mayonnaise, jam
Cosmetics: creams and lotions, hair sprays, essential oils.
Details Images

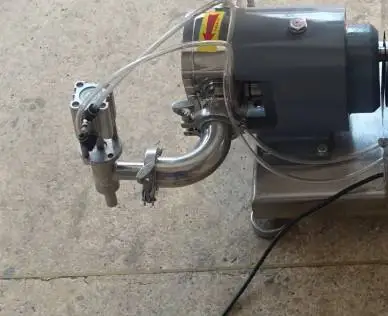

Rotor pump
Rotary pump filling has the advantages of small size, fast filling speed, and wide adjustable range of filling volume. Note:
Idling will damage the rotor pump
Idling will damage the rotor pump
PLC control panel
PLC and touch screen control panel, easily adjust various filling parameters.

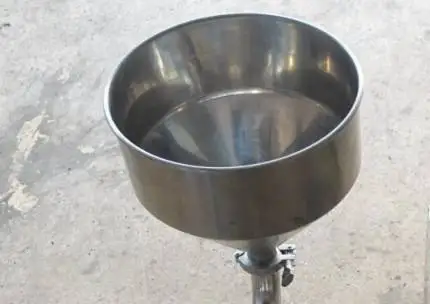

Hopper
The hopper is made of 304 stainless steel, food grade
If the material has low viscosity, it can also be connected to the pipeline
If the material has low viscosity, it can also be connected to the pipeline

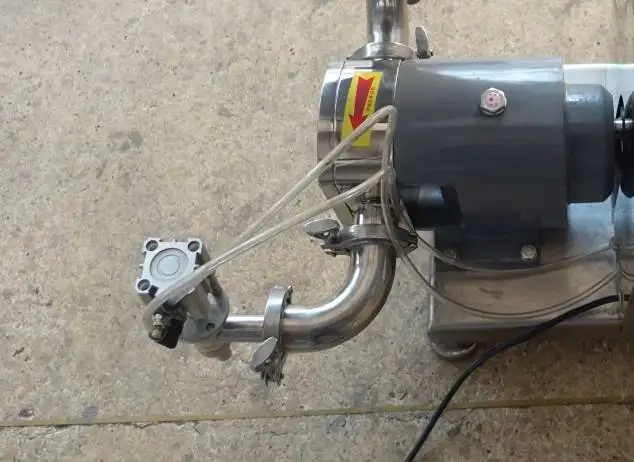

Filling nozzle
Filling nozzle with anti-drip function
Made of 304 stainless steel, food grade
Made of 304 stainless steel, food grade
Certifications
FAQ
Q | Are you trade or manufacturer? | ||||||
A | We are a factory with an international sales company specialized in support for global distributors. | ||||||
Q | Can you provide instant technical consulting services? | ||||||
A | We are able to discuss technical details and offer suggestions over the phone in English. You can get the answers in minutes, instead of days. | ||||||
Q | What's the difference between Ready-To-Ship and Customized products? | ||||||
A | Some of RTS standard products are in stock and ready to ship in 2-3 days. We can also quick design and make the drawings for customer requirements, then begin the production. | ||||||
Q | What is the payment terms? | ||||||
A | We accept Alibaba Trade Assurance Order, also can T/T and L/C. | ||||||
Q | How to choose the shipment way? | ||||||
A | It is according to the order quantity, delivery time, costs and customs policy etc. (Or decide by customers) | ||||||
Q | How about the after-sales service? | ||||||
A | Fast after-sales support. Our products have a one-year warranty and free permanent consulting services. | ||||||
