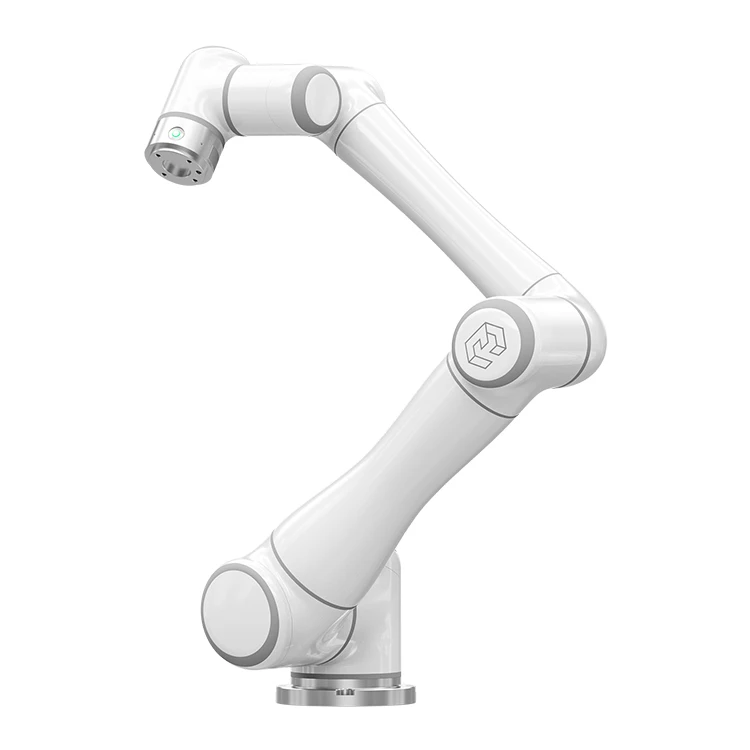

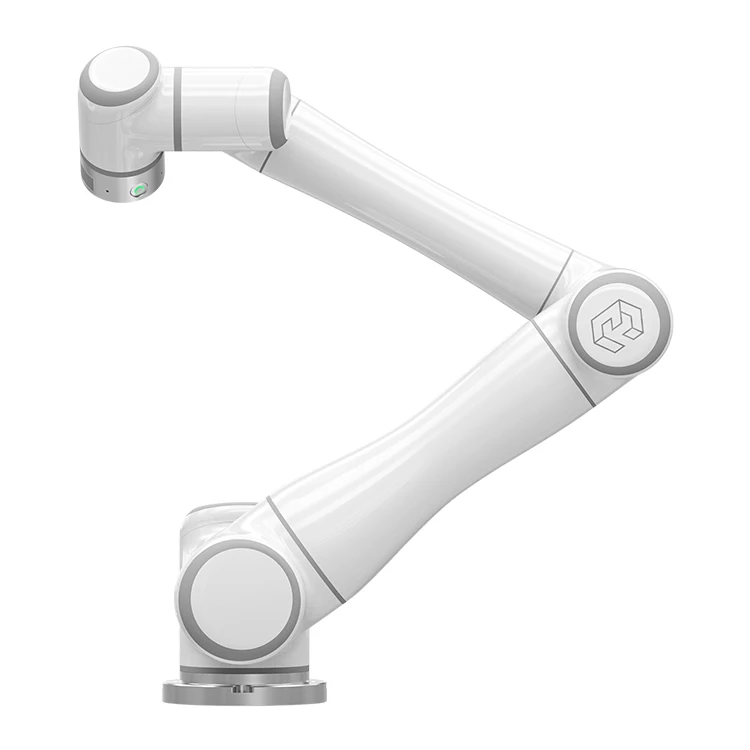

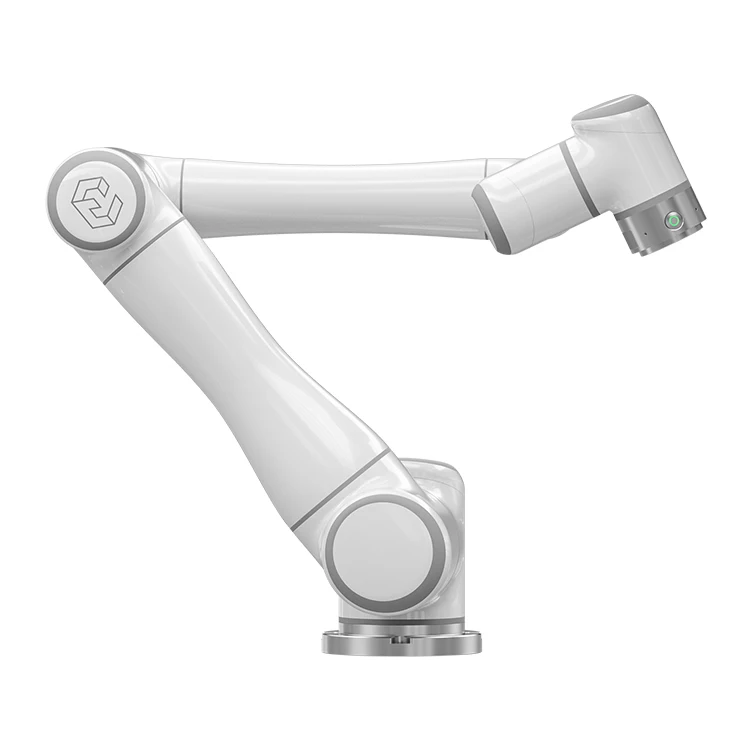

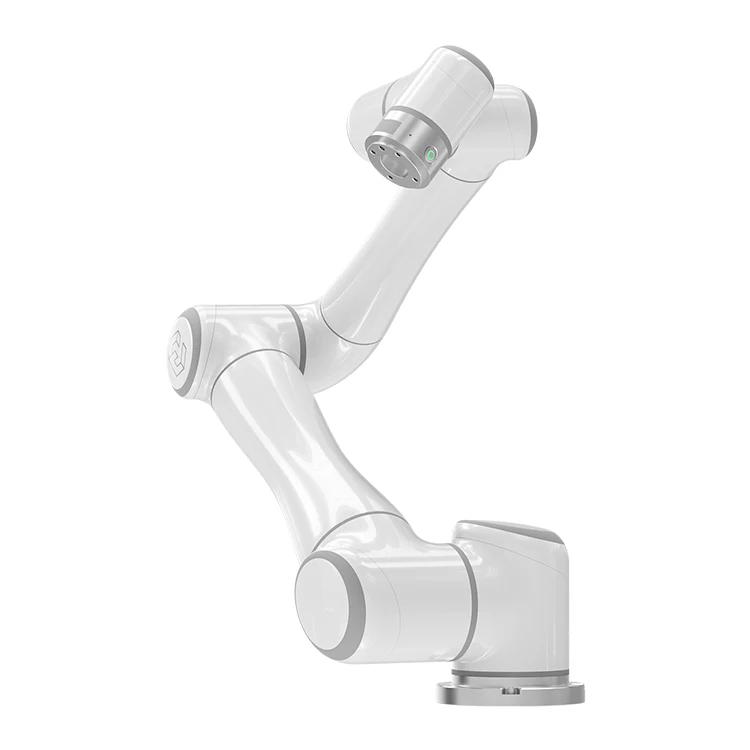

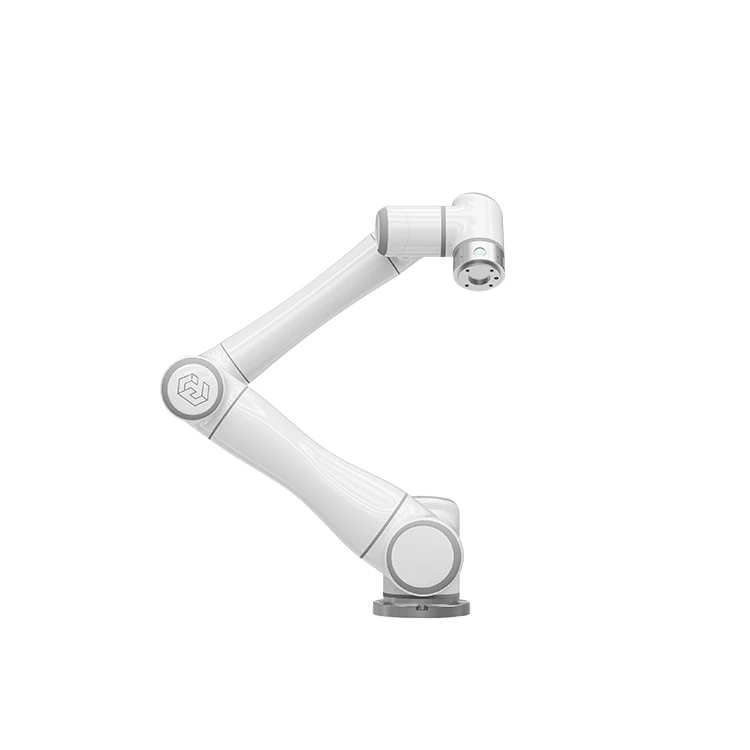

High Quality Best Selling Elite For Pick And Place Automation Robot Universal Cobot Arm
- Category: >>>
- Supplier: Shanghai Elite Robot Co. Ltd.
Share on (1600626994263):
Product Overview
Description
Specifications
Model | EC63 | EC66 | EC612 | ||||
Degrees of freedom | 6 | ||||||
Weight | 13kg | 17.5kg | 33.5kg | ||||
Payload | 3kg | 6kg | 12kg | ||||
Working radius | 624mm | 914mm | 1304mm | ||||
Repeatability | ±0.03mm | ||||||
Joints range | ±360° | ||||||
Max joints speed | Joint 1 | 144°/s | 144°/s | 120°/s | |||
Joint 2 | 144°/s | 144°/s | 120°/s | ||||
Joint 3 | 180°/s | 180°/s | 144°/s | ||||
Joint 4 | 224°/s | 224°/s | 180°/s | ||||
Joint 5 | 224°/s | 224°/s | 180°/s | ||||
Joint 6 | 224°/s | 224°/s | 180°/s | ||||
TCP speed | 2.0 m/s | 2.8 m/s | 3.2 m/s | ||||
IP rating | IP54 | ||||||
Ambient temperature | 0-50 ℃ | ||||||
Relative humidity | 5％～95％(No Condensation) | ||||||
Power consumption | 150w | 250w | 500w | ||||
Mounting | Any angle | ||||||
High speed digital input | N/A | ||||||
Tool I/O | 2 x DI, 2 x DO, 1 x AI, 1 x AO | ||||||
Tool I/O power supply | 24 V, 2A (two pin mode), 1A (one pin mode) | ||||||
Tool communication | RS485 | ||||||
Footprint | Ø 128 mm | Ø 150 mm | Ø 200 mm | ||||
Cable length | 5.5m | ||||||
Power supply | 48V | ||||||
Compliance standard | ISO 10218 | ||||||
Tool plate connector | 12-pin design | ||||||
Status Indicator | End IO connector light | ||||||
Product Description
Company Profile
Why Choose Us
Certifications
Exhibition
FAQ
Q: What are the models of ELITE Cobots?
A:ELITE robots are currently available in three models, EC63, EC66 and EC612, corresponding to the robot load capacity of 3kg, 6kg and 12kg respectively. The spherical radius the three models can reach is 624mm, 914mm and 1304mm.
Q:What certificates does ELITE EC series robot have?
A:The EC series robots have acquired EU CE certification, Korean KC certification, and China CR certification. The relevant
requirements of the EU CE directive that the product is in line with are:
Low-voltage Directive (LVD) 2006/95/EC
Machinery Directive (MD) 2006/42/EC
Electro Magnetic Compatibility Directive (EMC) 2004/108/EC
EN ISO 10218-1: 2011
EN ISO 12100: 2010
EN ISO 13849-1: 2008
EN 60204-1: 2006+A1: 2009.
Q:How should I select the model for my application?
A:The end-effector to be installed by the robot and the weight and center of mass of the object to be grabbed, the range of work space required by the robot, the ambient temperature and humidity and IP protection level of the robot, the speed of the robot motion, and repeatability accuracy of robot and other related issues.
Q:How does ELITE Cobot do to secure and increase safety?
A:There are four measures that ELITE Cobot usesto ensure safety, the first one is state-of-art light-weight arm with integrated design, the second one is round edge and no-pinching point on exterior body, the third one is high accurate dynamics-based collision-detection algorithms and mechanical yield design.
Q:Does your robot have encoders at the output of the gearbox?
A:Yes, the encoders have been deployed at the output of the gearbox.
Q:What are the design features of ELITE robot?
A:ELITE robot features 6-axis robotic arms, similar to a man's arm, and each joint adopts the modular design.
Q:How long is the robot warranty period? What is the mode of transportation?
A:Elite Robot provides a one-year warranty. Products are transported by air.
Q:How to contact us?
A:Website, https://www.elibot.cn/en/#/
A:ELITE robots are currently available in three models, EC63, EC66 and EC612, corresponding to the robot load capacity of 3kg, 6kg and 12kg respectively. The spherical radius the three models can reach is 624mm, 914mm and 1304mm.
Q:What certificates does ELITE EC series robot have?
A:The EC series robots have acquired EU CE certification, Korean KC certification, and China CR certification. The relevant
requirements of the EU CE directive that the product is in line with are:
Low-voltage Directive (LVD) 2006/95/EC
Machinery Directive (MD) 2006/42/EC
Electro Magnetic Compatibility Directive (EMC) 2004/108/EC
EN ISO 10218-1: 2011
EN ISO 12100: 2010
EN ISO 13849-1: 2008
EN 60204-1: 2006+A1: 2009.
Q:How should I select the model for my application?
A:The end-effector to be installed by the robot and the weight and center of mass of the object to be grabbed, the range of work space required by the robot, the ambient temperature and humidity and IP protection level of the robot, the speed of the robot motion, and repeatability accuracy of robot and other related issues.
Q:How does ELITE Cobot do to secure and increase safety?
A:There are four measures that ELITE Cobot usesto ensure safety, the first one is state-of-art light-weight arm with integrated design, the second one is round edge and no-pinching point on exterior body, the third one is high accurate dynamics-based collision-detection algorithms and mechanical yield design.
Q:Does your robot have encoders at the output of the gearbox?
A:Yes, the encoders have been deployed at the output of the gearbox.
Q:What are the design features of ELITE robot?
A:ELITE robot features 6-axis robotic arms, similar to a man's arm, and each joint adopts the modular design.
Q:How long is the robot warranty period? What is the mode of transportation?
A:Elite Robot provides a one-year warranty. Products are transported by air.
Q:How to contact us?
A:Website, https://www.elibot.cn/en/#/
