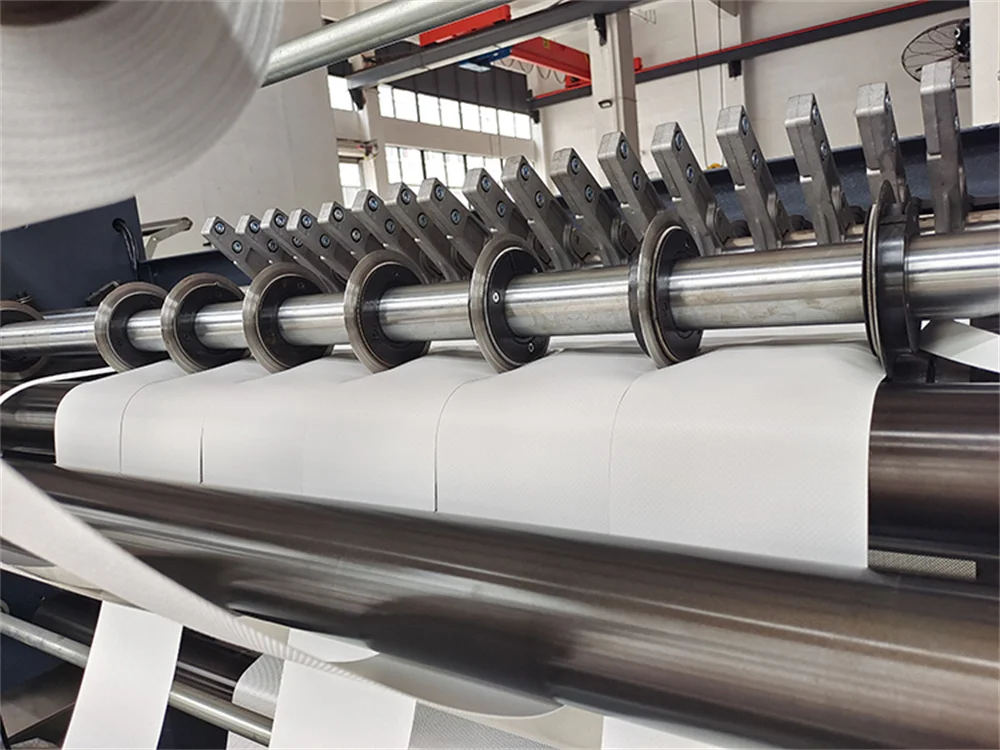

Slitter Rewinder Machine High Speed Paper Slitting Rewinding Machine
- Category: >>>
- Supplier: Jiaozuo Hanfa Industrial Co. Ltd.
Share on (1600627070486):
Product Overview
Description
Products Description
Scope of application
The main electric control system adopts center computer control(PLC), person-machine interface operation, dynamic display.Equipped with PLC and touch screen, all the parameter are displayed on the monitor. You only need to setup the material roll diameter and thickness, the PLC will give a proper parameters for machine running automatically.
Technical Parameter
Coil width | 700mm | 1100mm | 1300mm | |||
Unwinding diameter | Φ600mm | Φ600mm | Φ600mm | |||
Rewinding diameter | 2x Φ420mm | 2xΦ420mm | 2xΦ420mm | |||
Slitting Specifications | 20-700mm | 20-1100mm | 20-1300mm | |||
Slitting speed | 10-150m/min | 10-150m/min | 10-150m/min | |||
Correction accuracy | ±0.5mm | ±0.5mm | ±0.5mm | |||
weight | 1100kg | 1300kg | 1500kg | |||
Dimensions | 1250x2100x1300mm | 1250x2300x1300mm | 1250x2500x1300mm | |||

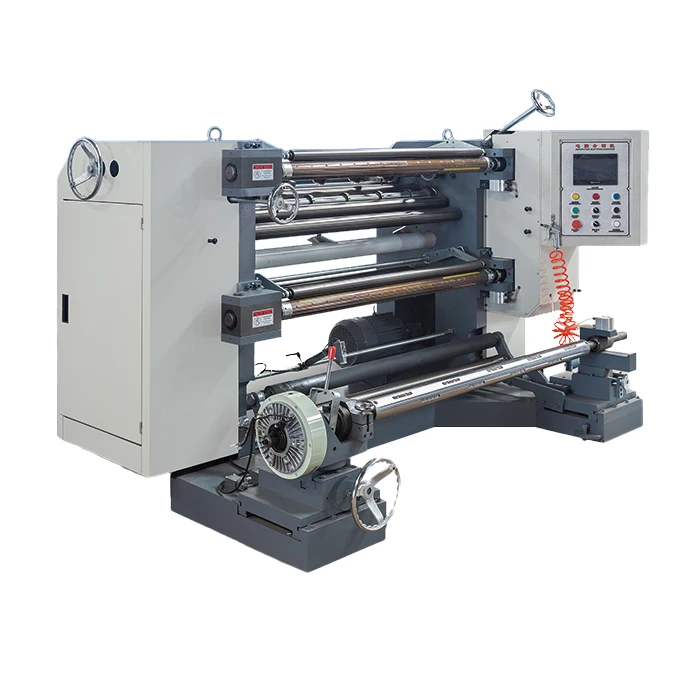

Performance and Features
1. This machine is a vertical slitting machine.
2. The main control system PLC + man-machine interface taper tension / independent microcomputer, control screen, easy to operate.
3. Rewinding and unwinding, magnetic tension control.
4. The meter is automatically recorded when the material is sufficient, and the unwinding photoelectricity corrects the deviation.
5. Equipped with side waste air conveying or coiling device.
6. Double inflatable shafts are used for winding, and the slitting end faces are flat rolled.
7. A circular knife should be purchased for aluminum foil paper slitting.
2. The main control system PLC + man-machine interface taper tension / independent microcomputer, control screen, easy to operate.
3. Rewinding and unwinding, magnetic tension control.
4. The meter is automatically recorded when the material is sufficient, and the unwinding photoelectricity corrects the deviation.
5. Equipped with side waste air conveying or coiling device.
6. Double inflatable shafts are used for winding, and the slitting end faces are flat rolled.
7. A circular knife should be purchased for aluminum foil paper slitting.

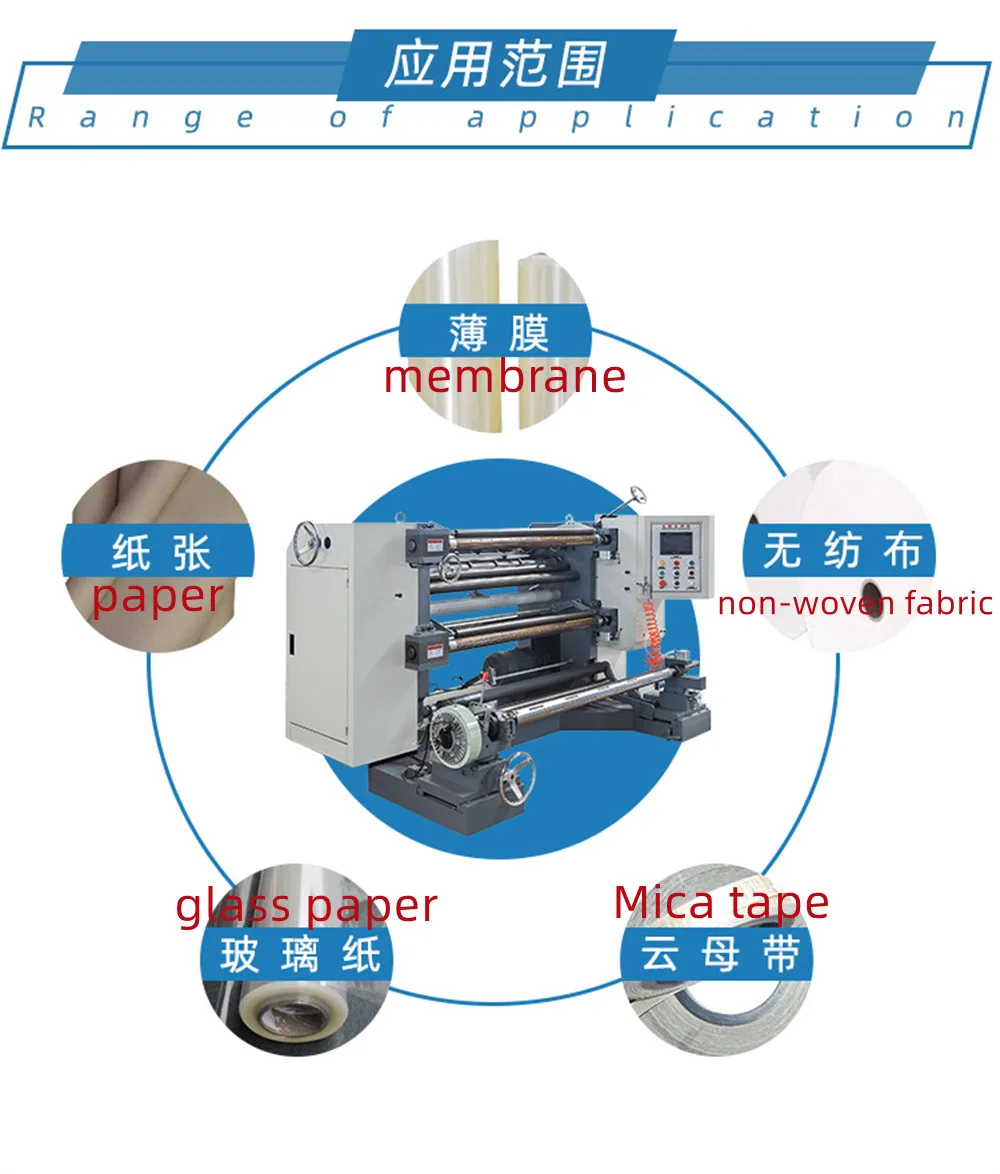

Application range
If you need Papermaking equipment, please contact us, this is my WhatsApp. Or you can directly click the blue font below to send an inquiry, we will help you make more money.
WhatsApp：+8617739786040
E-mail：maichuan@hanfagroup.com
WhatsApp：+8617739786040
E-mail：maichuan@hanfagroup.com
Company Introduction
FAQ
1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.
2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.
3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.
4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.
5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.
6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
