Product Overview

Description

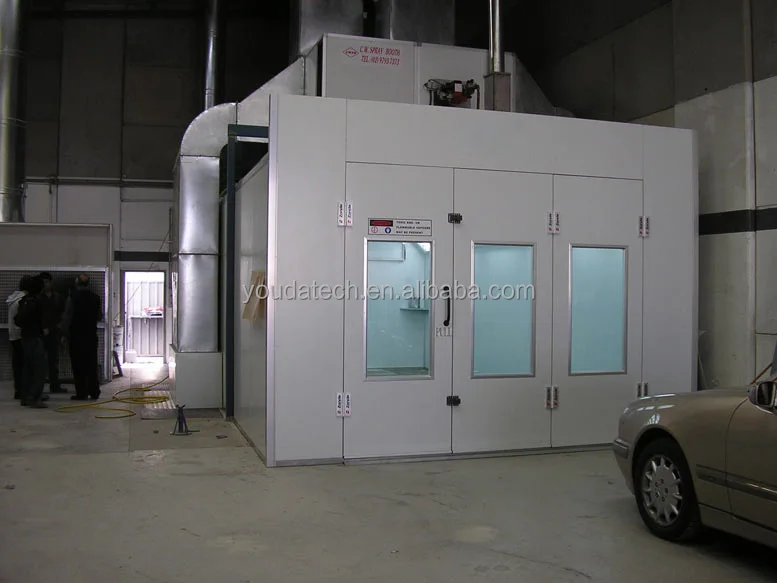

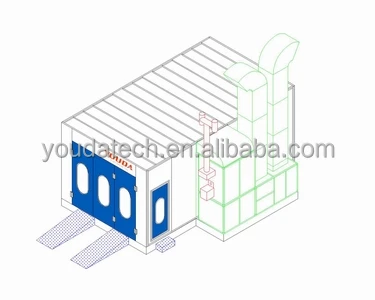

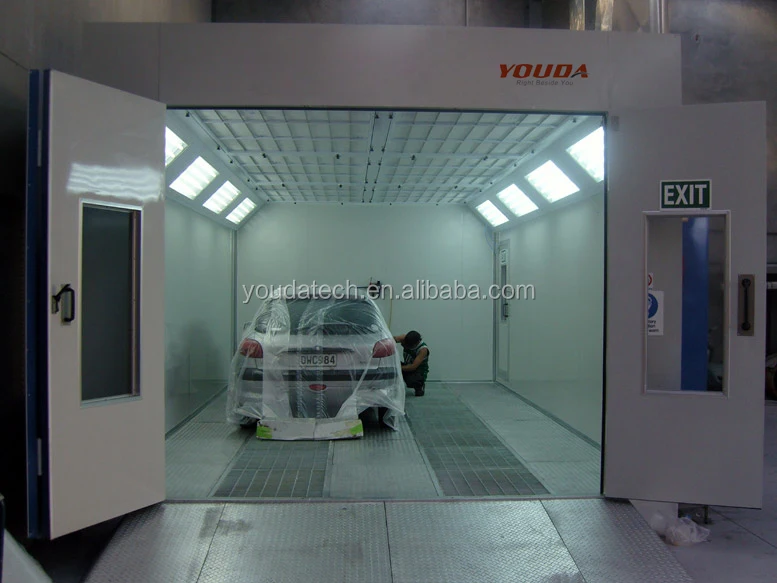

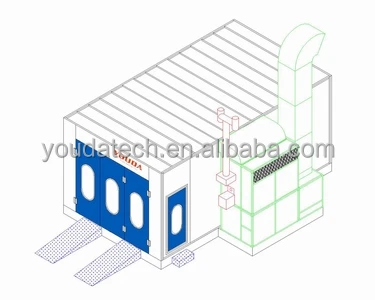

Spray booth/Car paint spray booth



Features:

Booth Cabin:

Double skinned walls are solid interlock panel construction, pre-coated finish and prevented with plastic film.

Entrance Doors:

Insulated, rubber gasket sealed doors with positive internal lock bar in threshold base and solid header base. Standard tri-fold.

Personnel Door:

Equipped with safety glass observation window, rubber sealed.





Note for all types of Paint Booth: Rock wool / glass wool wall panels, extra side lights, extra accelerate blower&nozzle system for water-based paint, gas burner, any other special designs are available on request.



Inside Dimensions:	6900(L)X3900(W)X2650(H) mm
Outside Dimensions:	7000(L)X5400(W)X3400(H) mm
Wall Panels:	Thickness: 50mm, double skined with polystyrene insulation(EPS) inside, tongue and groove interlock construction
Roof Panels:	Galvanized steel sheet;  C-shape ceiling filter holders, powder coated.
Doors:	3-fold main doors, 3000(W)x2600(H) mm. One personnel door, 800(W)x2000(H) mm
Basement and Floor:	300mm high raised metal- base with 2/4 pcs ramps outside,  2 rows of gratings and 3 rows of indented plates.
Generator Setting	Aluminum ally frame
Intake:	Turbo fan, capacity:20000cmh,motor:5.5kW, direct drive	Centrifugal fans, capacity:20000cmh, motor: 2x4kW
Extract:	Turbo fan, capacity:20000cmh,motor:5.5kW, direct drive	Centrifugal fan, capacity:20000cmh, motor:5.5kW
By-Pass:	Pneumatic damper from spraying to baking cycle
Heating System:	Italy Riello RG20 oil burner, capacity 200000Kcal/h
Filter System:	4 sorts of filters: prefilter, ceiling filter, floor paint-stop filter, activated carbon filter.
Lighting:	8 units 4×36W inclined ceiling lights, 8 units 2×18W  horizontal side lights.  Philips tubes, Illumination≥1000Lux.

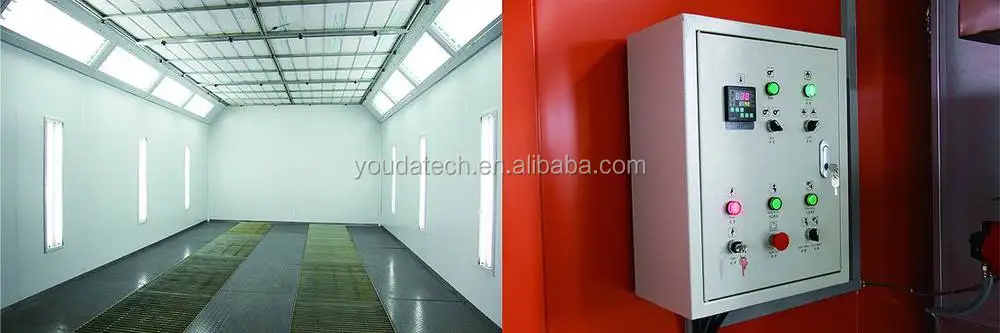

Control System:	Reliable components, digital temperature readout, spray and bake temperature settings, bake timer,spray and bake switch, pressure gauge, emergency stop.
